Newstripe FieldLiner 3 User manual

Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
FieldLiner 3™
Product Manual

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
TABLE OF CONTENTS
Precautionary Warning…....... Page 1
Assembly……………………………...Page 2-3
Operation …………………………….Page 4
Cleaning Procedures…………..…Page 5
Maintenance……………………….. Page 5
Parts List with Images…..……… Page 6
Troubleshooting…………………...Page 7
Warranty………………………………Page 8
Thank you!And Congratulations on
your purchase of the FieldLiner 3™
paint marking machine.
With proper care, service and clean
up, the Newstripe FieldLiner 3™is
designed to give you years of trouble
free, accurate line marking. It is
important to familiarize yourself with
the machine before start-up. Please
take the time to THOROUGHLY READ
THIS MANUAL. This will guarantee a
good start using your FieldLiner 3™
and a longer, trouble-free machine
life.
Please check the serial number on
your unit. This Manual is for units with
serial number 1017649 and above
only.

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
PRECAUTIONARY WARNING!
Please read and understand all operation instructions as
detailed in this manual. Failure to follow specified instructions
may result in equipment damage or serious injury to personnel
up to and including death!
ALWAYS STRAIN THE PAINT. Field marking paint often has
oversized material, lumps, and debris. If not strained, these
contaminates will be drawn into the hoses and gun, and may
restrict paint flow.
THIN THE PAINT, as per manufacturer’s recommendations prior
to use. Almost all field-marking paints MUST BE THINNED before
use with the FieldLiner 3™. These paints are typically thinned at a
minimum ratio of 1:1. Follow suggested paint thinning
guidelines per the paint manufacturer’s instructions.
NEVER perform maintenance on the machine while the system is
pressurized.
NEVER use any kind of tool to tighten the pump.
NEVER use tools or excessive force to close pump lid.
NEVER pressurize the unit above 35 psi.
Please note that modifying, changing or servicing any portion of
the machine, system or components outside of the procedures
and parts outlined in the owner’s manual will VOID the
warranty.
Always consult your Facility Safety and/or Personnel
Department for specified safety protocols prior to operating
this equipment.
Page 1 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917

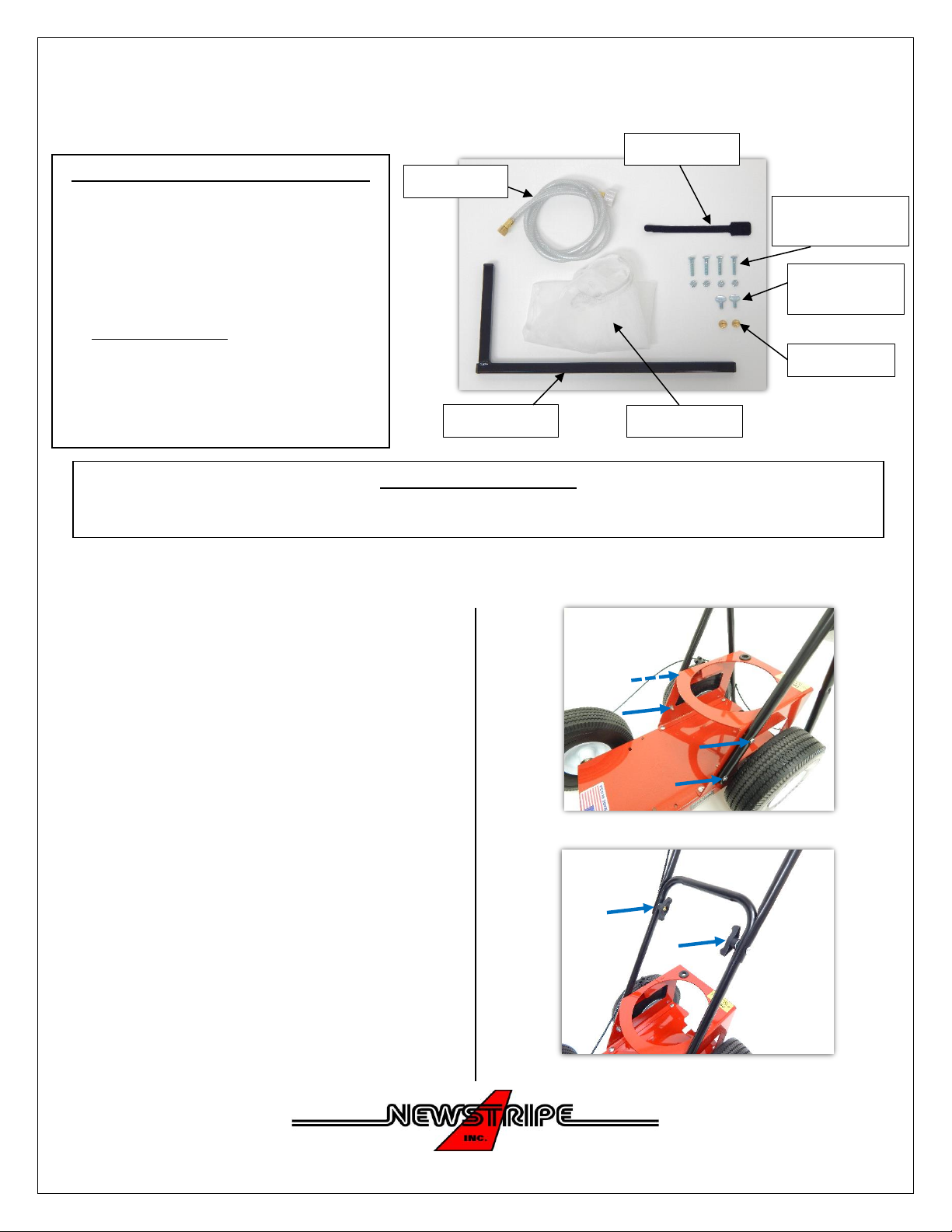

ASSEMBLY
1. Remove all parts from the packaging boxes.
2. Loosen the wing knobs on the handle assembly
and then rotate the handles to partially unfold
them.
3. Position the handle assembly at the back of the
chassis with the cable to the right and the top of
the handle resting on the floor.
4. Align the holes in the handles with the holes in
the chassis riser (2 positions available). Insert the
four 1/4” bolts through the holes and then
tighten the four 1/4” lock nuts onto them (Pic 1).
5. Rotate the top section of the handle upward to
the unfolded position and then tighten the wing
knobs (Pic 2).
6. Insert the support arm into the receiver tube on
the right-hand side of the chassis and then just
through the left side. Secure the support arm
with the two 1/4” thumb screws through the
threaded holes above it.
7. Slide the gun mount with the gun, onto the
support arm upright. Secure the gun mount with
the large star knob (Pic 3).
Required Items and Tools
7/16” Wrenches and adjustable Crescent Wrenches (2 required)
Your FieldLiner 3™ box should include:
Chassis assembly
Handle assembly
Paint tank assembly
Paint Spray Hose
Spray Gun
Spray Gun Mount with Star Knobs
Support Arm
Parts bag containing:
Support Arm Thumb Screws
Different sized spray nozzles
Handle mounting hardware
Cloth/mesh strainer
Owner’s manual
Pic 1
Pic 2
Paint Hose
Support Arm
Mesh Strainer
Velcro Strap
Handle Mounting
Hardware
Spray Nozzles
Support Arm
Thumb Screws
Page 2 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917

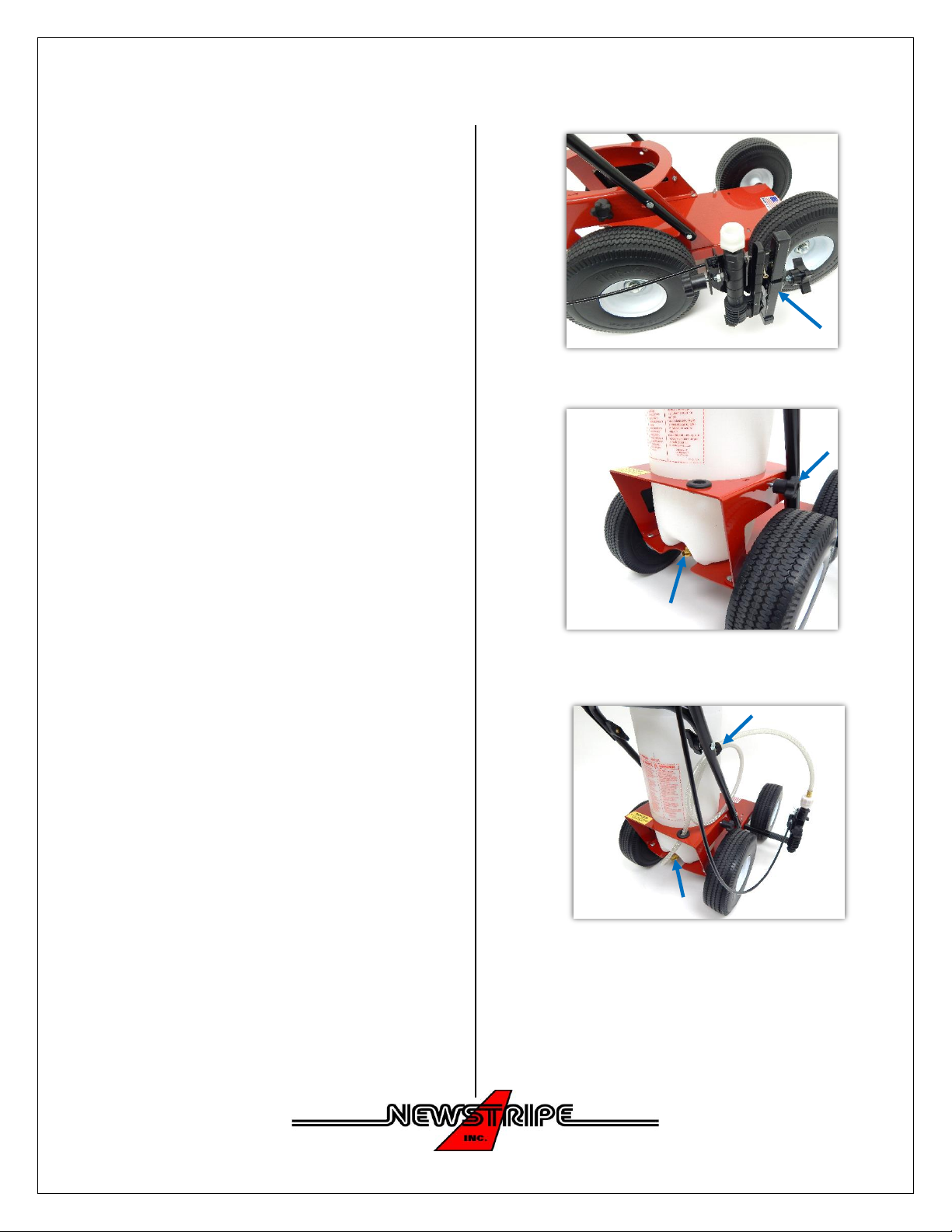

8. Loosen the star knob on the right side of the
chassis riser. Set the tank assembly into the riser
with the outlet fitting in the bottom to the rear
(fitting fits in the slot of the chassis base). Secure
the tank by tightening the star knob on the right
side of the chassis riser (Pic 4).
9. Feed the small end of the spray hose through the
grommet in the chassis riser and then connect it
to the outlet fitting in the bottom of the tank at
the back of the machine and lightly tighten with a
wrench (Pic 5).
10. Coil the hose assembly, leaving enough hose to
connect to the spray gun and then secure the
hose to the inside of the handle with the
provided Velcro strap. Connect the hose to the
spray gun by hand (Pic 5).
Pic 3
Pic 5
Pic 4
Page 3 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
OPERATION
1. Open the paint tank by turning the pump/lid
handle counter-clockwise until it is loose, and
then remove the pump from the tank.
2. Replace the pump/lid assembly into the tank.
Turn the pump handle clockwise until snug. DO
NOT OVER TIGHTEN. Never use any kind of tool
to tighten the pump lid.
3. Operate the hand pump up and down until the
desired pressure is reached. The pressure used
is dependent on many factors, including type of
paint, viscosity, ambient temperature, etc. A
little experimenting will be necessary, but the
normal pressure range is 20 - 30 psi. NEVER
PRESSURIZE ABOVE 35 PSI.
4. Check for any leaks. The pump/lid should seal
with normal hand pressure. Never use pry bars,
other tools, or excessive force to close. If
necessary, clean the gasket and gasket seating
area and lubricate or replace the gasket.
5. Position the spray nozzle where the painted line
is to begin. Pull the control lever. An even flow
of paint should spray from the nozzle. It might
be necessary to thin the paint or increase the
pressure to get the proper pattern.
6. The spray pattern can be adjusted from 2" to 6"
by moving the spray gun up or down on the
support arm
7. When low on paint the unit will begin to
“sputter" and paint will come out unevenly. To
refill, turn the knob counter-clockwise 1/4 turn
on the pressure relief valve to release the tank
pressure. Turn the pump/lid handle counter-
clockwise and remove it from the tank. Refill
the tank with properly thinned, strained paint
and re-pressurize
9. To use the spray gun as a hand sprayer, remove
the gun from the gun mount and un-strap the
hose from the handle. Depress the lever on the
gun to spray. After use, coil the hose and secure
it to the handle with the Velcro strap and then
return the gun to the gun mount.
OPERATIONAL NOTES!
If this is your first time, use water to practice.
NEVER Pressurize above 35 psi.
Never use any kind of tool to tighten the pump lid.
Lubricate the lid gasket with petroleum jelly.
Never try to open the tank when it is pressurized.
ALWAYS strain the paint.
Page 4 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
CLEANING PROCEDURES
CLEAN AFTER EVERY USE!
1. When your painting job is complete, empty the tank of unused paint. To do this, relieve the tank pressure by turning
the knob 1/4 turn counter-clockwise on the pressure relief valve.
2. Disconnect the paint hose at the spray gun and place the open end in a container you wish to save the paint in.
Pressurize the tank to 2-3 psi and the paint will be pumped from tank into the container. After the paint has been
drained, reconnect the hose to the spray gun.
3. Pour 1-2 gallons of water into the tank and swab the inside with a rag. Re-pressurize the tank and force the liquid
through the system by pulling the control lever. Repeat the above procedure until no residue of paint is shown in
the liquid. Operate the spray nozzle until the gun is cleared of all paint.
4. Remove the nozzle cap and nozzle from the spray gun and clean them thoroughly.
5. Clean and rinse the exterior of the machine. Pressure washing is not recommended. Use soapy water (dishwashing
detergent or Simple Green) once each week.
MAINTENANCE
ITEM
CHECK
MAINTENANCE ACTION
Paint Tank and Lid Gasket
After every use
Clean the paint tank and lubricate
the lid gasket
Hoses and Nozzle
After every use
Clean and replace as needed. Run
soapy water through the system for
additional cleaning
Handles
Monthly
Check handles for tightness to frame
**For additional instructions please contact Newstripe, Inc. at 800-624-6706
Page 5 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917

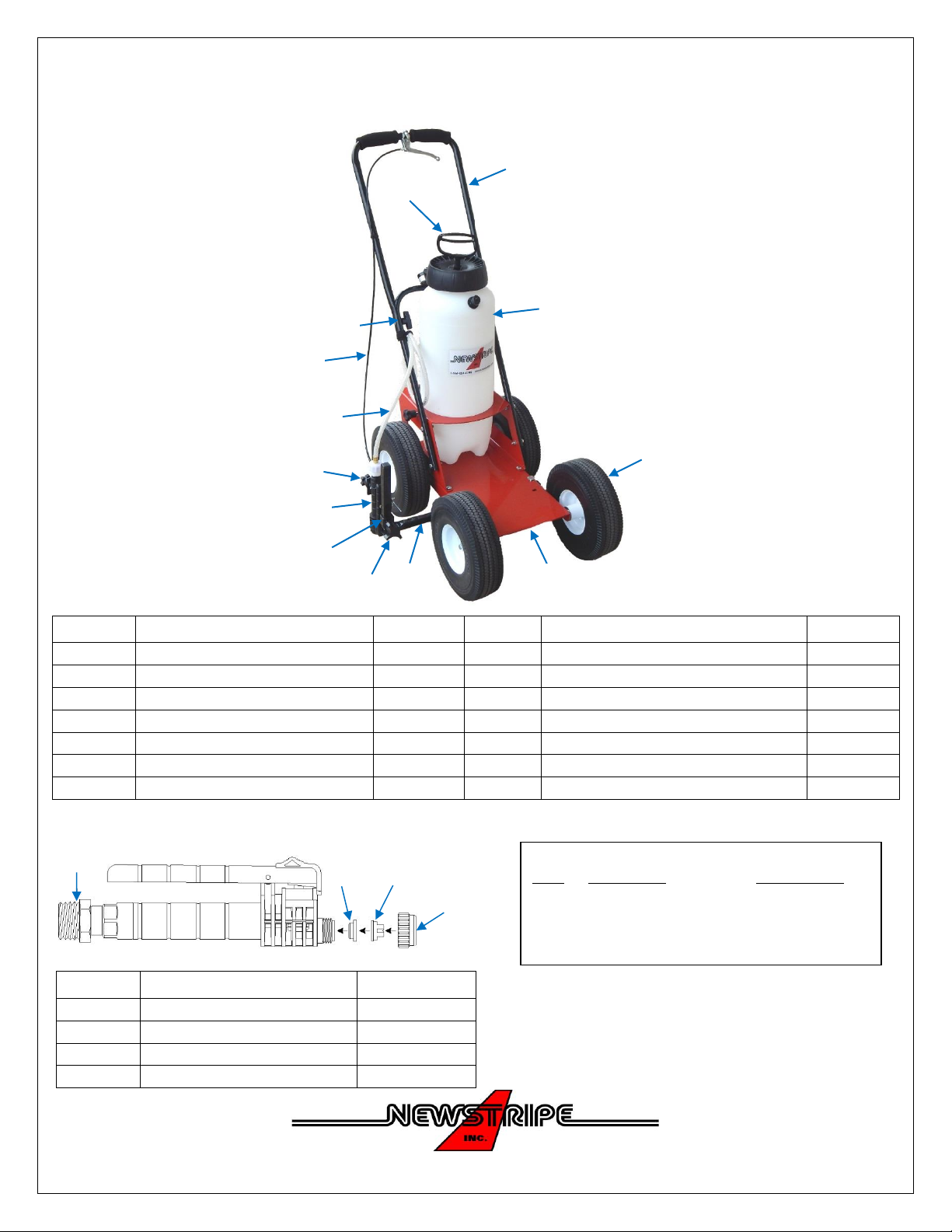

Item
Description
Part #
Item
Description
Part #
#1
Chassis
N/A
#8
Gun Mount Assembly
10004897
#2
Handle Assembly (Incl. #3 & #4)
10004909
#9
Paint Hose Assembly
10004901
#3
Wing Knob (2)
10004899
#10
Support arm (for spray gun)
10004894
#4
Control Cable
10000820
#11
5/16” Star Knob
10000007
#5
Paint Tank Assembly (Incl. #6)
10004910
#12
1/4” Star Knob
10004843
#6
Hand Pump Assembly
10004846
#13
Wheel & Tire Assembly
10004705
#7
Spray Gun Assembly
10004839
Item
Description
Part #
#14
Adaptor Fitting
10004836
#15
Valve Seat
10000136
#16
Nozzle (4 pack)
Select Nozzle
#17
Nozzle Cap (4 pack)
10001890
#4
#1
#2
#3
#5
#6
#7
#8
#11
#9
#10
#12
#13
SPRAY GUN ASSEMBLY
SELECT NOZZLE FOR APPLICATION
Item Description Part Number
5002 2” Line 10001891
8005 4” -5” Line (Heavy Turf) 10003493
8004 4”-5” Line (Turf) 10001893
9505 5”-6” Line 10001894
#14
#15
#16
#17
Page 6 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
TROUBLESHOOTING GUIDE
PROBLEM
REMEDY
Paint leaving the nozzle in a stream
instead of a spray
1. Check the thickness of paint. Thin the paint if needed.
2. Check if the paint tank pressure is low. Re-pressurize if
needed.
The spray is inconsistent/does not
spray
1. Check the nozzle for an obstruction. Remove the nozzle
to clean it, or replace it if necessary.
2. Check for an obstruction in the tank outlet. Remove the
paint and clean the tank. Run 2-3 quarts of
recommended solvent or water through the system.
Strain the paint back into the tank.
3. The control cable may be out of adjustment. Adjust the
cable so that the gun lever is properly depressed.
4. Check the strainer (inside the gun body) for an
obstruction. Clean if needed.
The spray pattern is too narrow or too
wide
1. Move the gun up to make the spray pattern wider.
2. Move the gun down to make the spray pattern
narrower
3. Select a different nozzle if the above steps do not
achieve the desired results.
The paint is too thick
Thin the paint by water at a rate of 1/4 cup per gallon (2
ounces) at a time. Cold temperatures (50-65 degrees) will
require more thinning of the paint.
The pump is hard to operate
Lubricate the pump leather through hole in the pump nut
where the pump rod goes through, with a few drops of oil.
Air leaks from the pump lid
1. Tighten the lid. Turn the pump D-handle clockwise until
snug. DO NOT OVER TIGHTEN.
2. Check the pump gasket for build-up, clean and
lubricate the gasket or replace it if necessary.
3. The pump gasket is worn, hardened, or cracked.
Replace the gasket.
The pump will not pressurize the tank
Check the pump gasket, pump valve, and pump leather.
Disassemble the pump and inspect all of the parts. Clean and
lubricate, or replace if worn.
The paint drips from the nozzle after
releasing the control lever
1. Check the control cable adjustment. Adjust the cable at
the spray gun mount if needed.
2. Check the spray gun to make sure it is closing properly.
Clean or replace the gun if necessary.
Please call us! If you have any questions during setup, painting or cleaning 1-800-624-6706
Page 7 of 8

FieldLiner 3™
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
FieldLiner 3™ Manual / 4867.0917
THE NEWSTRIPE WARRANTY –12 MONTH
NEWSTRIPE, INC., WARRANTS TO THE ORIGINAL PURCHASER, FOR 12 (TWELVE) MONTHS AFTER DATE
OF PURCHASE, THAT THE EQUIPMENT* HEREBY SOLD SHALL BE FREE OF DEFECTS IN MATERIALS
AND WORKMANSHIP. THIS WARRANTY DOES NOT EXTEND TO ANY DAMAGE OR MALFUNCTION
RESULTING FROM MISUSE, NEGLECT, ACCIDENT, IMPROPER OPERATION, OR NORMAL WEAR AND
TEAR.
Damage incurred in shipment from Newstripe, Inc. to the customer is the total responsibility of the carrier. The
CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc.
will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by
placing his signature on the documents.
The Newstripe, Inc. obligation under this warranty and any implied warranties is limited to replacement or repair of
defective parts of its manufacture without charge for 12 (Twelve) months from date of purchase. For service under this
warranty, buyer shall ship the defective part or parts of the equipment, transportation prepaid, to Newstripe, Inc. together
with a written description of any claimed defect and proof of purchase date of the materials being returned. Prior to
retuning any part or machine, the CUSTOMER must obtain a Return Materials Authorization number. Call 1-
800-624-6706.
*Gasoline engines, compressors, pumps (including airless) and Transaxles are furnished with their respective
manufacturer's warranties only. Such components are not covered by any warranty of Newstripe, Inc. Where
Newstripe elects to extend manufacturers’ warranties, the warranty shall be pro-rated as to cover 100% of the cost
to replace or repair materials and parts for the first 12 months of ownership and 60% for the remaining 6 month
period.
The responsibilities described above are the only responsibilities of Newstripe, Inc. under this written warranty or any
implied warranty, and may be exercised only within 12 (Twelve) months from the date of purchase. In no event shall
Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any
representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its'
specific written authorization.
THIS WARRANTY SHALL BE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
THERE IS NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND WITH RESPECT TO THE GOODS
SOLD HEREBY EXCEPT AS SET FORTH HEREIN. IT IS EXPRESSLY AGREED THAT THIS WARRANTY
SHALL BE LIMITED TO THE ADJUSTMENT, REPAIR OR REPLACEMENT OF PARTS AND THE LABOR AND
SERVICES REQUIRED THEREBY. IN NO EVENT, INCLUDING ANY CLAIM FOR NEGLIGENCE, SHALL
NEWSTRIPE, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Sincerely,
Newstripe, Inc
Page 8 of 8
