Nexcom PEAK 760 Series User manual

www.nexcom.com
Single Board Computer
PEAK 760 Series
User’s Manual
01-17-2005 Build
02-09-2006 Update
Prepared by Zack

PEAK 760 User’s Manual 1 Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. No part of this manual maybe reproduced, copied, translated or
transmitted in any form or by any means without the prior written consent from NEXCOM International
Co., Ltd.
Version 1.1
Copyright 2005
Disclaimer
The information in this document is subject to change without prior notice and does not represent
commitment from NEXCOM International Co., LTD. However, users may update their knowledge of any
product in use by constantly checking its manual posted on our website: http://www.nexcom.com.
NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out
of the use of any product, nor for any infringements upon the rights of third parties, which may result from
such use. Any implied warranties of merchantability of fitness for any particular purpose is also
disclaimed.
Acknowledgements
The PEAK 760 series is a trademark of NEXCOM international CO., LTD. All other product names
mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and describes how to keep the
system CE compliant.
Federal Communications Commission (FCC) For Class A Device
This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. Operation of this equipment in a residential area
(domestic environment) is likely to cause harmful interference, in which case the user will be required to

PEAK 760 User’s Manual 2 Preface
correct the interference (take adequate measures) at their own expense.
CE Certification
The product(s) described in this manual complies with all applicable European Union (CE) directives if it
has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used.
Maintaining CE compliance also requires proper cable and cabling techniques.
Safety Information
Before installing and using the PEAK 760, note the following precautions:
Read all instructions carefully.
Do not place the unit on an unstable surface, cart, or stand.
Follow all warnings and cautions in this manual.
When replacing parts, ensure that your service technician uses parts specified by the manufacturer.
Avoid using the system near water, in direct sunlight, or near a hearing device.
WARNINGS
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are inconsistent
with these instructions or the instructions for accessory modules, contact
the supplier to find out how you can ensure that your computer meets
safety and regulatory requirements.
CAUTION
Electrostatic discharge (ESD) can damage NSA components. Do the
described procedures only at an ESD workstation. If no such station is
available, you can provide some ESD protection by wearing an antistatic
wrist strap and attaching it to a metal part of the computer chassis.

PEAK 760 User’s Manual 3 Table of Content
Table of Content
Preface ……………...……………..……………………………………….………….…………………..1
Copyright ………………..……………………………………….…………………………………….... 1
Disclaimer ………………………..………………………………..…………………………………….. 1
Acknowledgements ……………………………………………..………………………………..…… 1
Regulatory Compliance Statements ……………………..…………………………………………1
Federal Communications Commission (FCC) For Class A Device ……………..……….…1
CE Certification ………………………………………………………………………………………...2
Safety Information ……………………………………………………………………………………..2
Table of Content ……………………………………………………………………………………. 3
Chapter 1 General Information
1.1 Main Feature…………………………………………………….…………………………………….. 7
1.2 Specifications……………………………………………………..…………………………………….7
1.3 Power Consumption Measurement……………………………………………………………………10
1.4 Board Layout…………………………………………………………………….…………………….11
1.5 Board Dimensions……………………………………………………….……………….……………12
Chapter 2Jumper Setting
2.1 Before You Begin……………………………………………..….……………………………………15
2.2 Precautions………………………………………………………………………………………...…..15
2.3 Setting Jumpers………………………………………………………………………………………..16
2.4 Location of Jumpers……………………………………………………………………………….…..17
2.5 Function of Jumper………………………….…………………………………………………….......17
2.6 Connector and Pin Definition.………...……….…………………………………………………...…18
Chapter 3 Expansion
3.1 System Memory………………………………………………………………………………….…….33
3.2 Installing DIMM………………………………………………………………………………….. …..34
3.3 Installing Compact Flash………………………..……………………………………………………..36
3.4 Installing Intel Pentium-M CPU and Fan Heatsink…………………………………………………....37
Chapter 4 Award BIOS Setup
4.1 About the BIOS………………………………………………………………………….………..……40
4.2 When to Run BIOS……………………………………………………………………………………..40
4.3 Entering Setup……………………………………………………………………………………….....41
4.4 The Main Menu………………………………………………………………………………………...41
4.5 Getting Help……………………………………………………………………………………….…...42
4.6 Control Keys…………………………………………………………………………………………...43
4.7 Standard CMOS Features………………………………………………………………………………44

PEAK 760 User’s Manual 4 Table of Content
4.8 Advanced BIOS Features………………………………………………………………………….46
4.9 Integrated Peripherals………………………………………………………………...………… 48
4.10 Power Management Setup…………………………………………………………………….. 50
4.11 PnP/PCI Configurations………………………………………………………………………….52
4.12 PC Health Status………………………………………………………………………………… 53
4.13 Load Fail-Safe Defaults…………………………………………………………………………. 53
4.14 Load Optimized Defaults………………………………………………………………………...53
4.15 Set Password……………………………………………………………………………………..54
4.16 Save & Exit Setup………………………………………………………………………………..54
4.17 Exit Without Saving……………………………………………………………………………...54
Chapter 5 Driver Installation
5.1 Installation CD…….………………………………………………………………………………56
5.2 Installing Drivers for PEAK 760...……………………………………………………………….. 56
5.3 Installing Intel Chipset…...………………………………………………………………………..57
5.4 Installing VGA….…………………………………………………………………………………60
5.5 Installing the LAN……….……………………………………….………………………………. 64
Appendix A Watchdog Timer
A.1 Watchdog Timer…………………………………………………………………………………..74
Appendix B GPI/O
B.1 GPI/O User Guide…………………………………………………………………….………... 77

PEAK 760 User’s Manual 5

PEAK 760 User’s Manual 6 Chapter 1
Chapter 1
General Information

PEAK 760 User’s Manual 7 Chapter 1
1.1 Main Feature
Support socket LGA775 Intel® Pentium 4 Hyper-Threading Technology with 533/800 MHz FSB, speed
up to 3.8GHz
• Intel® 915GV and ICH-6 chipsets
• 240-pin DIMM x 4, support dual channel DDR2 400/533 up to 3.2 GB
• Intel® PC82573L PCI Express Gigabit Ethernet Controller x 2 supporting two GbE LAN ports
(PEAK760VL2)
• Shared integrated graphics controller from chipset with 2048 x 1536 resolution @ 85 Hz
• Support IDE and SATA HDD
• Optional Compact Flash socket
• USB 2.0 Port x 6, COM x 2
• Support Disk on Module
1.2 Specifications
Figure 1.1: Block Diagram of PEAK 760

PEAK 760 User’s Manual 8 Chapter 1
System Architecture - PICMG Socket LGA775 Full-Sized SBC
CPU Support
- Single socket LGA 775
- Support Intel® Pentium® 4 processor with 533/800 MHz FSB,
speed up to 3.8 GHz
- Support Intel® Hyper-Threading technology
Memory
- 4 x 240-pin DIMM
- *Dual channel DDR2 400/533 MHz, up to 3.2 GHz
BIOS
- Plug & Play support
- Award System BIOS
- Advanced Power Management and Advanced Configuration &
Power Interface support
Chipset
- Intel® 915GV
- Intel® ICH-6
LAN - Intel® PC82573L PCI Express Gigabit Ethernet Controller x 2
supporting two GbE LAN ports
Display - Share integrated Graphics controller from 915GV chipset
- Analogue Display Support: Up to 2048 x 1536 @ 85 Hz for CRT
- VGA DB-15 connector x 1
I/O Interface
- Serial port: 10-pin box header x 2, support RS232 Only.
- Disk on module: 2-pin power connector for DOM
- USB: Six USB2.0 ports via three 6-pin JST connector with
480Mb/s bandwidth
- IDE HDD: Ultra ATA100/66/33, 40 pin connectorx1
- Optional CF socket x 1
- SATA HDD: 4 Serial ATA Ports, bandwidth: 150 MB/s
- Disk on module: 2-pin power connector for DOM
- Parallel port: 26-pin connector x 1
- Mini-DIN PS/2 keyboard/Mouse x 1
- Floppy: 34-pin connectorx1
- Digital I/O Port: 4 in and 4 out with TTL level interface
- On board buzzer x 1
- On board 2-pin header for reset
- 4-pin for speaker
- 2-pin power-on button switch

PEAK 760 User’s Manual 9 Chapter 1
- 2-pin header for SMBus 2.0
- 4-pin FAN Jst connector x 1 (For CPU); 3-pin FAN connector x 2
- 5-pin connector x 1 for Chassis or Backplane Front Keyboard
- Pin Header Key Lock/Power LED/HDD LED
I/O on Bracket
- VGA DB-15 connector x 1
- RJ45 Gigabit Ethernet LAN port x 2
- Mini-DIN for Keyboard/mouse x 1
System Monitor
- System monitor controller from Super I/O
- 8 voltage (For +1.5V, +3.3V, +5V, -5V, +12V, -12V, Vcore and
+5VSTBY)
- 2 temperature (For CPU and system)
- 3 FAN speed monitor ( one for CPU and 2 for systems)
Real Time Clock - On-chip RTC with battery back up
- External Lithium battery x 1
Watchdog Timer - 1-minute increments from 1 to 255 minutes
- 1-second increments from 1 to 255 seconds
Dimensions
Power Requirements
- 338.58mm (L) x 122mm (W) (13.3”/L x 3.8”/W)
- 5V, 12V
Environments
- Board-level operating temperatures: -20°C to 65°C
- Storage temperatures: -20°C to 80°C
- Relative humidity: 10% to 90% (Non-condensing)
Certification
- CE
- FCC
Remark:
3.2GB as Award BIOS limitation by maximum capacity currently;
According to the chipset spec, the 915GV can only decode HA3~HA31, maximum 4GB
address space. The 4GB address space will be shared by the following usage:
1. Memory mapped I/O space for processor build-in device, e.g. APIC
2. Memory mapped I/O space for PCI device
3. Memory mapped memory space for system memory, PCI device memory...
Therefore, the PEAK760 will not be able to see 4GB system memory size when installing
4GB DDR2 modules to DRAM socket. The more PCI Add-On card installed, the less
memory size will be support.

PEAK 760 User’s Manual 10 Chapter 1
Ordering Information
PEAK 760VL (LF)
Full-sized LGA775 socket support Intel Pentium-4/ Celeron-D CPU board with PCI
Express Gigabit Ethernet LAN port x 1
PEAK 760VL2 (LF)
Full-sized LGA775 socket support Intel Pentium-4/ Celeron-D CPU board with PCI
Express Gigabit Ethernet LAN port x 2
1.3 Power Consumption Measurement
Required watts and currents for Power Supply
Power Type
+12V +5V +5VSB
Consumed watts (Item: W) 144 76.77 5.27
Consumed currents (Item A) 12 15.35 1.05
Actually required currents (Item A/0.8) 15 20 1.5

PEAK 760 User’s Manual 11 Chapter 1
1.4 Board Layout
Figure 1.2: Overview of PEAK 760

PEAK 760 User’s Manual 12 Chapter 1
1.5 Board Dimensions

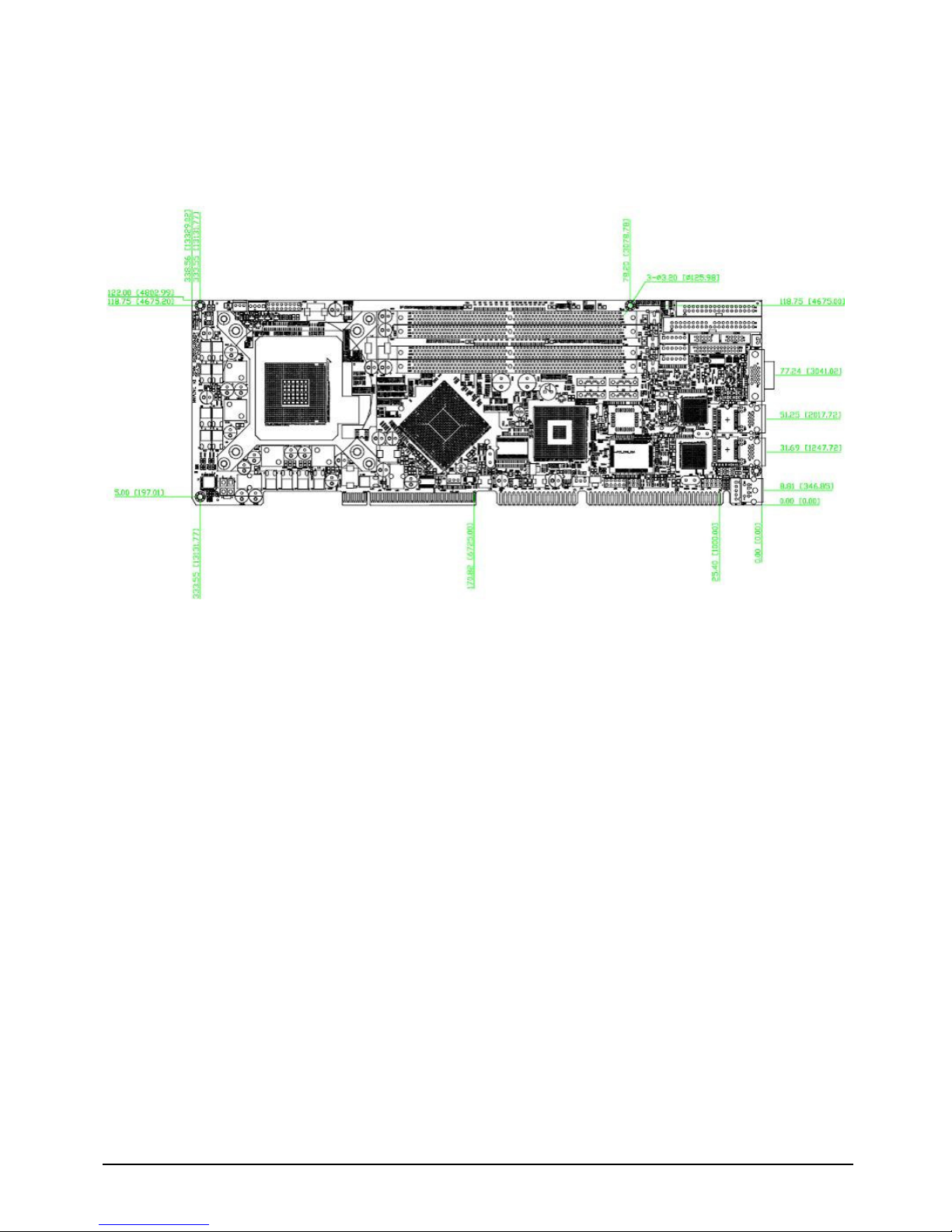

Figure 1.3: Mechanical Drawing of the PEAK-760

PEAK 760 User’s Manual 13 Chapter 1

PEAK 760 User’s Manual 14
Chapter 2
Jumper Setting

PEAK 760 User’s Manual 15
This chapter of the User’s Manual describes how to set jumpers.
Note: The procedures that follow are generic for all PEAK 760 series.
2.1 Before You Begin
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a
malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components.
Most of the procedures that follow require only a few simple tools, including the following:
A Philips screwdriver
A flat-tipped screwdriver
A set of jewelers Screwdrivers
A grounding strap
An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use
needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the
connectors.
Before working on internal components, make sure that the power is off. Ground yourself before touching
any internal components, by touching a metal object. Static electricity can damage many of the electronic
components. Humid environment tend to have less static electricity than dry environments. A grounding
strap is warranted whenever danger of static electricity exists.
2.2 Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity.
Working on the computers that are still connected to a power supply can be extremely dangerous. Follow
the guidelines below to avoid damage to your computer or yourself:
Always disconnect the unit from the power outlet whenever you are working inside the case.
If possible, wear a grounded wrist strap when you are working inside the computer case. Alternatively,
discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal
body of any other grounded appliance.
Hold electronic circuit boards (such as the PEAK 760 board) by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
Leave all components inside the static-proof packaging that they shipped with until they are ready for
installation.
Use correct screws and do not over tighten screws.

PEAK 760 User’s Manual 16
2.3 Setting Jumpers
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the
jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on
both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin,
the jumper is OPEN. Please see the following illustrations
The illustrations on the right show
a 2-pin jumper. When the jumper
cap is placed on both pins, the
jumper is SHORT. If you remove
the jumper cap, or place the
jumper cap on just one pin, the
jumper is OPEN.
Open (Off) Short (On)
These illustrations show a 3-pin
jumper. Pins 1 and 2 are SHORT.
Table 2-1: Setting Jumpers

PEAK 760 User’s Manual 17
2.4 Location of Jumpers
Figure 2-1: Jumper Location
2.5 Function of Jumper
Pin Function
JP9 RTC Clear
J13 CF Card Master/Slave Select
Remark: J13 (for CF socket) has been removed as an option

PEAK 760 User’s Manual 18
2.6 Connector and Pin Definition
(1) AUX +12V Power Connector (J1)
A. Connector size: ATX POWER CONN 2x2
B. Connector location
C. Connector pin definition
J1: AUX +12V Power Connector
Pin Definition Pin Definition
1 GND 3 +12V
2 GND 4 +12V
(2) SATA3/SATA 2/SATA1/SATA0 connector (J2)(J4)(J6)(J9)
A. Connector size: 7 Pin, 1.27mm, 180°, SATA Connector
B. Connector location
C. Connector pin definition
J2/J4/J6/J9: SATA3/SATA 2/SATA1/SATA0
Pin Definition Pin Definition
1 GND 5 SATA_RXN
2 SATA_TXP 6 SATA_RXP
3 SATA_TXN 7 GND
4 GND

PEAK 760 User’s Manual 19
(3) PIO Connector (J3)
A. Connector size: 2 X 13 = 26 Pin, 2.0 mm, 180° ,BOX Header
B. Connector location
C. Connector pin definition
J3: PIO
Pin Definition Pin Definition
1 Line Print Strobe 14 Auto Feed#
2 Parallel Data 0 15 Error#
3 Parallel Data 1 16 Initialize#
4 Parallel Data 2 17 Select Input#
5 Parallel Data 3 18 GND
6 Parallel Data 4 19 GND
7 Parallel Data 5 20 GND
8 Parallel Data 6 21 GND
9 Parallel Data 7 22 GND
10 Acknowledge# 23 GND
11 Busy 24 GND
12 Paper empty 25 GND
13 Select 26 NC
(4) SIO Connector COM1(J8),COM2(J5)
A. Connector size: 2 X 5 = 10 Pin, 2.0 mm, 180° ,BOX Header
B. Connector location
C. Connector pin definition
J5/J8: COM1/COM2
Pin Definition Pin Definition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND 10 NC
