Nexo VNI-WB02 User manual

PAGE 1 OF 4
- Read this document before using.
- Keep this document.
- Observe all warnings and cautions.
VNI-WB02 (IDI-WB02)
DP6126 –01a - DI
Speaker Wall Mount 15kg max
Contents:
X1
X1
Weight: 0.5 kg / 1.1 lb

PAGE 2 OF 4
- Read this document before using.
- Keep this document.
- Observe all warnings and cautions.

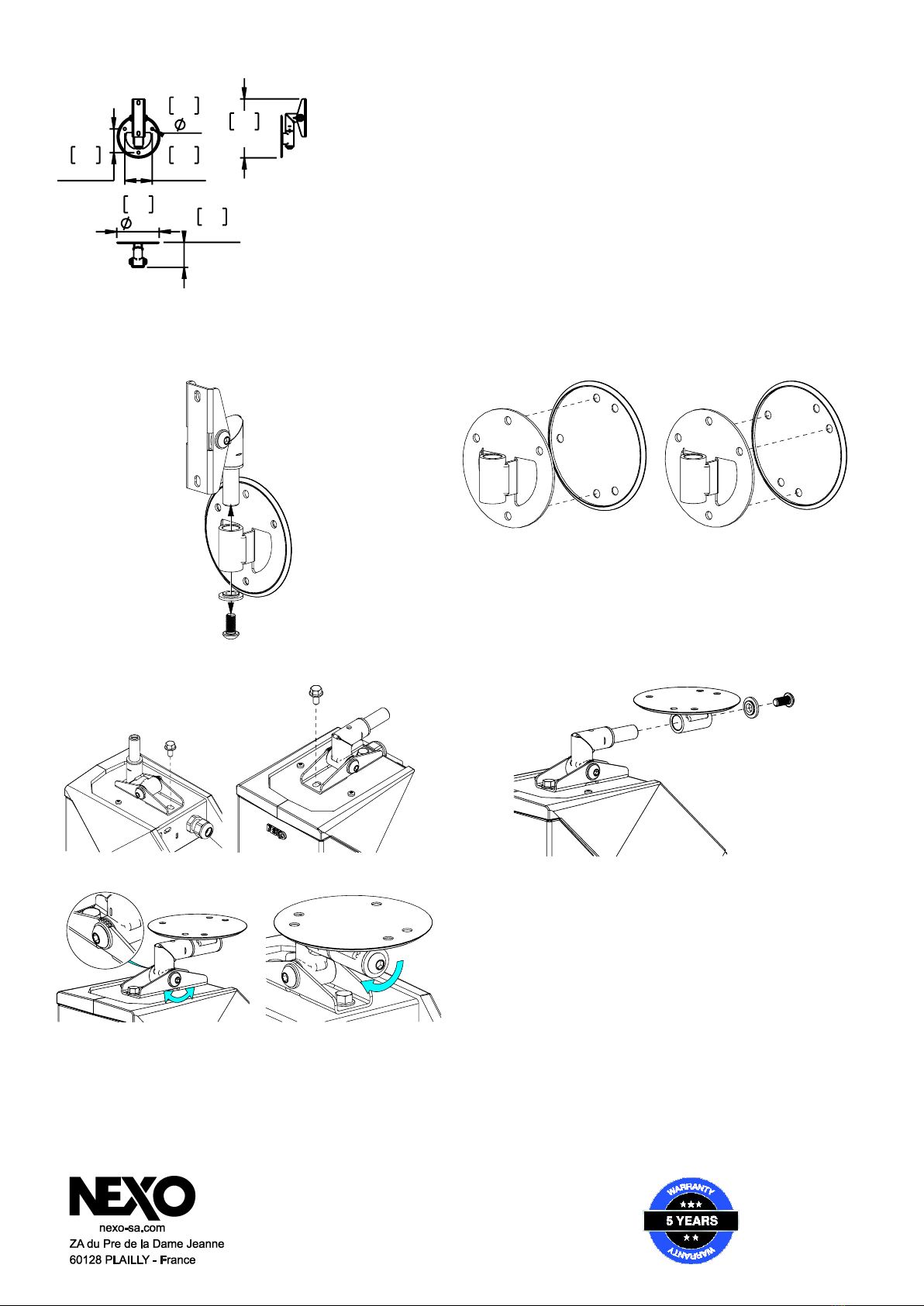

Dimensions:
Safety Notes:
Max load capacity: 15kg / 33lb.
Please select screws and mounting location
supporting 4 times the system weight.
For use only by trained installers.
For use only at proper walls with adequate anchors.
Inspect bolted assemblies periodically.
For indoor use only.
Assembly:
Separate speaker holder from wall plate.
Screw the wall plate with the decorative plate to the wall. Use two or
three screws (not supplied).
Screw speaker plate to NEXO Speaker (use screws
provided with NEXO Speaker).
Place the speaker holder with NEXO Speaker into the wall bracket.
Fix by tightening bolted assembly.
Use a 5mm ALLEN wrench for holding the tilt positions.







 




PAGE 3 OF 4
- Read this document before using.
- Keep this document.
- Observe all warnings and cautions.
Use with ID14
Screw speaker plate to ID14 (use screws provided
with ID14 10mm wrench).
WB02 on ceiling
Tilt: -40° à -110°
WB02 on wall
Tilt: -20° à +50°
Use with ID24 :
The angle adjustments depends on the position of the
accessory.
Pos A
Tilt: -80° to 0°
Pos B
Tilt: -80° to +30°
Pos C
Tilt:
•-20° to +60°
•-60° to +20°
 

PAGE 4 OF 4
- Read this document before using.
- Keep this document.
- Observe all warnings and cautions.
Use with ID84 :
Use 2x WB02 to fix 1x ID84 to the wall.
± 35° horizontal
Fix the wall plates.
Place the M6 spacers between ID84 and WB02, fix the brackets
on ID84.
Place the ID84 / WB02 assembly on the wall plates.
Tighten to lock the horizontal adjustment position.
Fixing distance
Use with ePS6/8 :
Remove the 2 screws from the back of ePS, place the bracket
on the ePS.
Place the assembly on the wall plate.
Tighten to lock the horizontal adjustment position.
•NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself.
•Please check the web site nexo-sa.com for the latest update.








