EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Loudspeaker
ePS10
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2014/35/UE (Low Voltage Directive)
Applied rules and standards:
Plailly, October, 2021
EN 13155, EN 62368
Joseph CARCOPINO, R&D Director
WARNINGS
ePS10 Page 3/ 18
WARNINGS
PRECAUTIONS
-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- If the system is ucations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.
EQUIPMENT
Page 4/ 18 ePS10
EQUIPMENT

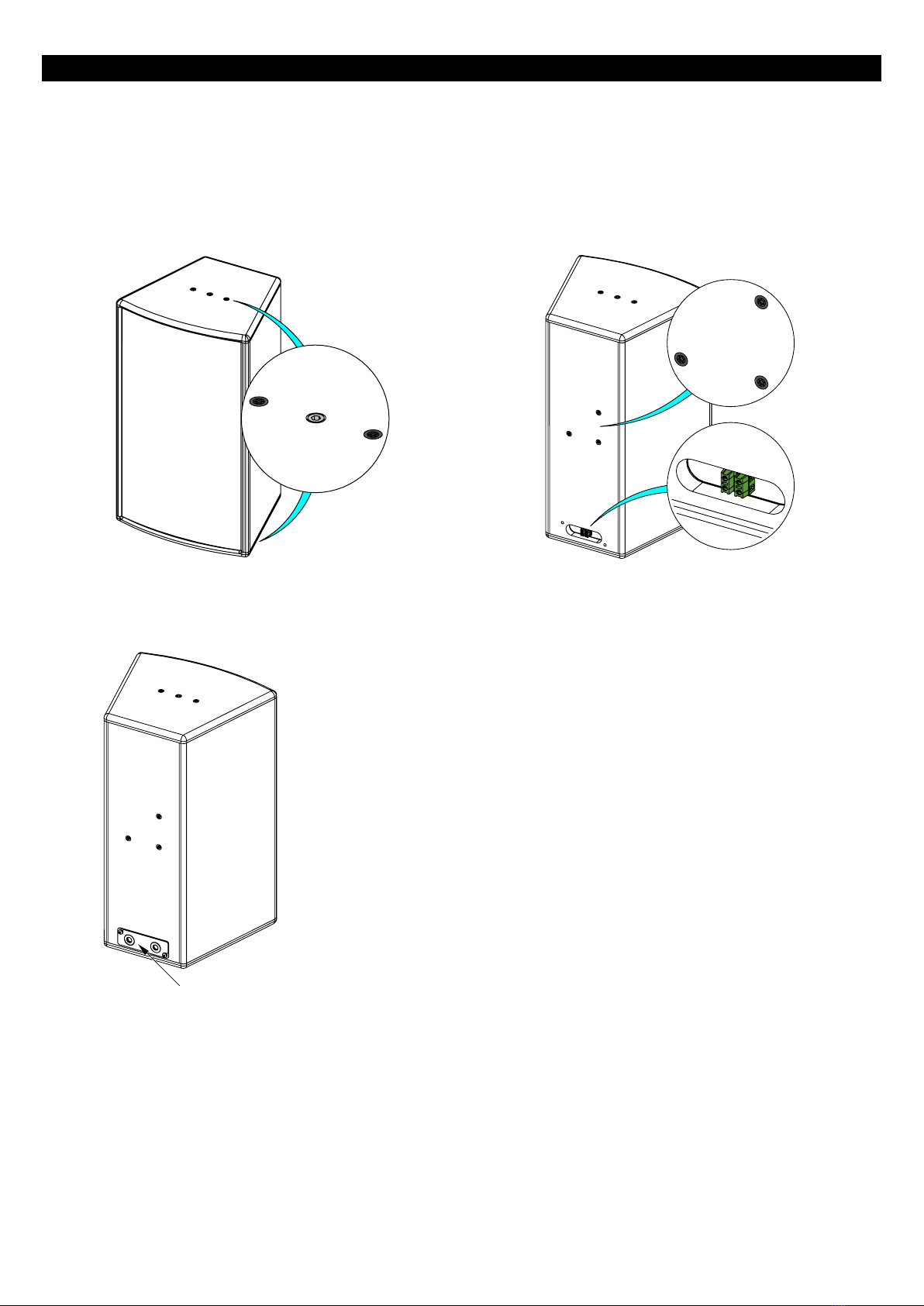

On each side of the cabinet, two M6 with 80 mm pitch plus one M10 fittings will connect the ePS10 to accessories
(VNI-HCPL535, VNU-BUMP, VNU-HBRK535, or eye-bolts).
The back of the speaker is fitted with 3x M6 (70mm pitch) to connect wallmount in both vertical and horizontal positions
(VNI-WM02).
2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks. Cables from 0.75 mm2 to 3.31 mm2 (12 to 15 AWG) copper
section.
ePS8 with IPCov
DESCRIPTION
ePS10 Page 5/ 18
DESCRIPTION
→The ePS10 is a compact full-range 2 ways speaker
→Asymmetrical HF dispersion
→ePS10 can be used alone or with eLS400 or eLS600 subwoofer

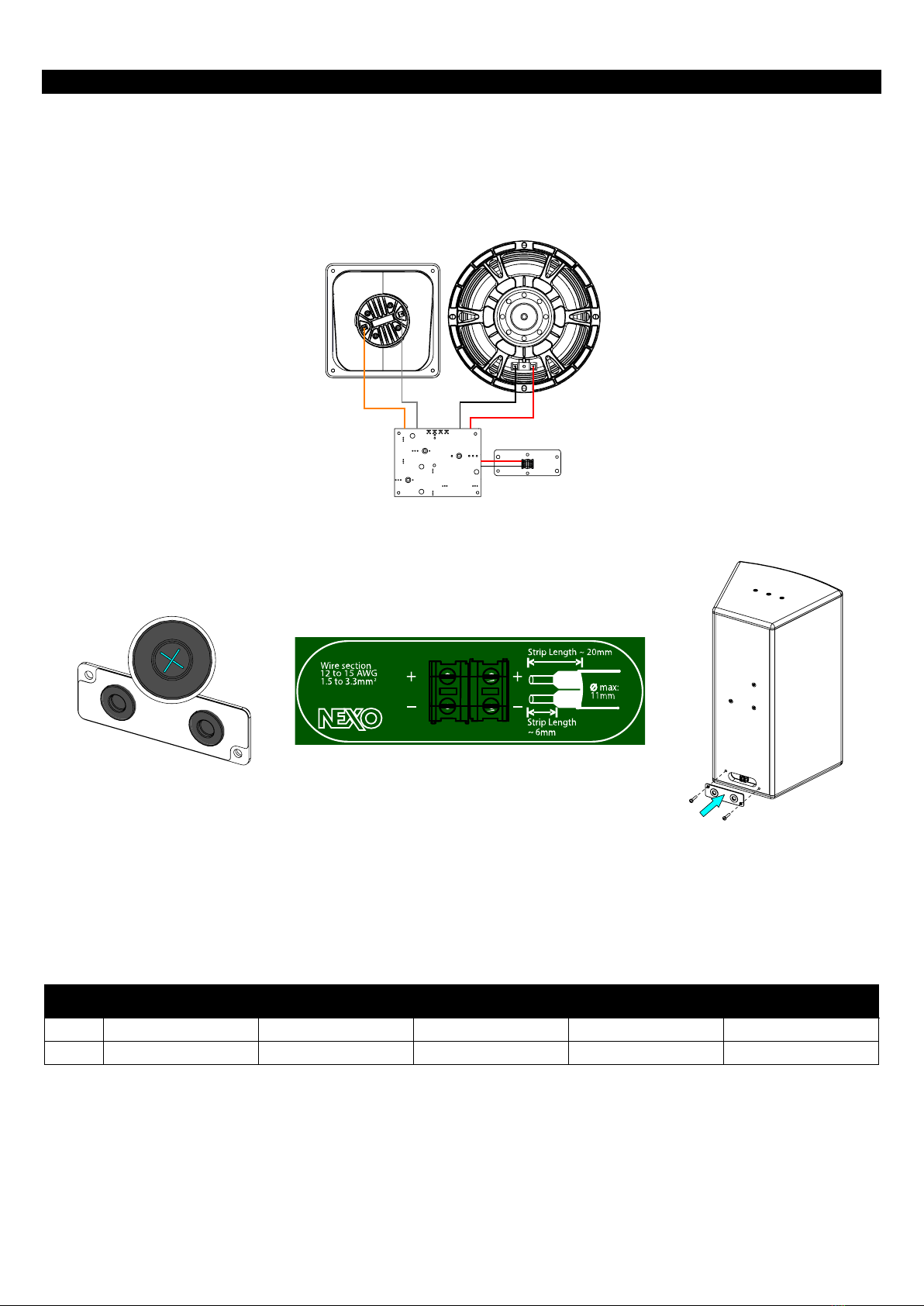

→The speaker is equipped with 2 pairs (In/Out) of screw terminal blocks, permissible cables from 0.75 mm2to 3.31 mm2
(12 to 15 AWG) copper section. Cable with maximum outside diameter of 11mm.
→To wire ePS10, slit the membrane of the grommet crosswise, pass the cable through and make the connection to the screw
terminals. Place the IPCOV.
→IP54: be careful to place the IPCOV correctly.
→Amplification
•The ePS10 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker.
•The following table shows the number of ePS10 speakers and eLS600 subwoofers usable with each solution.
→
DTD + DTDAMP4X0.7
DTD + DTDAMP4X1.3
NXAMP4X1mk2
NXAMP4X2mk2
NXAMP4X4mk2
ePS10
X
Up to 2 per channel
1 per channel *
Up to 4 per channel
Up to 4 per channel
eLS600
X
1 per channel
1 per channel *
Up to 2 per channel
Up to 2 per channel
*
PRESET
Page 6/ 18 ePS10
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
For the ePS10, the following setups are available:
•ePS10 MAIN PA, 60-120kHz
•ePS10 MAIN PA, 85-120kHz.
•ePS10 MAIN PA, 120-120kHz.
ePS10
ePS10 + eLS600
HF DIRECTIVITY
ePS10 Page 7/ 18
HF DIRECTIVITY
→The ePS10 speaker can be used in horizontal or vertical position.
→
Place a flathead screwdriver in the space between the grille and
the cabinet to release the grille.
Remove the grille.
Remove the 4 screws that hold the horn. Remove it.
A sticker on the side of the horn indicates the side with the
widest dispersion.
Position the horn according to the desired HF dispersion.
Reassemble the assembly and replace the grille.
CROSSOVER FREQUENCY
→60 Hz: Full range application.
→85, 120 Hz: Use with eLS600.
ACCESSORIES
Page 8/ 18 ePS10
ACCESSORIES
WARNINGS
All ePS accessories are specifically rated in agreement with structural computations.
Never use other accessories when assembling ePS10 cabinets than the ones provided by NEXO: NEXO will decline
responsibility if any component is purchased from different supplier.
PROHIBITED: ePS10 below ePS10 or ePS10 below eLS600 without dedicated accessory

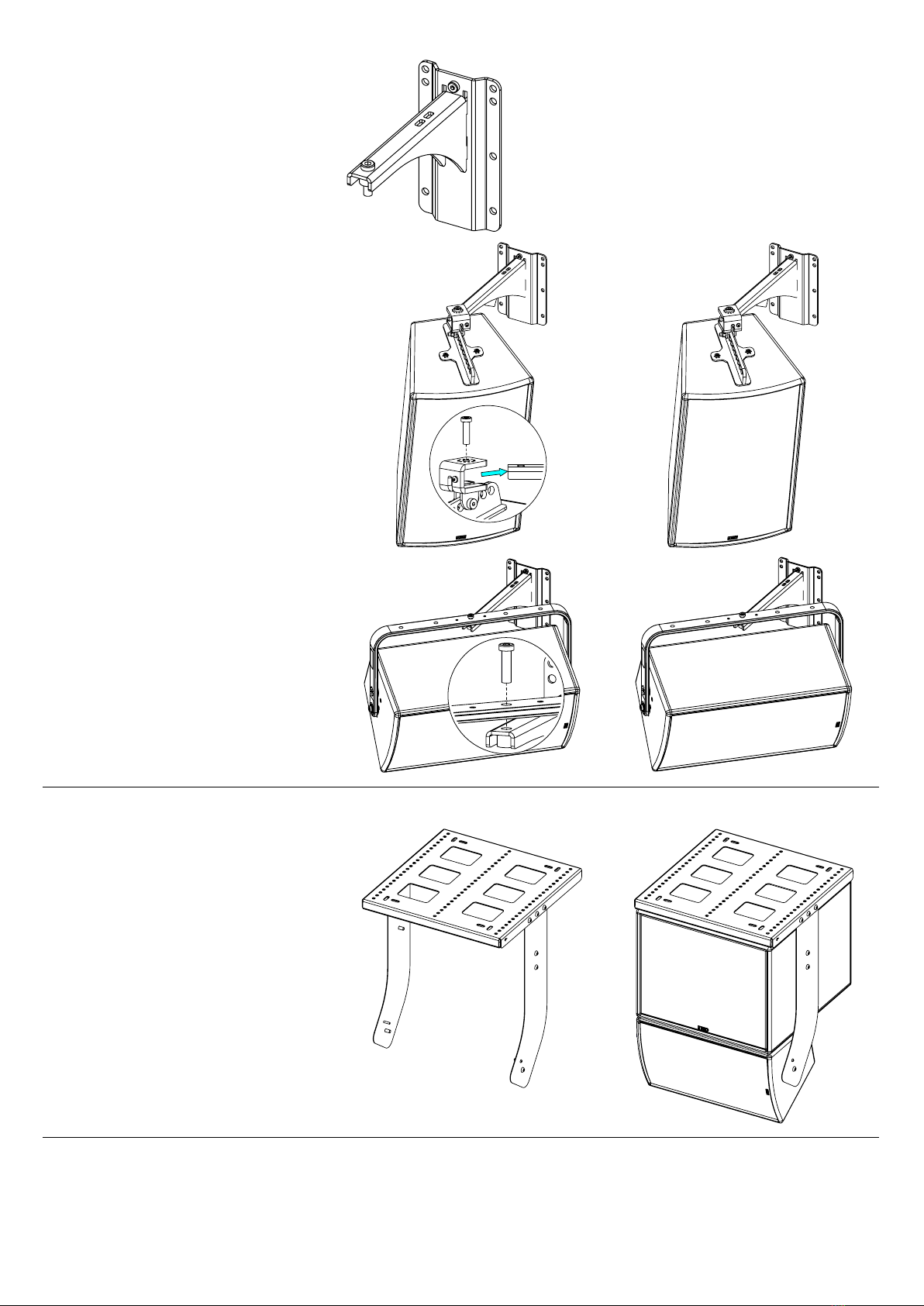

VNU-BUMP
LiftBar, can be used with VNI-WMADAPT.
Remove 2 screws on the top
Screw VNU-BUMP to ePS10 (use only
screws provided with VNU-BUMP).
Tight properly.
Refer to the Product Data Sheet
VNU-HBRK535
Horizontal Cradle, usable with:
VNI-CLADAPT.
VNI-WM330.
VNU-PLADAPT
Remove the M10 inserts from each side.
Place HBRK535 on ePS10, use only
fasteners provided. Tight properly.
Refer to the Product Data Sheet
ACCESSORIES
ePS10 Page 9/ 18
VNI-WMADAPT
Wall mount adapter
Place VNI-WMADAPT on VNU-BUMP, use
only fasteners provided. Tight properly.
Refer to the Product Data Sheet

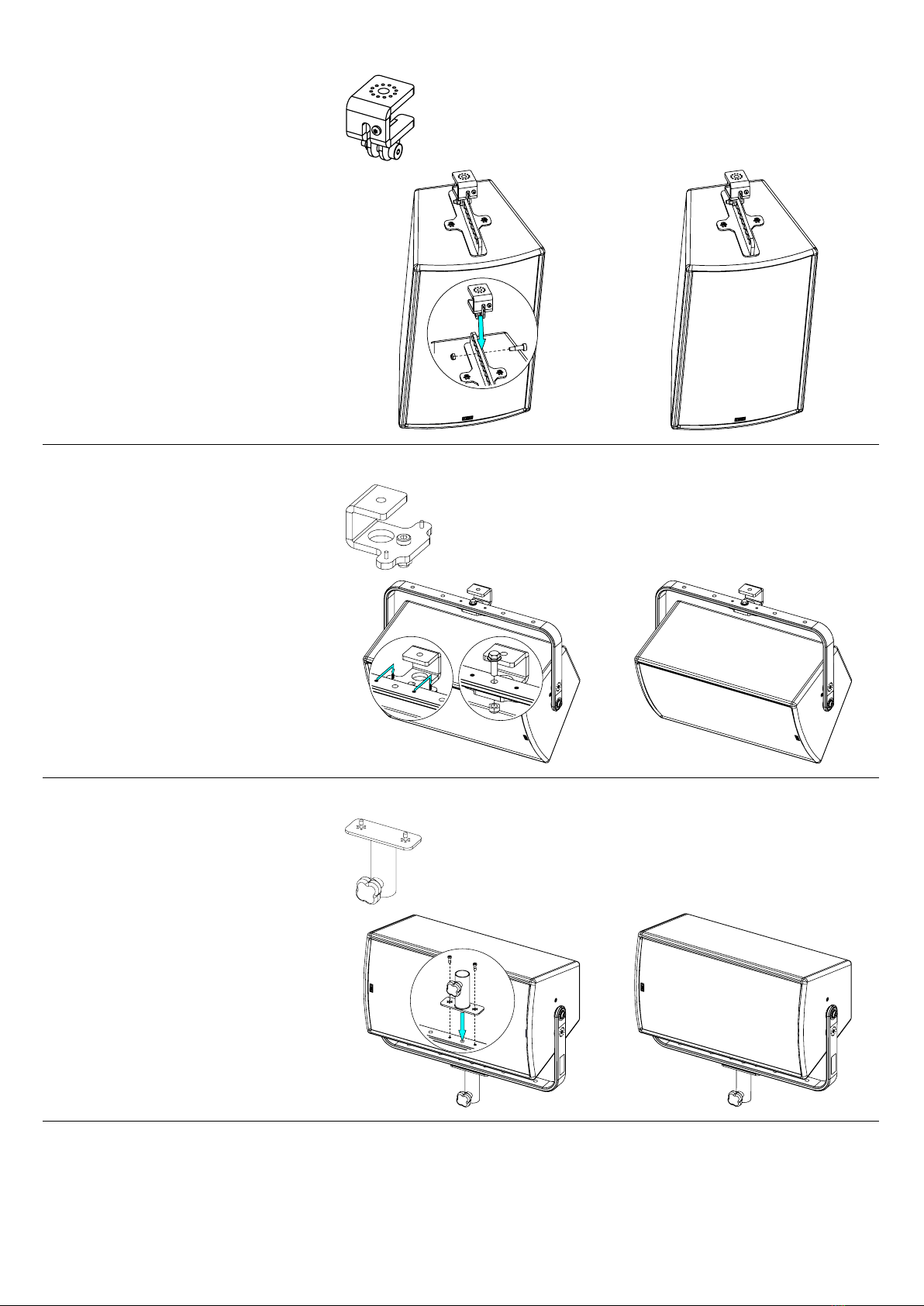

VNI-CLADAPT
Ceiling Adapter, use with VNI-HBRK535.
Screw VNI-CLADAPT to the ceiling
(fasteners not provided).
Place the assembly on VNI-CLADAPT, use
the 2 guides. Tight with the fasteners
provided with VNI-CLADAPT.
Refer to the Product Data Sheet
VNU-PLADAPT
Pole adapter
Place VNU-PLADAPT on VNI-HBRK535,
use only fasteners provided.
Tight properly.
Refer to the Product Data Sheet
ACCESSORIES
Page 10 / 18 ePS10
VNI-WM330
Wallmount, usable with:
VNI-WMADAPT / VNU-BUMP
VNU-HBRK535
ePS10 / BUMP / WMADAPT
Place the assembly on VNI-WM330. Tight
with the fasteners provided with
VNI-WM330.
Refer to the Product Data Sheet
ePS10 / HBRK535
Place the assembly on VNI-WM330. Tight
with the fasteners provided with
VNI-WM330.
Refer to the Product Data Sheet
VNI-HCPL535
Coupler ePS10 under horizontal eLS600
Refer to the Product Data Sheet
ACCESSORIES
ePS10 Page 11 / 18
VNI-WM02
Wall mount adapter 25kg max
Remove 2 of the 3 screws on the back.
Screw speaker plate to ePS10 (use only
screws provided with ePS10).
Place the speaker holder with ePS10 into
wall bracket. Fix by tightening bolted
assembly.
Refer to the Product Data Sheet
ARRAY EQ
Page 12 / 18 ePS10
ARRAY EQ

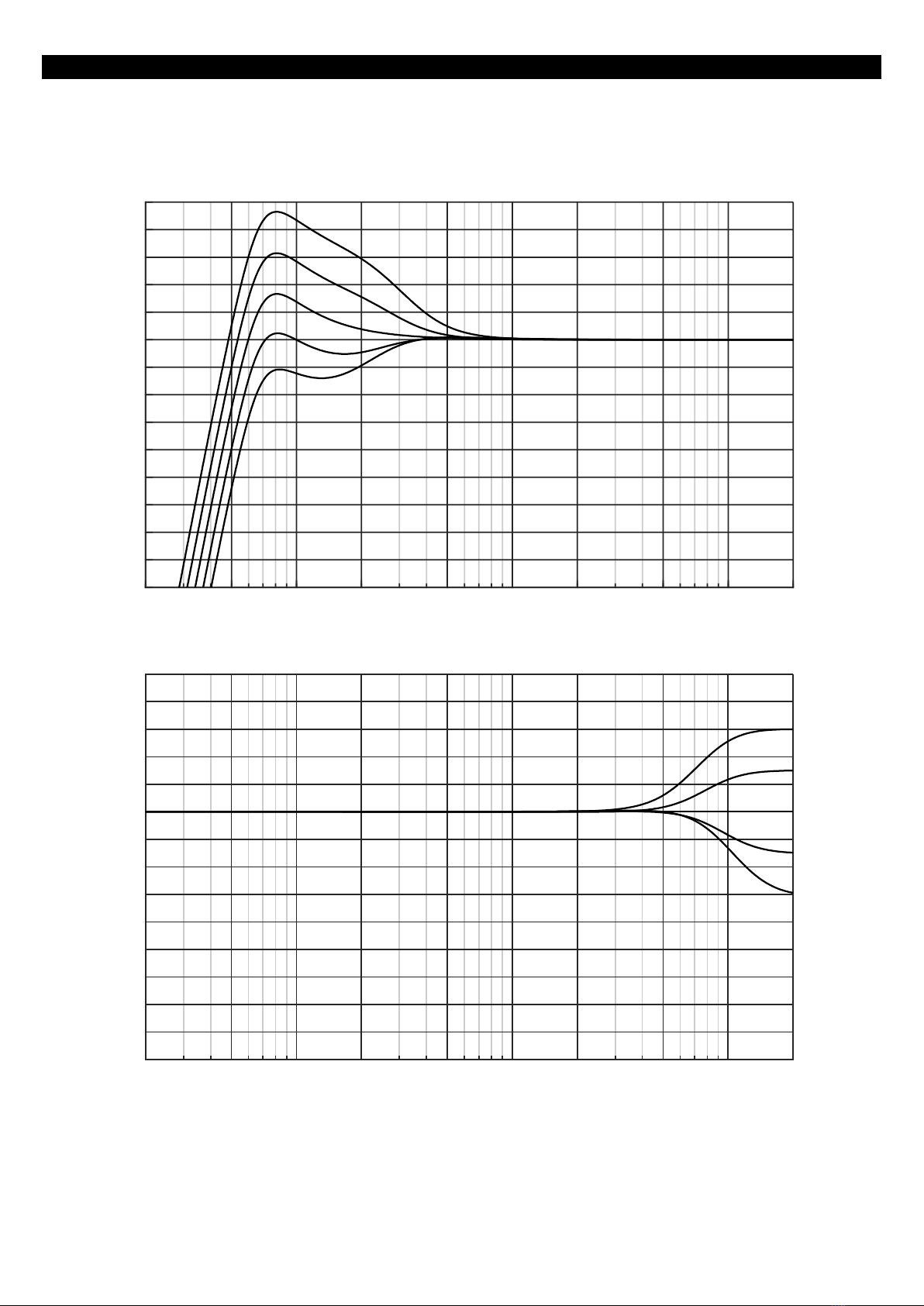

The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):
MAINTENANCE
ePS10 Page 13 / 18
MAINTENANCE
NOTE:
Speakers and Grills can be sent back to NEXO for recycling
Driver access
Place a flathead screwdriver in the space between the grille and
the cabinet to release the grille.
Remove the grille.
Remove the 4 screws to access the LF driver.
Tightening torque: 3.5 Nm (Thread Locker: Loctite 242)
Remove the 4 screws that hold the horn. Remove it.
Tightening torque: 2.5 Nm (Thread Locker: Loctite 242)
To access the HF diaphragm, remove the 4 screws.
Tightening torque: 2.5 Nm
Reassemble the assembly and replace the grille.
LF: red (+) / black (-)
HF: orange (+) / grey (-)
MAINTENANCE
Page 14 / 18 ePS10

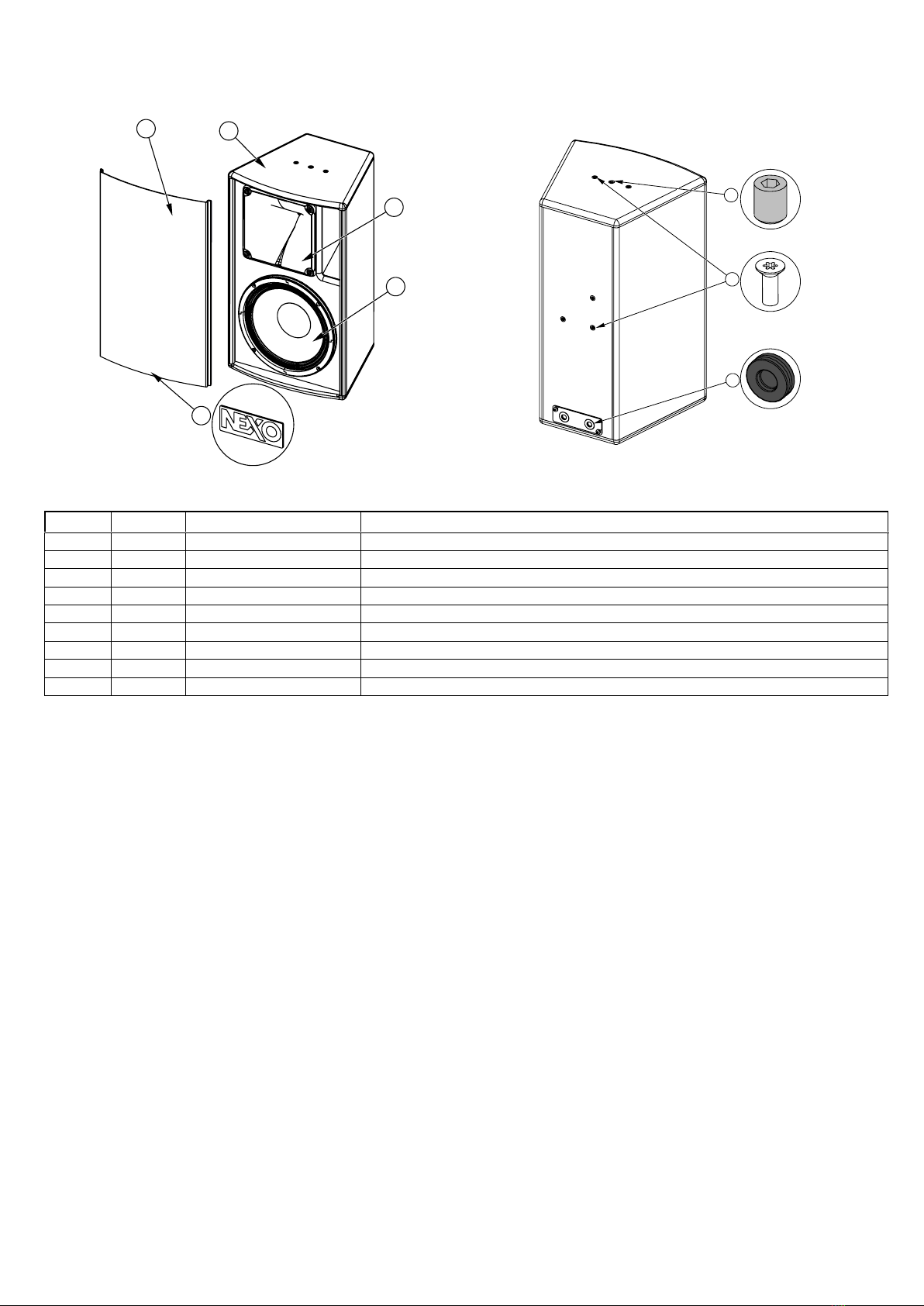

Spare parts
MARK
QUANTITY
REFERENCE
DESIGNATION
1
1
05EPS10-UA
Complete grille Black
2
1
05EBEPS10
Cabinet Black
3
1
05NH12ND1.0R/K
HF diaphragm (with screws)
4
1
05HPB10N
1
05HPB10NR/K
5
1
05LOGNEXO3
Logo NEXO
6
2
05VXTSTHC1012
HEADLESS Screw M10x12 Black (x10)
7
7
05VXTCFX616N
VXFX 6x16 Black (x10)
8
2
05PASF-DG9E1
Grommet DG11
TECHNICAL SPECIFICATIONS
ePS10 Page 15 / 18

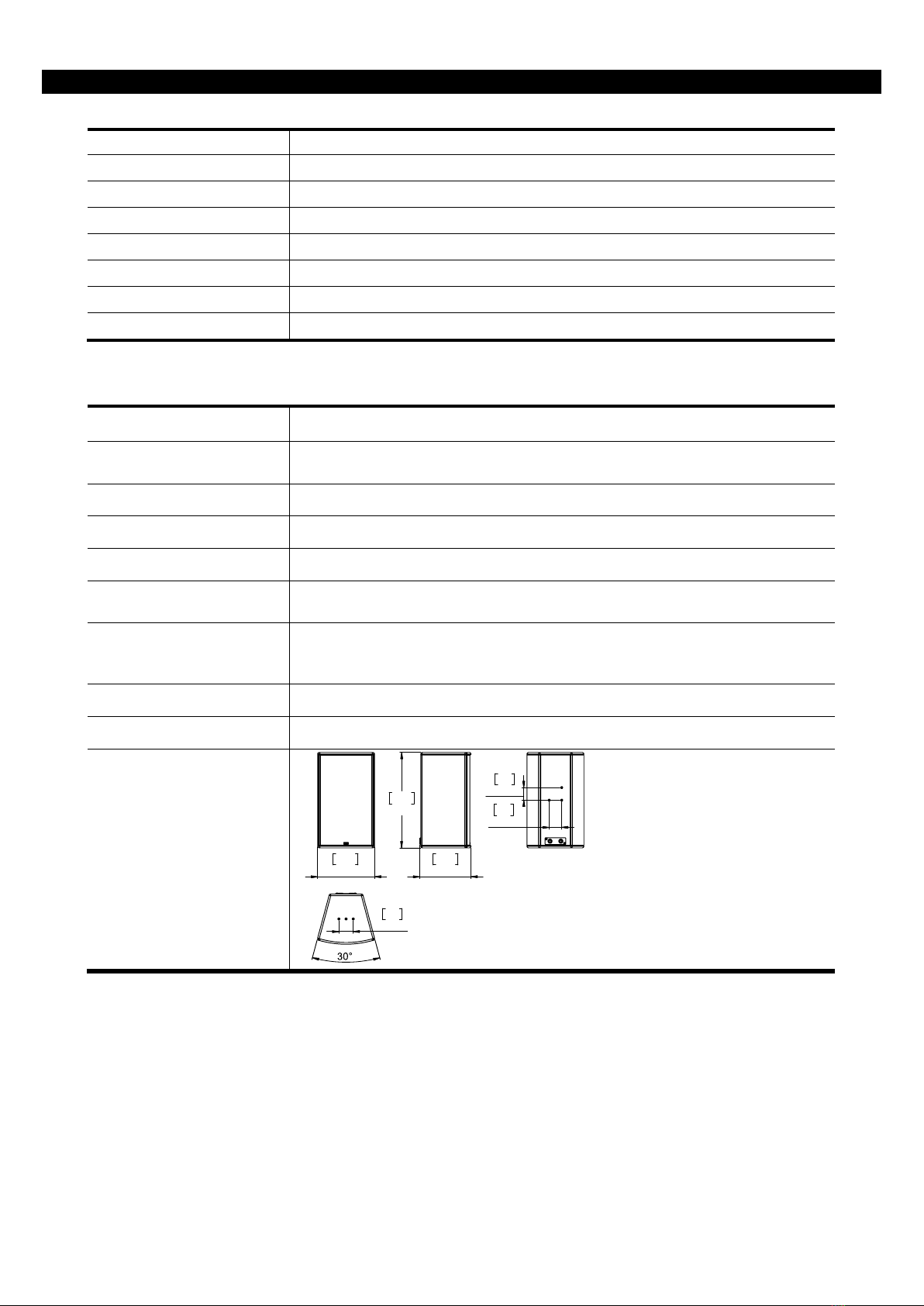

TECHNICAL SPECIFICATIONS
WITH NEXO ELECTRONICS
Model
ePS10
Frequency range (±6dB)
60 Hz 20 kHz
Peak SPL Level (1m)
130dB Peak
Operating voltage
30Vrms
Vertical Dispersion
+25°/-30°
Horizontal Dispersion:
50° to 100° asymmetrical
Crossover Frequency
60 Hz, 85 Hz, 120 Hz
Nominal Impedance
8 ohms
SPECIFICATIONS
Model
ePS10
Components
LF 10 Neodymium long excursion 8 ohms
HF diaphragm 8 Ohms
Material
Baltic birch plywood 15mm
Finish
Black structural paint (RAL9005 or Custom RAL upon request)
Front finish
Black acoustic fabric fitted front steel front grille
Fittings
2x M6 and 1x M10 on the top and bottom for rigging accessories.
3x M6 on the back for rigging accessories (70mm pitch).
Connector
2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks.
Cables from 0.75 mm2to 3.31 mm2(12 to 15 AWG) copper section.
Cable with maximum outside diameter of 11 mm.
Weight
14.8 kg / 32.6 lb
ID Classification
IP54 with IPCOV
Dimensions
