Nexus 21 L-77i User manual

Installation Manual for
L-77i

Table of Contents
Date:
Version: 1.1.0
10-30-23
2
Safety Information
Parts & Hardware List
Warranty & Return Policies
Assembly & Installation
Connecting the Lift System
Assembly & Installation Continued
Ceiling Cover Installation
TV Mounting
Page 3
Page 4
Page 6
Page 8
Page 22
Page 27
Page 37
Page 46

Safety Information
WARNINGS:
1. Do not use this product for any application other than those specified by Nexus 21.
2. Do not exceed the weight capacity. This can result in serious personal injury or damage to the equipment. It is the installer’s responsibility to
ensure that the total combined weight of all attached components does not exceed that of the maximum figure stated.
3. Follow all technical specifications and instructions during the installation.
4. Only use attachments/accessories specified by the manufacturer.
5. Close supervision is necessary when this system is being used by, or near, children, or disabled persons.
6. It is the responsibility of the installer to warn all potential users of the dangers of interfering with the mechanism during operation.
7. Read all technical instructions fully before installation and use. It is the installer’s responsibility to ensure that all documentation is passed on to
the users and read fully before operation.
8. Failure to provide adequate structural strengthening, prior to installation can result in serious personal injury or damage to the equipment.
9. Risk of electric shock. Do not attempt to open the Control Box.
10. To reduce risk of fire or electric shock, do not expose parts to rain or other liquids.
11 . Protect the power cord from being walked on or pinched.
12. Keep all documentation.
13. Heed all warnings.
14. Clean only with a dry cloth.
15. Refer all service questions to Nexus 21 if the system does not operate normally.
Safety Notice: You are about to suspend a heavy load above your ceiling. Please be aware that you are responsible for the construction and mounting of the frame which
will hold the lift system and the TV. You are also responsible for making sure your frame is strong enough (must be able to support at least 600 lbs.), and that the lift system
and your frame are safely secured above your ceiling. Failure to securely mount your frame to the structure of the building, and/or failure of your frame to support the lift
system, can cause severe injury and/or property damage. If you are not qualified to perform the installation of the system, or if you are not sure if you are qualified, do not
attempt to install it. If you are not an experienced professional, please hire one to perform this installation.
Disclaimer: Nexus 21 disclaims any liability for modifications, improper installations, or installations over the specified weight range. Nexus 21 will not be liable for any
damages arising out of the use of, or inability to use, Nexus 21 products. Nexus 21 bears no responsibility for incidental or consequential damages. This includes, but is
not limited to, any labor charges for the servicing of Nexus 21 products performed by anyone other than Nexus 21. Nexus 21 intends to make this and all documentation
as accurate as possible. However, Nexus 21 makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for
every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without prior notice
or obligation of any kind. Nexus 21 makes no representation of warranty, expressed or implied, regarding the information contained herein. Nexus 21 assumes no
responsibility for accuracy, completeness or sufficiency of the information contained in this document.
3

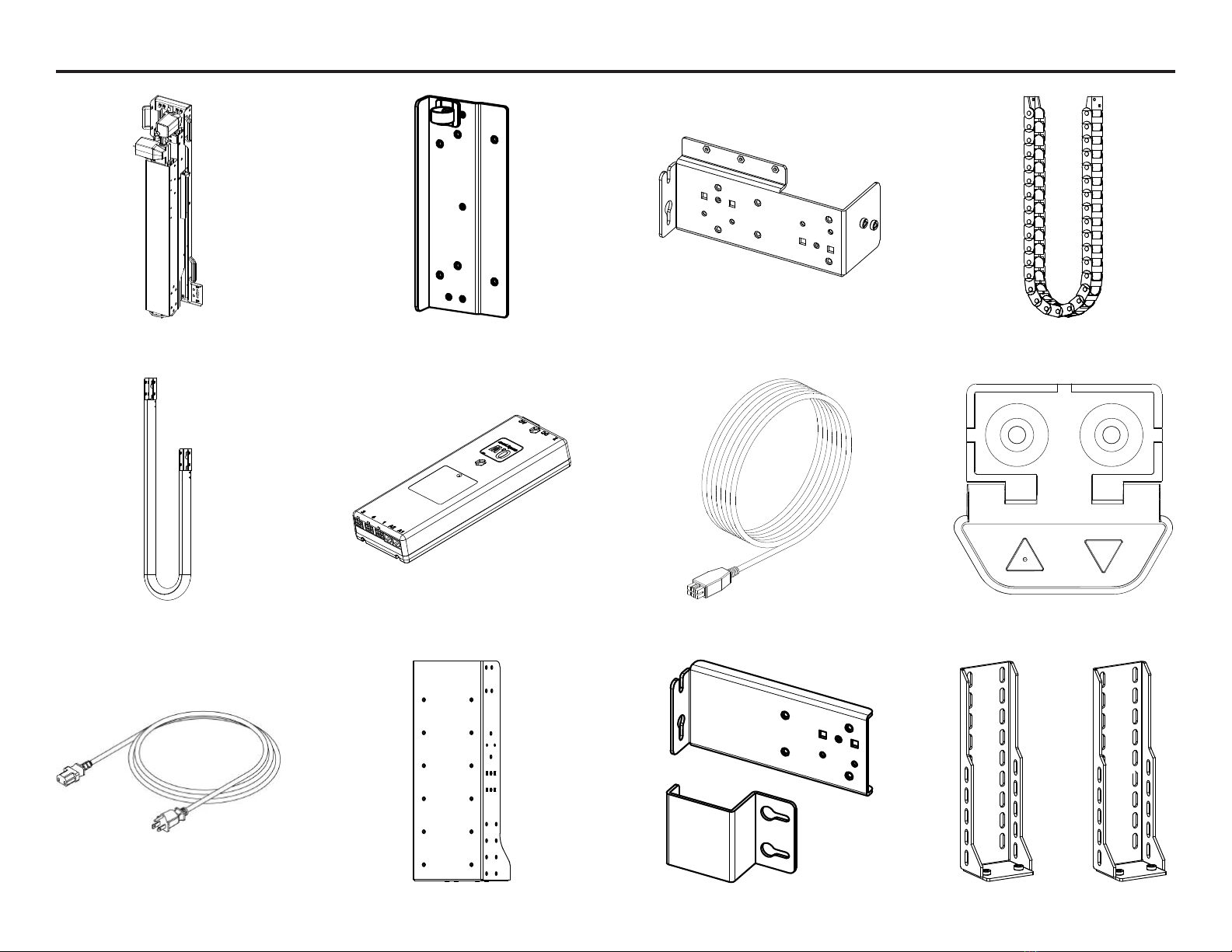

Parts List
Lift Assembly First Stage
Cable Management Bracket
Second Stage
Cable Management Bracket
Cable Track
Snakeskin with Cable
Management Brackets
Control Box (2) Motor Cables Backup Switch
Power Cable Screen Support Screen Support Cable
Management Bracket
Ceiling Cover Support Brackets
4

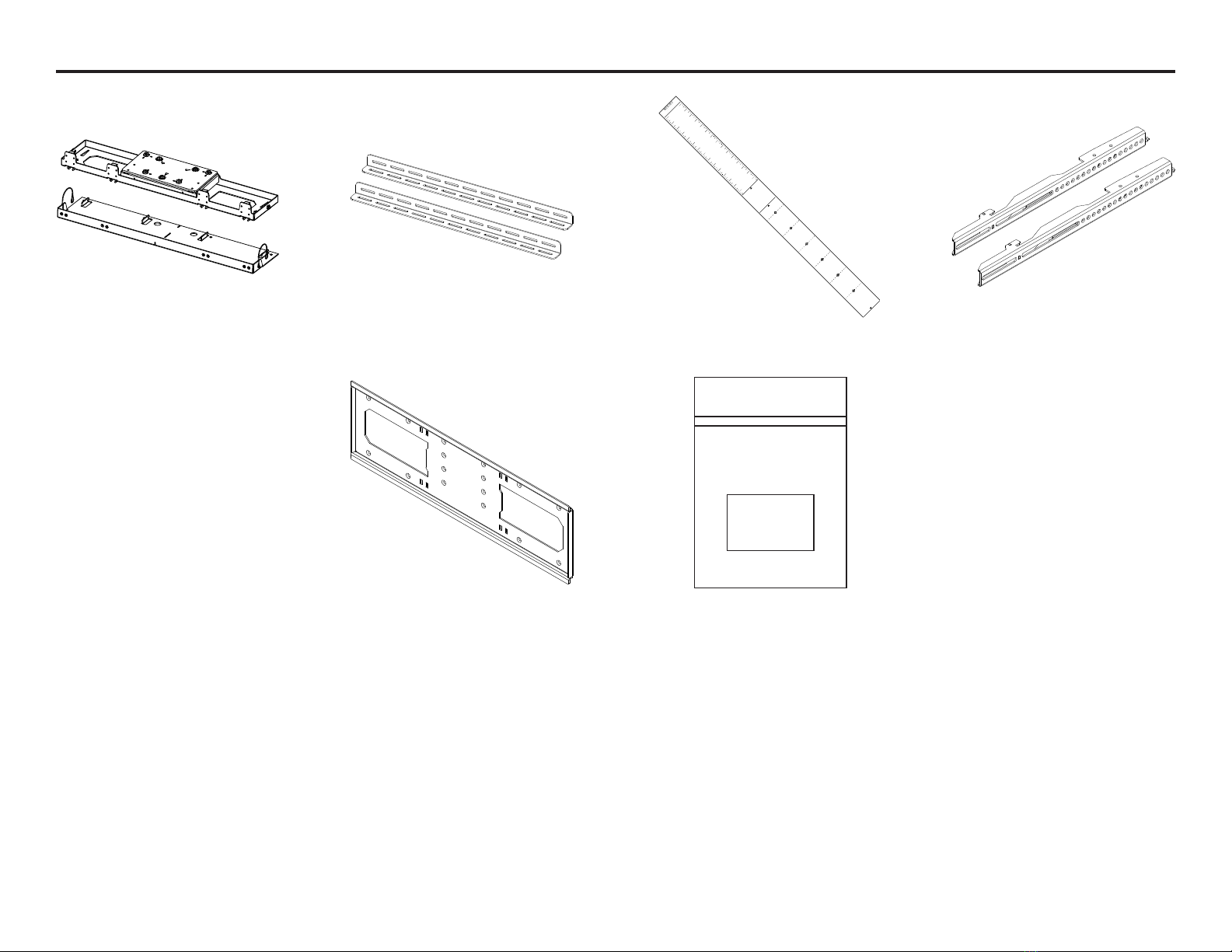

Parts List Continued
StandardTop
MotorizedSwivel Top
Bottom
38”
37”
36”
35”
34”
33”
29”
30”
31”
32”
28”
27”
26”
25”
24”
TVMounting Template
Ceiling Cover Assembly &
Ceiling Cover Adapter
(2) Ceiling Cover Stability Rail TV Mounting Template (2) Vertical Mounting Bar
5
Hardware Pack Contains:
(19) - M6 x 12 FHMS
(24) - M6 x 12 BHMS
(4) - M6 x 10 BHMS
(4) - M4 x 8 BHMS
(3) - M4 x 6 BHMS
(6) - M6 Fender Washer
(4) - M6 Split Lock Washer
(8) - #10 x 5/8” FHWS
(2) - #10 x 1 3/4” FHWS
(4) - #14 x 1” FHWS
(4) - #10 x 3/4” THWS
(2) - 1/4” Cable Clamp
(1) - Large Cable Clamp
(4) - Snakeskin Ties
(4) - Plastic Ties
(4) - Wire Clips
(1) - M4 Small Hex Key
(1) - M2.5 Hex Key
(1) - Large Assorted Hardware Pack*
*Large Assorted TV Hardware accommodates most TV’s but additional hardware may be necessary to mount certain TV’s.
Screen Backplate Hardware Bag

6
10-Year Full Replacement Warranty
How It Works:
The Details:
Nexus 21 products are manufactured to the highest standards of quality and we are proud to provide the industry’s longest, most comprehensive warranty: 10 years of full-replacement
coverage.*
Nexus 21’s dedicated product-support specialists are ready to assist you with any questions. We ask that our specialists be consulted before any repairs or modifications are attempted, as
these may void the product warranty.
Step 1:
If you experience any problem with a Nexus 21 system, call our Product-Support Team at 1-480-306-5462.
Step 2:
We’ll guide you through some of our basic troubleshooting procedures to help identify any issues. The majority of reported issues are resolved with us on the first call without a need for
replacement parts or systems.
Step 3:
In the event that you do need a replacement part or system, we’ll ship it to you right away, along with a prepaid UPS return shipping label and a package for the defective part or system
to be returned to our office. Nexus 21 will cover the shipping cost of the replacement part or system within the continental United States and Canada (excludes Hawaii, Alaska and Puerto
Rico). Shipping costs for replacement parts or systems shipped internationally will be covered up to a value of $50. Any additional shipping costs, including applicable duties and taxes,
are the responsibility of the customer or receiving party.
Nexus 21 warrants all systems to be free from defects in material and workmanship from the date of purchase until the end of the coverage period (shown below). The warranty includes
all parts, motorized components, electronics and metal parts. If a Nexus 21 system or part proves to be defective in material or workmanship during the expressed warranty period, Nexus
21 will replace it free of charge. If the exact original purchase product is not available (due to upgraded designs or discontinuation of a model), the defective product will be replaced with
a similar product of equal or greater value. The replacement will then be covered by the balance of the time remaining on the customer’s original warranty. A Nexus 21 product-support
representative will determine whether a part or an entire system should be replaced.
*Coverage periods for the warranty are as follows:
Residental and Hotel Use
• All Nexus 21 motorized products (except Apex): 10 years
• Apex Motorized Wall Mount: 5 years
Commercial and Educational Use
• All Nexus 21 motorized products (except Apex): 5 years
• Apex Motorized Wall Mount: 3 years
The Nexus 21 full-replacement warranty does NOT cover: any product on which the serial number has been defaced, modified or removed; damage, deterioration or malfunction resulting
from accident, misuse, neglect, power surges, fire, water, lightning or other acts of nature; unauthorized product modification; failure to follow manufacturer’s recommended installation
instructions supplied with the Nexus 21 system; repair or attempted repair by anyone not authorized by Nexus 21; causes external to the product such as electric power fluctuations or
failure; use of supplies or parts not meeting Nexus 21 specifications or any other cause which does not relate to a product defect.
PLEASE NOTE: In order for any warranty claim to be covered fully under the outlined policy we will require the name, company name or contact information for the original purchaser of
the product to qualify the claim. If the information requested cannot be supplied to us or located on file, replacement parts or systems may not be covered under warranty.

7
Return Policy
After 30 Days
Returns received 30-60 days after the product has been delivered are not eligible for a full refund of the purchase price. All returns accepted back during this time frame will be subject to
a restocking fee of 25% of the original purchase price. The following conditions apply to any returns received within this stated timeframe:
• The product must be unused and complete. Full or partial assembly of the product may void eligibility for return.
• The product must be returned in its original packaging to ensure it is not damaged during shipping.
• Customers must call Nexus 21 and speak with a representative to initiate a return request.
• All returns are subject to an inspection process by a member of Nexus 21 Product Support before a refund is issued.
• Please allow a minimum of 2 weeks from the date the return is received for a refund to be processed.
• Any Nexus 21 product that is received back and deemed unfit for resale or restock upon inspection due to installation or shipping damage will not be eligible for a full refund.
• Customers are responsible for shipping charges to send the product back to us.
• All returns must be processed back to the original form of payment used in the purchase of the item(s).
Nexus 21 ships each product encased in custom die-cut foam, which is purpose-engineered for vibration dampening to reduce any risks of shipping damage. It is mandated that all
product returns be shipped back to Nexus 21 in their original packaging. If you do not have the original packaging, please contact Nexus 21 Product Support at 1-480-306-5462. A
new set of packaging materials can be requested and the cost will be deducted from the refund amount.
Nexus 21 will not accept return requests past 60 days of the product being delivered.
Within 30 Days of Delivery:
Customers may return a Nexus 21 product(s) for any reason within 30 days of the date it is received for a full refund of the purchase price. Shipping charges associated with your order are
not eligible for refund. To initiate a product-return request, please review the following conditions:
• The product must be unused and complete. Full or partial assembly of the product may void eligibility for return.
• The product must be returned in its original packaging to ensure it is not damaged during shipping.
• Customers must call Nexus 21 and speak with a representative to initiate a return request.
• All returns are subject to an inspection process by a member of Nexus 21 Product Support before a refund is issued.
• Please allow a minimum of 2 weeks from the date the return is received for a refund to be processed.
• Any Nexus 21 product that is received back and deemed unfit for resale or restock upon inspection due to installation or shipping damage will not be eligible for a full refund.
• Customers are responsible for shipping charges to send the product back to us.
• All returns must be processed back to the original form of payment used in the purchase of the item(s).
Nexus 21 ships each product encased in custom die-cut foam, which is purpose-engineered for vibration dampening to reduce any risks of shipping damage. It is mandated that all
product returns be shipped back to Nexus 21 in their original packaging. If you do not have the original packaging, please contact Nexus 21 Product Support at 1-480-306-5462. A
new set of packaging materials can be requested and the cost will be deducted from the refund amount.
To initiate a Return follow the steps listed below:
Step 1: Call 1-888-981-9919 and request to return your product(s).
Step 2: Your Account Manager will provide you with a link to a form for you to fill out digitally.
Step 3: Arrange shipment of the product to our office. Emailing the tracking information to [e-mail] can expedite the process.
Once your product is received, please allow up to 2 weeks for us to inspect and process your return. You will receive a confirmation email indicating that your return has been successfully
processed. Refunds may take 5 - 10 business days depending on your issuing bank.

Assembly & Installation
This section of the manual will walk you through how to assemble and install your lift system and can be performed with the lift system on
the ground.
8

9

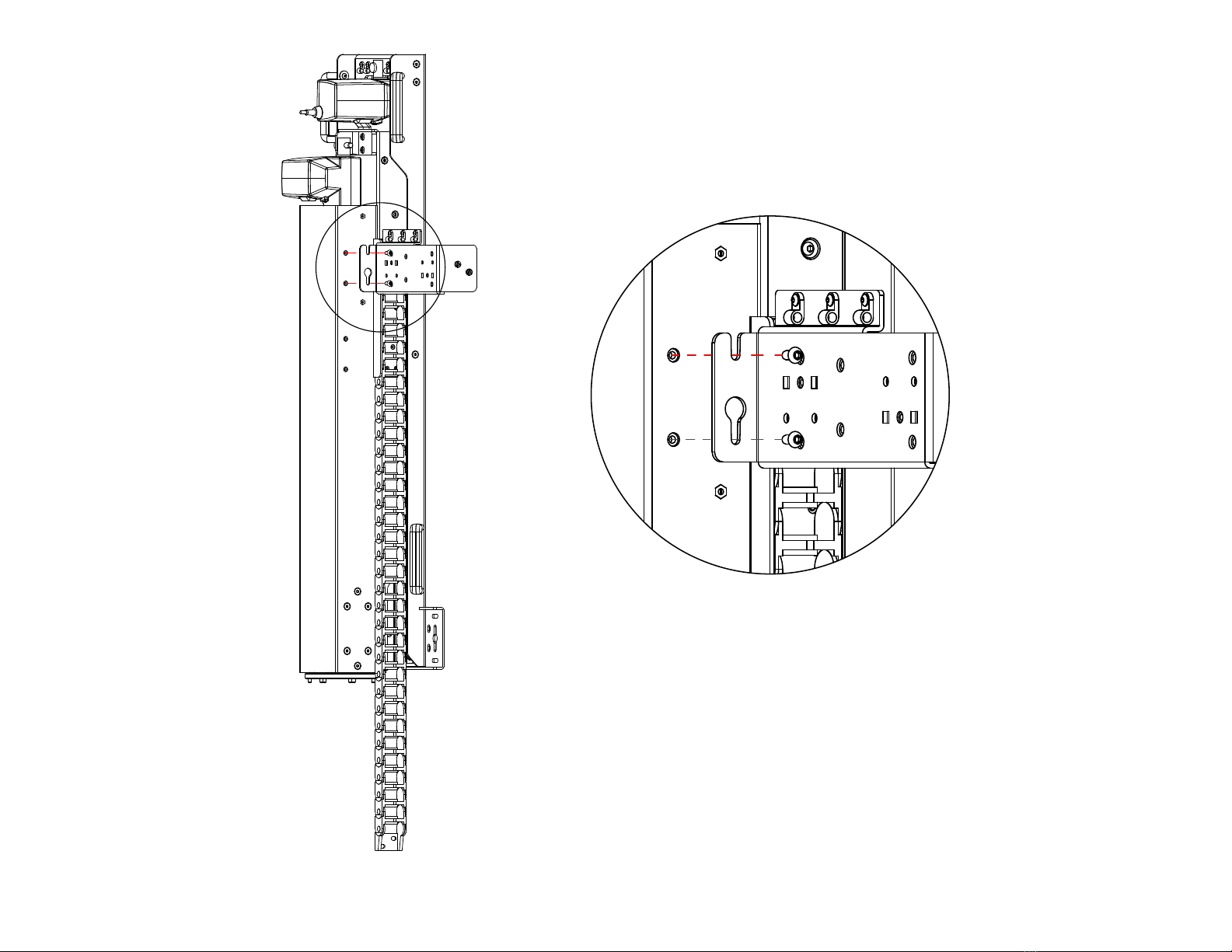

1. Slide the First Stage Cable Management Bracket into place on the right side of the Lift System and secure it using (2) M6 x12 FHMS.

10
2. Attach the top of the Cable Track to the First Stage Cable Management Bracket using (2) M6 x 10 BHMS.
Note: Ensure the opening on the Bottom of the Cable Track is facing the same direction as the opening on the Top.

11
3. Attach the Second Stage Cable Management Bracket to the Main Lift Assembly using (2) M6 x 12 BHMS.

12

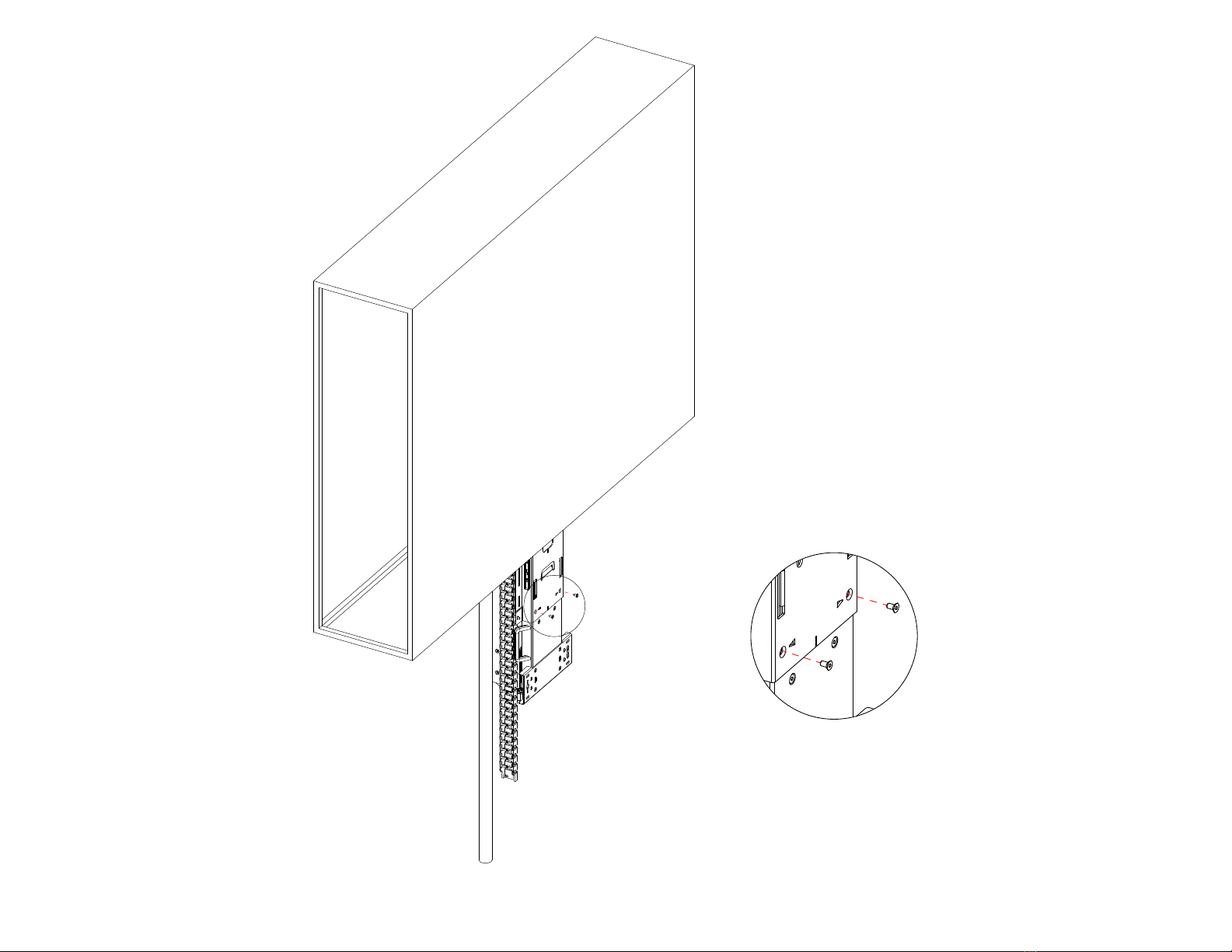

4a. Fasten (2) M6 x 12 BHMS to the Second Stage Cable Management Bracket, but do not fully tighten.
4b. Slide the Snakeskin Bracket onto the Second Stage Cable Management Bracket and tighten the (2) M6 x 12 BHMS from Step 4a.

13

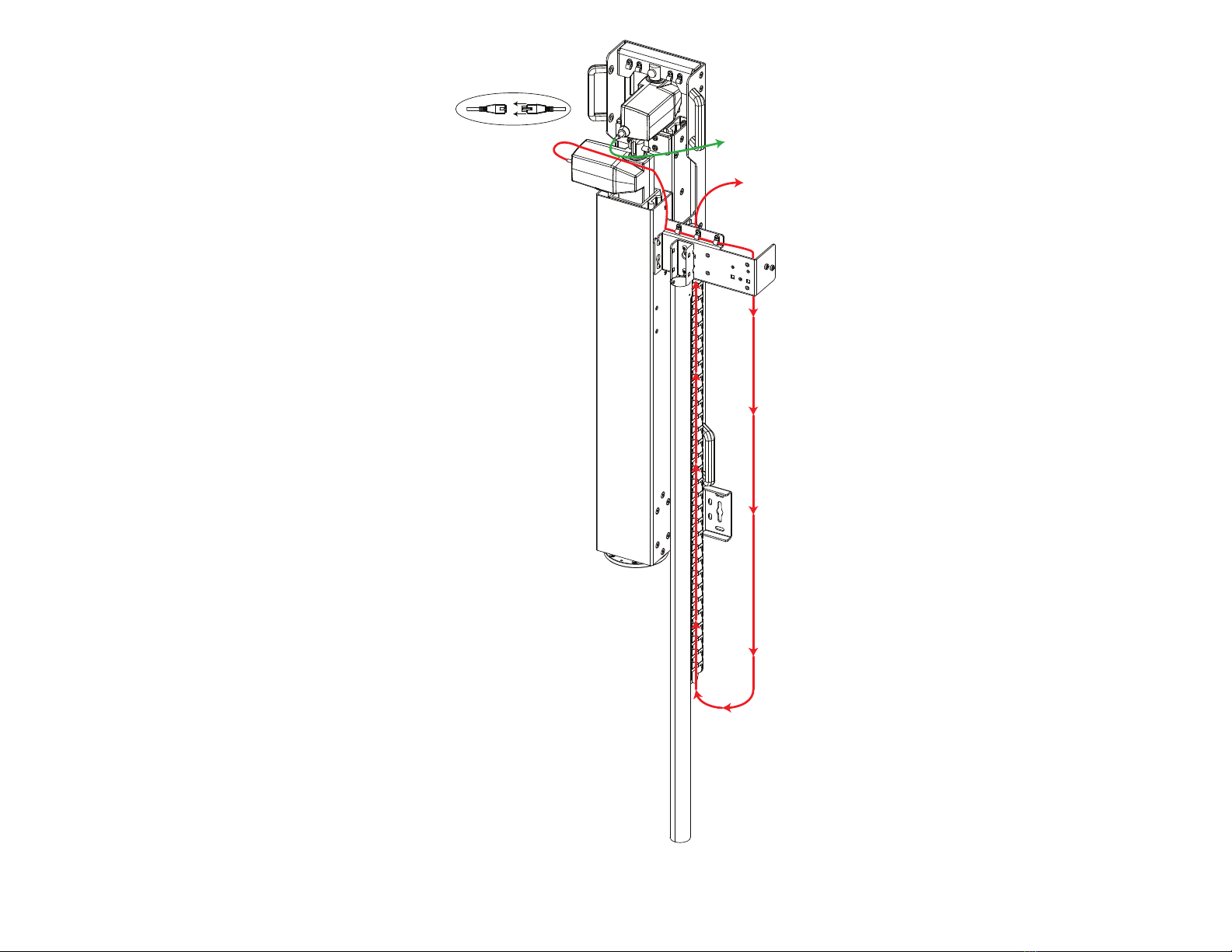

5a. Connect one end of the 1m Motor Cable to the top actuator and run the rest of the cable along the green path.
5b. Connect one end of the 2.5m Motor Cable to the bottom actuator and run the rest of the cable along the red path.

14
x 2
6a. Install the Control Box on the Right Side of your enclosure using (2) #10 x 1-3/4” FHWS.
Note: For the remainder of this Installation Manual, the Control Box will be hidden from view.
From this point forward, the manual assumes the Installation Bracket has been installed. If it has not, locate the Installation Manual in Box 1and complete this first.

15
Push

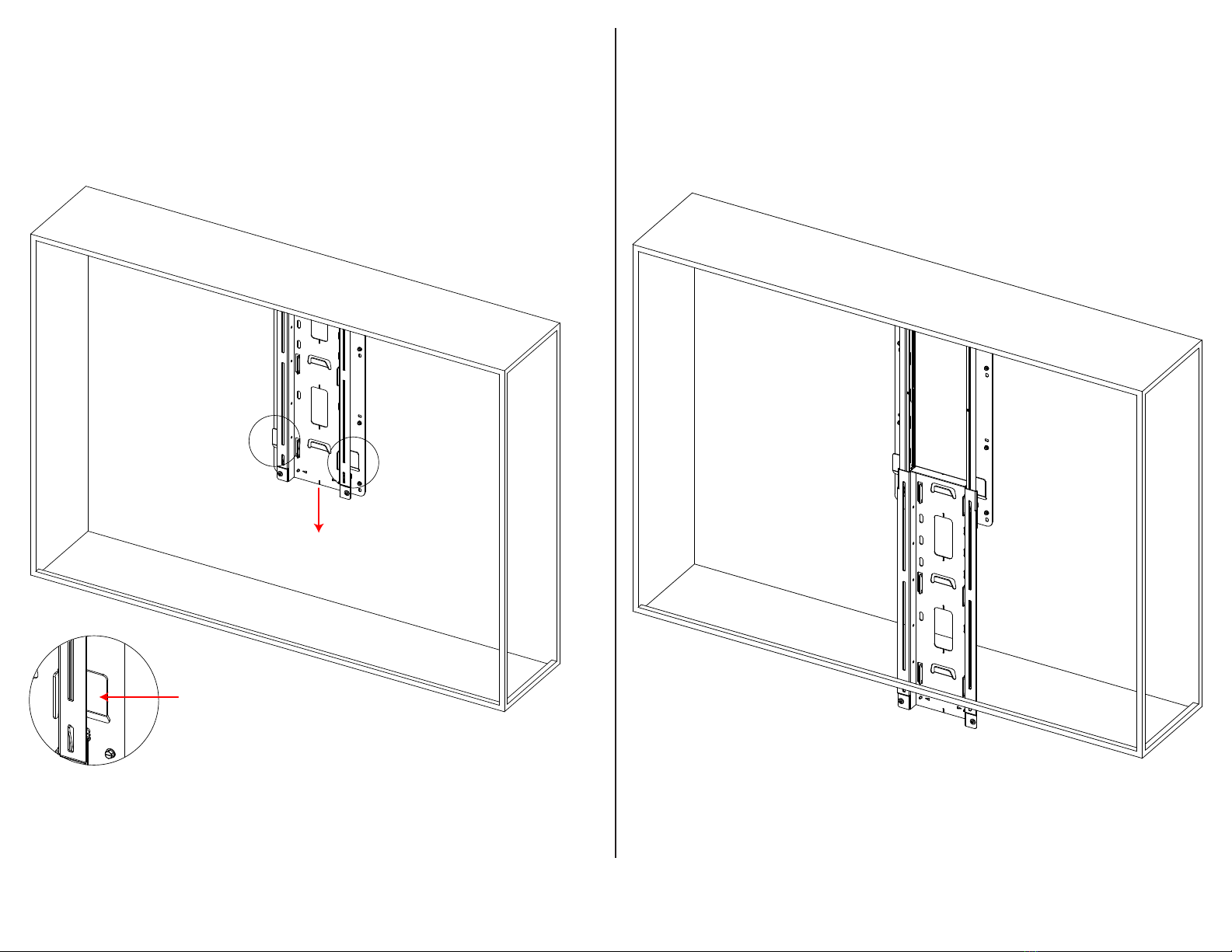

6b. Push the Paddles on the Left and Right Side of the Installation Bracket and lower the Secondary Bracket.

16
3rd Hook
2nd Hook
1st Hook
7. Using the handles on the side of the Lift Assembly, hoist the Lift Assembly onto the first set of hooks on the Installation Bracket.

17
8. Using the handles on the side of the Lift Assembly, hoist the Lift Assembly onto the second set of hooks on the Installation Bracket.

18
9. Using the handles on the side of the Lift Assembly, hoist the Lift Assembly onto the third set of hooks on the Installation Bracket.

19
10. Secure the Lift System to the Installation Bracket using (2) M6 x 12 FHMS.

20

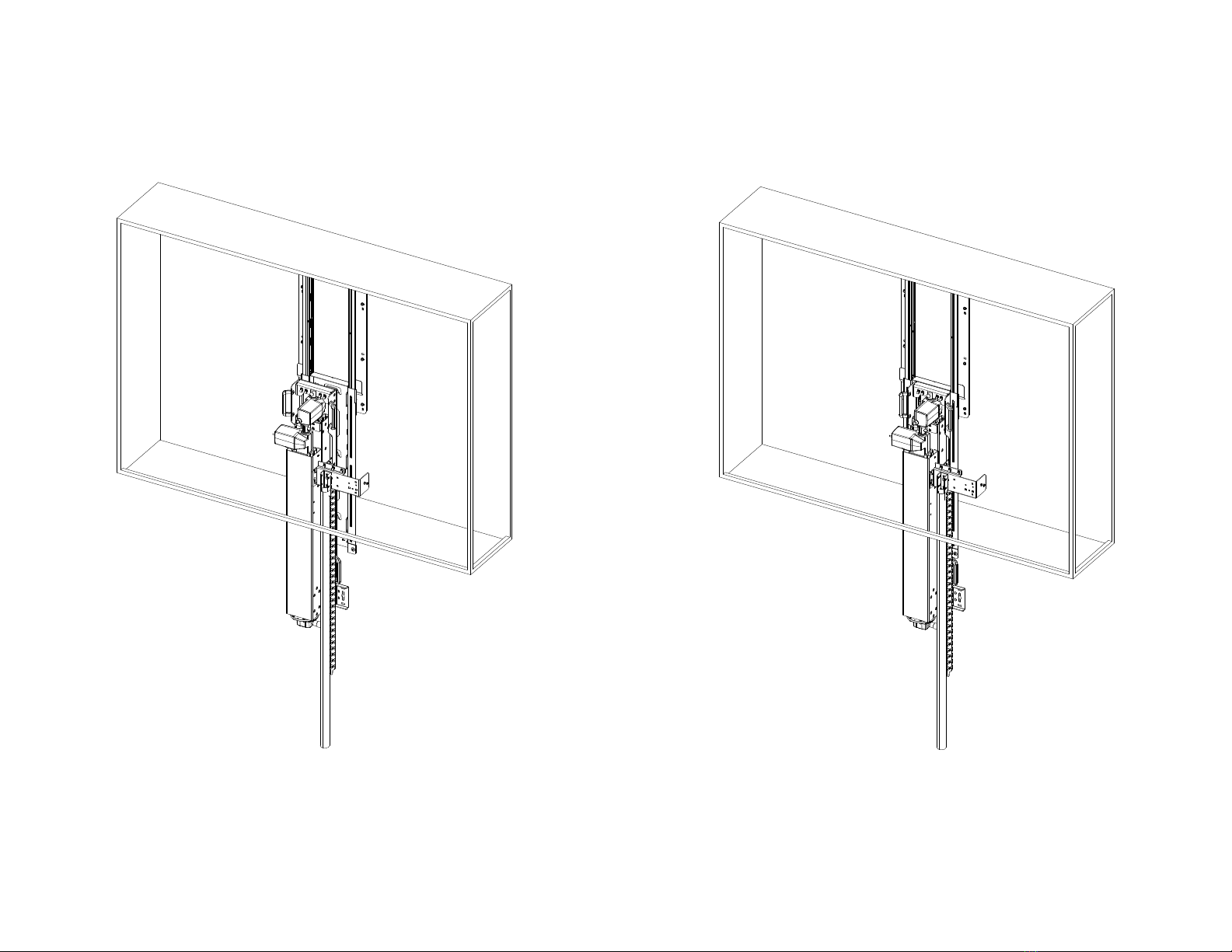

11 . Push the lift system up on the Installation Bracket until the Installation Bracket is fully retracted.
Note: There is a halfway point that the system will stop at, depress the paddles and continue pushing the lift system up.
