NGM Rock User manual

1
Contents
1. For your Safety………………………3
2. Mobile Phone Profile………………...6
3. Preparation before Use…………...…8
4. General Instructions…………..……14
5. Basic operation………...……………22
6. Use Menu Functions……..…….……27
6.1 Messages…………………………….27
6.2 Phonebook………………..…….…...39
6.3 Call center………………….….…….42
6.4 Multimedia…………………….…….48
6.5 Fun &Game…………………………57
6.6 Settings………………………………57
6.7 Internet services……………….……64

2
6.8 Organizer………………………...…68
6.9 File Manager…………………..……78
7. English Editor Operation……..……82
8. Coffer Function …………………….83
9. Use USB……………………….…….87
10. Appendix Ⅰ………………………….87
11. Appendix Ⅱ……………………...….90
12. Appendix Ⅲ………………………...90
13. Declaration..………………………...93

3
1. For your Safety
For your safety and proper use of the mobile phone,
please read the following guidelines carefully: Do not
switch the mobile phone on when close to a chemical
factory, gas station or other explosive objects.
During driving, please use headset for safety
purpose; unless otherwise in emergency, always
stop the car on the roadside to have a call
conversation.
Because the use of the mobile phone can cause
interference in the aircraft, never use the mobile
phone in aircraft. The use of the mobile phone is
dangerous and illegal; do switch off the mobile
phone before boarding.
Pay special attention to the use of the mobile
phone near heart pacemaker, deaf-aid and some
other medical equipments, because the mobile
phone can cause interference with them.
Do not dismantle the mobile phone without
permission. In case of failure, please contact the
supplier as soon as possible.
Do not plug the charger into the mobile phone
and charge without battery. Always power off the
mobile phone when taking out the battery;

4
otherwise the memory of the phone may be
damaged.
When charging the mobile phone, always keep it
in the place with good ventilation, heat sink and
away from flammable and explosive objects.
In order to avoid demagnetization, always keep
the mobile phone away from magnetic objects
such as CD, credit card etc.
Ensure the mobile phone does not come in
contact with any liquid; once such a case occurs,
remove the battery and contact the supplier
immediately.
Do not use the mobile phone in the environment
at too high or too low a temperature, never
expose the mobile phone under strong sunshine
or too wet an environment. The suitable
temperature for the phone and accessories is
0℃-40℃. The height to use the phone shall be
less than 2,000m.
Do not use liquid or wet cloth with strong
cleanser to clean the mobile phone.
This mobile phone has shooting, video and audio
recording functions, which shall be used as per
the related laws and regulations.

5

reach. Do not throw the mobile phone because
violent treatment to the mobile phone may
damage the inner circuits and precise structures.
Please do not discard the waste battery into
general household garbage. Please deal with the
waste battery according to provisions where they
are definitely made.
Warning: We will not be bear any responsibility for any
incompliance with the above guidelines or improper use
of the mobile phone.
Our company keeps the right to make modifications to
any of the content here in this user guide without public
announcement in advance.
The content of this manual may vary from the actual
content displayed in the mobile phone. In such a case,
the latter shall govern.

6
1. Mobile Phone Profile
The mobile phone has a standard keypad, a single
screen. In addition, it is inbuilt with one vibration motor,
one charger/data common transmission port and one
exterior memory card (T-Flash card) port.
OK key
End key
Number key
Receiver
Right soft key
Speaker
Screen
Left soft key
Send/Dial key

7
Camera
Speaker

8
2. Preparation before Use
When registering a mobile phone number, you can
apply for two different phone numbers, two different
mobile phone network service providers and thus obtain
two SIM (Subscriber Identification Module) cards.
With these two SIM cards, you can use all
functions of your mobile phone. The SIM cards save the
parameters needed for communications and personal
data, including PIN (Personal Identification Number)
code, phonebook, short message and other extra system
services.
Warning: Do not distort or scratch the SIM card nor let
SIM 2
SIM 1
Battery

9
it come in contact with static, dust or moisture. If it is
lost, please contact your network operator immediately
for help.
Before SIM card installation, please switch off the
mobile phone. The SIM card is installed on the back of
the mobile phone.
Follow the following diagram to install the SIM card.
Please insert the host SIM card into the SIM1 slot and
the slave SIM card into the SIM2 slot.
Note: If SIM card is inserted only into the SIM1 slot,
then only the host works; likely, If SIM card is inserted
only into the SIM2 slot, then only the slave works.
When two SIM cards are inserted into the SIM1 slot and
SIM2 slot respectively, you can choose work mode
freely as you wish.

10
Installing the Memory card
As the mobile phone does not have enough internal
storage space, to use some functions, you need to install
a memory card (This mobile phone use T-FLASH or a
microSD card.)
Installing T-FLASH card: Open the back cover to
take out the battery, insert the T-Flash card into its slot,
restore the battery before restarting the mobile phone.
Note: As the T-FLASH card is a small object, keep it out
from gulping it!
Install Battery
The mobile phone is suitable for original battery
and accessories. When the battery is idle, it is
T-flash card

11
recommended to put it into the protection box.
Note: Install the battery as per the diagram so as to
prevent the battery contact patch being damaged.
Charge Battery
The new battery cannot reach the optimal
efficiency unless it has undergone several continuous
complete charges and discharges.
When the battery is used up, charge it in time.
Over-discharge can damage the battery.
After the battery is fully charged, cut off the
connection of the charger with the AC power supply and
then the connection with the mobile phone.
During charging, the battery capacity icon on the
screen flickers from the right to the left. After the
battery is fully charged, the icon is full of bars. Slight
heat during charging is normal.
Warning: When a travel charger and its accessories are
used to charge the battery, please firstly check if they
are original or recognized by the original manufacturer.
The use of other accessories may damage your mobile
phone and cause risks! Always use them indoor and at
dry places.
Notice on using the battery
The performance of the battery is affected by many

12
factors, including radio barrier, network settings, signal
strength, work, temperature, chosen and used functions
or settings as well as phone accessories, tone, data or
other applications.
For optimal performances, please follow the rules
below:
New battery or the battery having been idle for
long needs charging for long. The standard
voltage scope for the battery is 3.6V-4.2V.
During charging, keep the battery at room
temperature or similar temperature.
With time passing by, the battery will gradually
be worn out and thus need longer time to charge.
This is normal. However, after normal charging,
if call duration decreases but charging time
increases, you need to buy another battery from
the original manufacturer or authorized by the
original manufacturer. The battery of inferior
quality can damage your mobile phone and cause
danger!
If the phone is overused at low battery when
charging, it might need a longer time for the
charge indicator to be shown on the screen.

13
Note: Please dispose the battery according to the local
regulations. Try to recycle the battery as soon as
possible. Do not treat the waste battery as common
waste.
Warning: Do not throw the battery into fire so as to
prevent fire. The broken battery may cause explosion.
Warning
Charging the mobile phone by improper
means can cause explosion. Always refer to the
related regulations for the disposal of the
battery.
PIN code
PIN1 Code:It is the personal identification number
used to enter SIM and able to prevent others using SIM1
without permission. If the mobile phone has activated
the PIN1 code protection, when the mobile phone is


to represent the input content. While obtaining SIM, you
can obtain its PIN1 code.
PIN2 Code: It is the personal identification number
used for some special functions such as paid call etc.
PUK Code and PUK2 Code(8-digit)

14
To change the locked PIN code, you need to use
PUK (Personal Unblocking Key) code. To change the
locked PIN2 code, you need to use PUK2 code. If these
two codes are not provided together with the SIM cards,
ask the local service provider for them.
Warning: If the PIN code is entered wrongly for
successively three times, the SIM card will be locked.
Please contact the network operator immediately for
help. Attempt to unlock the code may make the SIM
card ineffective forever!
3. General Instructions
Dial key
It is used to dial a call (with phone number entered
or in phonebook state) or receive an incoming call. In
standby state, press this key to display the latest call
register (SIM1 and SIM2 support respectively 20 call
entries, including received calls, missed calls and dialed
calls). In dual-SIM standby mode, press this key to have
an option menu on which you can choose to operate via
SIM1 or via SIM2.
Switch-on/off key /End key
In call state, it is used to interrupt a call; in call
conversation state, it is used to end a call or exit from

15
the current menu and back to the standby state. Hold
this key for 4~5s to switch on/off the mobile phone.
Ok key
Press the ok key to have the functions indicated in
the bottom row of the main screen of the mobile phone.
Functional direction key
This mobile phone has four direction keys, with
the left, right, up and down control functions. In some
interfaces, they have special function, for example, in
call state, press the up/down key to adjust volume.
Similarly, these four direction keys can be set with
shortcut functions. Shortcut keys can be active only in
standby state and their function definitions can be set by
you with the procedures as: enter the phone settings
menu, choose dedicated key function to re-edit the
direction keys.
Standard keypad
On the keypad, you can see 0-9 number keys, * key
and # key, total 12 keys.
Press these keys to enter phone number, password,
English letters, and symbols etc, or choose menus.
Note: 
voice inbox service center. The number for the voice
inbox should be preset.

16
In different states or different functional menus, *
key and # key have different functions:
         
silence mode.
Continuously press shortly or press long * key to
  ＋" or "W" , among whic
        
international calls.
In music player state, * and # are used to adjust
volume.
Keypad lock
When in standby interface, if the mobile phone is
idle for a certain time, it will be locked automatically.
Press the right soft key to release and press the ok key
 again to unlock. After the mobile keypad is
locked, in case of incoming call, press the answer key to
receive it; after that, the keypad will be locked
automatically.
Icons in Standby State
Line 1 signal antenna
Line 2 signal antenna

17
Activate the alarm clock
SIM 1 SMS
SIM 2 SMS
Ring; this icon may vary with different warning
modes
Ring after vibration
Vibration and ring
Vibration
Missed call
Unlocked
Master line1
Slave line1
Master line2
Slave line2
MMS BUSY
MMS unread

18

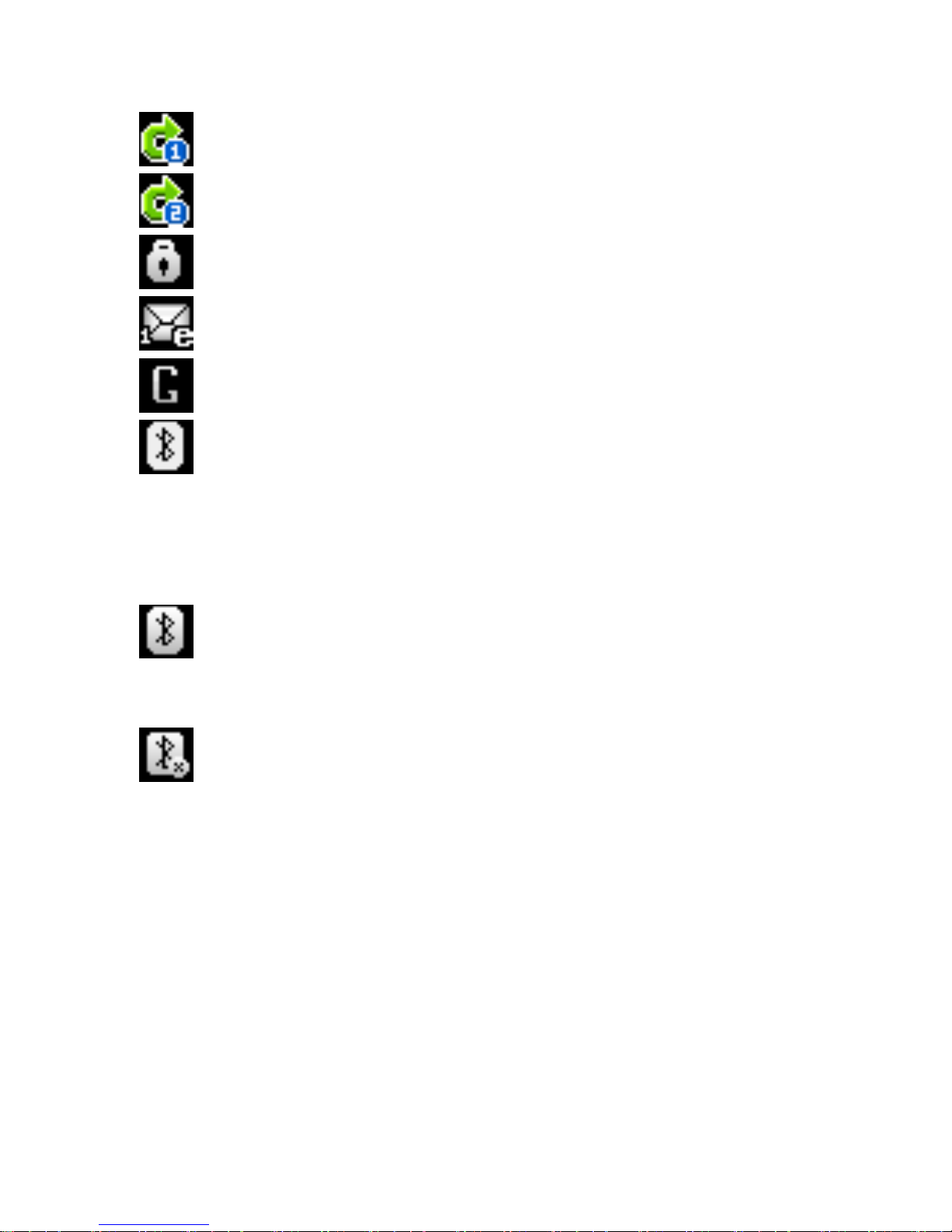

SIM1 All calls diverted
SIM2 All calls diverted
Locked
SIM1 E-mail
GPRS
Continuous display indicates the Bluetooth function
has been activated and can be searched; flickering
indicates that data is being transmitted.
Bluetooth function has been activated and can be
searched
Disconnected
Language and Input Mode
The mobile phone has English input mode. For
different areas, there are different languages and
corresponding input modes.
Call hint
The mobile phone is inbuilt with vibration motor
and buzzer and provides several incoming call modes:

19
Ring
Vibration
Ring after vibration
Vibration and ring
Services
Services are provided with SIM kit. The mobile
phone supports this service function. The detailed menu
items depend on SIM card and the network. When the
network provides such function and your SIM card
supports such function, the service menu will
automatically be posted in the services of the mobile
phone.
Caller groups
The caller group in the mobile phone includes
friends, family, VIP, business and others etc. You can set
different call tone and photo for different caller groups.
Term Description
Dial domestic calls
The simplest method to dial a domestic call is to
enter the phone number via the number keypad,
then press dial key to dial call. To change phone
      he

20
screen will display an animation. If SIM card 1
calls, "SIM1-" occurs; if SIM card 2 calls,
"SIM2-" occurs. When the other party is
connected, the screen will display the
corresponding information.
Press end key to end the call.
To dial a domestic call, enter area code + phone
number and then press the dial key.
Dial international calls
If you want to make an international call, you
can press * key continuously until the
       
screen. This will allow you to make an
international call from any country without
knowing the dialing prefix.
After entering the prefix, you need to enter the
Country number and complete telephone number.
You can enter the Country number according to
the common practice, such as, 49 for Germany,
44 for Britain, 46 for Sweden, etc.
Dial international telephone numbers as
   ber +Complete
telephone number + Dial key.
