NHP Terasaki TemBreak PRO P SE Series User manual

Version
1.2.0
NHP Electrical Engineering Products
AU 1300 NHP NHP
NZ 0800 NHP NHP
nhp.com.au
nhp-nz.com

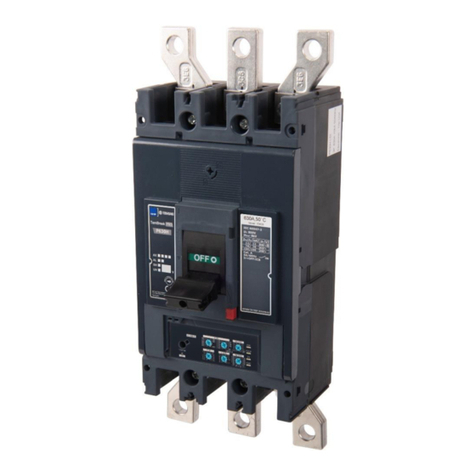

P Model Moulded Case CircuitBreaker
SMART Electronic Trip Unit from 160A up to630A
USER MANUAL

2
TemBreak PRO P_SE-UM-001-EN V1.2.0
Using this manual
Safety Precautions
Authorised Personnel Only
The product or system described in this documentation must be installed, operated and maintained by qualified personnel only. NHP or Terasaki accept no
responsibility for the consequences of the use of this equipment by unqualified personnel.
A qualified person is one with the necessary skills and knowledge of the construction and operation of the installation of electrical equipment and has been
trained to identify and avoid risks.
Appropriate use of NHP / Terasaki products
NHP / Terasaki products are intended to be used only for the applications described in the catalogue and technical documentation, which is dedicated to
them. If products and components from other manufacturers are used, they must be recommended or approved by NHP or Terasaki.
Appropriate use of NHP / Terasaki products during transport, storage, installation, assembly, commissioning, operation and maintenance is necessary to
ensure safe operation and without any problems.
The permissible ambient conditions must be met. The information contained in the technical documentation must be observed.
Publication of responsibility
The contents of this document have been reviewed to ensure that the reliability of the information is correct at time of publication.
NHP or Terasaki are not responsible for printing or damage resulting from errors. NHP or Terasaki reserve the right to make corrections and changes
needed in subsequent edition.
Warnings and notes
This documentation contains safety instructions that you must follow for your personal safety and to prevent damage to property.
Safety instructions, referring to your personal safety are reported in the literature by a safety alert symbol.
Safety warning symbols and the words below are classified according to the degree of risk.
WARNING: Indicates an imminently hazardous situation which, if it cannot be avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation which, if it cannot be avoided, can result serious injury or
death.
WARNING: Indicates a potentially hazardous situation which, if it cannot be avoided, may cause minor or
moderate injury.
Notice: Indicates a warning of property damage and can also indicate important operating and especially useful
information on the product, that it should pay particular attention to efficient and safe operation.

3
TemBreak PRO P_SE-UM-001-EN V1.2.0
Summary of Changes
This section highlights the details of changes made since the previous issue of this document.
The versioning convention used to track changes in this document follows the structure Vx.y.z where:
x: Major revision, where extensive changes are made which is generally incompatible with the previous version. Such changes may include new
products and/or features, or removal of information which is no longer relevant or applicable to the previous version
y: Minor revision, where changes made do not change the overall scope of the previous version, but may include additional information which
complements or corrects the previous version, or provides additional clarity on an existing topic.
z: Patch version, where small changes are made to correct minor errors or adjust existing text, charts, figures and/or images, and which do not
add or remove information from the previous version. Example changes may include spelling corrections, image re-sizing and adjustments,
updated images, etc.
Version
Publication date
Changes
By
V 1.0.0
19-Apr-2021
Initial release
D.NAT
V 1.1.0
26-Apr-2021
Product information corrections
D.NAT
V 1.2.0
13-May-2021
Clearance distance corrections
N.ALEX

4
TemBreak PRO P_SE-UM-001-EN V1.2.0
Table of Contents
Using this manual 2
Safety Precautions 2
Summary of Changes 3
Table of Contents 4
Introduction 6
Who Should Use This Manual? 6
Additional resources 6
Terminology and Abbreviations 7
Product Information 8
Part Number Break Down 9
Available MCCBs in the TemBreak PRO range: 10
P160_SE and P250_SE Information 11
P400_SE Information 12
P630_SE Information 13
Internal Accessories 14
Auxiliary & Alarm Switches 14
Auxiliary Contact 14
Alarm Contact 14
SMART Auxiliary AX / AL Status Indicator 14
Shunt Trip 15
Under Voltage Trips 15
P_SE Only MCCB Accessories 16
TemView PRO (TPED) 16
TemCom PRO (TPCM) 17
Connection Cables 18
CIP-RJ9 cable 18
ZSI cable 18
OAC and PTA cable 18
Plugs & Ports 19
Installation 20
Precautions 20
Mounting Angles 20
Direction of Power Supply 20
Clearances 21
Internal Accessory Mounting Locations 23
P160 internal accessories combination 23
P250 internal accessories combination 24
P400/630 internal accessories combination 25
Alarm, Shunt & UVT Installation 26
Standard Alarm & Auxiliary installation 26
Shunt & UVT installation 27
SMART Auxiliary Installation 28
Protection Settings 29
Trip Curve 29
Long Time Delay Protection (LTD) 30
Adjusting Ir(Current) 31
Adjusting tr(Time Delay) 32
Thermal memory / Hot–Cold start mode 33
Short Time Delay Protection (STD) 34
Adjusting Isd (Current) 35
Adjusting tsd (Time Delay) 37
Isd Time Delay Adjustment Settings (ms) 37
I2t function for STD 38
Thermal Self-Protection 41
Instantaneous Protection (INST) 42
Adjusting Ii(Current) 42
Ground/Earth Fault Protection (GF) 43
Adjusting lg(Current) 43
Adjusting tg(Time Delay) 44
tgTime Delay Adjustment Range (ms) 44
I2t function for GF 44
Neutral Protection (NP) 45
Adjusting Irand Isd for Neutral Protection (Current) 45
Zone Selective Interlocking Function (ZSI) 46
Setting the ZSI function 47
Installation consideration 47
ZSI example A 48
ZSI example B 48
Measurement and Settings 49
Overview of Measurements 49
Accuracy of Measurements 51
Real-Time and Min./Max. Measurements 52
Current and Voltage Imbalances 54
System Phase Sequence 55
Power Related Measurements 56
Active, Reactive, Apparent power 56
Power factor (PF and cosφ) 59
Total Harmonic Distortion (THD) 61
Current (THDI) 61
Voltage (THD, THDU, THDV) 61
Demand Values (averaged values over an interval) 62
Demand mode 63
Energy Measurements 65
Alarms 66
Alarm Types 66
Alarm Indication 66
Priority Level 67
System Alarms 68
PTA (Pre-Trip Alarm) 69
Pre-Trip Alarm Configurable Settings 70
Trip Alarms 71
Last trip 71
Custom Alarms 72
Custom alarm parameters 72
Positive activation 73
Negative activation 73
Equivalent value activation 74
Time delays 75
Custom alarms list 76
OAC (Optional Alarm Contact) 79
Optional alarms List 79
Date & Time 80
History 81
Trip Alarm Log 81
Custom Alarm Log 81
Protection Setting Changes Log 82
Write Protection 83
Remote Write Authorization 83
Password Management 84
Changing the Password 84
OCR Power Supply 85
Self-power requirements 85
External 24V dc supply requirements 85
External 24V dc supply instructions –CIP adapter cable 86
Navigation 88
P_SE OCR Overview 88
Principles of Navigation 89
Locking / Release Button 89
Navigation Menus 90
Protection Setting Menu 90
Measurement Menu 91
Setup Menu 92
Information Menu 93
Sleep / Standby 94

Table of Contents
5
TemBreak PRO P_SE-UM-001-EN V1.2.0
Commissioning 95
Starting the P_SE MCCB for the First Time 95
LTD Protection Adjustments (Ir, tr) 96
Navigation and Settings After the First Setup 98
Accessing Measurements 100
Setting Favourites 101
Accessing Setup Settings 102
Troubleshooting 104
Annex A –Dimensions 106
P160 Dimensions 106
P250 Dimensions 107
P400 Dimensions 108
P630 Dimensions 109
Annex B –Trip Curves 110
Annex C –I2t Let-Through Curves 111
P160_SE 111
P250_SE 112
P400_SE 113
P630_SE 114
Annex D –Peak Let Through Curves 115
P160_SE 115
P250_SE 116
P400_SE 117
P630_SE 118
Annex E –Watts Loss 119
Annex F –Rated Temperature Tables 120

6
TemBreak PRO P_SE-UM-001-EN V1.2.0
Introduction
This user manual describes the TemBreak PRO Smart Energy (P_SE) MCCB features and instructions for use, and provides information for commissioning
and configuring.
Some additional features may require the use of additional products and accessories to achieve full utilization of that feature. Refer the respective User
Manual in the TemBreak PRO series for additional information on the respective product.
Who Should Use This Manual?
This manual aims to provide users, electricians, panel builders and maintenance personnel, with the technical information required for commissioning and
operation of the NHP / Terasaki TemBreak PROP_SE MCCB.
Users of this document must have at minimum a basic understanding of electrical circuit protection topics including (but not limited to):
- Power distribution and reticulation
- Circuit protection devices
- Fault currents
- Arc faults
- Temperature rise and thermal derating of switchgear
Additional resources
The following resources contain additional information which should be read in conjunction with this document.
Resource
Description
NHP/Terasaki TemBreak PRO P_SE Installation
Instructions
P160_3_SE-IN-001-EN
P160_4_SE-IN-001-EN
P250_3_SE-IN-001-EN
P250_4_SE-IN-001-EN
P400_3_SE-IN-001-EN
P400_4_SE-IN-001-EN
P630_3_SE-IN-001-EN
P630_4_SE-IN-001-EN
Information on installing, mounting, and wiring the TemBreak PRO Smart Energy MCCB.
NHP/Terasaki TemView PRO Installation Instructions
TemView_PRO-IN-001-EN
Information on installing, mounting, and wiring the TemView PRO external display.
NHP/Terasaki TemView PRO User Manual
TemView_PRO-UM-001-EN
Reference guide for the TemView PRO external display including information for
installation, wiring, commissioning, configuration, and troubleshooting.
NHP/Terasaki TemCom PRO Installation Instructions
TemCom_PRO-IN-001-EN
Information on installing, mounting, and wiring the TemCom PRO communications
module.
NHP/Terasaki TemCom PRO User Manual
TemCom_PRO-UM-001-EN
Reference guide for the TemCom PRO communication module including information for
installation, wiring, commissioning, configuration, and troubleshooting.
Notice: Not all Smart OCRs in the TemBreak PRO series are identical. This document specifically covers the
P_SE OCRs only. Refer to the respective Smart OCR User Manual (e.g. B_SE User Manual) for information and
instructions on other Smart OCRs in the TemBreak PRO series.

Introduction
7
TemBreak PRO P_SE-UM-001-EN V1.2.0
Terminology and Abbreviations
Abbreviation
Description
Abbreviation
Description
ACP
Auxiliary Communications port: Plug for Smart auxiliary /
alarm contact block
MIP
Maintenance Interface Port: Plug for temporary
connection to OCR testing, servicing, and maintenance
tools
AL
Alarm: An auxiliary contact indicating trip status
N
Neutral
ASCII
American Standard Code for Information Interchange
NP
Neutral Protection
AX or AUX
Auxiliary: Auxiliary contact indicating open / closed
OAC
Optional Alarm Contact: Connection connector optional
alarm output contact
BE
Basic Electronic Trip Unit (dial type, LSI and LSIG)
OCR
Over Current Relay
CCW
Connected Components Workbench software
P or PTA
Pre-trip Alarm
CIP 1 2
1Communication Interface Port: Plug for control power
and data for use with the TPED remote display and
TPCM communication module
2Common Industrial Protocol
PDU
Protocol Data Unit
CRC
Cyclic Redundancy Check –error-detecting code used at
the end of each Modbus message
PELV
Protected Extra Low Voltage (earthed system)
dec
Decimal (base-10) numbering system
PTA
Pre-Trip Alarm: is a programmable output contact to
advise when a trip may be imminent.
DINT
Signed Double Integer datatype (4 bytes or 32 bits in
length)
RTU
Remote Terminal Unit
EIPM
TemBreak PRO Ethernet/IP Module
S or STD
Short Time Delay Protection
FF
Fixed Thermal and Fixed Magnetic
SE
Smart Energy Trip Unit
FM
Fixed Thermal and Adjustable Magnetic
SELV
Separated Extra Low Voltage
G or GF
Ground Fault Protection
SN
Solid Neutral
hex
Hexadecimal (base-16) numbering system
SSID
Service Set Identifier (name of the Wi-Fi wireless
network)
I or INST
Instantaneous Protection
STR
String datatype
IEC
International Electrotechnical Commission
TCP
Transmission Control Protocol
IEEE
Institute of Electrical and Electronics Engineers
TF
Adjustable Thermal and Fixed Magnetic
Ig
Ground Fault Protection Current
THD
Total Harmonic Distortion
Ii
Instantaneous Protection Current
TM
Adjustable Thermal Magnetic
In
Rated Current
TPCM
TemCom PRO Communication Module
IN
Neutral Protection Current
TPED
TemView PRO External Display
INT
Signed Integer datatype (2 bytes or 16 bits in length)
tr
LTD Time delay
IP
International Protection (Ingress Protection)
tsd
STD Time delay
Ir
LTD Protection Current
ttsp
Thermal Self-Protection Time delay
Isd
STD Protection Current
UDINT
Unsigned Integer (2 bytes or 16-bits in length)
Itsp
Thermal Self-Protection Current
UINT
Unsigned Integer (2 bytes or 16 bits in length)
L or LTD
Long Time Delay Protection
ULINT
Unsigned Long Integer datatype (8 bytes or 64 bits in
length)
LCD
Liquid Crystal Display (LCD)
URLs
Uniform Resource Locator (address of an Internet
website)
LED
Light Emitting Diode
WORD
2 bytes or 16-bits of data
LINT
Signed Long Integer datatype (8 bytes or 64 bits in
length)
ZSI
Zone Selective Interlocking (zone selectivity)
LSI
Long Time, Short Time and Instantaneous Protection
θ
Thermal imaging value
LSIG
Long Time, Short Time, Instantaneous and Ground Fault
Protection
θC
Cold start mode thermal imaging value
MCCB
Moulded Case Circuit Breaker
θH
Hot start mode thermal imaging value
microSD
Micro Secure Digital
θtrip
Thermal imaging value tripping threshold

8
TemBreak PRO P_SE-UM-001-EN V1.2.0
Product Information
The TemBreak PRO P model SMART Electronic MCCB with trip unit type P_SE, in addition to protecting against overloads and short circuits, offers
flexibility via provide fully adjustable LSIG (long time, short time, instantaneous, ground fault) protection settings via the embedded OLED display as well as
a host of other standard or optional features. This allows for improved selectivity combinations between MCCBs or other circuit breaker types, plus a wide
range of energy measurement and communication functions.
Features
- Setting by rotary switch, joystick and embedded display.
- Signalling the OCR LED status (Ready).
- Signalling PTA overload pre-warning LED (adjustable threshold)
- LED signalling overload alarm (> Ir).
- Possible adjustment of thresholds and time delays for LSIG protection.
- Possible adjustment of the protection of the neutral pole on 4-pole versions (neutral pole positioned to the right).
Frame Sizes
- P160
- P250
- P400
- P630
Protection Functions
- Long Time Delay
- Short Time Delay
- Instantaneous
- Ground Fault
- Neutral Protection (4 Pole only)
- Zone Interlocking
Measurement Functions
The P_SE OCR complies with the requirements of IEC 61557-12 and can be used for metering.
Measurements such as voltage, current, power, THD, frequency and power factor can be sourced from the MCCBs OCR.
Alarm Management
Standard alarms and custom alarms can be setup using the TCPM or TPED.
Historical Events
The P_SE OCR will store measurement history and events; to access this data a TPCM or TPED is required to display these events.
Additional Certificates








Product Information
9
TemBreak PRO P_SE-UM-001-EN V1.2.0
Part Number Break Down
P
160
F
2
4
160
BE
G
a)
b)
c)
d)
e)
f)
g)
h)
a) Model Type
A
Basic applications
(160…250 A)
P
Mid to advanced applications
(160…630 A)
B
High current, high kA applications
(160…1600 A)
ZS
Earth Leakage applications
(125…800 A)
XS
Highest current applications
(2000…3200 A)
b) Ampere Frame
125
A
160
A
250
A
400
A
630
A
800
A
1000
A
1250
A
1600
A
2000
A
2500
A
3200
A
c) Short Circuit Break Capacity Icu (kA)
R
200 kA
L
150 kA
P
125 kA
S
110 kA
G
100 kA
HL
85 kA
H
70 kA
M
65 kA
N
50 kA
F
36 kA
E
25 kA
D
Switch
d) Pole Pitch Size (mm) 2)
1
25
2
30
3
35
e) No. of Poles
1
7)
2
8)
3
4
f) Trip Unit Rating (In)
In
x A
g) Trip Unit Type
TF
Adj Thermal Fix Magnetic 4)
FF
Fix Thermal Fix Magnetic 4)
FM
Fix Thermal Adj Magnetic 9)
TM
Adj Thermal Adj Magnetic
SX
Smart Ammeter 5) 6)
BE
Basic Electronic 6)
SE
Smart Energy 6)
NN
Non-Auto Switch
h) Trip Unit Option
G
Ground Fault 3)
N
Neutral 3)
P
Pre-Trip Alarm 3)
SN
Solid Neutral 9)
1. 160AF only
2. For P_SE versions these features are standard and therefore are not added to the end of the part number.
3. Only available in A & ZS models
4. Only available in B models
5. Not available in A models
6. Only available in A and B models (FF Only Trip Unit)
7. Not available in A and B models (FF Only Trip Unit)
8. ZS Models
Notice: Not all combinations are possible. Confirm part number combination with NHP for availability.

Product Information
10
TemBreak PRO P_SE-UM-001-EN V1.2.0
Available MCCBs in the TemBreak PRO range:
Rating
Short Circuit Break Capacity
(kA)
Frame Size
160
250
400
630
800
1000
1250
1600
2000
2500
3200
E
25
A160E –TF
A160E –FF
B160E –FF
A250E –TM
P400E-TM
P630E –TM
F
36
A160F –TF
P160F –FF
P160F –TM
P160F –BE
P160F –BEG
P160F –SE
A250F –TM
P250F –TM
P250F –BE
P250F –BEG
P250F –SE
P400F –TM
P400F –BE
P400F –BEG
P400F –SE
P630F –TM
P630F –BE
P630F –BEG
P630F –SE
B800F –TM
N
50
P160N –TM
P160N –BE
P160N –BEG
P160N –SE
P250N –TM
P250N –BE
P250N –BEG
P250N –SE
P400N –TM
P400N –BE
P400N –BEG
P400N –SE
P630N –TM
P630N –BE
P630N –BEG
P630N –SE
B800N –TM
B800N –BE
B800N –SX
B800N –SE
B1000N –BE
B1000N –SX
B1000N –SE
B1250N –BE
B1600N –BE
H
70
P160H –TM
P160H –BE
P160H –BEG
P160H –SE
P250H –TM
P250H –BE
P250H –BEG
P250H –SE
P400H –TM
P400H –BE
P400H –BEG
P400H –SE
P630H –TM
P630H –BE
P630H –BEG
P630H –SE
B800H –TM
B800H –BE
B800H –SX
B800H –SE
B1000H –BE
B1000H –SX
B1000H –SE
B1250H –BE
HL
85
B1250HL –BE
B1600HL –BE
XS2000HL –BE
XS2500HL –BE
XS3200HL –BE
G
100
B800G –TM
B800G –BE
B800G –SX
B800G –SE
S
110
P400S –TM
P400S –BE
P400S –BEG
P400S –SE
P630S –TM
P630S –BE
P630S –BEG
P630S –SE
P
125
B160P –TM
B250P –TM
B250P –BE
B250P –SE
B400P –BE
B800P –BE
B800P –SX
B800P –SE
R
200
B160R –TM
B250R –TM
B400R –BE
B800R –BE
B800R –SX
B800R –SE
D
Switch
A160D –NN
P160D –NN
A250D –NN
P250D –NN
P400D –NN
P630D –NN
B800D –NN
B1000D –NN
B1250D –NN
B1600D –NN
XS2000D –NN
XS2500D –NN
XS3200D –NN

Product Information
11
TemBreak PRO P_SE-UM-001-EN V1.2.0
P160_SE and P250_SE Information
Frame / Model
Attribute
Unit
Condition
P160F
P160N
P160H
P250F
P250N
P250H
Number of Poles
3, 4
3, 4
3, 4
3, 4
3, 4
3, 4
Nominal current ratings
ICT
(A)
70°C
40 A
40 A
40 A
40 A
40 A
40 A
Trip unit ratings
100 A
100 A
100 A
100 A
100 A
100 A
160 A
160 A
160 A
160 A
160 A
160 A
─
─
─
250 A
250 A
250 A
Electrical characteristics
Rated maximum operational voltage
Ue
(V)
AC 50/60 Hz
690
690
690
690
690
690
(V)
DC
─
─
─
─
─
─
Rated insulation voltage
Ui
(V)
800
800
800
800
800
800
Rated impulse withstand voltage
Uimp
(kV)
8
8
8
8
8
8
Selectivity category
A
A
A
A
A
A
Rated short time withstand current
Icw
(kA)
0.4 sec
─
─
─
─
─
─
Ultimate breaking capacity
Icu
(kA)
690 Vac
6
6
6
6
6
6
(IEC, JIS, AS/NZS)
400 /415 Vac
36
50
70
36
50
70
240 Vac
50
85
85
50
85
85
Service breaking capacity
Ics
(kA)
690 Vac
6
6
6
6
6
6
(IEC, JIS, AS/NZS)
400 /415 Vac
36
50
50
36
50
50
220 /240 Vac
50
85
85
50
85
85
Protection - Over Current Release types
Std Standard
Opt Optional
─Not Available
M Req Module Required
SE Smart (Meter) OCR fully adjustable LSIG
LT Adjustable 40% to 100% in 1% increments
─
─
─
─
─
─
LT Adjustable 40% to 100% in 1A increments
Std
Std
Std
Std
Std
Std
Instantaneous setting independently adjustable
Std
Std
Std
Std
Std
Std
TPED and TPCM compatible
Std
Std
Std
Std
Std
Std
Modbus RTU
M Req
M Req
M Req
M Req
M Req
M Req
Installation (Std / Opt / ─ )
Std Standard
Opt Optional
─Not Available
Front connection (FC)
Std
Std
Std
Std
Std
Std
Extension bar (FB)
Opt
Opt
Opt
Opt
Opt
Opt
Cable tunnel clamp (FW)
Opt
Opt
Opt
Opt
Opt
Opt
Rear Connection (RC)
Opt
Opt
Opt
Opt
Opt
Opt
DIN rail adaptor
Opt
Opt
Opt
Opt
Opt
Opt
Withdrawable mechanism
Opt
Opt
Opt
Opt
Opt
Opt
Plug-in
Opt
Opt
Opt
Opt
Opt
Opt
Reverse supply connection possible to 440V
Yes
Yes
Yes
Yes
Yes
Yes
Dimensions
H
(mm)
165
165
165
165
165
165
W
(mm)
1 pole
─
─
─
─
─
─
2 pole
─
─
─
─
─
─
3 pole
90
90
90
105
105
105
4 pole
120
120
120
140
140
140
D
(mm)
68
68
68
68
68
68
T
(mm)
95.5
95.5
95.5
95.5
95.5
95.5
Weight
W
(kg)
3 pole
1.0
1.0
1.0
1.5
1.5
1.5
4 pole
1.3
1.3
1.3
2
2
2
Operation options (Std / Opt / ─ )
Std Standard
Opt Optional
─Not Available
Toggle operation
Std
Std
Std
Std
Std
Std
Extension handle TP-HS/HP or Direct mount T2HB
Opt
Opt
Opt
Opt
Opt
Opt
Motor operation TP-MC
Opt
Opt
Opt
Opt
Opt
Opt
Endurance
Electrical
Cycles
415 Vac
30000
30000
30000
10000
10000
10000
Mechanical
Cycles
50000
50000
50000
30000
30000
30000

Product Information
12
TemBreak PRO P_SE-UM-001-EN V1.2.0
P400_SE Information
Frame / Model
Attribute
Unit
Condition
P400F
P400N
P400H
P400S
Number of Poles
3, 4
3, 4
3, 4
3, 4
Nominal current ratings
ICT
(A)
70°C
250 A
250 A
250 A
250 A
Trip unit ratings
60°C
400 A
400 A
400 A
400 A
Electrical characteristics
Rated maximum operational voltage
Ue
(V)
AC 50/60 Hz
690
690
690
690
(V)
DC
─
─
─
─
Rated insulation voltage
Ui
(V)
800
800
800
800
Rated impulse withstand voltage
Uimp
(kV)
8
8
8
8
Selectivity category
B
B
B
B
Rated short time withstand current
Icw
(kA)
0.4 sec
5
5
5
5
Ultimate breaking capacity
Icu
(kA)
690 Vac
7
12
12
12
(IEC, JIS, AS/NZS)
400 /415 Vac
36
50
70
110
240 Vac
50
85
100
125
Service breaking capacity
Ics
(kA)
690 Vac
7
12
12
12
(IEC, JIS, AS/NZS)
400 /415 Vac
36
50
70
110
220 /240 Vac
50
85
100
125
Protection - Over Current Release types
Std Standard
Opt Optional
─Not Available
M Req Module Required
Smart (Meter) OCR fully adjustable LSIG
LT Adjustable 40% to 100% in 1% increments
─
─
─
─
LT Adjustable 40% to 100% in 1A increments
Std
Std
Std
Std
Instantaneous setting independently adjustable
Std
Std
Std
Std
TPED and TPCM compatible
Std
Std
Std
Std
Modbus RTU
M Req
M Req
M Req
M Req
Installation (Std / Opt / ─ )
Std Standard
Opt Optional
─Not Available
Front connection (FC)
Std
Std
Std
Std
Extension bar (FB)
Std
Std
Std
Std
Cable tunnel clamp (FW)
Opt
Opt
Opt
Opt
Rear connection (RC)
Opt
Opt
Opt
Opt
DIN rail adaptor
─
─
─
─
Withdrawable mechanism
Opt
Opt
Opt
Opt
Plug-in
Opt
Opt
Opt
Opt
Reverse supply connection possible to 440V
Yes
Yes
Yes
Yes
Dimensions
H
(mm)
260
260
260
260
W
(mm)
1 pole
─
─
─
─
2 pole
─
─
─
─
3 pole
140
140
140
140
4 pole
185
185
185
185
D
(mm)
103
103
103
103
T
(mm)
145
145
145
145
Weight
W
(kg)
3 pole
4.3
4.3
4.3
4.3
4 pole
5.7
5.7
5.7
5.7
Operation options (Std / Opt / ─ )
Std Standard
Opt Optional
─Not Available
Toggle operation
Std
Std
Std
Std
Extension handle TP-HS/HP or Direct mount T2HB
Opt
Opt
Opt
Opt
Motor operation TP-MC
Opt
Opt
Opt
Opt
Endurance
Electrical
Cycles
415 Vac
6000
6000
6000
6000
Mechanical
Cycles
15000
15000
15000
15000

Product Information
13
TemBreak PRO P_SE-UM-001-EN V1.2.0
P630_SE Information
Frame / Model
Attribute
Unit
Condition
P630F
P630N
P630H
P630S
Number of Poles
3, 4
3, 4
3, 4
3, 4
Nominal current ratings
ICT
(A)
50°C
630A
630A
630A
630A
Trip unit ratings
Electrical characteristics
Rated maximum operational voltage
Ue
(V)
AC 50/60 Hz
690
690
690
690
(V)
DC
─
─
─
─
Rated insulation voltage
Ui
(V)
800
800
800
800
Rated impulse withstand voltage
Uimp
(kV)
8
8
8
8
Selectivity category
A
A
A
A
Rated short time withstand current
Icw
(kA)
0.4 sec
─
─
─
─
Ultimate breaking capacity
Icu
(kA)
690 Vac
7
12
12
12
(IEC, JIS, AS/NZS)
400 /415 Vac
36
50
70
110
240 Vac
50
85
100
125
Service breaking capacity
Ics
(kA)
690 Vac
7
12
12
12
(IEC, JIS, AS/NZS)
400 /415 Vac
36
50
70
110
220 /240 Vac
50
85
100
125
Protection - Over Current Release types
Std Standard
Opt Optional
─Not Available
M Req Module Required
Smart (Meter) OCR fully adjustable LSIG
LT Adjustable 40% to 100% in 1% increments
─
─
─
─
LT Adjustable 40% to 100% in 1A increments
Std
Std
Std
Std
Instantaneous setting independently adjustable
Std
Std
Std
Std
TPED and TPCM compatible
Std
Std
Std
Std
Modbus RTU
M Req
M Req
M Req
M Req
Installation (Std / Opt / ─ )
Std Standard
Opt Optional
─Not Available
Front connection (FC)
Std
Std
Std
Std
Extension bar (FB)
Std
Std
Std
Std
Cable tunnel clamp (FW)
Opt
Opt
Opt
Opt
Rear connection (RC)
Opt
Opt
Opt
Opt
DIN rail adaptor
─
─
─
─
Withdrawable mechanism
Opt
Opt
Opt
Opt
Plug-in
Opt
Opt
Opt
Opt
Reverse supply connection possible to 440V
Yes
Yes
Yes
Yes
Dimensions
H
(mm)
260
260
260
260
W
(mm)
1 pole
─
─
─
─
2 pole
─
─
─
─
3 pole
140
140
140
140
4 pole
185
185
185
185
D
(mm)
103
103
103
103
T
(mm)
145
145
145
145
Weight
W
(kg)
3 pole
5.0
5.0
5.0
5.0
4 pole
6.6
6.6
6.6
6.6
Operation options (Std / Opt / ─ )
Std Standard
Opt Optional
─Not Available
Toggle operation
Std
Std
Std
Std
Extension handle TP-HS/HP or Direct mount T2HB
Opt
Opt
Opt
Opt
Motor operation TP-MC
Opt
Opt
Opt
Opt
Endurance
Electrical
Cycles
415 Vac
4000
4000
4000
4000
Mechanical
Cycles
15000
15000
15000
15000

14
TemBreak PRO P_SE-UM-001-EN V1.2.0
Internal Accessories
Internal accessories include Auxiliary and Alarm contacts, Shunt Trip and Undervoltage Trip (UVT) modules, which may be installed under the front cover of
the MCCB in various combinations to provide additional functionality and connection with external control circuits.
Auxiliary & Alarm Switches
Auxiliary Contact
An auxiliary contact can be installed to indicate whether an MCCB is Open (both OFF and Tripped positions) or
Closed (ON). Auxiliary contacts come in either general purpose or micro-switch type, with some combinations pre-
wired or with terminals. Each contact type is provided as a single change-over switching arrangement (1x C/O).
Alarm Contact
An alarm contact can be installed to indicate whether an MCCB is in the Tripped or Not Tripped position (ON, OFF).
Alarm contacts come in either general purpose or micro-switch type, with some combinations pre-wired or with
terminals. Each contact type is provided as a single change-over switching arrangement (1x C/O).
Part Number
Description
Contact Type
Connection Type
T2AX00LML3SWA
Auxiliary
General purpose
Pre-wired
T2AX00LML3STA
Auxiliary
General purpose
Terminal
T2AX00LML3RWA
Auxiliary
Micro-switch
Pre-wired
T2AL00LML3SWA
Alarm; left side only
General purpose
Pre-wired
T2AL00LML3STA
Alarm; left side only
General purpose
Terminal
T2AL00LML3RWA
Alarm; left side only
Micro-switch
Pre-wired
General purpose contact
Micro-switch contact
AC (V)
DC (V)
Minimum Load
DC (V)
Minimum Load
Volts (V)
Amperes (A)
Volts
(V)
Amperes (A)
Volts
(V)
Amperes (A)
Resistive
Load
Inductive
Load
Resistive
Load
Inductive
Load
Resistive
Load
480
─
─
250
─
─
100 mA @ 15 Vdc
30
0.1
1 mA @ 5 Vdc
250
3
2
125
0.4
0.05
125
3
2
30
3
2
SMART Auxiliary AX / AL Status Indicator
The SMART auxiliary is dedicated to TemBreak PRO SMART MCCB range. It allows the SMART OCR to
log and count the number of opening / closing cycles, counting the number of electromechanical fault trips
and indicate the actual mechanical OPEN CLOSED TRIP status of the breaker’s main contacts. The
auxiliary mounts inside the MCCB and is connected to the MCCBs OCR via the “ACP” connector socket
inside the MCCB, which is under the MCCBs accessory cover. It takes the position of 1 Aux and 1 Alarm on
the left-hand side of the MCCB.
The SMART contact blocks are available in three versions:
Part Number
Description
TPSS00MXLSW
Auxiliary contact SMART AX / AL, standard type use for applications 125 –250 Vac
TPSS00MXLRW
Auxiliary contact SMART AX / AL, micro-current type use for applications 125 Vac / 24 - 30 Vdc (e.g. PLC applications)
TPSS00NA
AX / AL SMART MCCB Cycle Counter
Notice: The TPSS00MXLSW and TPSS00MXLRW types include voltage free switching contacts AX and AL.
These contacts are provided with pre-wired wired contacts.
Notice: It is recommended to use 24 Vdc backup supply to the MCCB to ensure the SMART AUX continues to
operate in the event of upstream power failure.

Internal Accessories
15
TemBreak PRO P_SE-UM-001-EN V1.2.0
Shunt Trip
A shunt (normally de-energized) can be installed to trip the MCCB by applying voltage to the shunt coil.
Part Number
Rated voltage
Connection Type
AC (V)
DC (V)
T2SH00LA10T
110
─
Terminal
T2SH00LA20T
230…240
─
Terminal
T2SH00LA40T
400…415
─
Terminal
T2SH00LD01T
─
12
Terminal
T2SH00LD02T
─
24
Terminal
T2SH00LD04T
─
48
Terminal
T2SH00LD10T
─
110
Terminal
T2SH00LD20T
─
230
Terminal
T2SH00LA10WA
110
─
Pre-wired cage clamp
T2SH00LA20WA
230…240
─
Pre-wired cage clamp
T2SH00LA40WA
400…415
─
Pre-wired cage clamp
T2SH00LD01WA
─
12
Pre-wired cage clamp
T2SH00LD02WA
─
24
Pre-wired cage clamp
T2SH00LD04WA
─
48
Pre-wired cage clamp
T2SH00LD10WA
─
110
Pre-wired cage clamp
T2SH00LD20WA
─
230
Pre-wired cage clamp
Rated voltage
AC (V)
DC (V)
100…120
200…240
380...450
12
24
48
100…120
200…240
Excitation current (mA)
16.0
16.0
6.2
160.0
124.0
32.0
14.0
12.0
Under Voltage Trips
A UVT (normally energized) can be installed to trip the MCCB removing voltage from the UVT coil.
Part Number
Rated voltage
Compatible MCCB
Connection Type
Notes
AC (V)
DC (V)
3P
4P
T2UV00LA10NT
110
─
All
P160 / 250
Terminal
Instantaneous
T2UV00LA20NT
230…240
─
All
P160 / 250
Terminal
Instantaneous
T2UV00LA40NT
400…440
─
All
P160 / 250
Terminal
Instantaneous
T2UV00LD02NT
─
24
All
P160 / 250
Terminal
Instantaneous
T2UV00LD10NT
─
110
All
P160 / 250
Terminal
Instantaneous
T2UV00LD20NT
─
230
All
P160 / 250
Terminal
Instantaneous
T2UV00LA10DS
110
─
All
P160 / 250
Terminal
Time Delay 500ms
T2UV00LA24DS
230…240
─
All
P160 / 250
Terminal
Time Delay 500ms
T2UV00LA45DS
440…450
─
All
P160 / 250
Terminal
Time Delay 500ms
T2UV00LD02DS
─
24
All
P160 / 250
Terminal
Time Delay 500ms
T2UV00LD10DS
─
110
All
P160 / 250
Terminal
Time Delay 500ms
T2UV00LD24DS
─
230
All
P160 / 250
Terminal
Time Delay 500ms
T2UV00LA10DL
110
─
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LA24DL
230…240
─
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LA40DL
380…415
─
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LA45DL
440…450
─
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LD02DL
24
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LD10DL
110
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LD24DL
230
─
P400 / 630
Terminal
Time Delay 500ms
T2UV00LA10NWA
110
─
All
P160 / 250
Pre-wired cage clamp
Instantaneous
T2UV00LA20NWA
230…240
─
All
P160 / 250
Pre-wired cage clamp
Instantaneous
T2UV00LA40NWA
440…450
─
All
P160 / 250
Pre-wired cage clamp
Instantaneous
T2UV00LD02NWA
─
24
All
P160 / 250
Pre-wired cage clamp
Instantaneous
T2UV00LD10NWA
─
110
All
P160 / 250
Pre-wired cage clamp
Instantaneous
T2UV00LD20NWA
─
230
All
P160 / 250
Pre-wired cage clamp
Instantaneous
Rated Voltage
AC (V)
DC (V)
100…120
200…240
380…450
24
100…120
200…240
Excitation current (mA)
1.3
1.1
2.0
22.0
9.0
3.7

16
TemBreak PRO P_SE-UM-001-EN V1.2.0
P_SE Only MCCB Accessories
TemView PRO (TPED)
The TemView PRO (TPED) is an optional backlit LED external display which permits reading and writing data of the P_SE MCCB OCR trip unit, including
protection settings, energy measurements, alarms, and event logs. It is used where direct access to the embedded display of the MCCB is not permitted, or
otherwise enclosed and inaccessible.
The TPED can be panel mounted to any suitable enclosure which houses the MCCB. For example, a switchboard door or panelboard escutcheon. Data
from the MCCB is communicated to the TPED via the RJ9 to CIP cable assembly and plugs directly into the dedicated port on the MCCB.
For more information on the TPED, refer to the TemView PRO User Manual and Installation instructions.
TPED Function
Read
Write
Protection Settings
✓
✓
Measurements
✓
─
Alarms
✓
✓
Configuration
✓
─
Historical event log
✓
─
Circuit breaker identification data
✓
─
Part Number
Description
TPED00NA
External monitor and configurator for P_SE MCCBs
Technical Data
Attribute
Value
Dimensions
97 x 97 x 46 mm (27mm behind the door)
Door cut-out
92 x 92 mm
Screen size
37 x 78 mm
Viewing backlight
Backlit blue
Temperature operation
-10 ° C ... + 55 ° C
Pollution Category
III
Degree of protection
IP65 (rear is IP20)
Terminals/Plugs
Ratings
Notes
Power Supply
Voltage - 24 V DC (+/- 30%)
Supplied via CIP plug from P_SE MCCB
Current –85 mA
Micro USB
─
For upgrading firmware
Notice: The following list of accessories are unique to the P_SE model MCCB. For other accessories in the
TemBreak PRO series, refer to the TemBreak PRO technical catalogues, respective user manuals, and
installation instructions.
Notice: Cables are not provided with the TPED. Refer to CIP-RJ9 Cables section for selection.

P_SE Only MCCB Accessories
17
TemBreak PRO P_SE-UM-001-EN V1.2.0
TemCom PRO (TPCM)
The TemCom PRO communications module (TPCM) communicates directly with the TemBreak PRO Smart Energy MCCB OCR via CIP connection cable,
enabling the MCCB to operate as a slave device on a Modbus RTU network via RS-485. The TPCM polls the MCCB at regular intervals, making data
accessible within Modbus holding registers. Data may also be written over Modbus to enact changes to the configuration and protection settings of the
OCR. The TPCM module also offers optional embedded Digital I/O which is accessible over Modbus 10).
TPCM Function
Read
Write
Protection Settings
✓
✓
Measurements
✓
─
Alarms
✓
✓
Configuration
✓
─
Historical event log
✓
─
Circuit breaker identification data
✓
─
Digital Input/Output Contacts
✓1)
✓1)
The TPCM utilizes multiple RJ45 MODBUS ports for RS-485 communication. The use of both ports allows daisy chaining of multiple TPCM and with other
third-party Modbus RTU devices for up to 32 devices in series.
For more information on the TPCM, refer to the TemCom PRO User Manual and Installation instructions.
Part Number
Description
TPCM00D02N
Modbus RTU communications module without embedded I/O
TPCM00D02W
Modbus RTU communications module with embedded I/O included, 2x Digital input, 2x Digital output
Technical Data
Attribute
Value
Width
2 modules (17.5mm per module)
Communications Protocol
Modbus RTU (RS-485)
Compatible MCCBs
P_SE MCCBs ONLY (1 required per MCCB)
Temperature Ratings
Operational: -25 - +70 °C Storage: -35 - +70 °C
Humidity
Operational: 95% RH @ 40 °C Storage: 95 % RH @ 55 °C
Terminals/Plugs
Ratings
Terminal Number/s
Cable Size
Power Supply
Voltage –24 V DC ± 30% Current Consumption - 40 mA
+ /-
Solid and Stranded
0.5 … 1.5 mm²
Inputs ^
Voltage –DC 24 V (15 - 30 V DC) Current –2 mA - 15 mA
1, 2, 3, 4
Output ^
Voltage –≤ 100V DC (norm. 24, 48 V DC) Max Current –50mA
5, 6, 7, 8
MCCB Coms
Signal / Control Voltage –24VDC
COM
RJ9
Modbus (RTU)
–
MODBUS 1 & 2
RJ45
^ TPCM00D02W model only with embedded digital I/O
Modbus RTU
master device
Notice: Cables are not provided with the TPCM. Refer to CIP-RJ9 Cables section and TemCom PRO User
Manual and Installation Instructions for selection.

P_SE Only MCCB Accessories
18
TemBreak PRO P_SE-UM-001-EN V1.2.0
Connection Cables
CIP-RJ9 cable
The physical connection between the TPED or TPCM and the P_SE MCCB is via the CIP adapter cable, which provides both
the proprietary communications link and auxiliary power supply to the OCR.
The CIP adapter cable is comprised on one end a CIP connector which plugs into the CIP socket on the MCCB, and the
other end either RJ9 plug for connection to the TPED or TPCM.
These are pre-wired adapters which are available in various lengths as required.
Connector
Part number reference
Compatible MCCB
Length
CIP
TPPHQTT330H –CIP to RJ9
P160 / P250
0.5 m
TPPHQTT340H –CIP to RJ9
P160 / P250
1.5 m
TPPHQTT350H –CIP to RJ9
P160 / P250
3 m
TPPHQTT360H –CIP to RJ9
P160 / P250
5 m
TPPHQTT370H –CIP to RJ9
P160 / P250
10 m
TPPHQTT140H –CIP to free wire
(un-terminated end for hardwired 24V dc to MCCB)
P160 / P250
1.2m
TPPHQTT430H –CIP to RJ9
P400 / P630
0.5 m
TPPHQTT440H –CIP to RJ9
P400 / P630
1.5 m
TPPHQTT450H –CIP to RJ9
P400 / P630
3 m
TPPHQTT460H –CIP to RJ9
P400 / P630
5 m
TPPHQTT470H –CIP to RJ9
P400 / P630
10 m
TPPHQTT160H –CIP to free wire
(un-terminated end for hardwired 24V dc to MCCB)
P400 / P630
1.2m
ZSI cable
Zone Selective Interlocking is achieved via hardwired connection between SMART MCCBs. Refer to the Zone Selective
Interlocking Function (ZSI) section for more information.
Connector
Accessories Reference
Length
Number of Wires
Wire Identification
ZSI1 or ZSI2
TPPHQTT150H –ZSI - Adaptor
1.20m
3
Common: Brown
Short time signal: White
Earth: Green
OAC and PTA cable
The P_SE MCCB provides on-board digital outputs used for an Optional Alarm Contact (OAC) and Pre-Trip Alarm (PTA) for
physical output of alarm events. Refer to the Alarms section for more information.
Connector
Accessories Reference
Length
Number of Wires
Switching rating
OAC or PTA
TPPHQTT130H –OAC and PTA
1.20m
2
Max. 100mA at 24V ac/dc

19
TemBreak PRO P_SE-UM-001-EN V1.2.0
Plugs & Ports
The P_SE circuit breaker is equipped with specific connectors for connecting interfacing devices and accessories.
Port
Description
PTA
Used to connect the PTA output contact to send the pre-trip alarm over a local signalling circuit.
Located on the outside left-hand side of the MCCB.
OAC
The OAC port is an output contact used to send the optional alarm over a local signalling circuit.
Located under the front cover.
MIP
Maintenance Interface Port –for temporary connection to OCR testing, servicing, and maintenance tools.
Located to the right of the embedded display front cover.
CIP
Communications Input Port –Multiple concurrent CIP connections are possible and are used to connect the TPED, an
external 24V dc power supply and/or the TPCM as required.
Located under the front cover.
ACP
Used to connect the AX/AL SMART auxiliary.
Located under the front cover.
ZSI1
Present only on P250_SE, P400_SE and P630_SE versions and used to connect the downstream circuit breakers to
implement zone selective interlocking (ZSI).
Located under the front cover.
ZSI2
Used to connect the upstream circuit breaker to implement zone selective interlocking (ZSI).
Located under the front cover.
Notice: Port images are representative only. Locations differ slightly for the various ampere frame sizes

20
TemBreak PRO P_SE-UM-001-EN V1.2.0
Installation
Precautions
Mounting Angles
TemBreak PRO MCCBs may be mounted at any angle without affecting performance.
Direction of Power Supply
Power supply may be fed in either direction with respect to the MCCB without affecting performance.
WARNING: To prevent electrical shock and damage to equipment, disconnect and isolate power source
upstream of the MCCB before installing or servicing the MCCB including its connected accessories.
Notice: To ensure correct performance, and integrity of equipment, the installation instructions and
recommendations provided herein shall be respected. Refer to the respective user manual and installation
instructions provided with the MCCB and associated accessories.
Notice: To ensure correct measurements and energy values, the MCCB must be configured with the correct
direction of power supply using either TPED or TPCM. Refer to Power flow direction and quadrant section.
Positive (+)
Forward/Normal
Supply
Negative (−)
Reverse Supply
