Plumbing Installation Manual

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
2
www.nibco.com
AHEAD OF THE FLOW®
Table Of Contents
Introduction...............................................................................................................................................4
NIBCO®PEX Pipe Process ........................................................................................................................4
A Complete System..................................................................................................................................4
Standards and Approvals .........................................................................................................................4
Operating Pressure Limits ........................................................................................................................4
Material Selection....................................................................................................................................5
Pipe Markings...........................................................................................................................................6
Crimp Tool Use..........................................................................................................................................6
5-Step Method for a Great Crimp Connection......................................................................................6-8
Tool Calibration.........................................................................................................................................9
5-Step Method for a Great Clamp Connection...................................................................................9-11
5-Step Method for a Great Sleeve Connecction ..............................................................................11-13
Push ‘N Go®Installation Instructions ...............................................................................................13-14
Pipe Basics.........................................................................................................................................14-16
Technical Data ...................................................................................................................................17-18
How to Order ..........................................................................................................................................19
NIBCO®Limited Warranty......................................................................................................................19
Visit our website for the most current information .

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
3
www.nibco.com
AHEAD OF THE FLOW
®
Look to NIBCO for Leadership on PEX Piping Systems
NIBCO®is proud to offer NIBCO®PEX, our potable water piping system. With over 100 years of experience you can trust NIBCO to
provide the highest quality PEX product.
NIBCO®PEX Pipe is produced through the PEX-c method that uses an electron beam to change the molecular structure of polyethylene,
giving it enhanced physical properties over conventional polyethylene. Available in 3/8” to 1-1/4” copper tube size, NIBCO sets a new
standard in PEX plumbing products.
NIBCO®PEX Pipe Offers Significant Advantages:
• NIBCO® PEX contains UV stabilizers that protect it against damage from short-term
exposure to sunlight.
•NIBCO® PEX is pliable – it can be easily straightened after removal from the coil.
• NIBCO® PEX has greater dimensional stability. We hold the outside pipe diameter dimensions of
our pipe to strict tolerances. This means a better fit for you with no sliding of copper crimp rings
on the pipe.
• NIBCO® PEX is chlorine-resistant. It is a viable solution for aggressive water conditions.
•NIBCO® PEX is non-toxic. It employs no toxic chemicals in its manufacture, unlike other PEX
manufacturing methods.
• NIBCO® PEX will not leach taste or odor. It keeps water clear and clean with no odor due to
leaching from the pipe.
• NIBCO® PEX’s opaque color limits light from supporting bacteria and algae growth.
• NIBCO® PEX pipe is quiet. It insulates against water hammer and noise in the pipe.
• NIBCO® PEX’s natural insulation properties keep hot-water hot and cold-water cold.
• NIBCO® PEX requires fewer fittings in a typical installation and is easier to install.
• NIBCO® PEX expands if water freezes in the pipe.
• NIBCO® PEX is more resistant to abrasion than steel or copper.
• NIBCO® PEX offers you three different connection methods - copper crimp ring, copper crimp sleeve,
and stainless steel sleeve.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
4
www.nibco.com
AHEAD OF THE FLOW®
Introduction
This handbook is intended to train and educate the professional contractor on the recommended techniques of installing NIBCO piping
systems. To insure that your installation is successful, please read this manual completely. If you are unsure about any of the instruc-
tions in this manual, please contact NIBCO at 888.446.4226. NIBCO is not responsible for any misinterpretations or deviations from this
manual. We recommend that you also contact your local plumbing officials to determine code acceptance of PEX systems in your area.
The NIBCO®PEX Manufacturing Process
Cross-linking is the process that gives NIBCO®PEX tubing its superior characteristics. The long, simple chains in a polyethylene mol-
ecule are altered to form a more stable, three-dimensional network. This process changes the material from a thermoplastic into a ther-
moset. A thermoset differs from a thermoplastic because a thermoset cannot be melted and then reformed. This change in molecular
structure creates a polyethylene product with enhanced mechanical properties. Many manufacturers use a chemical additive to activate
the cross-linking process, but NIBCO employs a sterile, electron beam process that provides superior properties. This process, which is
called PEX-c, delivers the highest quality PEX tubing available today, while reducing the use of chemicals.
NIBCO®PEX is a Complete System
NIBCO®PEX tubing, fittings, valves, and manifolds are designed to be used as a complete system. Therefore, NIBCO cannot guarantee
that tubing and/or components from other systems are compatible for use with the NIBCO®PEX system. NIBCO offers more versatility
with the choice of three different connections - copper crimp ring, copper crimp sleeve, or stainless steel sleeve.
Standards and Approvals
NIBCO®PEX is an outside diameter controlled tubing of one standard dimension ratio (SDR 9) that is manufactured to comply with the
requirements of CSA B137.5, and ASTM F876. NIBCO®PEX insert fittings and copper crimp rings are manufactured to comply with
CSA B137.5 and ASTM F1807. NIBCO®PEX tubing, fittings, and crimp rings are tested as a system to the requirements of ASTM F877.
NIBCO®PEX tubing and components have been tested and listed in the Uniform Plumbing Code (UPC) by the International Association
of Plumbing and Mechanical Officials (IAPMO) for compliance to NSF/ANSI 14 and NSF/ANSI 61.
Lead-Free*
By using NIBCO PEX and NIBCO poly or lead free bronze fittings, a lead-free plumbing system is achieved.*
*Lead Free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content ≤0.25% per the Safe Drinking Water Act (Sec.
1417) amended 1-4-2011 and other equivalent state regulations.

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
5
www.nibco.com
AHEAD OF THE FLOW
®
Material Selection
Polyethylene (PE)
Polyethylene is the most common olefin material and is typically
used in transporting water. Because olefins cannot be joined
with cements, barbed insert fittings are used for mechanical
assembly. PE is light weight, low cost, has excellent chemical
resistance, low coefficient of friction, and is non-toxic.
Plastic Piping Standards
Many commercial, industrial, and governmental standards or specifications are available to assist the design engineer in specifying
plastic piping systems. Standards most frequently specified in plastic piping systems are American Society for Testing and Materials
(ASTM) Standards. Below is a list and description of those standards most typically applied to industrial plastic piping.
Polyphenylsulfone (PPSU)
Polyphenylsulfone is a thermoplastic that is tough, rigid, high-
strength, and retains its properties between -148° F and 302° F
(-100° C and 150° C). PPSU has very high dimensional stability;
the size change when exposed to boiling water or 302° F (150° C)
air generally falls below 0.1 percent. Polyphenylsulfone is highly
resistant to mineral acids, alkali, and electrolytes, in pH ranging
from 2 to 13. PPSU is resistant to oxidizing agents; therefore,
can be cleaned by bleaches. Also, PPSU is resistant to surfac-
tants and hydrocarbon oils. However, PPSU is not resistant to
low-polar organic solvents (e.g., ketones and chlorinated hydro-
carbons) and aromatic hydrocarbons. In addition, PPSU is often
chosen for difficult applications including high water tempera-
tures, chlorides, or when water quality may increase the risk of
dezincification, a type of corrosion that can adversely affect
metal fittings.
Brass
Brass is the term used for copper alloys where zinc is the prin-
ciple alloying element along with copper. Brass has a yellow
color, somewhat similar to gold. Brass plumbing components
may be machined from extruded shapes, forged, or cast. This
alloy is mainly used for decorative fixtures, plumbing compo-
nents, and electrical applications. Today, almost 90% of all
brass alloys are recycled.
Copper (Cu)
Copper (Cu) is a natural element that has historically been the
dominant material used in plumbing, heating, cooling, and other
piping applications. Copper is a ductile metal with excellent
thermal conductivity and is corrosion resistant. The materials
used in copper piping products comply with the requirements of
specifications established by the American Society for Testing
and Materials (ASTM). The alloy customarily used for copper
tube and copper fittings is designated as C12200 (Copper No.
122). This alloy contains a minimum of 99.9% pure copper and
is deoxidized by the addition of phosphorus. Other copper alloys
may be used.
Cross-Linked Polyethylene (PEX)
PEX is the common name for cross-linked polyethylene. PEX
tubing is predominantly used in water distribution systems,
hydronic radiant heating systems, and natural gas systems.
Almost all PEX is made from high density polyethylene (HDPE).
PEX contains cross-linked bonds that are introduced into the
polymer structure, changing the thermoplastic into a thermoset.
Cross-linking is accomplished during or after the extrusion of the
tubing. The required degree of cross-linking, according to ASTM
F876, is between 65 to 89 percent.
The cross-linking process improves high-temperature mechani-
cal properties, low-temperature impact, tensile strength, resis-
tance to brittle fracture, and scratch resistance properties.
Cross-linking may be done by the peroxide (Engel) method,
silane method, or electron beam method. NIBCO®PEX is
produced by the electron beam method. This is the cleanest
and most environmentally friendly of the three methods. Also
this method does not involve other chemicals and uses only
high-energy electrons to split the carbon-hydrogen bonds and
facilitate cross-linking.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
6
www.nibco.com
AHEAD OF THE FLOW®
Crimp Tool Use
The crimp tools supplied with the NIBCO®PEX system are high quality instruments designed for heavy-duty use. However, normal use
will require that these tools be adjusted on occasion. Before beginning a job, the installer should conduct a “test” crimp to ensure
that the tool is working properly. If several consecutive joints fail the go /no-go gauge, then the tool may be out of adjustment. During
normal wear conditions, the crimp tool’s crimp diameter tends to increase. NIBCO tools come with instructions for maintaining the tool
and keeping it in proper adjustment. Please follow these instructions.
NIBCO’s 5-Step Method for a Great Crimp Connection
Because NIBCO®PEX pipe is extruded to tight tolerances you don’t have to worry about crimp rings sliding or insert fittings falling out
as the system is being “roughed in.” The installer can quickly “hand fit” the system, then go back and crimp each fitting to make the
connection permanent. After crimping, our connections form a reliable and permanent seal. After all connections have been crimped,
the system can be immediately pressure tested. NIBCO crimped connections are immediately permanent whether the installation tem-
perature is hot or cold.
We urge you to thoroughly read the instructions for our 5-step method before beginning any installation.
Step 1
Cut the pipe to length squarely. A rough, jagged or irregular cut may result in a failed connection.

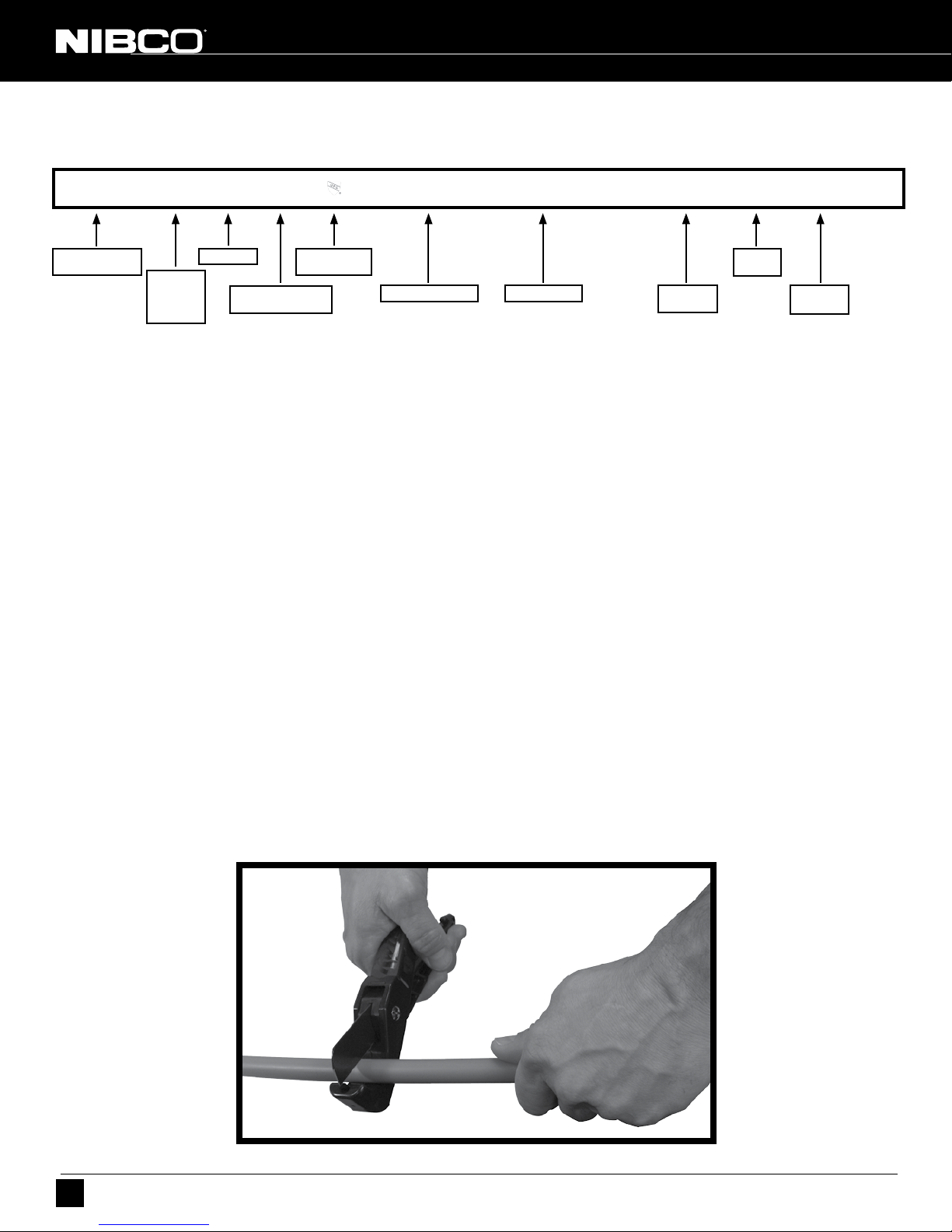

Tube Markings
Tubing SizeManufacturer and
Brand
ASTM Specifications
Standard Dimension
Ratio
Pressure Rating Mfg. Date
Code
Footage
Marking
Potable Water
Certifications
Tubing
Material
Designation
Code
Mfg. Lot
Code
NIBCO® PEX PEX 3308 (CTS OD) CTS SDR-9 ASTM F876 F877 F1807 F2159 100 psi@180°F CSA B137.5 (date code) (production code) (length) MADE IN USA
160 psi @ 73°F
80 psi @ 200°F

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
7
www.nibco.com
AHEAD OF THE FLOW
®

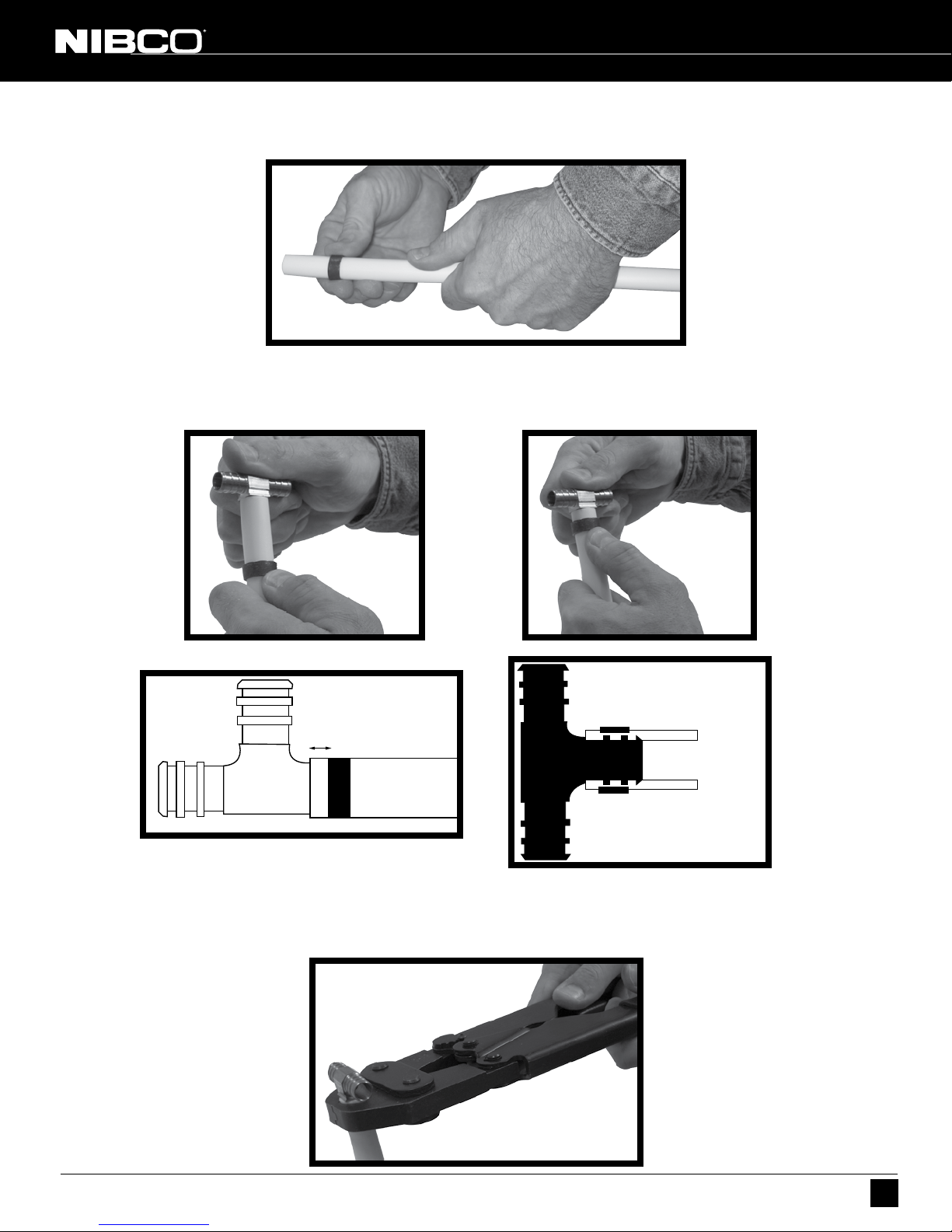

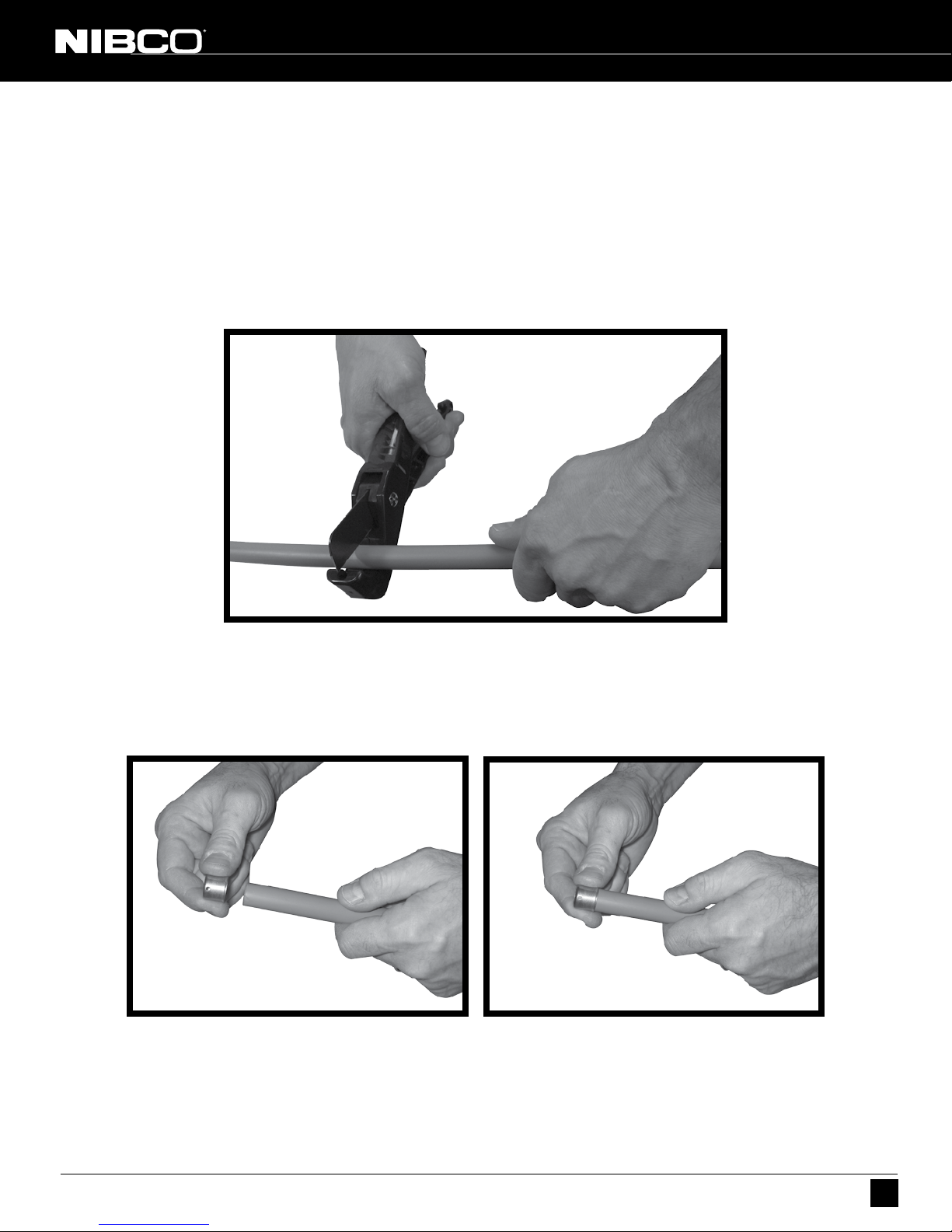

Step 2
Slide the correct sized copper crimp ring over the end of the NIBCO®PEX pipe. Slide the ring approximately 2” past the end of the pipe.
Step 3
Push the fitting into the pipe until it touches the fitting shoulder. Position the crimp ring 1/8” - 1/4” from the end of the tube. This
distance ensures that the crimp ring is positioned directly over the ribs on the barb.
Step 4
Center the crimping tool jaws over the ring. Hold the tool at 90 degrees to the fitting and close the jaws completely. Crimp only one
time. If crimped more than once, you must cut out the connection and begin again at Step 1.
1/8” - 1/4”
The crimp ring should be positioned so the pipe is
forced into the ribs of the fitting.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
8
www.nibco.com
AHEAD OF THE FLOW®
Step 5
Use the go/no-go gauge to check every crimp joint. An improper crimp has been formed when (1) the “go” side does not fit over the ring
or, (2) the “no” side does fit over the ring. If the joint fails either of these two tests then cut out the joint and return to Step 1.
CRIMP GAUGE
No-go
No-go No-go
Go Go
Go
BAD CRIMPS
Ring is compressed
too much.
Ring is not
compressed
sufficiently.
No
Go
Go
A micrometer can be used to measure the correct
dimensions of a crimp ring after a proper, single
crimp per the following table:
Tube Size Min Max
3/8” 0.580” 0.595”
1/2” 0.700” 0.715”
3/4” 0.945” 0.960”
1” 1.175” 1.190”
1-1/4” 1.430” 1.445”
GOOD CRIMPS
Ring is properly
compressed.
Does not fit in
“No-Go” slot.
Ring fits in
“Go” slot.
No
Go
Go
AND

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
9
www.nibco.com
AHEAD OF THE FLOW
®
NIBCO’s 5-Step Method for a Great Stainless Steel Sleeve Connection
Our NIBCO sleeve connection system is fast, easy and leaves a great looking connection. Simply slide the sleeve over the end of the
pipe, push in the fitting, and crimp the sleeve with our special sleeve tool. Because the sleeve has a positive stop, there is no need to
worry about it sliding around on the pipe. The view hole on the side of the sleeve helps guarantee that the sleeve is properly inserted.
Step 1
Cut the pipe to length squarely. A rough, jagged or irregular cut may result in a failed connection.
Step 2
Slide the correct sized stainless steel sleeve over the end of the NIBCO®PEX pipe until it bottoms out. Look at the view hole on the side
to see if it is over the pipe.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
10
www.nibco.com
AHEAD OF THE FLOW®

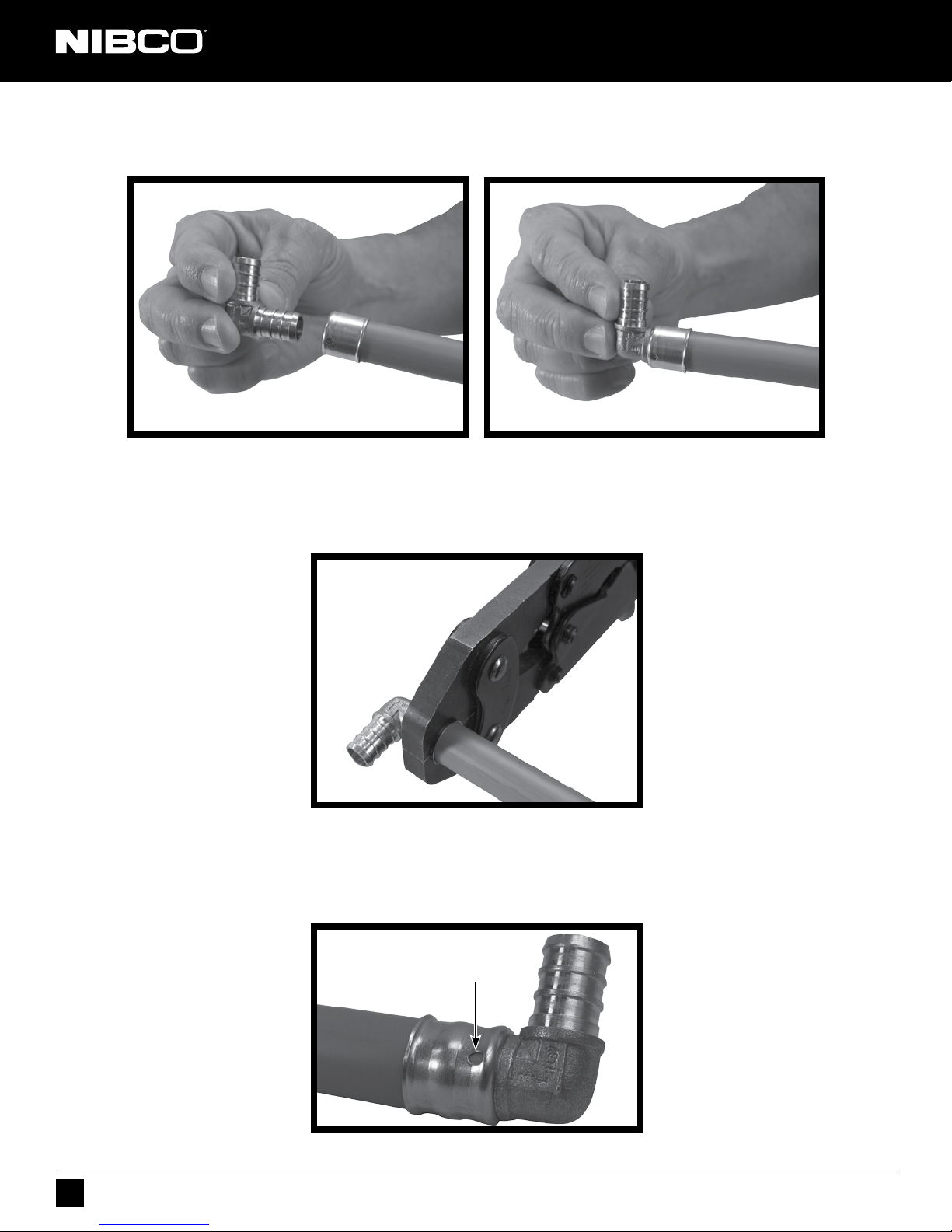

Step 3
Push the fitting into the pipe until it touches the fitting shoulder.
Step 4
Center the sleeve tool jaws over the ring. Hold the tool at 90 degrees to the sleeve and close the jaws completely. Crimp only one time.
If crimped more than once, you must cut out the connection and begin again at Step 1.
Step 5
Visually inspect the completed connection. If the pipe can be seen from the view hole on the side of the sleeve and a “W” shaped crimp
has been formed around the sleeve, then a good connection has been made.

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
11
www.nibco.com
AHEAD OF THE FLOW
®
PUSH ‘N GO®Installation Instructions
Step 1
Get your pipe and fitting ready to connect.
Step 2
Push pipe into the fitting until it stops and you’re done.
Features and Benefits
• Quick-connect fittings that can be used in potable water systems.
• Made of polyphenylsulfone which has been proven in extensive tests for cleanliness, pressure, flow,
longevity, chemical exposure and chlorine resistance.
• Works with plastic CTS tubing.
• No tools, crimp or solder required. Simply push pipe into fitting.
• Easy to disassemble - Push in gripper ring and pull out pipe.
• Available from 1/2” through 3/4”
• Locking clips available for behind the wall installation.
Performance Standards
ASTM F877 Cross-linked polyethylene plastic hot- and cold-water distribution systems
NSF-PW Combination of performance and health effects standards for fittings to be used with potable water
Our NIBCO Push ‘N Go fittings are designed for a quick and hassle-free installation. No tools, crimp or solder is required. These poly-
phenylsulfone fittings are sturdy enough to handle projects for plumbing systems and quick fixes. It is recommended that Push ‘N Go
fittings be used only with plastic CTS tubing. Disassembly is easy as well. Simply push in the gripper ring and pull out the pipe. No
special tool is required.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
12
www.nibco.com
AHEAD OF THE FLOW®
NIBCO®PEX Pipe Basics
Recognize Minimum Bending Radius Guidelines
Because NIBCO®PEX pipe is flexible, installations are easier than rigid systems. It can be bent to make turns or navigated around
obstructions, thus lowering the number of fittings required in the installation. The minimum bend radius for NIBCO®PEX pipe is eight
times the outside diameter of the pipe. NIBCO bend supports can be used to hold a turn in place. Hangers that do not pierce or damage
the pipe wall may also be used to support the system.
BENDING RADIUS
Tubing Size Min. Radius
1/4” 4”
3/8” 5”
1/2” 6”
5/8” 6”
3/4” 9”
1” 11”
1-1/4” 14”
Always Properly Support NIBCO®PEX Pipe
Our cross-linked NIBCO®PEX pipe is tough and durable. Yet, in most applications, it must be properly supported to protect against ex-
cessive strain. Please observe the following guidelines. Codes require the use of approved fastening devices. Make sure that supports
designed for use with plastic pipe are used whether one is mounting to either wood or steel. Metal supports designed for use with
plastic pipe may be used. Never use supports that have sharp edges.
For tubing 1” and below, on horizontal runs, we recommend the pipe be supported every 32” between each support, leaving a little
slack (1/8” to 3/16”) in the tube to allow for normal expansion / contraction.
For tubing of size 11/4” and above, 48” is the maximum spacing of horizontal supports.
Regardless of tubing size, vertical runs must be supported at the mid story point.
Never pull the tubing tight during the installation.
32”

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
13
www.nibco.com
AHEAD OF THE FLOW
®
Allow for Expansion and Contraction
Since NIBCO®PEX pipe will expand and contract during temperature changes, please allow slack when stringing the pipe through the
building. NIBCO®PEX pipe expands/contracts at a rate of 1.1” per 100 feet of pipe for each 10°F change in temperature. For example,
a line at 70°F room temperature will expand 5.5” over a 100’ length when 120°F water is run though it. (120° - 70° = 50°; 50°/10°= 5°;
5 X 1.1” = 5.5”) Conversely, the pipe will shrink 5.5” when it cools down. We recommend that offsets and expansion loops be used as
ways to compensate for expansion and contraction in runs of pipe.

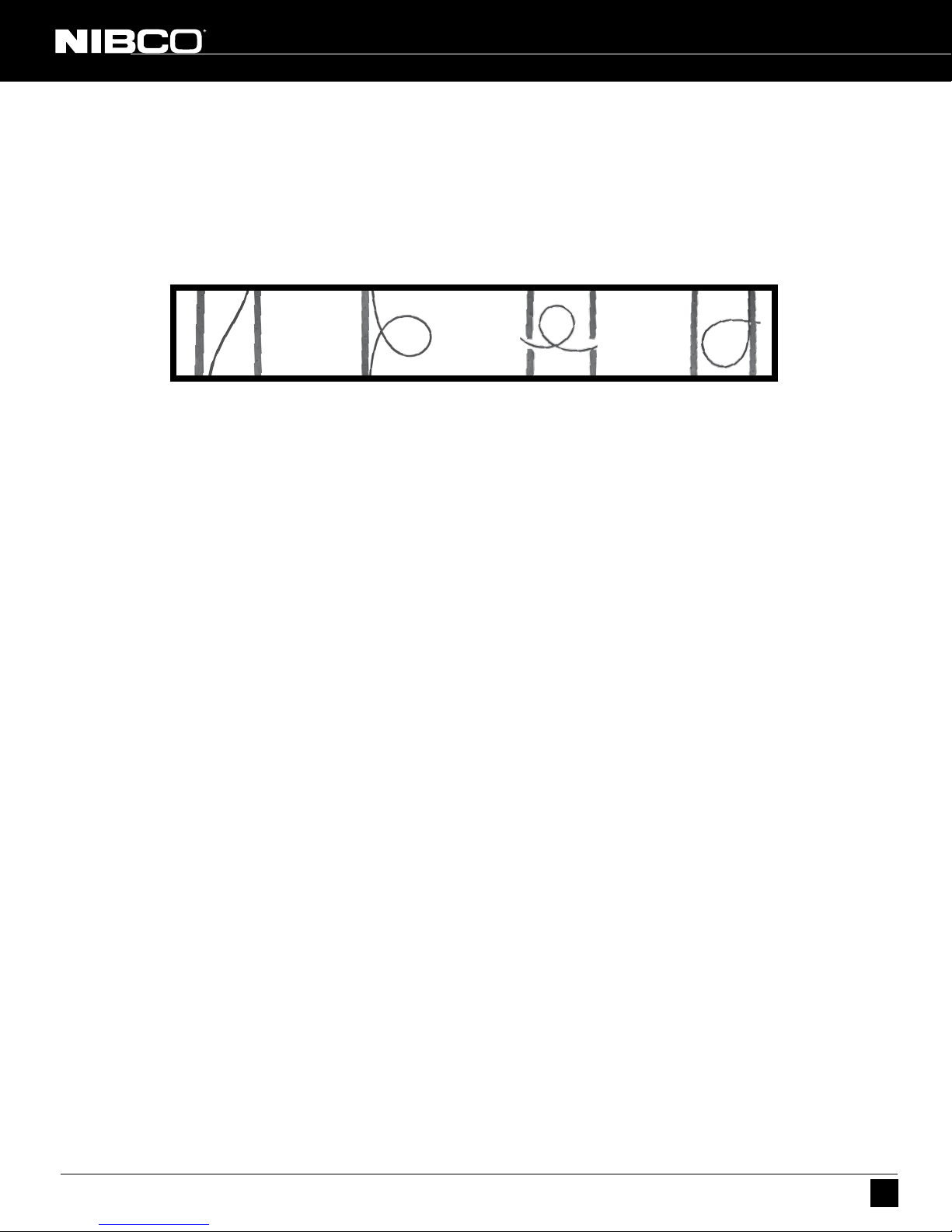

Examples of Expansion/Contraction Loop Methods
Make sure that the loops have adequate room to expand and contract. Ensure that the loop is not touching any floor joists or wall
studs.
Remember to Leave Extra Tubing at Both Ends of the Run
Connections to fittings, fixtures and manifolds are made easier by leaving some extra tubing at both ends of the run.
Keep Hot and Cold Lines Separate
NIBCO®PEX pipe keeps hot-water hot and cold-water cold due to its superior insulation properties. However, please use caution when
bundling pipe. Keep hot and cold lines in separate bundles to avoid heat transfer problems.
Use Caution When Soldering
When installing a sweat adapter fitting, always solder the fitting first before making the connection to NIBCO®PEX pipe. In all cases,
keep soldering tools and open flames away from NIBCO®PEX pipe.
Concrete Installation Guidelines
NIBCO®PEX can be submerged in concrete but please follow these guidelines.
• Protect the pipe with non-metallic sleeves when entering or exiting the concrete slab. A larger
diameter piece of NIBCO®PEX works well in this application.
• Do not allow any joints within the slab. Use a continuous length of NIBCO®PEX pipe within the slab
and be sure to check for leaks before pouring any concrete.
Keep NIBCO®PEX Away from High Heat Sources
NIBCO®PEX pipe should be routed around and away from sources for heat such as water heaters / boilers, electric motors, light fixtures
and gas appliance vents. Maintain a minimum distance of 12” vertically and 6” horizontally from sources of high heat.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
14
www.nibco.com
AHEAD OF THE FLOW®
NIBCO®PEX Fixture Connections
• A metal adapter at least 12” long should be used to connect NIBCO®PEX pipe to a gas water heater.
• NIBCO®PEX pipe can be connected directly to an electric water heater using metal insert adapters.
• NIBCO®PEX pipe can be connected to PEX insert accessories as long as the barb meets ASTM F1807
specifications. Such accessories include supply stop valves, ball valves, icemaker boxes, washing
machine boxes, copper stub outs and manifolds, etc.
Pressure Limits
Non-chlorinated water:
80 PSI @ 200° F
100 PSI @ 180° F
160 PSI @ 73° F
Chlorinated water: 80 PSI @ 140° F
Expansion
Systems with back flow protection are “closed systems” and are subject to thermal expansion when water is heated. Protection
against increased water pressure from thermal expansion utilizing a pressure relief valve or expansion tank to keep system pressure
under the maximum must be incorporated in the system.
Recirculation
Use of circulation loops with hot water distribution is gaining popularity in some areas of the country. However, there is debate about
the efficiency of these systems due to the constant heating, recirculation, and reheating of water including periods of low or no de-
mand. Data published in the PPI/NAHB PEX Design Guide shows a properly designed Home-Run system can reduce hot water delivery
time and water use by 30-40%.
If circulating loops are used with NIBCO®PEX, the use of a timer or other device is recommended so the maximum recirculation time
does not exceed 8 hours per day.
Insulation
When sealing a penetration for air infiltration purposes, silicone or acrylic caulks, canned expanding foams and open or closed cell pipe
insulation may be put in direct contact with NIBCO®PEX. Do not use any oil based caulks. If there is no information about the compat-
ibility of a sealing material with NIBCO®PEX, wrap the tubing in several layers of aluminum foil which extends several inches beyond
the area of contact before applying the sealant.

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
15
www.nibco.com
AHEAD OF THE FLOW
®
Pressure Testing and Inspection of the Completed System
After complete installation, the system should be tested. Local code requirements should be consulted for proper testing.
• Test system with water.
• Test pressure shall be at least equal to the expected working pressure (main pressure), but not less then 40 psi and not greater than
225 psi at 73°F.
• Compressed air testing is only recommended when water is not available or when cold weather could freeze the system. Compressed
air tests shall include appropriate safety precautions and the test pressure shall not exceed 100 psi. PEX tubing is ductile and will
not shatter during a pressure test and release shards of plastic. However, plastic fittings or other system components, or
unassembled fittings, may cause a hazard. Check with local codes before using air pressure testing.
• Test duration should not be less than 15 minutes.
• Do not allow water in systems to freeze.
Freeze Resistance
PEX piping is freeze damage resistant and can expand and contract as water freezes and thaws within the tubing. No tubing material is
freeze-break proof, however, and PEX should be installed using the same locally-prescribed insulation requirements to prevent freezing
of any plumbing system.
Frequently Asked Questions
Q: What if my tubing gets kinked?
A: Cut out the kink.
Q: Can I use NIBCO®PEX as an electical ground?
A: PEX does not conduct electricty and can NOT be used as a ground.
Q: Can I use NIBCO®PEX outside?
A: NIBCO PEX has UV stabilizers which allow for some limited exposure to sunlight during the installation process. But like all PEX,
it is not intended for outdoor installation and should be protected, to the greatest feasible extent, from exposure to UV light at all times.
Q: Can I use NIBCO®PEX for compressed air or natural gas?
A: These are not intended or approved uses of the product.
Q: How are NIBCO®poly PEX fittings used?
A: NIBCO’s poly PEX fittings (made of PPSU) can be used in all the same potable water applications as brass fittings. They are naturally lead
free and are time tested. They are subject to degradation when exposed to PVC and CPVC primers and glues - so avoid this condition!
Q: Can NIBCO®PEX be used for cold water service lines?
A: Yes. Although the enhanced temperature resistance of PEX makes it particularly suitable for hot- and cold-water interior plumbing
applications, it also makes excellent underground water service piping.

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
16
www.nibco.com
AHEAD OF THE FLOW®
Technical Data
PRESSURE DROP AT AMBIENT TEMPERATURE (PSI / FT)
GPM 3/8” 1/2” 5/8” 3/4” 1” 11/4”
1 0.071 0.016 0.006
2 0.254 0.058 0.021
3 0.538 0.122 0.045
4 0.207 0.076
5 0.313 0.115 0.054
6 0.439 0.161 0.076
7 0.584 0.214 0.101
8 0.224 0.130
9 0.340 0.161 0.051
10 0.196 0.062 0.023
12.5 0.274 0.094 0.035
15 0.414 0.132 0.049
20 0.224 0.084
25 0.339 0.127
30 0.178
40 0.304
50 0.459
NIBCO®PEX PIPE DIMENSIONS
Nominal ID OD Wall Thickness Average ID
1/4” 0.275 0.062 0.225
3/8” 0.500 0.070 0.350
1/2” 0.625 0.070 0.475
5/8” 0.750 0.083 0.574
3/4” 0.875 0.097 0.681
1” 1.125 0.125 0.862
1-1/4” 1.275 0.153 1.054
Water Velocity too high
Water Velocity too low
NOTE: Pressure Drop x 2.307 = Feet of Head

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
17
www.nibco.com
AHEAD OF THE FLOW
®

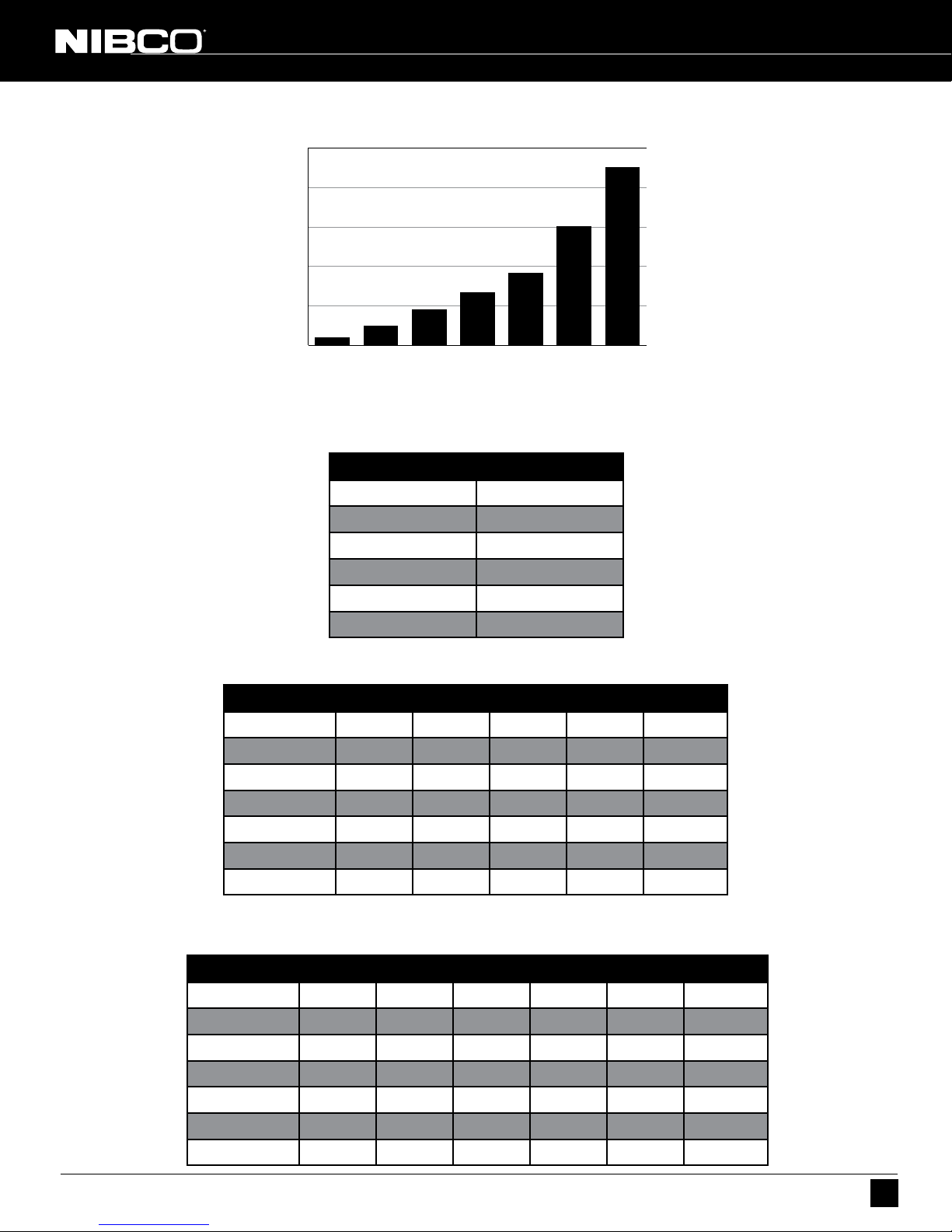

BUNDLE QUANTITY
Tubing Size 20’ Lengths
3/8” 50
1/2” 50
5/8” N/A
3/4” 25
1” 15
1-1/4” 10
COILS / PALLET
Tubing Size 100’ 250’ 300’ 500’ 1000’
1/4” 40 30 N/A 15 N/A
3/8” 28 15 N/A 10 8
1/2” 20 10 N/A 8 6
5/8” 20 8 10 7 3
3/4” 13 9 N/A 7 4
1” 20 5 6 3 N/A
1-1/4” 8 4 N/A N/A N/A
WEIGHT PER UNIT
Tubing Size 20’ 100’ 250’ 300’ 500’ 1000’
1/4” 0.60 3.00 7.50 9.00 15.00 30.00
3/8” 0.90 4.50 11.25 13.50 22.50 45.00
1/2” 1.15 5.75 14.38 17.25 28.75 57.50
5/8” 1.60 8.00 20.00 24.00 40.00 80.00
3/4” 2.10 10.50 26.25 31.50 52.50 105.00
1” 3.50 17.50 43.75 52.50 87.50 175.00
1-1/4” 5.50 27.50 68.75 82.50 137.50 275.00
FLUID CAPACITY OF NIBCO®PEX PIPE
0
1
2
3
4
5
1-1/413/45/81/23/81/4
Gallons per 100 Ft.
0.500
0.921
1.340
3.025
Nominal Size
0.207
4.520
1.837

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
18
www.nibco.com
AHEAD OF THE FLOW®
NOTES:

Sub-Head
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: [phone] • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: [phone]
www.nibco.com
19
www.nibco.com
AHEAD OF THE FLOW
®
NIBCO INC. LIMITED WARRANTY
Applicable to NIBCO INC. PEX Piping Systems
NIBCO INC. warrants that when NIBCO® PEX tube is used with NIBCO®PEX fittings, and NIBCO® valves and installation
accessories, they will, under normal conditions, use and service in potable water and radiant heat systems, be free from
defects in materials and workmanship for a period of twenty-five (25) years from the date of purchase when installed by a
licensed professional contractor. This 25-year warranty is voided if any non-NIBCO products are used in the PEX system.
NIBCO INC. warrants NIBCOPEX tube, when used under normal conditions, use and service in potable water and radiant
heat systems with brass insert fittings meeting NSF/ANSI 61, ASTM F1807 and ASTM F877 to be free from defects in
materials and workmanship for a period of ten (10) years form the date of purchase. NIBCO INC. warrants NIBCO® PEX
fittings, manifolds, transition fittings and valves under normal conditions, use and service in potable water and radiant
heat systems, to be free from defects in materials and workmanship for a period of ten (10) years from the date of pur-
chase. NIBCO INC. warrants NIBCO® associated hardware and tools for a period of 90 days from the date of purchase.
In the event any defect occurs which the owner believes is covered by this warranty, the owner should immediately contact
NIBCO Technical Services, either in writing or by telephone at 1.888.446.4226 or 1.574.295.3000. The owner will be
instructed to return said tube, fittings or accessories, at the owner’s expense, to NIBCO INC., or an authorized representative for
inspection. In the event said inspection discloses to the satisfaction of NIBCO INC. that said tube, fitting or accessory is defective,
a replacement shall be mailed free of charge to the owner.
IN ORDER FOR THIS LIMITED WARRANTY TO APPLY, THE ABOVE REFERENCED PRODUCTS MUST BE INSTALLED BY A
LICENSED PROFESSIONAL PLUMBER IN ACCORDANCE WITH NIBCO INSTALLATION INSTRUCTIONS AND IN COMPLIANCE
WITH ALL APPLICABLE CODE REQUIREMENTS. FAILURE TO DO SO WILL VOID ALL APPLICABLE WARRANTIES.
This warranty does not apply and you do not have a right of reimbursement if the failure or resulting damage is caused by:
1. breaks, tearing, kinking, gouges, punctures or other external damages before, during, or after installation;
2. exposure to temperatures and pressures beyond the product ratings as specified on the product or in the NIBCO
installation manual;
3. exposure to damaging chemicals, substances or corrosive water conditions;
4. damage from abnormal operating conditions;
5. damage due to accident, abuse, misuse, or unauthorized modification or repair;
6. improper installation due to worn, damaged, unauthorized or improperly calibrated tools;
7. components in the plumbing system other than those manufactured or sold by NIBCO;
8. not designing, installing, inspecting or testing the system in accordance with NIBCO installation instructions at the
time of the installation; or
9. failure to follow applicable code requirements and good plumbing practices.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY SPECIFICALLY EXCLUDES INCIDENTAL AND CONSEQUENTIAL
DAMAGES OF EVERY TYPE AND DESCRIPTION RESULTING FROM ANY CLAIMED DEFECT IN MATERIAL OR
WORKMANSHIP, INCLUDING BUT NOT LIMITED TO, PERSONAL INJURIES AND PROPERTY DAMAGES.
Some states or countries do not allow the exclusion or limitation of incidental or consequential dam-
ages so these limitations may not apply to you.
TO THE EXTENT PERMITTED BY LAW, IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state and country to country.
To the best of our knowledge, the information contained in this publication is accurate. However, NIBCOdoes not assume any liability whatsoever for
the accuracy or completeness of such information. Final determinations of the suitability of any information or product for the use to be contemplated
is the sole responsibility of the user. The manner of that use, and whether there is any infringement of patents, is also the sole responsibility of the user.

NIBCO INC.
WORLD HEADQUARTERS
WEB: www.nibco.com
1516 MIDDLEBURY STREET
ELKHART, IN 46516-4740
USA
DOMESTIC CUSTOMER SERVICE
PHONE: [phone]
FAX: [phone]
TECHNICAL SERVICE
PHONE: [phone]
FAX: [phone]
INTERNATIONAL OFFICE
PHONE: [phone]
FAX: [phone]
IM-PEX-0713 © 2013 NIBCO INC., All Rights Reserved. Printed in U.S.A.
Featuring NIBCO®SYSTEMS
NIBCO®PEX Piping Systems • NIBCO®Press System®
CHEMTROL®
Thermoplastic pipe, valves and fittings in PVC, Corzan®CPVC, polypropylene
and PVDF Kynar®• Pneumatic and electric actuation systems
Corzan®is a registered trademark of The Lubrizol Corporation. • Kynar®is a registered trademark of Arkema Inc.
FITTINGS
Wrot and cast copper pressure and drainage fittings • Cast copper alloy flanges
• Wrot and cast press fittings • ABS and PVC DWV fittings • Schedule 40 PVC
pressure fittings • CPVC CTS fittings • CPVC CTS-to-metal transition fittings
• Schedule 80 PVC and CPVC systems • CPVC metric piping systems
• CPVC BlazeMaster®fire protection fittings • Lead-Free*fittings
BlazeMaster®is a registered trademark of The Lubrizol Corporation.
*Weighted average lead content ≤0.25%
eNIBCO
EDI—Electronic Data Interchange • VMI—Vendor Managed Inventory
• NIBCO.com • NIBCOpartner.com
VALVES & ACTUATION
Pressure-rated bronze, iron and alloy-iron gate, globe and check valves • Pressure-
rated bronze ball valves • Boiler specialty valves • Commercial and industrial
butterfly valves • Circuit balancing valves • Carbon and stainless steel ball valves
• ANSI flanged steel ball valves • Pneumatic and electric actuators and controls
• Grooved ball and butterfly valves • High performance butterfly valves • UL/FM
fire protection valves • MSS specification valves • Bronze specialty valves • Low
pressure gate, globe, check and ball valves • Frostproof sillcocks • Quarter--turn
supply stops • Quarter-turn low pressure valves • PVC ball valves • CPVC
CTS ball valves • Bronze & Iron Y-Strainers • Lead-Free*valves • Coil-
Connect™Kits
*Weighted average lead content ≤0.25%
