Nibe F1255PC BE User manual

User manual
LEK
NIBE™ F1255PC
Ground source heat pump
UHBGB142-1
231820

4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page
11.
How to scroll through menus and make different settings is described
on page 15.
6HW WKH LQGRRU FOLPDWH
;
The mode for setting the indoor temperature is reached, when in the
start mode in the main menu, by pressing the OK button twice. Read
more about the settings on page 25.
,QFUHDVH KRW ZDWHU YROXPH
;
;
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button
twice. Read more about the settings on page 44.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page
68 for instructions.

Table of Contents
21 Important information
2Installation data
3Safety information
4Serial number
5Contact information
7F1255PC – An excellent choice
82 The heat pump – the heart of the house
9Heat pump function
10Contact with F1255PC
20Maintenance of F1255PC
243 F1255PC – at your service
24Set the indoor climate
44Set the hot water capacity
49Get information
53Adjust the heat pump
674 Disturbances in comfort
67Manage alarm
68Troubleshooting
71Only additional heat
725 Technical data
736 Glossary
78Index
1NIBE™ F1255PCTable of Contents |

1 Important information
Installation data
F1255PCProduct
Serial number
Installation date
Installer
Type of brine -
Mixing ratio/freezing point
Active drilling depth/collector
length
Accessories
✔
SetDefault
settings
NameNo.
0heating curve (off-
set)
1.9.1
7heating curve (curve
slope)
1.9.1
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F1255PCChapter 1 | Important information2

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2014.
NOTE
F1255PC must be installed via an isolator switch with
a minimum breaking gap of 3 mm.
NOTE
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may re-
place it to prevent any danger and damage.
MinMaxSystem pressure
0.05 MPa
(0.5 bar)
0.45 MPa
(4.5 bar)
Brine
0.05 MPa
(0.5 bar)
0.45 MPa
(4.5 bar)
Heating medium
3NIBE™ F1255PCChapter 1 | Important information

Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
Serial number
The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number (14 digits) when reporting a
fault.
NIBE™ F1255PCChapter 1 | Important information4

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail]
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: [email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, 01600
Reyrieux
FR
Tel : [phone] Fax : [phone] E-mail: inf[email protected]
www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vol-
lebekk, 0516 Oslo
NO
Tel. sentralbord: [phone] E-mail: [email protected] www.ni-
beenergysystems.no
5NIBE™ F1255PCChapter 1 | Important information

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail]
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: inf[email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
NIBE™ F1255PCChapter 1 | Important information6

F1255PC – An excellent choice
F1255PC is part of a new generation of heat pumps, which have been in-
troduced to supply your home with inexpensive and environmentally
friendly heating and/or cooling. Heat production is safe and economical
with integrated hot water heater, immersion heater, circulation pump
and control system.
The heat pump can be connected to an optional low temperature heat
distribution system. e.g. radiators, convectors or underfloor heating. It is
also prepared for connection to several different products and accessories,
e.g. extra hot water heater, ventilation recovery, pool and climate systems
with different temperatures.
An immersion heater of 4.5 kW can be connected automatically for
F1255PC-6 1x230V if anything unforeseen should occur or as backup op-
eration (then 3.5 kW).
For F1255PC-6 3x400V a 6.5 kW immersion heater can be connected
automatically if anything unforeseen should occur or as back-up operation
(then 3.5 kW).
F1255PC is equipped with a control computer for good comfort, good
economy and safe operation. Clear information about status, operation
time and all temperatures in the heat pump are shown on the large and
easy to read display. This means, for example, that external unit thermo-
meters are not necessary.
Excellent properties for F1255PC:
႑Inverter controlled compressor
The heat pump has an inverter controlled compressor that automatically
adapts itself optimally and economically to your house and supplies your
installation with renewable energy.
႑Scheduling the indoor comfort and hot water
Heating and hot water as well as cooling and ventilation in some cases,
can be scheduled for each day of the week or for longer periods (vaca-
tion).
႑Display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
႑Simple troubleshooting
In the event of a fault, the heat pump display shows what happened
and the actions to be taken.
7NIBE™ F1255PCChapter 1 | Important information

2 The heat pump – the heart of
the house
V
K
K
Värmekälla
Förångare
Kondensor 100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil
Växelventil
Kompressor
LEK
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH



6KXQW YDOYH
The temperatures are only examples and may vary between different installations and
time of year.
NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house8

Heat pump function
A heat pump can use stored solar energy from rock, ground or water in
order to heat a property. The conversion of stored energy in nature to
property heating occurs in three different circuits. In the brine circuit, (1)
, free heat energy is retrieved from the surroundings and transported to
the heat pump. In the refrigerant circuit, (2) , the heat pump increases the
retrieved heat's low temperature to a high temperature. In the heating
medium circuit, (3) , the heat is distributed around the house.
The temperatures below are only examples and may vary between different
installations and times of year.
Brine circuit
In a hose, collector, an anti-freeze liquid, brine, circulates from the heat
pump out to the heat source (rock/ground/lake). The energy from the
heat source is stored by it heating the brine a few degrees, from about
–3°C to about 0 °C.
A
The collector then routes the brine to the heat pump’s evaporator. Here,
the brine releases heat energy and the temperature drops a few degrees.
The liquid then returns to the heat source to retrieve energy again.
B
Refrigerant circuit
Another liquid circulates in a closed system in the heat pump, a refrigerant,
which also passes the evaporator. The refrigerant has a very low boiling
point. In the evaporator the refrigerant receives the heat energy from the
brine and starts to boil.
C
The gas that is produced during boiling is routed into an electrically
powered compressor. When the gas is compressed, the pressure increases
and the gas's temperature increases considerably, from approx. 5 °C to
approx. 100 °C.
D
From the compressor, gas is forced into a heat exchanger, condenser,
where it releases heat energy to the heating system in the house,
whereupon the gas is cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve,
where the pressure drops so that the refrigerant returns to its original
temperature. The refrigerant has now completed a full cycle. It is routed
to the evaporator again and the process is repeated.
F
Heat medium circuit
The heating energy that the refrigerant releases in the condenser is re-
trieved by the heat pump's boiler section.
G
The heating medium circulates in a closed system and transports the heated
water's heat energy to the house water heater and radiators/heating coils.
H
Passive cooling
9NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house

The brine can also be circulated via a mixing valve to a heat exchanger.
There the brine cools the heating system's water so that comfort cooling
can be maintained during the hotter periods of the year.
I
Contact with F1255PC
External information
When the heat pump door is closed, information can be received via an
information window and a status lamp.
,QIRUPDWLRQ ZLQGRZ
6WDWXV ODPS
Information window
The information window shows part of the display that is on the display
unit (located behind the door to the heat pump). The information window
can display different type of information, e.g. temperatures, clock, etc.
You determine what is to be displayed in the information window. Your
own combination of information is entered using the display unit. This
information is specific to the information window and disappears when
the heat pump door is opened.
Instructions on how to set the information window can be found on page
60.
Status lamp
The status lamp indicates the status of the heat pump: continuous green
light during normal function, continuous yellow light during activated
emergency mode or continuous red light in the event of a deployed alarm.
Alarm management is described on page 67.
NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house10

Display unit
$
%
&
'
(
)
'LVSOD\
6WDWXV ODPS
2. EXWWRQ
%DFN EXWWRQ
&RQWURO NQRE
6ZLWFK
,1'225 &/,0$7(
+($7 3803 ,1)2
+27 :$7(5
)3&
There is a display unit behind the heat pump door, which is used to com-
municate with F1255PC. Here you:
႑switch on, switch off or set the heat pump in emergency mode.
႑sets the indoor climate and hot water as well as adjusts the heat pump
to your needs.
႑receive information about settings, status and events.
႑see different types of alarms and receive instructions about how they
are to be rectified.
Display
Instructions, settings and operational information are shown on
the display. The easy-to-read display and menu system, facilitates
navigation between the different menus and options to set the
comfort or obtain the information you require.
A
Status lamp
The status lamp indicates the status of the heat pump. It:
႑lights green during normal operation.
႑lights yellow in emergency mode.
႑lights red in the event of a deployed alarm.
B
11NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house

OK button
The OK button is used to:
႑confirm selections of sub menus/options/set values/page in the
start guide.
C
Back button
The back button is used to:
႑go back to the previous menu.
႑change a setting that has not been confirmed.
D
Control knob
The control knob can be turned to the right or left. You can:
႑scroll in menus and between options.
႑increase and decrease the values.
႑change page in multiple page instructions (for example help text
and service info).
E
Switch
The switch assumes three positions:
႑On ()
႑Standby ( )
႑Emergency mode ( )
Emergency mode must only be used in the event of a fault on the
heat pump. In this mode, the compressor switches off and the im-
mersion heater engages. The heat pump display is not illuminated
and the status lamp illuminates yellow.
F
NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house12

Menu system
When the door to the heat pump is opened, the menu system’s four main
menus are shown in the display as well as certain basic information.
,1'225 &/,0$7(
+($7 3803 ,1)2
+27 :$7(5
,QGRRU WHPSHUDWXUH  LI URRP VHQVRUV DUH LQVWDOOHG
+RW ZDWHU WHPS
7HPSRUDU\ OX[ LI
DFWLYDWHG
2XWGRRU
WHPSHUDWXUH
(VWLPDWHG DPRXQW RI
KRW ZDWHU
,QIRUPDWLRQ DERXW
RSHUDWLRQ
INDOOR CLIMATE
Setting and scheduling the indoor climate. See page 24.
Menu 1
HOT WATER
Setting and scheduling hot water production. See page 44.
Menu 2
INFO
Display of temperature and other operating information and access to
the alarm log. See page 49.
Menu 3
HEAT PUMP
Setting time, date, language, display, operating mode etc. See page 53.
Menu 4
13NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house

Symbols in the display
The following symbols can appear in the display during operation.
DescriptionSymbol
This symbol appears by the information sign if there is inform-
ation in menu 3.1 that you should note.
These two symbols indicate whether the compressor or addi-
tion is blocked in F1255PC.
These can, for example, be blocked depending on which op-
erating mode is selected in menu 4.2, if blocking is scheduled
in menu 4.9.5 or if an alarm has occurred that blocks one of
them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if lux mode for the hot water is activated.
This symbol indicates the actual speed of the fan if the speed
has changed from the normal setting.
Accessory NIBE FLM required.
This symbol indicates whether F1255PC has contact with NIBE
Uplink™.
This symbol indicates whether "holiday setting" is activated
in menu 4.7.
NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house14

,1'225 &/,0$7(
+($7 3803 ,1)2
+27 :$7(5
WHPSHUDWXUH
,1'225 &/,0$7( 
YHQWLODWLRQ
VFKHGXOLQJ
DGYDQFHG
RII
QRUPDO
Marked main
menu
Menu number – marked sub menu Name and menu number – main menu
Symbol –
main menu
Status information – sub
menus
Name – sub menusSymbols – sub menus
Operation
To move the cursor, turn the control knob to the left or the right.
The marked position is white and/or has a turned up tab.
Selecting menu
To advance in the menu system select a main menu by marking
it and then pressing the OK button. A new window then opens with sub
menus.
Select one of the sub menus by marking it and then pressing the OK button.
15NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house

Selecting options
HFRQRP\
FRPIRUW PRGH 
QRUPDO
OX[XU\
$OWHUQDWLYH

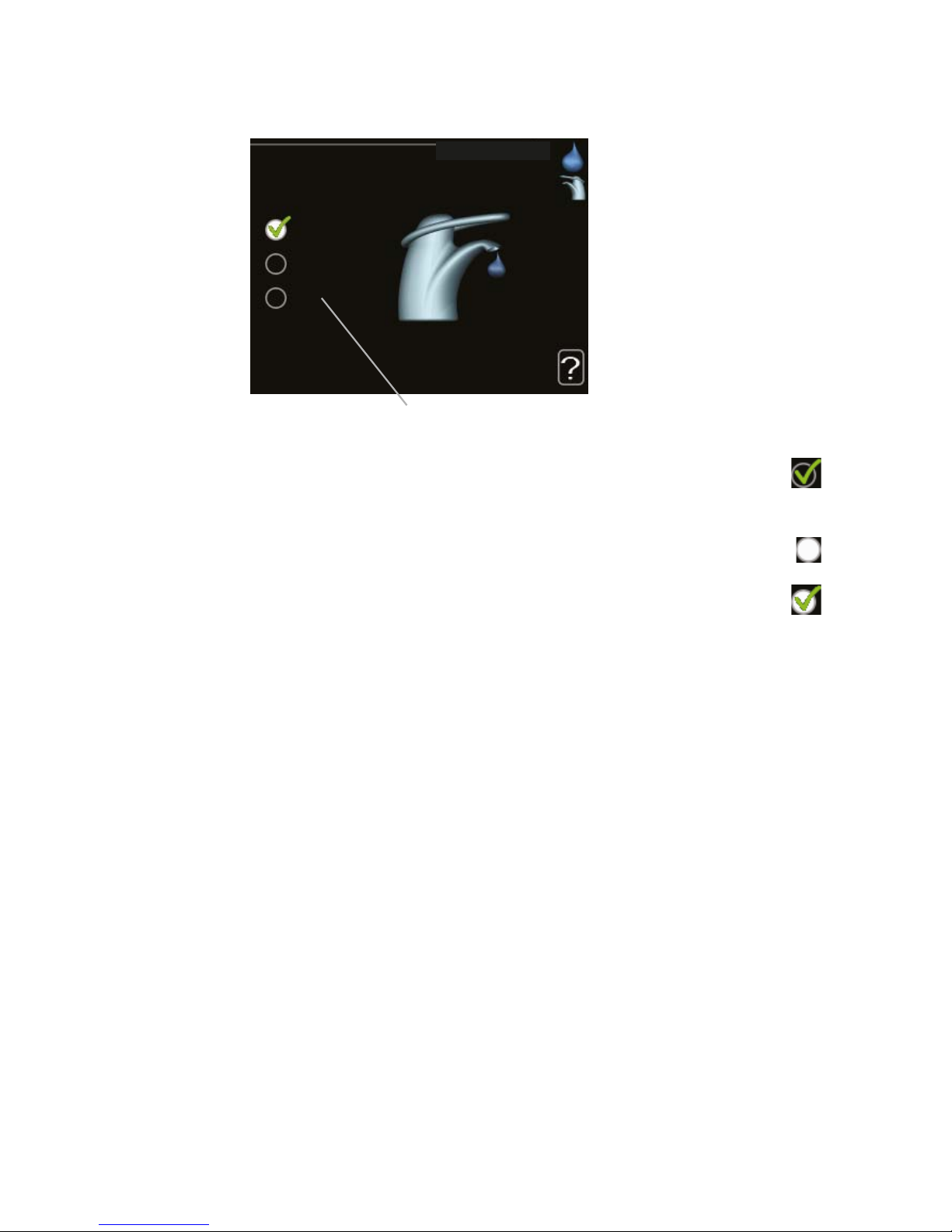

In an options menu the current selected option is indicated by a green
tick.
To select another option:
1. Mark the applicable option. One of the options is pre-selected
(white).
2. Press the OK button to confirm the selected option. The selected
option has a green tick.
NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house16

Setting a value
time & date4.4
time
day
year
month
24 hrs
12 h
date
Values to be changed
To set a value:
1. Mark the value you want to set using the control knob.
2. Press the OK button. The background of the value becomes
green, which means that you have accessed the setting mode.
3. Turn the control knob to the right to increase the value and to
the left to reduce the value.
4. Press the OK button to confirm the value you have set. To change
and return to the original value, press the Back button.
17NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house

Use the virtual keyboard
'LIIHUHQW NH\ERDUGV
In some menus where text may require entering, a virtual keyboard is
available.
Depending on the menu, you can gain access to different character sets
which you can select using the control knob. To change character table,
press the Back button. If a menu only has one character set the keyboard
is displayed directly.
When you have finished writing, mark "OK" and press the OK button.
NIBE™ F1255PCChapter 2 | The heat pump – the heart of the house18
