Nibe F2040 Series User guide

Installer manual
LEK
LEK
LEK
NIBE™ F2040
8, 12, 16 kW
Air/water heat pump
IHB GB 1512-3
231844

Table of Contents
21 Important information
2Safety information
62 Delivery and handling
6Transport and storage
6Assembly
8Supplied components
9Removing the covers
9Removing the front panel
10Removing the side panel
113 The heat pump design
11General
16Electrical connection
194 Pipe connections
19General
19Pipe coupling heating medium circuit
21Docking alternatives
225 Electrical connections
22General
24Connections
306 Commissioning and adjusting
30Preparations
30
Filling and venting the heating medium sys-
tem
30Compressor heater
31Start-up and inspection
32Readjusting, heating medium side
33Adjustment, charge flow
347 Control
358 Disturbances in comfort
35Troubleshooting
399 Alarm list
4210 Accessories
4311 Technical data
43Dimensions and setting-out coordinates
45Sound pressure levels
46Technical specifications
53Electrical circuit diagram
59Index
1Table of Contents |NIBE™ F2040

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2015.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.

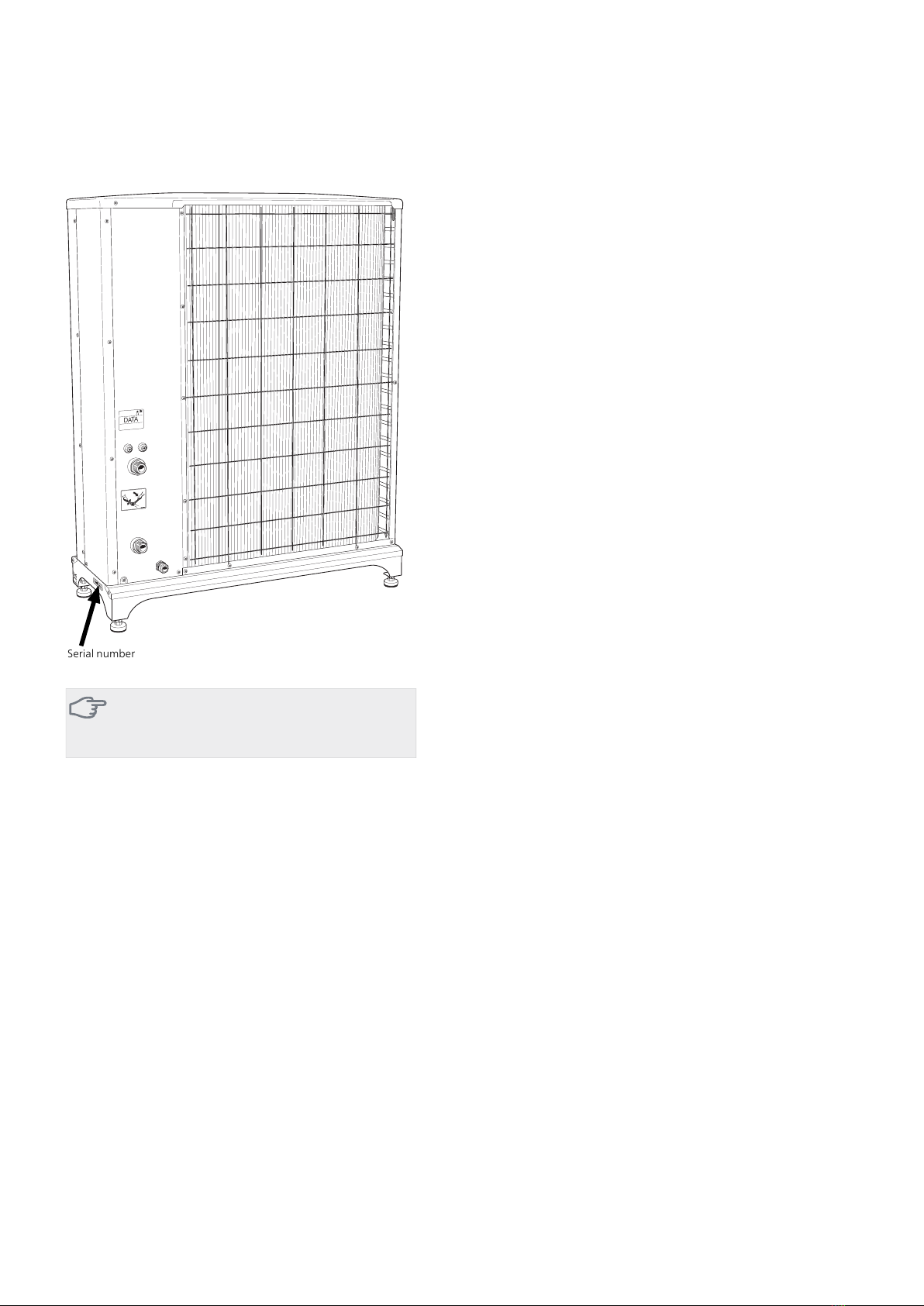

Serial number
The serial number for F2040 can be found on the side
of the foot.
F2040-8
LEK
DATA
Serial number
F2040-12
LEK
DATA
Serial number
NIBE™ F2040Chapter 1 | Important information2
1 Important information

F2040-16
LEK
DATA
Serial number
Caution
Always give the product's serial number when
reporting a fault.
Country specific information
Installer manual
This installer manual must be left with the customer.
3Chapter 1 | Important informationNIBE™ F2040

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
System flushed
System vented
Particle filter
Shut-off and drain valve
Charge flow set
Fuses property
Safety breaker
Communication cable connected
F2040 addressed (only when cascade
connection)
Miscellaneous
NIBE™ F2040Chapter 1 | Important information4

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
5Chapter 1 | Important informationNIBE™ F2040

Transport and storage
F2040 must be transported and stored vertically.
Assembly
■Place F2040 outdoors on a solid level base that can
take the weight, preferably a concrete foundation.
If concrete slabs are used they must rest on asphalt
or shingle.
■The concrete foundation or slabs must be positioned
so that the lower edge of the evaporator is at the
level of the average local snow depth, although a
minimum of 300 mm.
■The F2040 should not be positioned next to sensitive
walls, for example, next to a bedroom.
■Also ensure that the placement does not inconveni-
ence the neighbours.
■F2040 must not be placed so that recirculation of the
outdoor air can occur. This causes lower output and
impaired efficiency.
■The evaporator should be sheltered from direct wind,
which negatively affects the defrosting function.
Place F2040 protected from wind against the evap-
orator.
■Large amounts of condensation water as well as melt
water from defrosting can be produced. Condensa-
tion water must be led off to a drain or similar (see
page 7).
■Care must be exercised so that the heat pump is not
scratched during installation.
LEK
LEK
LEK
Cirka 1 m
LEK
LEK
LEK
Cirka 1 m
min 300 mm
Min. 300 mm

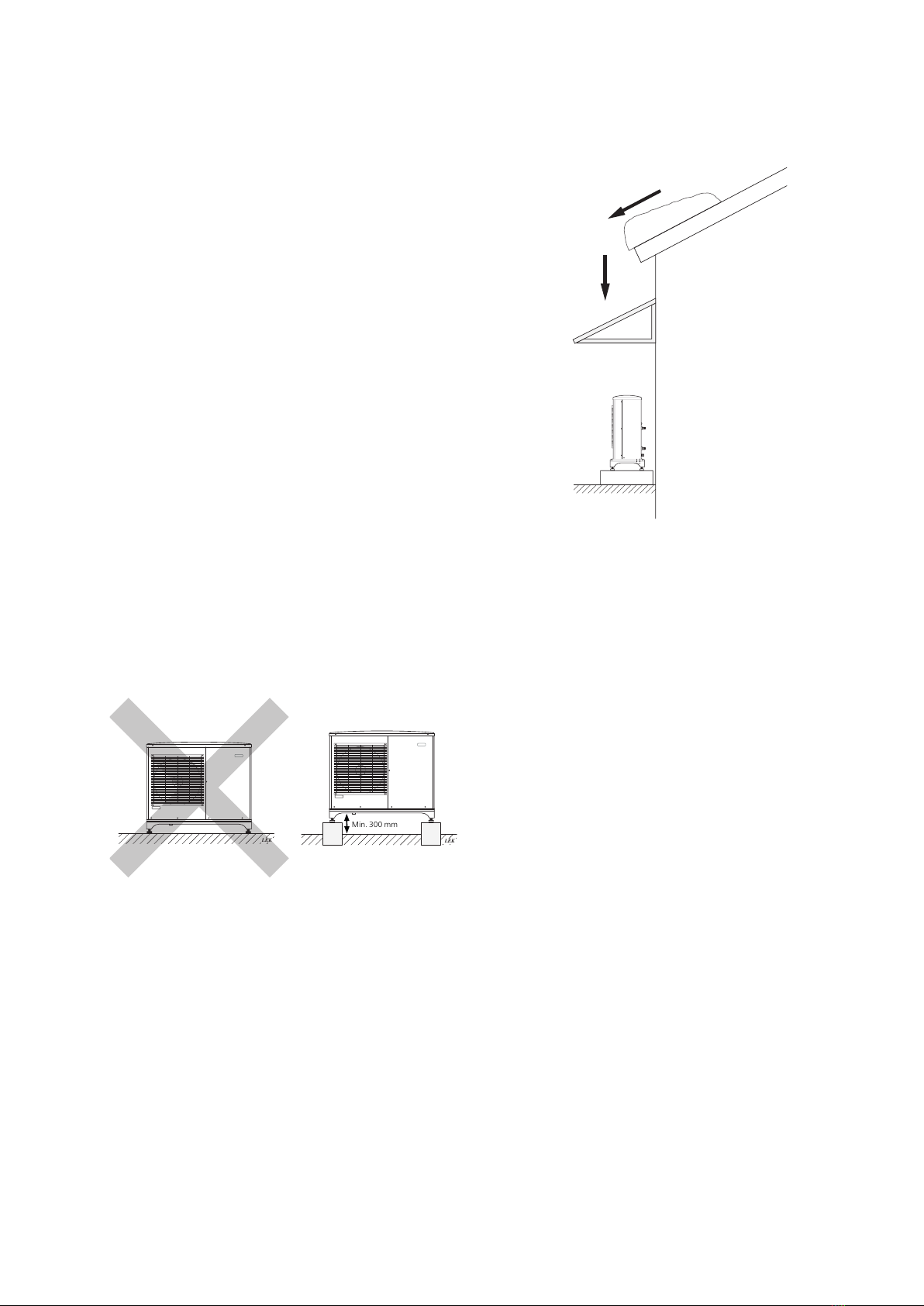

Do not place F2040 directly on the lawn or other non
solid surface.
If there is a risk of snow slip from roof, a protective roof
or cover must be erected to protect the heat pump,
pipes and wiring.
NIBE™ F2040Chapter 2 | Delivery and handling6
2 Delivery and handling

Condensation run off
Condensation water trough
The condensation water trough is used to collect and
lead away condensation water from the heat pump.
NOTE
It is important to the heat pump function that
condensation water is led away and that the
drain for the condensation water run off is not
positioned so that it can cause damage to the
house.
NOTE
Pipe with heating cable for draining the con-
densation water trough are not included.
NOTE
To ensure this function the accessory KVR 10
should be used.
NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
NOTE
Self regulating heating cables must not be
connected.
Caution
If none of the recommended alternatives is
used good lead off of condensation water
must be assured.
■The condensation water (up to 50 litres/day) collec-
ted in the trough should be routed by pipe to an
appropriate drain, it is recommended that the
shortest outdoor stretch possible is used.
■The section of the pipe that can be affected by frost
must be heated by the heating cable to prevent
freezing.
■Route the pipe downward from F2040.
■The outlet of the condensation water pipe must be
at a depth that is frost free or alternatively indoors
(with reservation for local ordinances and regula-
tions).
■Use a water trap for installations where air circulation
may occur in the condensation water pipe.
■The insulation must be tight against the bottom of
the condensation water trough.
Drain pan heater, control
The drain pan heater is supplied with power when one
of the following conditions is met:
1. Operating mode "Heating" or "Hot water" is activ-
ated.
2. The compressor has been in operation for at least
30 minutes after last start.
3. The ambient temperature is lower than 1 C.
Recommended alternatives
Stone caisson
LEK
Frostfritt djup
Frost proof depth
If the house has a cellar the stone caisson must be po-
sitioned so that condensation water does not affect
the house. Otherwise the stone caisson can be posi-
tioned directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
Drain indoors
Water seal
The condensation water is lead to an indoor drain
(subject to local rules and regulations).
Route the pipe downward from F2040.
7Chapter 2 | Delivery and handlingNIBE™ F2040

The condensation water pipe must have a water seal
to prevent air circulation in the pipe.
Gutter drainage
Frostfritt
djup
LEK
Frost proof depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2040.
The condensation water pipe must have a water seal
to prevent air circulation in the pipe.
Installation area
The distance between F2040 and the house wall must
be at least 150 mm. Clearance in front of F2040 should
be at least one metre.
50
255
Ställbar 40-50 955
243
512
110
395
265
50
452 1075
1145
108
Ø40*
14
85
3000 mm
400 mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
150 mm
Fritt
utrymme
bakom
600mm
Minimum
free space
Minimum
free space
Free
space
behind
400 mm 600 mm
150 mm
3000 mm
Free space
in front
Supplied components
LEK
Particle filter R25 (HQ1).
2 flexible hoses (R25) with
4 seals
NIBE™ F2040Chapter 2 | Delivery and handling8

Removing the covers
F2040-8
LEK
F2040-12
LEK
F2040-16
LEK
Removing the front panel
F2040-8
LEK
9Chapter 2 | Delivery and handlingNIBE™ F2040

F2040-12
LEK
F2040-16
LEK
Removing the side panel
F2040-12
LEK
F2040-16
LEK
DATA
NIBE™ F2040Chapter 2 | Delivery and handling10

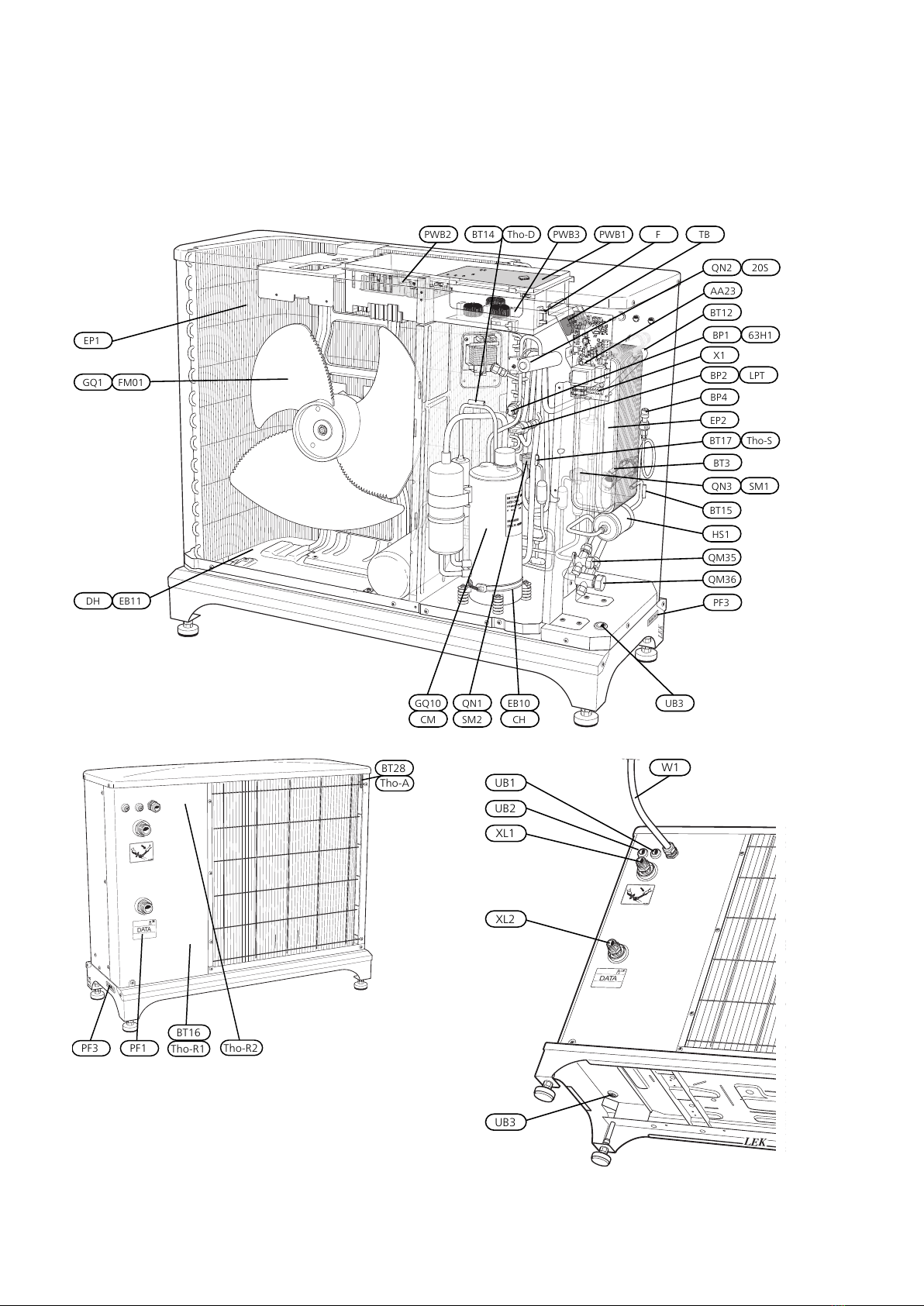

General
F2040-8
LEK
GQ1
DH
UB3
EP1
EB11
CM
20S
63H1
LPT
SM2
SM1
FM01
PWB2 PWB3 PWB1
BT12
BT15
BP4
QN2
BT3
PF3
HS1
EP2
GQ10 QN1
BP2
QM35
QM36
BP1
QN3
CH
EB10
AA23
X1
F TBBT14 Tho-D
Tho-SBT17
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
PF1PF3
Tho-A
BT28
Tho-R1 Tho-R2
BT16
11Chapter 3 | The heat pump designNIBE™ F2040

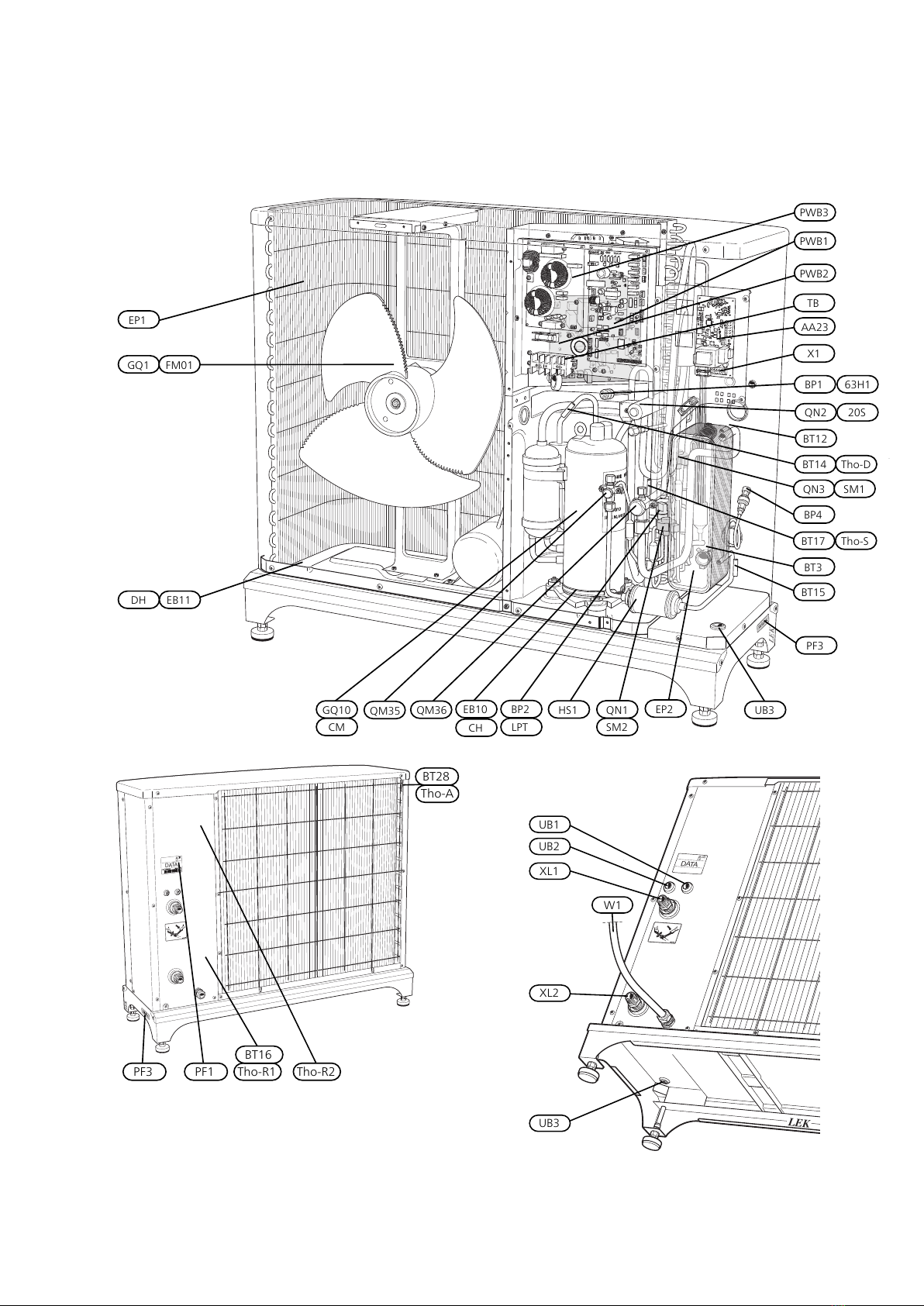

3 The heat pump design

F2040-12
LEK
QN1
GQ1
GQ10 QM35
QN3
QM36
TB
BP1
QN2
PWB1
PWB2
PWB3
DH
UB3
BT3
BP4
PF3
BT15
EP1
EP2
HS1
BP2
BT12
X1
EB11
CM
20S
63H1
LPT SM2
SM1
FM01
CH
EB10
AA23
Tho-DBT14
BT17 Tho-S
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
Tho-A
BT28
PF1PF3 Tho-R1
BT16
Tho-R2
NIBE™ F2040Chapter 3 | The heat pump design12

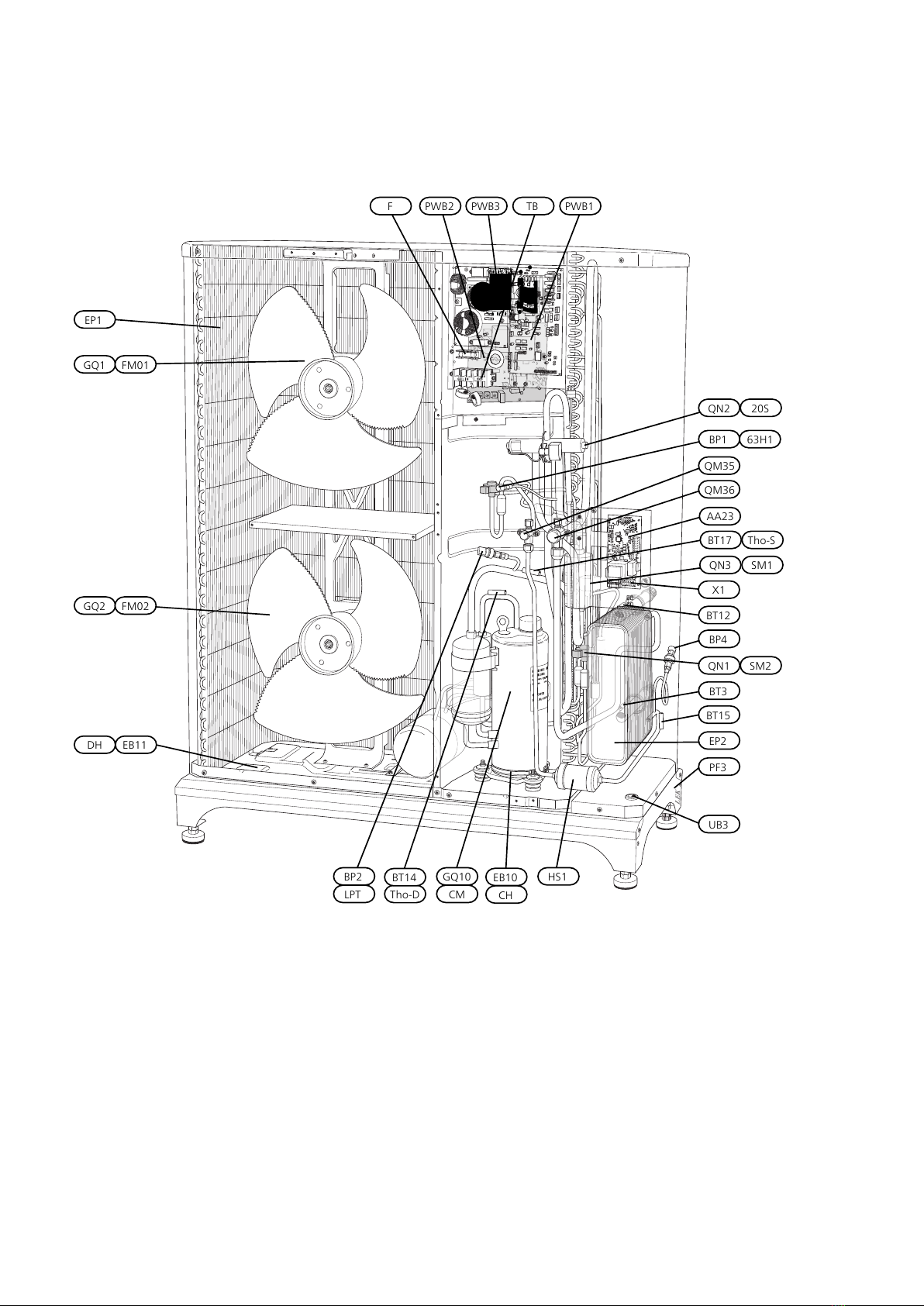

F2040-16
LEK
GQ1
DH
X1
CM
63H1
CH
SM2
SM1
FM01
PWB2 PWB3 PWB1
QN2 20S
BT12
TB
BP1
PF3
QN3
BP4
BT3
BT15
UB3
GQ10 HS1
QN1
EP2
QM36
QM35
EB11
GQ2 FM02
EP1
F
LPT
BP2
AA23
Tho-D
BT14 EB10
Tho-SBT17
13Chapter 3 | The heat pump designNIBE™ F2040

LEK
DATA
XL2
UB1
UB2
XL1
UB3
W1
LEK
DATA
PF3 PF1
BT28
Tho-A
Tho-R1 Tho-R2
BT16
NIBE™ F2040Chapter 3 | The heat pump design14

Component list F2040-8 , -12 , -16
Pipe connections
Service valve, liquid sideQM35
Service valve, gas sideQM36
Connection, heating medium out ofF2040,
G1" (Ø28 mm)
XL1
Connection, heating medium in to F2040,
G1" (Ø28 mm)
XL2
Sensors etc.
High pressure pressostatBP1 (63H1)
Temperature sensor, heating medium return
line
BT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14 (Tho-
D)
Temperature sensor, fluid pipeBT15
Temperature sensor 1, evaporatorBT16 (Tho-
R1)
Temperature sensor, suction gasBT17 (Tho-
S)
Temperature sensor, ambientBT28 (Tho-
A)
Low pressure transmitterBP2 (LPT)
High pressure sensorBP4
Temperature sensor 2, evaporatorTho-R2
Electrical components
Communication boardAA23
Fuse for external heating cable (250 mA),
max 45 W.
AA23-F3
DIP switch, addressing of outdoor unitAA23-S3
Terminal block, KVRAA23-X1
Terminal block, communication from indoor
module
AA23-X4
Communication with TBAA23-
X100
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
FanGQ1
(FM01)
FanGQ2
(FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, incoming supply and com-
munication with board AA23
TB
Cooling components
4-way valveQN2 (20S)
CompressorGQ10 (CM)
Expansion valve, coolingQN3 (SM1)
Expansion valve, heatingQN1 (SM2)
Evaporator (air coil, copper pipe with alu-
minium flange)
EP1
Condenser (ACH 30, copper/stainless steel)EP2
Drying filterHS1
Miscellaneous
Type platePF1
Serial numberPF3
Cable gland, incoming supplyUB1
Cable grommet, communicationUB2
Cable grommet, heating cable (EB14)UB3
Cable, incoming supplyW1
Designations in component locations according to
standard IEC 81346-1 and 81346-2. Designations
within brackets according to the supplier's standard.
15Chapter 3 | The heat pump designNIBE™ F2040

Electrical connection
Electrical components
Communication boardAA23
Fuse for external heating cable (250 mA),
max 45 W.
AA23-F3
DIP switch, addressing of outdoor unitAA23-S3
Terminal block, KVRAA23-X1
Terminal block, communication from indoor
module
AA23-X4
Communication with TBAA23-
X100
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
FanGQ1
(FM01)
FanGQ2
(FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, incoming supply and com-
munication with board AA23
TB
Designations in component locations according to
standard IEC 81346-1 and 81346-2. Designations
within brackets according to the supplier's standard.

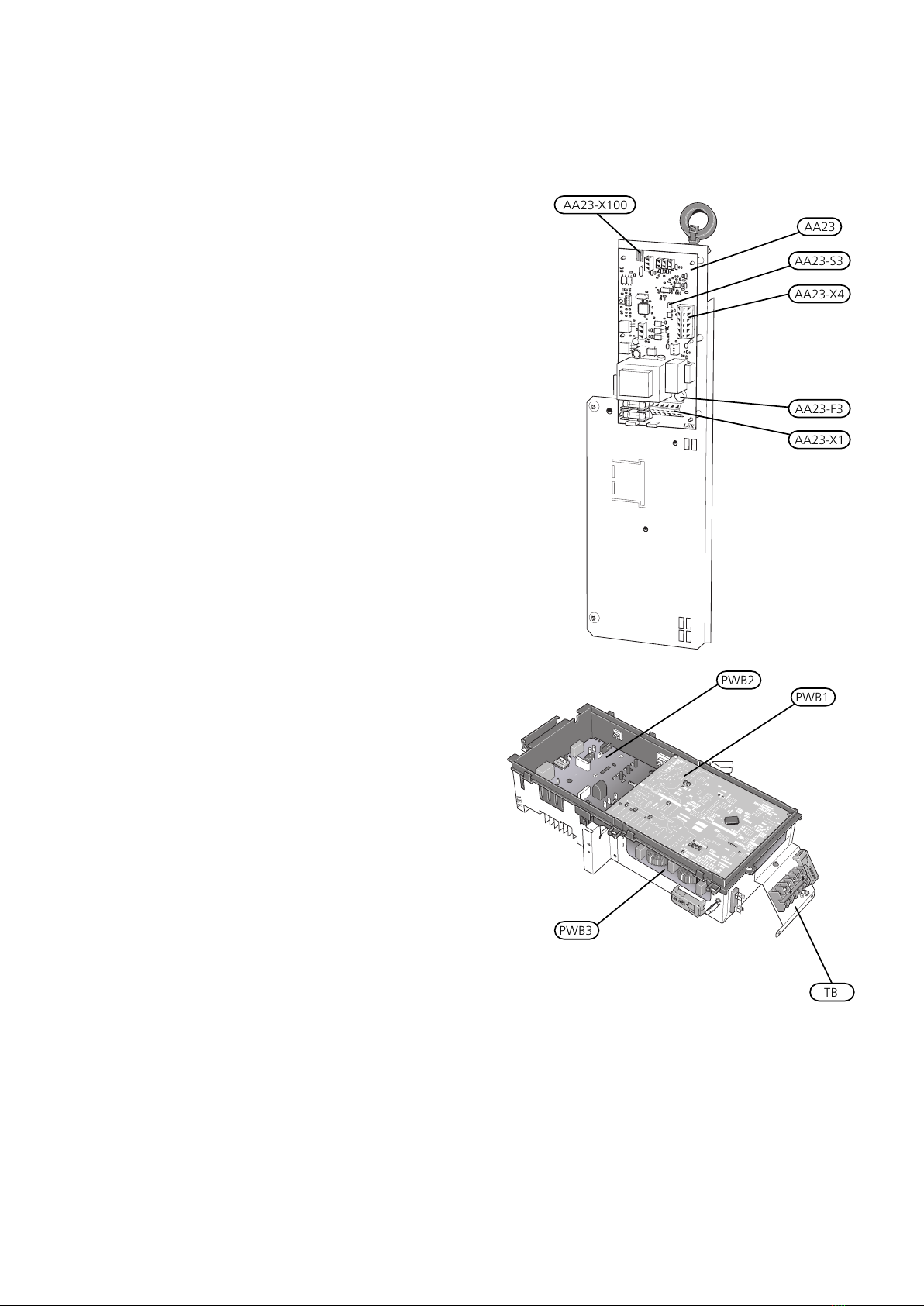

F2040-8
LEK
AA23
AA23-F3
AA23-X4
AA23-X1
AA23-S3
AA23-X100
LEK
PWB2
PWB1
PWB3
TB
NIBE™ F2040Chapter 3 | The heat pump design16

F2040-12
Främre el
Bakre el
LEK LEK
EB11
PWB3 PWB1
EB10
AA23
FM01TB
F
AA23-F3
AA23-X4
AA23-X1
DH
CH
GQ1
AA23-S3
AA23-X100
Främre el
Bakre el
LEK LEK
PWB2
Capacitor
Reactor
AF module
Diode module
17Chapter 3 | The heat pump designNIBE™ F2040

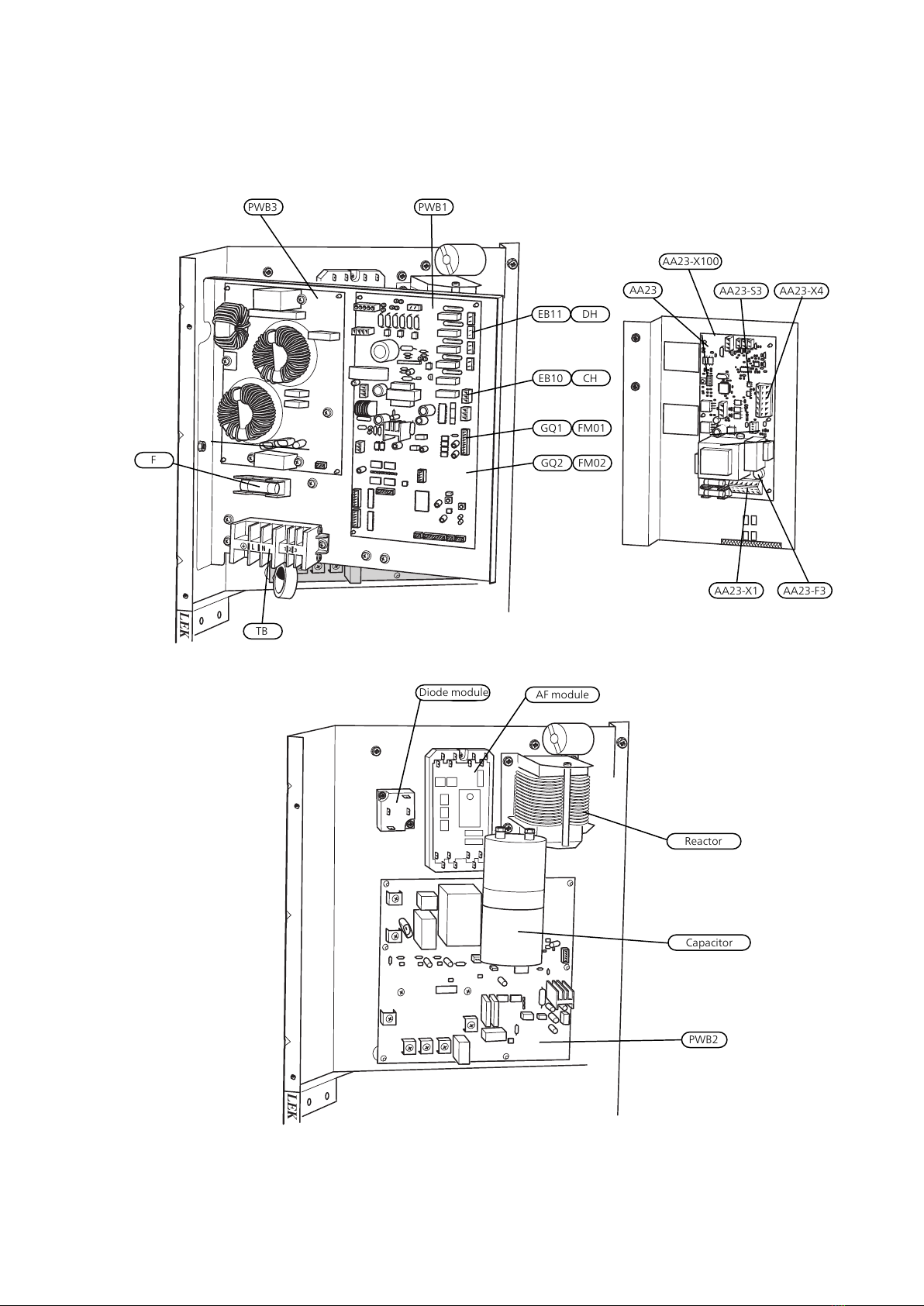

F2040-16
Främre el
Bakre el
LEK LEK
PWB3 PWB1
EB10
FM01
AA23-X4
DH
CH
GQ1
TB
AA23-X1 AA23-F3
EB11
F
AA23 AA23-S3
FM02GQ2
AA23-X100
Främre el
Bakre el
LEK LEK
PWB2
PWB2
Capacitor
Reactor
AF module
Diode module
NIBE™ F2040Chapter 3 | The heat pump design18
