Nibe F1345 Series User manual

OHB EN 2014-3
331035
OPERATING MANUAL
Ground source heat pump
NIBE F1345

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 7.
How to scroll through menus and make different settings is described on page 10.
Set the indoor climate
2X
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start
mode in the main menu. Read more about the settings on page 12.
Increase hot water volume
2X
1X
To increase the amount of hot water temporarily (if a water heater is installed for your F1345), first turn the
control knob to select menu 2 (water droplet) and then press the OK button twice. Read more about the settings
on page temporary lux.

41 Important information
4Installation data
5Safety information
5Symbols
5Marking
6Safety precautions
6Serial number
6Recovery
6Environmental information
72 Control - Introduction
7Display unit
8Menu system
123 Control - Menus
12Menu 1 – INDOOR CLIMATE
19Menu 2 – HOT WATER
21Menu 3 – INFO
23Menu 4 – HEAT PUMP
31Menu 5 - SERVICE
444 Service
44Service actions
525 Disturbances in comfort
52Info-menu
52Manage alarm
52Troubleshooting
55Alarm list
67Item register
71Contact information
3Table of ContentsNIBE F1345
Table of Contents

Installation data
F1345Product
Serial number Master
Serial number, Slave 1
Serial number, Slave 2
Serial number, Slave 3
Serial number, Slave 4
Serial number, Slave 5
Serial number, Slave 6
Serial number, Slave 7
Serial number, Slave 8
Installation date
Installer
Type of brine -
Mixing ratio/freezing point
Active drilling depth/collector length
Accessories
✔
SetFact.
sett.
NameNo.
0heating curve (offset)1.9.1.1
7heating curve (curve slope)1.9.1.1
Serial number must always be given
Certification that the installation is carried out according to instructions
in the accompanying installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE F1345Chapter 1 | Important information4
1 Important information

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. The product is inten-
ded for use by experts or trained users in
shops, hotels, light industry, farming and
similar environments.
Children must be instructed/supervised to
ensure that they do not play with the appli-
ance.
Do not allow children to clean or maintain
the appliance unsupervised.
This is an original manual. It may not be
translated without the approval of NIBE.
Rights to make any design or technical
modifications are reserved.
©NIBE 2020.
Do not start F1345 if there is a risk that the
water in the system has frozen.
If the supply cable is damaged, only NIBE,
its service representative or similar author-
ised person may replace it to prevent any
danger and damage.
F1345 must be installed via an isolator
switch. The cable area has to be dimensioned
based on the fuse rating used.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should observe when maintain-
ing your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IP21
Danger to person or machine.
!
5Chapter 1 | Important informationNIBE F1345

Safety precautions
CAUTION
The installation must be carried out by a qualified installer.
If you install the system yourself, serious problems may occur, for
example water leaks, refrigerant leaks, electric shocks, fire and per-
sonal injury, as a result of a system malfunction.
Use original accessories and the stated components for the in-
stallation.
If parts other than those stated by us are used, water leaks, electric
shocks, fire and personal injury may occur as the unit may not work
properly.
Install the unit in a location with good support.
Unsuitable installation locations can cause the unit to fall and cause
material damage and personal injury. Installation without sufficient
support can also cause vibrations and noise.
Ensure that the unit is stable when installed, so that it can with-
stand earthquakes and strong winds.
Unsuitable installation locations can cause the unit to fall and cause
material damage and personal injury.
The electrical installation must be carried out by a qualified
electrician and the system must be connected as a separate cir-
cuit.
Power supply with insufficient capacity and incorrect function can
cause electric shocks and fire.
Use types of pipe and tools stated for this type of refrigerant.
Using existing parts for other refrigerants can cause breakdowns and
serious accidents due to process circuit bursts.
Do not perform any repairs yourself. Consult the dealer if the
system requires repair.
Incorrectly performed repairs can cause water leakage, refrigerant
leakage, electric shocks or fire.
Consult the dealer or an expert regarding removal of the heat
pump.
Incorrect installation can cause water leakage, refrigerant leaks, electric
shocks or fire.
Switch off the power supply in the event of a service or inspec-
tion.
If the power supply is not shut off, there is a risk of electric shocks
and damage due to the rotating fan.
Do not run the unit with removed panels or protection.
Touching rotating equipment, hot surfaces or high voltage parts can
cause personal injury due to entrapment, burns or electric shocks.
Cut the power before starting electrical work.
Failure to cut the power can cause electric shocks, damage and incor-
rect function of the equipment.
CARE
Do not use the unit for specialist purposes such as for storing
food, cooling precision instruments, freeze-conservation of anim-
als, plants or art.
This can damage the items.
Dispose of any packaging material correctly.
Any remaining packaging material can cause personal injury as it may
contain nails and wood.
Do not touch any buttons with wet hands.
This can cause electric shocks.
Do not shut off the power supply immediately after operation
has start.
Wait at least 5 minutes, otherwise there is a risk of water leakage or
breakdown.
Do not control the system with the main switch.
This can cause fire or water leakage. In addition, the fan can start un-
expectedly, which can cause personal injury.
ESPECIALLY FOR UNITS INTENDED FOR
R407C AND R410A
- Do not use other refrigerants that those intended for the unit.
- Do not use charging bottles. These types of bottles change the
composition of the refrigerant, which makes the performance of the
system worse.
- When filling refrigerant, the refrigerant must always leave the bottle
in liquid form.
- R410A means that the pressure is about 1.6 times as high as for
conventional refrigerants.
- The filling connections on units with R410A are different sizes, to
prevent the system being filled with the incorrect refrigerant by mis-
take.

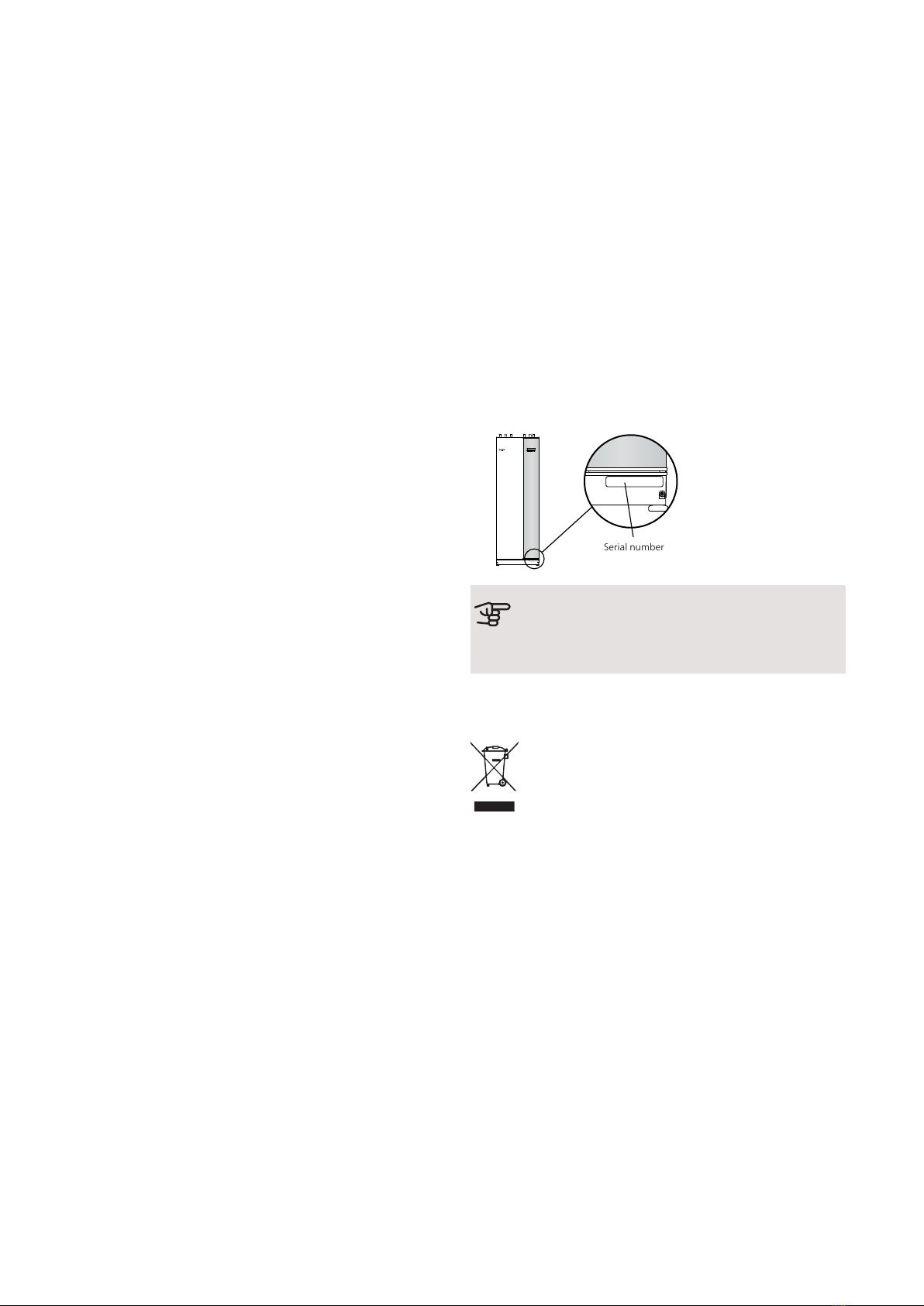

Serial number
The serial number can be found at the bottom right of
the front cover, in the info menu (menu 3.1) and on the
type plate (PZ1).
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current le-
gislation.
Environmental
information
F-GAS REGULATION (EU) NO. 517/2014
This unit contains a fluorinated greenhouse gas that is
covered by the Kyoto agreement.
The equipment contains R407C or R410A, fluorinated
greenhouse gases with GWP values (Global Warming
Potential) of 1774 and 2088 respectively. Do not release
R407C or R410A into the atmosphere.
NIBE F1345Chapter 1 | Important information6

Display unit
A
B
C
D
E
F
Display
Status lamp
OK button
Back button
Control knob
Switch
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
F1345 GUSB port
DISPLAY
Instructions, settings and operational information
are shown on the display. You can easily navigate
between the different menus and options to set
the comfort or obtain the information you require.
A
STATUS LAMP
The status lamp indicates the status of the heat
pump. It:
• lights green during normal operation.
• lights yellow in emergency mode.
• lights red in the event of a deployed alarm.
B
OK BUTTON
The OK button is used to:
• confirm selections of sub menus/options/set
values/page in the start guide.
C
BACK BUTTON
The back button is used to:
• go back to the previous menu.
• change a setting that has not been confirmed.
D
CONTROL KNOB
The control knob can be turned to the right or
left. You can:
• scroll in menus and between options.
• increase and decrease the values.
• change page in multiple page instructions (for
example help text and service info).
E
SWITCH
The switch assumes three positions:
•On ()
•Standby ( )
•Emergency mode ( )
Emergency mode must only be used in the event
of a fault on the heat pump. In this mode, the
compressor switches off and the immersion
heater engages. The heat pump display is not il-
luminated and the status lamp illuminates yellow.
F
USB PORT
The USB port is hidden beneath the plastic badge
with the product name on it.
The USB port is used to update the software.
Visit http://www.nibeuplink.com and click the
"Software" tab to download the latest software
for your installation.
G
7Chapter 2 | Control - IntroductionNIBE F1345
2 Control - Introduction

Menu system
When the door to the heat pump is opened, the menu
system’s four main menus are shown in the display as
well as certain basic information.
MASTER
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
SERVICE
Indoor temperature - (if room sensors are installed)
Hot water temp.
Temporary lux (if activated)
Outdoor
temperature
Estimated amount of hot water
Information about
operation
SLAVE
SERVICE
slave 1
F1345
If the heat pump is set as slave a limited main menu is
displayed because the majority of the settings for the
system are made at the master heat pump.
MENU 1 - INDOOR CLIMATE
Setting and scheduling the indoor climate. See page 12.
MENU 2 - HOT WATER
Setting and scheduling hot water production. See page
19.
This menu only appears if a water heater is docked to
the heat pump.
MENU 3 - INFO
Display of temperature and other operating information
and access to the alarm log. See page 21.
This menu is also set in the slave heat pump's limited
menu system.
MENU 4 - HEAT PUMP
Setting time, date, language, display, operating mode
etc. See page 23.
MENU 5 - SERVICE
Advanced settings. These settings are only intended for
installers or service engineers. The menu is visible when
the Back button is pressed for 7 seconds, when you are
in the start menu. See page 31.
This menu is also set in the slave heat pump's limited
menu system.
NIBE F1345Chapter 2 | Control - Introduction8

SYMBOLS IN THE DISPLAY
The following symbols can appear in the display during
operation.
DescriptionSymbol
This symbol appears by the information sign
if there is information in menu 3.1 that you
should note.
These two symbols indicate whether the
compressor or addition is blocked in F1345.
These can, for example, be blocked depend-
ing on which operating mode is selected in
menu 4.2, if blocking is scheduled in menu
4.9.5 or if an alarm has occurred that blocks
one of them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if periodic increase or
lux mode for the hot water is activated.
This symbol indicates whether "holiday
setting" is active in 4.7.
This symbol indicates whether F1345 has
contact with NIBE Uplink.
This symbol indicates the actual speed of
the fan if the speed has changed from the
normal setting.
Accessory needed.
This symbol is visible in installations with
active solar accessories.
This symbol is displayed in menu 3.1, if pool
heating is active.
Accessory needed.
This symbol is displayed in menu 3.1, if
cooling is active.
Accessory needed.
9Chapter 2 | Control - IntroductionNIBE F1345

INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
temperature
INDOOR CLIMATE 1
ventilation
scheduling
advanced
off
normal
Marked main menu
Menu number – marked sub menu Name and menu number – main menu
Symbol – main
menu
Status information – sub menus
Name – sub menusSymbols – sub menus
OPERATION
To move the cursor, turn the control knob
to the left or the right. The marked position
is white and/or has a turned up tab.
SELECTING MENU
To advance in the menu system select a main menu by
marking it and then pressing the OK button. A new
window then opens with sub menus.
Select one of the sub menus by marking it and then
pressing the OK button.
SELECTING OPTIONS
economy
comfort mode2.2
normal
luxury
Alternative
In an options menu the current selected option is
indicated by a green tick.
To select another option:
1. Mark the applicable option. One of the options
is pre-selected (white).
2. Press the OK button to confirm the selected
option. The selected option has a green tick.
SETTING A VALUE
time & date4.4
time
day
year
month
24 h
12 h
date
Values to be changed
To set a value:
1. Mark the value you want to set using the
control knob.
2. Press the OK button. The background of the
value becomes green, which means that you
have accessed the setting mode.
3. Turn the control knob to the right to increase
the value and to the left to reduce the value.
4. Press the OK button to confirm the value you
have set. To change and return to the original
value, press the Back button.
NIBE F1345Chapter 2 | Control - Introduction10

USE THE VIRTUAL KEYBOARD
Different keyboards
In some menus where text may require entering, a vir-
tual keyboard is available.
Depending on the menu, you can gain access to differ-
ent character sets which you can select using the control
knob. To change character table, press the Back button.
If a menu only has one character set the keyboard is
displayed directly.
When you have finished writing, mark "OK” and press
the OK button.
SCROLL THROUGH THE WINDOWS
A menu can consist of several windows. Turn the control
knob to scroll between the windows.
Current menu
window
Number of windows
in the menu
Scroll through the windows in the start guide
language4.6
If the start guide is left on this page it closes
automatically in
60 min
Arrows to scroll through window in start guide
1. Turn the control knob until one of the arrows in the
top left corner (at the page number) has been
marked.
2. Press the OK button to skip between the steps in
the start guide.
HELP MENU
In many menus there is a symbol that indicates
that extra help is available.
To access the help text:
1. Use the control knob to select the help symbol.
2. Press the OK button.
The help text often consists of several windows that
you can scroll between using the control knob.
11Chapter 2 | Control - IntroductionNIBE F1345

Menu 1 – INDOOR
CLIMATE
OVERVIEW
1.1.1 - temperature heating1.1 - temperature1 - INDOOR CLIMATE
1.1.2 - temperature cooling *
1.1.3 - rel. humidity *
1.2 - ventilation
1.3.1 - scheduling heating1.3 - scheduling
1.3.2 - scheduling cooling *
1.3.2 - scheduling ventilation
*
1.9.1.1 heating curve1.9.1 - curve1.9 - advanced
1.9.1.2 - cooling curve *
1.9.2 - external adjustment
1.9.3.1 - min. flow line temp. heating1.9.3 - min. flow line temp.
1.9.3.2 - min. flow line temp. cooling
*
1.9.4 - room sensor settings
1.9.5 - cooling settings *
1.9.6 - fan return time *
1.9.7.1 - own heating curve1.9.7 - own curve
1.9.7.2 - own cooling curve *
1.9.8 - point offset
1.9.9 – night cooling*
* Accessories are needed.
Sub-menus
For the menu INDOOR CLIMATE there are several sub-
menus. Status information for the relevant menu can
be found on the display to the right of the menus.
temperature Setting the temperature for the climate
system. The status information shows the set values
for the climate system.
ventilation Setting the fan speed. The status informa-
tion shows the selected setting. This menu is only dis-
played if the exhaust air module is connected (access-
ory).
scheduling Scheduling heating, cooling and ventilation.
Status information "set" is displayed if you set a schedule
but it is not active now, "holiday setting" is displayed if
the vacation schedule is active at the same time as the
schedule (the vacation function is prioritised), "active"
displays if any part of the schedule is active, otherwise
it displays " off".
advanced Setting of heat curve, adjusting with external
contact, minimum value for supply temperature, room
sensor and cooling function.
MENU 1.1 - TEMPERATURE
If the house has several climate systems, this is indic-
ated on the display by a thermometer for each system.
NIBE F1345Chapter 3 | Control - Menus12
3 Control - Menus

Select whether you want to set heating, cooling or rel-
ative humidity in menu 1.1 and then, set the desired
temperature in the following menu "temperature heat-
ing/cooling/humidity".
Set the temperature (with room sensor
installed and activated):
heating
Setting range: 5 – 30 °C
Default value: 20
cooling (accessory required)
Setting range: 5 – 30 °C
Default value: 25
The value in the display appears as a temperature in °C
if the climate system is controlled by a room sensor.
Caution
A slow heat-releasing heating system, such as
for example, underfloor heating, may not be
suitable for control using the heat pump's room
sensor.
To change the room temperature, use the control knob
to set the desired temperature in the display. Confirm
the new setting by pressing the OK button. The new
temperature is shown on the right-hand side of the
symbol in the display.
Setting the temperature (without room sensors
activated):
Setting range: -10 to +10
Default value: 0
The display shows the set values for heating (curve
offset). To raise or lower the indoor temperature, in-
crease or reduce the value on the display.
Use the control knob to set a new value. Confirm the
new setting by pressing the OK button.
The number of steps the value has to be changed to
achieve a degree change of the indoor temperature de-
pends on the heating installation. One step is usually
enough but in some cases several steps may be re-
quired.
Setting the desired value. The new value is shown on
the right-hand side of the symbol in the display.
Setting the relative humidity: (accessory is
required)
Setting range: 30 to 90 %
Factory setting: 60 %
The menu is only displayed if limit RH is activated in
menu 5.3.16.
The display shows the value set for relative humidity.
To change how F1345 is run, in relation to relative hu-
midity, increase or decrease the value given on the dis-
play.
Use the control knob to set the required value. Confirm
the new setting, by pressing the OK button.
Caution
An increase in the room temperature can be
slowed by the thermostats for the radiators or
under floor heating. Therefore, open the ther-
mostats fully, except in those rooms where a
cooler temperature is required, e.g. bedrooms.
TIP
Wait 24 hours before making a new setting,
so that the room temperature has time to sta-
bilise.
If it is cold outdoors and the room temperature
is too low, increase the curve slope in menu
1.9.1.1 by one increment.
If it is cold outdoors and the room temperature
is too high, reduce the curve slope in menu
1.9.1.1 by one increment.
If it is warm outdoors and the room temperat-
ure is too low, increase the value in menu 1.1.1
by one increment.
If it is warm outdoors and the room temperat-
ure is too high, reduce the value in menu 1.1.1
by one increment.
MENU 1.2 - VENTILATION (ACCESSORY RE-
QUIRED)
Setting range: normal and speed 1-4
Default value: normal
The ventilation in the accommodation can be temporarily
increased or reduced here.
When you have selected a new speed a clock starts a
count down. When the time has counted down the
ventilation speed returns to the normal setting.
If necessary, the different return times can be changed
in menu 1.9.6.
The fan speed is shown in brackets (in percent) after
each speed alternative.
TIP
If longer time changes are required use the
holiday function or scheduling.
13Chapter 3 | Control - MenusNIBE F1345

MENU 1.3 - SCHEDULING
In the menu scheduling indoor climate (heating/cool-
ing/ventilation) is scheduled for each weekday.
You can also schedule a longer time during a selected
period (holiday) in menu 4.7.
Schedule: The schedule to be changed is selected here.
Schedule setting
These settings can be made for each schedule (Menu
1.3.1, 1.3.2 and 1.3.3:
Activated: Scheduling for the selected period is activated
here. Set times are not affected at deactivation.
System: The climate system that the relevant schedule
relates to is selected here. This alternative is only dis-
played if there is more than one climate system.
Day: Select which day or days of the week the
scheduling is to apply to here. To remove the scheduling
for a particular day, the time for that day must be reset
by setting the start time to the same as the stop time.
If the row "all" is used, all days in the period are set ac-
cording to that row.
Time period: The start and stop time for the selected
day for scheduling are selected here.
Adjusting: See relevant sub menu.
Conflict: If two settings conflict with each other, a red
exclamation mark is displayed.
TIP
If you wish to set similar scheduling for every
day of the week start by filling in “all” and then
changing the desired days.
TIP
Set the stop time earlier than the start time so
that the period extends beyond midnight.
Scheduling then stops at the set stop time the
day after.
Scheduling always starts on the date that the
start time is set for.
MENU 1.3.1 - HEATING
SCHEDULING HEATING 1.3.1
activated
schedule 2
system
schedule 3schedule 1
all
mon
tues
wed
thur
fri
sat
sun
21:30 - 06:00 20.5°
Time period AdjustingDay
Activated Schedule System
Conflict
Increases or de-
creases in the ac-
commodation tem-
perature can be
scheduled here for
up to three time
periods per day. If a
room sensor is in-
stalled and activated
the desired room
temperature (°C) is
set during the time
period. Without an activated room sensor the desired
change is set (of setting in menu 1.1). One step is usu-
ally enough to change the room temperature by one
degree, but in some cases several steps may be re-
quired.
Adjustment: How much the heating curve is to be offset
in relation to menu 1.1 during scheduling is set here. If
a room sensor is installed, the desired room temperature
is set in °C.
Caution
Changes of temperature in accommodation
take time. For example, short time periods in
combination with underfloor heating will not
give a noticeable difference in room temperat-
ure.
MENU 1.3.2 - COOLING (ACCESSORY RE-
QUIRED)
SCHEDULING COOLING 1.3.2
activated
schedule 2schedule 1
all
mon
tues
wed
thur
fri
sat
sun
21:30 - 06:00 on
Activated Schedule
Time period AdjustingDay Conflict
Here you can sched-
ule when cooling is
permitted in the ac-
commodation for up
to two different time
periods per day.
MENU 1.3.3 - VENTILATION (ACCESSORY
REQUIRED)
all
mon
tues
wed
thur
fri
sat
sun
activated
schedule 2schedule 1
SCHEDULING VENTILATION 1.3.3
21:30 - 06:00 speed 3
Activated Schedule
Time period AdjustingDay Conflict
Increases or de-
creases in the ventil-
ation to the accom-
modation can be
scheduled here for
up to two time peri-
ods per day.
Adjustment: The de-
sired fan speed is
set here.
Caution
A significant change over a longer period of
time may cause poor indoor environment and
worse operating economy.
NIBE F1345Chapter 3 | Control - Menus14

MENU 1.9 - ADVANCED
Menu advanced has orange text and is intended for
the advanced user. This menu has several sub-menus.
curve Setting the curve slope for heating and cooling.
external adjustment Setting the heat curve offset when
the external contact is connected.
min. flow line temp. Setting minimum permitted flow
line temperature.
room sensor settings Settings regarding the room
sensor.
cooling settings Settings for cooling.
fan return time Fan return time settings in the event
of temporary ventilation speed change.
own curve Setting own curve for heating and cooling.
point offset Setting the offset of the heating curve or
cooling curve at a specific outdoor temperature.
night cooling Setting night cooling.
MENU 1.9.1 - CURVE
heating curve
Setting range: 0 – 15
Default value: 9
cooling curve (accessory required)
Setting range: 0 – 9
Default value: 0
You can select heating or cooling in the curve menu.
The next menu (heating curve/cooling curve) shows the
heating and cooling curves for your house. The task of
the curve is to give an even indoor temperature, regard-
less of the outdoor temperature, and thereby energy
efficient operation. It is from these heat curves that the
heat pump’s control computer determines the temper-
ature of the water to the system, the supply temperat-
ure, and therefore the indoor temperature. Select the
curve and read off how the supply temperature changes
at different outdoor temperatures here. The number to
the far right of "system" displays which system you have
selected the heating curve/cooling curve for.
Caution
With underfloor heating systems, max flow
line temperature should normally be set to
between 35 and 45 °C.
With underfloor cooling, "min. flow line temp."
must be restricted to prevent condensation.
Check the max temperature for your floor with
your installer/floor supplier.
TIP
Wait 24 hours before making a new setting,
so that the room temperature has time to sta-
bilise.
If it is cold outdoors and the room temperature
is too low, increase the curve slope by one in-
crement.
If it is cold outdoors and the room temperature
is too high, lower the curve slope by one incre-
ment.
If it is warm outdoors and the room temperat-
ure is too low, increase the curve offset by one
increment.
If it is warm outdoors and the room temperat-
ure is too high, lower the curve offset by one
increment.
MENU 1.9.2 - EXTERNAL ADJUSTMENT
climate system
Setting range: -10 to +10.
Or desired room temperature if the room sensor is
installed. See illustration.
Default value: 0
Connecting an external contact, for example, a room
thermostat or a timer allows you to temporarily or peri-
odically raise or lower the room temperature while
heating. When the contact is on, the heating curve offset
is changed by the number of steps selected in the menu.
If a room sensor is installed and activated the desired
room temperature (°C) is set.
If there is more than one climate system the setting can
be made separately for each system.
MENU 1.9.3 - MIN. FLOW LINE TEMP.
heating
Setting range: 5-70 °C
Default value: 20 °C
cooling (accessory required)
Factory setting: 18 °C
In menu 1.9.3 you select heating or cooling, in the next
menu (min. supply temp.heating/cooling) set the minim-
um temperature on the supply temperature to the cli-
mate system. This means that F1345 never calculates
a temperature lower than that set here.
If there is more than one climate system the setting can
be made separately for each system.
15Chapter 3 | Control - MenusNIBE F1345

TIP
The value can be increased if you have, for
example, a cellar that you always want to heat,
even in summer.
You may also need to increase the value in
"stop heating" menu 4.9.2 "auto mode setting".
MENU 1.9.4 - ROOM SENSOR SETTINGS
factor system
heating
Setting range: 0.0 - 6.0
Factory setting heating: 1.0
cooling (accessory required)
Setting range: 0.0 - 6.0
Factory setting cooling: 1.0
Room sensors to control the room temperature can be
activated here.
Caution
A slow heating system such as underfloor
heating may not be suitable for control using
the installation’s room sensors.
Here you can set a factor (a numerical value) that determ-
ines how much an over or sub normal temperature (the
difference between the desired and actual room temper-
ature) in the room is to affect the supply temperature
to the climate system. A higher value gives a greater
and faster change of the heating curve's set offset.
NOTE
Too high a set value for "factor system" can
(depending on your climate system) produce
an unstable room temperature.
If several climate systems are installed the above set-
tings can be made for the relevant systems.
MENU 1.9.5 - COOLING SETTINGS (ACCESS-
ORY REQUIRED)
cool/heat sensor
Factory setting: no sensor selected
set pt value cool/heat sensor
Setting range: 5 - 40 °C
Default value: 21
heat at room under temp.
Setting range: 0.5 - 10.0 °C
Default value: 1.0
cool at room over temp.
Setting range: 0.5 - 10.0 °C
Default value: 3.0
larm rumsgivare kyla
Setting range: on/off
Factory setting: off
start passive cooling
Setting range: 10 – 500 DM
Factory setting: 30 DM
start active cooling
Setting range: 10 – 300 DM
Factory setting: 90 DM
step difference compressors
Setting range: 10 – 150
Default value: 30
degree minutes cooling
Setting range: -3000 – 3000 cooling degree minutes
Factory setting: 0
heat dump 24h-function
Setting range: on/off
Factory setting: off
closingtime for cool dump
Setting range: 0 - 100 s
Factory setting: 0 s
max compr. in active cooling
Setting range: 0 - 18
Factory setting: 18
NIBE F1345Chapter 3 | Control - Menus16

time betw. switch heat/cool
Setting range: 0 – 48 h
Factory setting: 2
mixing valve amplifier
Setting range: 0.1 –10.0
Default value: 1.0
mixing valve step delay
Setting range QN41: 10 – 300 s
Setting range QN18 and QN36: 10 – 500 s
Default values: 30 s
You can use F1345 to cool the house during hot periods
of the year.
Caution
Certain setting options only appear if their
function is installed and activated in F1345.
cool/heat sensor
An extra temperature sensor can be connected to F1345
in order to determine when it is time to switch between
heating and cooling operation.
When several heating/cooling sensors are installed, you
can select which one of them should be in control.
Caution
When the heating/cooling sensors BT74 have
been connected and activated in menu 5.4, no
other sensor can be selected in menu 1.9.5.
set pt value cool/heat sensor
Here you can set at which indoor temperature F1345 is
to shift between heating respectively cooling operation.
heat at room under temp.
Here you can set how far the room temperature can
drop below the desired temperature before F1345
switches to heating operation.
cool at room over temp.
Here you can set how high the room temperature can
increase above the desired temperature before F1345
switches to cooling operation.
larm rumsgivare kyla
This is where you set whether F1345 is to initiate an
alarm if the room sensor is disconnected or breaks dur-
ing cooling operation.
start passive cooling
Here you can set when passive cooling is to start.
Degree minutes are a measurement of the current
heating demand in the house and determine when the
compressor, cooling operation respectively additional
heat will start/stop.
start active cooling
Here you can set when active cooling is to start.
Degree minutes are a measurement of the current
heating demand in the house and determine when the
compressor, cooling operation respectively additional
heat will start/stop.
step difference compressors
Caution
This setting option only appears if cooling is
activated in menu 5.2.4.
The degree minute difference for controlling when the
next compressor is to start is set here.
degree minutes cooling
This selection is only available when the connected ac-
cessory itself counts cooling degree minutes.
After a min or max value has been set, the system will
automatically set the real value in relation to the number
of compressors that are running cooling.
heat dump 24h-function
If the heating is to be shunted to max supply line tem-
perature if there has been a heating requirement in the
last 24 hours it is set here.
closingtime for cool dump
Here, you set the number of seconds per time period
that the shunt valve must be closed when in ”Start of
active cooling” mode.
max compr. in active cooling
Set the max number of compressors that may be used
for cooling in those cases where several compressors
are available here.
time betw. switch heat/cool
This selection is only available when cooling in 2-pipe
systems.
Here you can set how long F1345 is to wait before it
returns to heating mode when the cooling demand has
ceased or vice versa.
mixing valve amplifier and mixing valve step
delay
Caution
This setting option only appears if passive
cooling is activated in menu 5.2.4.
Shunt reinforcement and shunt wait time for the cooling
system are set here.
17Chapter 3 | Control - MenusNIBE F1345

MENU 1.9.6 - FAN RETURN TIME (ACCESS-
ORY REQUIRED)
Here you select the return time for temporary speed
change (speed 1-4) on the ventilation in menu 1.2.
Return time is the time it takes before ventilation speed
returns to normal.
MENU 1.9.7 - OWN CURVE
supply temperature
heating
Setting range: 5 – 80 °C
cooling (accessory required)
Setting range: 5 – 40 °C
When required, create your own heating or cooling curve
here, by setting the desired supply temperatures for
different outdoor temperatures.
Caution
Curve 0 in menu 1.9.1 must be selected for
own curve to apply.
MENU 1.9.8 - POINT OFFSET
outdoor temp. point
Setting range: -40 – 30 °C
Default value: 0 °C
change in curve
Setting range: -10 – 10 °C
Default value: 0 °C
Select a change in the heating curve at a certain outdoor
temperature here. One step is usually enough to change
the room temperature by one degree, but in some cases
several steps may be required.
The heat curve is affected at ± 5°C from set outdoor
temp. point.
It is important that the correct heating curve is selected
so that the room temperature is experienced as even.
TIP
If it is cold in the house, at, for example -2 °C,
"outdoor temp. point" is set to "-2" and "change
in curve" is increased until the desired room
temperature is maintained.
Caution
Wait 24 hours before making a new setting,
so that the room temperature has time to sta-
bilise.
MENU 1.9.9 - NIGHT COOLING (ACCESSORY
REQUIRED)
start temp. exhaust air
Setting range: 20 – 30 °C
Default value: 25 °C
min diff. outdoor-exhaust
Setting range: 3 – 10 °C
Default value: 6 °C
Activate night cooling here.
When the temperature in the house is high and the
outdoor temperature is lower, a cooling effect can be
obtained by forcing the ventilation.
If the temperature difference between the exhaust air
and the outdoor air temperature is greater than the set
value ("min diff. outdoor-exhaust") and the exhaust air
temperature is higher than the set value ("start temp.
exhaust air") run the ventilation at speed 4 until one of
the conditions is no longer met.
Caution
Night cooling can only be activated when house
heating has been deactivated. This is done in
menu 4.2.
NIBE F1345Chapter 3 | Control - Menus18

Menu 2 – HOT
WATER
OVERVIEW
2.1 - temporary lux2 - HOT WATER*, **
2.2 - comfort mode
2.3 - scheduling
2.9.1 - periodic increase2.9 - advanced
2.9.2 - hot water recirc. *
* Accessory needed.
** This menu is also set in the slave heat pump's limited
menu system.
Sub-menus
This menu only appears if a water heater is docked to
the heat pump.
For the menu HOT WATER there are several sub-
menus. Status information for the relevant menu can
be found on the display to the right of the menus.
temporary lux Activation of temporary increase in the
hot water temperature. Status information displays “off"
or what length of time of the temporary temperature
increase remains.
comfort mode Setting hot water comfort. The status
information displays what mode is selected, "economy",
"normal" or "luxury".
scheduling Scheduling hot water comfort. The status
information "set" appears if you have set scheduling but
it is not currently active, "holiday setting" appears if holi-
day setting is active at the same time as scheduling
(when the holiday function is prioritised), "active" appears
if any part of scheduling is active, otherwise "off" ap-
pears.
advanced Setting periodic increase in the hot water
temperature.
MENU 2.1 - TEMPORARY LUX
Setting range: 3, 6 and 12 hours and mode "off" and
"one time increase"
Default value: "off"
When hot water requirement has temporarily increased
this menu can be used to select an increase in the hot
water temperature to lux mode for a selectable time.
Caution
If comfort mode "luxury" is selected in menu
2.2 no further increase can be carried out.
The function is activated immediately when a time
period is selected and confirmed using the OK button.
The remaining time for the selected setting is shown to
the right.
When the time has run out F1345 returns to the mode
set in menu 2.2.
Select “off" to switch off temporary lux .
MENU 2.2 - COMFORT MODE
Setting range: economy, normal, luxury
Default value: normal
The difference between the selectable modes is the
temperature of the hot tap water. Higher temperature
means that the hot water lasts longer.
economy: This mode produces less hot water than the
others, but is more economical. This mode can be used
in smaller households with a small hot water require-
ment.
normal: Normal mode gives a larger amount of hot water
and is suitable for most households.
luxury: Lux mode gives the greatest possible amount
of hot water. In this mode, the immersion heater may
be partially used to heat hot water, which increases
operating costs.
MENU 2.3 - SCHEDULING
all
mon
tues
wed
thur
fri
sat
sun
activated
schedule 2schedule 1
SCHEDULING HOT WATER 2.3
normal
Activated Schedule
Time period AdjustingDay Conflict
What hot water
comfort the heat
pump is to work
with can be sched-
uled here for up to
two different time
periods per day.
Scheduling is activ-
ated/deactivated by
ticking/unticking"ac-
tivated". Set times
are not affected at
deactivation.
Schedule: The schedule to be changed is selected here.
19Chapter 3 | Control - MenusNIBE F1345

Activated: Scheduling for the selected period is activated
here. Set times are not affected at deactivation.
Day: Select which day or days of the week the
scheduling is to apply to here. To remove the scheduling
for a particular day, the time for that day must be reset
by setting the start time to the same as the stop time.
If the row "all" is used, all days in the period are set ac-
cording to that row.
Time period: The start and stop time for the selected
day for scheduling are selected here.
Adjustment: Set the hot water comfort that is to apply
during scheduling here.
Conflict: If two settings conflict with each other, a red
exclamation mark is displayed.
TIP
If you wish to set similar scheduling for every
day of the week start by filling in “all” and then
changing the desired days.
TIP
Set the stop time earlier than the start time so
that the period extends beyond midnight.
Scheduling then stops at the set stop time the
day after.
Scheduling always starts on the date that the
start time is set for.
MENU 2.9 - ADVANCED
Menu advanced has orange text and is intended for
the advanced user. This menu has several sub-menus.
MENU 2.9.1 - PERIODIC INCREASE
period
Setting range: 1 - 90 days
Default value: off
start time
Setting range: 00:00 - 23:00
Default value: 00:00
To prevent bacterial growth in the water heater, the
compressor and the immersion heater can increase the
hot water temperature for a short time at regular inter-
vals.
The length of time between increases can be selected
here. The time can be set between 1 and 90 days.
Factory setting is 14 days. Tick/untick "activated" to
start/switch off the function.
MENU 2.9.2 - HOT WATER RECIRC. (ACCESS-
ORY REQUIRED)
operating time
Setting range: 1 - 60 min
Default value: 60 min
downtime
Setting range: 0 - 60 min
Default value: 0 min
Set the hot water circulation for up to three periods per
day here. During the set periods the hot water circulation
pump will run according to the settings above.
"operating time" decide how long the hot water circula-
tion pump must run per operating instance.
"downtime" decide how long the hot water circulation
pump must be stationary between operating instances.
NIBE F1345Chapter 3 | Control - Menus20
