Nibe F2030 User manual

Service manual
LEK
NIBE™ F2030
Air/water heat pump
SEM GB 1508-1
M11770

Table of Contents
21 Important information
2Safety information
52 The heat pump design
5General
7Electrical panel
83 System description
8Principle of operation
9Sensor internal
10System diagram
114 Compressor protection
11Hot gas temperature
11High pressure switch (BP10)
11Low pressure switch (BP2)
11Working area
11High supply temperature
11High return temperature
11MP alarm (07)
11Main contactor (QA51)
11Motor circuit breaker (FC2)
11Phase monitor (BA1)
11Time conditions compressor
12
Adjusting overheating (Main expansion valve
QN1)
12Expansion valve liquid subcooler
145 Component description
14Compressor (GQ10)
14Other components
14Electronics
15Sensors
17Reference designation
186 Troubleshooting
257 Component replacement
25Basic
26Main components
33Circuit board and electronics
378 Technical data
37Electrical circuit diagram
41Dimensions and setting-out coordinates
42Technical specifications
45Index
1Table of Contents |NIBE™ F2030

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance is designed for use in a
home environment and not intended
to be used by persons (including chil-
dren) with reduced physical, sensory or
mental capabilities, or lack of experi-
ence and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety. This
in accordance to applicable parts of the
low-voltage directive 2006/95/EC, LVD.
The appliance is also intended for use
by experts or trained users in shops,
hotels, light industry, on farms and in
similar environments. This in accordance
to applicable parts of the machinery
directive 2006/42/EC.
Children should be supervised to ensure
that they do not play with the appli-
ance.
This is an original instruction manual.
Translation is not allowed without ap-
proval from NIBE.
Rights to make any design or technical
modifications are reserved.
©NIBE 2015.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
NIBE™ F2030Chapter 1 | Important information2
1 Important information

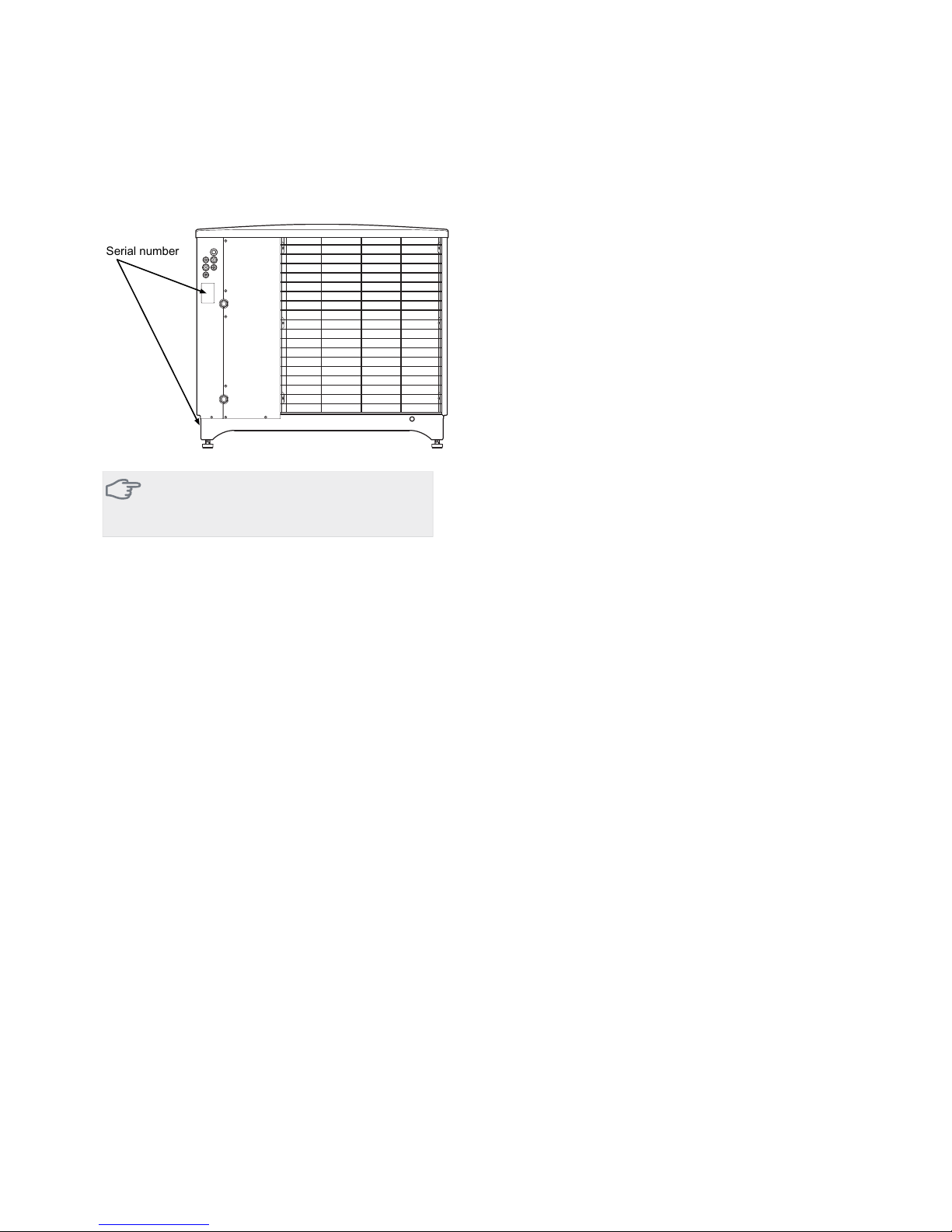

Serial number
The serial number can be found at the top left of the
rear cover and on the foot of the product.
251
203 476
1074
25740-60
50
176
598
480
49
511 1145
140
1260
90
570
603
Serial number
Caution
Always give the product's serial number when
reporting a fault.
3Chapter 1 | Important informationNIBE™ F2030

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
NIBE™ F2030Chapter 1 | Important information4

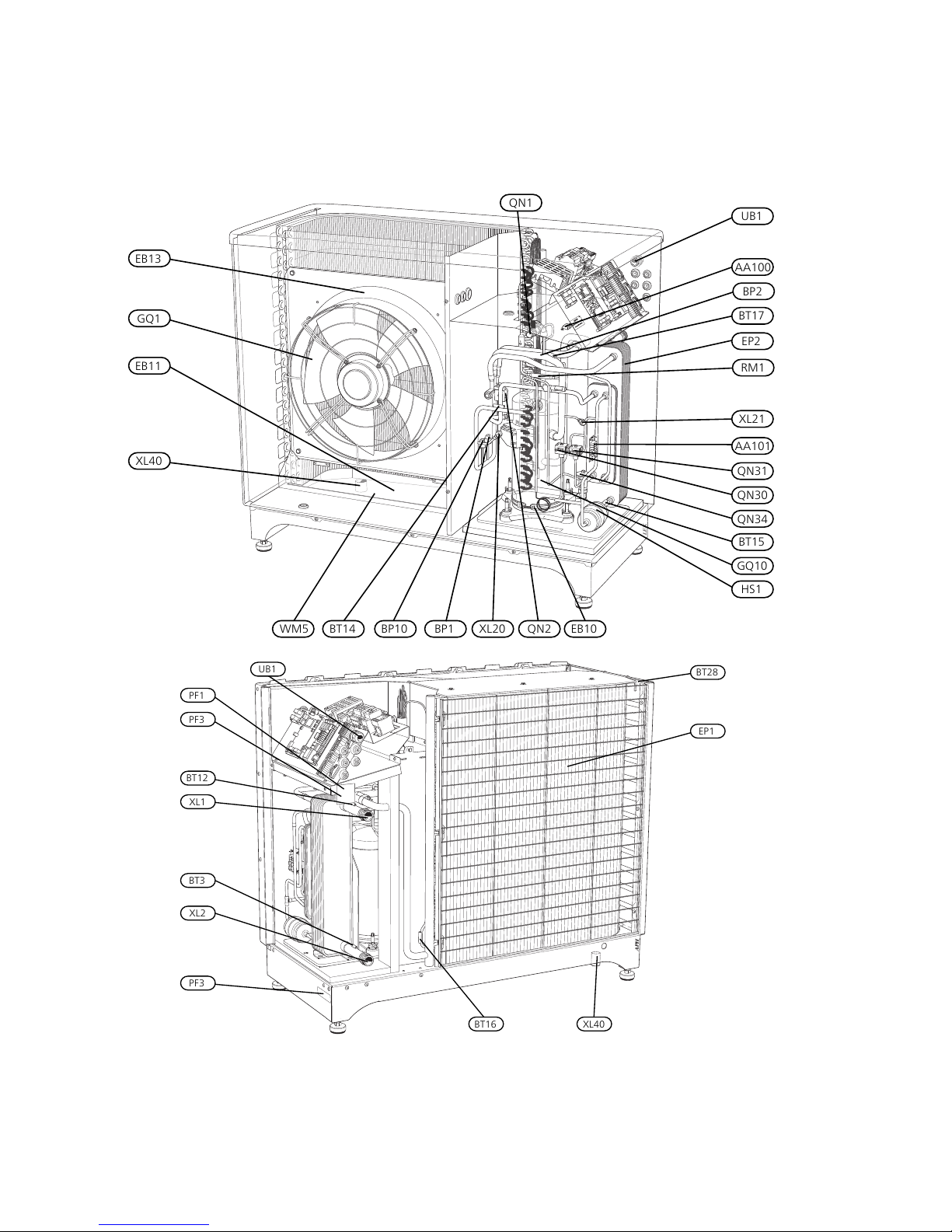

General
LEK
BT14 BP1
BT15
XL21
EP2
BT17
BP2
AA101
QN1
QN31
WM5
QN30
QN34
GQ10
HS1
AA100
UB1
XL40
EB13
GQ1
EB11
QN2XL20 EB10BP10
RM1
APH
BT16
EP1
UB1
XL40
PF3
XL2
BT3
XL1
BT12
BT28
PF1
PF3
5Chapter 2 | The heat pump designNIBE™ F2030
2 The heat pump design

Pipe connections
Connection, heating medium out of F2030XL1
Connection, heating medium in to F2030,XL2
Service connection, high pressureXL20
Service connection, low pressureXL21
Connection, drain condensation water troughXL40
Sensors etc.
High pressure pressostatBP1
Low pressure pressostatBP2
High pressure pressostatBP10
Temperature sensor, returnBT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14
Temperature sensor, fluid pipeBT15
Temperature sensor, evaporatorBT16
Temperature sensor, suction gasBT17
Temperature sensor, ambientBT28
Electrical components
Joint card, sensorAA100
Joint cardAA101
Compressor heaterEB10
Condensation water trough heaterEB11
Collar heaterEB13
FanGQ1
Cooling components
EvaporatorEP1
CondenserEP2
CompressorGQ10
Drying filterHS1
Expansion valveQN1
4-way valveQN2
Solenoid valve, liquid injectionQN30
Solenoid valve, subcoolingQN31
Expansion valve, subcoolingQN34
Non-return valveRM1
Miscellaneous
Type platePF1
Serial numberPF3
Cable gland, incoming supplyUB1
Condensation water troughWM5
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
NIBE™ F2030Chapter 2 | The heat pump design6

Electrical panel
F3
AA21-S4
AA21-S1
AA21-S2
AA21-S3
QA51FC2 BA1AA10 AA21-SF3
X3
X1
X4
X5
FB1
AA102
AA6
AA21
Electrical components
Relay card with power supply unitAA6
Soft-start relayAA10
Control card with displayAA21
Plus buttonS1
Minus buttonS2
Enter buttonS3
Reset buttonS4
Display contrastSF3
Fan control boardAA102
Phase sequence monitor (3-phase)BA1
Fuse for external heating cable (250 mA)F3
Automatic protection (10 A/30 mA)FB1
Motor fuseFC2
Contactor, main contactor, fanQA51
Terminal block, incoming supplyX1
Terminal block, charge pump, external heaterX3
Terminal block, common alarmX4
Terminal block, thermostat, compressor blocking
and communication indoor module.
X5
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
7Chapter 2 | The heat pump designNIBE™ F2030

Principle of operation
BT16
BT28
BT17
BT14
BT15 BT3
BT12
BP1
BP2
BP10
MEP1
EP2
QN2
GQ10
QN30
QN31
QN34
RM1
QN1
Underkylare
Kapillärrör (¼”) Avfrostningsprocess
HS1
Kapillärrör
Partikellter
Fläkt
Cooling circuit diagram
InformationDesigna-
tion
InformationDesigna-
tion
CondenserEP2High pressure switch (29 bar)BP1
CompressorGQ10Low pressure pressostatBP2
Drying filterHS1High pressure switch (32 bar)BP10
Fan motorMTemperature sensor, returnBT3
Expansion valveQN1Temperature sensor, condenser supply lineBT12
4-way valveQN2Temperature sensor, hot gasBT14
Solenoid valve fluid injectionQN30Temperature sensor, fluid pipeBT15
Solenoid valve subcoolingQN31Temperature sensor, evaporator inBT16
Expansion valve, subcoolerQN34Temperature sensor, suction gasBT17
Non-return valveRM1Temperature sensor, ambientBT28
EvaporatorEP1
NIBE™ F2030Chapter 3 | System description8
3 System description

Sensor internal
Sensors etc.
FunctionLocationNameDesigna-
tion
Protect the compressor against high pressures during
defrosting.
On hot gas line.High pressure switch
(29 bar)
BP1
Protects the compressor against pressures that are
too low.
On suction gas line.Low pressure
pressostat
BP2
Protects the compressor against high pressures during
normal operation.
On hot gas line.High pressure switch
(32 bar)
BP10
Stopping the compressor at high temp.On return line at the condens-
er.
Return pipeBT3
Stopping the compressor at high temp.On supply line at the con-
denser.
Flow pipeBT12
Stopping the compressor at high temp.On hot gas pipe after the
compressor.
DischargeBT14
View.On the liquid line after the
condenser.
Fluid pipeBT15
Start defrosting at lower temperature than set in
menu A9.
On the lower part of the
nozzle pipe
EvaporatorBT16
View.On the suction pipe before
the compressor.
Suction gasBT17
Stops comp at high and low outdoor temperature.
Switches fan speed.
Permits/blocks defrosting.
On the side panel next to the
upper part of the evaporator
bend.
Surrounding areaBT28
9Chapter 3 | System descriptionNIBE™ F2030

System diagram
F2030 docked to the electric/oil-fired/pellet boiler together with SMO 20 and water heater (floating condensing)
-EB20
-KA1
-FL2
-CM1
-EB101
-QM1
-BT3
-BT12 -QM31
-QM32 -QM43
-GP12
-EB101
-HQ1
-BT1
-AA25
-AA25 -AA25
-FL10
-RN10
-CP10
-AA25-QN10
-AA25-BT7
-AA25-BT6
-BT25
-EB1
-CP5
-GP10
-KA1
-BT71
-EB1
-AA25
-BT50
Function
The heat pump prioritises hot water charging. When the water heater is fully charged QN10 switches to the heating
system. The heat pump works to a calculated set point value on the supply line. If the heat pump cannot produce
the entire heating demand, the electric heaters EB1 and EB20 are connected.
TIP
Several system principles available at www.nibe.se/docking.
Refer to the Installer manual for description of possible docking alternatives.
Installation requirements heating medium
9 kW7 kW
0.05/0.3MPaMin/Max system pressure heating medium
0.5/3 bar
0.240.18l/sNominal flow
0.240.18l/sMin flow
0.490.36l/sMax flow
3.92.1kPaInternal pressure drop at nominal flow
See diagram°CMin/Max HMtemp continuous operation
NIBE™ F2030Chapter 3 | System description10

Hot gas temperature
Stop with automatic restart:
■The compressor stops when the temperature (BT14)
exceeds 135 °C.
Stop with manual restart:
■The above has occurred 3 times within 240 minutes.
Restart when (BT14) is below 60 °C.
High pressure switch (BP10)
■The compressor stops when the pressure exceeds
32 °C. The alarm can be reset manually when the
pressure falls below 25 bar.
Low pressure switch (BP2)
■The compressor stops when the pressure has fallen
below 0.2 bar. The alarm can be reset manually when
the pressure exceeds 0.7 bar.

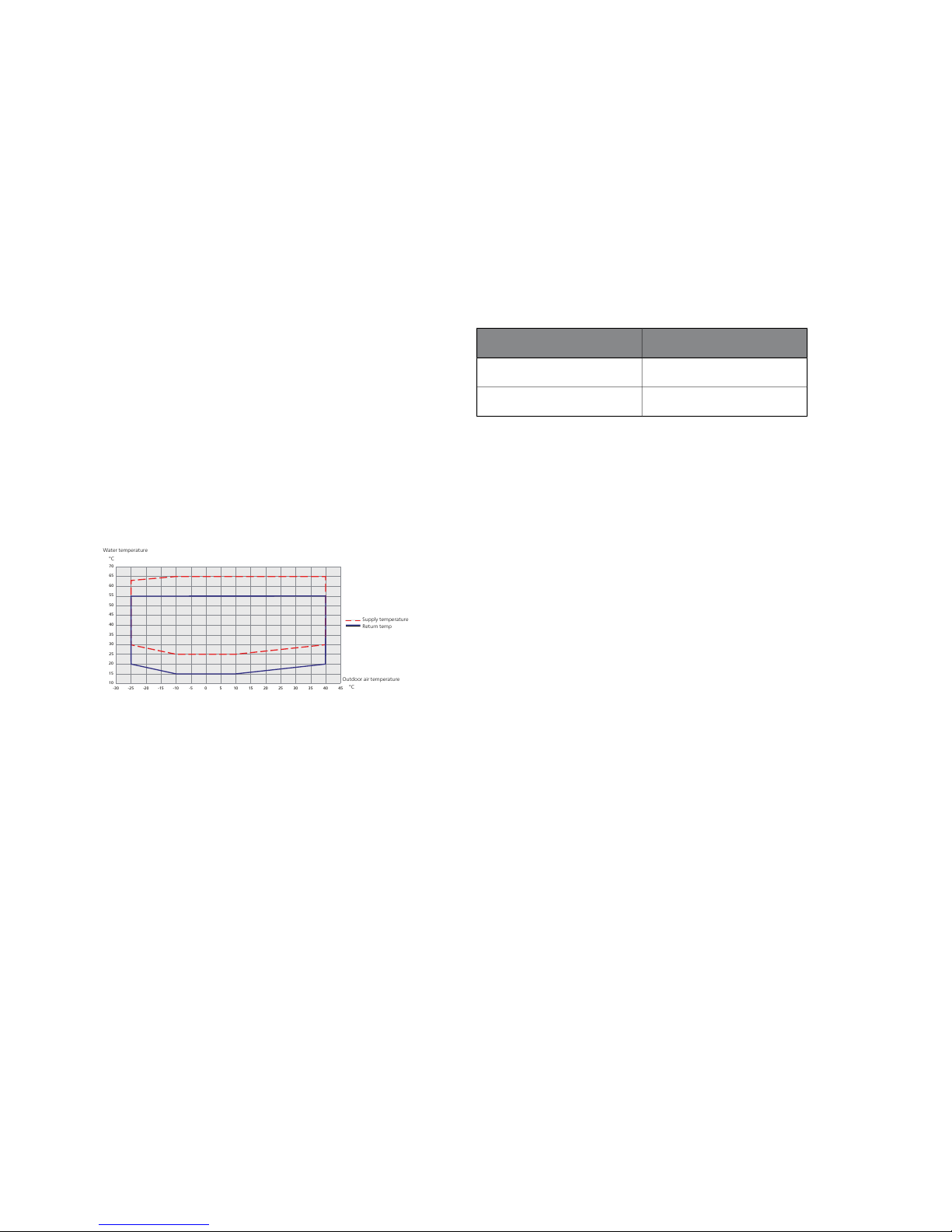

Working area
15
10
20
25
30
35
40
45
50
55
60
65
70
-20-25-30 -15 -10 -5 0 5 10 15 20 25 30 35 4540
Water temperature
°C
°C
Outdoor air temperature
0
10
20
30
40
50
60
70
-20-30 -10 0 10 20 30 40
0
10
20
30
40
50
60
70
-20-30 -10 0 10 20 30 40
Supply temperature
Return temp
During shorter time it is allowed to have lower working
temperatures on the water side, e.g. during start up.
High supply temperature
Blocks the compressor when the supply temperature
(BT12) is higher than maximum supply temperature.
Resets when supply temperature (BT12) is lower than
max supply temperature and the return temperature
is lower than maximum return temperature minus dif-
ference in menu A3.
High return temperature
Blocks the compressor when the return temperature
(BT3) is higher than maximum return temperature.
Is reset when return temp (BT3) is less than max return
temperature minus differential in menu A3.
MP alarm (07)
An MS alarm (07) is obtained if the main contactor
(QA51), motor fuse (FC2), high pressure switch (BP10),
low pressure switch (BP2) or phase switch (BA1) has
deployed.
Main contactor (QA51)
If any of the following conditions are met, the main
contactor breaks (QA51).
■High pressure switch (BP10) has tripped
■Low pressure switch (BP2) has deployed
Motor circuit breaker (FC2)
Tripped motor circuit breaker is reset manually .
FuseF2030
6 A7 kW
8 A9 kW
Phase monitor (BA1)
Trips if:
■a phase falls below ~160 V.
■incorrect phase sequence
Time conditions compressor
■Minimum time between stop and start is 5 min.
■Minimum time from start to next start is 20 min.
■Quick start occurs in menu S2.
11Chapter 4 | Compressor protectionNIBE™ F2030
4 Compressor protection

Adjusting overheating (Main
expansion valve QN1)
NOTE
Do not panic! It is extremely important that
pressure and temperature have time to stabil-
ise between the different stages to achieve
correct overheating. It can take several minutes
for the machine to become stable!
Adjust overheating as follows:
1. Connect a manometer to the low pressure output
and service thermometer to the suction line close
to the compressor.
2. Read off the dew temperature on the manometer.
T overheating = T suction gas – T dew temperature.
Value of overheating must correspond with the
values in the diagram below. Tolerance +/- 1 K.
3. Perform manual defrosting via channel A12.
4. Wait until the temperature and pressure have sta-
bilised after defrosting and read off overheating
according to point 2.
5. If necessary adjust the expansion valve, 1 turn
changes overheating 2 - 4 K.
6. After any adjustment, wait until pressure and
temperature have stabilised. Read off overheating
according to point 2.
7. Repeat points 3 to 6 until overheating is correct
and stable.
NOTE
Always carry out last read out after defrosting!
5,00
6,00
7,00
8,00
9,00
10,00
11,00
12,00
-25,00 -20,00 -15,00 -10,00 -5,00 0,00 5,00 10,00 15,00
Super heat (K)
Out-door temperature (°C)
F2030-7 kW dT5K water flow 1265 l/h super heat control
Framledning 55 °C
Framledning 45 °C
Framledning 35 °C
F2030-7 kW, flow rate 1,265 l/h (DT5)
Outdoor temperature
Overheating
Supply line 35 °C
Supply line 45 °C
Supply line 55 °C
5,00
6,00
7,00
8,00
9,00
10,00
11,00
12,00
-25,00 -20,00 -15,00 -10,00 -5,00 0,00 5,00 10,00 15,00
Super Heat (K)
Out-door air temperature (°C)
F2030-7 kW dT10K water flow 648 l/h super heat control
Framledning 55 °C
Framledning 45 °C
Framledning 35 °C
F2030-7 kW, flow rate 648 l/h (DT10)
Outdoor temperature
Overheating
Supply line 35 °C
Supply line 45 °C
Supply line 55 °C
5,00
6,00
7,00
8,00
9,00
10,00
11,00
12,00
13,00
14,00
15,00
16,00
17,00
18,00
-25,00 -20,00 -15,00 -10,00 -5,00 0,00 5,00 10,00 15,00
Super heat (K)
Out-door air temperature (°C)
F2030-9 kW dT 10 K water flow 860 l/h superheat control
Framledning 55 °C
Framledning 45 °C
Framledning 35 °C
F2030-9 kW, flow rate 860 l/h (DT10)
Outdoor temperature
Overheating
Supply line 35 °C
Supply line 45 °C
Supply line 55 °C
5,00
6,00
7,00
8,00
9,00
10,00
11,00
12,00
13,00
14,00
15,00
-25,00 -20,00 -15,00 -10,00 -5,00 0,00 5,00 10,00 15,00
Super heat (K)
Air temperature (°C)
F2030-9 kW dT 5K water flow 1750 l/h superheat control
Framledning 55 °C
Framledning 45 °C
Framledning 35 °C
F2030-9 kW, flow rate 1750 l/h (DT5)
Outdoor temperature
Overheating
Supply line 35 °C
Supply line 45 °C
Supply line 55 °C
Expansion valve liquid subcool-
er
Check the expansion valve by measuring the temperat-
ure using the service thermometer on the subcooler
output (A) and on liquid pipes after subcooler (B) (see
image below)
ΔT (T subcooler output "A" –Tliquid subcooler "B") must be ap-
prox. 6 - 9 K.
NIBE™ F2030Chapter 4 | Compressor protection12

GQ10 EP2
HS1
BT15
QN30
QN31
QN34
Underkylare
B
A
13Chapter 4 | Compressor protectionNIBE™ F2030

Compressor (GQ10)
Locked rotor current.Max operating cur-
rent
Winding resistance*TypeSize
26.5 A4.3 A7.1 ΩScroll7 kW
40 A6.3 A4.68 ΩScroll9 kW
* at 20 °C +/- 10 %
Other components
DescriptionComponent
Breaking value: 29 barHigh pressure switch (BP1)
Reconnection differential: -7 bar
Breaking value: 32 barHigh pressure switch (BP10)
Reconnection differential: -7 bar
Breaking value: 0.2 barLow pressure switch (BP2)
Reconnection differential: 0.5 bar
VoltageOutputOhmComponent
230 V38 W1392Compressor heater (EB10)
230 V196 W270Drip tray heater (EB11)
230 V190 W278Collar heater (EB13)
VoltageFuseOutputOhmComponent
230 VT100mA15 W3527KVR 10-10 (EB14)
230 VT250mA45 W1175KVR 10-30 (EB14)
230 VT500mA90 W588KVR 10-60 (EB14)
Electronics
Control card with display (AA21)
Jumpers on the edge connector J9 on the control card
give the compressor size, which affects time between
defrostings, at which temperature the fan must change
speed and at which temperature the de-icing fan
function must run.
Compressor sizeBridge
7 kWJ9:5-6
9 kWJ9:7-8
NIBE™ F2030Chapter 5 | Component description14
5 Component description

Sensors
Data for return line temperature sensor
(BT3), condensor supply (BT12) and fluid
pipe (BT15)
Voltage (VDC)Resistance
(kOhm)
Temperature
(°C)
3.256351.0-40
3.240251.6-35
3.218182.5-30
3.189133.8-25
3.15099.22-20
3.10574.32-15
3.04756.20-10
2.97642.89-5
2.88933.020
2.78925.615
2.67320.0210
2.54115.7715
2.39912.5120
2.24510.0025
2.0838.04530
1.9166.51435
1.7525.30640
1.5874.34845
1.4263.58350
1.2782.96855
1.1362.46760
1.0072.06865
0.8911.73970
0.7851.46975
0.6911.24680
0.6071.06185
0.5330.90890
0.4690.77995
0.4140.672100
Data for hot gas sensor (BT14)
Voltage (V)Resistance
(kOhm)
Temperature
(°C)
4.81118.740
4.7796.1345
4.7278.3050
4.6664.1155
4.5952.7660
4.5143.6465
4.4336.2670
4.3330.2775
4.2225.3880
4.1021.3785
3.9718.0790
3.8315.3395
3.6813.06100
3.5211.17105
3.369.59110
3.198.26115
3.017.13120
2.846.18125
2.675.37130
2.504.69135
2.334.10140
15Chapter 5 | Component descriptionNIBE™ F2030

Data for evaporator sensor (BT16), ambient
temperature sensor (BT28) and suction gas
sensor (BT17)
Voltage (VDC)Resistance
(kOhm)
Temperature
(°C)
4.7177.58-50
4.6257.69-45
4.5143.34-40
4.3732.87-35
4.2125.17-30
4.0319.43-25
3.8215.13-20
3.5811.88-15
3.339.392-10
3.077.481-5
2.806.0000
2.544.8445
2.283.93510
2.033.21715
1.802.64420
1.592.18625
1.391.81730
1.221.51835
1.071.27440
0.931.07545
0.810.91150
0.710.77555
0.620.66260
0.540.56865
0.470.49070
0.410.423375
0.360.36780
0.320.32085
0.280.28090
0.250.24595
0.220.216100
NIBE™ F2030Chapter 5 | Component description16

Reference designation
Sensor typeDescriptionName
Pressure switch with break value of
29 bar
High pressure pressostatBP1 (HP)
Pressure switch with break value
0.2 bar
Low pressure pressostatBP2 (LP)
Pressure switch with break value of
32 bar
High pressure pressostatBP10 (HP)
”EMMY standard sensor”Temperature sensor, condenser return
line
BT3 (Treturn)
”EMMY standard sensor”Temperature sensor, condenser supply
line
BT12 (Tsupply)
”EMMY hot sensor”Temperature sensor, hot gasBT14 (Thot g)
”EMMY standard sensor”Temperature sensor, fluid pipeBT15 (Tliquid)
”EMMY cold sensor”Temperature sensor, evaporator inBT16 (Tevap)
”EMMY cold sensor”Temperature sensor, suction gasBT17 (Tsuc)
”EMMY cold sensor”Temperature sensor, ambientBT28 (Toutdoor)
Goes via fuse that breaks all three
phases and via phase monitor and the
fan's internal motor protection.
Motor protectionMS(FC)
17Chapter 5 | Component descriptionNIBE™ F2030

Alarm list
A alarm - Constant alarm
Actions that all alarms cause:
■Fan and compressor are blocked.
■Relay output ”common alarm” is activated.
■Stationary function is activated.
■Addition function is activated.
Alarms are reset by restart of the heat pump.
May be due toDetects byAlarm type
Phase failure.Compressor protection (FC2) has deployed.Compressor pro-
tection (FC2).
07
Deployed motor circuit breaker.
Incorrect phase sequence.Phase monitor (BA1) has deployed.Phase monitor
(BA1). Compressor protection (FC2) has deployed.
Phase failure.
Poorly bled system.High pressure switch (BP10) has tripped.High pressure
switch (BP10). Clogged particle filter.
Incorrectly connected or non-functioning pres-
sure switch.
Low pressure switch (BP2) has triggered.Low pressure
switch (BP2)
Defective fan or cooling system.
Sensor not connected or defective.Sensor alarm.08
Incorrect sensor value displayed as ”- -” in its
menu as long as measured value is outside the
permitted range.
Faulty wiring between the units or connections.If communication has been interrupted for five
minutes a Communication alarm is given.
Communication
alarm
09
Supply and return lines are switched.The supply temperature sensor (BT12) is lower
than the return line sensor (BT3) two minutes
after compressor start.
Incorrectly in-
stalled sensor
(supply and re-
turn line sensors
mixed up)
12
Too strong wind effect through the evaporator.Defrosting failed three times in a row.Defrosting
alarm
15
Check the connection difference for the thermo-
stat. Check the start temperature hot water in
any NIBE Indoor module. Check the charge flow
and the particle filter which may be partially
clogged.
The operating time (compressor start until
compressor stop) has been shorter than 120
seconds during all three of the latest compressor
operations.
Short operating
time alarm
16
Poor air flow through the evaporator due to
blockage by snow or leaves. Check sensor.
The hot gas temperature (BT14) exceeds 135
degrees three times within 240 minutes.
Hot gas alarm17
Defective expansion valve.Defrosting starts 10 times in a row with the
safety function.
Low evapora-
tion temperat-
ure
19
NIBE™ F2030Chapter 6 | Troubleshooting18
6 Troubleshooting
