Nibe Contura C 26K High User manual

Installation
instructions
C 26K High
www.contura.eu

GB
82 CERTIFICATE
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 26K
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 08 1853
PERFORMANCE DECLARATION
No. C26K-CPR-130617-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
600 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.09%
NOx 82 mg/m3
OGC 43 mg/m3
PM 22 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 6 kW
Efficiency 79%
Flue gas temperature in connector at nominal
output
280°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st July 2013

GB
83
List of Contents
Technical details 84
Supply of combustion air 85
Connection to chimney 86
Installation distances 87
Installation of C26K High 88
Final installation and joining 94
Installation of oven (option) 96
Installation of heat reservoir(option) 100
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injuries if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can cause
quick gas ignition with the risk of damage to property and
personal injury.
NOTE! WARNING!
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved
by a qualified inspector. Your local chimney sweep must
also be informed of the installation, as this will affect the
routines for regular chimney-sweeping services.
CONTENTS

GB
84 FACTS
Effect 3-9 kW
Nominal effect 6 kW
Efficiency 79%
Model C26K High
Weight (kg) 240*
Width (mm) 580
Depth (mm) 462
Height (mm) 1622
*Weight, C26K with heat reservoir
(option) (kg) 360
*Weight, C26K with oven
(option) (kg) 265
Type approved in accordance with:
European standard EN 13240
Swedish environmental and quality marking,
P-marking cert. no. 220312
Norwegian standard NS 3059, SINTEF 110-0223
German standard DIN EN/ 13240 RRF 40 08 1853
Installation by authorised
technician
This manual contains instructions on
how the stoves must be assembled and
installed. To ensure the function and
safety of the stove, we recommend that
the installation be carried out by an
authorised technician. Contact one of
our dealers who can recommend suitable
fitters.
Building permission
These main instructions may give guidance
which would contravene national building
regulations. Please refer to supplementary
instructions or ask your local authority for
advice regarding building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove
and chimney. The stove and chimney can
usually be placed on a normal wooden joist
in a single occupancy house, if the total
weight does not exceed 400 kg.
Hearth plate
Due to the risk of embers falling out, a
flammable floor must be protected by a
hearth plate. It must extend 300 mm in
front of the stove and 100 mm on each
side of the stove, or have a 200 mm
extension on each side of the opening.
The hearth plate can consist of natural
stone, concrete, metal plate or glass. A
painted metal or glass hearth plate is
available as an accessory for these models.

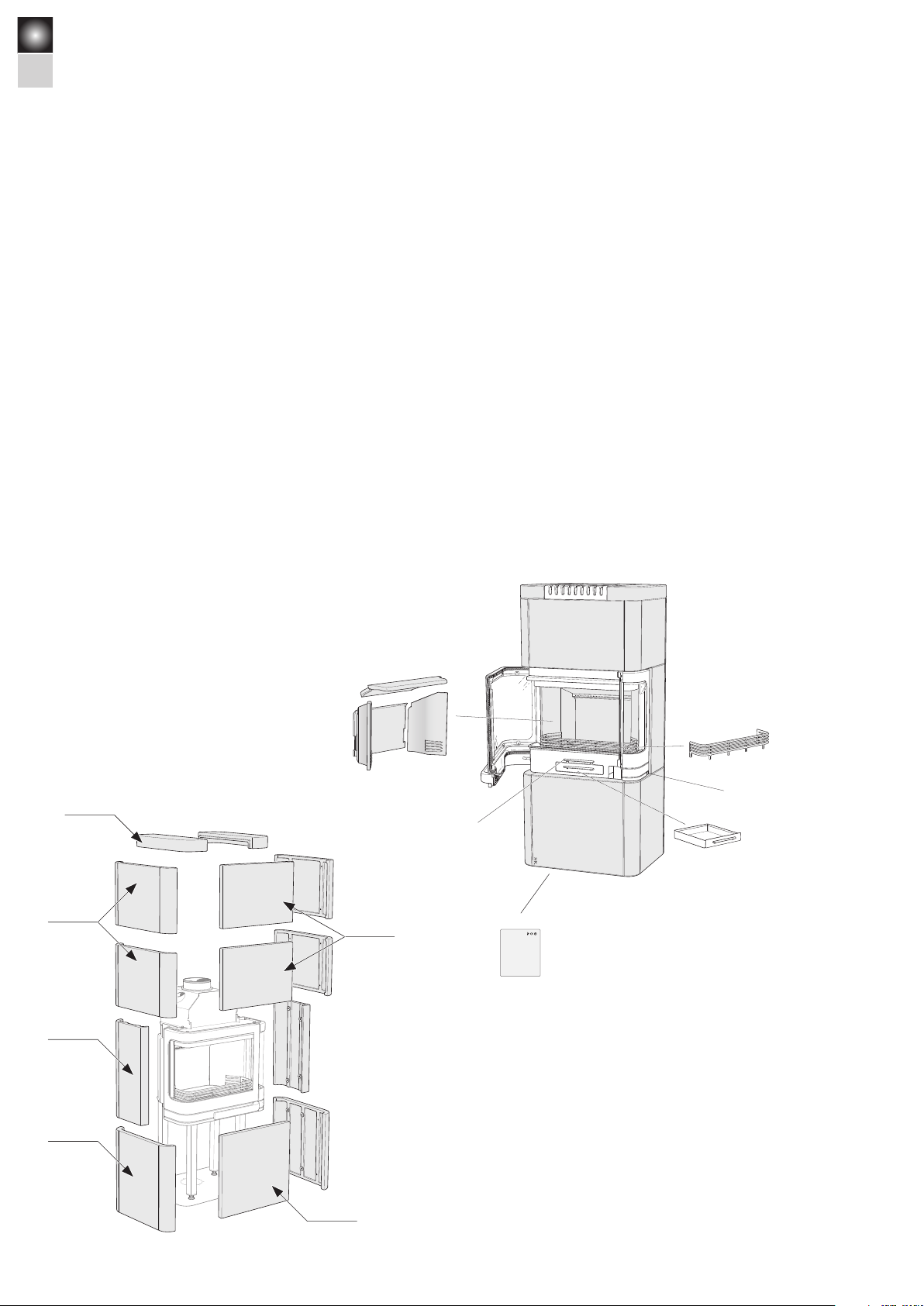

Important to remember!Technical details
Name of tile
403882
403881
403880
403877
403878
403879
403932
403931
403930
403929
403928
403927
Eldstadsbeklädnad
Rosterreglage Asklåda
Förbränningsluftsreglage
Brasbegränsare
HANDÖL
Inaccordance with standards below
markingwas affixed:
EuropeanStandard:
SEQuality Certification, P-marked:
NOStandard NS 3059:
DEand AT Standard DIN 18.891 and
Art15a B-VG:
Type:
NominalOutput:
Fuel:
Minimundraught:
Fluegas temerature:
Energyefficiency:
Emissionof CO in cumbustion products:
Distanceto cumbustible wall (mm):
Followthe user’s instructions and use only recomended fuel
NIBEAB Box 134 SE-285 23 MARKARYD SWEDEN
2007
EN13240
Certno 0112/07
SINTEF110-0275
RRF-4007 13 90
Handöl31/31A/32/32A
5kW
Wood
12Pa
280°C
78%
0,14%
Behind150
Beside450
Corner150
HANDÖL
NIBE AB SE-85 21 Markaryd Sweden
Type:
Production no.
50-series
7090300236
Type plate
Log guard
Ash-pan
Grate shuttle
Air supply control
Fire-box surround

GB
85
HK HK
HK
HK
30 mm

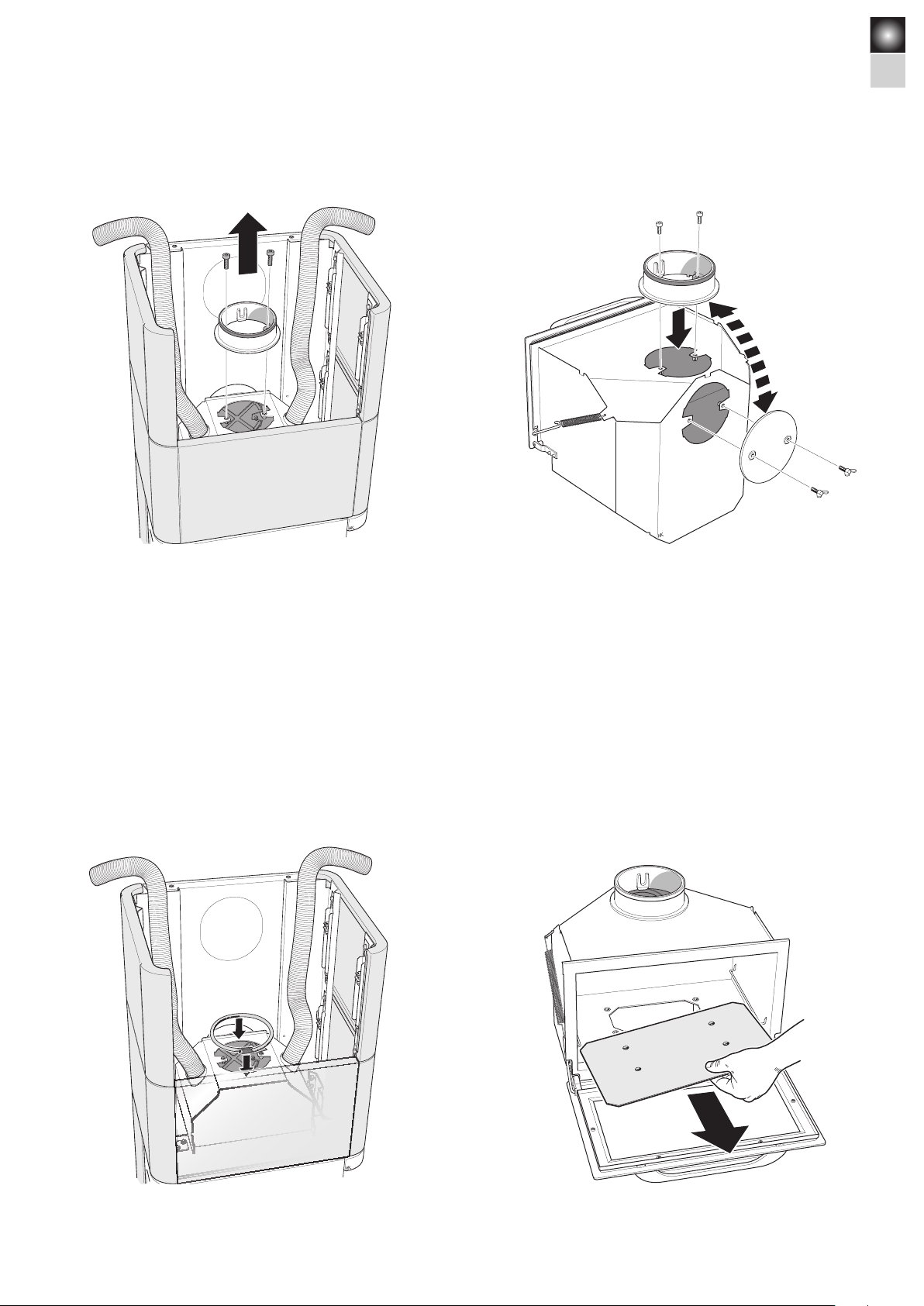

For this type of connection, first remove the valance
that sits in front of the back plate's air intake.
In the case of connection through the floor, first
remove the knockout in the guide plate and any
hearth plate.
SUPPLY AIR/ACCESSORY
Supply of combustion air
When a stove is installed in a room, the air supply demand to the
room increases. Air can be provided indirectly via a vent in the
outer wall or via a duct from the outside that is connected to the
connector on the underneath of the stove. The amount of air
needed for combustion is approx. 25m3/h.
The connector has an external diameter of 67 mm. When installing
ducts longer than 1 m, the pipe diameter must be increased to 100
mm and a correspondingly larger wall vent must be selected.
In hot areas, the duct should be insulated with 30 mm mineral
wool covered with a moisture barrier (plastic). It is important that
the lead-in, between the pipe and the wall (or floor), is sealed
using jointing compound.
A 1 m length of condensation-insulated ducting for combustion air
is available as an accessory.

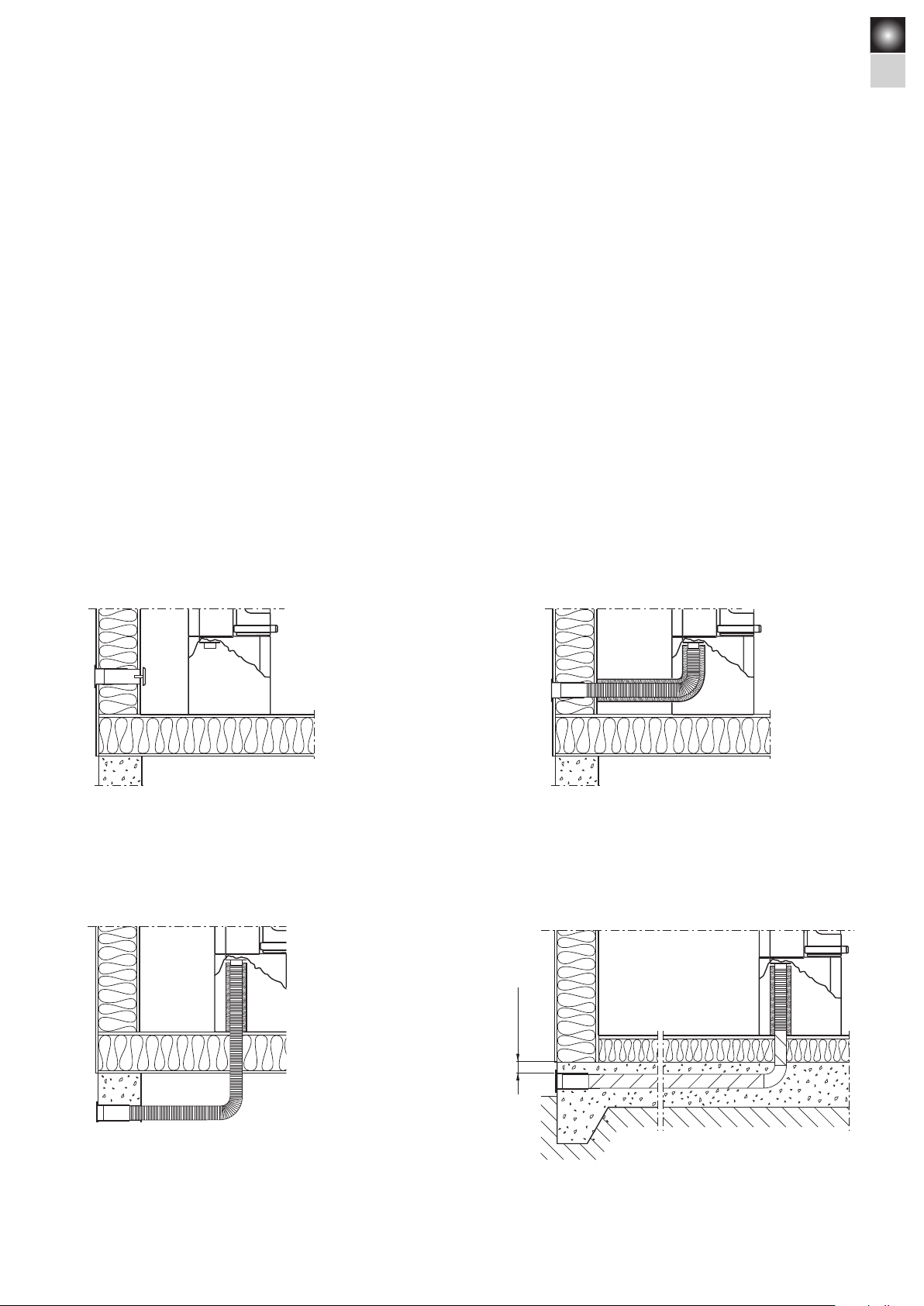

Installation variants

GB
86 CHIMNEY

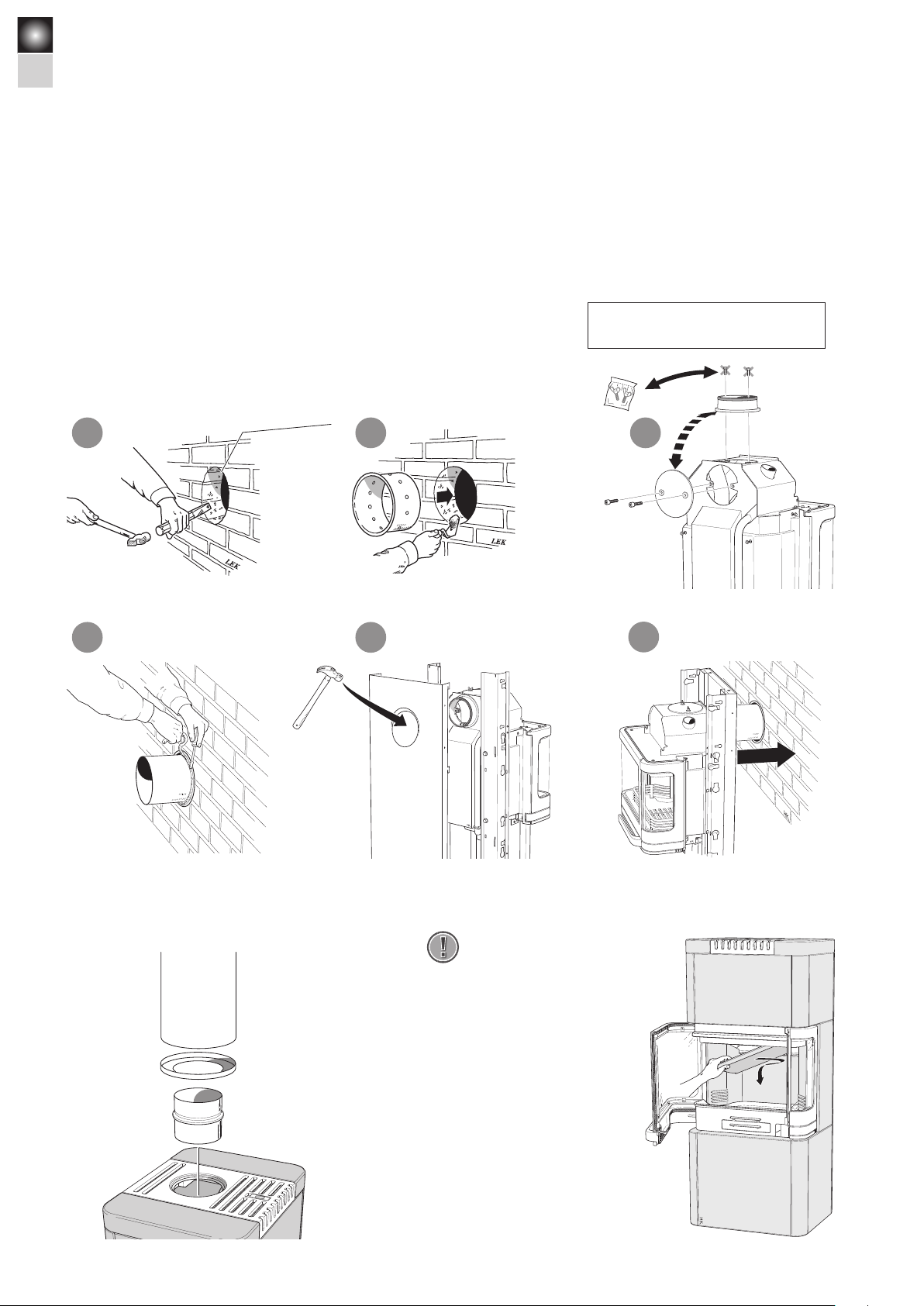

Connection to chimney
Ø
ca 180 mm
Ø
ca 180 mm
Rear connection to a masonry chimney
Top connection to the chimney
Make sure that the connector
gasket does not come loose
when the connection pipe is
placed on the sleeve. If further
sealing material is required, heat-
resistant sealant may be used.
The back panel must be installed before the stove is connected at
the rear.
The hot air grille must be installed before the chimney
is connected to the top.
• The stove meets the requirements for connecting to chimneys
dimensioned for flue gas temperatures of 350°C.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. The minimum recommended chimney
length is 3.5 m and a suitable cross-sectional area is 150-200
cm² (140-160 mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on
the condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.
2 31
56 4
!
Sweeping
When sweeping, the smoke
baffle must be removed; on the
Contura 20 series this is easily
done by lifting and then pushing
the baffle to the side.
In the bag with these installation instructions
are two wing screws for the cover.

GB
87

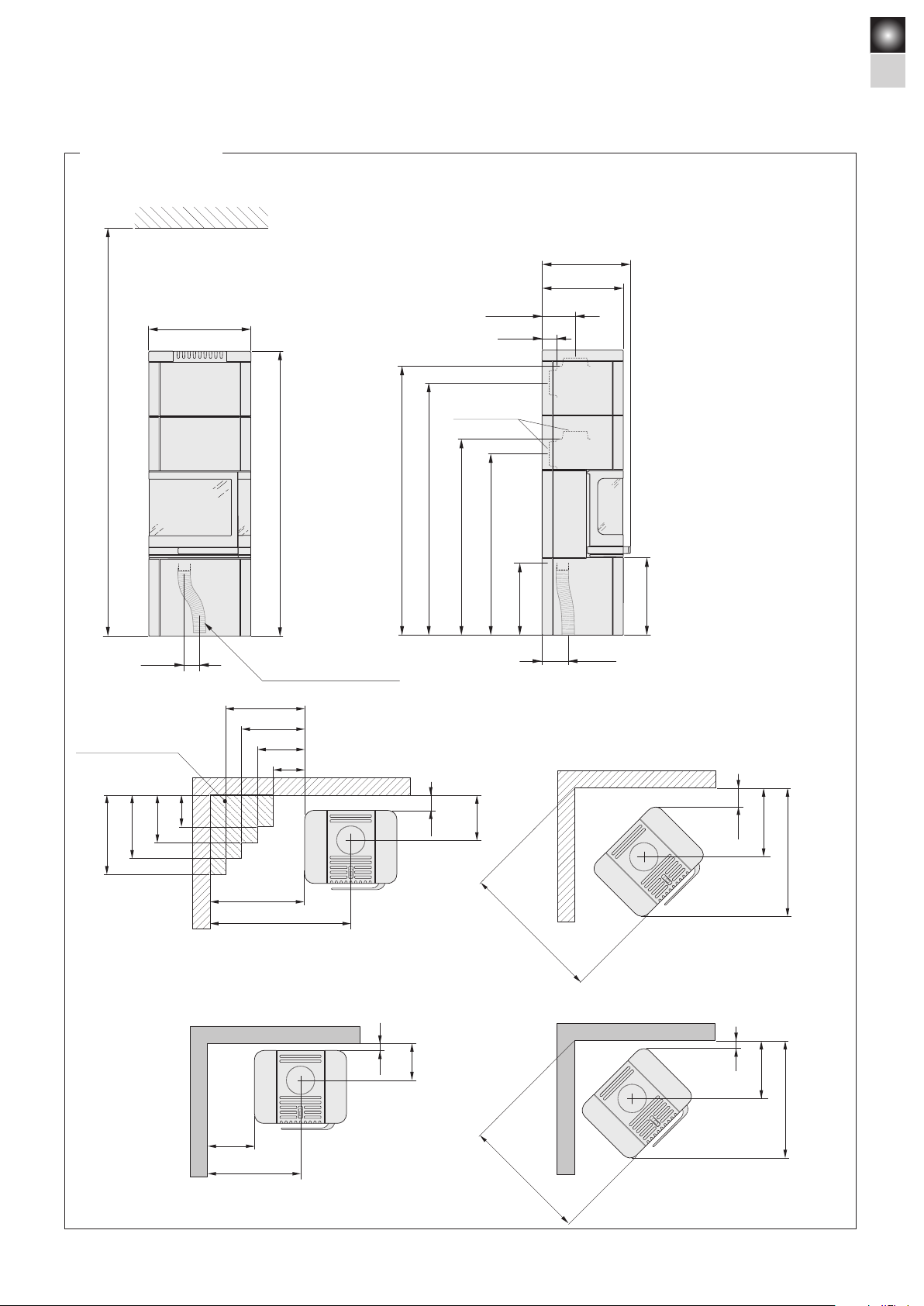

INSTALLATION DISTANCES
C26K High
Installation distances
442
E 150
A 1116
1435**
B 1033
F 410
1532**
C 188
D 85
502
462
Ø150
1622
582
2300
G 90
Combustible roof
Combustion air hose
(accessory)
*To prevent discolouration of painted fire walls, we recommend the same side distance as to combustible walls.
** Used with the oven option
A = height from floor to chimney connection upwards
B = height from floor to c/c chimney connection rear
C = distance from back to c/c chimney connection upwards
D = distance from back to chimney connection rear
E = distance from back to hole in guide plate
F = height from floor to air inlet connector (410 mm)
G = distance to hole in guide plate
288
100
600
890
500
400
300
200
300
400
500
200
Combustible wall
Permitted area for
combustible material
435
120
890
810
Combustible wall
238
50
300*
590
Fire-retardant wall of
brick or concrete
365
50
795
740
Fire-retardant wall of
brick or concrete
Place the stove on the
hearth plate and check
that the installation
distances are not less
than those that are given
in the figures below. The
minimum distance in
front of the stove opening
to combustible parts of
the building or interior
decoration must be at least
1 m.
When top connecting
a steel flue, please
refer to the particular
manufacturer's installation
instructions. Observe
the safety distance to
combustible material that
the steel flue requires.

GB
88 ASSEMBLY

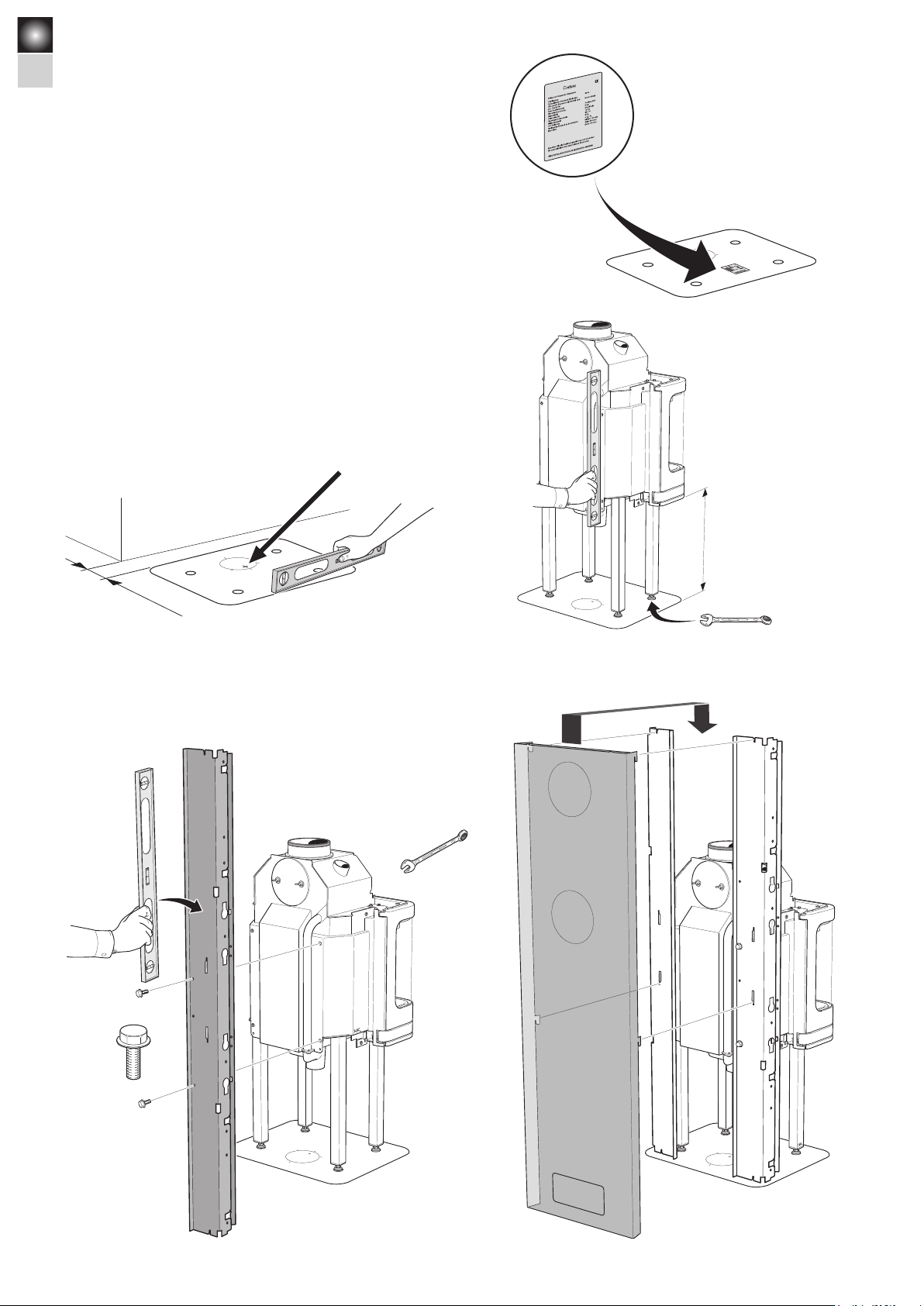

Installation of C26 K High
Min 105 mm
445 mm
13
13
VANADIUM
No.7
CHROME
Centre marking chimney
10
10
VANADIUM
No.7
CHROME

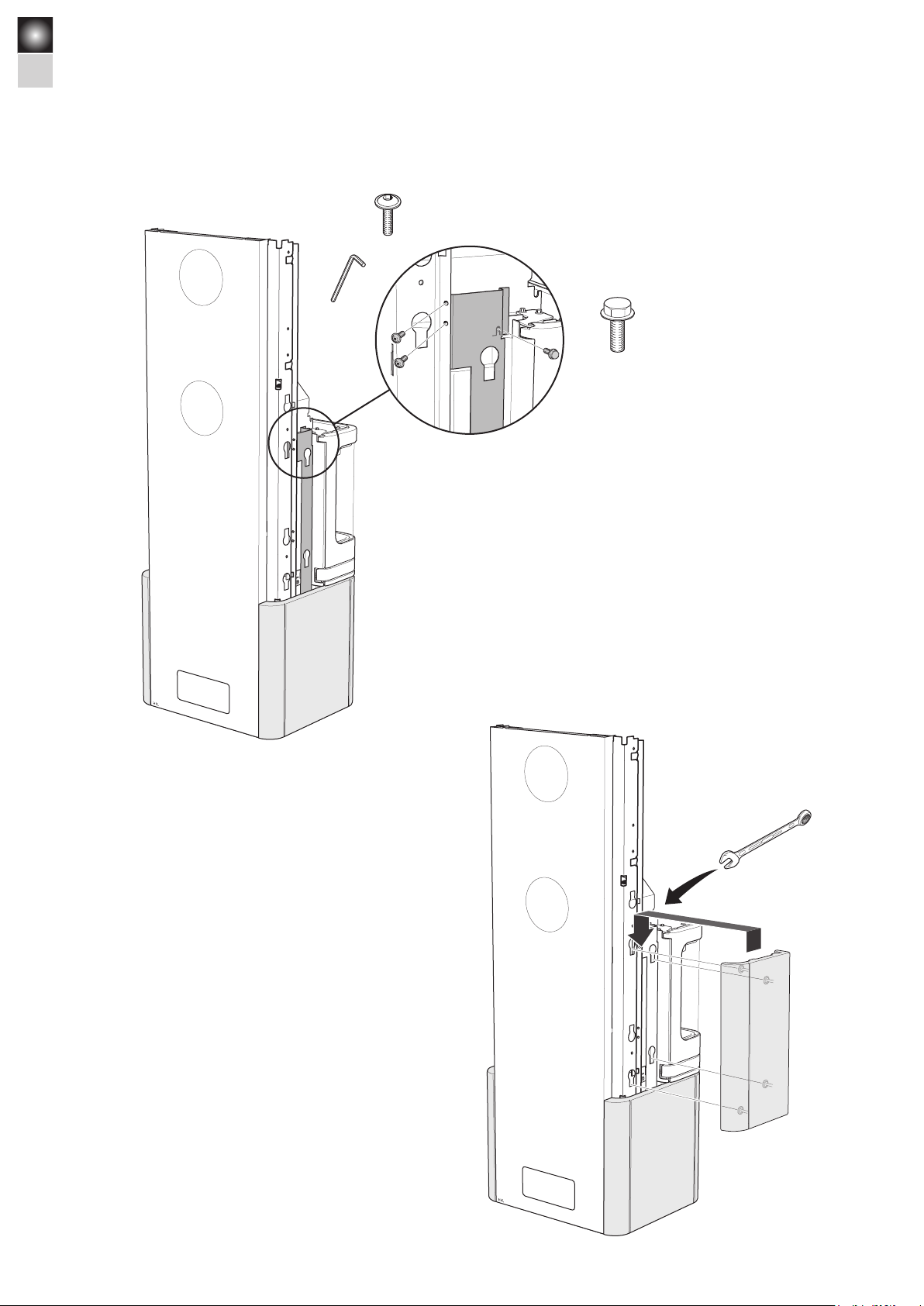

The stove needs to be placed on a level and horizontal surface, so
the courses do not end up uneven and crooked. Otherwise, this can
result in abnormally large gaps and uneven lines.
During assembly, check that all tiles stand horizontally and that all
parts in a course are of a uniform height.
Remember to handle the tiles with care. They scratch easily and
the sharp edges are vulnerable to knocks. Also, take care when the
screws are to be tightened, so as not to cause cracks.

GB
89

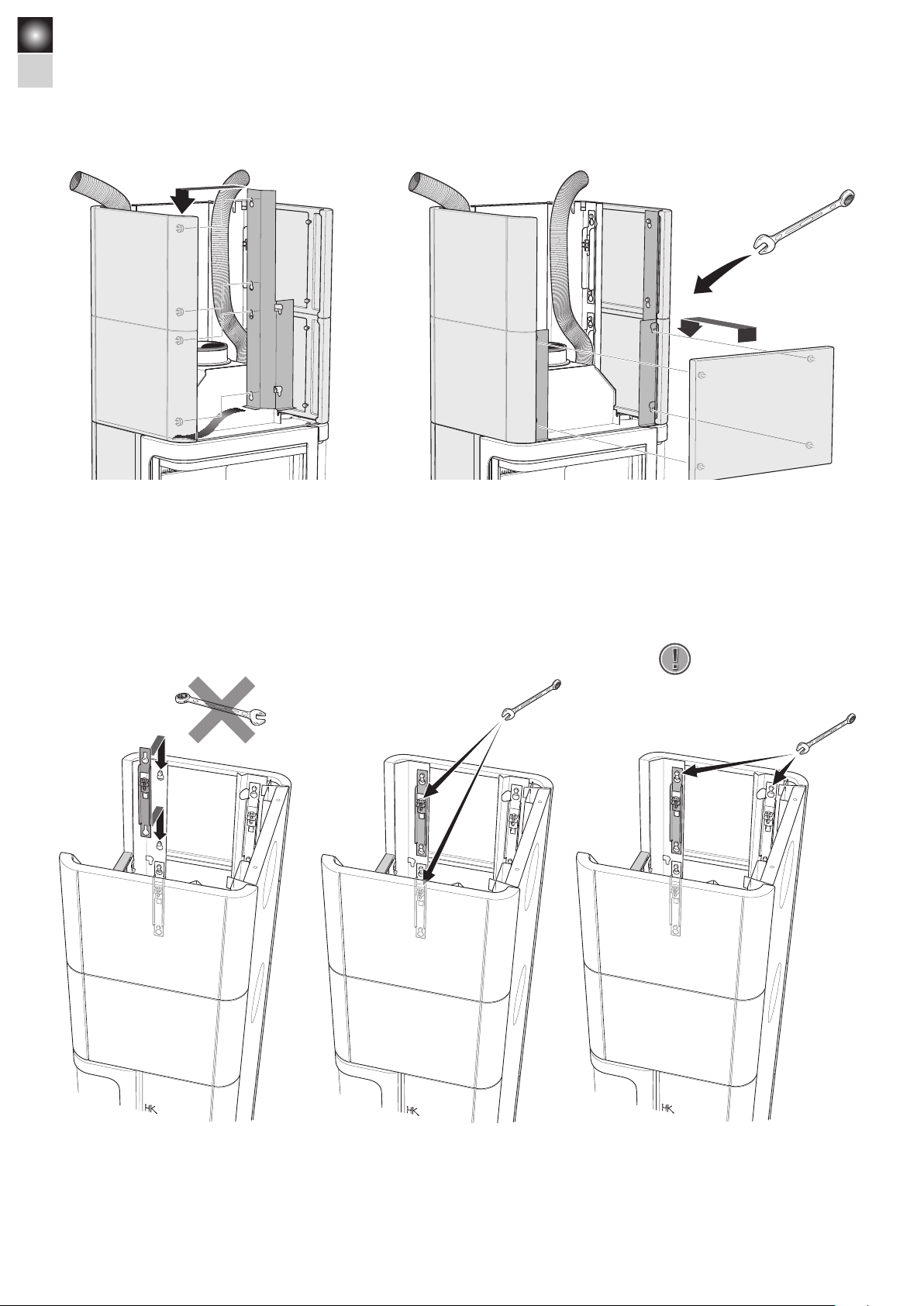

ASSEMBLY
10
10
VANADIUM
No.7
CHROME
Place the profile edge to
edge with the tile's side.
10
10
VANADIUM
No.7
CHROME
5 mm

GB
90 ASSEMBLY
10
10
VANADIUM
No. 7
CHROME
Wait to tighten this screw until the
next tile is in place.

GB
91
ASSEMBLY
When installing the two upper courses:
Wait to tighten the screws in the tile until all parts
are in place and all adjustments have been made.
Prevent the side panels from dipping
forward by hooking the hooks in the rear
profile and tightening the screws until
they engage
10
10
VANADIUM
No. 7
CHROME
For the oven option, go to page 96
10
10
VANADIUM
No.7
CHROME

GB
92 ASSEMBLY
Not with the heat reservoir option
10
10
VANADIUM
No. 7
CHROME

GB
93
Tighten all screws in the tiling.
The front plates are moved up slightly
by hooking the hooks in the rear profile
and tightening the screws. Tighten the
screws until the upper plates align with
the upper edge.
!
10
10
VANADIUM
No. 7
CHROME
10
10
VANADIUM
No.7
CHROME
10
10
VANADIUM
No.7
CHROME
For the heat reservoir option, go to page 100
ASSEMBLY
Final inspection of the installation
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.

GB
94 ASSEMBLY
Adjustment screws for placement in the
guide plate to support the top plates.
Adjust them, so they are at the same
height as the top of the side plates.
Open and fold out any deformed edges in the pipe
opening to facilitate installation.
Final installation and joining

GB
95
ASSEMBLY
Check that the damper
can be opened and
closed without problem.
!

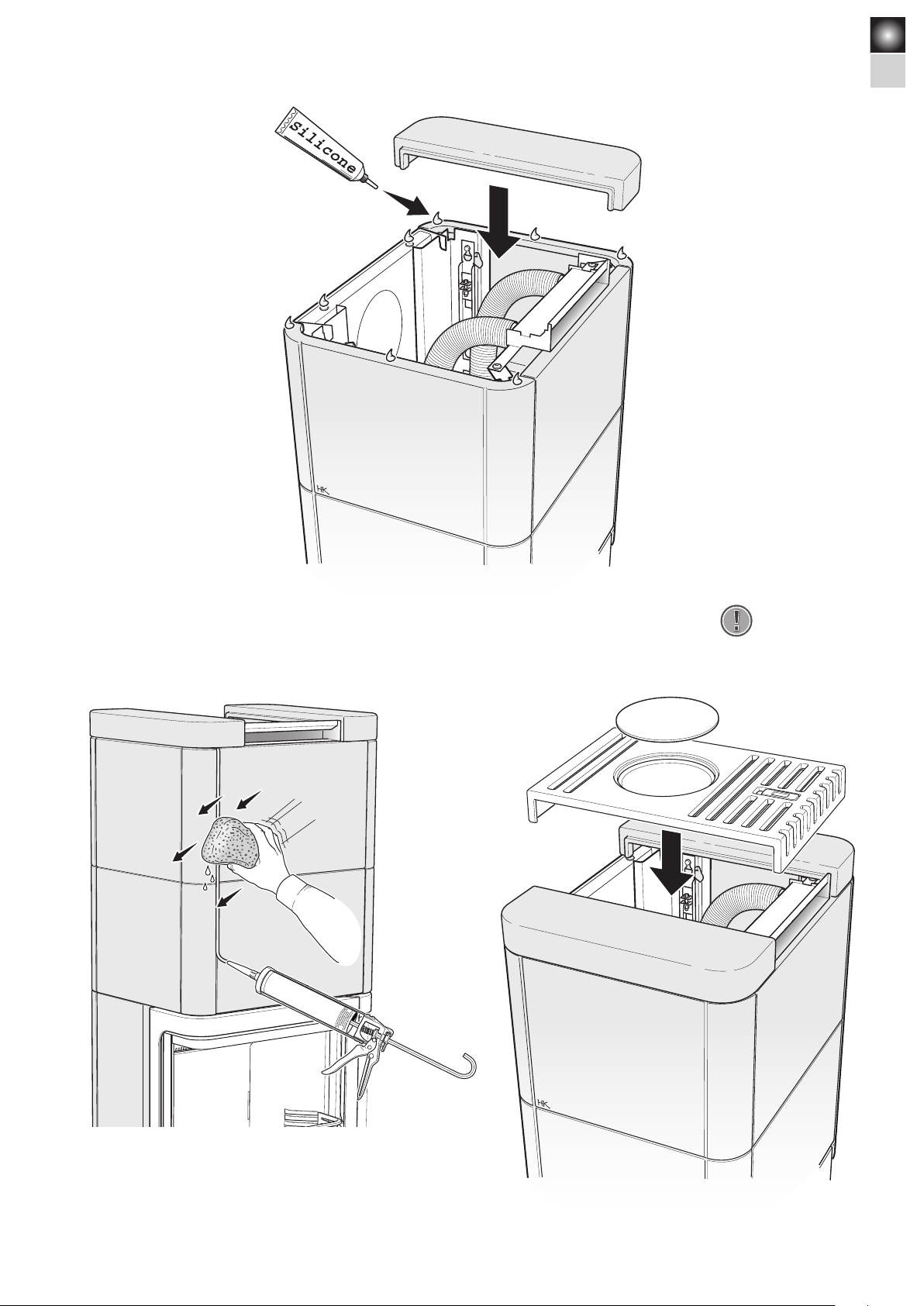

Work the sealant in with a lightly dampened sponge in
diagonal movements. After the sealant has dried the tiles
can be wiped clean.
Ensure that joints are clean and dry before applying the
sealant.

GB
96
Use the corner profiles that are
packed together with the oven.
Push the aluminium hoses into
the rear corners, so they are
not in the way of the oven.
Installation of oven (option)
10
10
VANADIUM
No. 7
CHROME
10
10
VANADIUM
No. 7
CHROME
10
10
VANADIUM
No.7
CHROME
10
10
VANADIUM
No.7
CHROME
Tighten all screws in the tiling.
!
ASSEMBLY
The front plates are moved up slightly by hooking
the hooks in the rear profile and tightening the
screws. Tighten the screws until the upper plates
align with the upper edge.

GB
97
Move the insert's sleeve to the
oven's top or back, depending
on whether the chimney is to be
connected to the top or back.
ASSEMBLY

GB
98
10
10
VANADIUM
No.7
CHROME
!
Check that the sealing rope between
the insert and the oven does not
move out of position.
Use the enclosed screw and washers
(2) to screw the oven into the insert.
First, carry out any straightening
and height adjustment that may be
needed, using the four adjustment
screws.
Adjustment screws, 4 used, if
needed, to straighten up or raise
the oven. The gap between the
door's bottom edge and the front
stone, when the door is closed, has
to be approx. 6 mm.
ASSEMBLY

GB
99
The slab that is placed in the oven's bottom can be taken out and
washed. If necessary, fine sandpaper can be used to freshen up the
surface. The slab can be used on both sides.
When using the stone slab, bear in mind that the stone becomes
significantly hotter than the air in the oven.
If food splashes onto the oven's aluminium sides, carefully wipe
clean so it does not burn and stick.
Go to page 94 for final installation and joining
ASSEMBLY

GB
100
811092 IAV SE-EX C26K High -4
2013-11-12
NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden
www.contura.eu
Contura reserves the right to change colours, materials,
dimensions and models at any time without special notice.
Your dealer can give you the most up to date information.
Stoves shown in brochures may have extra equipment.
Go to page 94 for final installation and joining
Installation of heat reservoir(option)
ASSEMBLY
