Dear Contura owner
We welcome you to the Contura family and hope that
you will get a great deal of pleasure from your Contura.
We understand that you have high standards of quality
and design and as a new owner of a Contura you have
secured a product with timeless design and long service
life. The Contura 500 series also has combustion that is
both environmentally friendly and efficient for the best
heat production.
Read the installation instructions carefully before you
begin installation and the separate lighting and user
instructions before you light the fire.
Table of contents
General.............................................32
Installation distance to walls and ceiling . . . . . . . . . . . . . . . . . 33
Supply of combustion air...............................33
Unpacking...........................................34
Connectiontochimney................................35
Assembling the stove..................................36
GB

31
Quality approval
The stove has been tested by the Swedish
National Testing and Research Institute and
meets the applicable regulations for CE mark-
ing and the stricter requirements for P mark-
ing. The stove also meets the most stringent
environmental requirements and is Swan
marked.
Certificate number for P Marking: 22 03 06
Swan marking: 358 001
Manufacturer’s assurance
Manufacture of the product has taken place in
accordance with those documents which are
the basis for the relevant type approval certifi-
cation and the required manufacturing checks.
Requirements for flue
The chimney must be dimensioned for at
least 350° C for both top connection directly
upwards and connection directly backwards
from the rear of the stove.
Warning
During operation, certain surfaces of the
stove become very hot and can cause burn
injury if touched.
Be aware of the strong heat radiated
through the hatch glass.
Placing flammable material closer than the
safe distance indicated may cause a fire.
Pyre lighting can cause quick gas ignition
with the risk of damage to property and
personal injury.
NOTE!
Report installation of a stove to your local
authority.
The owner of the house is personally respon-
sible for ensuring compliance with the manda-
tory safety requirements and must have the
installation approved by a qualified inspector.
Your local chimney sweep must also be
informed about the installation as this will
affect the routines for regular chimney-sweep-
ing services.
CONTURA
In accordance with standards below
marking was affixed:
European Standard:
SE Quality Certification, P-marked:
NO Standard NS 3059:
DK Standard:
DE and AT Standard DIN 18 891
and Art 15a B-VG:
Type:
Nominal Output:
Fuel:
Minimun draught:
Flue gas temerature:
Energy efficiency:
Emission of CO in cumbustion products:
Distance to cumbustible wall (mm):
Production number:
Follow the installation instructions.
Use only recomended fuels
NIBE AB Box 134 SE-285 23 MARKARYD SWEDEN
2006
EN 13240
Cert no 220306
SINTEF 043-104
598DS/EN 13240 plus
RO-9101319
C655/C685
6 kW
Wood
12 Pa
310°C
80%
< 0,12%
Behind 100
Beside 520 (200)
Corner 95
7090300236
CONTURA
NIBE AB SE-85 21 Markaryd Sweden
Type:
Production no.
600-series
7090300236
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
Certifierad
Certifikat nr
22 03 06
EU declaration re-
garding agreement
Product covered by this declaration
Product type Stove lit with solid fuels
Type designation Contura 500 series
Type according to standard SS-EN 13240
Area of use Heating residences
Fuels Wood
Special conditions None
Manufacturer
Name NIBE AB/NIBE Stoves
Address Box 134, Skulptörvägen 10, SE-285 23 MARKARYD
Location of manufacture Markaryd
Manufacturing check by approved body
Name SP, Swedish National Testing and Research Institute
Address Box 857, SE-501 15 BORÅS
Report no. / date 0402-CPD-220318 / 20061102
Niklas Gunnarsson
Business area manager NIBE Brasvärme
Appendices
• Assemblyandinstallationinstructions
GB

32
General
This manual contains instructions about how the
Contura 580W must be constructed and installed.
To ensure the function and safety of the stove, we
recommend that the installation is carried out by an
authorised technician. Instructions for lighting and
use are also supplied with the stove. Read them
carefully and keep them safe for future use.
The stove is type approved and must be connected
to a chimney dimensioned for at least 350°C, the
external connection diameter is Ø150 mm.
Supply air from the open air should be used as com-
bustion air.
Technical specifications
Output 3 – 7 kW
Nominal output 5 kW (approx. 1.5 kg wood/hour)
Efficiency, up to 80%
Connector ext. Ø150 mm
Weight ....................... 100 kg
Width .......................... 500 mm
Depth .......................... 440 mm
Height ........................ 740 mm
Type approved in accordance with:
European standard EN-13240 class 1
Swedish environmental and quality marking, P-marking cert. no.
22 03 09
Swedish type approved, cert.no. 0222/03
Norwegian standard NS 3059, Cert. No. 043-140
German standard DIN 18.891, RO-91 03 529
Danish standard DS/EN 13240 plus, id no. 598
Building application
Before installing a stove or erecting a chimney it is
necessary for you to make a building application
permission to your local authority. Ask your local
authority for advice regarding building regulations
and the application.
Eldstadsbeklädnad
Rostertallrik
Asklåda
Rökhylla
Structural design
The instructions indicate how Nibe recommends the
stove is installed. Always check with an authorised
chimney sweep that the installation method is an
approved method and that the chimney/walls have
sufficient support before starting installation.
Hearth plate
To protect the floor from any embers the
stove must be supplied with a hearth plate. If
the floor under the stove is flammable, it must be
protected by a non-flammable material. The hearth
plate can consist of natural stone, concrete or 0.7
mm metal.
As the requirements for the size of the hearth plate
can vary at different installation heights, you should
check what is applicable with your chimney sweep.
In general the hearth plate must protrude at least
300 mm in front of the stove and at least 100 mm
to the side.
If the bottom of the stove is 400 mm above the floor,
the distance must be increased by half the protrud-
ing height. This should be checked with your chim-
ney sweep.
Chimney
The stove requires negative pressure in the chimney
of at least 12 Pa. The negative pressure is affected
both by the length and area of the chimney, and by
how well sealed it is. Minimum recommended chim-
ney length is 3.5 m and a suitable cross section area
is 150-200 cm² (140-160 mm in diameter).
Carefully check that the chimney is sealed and that
there is no leakage around soot hatches and flue
connections.
Note that a flue with sharp bends and horizon-
tal routing reduces the draught in the chimney.
Maximum horizontal flue is 1 m, on the condition
that the vertical flue length is at least 5 m.
It must be possible to sweep the full length of the flue
and the soot hatches must be easily accessible.
GB
Grate disc
Ash-pan
Fire-box surround
Smoke baffle

33
Check that the installation distances in the figures
are maintained. When top connecting a steel flue
please refer to the relevant manufacturer’s installation
instructions.
Observe the safety distances to combustible material
that steel flues require.
The minimum distance in front of the stove opening to
combustible parts of the building or interior decora-
tion must be at least 1 m.
Installation distance from walls and ceiling.
A = height from floor to chimney connection.
B = height from floor to C/c smoke outlet rear.
C = height from floor to supply air opening
D = height from floor to lower edge of hatch
Brandmur av tegel
eller betong
Brännbar vägg
750
500
155
16
454
100
200
300
400
60
160
260
360
712 min 1000
496
Brännbart tak
Brandmur av tegel
eller betong
320
70
155
16
454
Tilluftsstos Ø67
88
Utv. Ø150
552
47
Dimensions 580W
Indirect air supply through the external wall.
Supply of combustion air
Combustion air can be supplied via a duct from out-
side, or indirectly via a vent in the outer wall of the
room where the stove is to be placed. The amount
of combustion air that is used for combustion is
approx. 25m³/h.
HK
GB
Combustible ceiling
Fire-retardant wall of
brick or concrete
Combustible ceiling Fire-retardant wall of
brick or concrete
Air inlet Ø67

34
Lift up the grate disc at the right-
hand edge so that it detaches from
the control lug.
Lift up the smoke baffle and
remove the side section.
Lift the smoke baffle out and
remove the remaining sections.
Press the deflector plate up under the stove body and move it backwards. Angle down the front edge and
pull the plate out.
Leave all these components uninstalled until the stove has been screwed to the wall and the surround kit has
been installed. Reinstall the components in reverse order.
Unpacking
Leave the stove body screwed in place on the pallet.
Place supplied components to one side. Dismantle
all the loose components from the stove body (grate
disc, fire-box surround and heat deflector under the
stove body).
Important!
The stove body may tip forwards. Therefore,
do not remove the stove body from the pallet
until the other loose components have been
removed.
1
2
GB

35
The stove body is prepared for top connection on
delivery. When connecting from the rear, the cover
and connection must be swapped around.
LEK
Connection to chimney
Rear connection to a masonry chimney
Mark out the centre for making a hole in the wall to the flue.
Make a 180 mm diameter hole. Fold in the tabs on the connector so that they create a stop for the flue pipe. Then
cement in the connector with fireproof mortar (not supplied). Allow the mortar to dry before installing the back
plate.
Important!
Take care when making holes to prevent cracks
from forming outside the hole as this affects the
rigidity of the stove mounting. The hole should
not be larger than the recommended dimension
of 180 mm.
GB

36

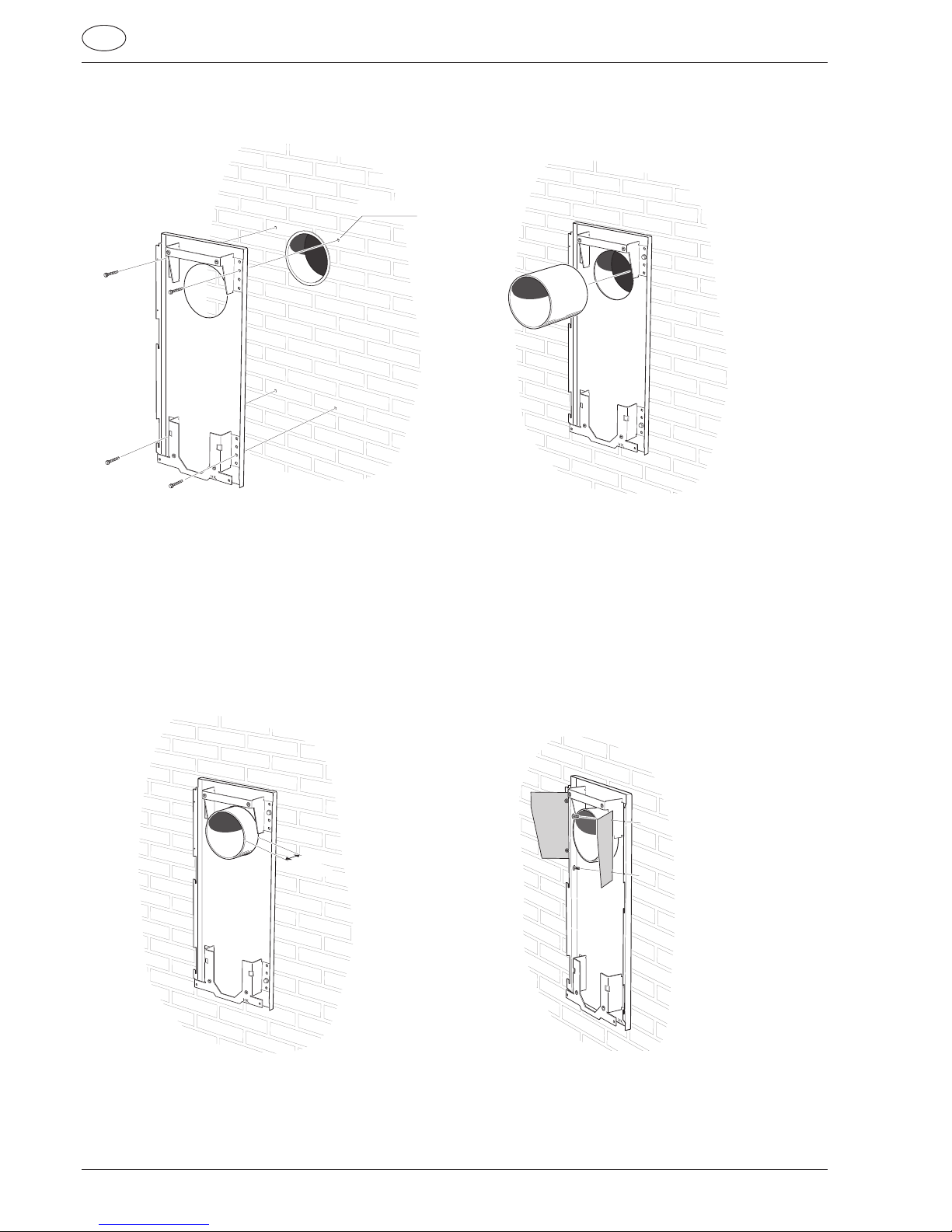

Place the back plate opposite the connector. Check
that the back plate is vertical and mark the mount-
ing holes you wish to use. Select holes so that it is
as far away from any joints as possible. Pre-drill the
hole using an 8mm concrete drill; the hole must be
at least 80 mm deep. Clean the hole carefully and
screw the back plate to the chimney breast using
the 4 supplied concrete screws. Screws that do not
tighten must be considered useless and be moved
to new holes.
Insert the connection pipe into the wall connector
towards the folded tabs.
Ø 8 mm
50 mm
Check that the pipe protrudes 50 mm from the
back plate and caulk between the connection pipe
and the connector in the wall using caulking rope.
If further sealing material is required, heat-resistant
sealant may be used
Screw the heat deflectors onto the back plate using
2 panel screws per heat deflector
Assembling the stove
GB

37
Install the suspension brackets on the stove body
using 2 screws.
Detach the stove body from the leg by unscrewing
the 4 screws.
Lift the stove body from the leg and suspend the
brackets on the body above the back plate’s upper
mounting angle.
GB

38
Lower the lower edge of the stove body so that the
stove body is vertical. Insert the stove body towards
the back plate so that the stove connector slides
into the connection pipe.
Lock the stove body using 2 screws at the upper
edge.
Check that the stove body is suspended vertically. If
necessary, the stove body can be adjusted forwards
at the lower edge using two adjuster screws at the
lower edge.
Lock the stove body using 2 screws at the lower
edge.
GB

39
Hook the side plate into the back plate and turn the
front edge in towards the stove body.
2
1
2
Secure the side panel at the front edge using a
screw at the upper edge and a screw at the lower
edge.
Place the type plates with production number
and installation distances on the under side of the
protective plate. Then screw the protective plate se-
curely into place with the plates turned downwards.
Assembling the stove top
Lay the soap stone top (or Steel top, cast iron top)
in place, remember to handle with care. Finish by
placing the hot air grille and cover on the soap stone
top.
Important!
Before the stove is used, it must be inspected by an authorised chimney sweep. Read the “Instructions for
Lighting the Contura 500 series” before lighting the fire for the first time.
GB

42
NIBE AB/NIBEBrasvärme•Box134•28523Markaryd
www.contura.eu
