Nibe VPD 300 User guide

Installer manual
VPD 150, 300
Hot water heater
IHB GB 1426-1
331090

Table of Contents
21 Important information
2Safety information
52 Delivery and handling
5Transport
5Assembly
5Supplied components
63 The water heater design
84 Pipe connections
8General
8Dimensions and pipe connections
9Heat pump
10Cold and hot water
10Installation alternative
115 Electrical installation
11Sensors
126 Commissioning and adjusting
12Filling
137 Service
13Service actions
148 Technical data
14Dimensions and setting-out coordinates
15Technical specifications
16Index
1Table of Contents |VPD 150, 300

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2014.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Serial number
The serial number can be found on top of the product.
6HULDO QXPEHU
Caution
Always give the product's serial number when
reporting a fault.
Country specific information
Installer manual
This installer manual must be left with the customer.
VPD 150, 300Chapter 1 | Important information2
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person.
DateSignatureNotesDescription
✔
Heat pump (page 9)
Shut off valves
Hot water (page 10)
Shut off valves
Cold water (page 10)
Shut off valves
Non-return valve
Mixing valve
Safety valve
Electricity (page 11)
Sensors
3Chapter 1 | Important informationVPD 150, 300

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
AIT France, 10 rue des Moines, 67000 HaguenauFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
VPD 150, 300Chapter 1 | Important information4

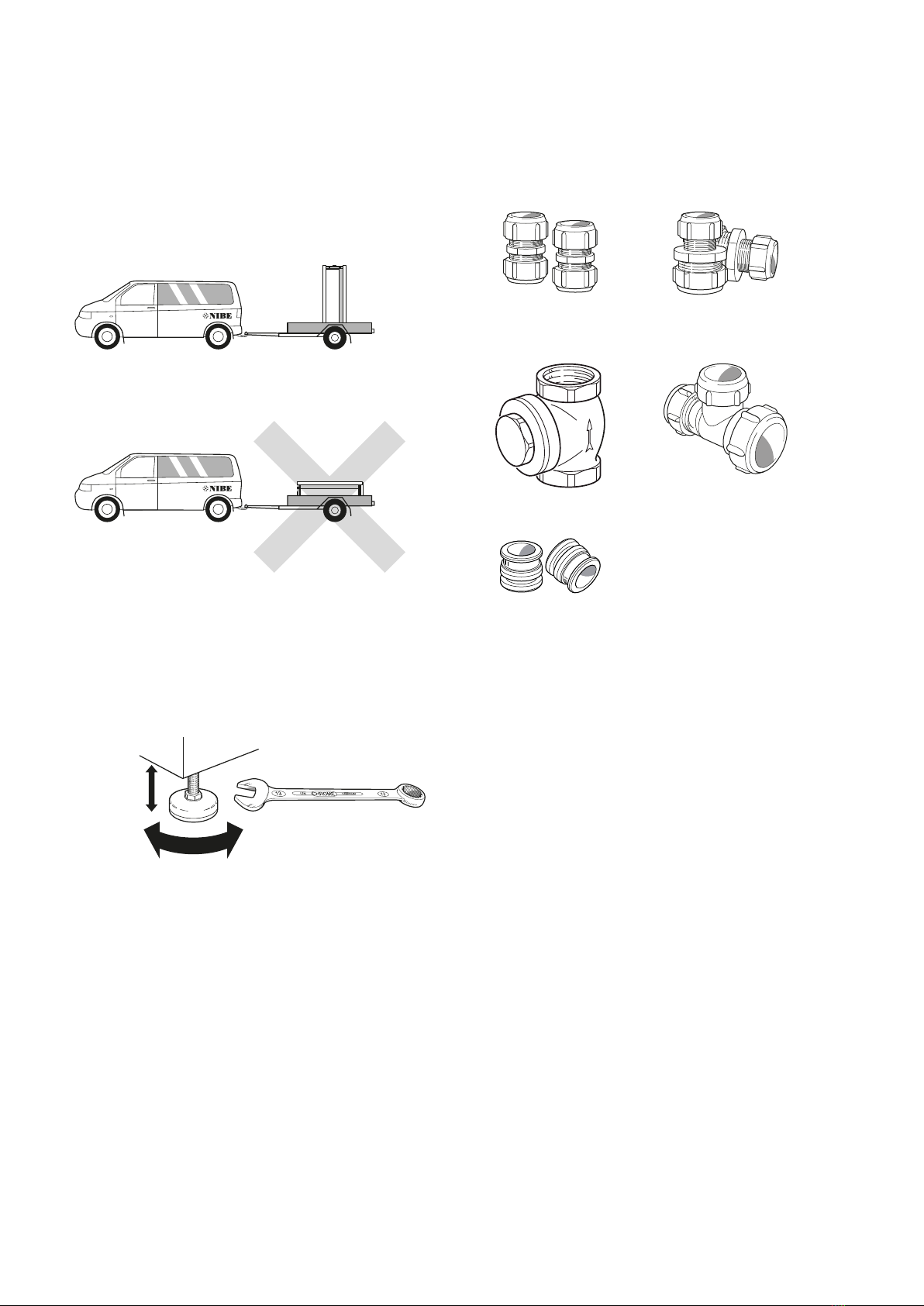

Transport
VPD should be transported and stored vertically in a
dry place. The VPD may, however, be carefully laid on
its back when being moved into a building.
R
0
R
0
Assembly
႑The water heater is only designed for upright install-
ation.
႑Position VPD on a firm base that can take the weight,
preferably on a concrete floor or foundation. Use the
heater's adjustable feet to obtain a horizontal and
stable set-up.
30 - 50 mm
႑The area where VPD is located must be equipped
with floor drainage.
႑The water heater installation area should always have
a temperature of at least 10 °C and max 30 °C.
Supplied components
2 x 22/15 straight coup-
lings
2 x 15/15 straight coup-
lings
1 x 28/22/15 T-coupling1 x non-return valve
2 x 22/15 reduction sleeves
Location
The kit of supplied items is placed on top of the
product.
5Chapter 2 | Delivery and handlingVPD 150, 300
2 Delivery and handling

93'  93' 
LEK
XL4XL36
PF1
PF3
UA1
UA2
XL3
LEK
PF1
PF3
UA1
UA2
XL3
XL4
XL36
VPD 150, 300Chapter 3 | The water heater design6
3 The water heater design

Pipe connections
Connection, cold water, blue (28 mm)XL3
Connection, hot water, red (22 mm)XL4
Connection, supply line from HP, white (22 mm)XL36
HVAC components
Submerged tube for temperature sensor, hot
water display
UA1
Submerged tube for temperature sensor, hot
water control
UA2
Miscellaneous
Rating platePF1
Serial number platePF3
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
*or another external heat source
7Chapter 3 | The water heater designVPD 150, 300

General
Pipe installation must be carried out in accordance with
current norms and directives.
Internal support bushes should be fitted when a plastic
or annealed copper pipe is used. The water heater must
be fitted with the requisite valves, such as a safety valve,
shut-off valve and non-return valve. An overflow pipe
should be routed from the safety valve to an appropri-
ate drain. The overflow pipe must be the same size as
the safety valve. Route the overflow pipe from the
safety valve enclosed along its entire length and ensure
that it is frost proof. The mouth of the overflow pipe
must be visible and not placed close to electrical com-
ponents.

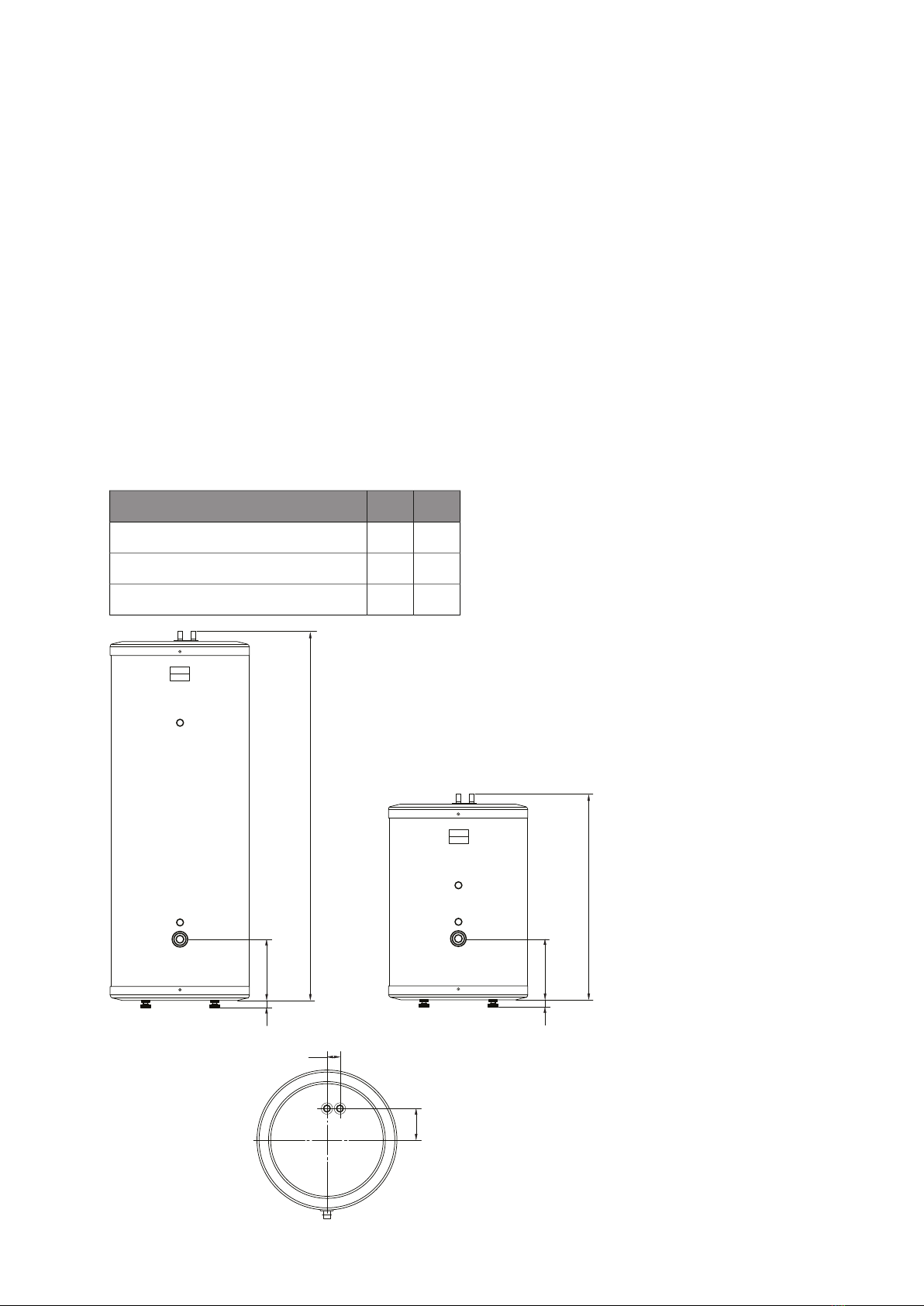

Dimensions and pipe connec-
tions
Connection
28mmXL3 Cold water Ø
22mmXL4 Hot water Ø
22mmXL36 Supply line Ø
1594
26330
135
55
884
26330
VPD 150, 300Chapter 4 | Pipe connections8
4 Pipe connections

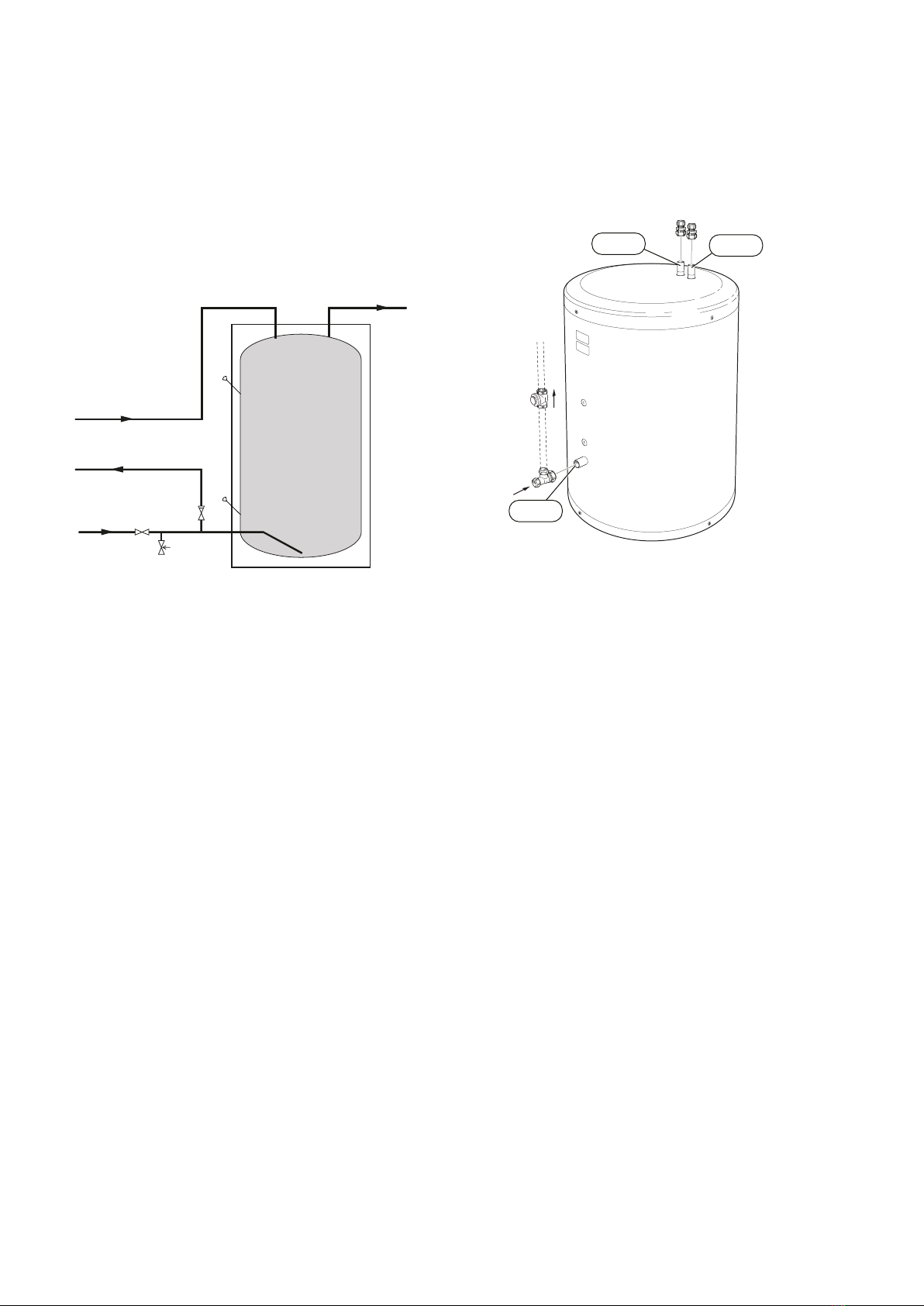

Heat pump
Connecting to heat pump
The heat pump supply and return are connected to
VPD.
Supply line hp
Return line hp
Cold water
Hot water
Schematic diagram
The enclosed kit includes suitable connectors that can
be used for the installation.
LEK
XL4
XL36
XL3
႑Install the T-coupling in position (XL3) (blue) accord-
ing to image. If Ø15 mm pipes are used, the reduction
sleeves can be used.
႑Connect the return line from the heat pump to the
angled connection on the T-coupling. Install the
supplied non-return valve on this pipe.
႑Install a shut-off valve on the incoming cold water
pipe.
႑The safety valve must have a maximum 10.0 bar
opening pressure and be installed on the incoming
cold water line. The entire length of the overflow
water pipe from the safety valves must be inclined
to prevent water pockets and must also be frost-free.
႑Connect the incoming cold water to the T-coupling.
႑Straight couplings, 22/15 mm, installed on connec-
tions (XL4) and (XL36) as illustrated.
႑Connect the supply line from the heat pump to pos
(XL36) (white) on the water heater section.
႑Hot water connection to pos (XL4) (red) on the water
heater.
9Chapter 4 | Pipe connectionsVPD 150, 300

Cold and hot water
Connecting cold and hot water
There must be a mixing valve if the temperature can
exceed 60 °C.
Schematic diagram
Symbol key
MeaningSymbol
Shut-off valve
Non-return valve
Mixing valve
Safety valve
Temperature sensor
Installation alternative
VPD can be connected in several different ways, one
of which is shown here.
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the heat
sources used.
To exhaust air heat pump
VPD can be docked with heat pump, for example NIBE
exhaust air heat pump.
VPD
VPD 150, 300Chapter 4 | Pipe connections10

NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
Sensors
VPD can be supplemented with up to two hot water
sensors, one for display and one for control. The display
sensor is positioned in the submerged tube for the
display sensor (UA1) and the control sensor in the
submerged tube for control sensor (UA2). In cases
where it is only possible to connect one sensor, use the
submerged tube for control sensor (UA2).
Use the sensors provided with the heat pump (or other
heat source). When no heat sensors have been
provided these must be ordered from the manufacturer
of the heat source.
11Chapter 5 | Electrical installationVPD 150, 300
5 Electrical installation

Filling
Filling the hot water heater
1. Open a hot water tap in the house.
2. Fill the hot water heater through the cold water
connection (XL3).
3. When the water that comes out of the hot water
tap is no longer mixed with air, the water heater
is full and the tap can be closed.
VPD 150, 300Chapter 6 | Commissioning and adjusting12
6 Commissioning and adjusting

Service actions
Safety valve
The water heater's safety valve sometimes releases a
little water after hot water usage. This is because the
cold water, which enters the water heater to replace
the hot water, expands when heated causing the
pressure to rise and the safety valve to open.
The function of the safety valve must be checked regu-
larly. Perform checks as follows:
1. Open the valve by turning the knob anti-clockwise
carefully.
2. Check that water flows through the valve.
3. Close the valve by releasing it. If it does not close
automatically when released, turn it anti-clockwise
slightly.
Emptying
The water heater is emptied by opening the safety valve
and a tap near the heater. If this is not sufficient, the
compression ring coupling by (XL3) can be released
carefully.
13Chapter 7 | ServiceVPD 150, 300
7 Service

Dimensions and setting-out coordinates
44
840
490
333
26330
135
Ø596
55
44
1550
1200
333
26330
135
Ø596
55
VPD 150, 300Chapter 8 | Technical data14
8 Technical data

Technical specifications
300150LVolume
1594–1614914–934mmHeight
596596mmDiameter
5331kgNet weight
10/1.0bar/MPaMax pressure, water heater
95°CMax water temperature
2222mmConnection, hot water (red)
2828mmConnection, cold water/ HP return (blue)
2222mmConnection, HP front (white)
086019086017Part No.
15Chapter 8 | Technical dataVPD 150, 300

Item register
A
Accumulator tank design, 6
Assembly, 5
C
Cold and hot water, 10
Commissioning and adjusting, 12
Filling and venting, 12
Connecting cold and hot water, 10
Connecting to heat pump, 9
Contact information, 4
D
Delivery and handling, 5
Assembly, 5
Supplied components, 5
Transport, 5
Dimensions and pipe connections, 8
Dimensions and setting-out coordinates, 14
E
Electrical installation, 11
Sensors, 11
Emptying, 13
F
Filling and venting, 12
Filling the hot water heater, 12
Filling the hot water heater, 12
H
Heat pump, 9
Connecting to heat pump, 9
I
Important information, 2
Safety information, 2
Inspection of the installation, 3
Installation alternative, 10
To ground source heat pump, 10
P
Pipe connections, 8
Cold and hot water, 10
Connecting cold and hot water, 10
Dimensions and pipe connections, 8
General, 8
Heat pump, 9
Installation alternative, 10
Symbol key, 10
S
Safety information, 2
Contact information, 4
Inspection of the installation, 3
Serial number, 2
Symbols, 2
Safety valve, 13
Sensors, 11
Serial number, 2
Service, 13
Service actions, 13
Service actions, 13
Emptying, 13
Safety valve, 13
Supplied components, 5
Symbol key, 10
Symbols, 2
T
Technical data, 14
Dimensions and setting-out coordinates, 14
Technical Data, 15
Technical Data, 15
The water heater design
List of components, 7
Transport, 5
VPD 150, 300Chapter 9 | Item register16
9 Item register

331090
NIBE AB Sweden
Hannabadsvägen 5
Box 14
SE-285 21 Markaryd
[e-mail]
www.nibe.eu
