Nidec-Shimpo DT-311J User manual

97541B
DT-311J Digital Stroboscope
Operation Manual
z
Do not apply a strong shock or rapid temperature change to unit.
Especially, do not leave it where temperature will rise: for instance, in
a closed automobile, exposed to direct sunlight, near a stove, open
flame, etc.
This instrument is water-proof. Do not spray or immerse in water. Do
not open and disassemble the unit. Make sure of proper voltage!
Do not use stroboscope in an explosive atmosphere as it generates
high electrical energy pulses.
To avoid potential eye damage, do not look directly at flashes.
Before operation, make sure there is no damage on the provided AC
voltage line cable. If the cable is damaged, replace it with a new one.
To protect against water drips, carefully thread the power cable
connector firmly to the stroboscope. After metal connector of the cable
has been properly fitted onto the body, the power cable can then be
safely plugged into a properly grounded AC receptacle.
To prevent getting burned, let lamp cool after use before attempting
replacement.
DT-311J NEMA 4X Stroboscope for Harsh Wet Work Areas
Where powerful illumination and rugged speed measuring accu-
racy is required for the textile industry, the DT-311J will perform
where other stroboscopes will not. The DT-311J is used to set
injection timing, injection pressure, timing of shedding and weft
running time of weaving machinery. Units combine rugged NEMA
4X (IP65) housing with high performance accuracy, special phase
shifting, with shock absorbing components and top mounted
handle, allows the equipment operator maximum flexibility when
setting the timing of weaving machinery.
SPECIFICATIONS
Phase Shift: 0 – 359° / 1° increments
Flash Rate/Phase Angle Setter: Rotary dial
Display: 4 digit 0.39 in (10 mm) high red LED
Divide Ratio: 1/1, ½, 1/3, ¼, 2/4 with shift
Input Signal: High level: 5-24 V pulse; Low Level: 0-1 V pulse. 2
msec minimum. Impedance less than 10k Ω
Input Impedance: 47k
Display Mode: Phase shift (degree), Tachometer
Accuracy: ±1 digit
Internal Signal Range: 200-1500 FPM
Flash Range: 200-1500 FPM
FlashTube: Xenon lamp Max: 10w at 1,500 rpm. Life: 1,200 hours
at 1,500 rpm
Power Requirement: 115VAC±5% 50/60Hz
Power Consumption: 20VA max
Operating Temperature: 32 to 104°F (0 to 40°C)
Product Weight: 4.2 lbs (1.9 kg)
Package Weight: 6.2 lbs (2.81 kg)
Included Accessories: 19.68’ (6m) input/power cable with con-
nector, rubber strobe guard w/ handle
1.800.561.8187
[e-mail]
-Direct.ca

2
A.Front panel
C.Operation part
B.Rear(Display & Operation panel)
① Xenon lamp
① Protective window
① Protective window screws
① Reector
① Handle
① Protection mule
① Power switch
① Connector
① Mode select switch
① Setting knob: for Flash Rate and
Phase Shift adjustment
① Zero setting switch
① Divide ratio select switch
① Stroboscope ash: on/o switch
① Shift switch
① Delayed angle or rpm display
① Mode indicators
①① CABLE CONNECTION
Connect power and signal with provided cable as follow.
AC plug(with 3-prong plug) 110 VAC or 230 VAC at 50/60 Hz
Red clip signal(positive)
Black clip 0V
①① MODE SELECTION
Press (MODE) switch (5) to select internal or external signal mode.
①① INTERNAL SIGNAL OPERATION
When internal signal mode is selected (‘INT’ LED on), ash rate is adjusted by turning the setting knob (6).
①① CONFIGRATION
1.800.561.8187
[e-mail]
-Direct.ca

3
①① EXTERNAL SIGNAL OPERATION
When external signal mode is selected (‘deg’ or‘rpm’LED on), ashing rate is synchronized with the external signal.
The phase shift range can be set between 0 - 359°- 0 - 359°continuously. And also it's available to display the rotation
speed (rpm unit).
deg…………………… Delayed Angle…………………………………… degree
rpm…………………… Number of revolution per 1 minute ……………rpm
①①①① DIVIDE RATIO SETTING(See 8.Flash interval for detail)
①①①① ①Select 1/1 to provide a ash per every 1 rotation.
①①①① ①Select 1/2 to provide a ash per every 2 rotations.
①①①① ①Select 1/3 to provide a ash per every 3 rotations.
①①①① ①Select 1/4 to provide a ash per every 4 rotations.
①①①① ①Select 2/4 to provide two continuously ashes per 4 rotations.
①①①① PHASE SHIFT
①①① Turning the Phase Shift setting knob clockwise or counterclockwise, the ashing phase will be shifted.
①①①Pressing the zero set button(ZERO) makes the display “0” at any angle.
①① FLASH INTERVAL
FLASH MODE
Flashing behavior at eash mode.
Input pulse 360°
1 2 3 4 5 6 7 8 9 10
MODE1/1
1 2 3 4 5 6 7 8 9
0 ～359° ～0～359° ～Delay
MODE1/2 1 3 5 7 9
0 ～359° ～0～359° ～Delay
①①
MODE1/3 1 4 7 10
0 ～359° ～0～359° ～Delay
MODE1/4 1 5 9
0 ～359° ～0～359° ～Delay
MODE2/4 1 2 5 6 9 10
0 ～359° ～0～359° ～Delay
1.800.561.8187
[e-mail]
-Direct.ca

4
①①①① PHASE MODE
①①① Every time you depress the shift button (SHIFT), the ashes slide to the next pulse.
9. LAMP ON/OFF SWITCH
LAMP ON/OFF switch can stop ashing. To save lamp life, turn lamp o while not in operation.After the power is on,
if no adjustments are made during the next 30 minutes, ashing will automatically turn o after 30 minutes and the
display will rapidly ash. To continue operation, press LAMP ON/OFF switch, the ashing will continue for another
20 minutes.
Input pulse 1 2 3 4 5 6 7 8 9 10
MODE1/2
1 3 5 7 9
2 4 6 8
MODE1/3 1 4 7 10
2 5 8
3 6 9
1 4 7 10
MODE1/4 1 5 9
2 6 10
3 7
4 8
1 5 9
MODE/4 1 2 5 6 9 10
2 3 6 7 10
3 4 7 8
1 4 5 8 9
1 2 5 6 9 10
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
1.800.561.8187
[e-mail]
-Direct.ca

5

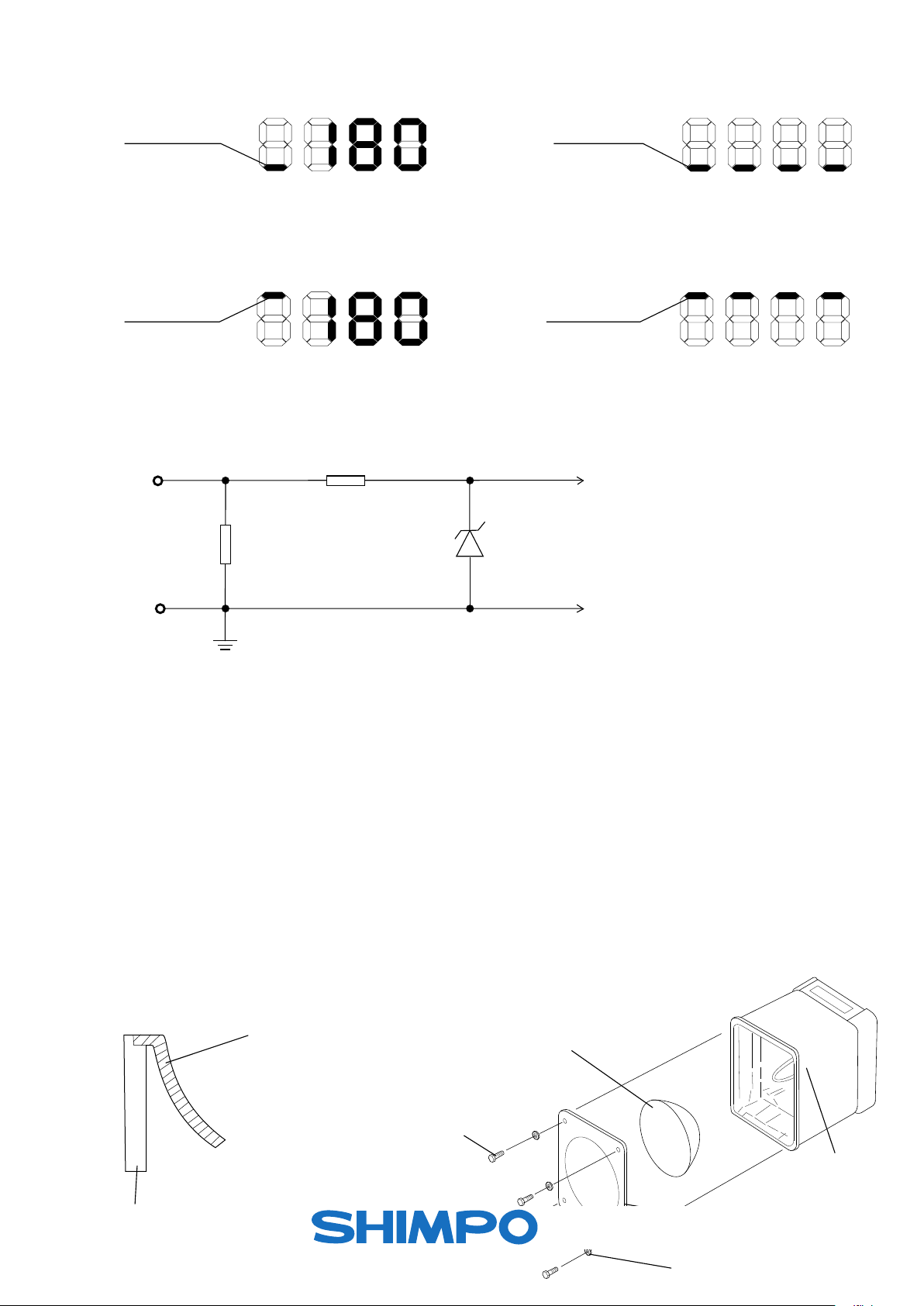

①①① ALARMS
LOW SPEED INDICATOR(External signal operation only)Below 180rpm under symbol appears.
①①①At degree mode At rpm mode
①① HIGH SPEED INDICATOR(External signal operation only)Over 1,650rpm over symble appears.
At degree display At rpm display
①①①①①① If AC power is low, the ashing will stop and“LLLL”will be displayed.
①①①①①① If an alarm symbol appears, (“under”, “over”) the stroboscope ash will not function.
①①① INPUT CIRCUITRY
①①①①①①①①①①①①①①①①①①①①①①①① To wave reform circuit
SIG 47kΩ①
(RED)
47kΩ①①①①①①①①①①①①①①①Zener Diode
①① ①①①①①①①①①①①①①①①①①①①①①①①①①①①①4.7V①
①0V
(BLACK) No connection between 0v and Shasis
over symbolover symbol
under symbol under symbol
①①① LAMP REPLACEMENT
Lamp life is about 100 million ashes. Although rotation speed is displayed, no ash is emitted. When the ash is
intermittently emitted, this indicates the lamp must be replaced. Be sure to replace ash tube with the
specied lamp: (FLASHTUBE311-J)
Procedures:
①1)After unplugging the line cable from the power line, let the stroboscope sit for 30 minutes or longer. Be
sure stroboscope is cool to the touch before replacing the lamp.
①2)Remove the lamp protection window by loosening the 4 screws on the window. Insert a ne screw driver into a
hole of the protection window and pull out.
①3)
Remove the reector and pull out the lamp base(Glass portion). Caution, do not pull out the lamp glass portion directly.
①4)Do not touch the ash tube with ngers. Use a clean cloth. Press the lamp base to the socket in the proper
direction to install the new lamp. *Do not touch to glass portion of the lamp.
①5)Important: In order to maintain protection against water, be sure to mount the Protection cover in the center. Fix
the protective window with the 4 screws and the sealing washers.(Tightening torque: 0.5Nm)
Swivel plate for reector
Lamp socket
Reector
Protective window
Seal Washer
Mounting screw for protection cover
Body
Reector
1.800.561.8187
[e-mail]
-Direct.ca

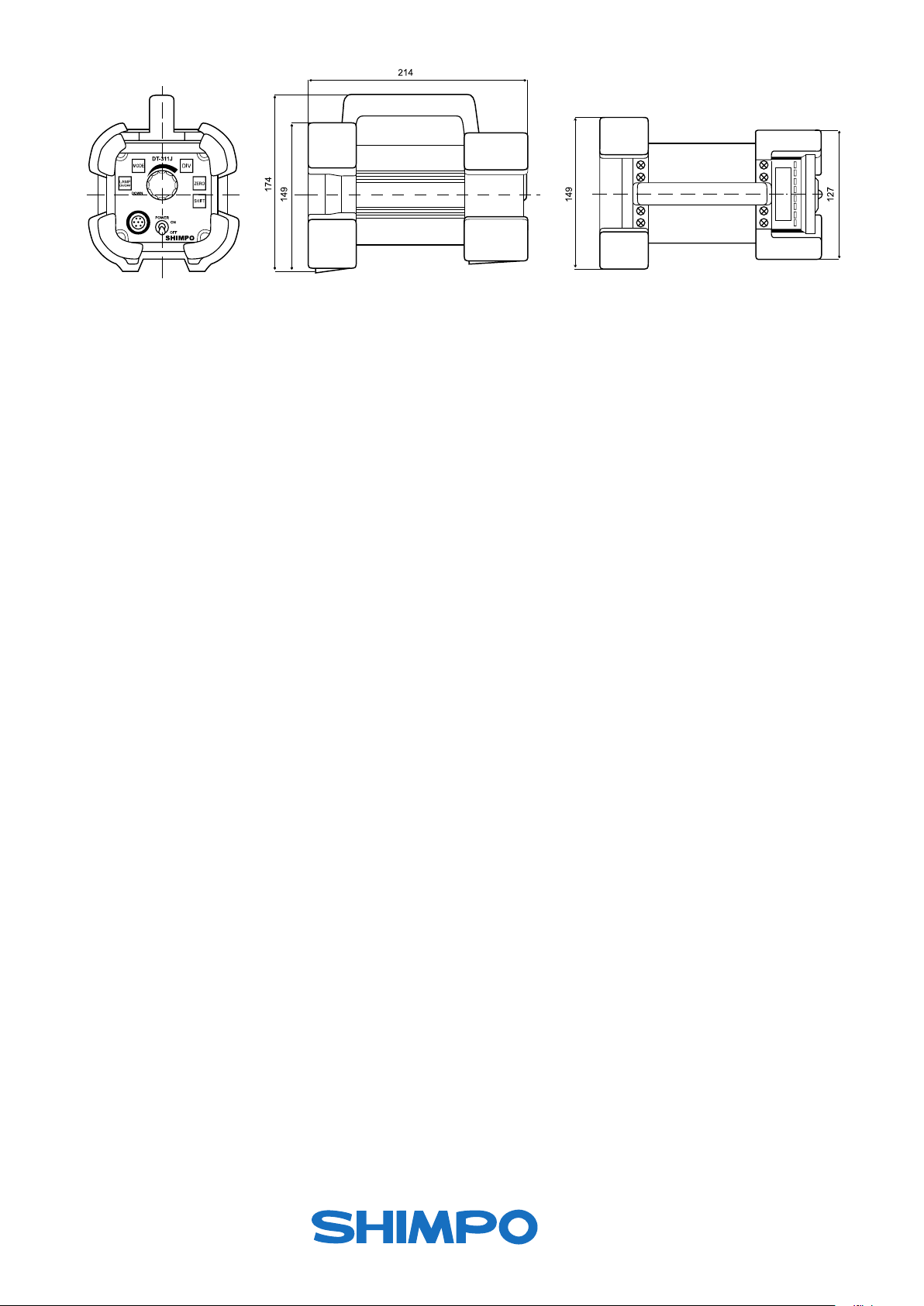

DT-311J Dimensions
