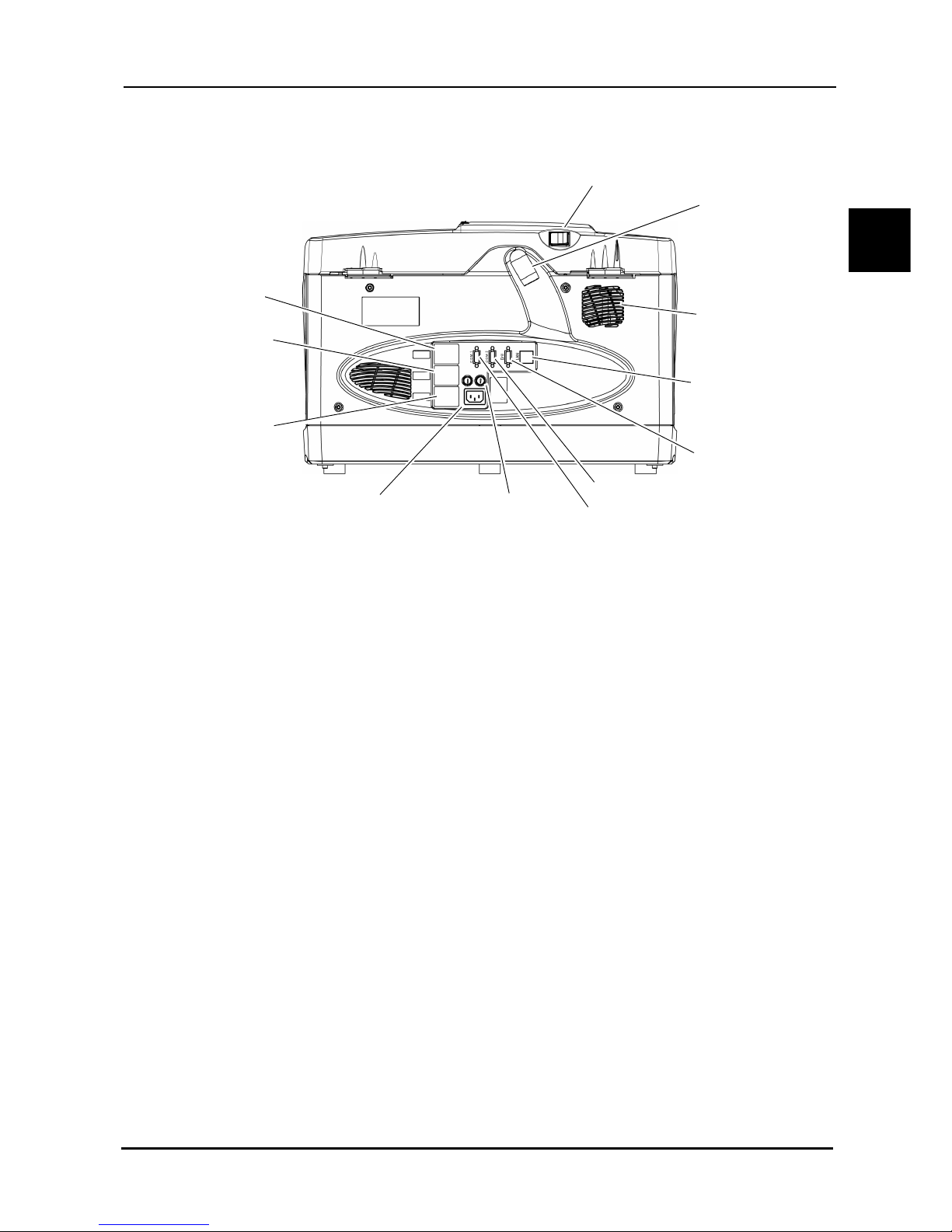

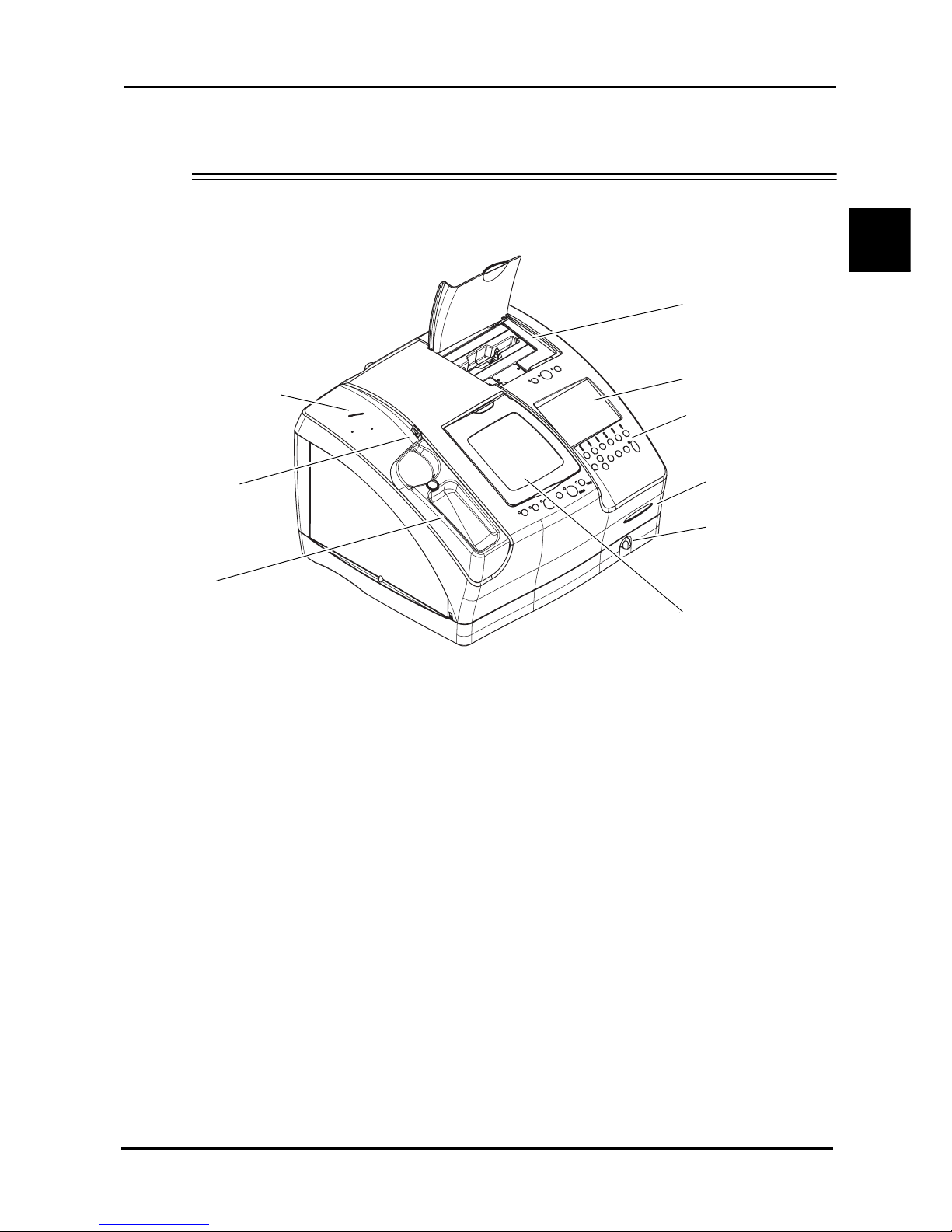

Nidek Medical Lex 1000 User manual

PATTERNLESS EDGER
Model
OPERATOR’S MANUAL

NIDEK CO., LTD. : 34-14, Maehama, Hiroishi-cho, Gamagori, Aichi 443-0038, Japan
(Manufacturer) Telephone: [phone]
Facsimile: (81-533) 67-6610
NIDEK CO., LTD : 3F Sumitomo Fudosan Hongo Bldg., 3-22-5, Hongo,
(Tokyo Office) Bunkyo-Ku, Tokyo 113-0033, Japan
Telephone: [phone]
Facsimile: (81-3) 5844-2642
NIDEK INCORPORATED : 47651 Westinghouse Drive, Fremont, California 94539, U. S. A.
(United States Agent) Telephone: [phone]
Facsimile: [phone]
NIDEK SOCIETE ANONYME : Europarc 13, rue Auguste Perret, 94042 CRETEIL, France
(EU Authorized Representative) Telephone: [phone]
Facsimile: (01) 49 80 32 08
February 2008
44001-P902D
Printed in JAPAN

I
:
Use this instrument properly and safely.
Safety precautions
BEFORE USE, READ THIS MANUAL.
This operator’s manual includes operating procedures, safety precautions and
specifications for the NIDEK PATTERNLESS EDGER, Lex 1000. IEC standards are applied
in this manual.
Cautions for safety and operating procedures must be thoroughly understood before
using this instrument.
Keep this manual handy for reference.
If you encounter any problems or have questions about the instrument, please contact
NIDEK or your authorized distributor.
In this manual, signal words are used to designate the degree or level of safety alerting. The
definitions are as follows.
WARNING
• Indicates a potentially hazardous situation which, if not avoided, might result in death or
serious injury.
CAUTION
• Indicates a potentially hazardous situation which, if not avoided, might result in minor or
moderate injury or properly damage accident. Even situations indicated by CAUTION
might result in serious injury under certain conditions.
Consult this manual in all cases where is used, in order to find out the nature of the
potential hazard and any actions which have to be taken.

II
:
Use precautions
Before Use
WARNING
• Use a hand cart to move the instrument to a different location. At least two persons
are necessary to lift the instrument.
Back injury or stumbling may occur when a single person attendts to move the instru-
ment.
• Hold the instrument by indentations A
and D at the bottom of the both sides
and by indentations B and C at the
front bottom when lifting it.
Failure to do so may cause to drop
and resulting in injury or malfunction.
• Be careful not to get fingers caught
when setting the lifted instrument
down.
Fingers may get caught between the
table and instrument resulting in injury.
CAUTION
• Do not use this instrument for other than the intended purpose.
NIDEK will not be responsible for accidents or malfunction caused by misuse.
• Never disassemble nor touch the inside of the instrument.
This may result in electric shock or malfunction.
• Install the instrument in an environment that meets the following conditions.
The following conditions must be maintained during use.
Use conditions Temperature: 5 to 40 °C (41 to 104 °F)
Humidity: 30 to 80% [Relative humidity must not exceed 50% at a
maximum temperature of 40 °C (104 °F)]
Altitude: 2000 m or less at sea level
• Install the instrument in a location with an adequate operating area in front of the
instrument as illustrated on see page VII.
• Be sure to use a wall outlet which meets the power specification requirements.
If the line voltage is too high or too low, the instrument may not give full performance.
Malfunction or fire may result.
• Do not overload the electrical outlet.
A multi-outlet supplying power to too many devices may become overheated and cause
fire.
• Fully insert the main power plug into the outlet.
Fire may occur if the instrument is used with a loose connection.
Left side

III
:
CAUTION
• Do not place heavy objects on the cord.
A damaged power cord may cause fire or electric shock.
• Do not yank the power cord to disconnect it from an outlet.
This can damage the metal core of the cord and may result in short circuit or electric
shock.
• Be sure to use an outlet equipped with a ground terminal.
Electric shock or fire may occur in the event of malfunction or power leakage.
• Do not use a power cord other than the one provided. Also do not connect the
provided power cord to any other device.
Failure or fire may result.
• Install the instrument on the specified table (optional) or a support which is strong
enough for the weight of the instrument (45 kg).
Vibrations and noises may be produced, and normal processing may not be performed.
• Set the instrument on a surface whose
area is larger than the dimensions to the
right. The support should also be
equipped with adjusters on its legs
allowing it to be level and stable.
It is necessary to make openings on
the table top to draw the pipes and
cords.
• Do not block the cooling fan in the rear.
Leave a clearance of 10 cm or more.
Failure to do so could cause a rise in
temperature inside the instrument
which may result in failure.
• Install the instrument in a stable and level place where shock does not occur.
Tilting or vibration can prevent normal lens processing.
• Do not allow the water level to rise over the maximum line in the pump tank.
Failure to do so could cause an overflow of water or bubbles or instrument malfunction.
• Securely connect the cable to the RS-232C port or LAN port.
Data may not be transferred correctly.
• Remove the units such as pump tank installed in the specified table before moving
the instrument while installed on the table.
The units installed in the table could fall resulting in injury or malfunction.

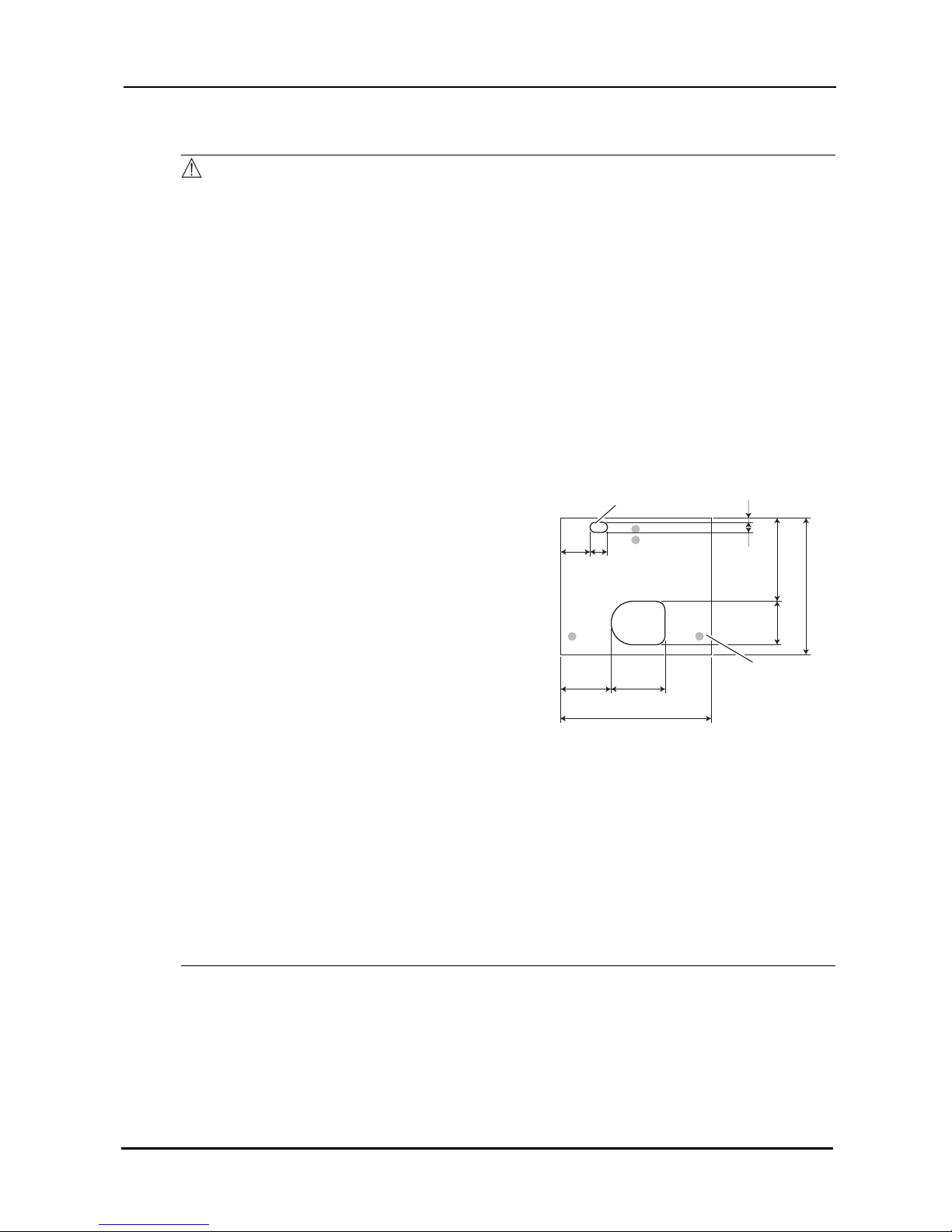

520
175 185
(Unit: mm)
150 285
470
35 13
100 60
Opening
Opening for the pump
power cords
Position of rubber
foot (four parts)

IV
:
During Use
WARNING
• Never touch the wheel when it is rotating.
It may result in injury.
• Never open the processing chamber door during lens processing.
Spray containing processing waste may cause eye damage.
• Be sure to use this instrument only to process lenses for glasses.
The instrument can not be substituted for a grinder. If any other materials are pro-
cessed, wheels may break and shatter resulting in injury. In addition, the damaged
wheels can not perform normal processing.
Never process combustible materials such as magnesium. If they are processed, explo-
sion or fire may occur.
• Be sure to check visually that wheels may not be chipped or cracked before
processing. If the wheels are chipped or cracked, immediately stop the instrument
and contact NIDEK or your authorized distributor.
If chipped or cracked wheels are used, they may break or shatter resulting in injury.
• Do not inhale vapor and particles produced during lens dressing. Wear a protective
mask, protective glasses and such as necessary.
There is a possibility that the vapor or particles is harmful depending on the materials.
CAUTION
• Immediately replace the power cord if the internal wires are exposed, the table turns
on or off when the power cord is moved, or the cord and/or plug are too hot to hold.
This may result in electric shock or fire.
In the event of malfunction, disconnect the power cord from the wall outlet. Never touch
the inside of the instrument and contact NIDEK or your authorized distributor.
• In the event of smoke or strange odors, immediately and disconnect the power plug
from the wall outlet. After you are sure that the smoke has stopped, contact NIDEK or
your authorized distributor.
Usage of the instrument under such abnormal conditions may cause fire or electric
shock. In case of fire, use a dry chemical (ABC) extinguisher to extinguish the fire.
• Be sure to confirm that wash water (for the inside wall of the processing chamber)
and cooling water (for the wheels) flow properly.
If the water does not flow, lenses are not processed properly and the instrument may be
damaged.
For confirmation procedures, see “2.24.1 Check before use” (page 115).
• Be sure to make the correct material selection for the lens material being processed.
In an improper material is selected, the lens may break or the lifetime of processing
wheels may be reduced substantially.
• Safety bevel the front and rear surfaces of glass lenses after processing.
Subtle burrs may damage one’s skin.
• Be careful not to get fingers caught when chucking (fixing) a lens.

V
:
After Use
CAUTION
• The processing chamber door automatically opens and closes. Be sure to keep face
or hands clear. Be careful not to catch figers with the door to being closed.
• Do not apply too much pressure on the stylus of the tracing unit.
The stylus is easy to bend or break.
• Pliable cups are consumables. Replace the pliable cup with a new one when it becomes
hard to remove the double-coated adhesive tape from the cup. (Guide of replacement:
every 1000 of lens processing)
• It is recommended to rinse lenses processed by the lens edger with water before wiping
them with a cloth or such.
Fine processing waste flying in the processing chamber of the lens edger may become adhered to
the lenses. Rinsing them in water prevents their surfaces from being damaged.
CAUTION
• Clean the processing unit after the last use of the day.
If the unit is left for some days after being used, the processing waste becomes settled
and hard to remove.
• When the instrument is not in use, turn it off and close the tracing unit lid and
processing chamber door.
If dust will accumulate, it may affect the measurement accuracy or result in malfunction.
• Occasionally clean the prongs of the power plug with a dry cloth.
If dust settles between the prongs, the dust will collect moisture, and short circuit or fire
may occur.
• If the instrument will not be used for a long time, disconnect the power cord from the
wall outlet.
If dust settles between the prongs, the dust will correct moisture, and short circuit or fire
may occur.
• Do not use organic solvents such as paint thinner to clean the exterior of the
instrument.
This could damage the surface. Fire may occur.
• Do not store the instrument in an area that is exposed to rain, water or contains
poisonous gas or where any liquids are stored.
• Verify that the following specified environmental conditions for transport and storage
(packed condition) are met.
Environmental conditions •Temperature: –25 to 70°C (–13 to 158 °F)
•Humidity: 10 to 95% (non-condensing)
• To transport the instrument, use the special packing materials to protect from shock
and impact.
Excessive vibration or impact to the instrument may cause malfunction.

VI
:
Maintenance and Check
CAUTION
• Be sure to perform check before and after use. It is recommended to have periodic
checks every two years.
Periodic checks must be performed by qualified personnel. Contact NIDEK or your
authorized distributor.
Wheels must be also replaced by qualified personnel. Do not replace the parts other
than fuses and the stocking filter nor disassemble the instrument. Failure to do so could
cause malfunction.
• Only qualified personnel can repair the instrument.
NIDEK will not be responsible for accidents caused by improper servicing.
• When performing maintenance work, secure a sufficient maintenance space (see see
page VII).
Maintenance work in an insufficient space may result in injury.
• Use a suitable dressing stick for wheel dressing.
It may damage to wheels, which prevents normal lens processing.
• Never dress the roughing wheel for plastic lenses.
It may damage to the wheel.
• When the dressing stick is worn to the length of 4 cm, replace it with a new one.
As it is hard to hold the shortened dressing stick, your hand may contact with a wheel.
• Wear protective glasses for wheel dressing.
Spray containing processing waste may cause eye damage.
• In dressing mode, the wheels are rotating with the processing chamber door open.
Work with special care in dressing.
• Use the specified stocking filter only for replacement.
If not, the filter or water supply pipe may become clogged with processing waste.
• The stocking filter is disposable. Do not reuse it.
A filter which has a rip or run in it does not function as a filter, and therefore, the water
supply pipe may be clogged.
• Use the specified fuses to replace the old ones.
Using fuses other than specified may result in fire.

VII
:
[Operating area and maintenance work area]
Maintenance work area
About 500 mm About 500 mm
About 500 mm
About 500 mm About 493 mm
About 528 mm
About 1000 mm
Operating area
* A maintenance work area of
750 mm above the table sur-
face on which the instrument is
put is required.

VIII
:
Disposal
CAUTION
• Follow the local ordinances and recycling regulations regarding disposal or recycling
of the components.
It is recommended to commission the disposal to a designated industrial waste disposal
contractor.
• When disposing of packing materials, sort them by material and follow local
ordinances and recycling regulations.
• When disposing of processing waste, follow local ordinances.
