Night Owl 10 Series User manual

For more information on this product visit www.NightOwlSP.com

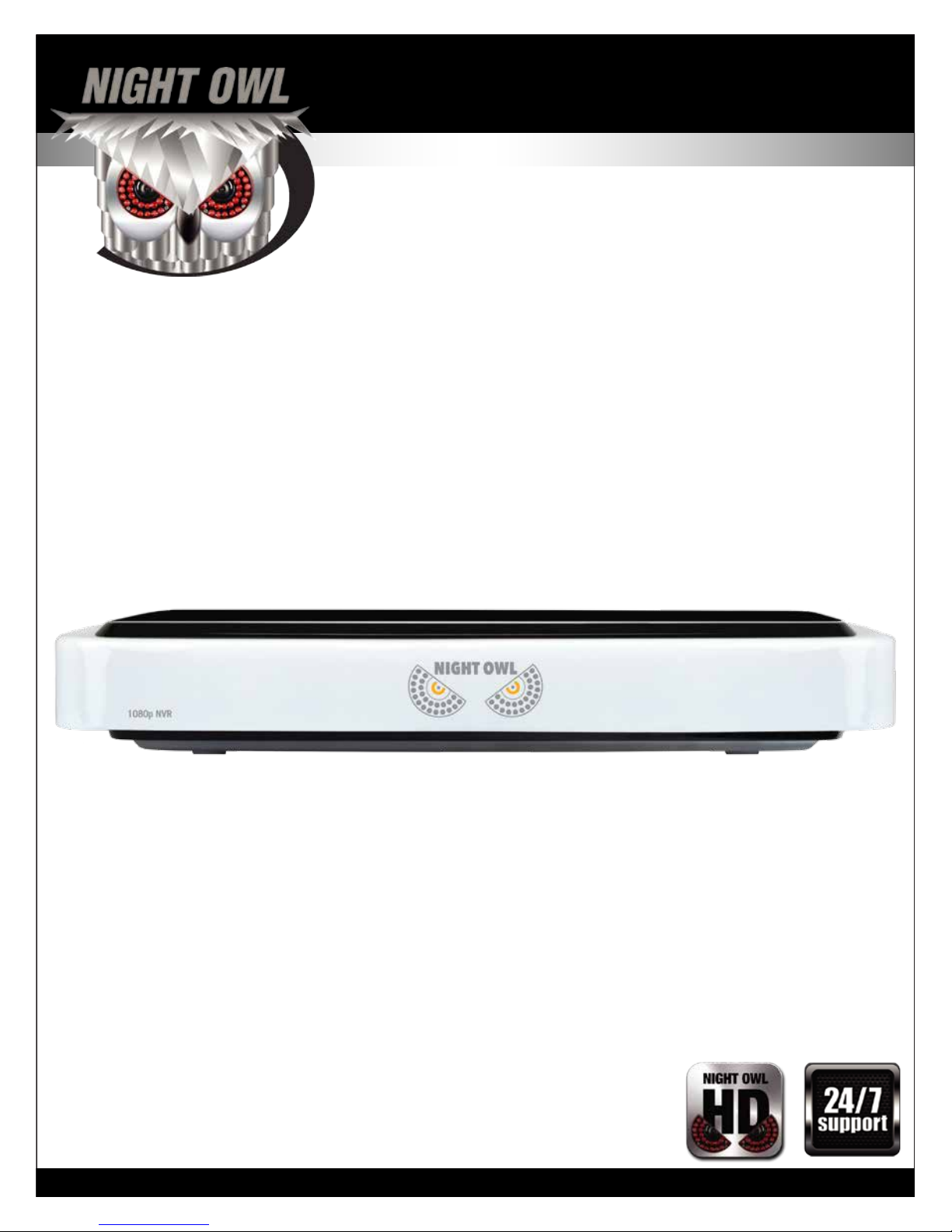

NVR10 SERIES
4/8 CHANNEL
USER MANUAL

For more information on this product visit www.NightOwlSP.com 2
TABLE OF CONTENTS
Chapter 1: FCC WARNINGS .............................................................
...........................................................
.........................................................
................................................................
.......................................................
............................................
........................................................................
..............................................................................
....................................................
.................................................................
...................................................................................
......................................................
....................................................................
..................................................
..............................................................
..............................................................
...........................................
...............................................
5
Chapter 2: SAFETY INSTRUCTIONS 6
Chapter 3: SPECIFICATIONS 8
8
8
............................................................... 9
10
11
13
13
14
16
16
17
19
19
20
20
20
21
23
23
25
26
26
3.1. System Requirements
3.2. Package Contents
3.2.1. NVR Diagram
3.2.2. Camera Diagram
..................................
3.2.3. Mouse and Remote Diagrams
Chapter 4: CAMERA INSTALLATION
Chapter 5: NVR INSTALLATION
4.1. Video/Power
4.2. Mounting
5.1. Connecting to TV
5.2. Power
Chapter 6: GETTING STARTED

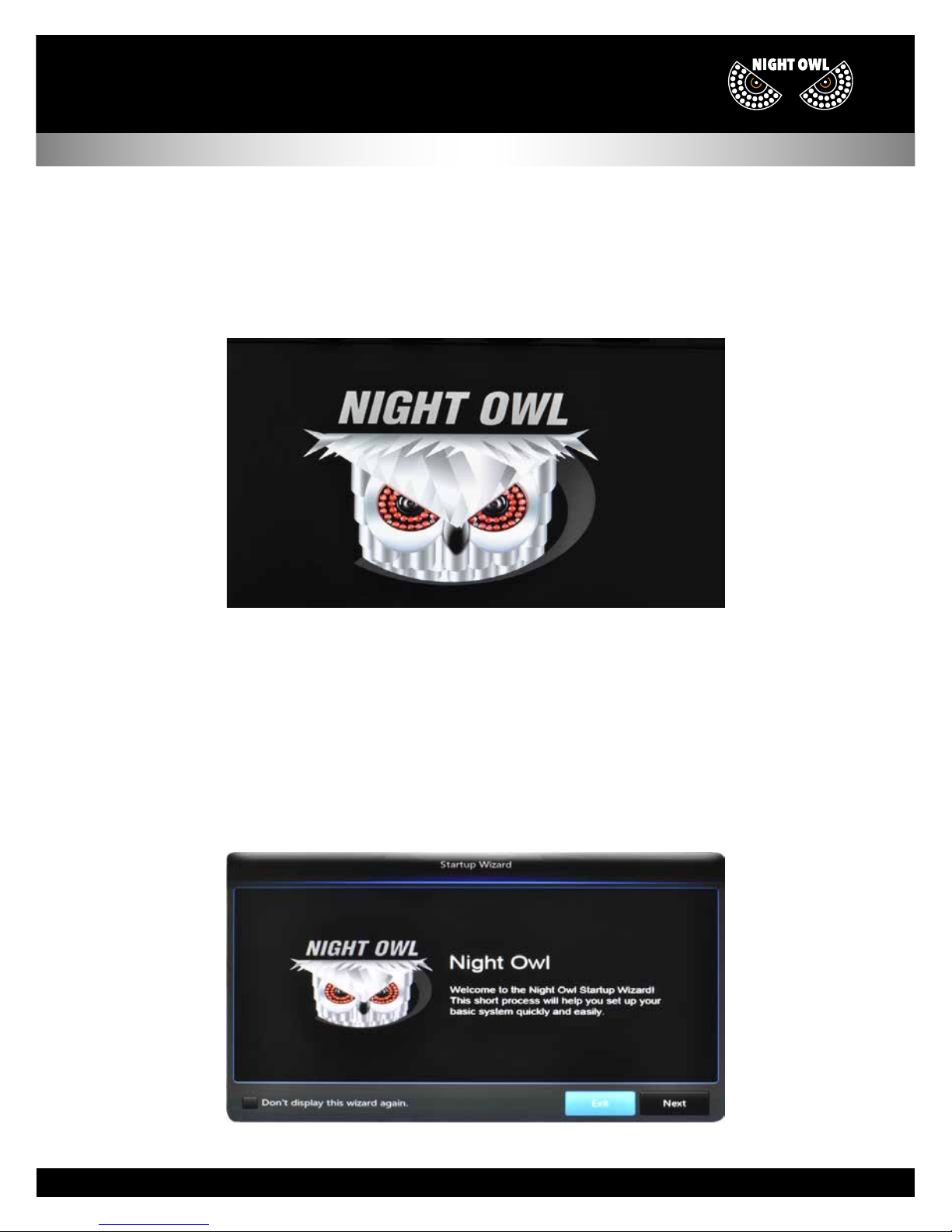

6.1. Startup Wizard
6.2. Night Owl HD Mobile App
6.3. Displays and Icons
6.3.1. Login Screen
6.3.2. Live View (All Channels)
.......................................
6.3.3. Live View (Single Channel)
.............................................................
6.3.4. Menu Screen
...............................................
.....................................................................
........................................................................
7.1. General Menu
7.1.1. Display
26
.........................................................................
a. Output
Chapter 7: MENUS AND SETTINGS

For more information on this product visit www.NightOwlSP.com
3
TABLE OF CONTENTS
43
c. NTP .............................................................................
27
28
28
29
31
..............................................................
......................................................................
7.1.2. Network
b. Privacy Zone
31
32
33
33
34
34
35
36
37
38
39
39
40
40
40
41
42
42
43
43
7.4. Device Menu
7.2. Cameras Menu
7.3. Record Menu
7.5. System Menu
7.4.2. PTZ
a. Basic
b. Record Schedule
c. Mainstream
7.5.1. General
a. Settings
b. DST
......................................................................
...........................................................................
........................................................
.................................................................
.......................................................................
............................................................................
............................................................................
......................................................................
.......................................................................
.......................................................................
.............................................................................
a. Main
b. Substream
c. Email
d. Email Schedule
e. DDNS
............................................................................
...........................................................................
..........................................................
..........................................................................
..................................................................
7.1.3. Alarm
a. Motion
7.2.1. Settings
7.3.1. General
..........................................................................
.........................................................................
......................................................................
......................................................................
......................................................................
7.3.2. Events
7.3.3. Settings
7.4.1. HDD
........................................................................
...................................................................

For more information on this product visit www.NightOwlSP.com
4
TABLE OF CONTENTS
437.5.2. Users ............................................................................
45
46
48
48
49
50
51
51
51
52
52
55
58
60
61
62
63
64
67
69
70
7.5.4. Log
7.5.3. Info ...............................................................................
...............................................................................
7.6.1. Maintain
7.6.2. Events
7.6.3. Auto Upgrade
........................................................................
..........................................................................
...............................................................
7.6. Advanced Menu ....................................................................
8.3.2. Mac®Operating System
8.3.3. Port Forwarding
8.3.4. DDNS Registration
8.3.1. Windows®Operating System
8.3.5. Adding the DDNS to Your NVR
8.1. System Requirements
8.2. Setup
8.3. Network Configuration
Chapter 8: REMOTE ACCESS
..........................................................
............................................
...................................
..........................................................
.....................................................................................
...........................................................
......................................................
..........................................................
..................................
8.3.6. Internet Viewing ..........................................................
Chapter 9: GLOSSARY
Chapter 10: WARRANTY
Chapter 11: TROUBLESHOOTING
Chapter 12: CUSTOMER SUPPORT
Chapter 13: USER INFORMATION
......................................................................
...................................................................
...................................................
...................................................
................................................

For more information on this product visit www.NightOwlSP.com
5
CHAPTER 1:
FCC WARNINGS
FCC
FCC Compliance Statement
CAUTION!
This equipment has been tested and found to comply with limits for
Class B digital devices pursuant to Part 15 of Federal Communication
Commission (FCC) rules.
These limits are designed to provide reasonable protection against
frequency interference in residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and if not
installed or used accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee
that interference will not occur in television reception, which can be
determined by turning the equipment off and on. The user is encouraged
to try and correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
The Federal Communications Commission warns the user that changes
or modifications to the unit not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.

For more information on this product visit www.NightOwlSP.com
6
CHAPTER 2:
SAFETY INSTRUCTIONS
•Use the provided power adapter.
Do not use this product with a power source that applies more than
the specified voltage.
•Never insert metal into the NVR case or its openings.
Inserting metal into the NVR case may cause electric shock.
•Do not operate in wet or dusty areas.
Avoid placing the NVR in areas such as a damp basement or dusty
attic.
•Do not expose the NVR to rain or use near water.
If the NVR accidentally gets wet, unplug it and contact technical
support immediately.
•Keep product surfaces clean and dry.
To clean the outside case of the NVR, use a lightly dampened cloth.
Do not use cleaning solutions or solvents.
•Do not install near any heat sources.
Do not install the NVR near any heat sources such as stoves, heat
registers, radiators, or electronics (including amplifiers) that produce
heat.
•Unplug the NVR when moving it.
Make sure that the NVR is unplugged before you move it. When
moving this device, be sure to handle it with care.
•Make sure there is good air circulation around the NVR.
This NVR uses an internal hard drive, which generates heat during
operation for video storage. Do not block vents on the NVR, as these
vents reduce the generated heat while the system is running. Place
this product in well-ventilated area.

For more information on this product visit www.NightOwlSP.com 7
CHAPTER 2:
SAFETY INSTRUCTIONS
•Do not attempt to remove the top cover.
•Handle the NVR carefully.
If you drop the NVR on any hard surface, it may damage the device.
If the NVR doesn’t work properly due to physical damage, contact
an authorized dealer for repair.
•It is recommended to use your NVR with an uninterruptable power
supply (UPS).
Connecting your NVR and cameras to a UPS allows continuous
operation even during power outages. The run-time duration will
depend on the rating of the UPS used.
If you observe any abnormal operation, unplug the NVR immediately
and contact technical support. Do not attempt to open the NVR to
diagnose the cause of the problem.
You may be subjected to severe electrical shock if you
remove the cover of the NVR.

For more information on this product visit www.NightOwlSP.com 8
CHAPTER 3:
SPECIFICATIONS
*Cameras, additional cables, power adapters and
splitters only included in certain security kits. Check
the product packaging for detailed kit contents.
iOS 4.3 or later
•
•
Please be sure that the mobile device you will use with your NVR
complies with the following specifications:
3.1. System Requirements
Android 4.0 or later
3.2. Package Contents
1 x HD NVR
Indoor/Outdoor Cameras*
Bundles of Camera Cables*
Mounting Hardware and Screws*
HDMI Cable
1 x RJ-45 Cable (Ethernet)
•
•
•
•
1 x Wireless Mouse
•
•
•
•
1 x Software CD
1 x Quick Setup Guide
•
•
1 x DC 15V/4A NVR Power Adapter
•
3 x Night Owl Security Stickers
•
1 x Remote Control (Includes Batteries)

For more information on this product visit www.NightOwlSP.com 9
CHAPTER 3:
SPECIFICATIONS

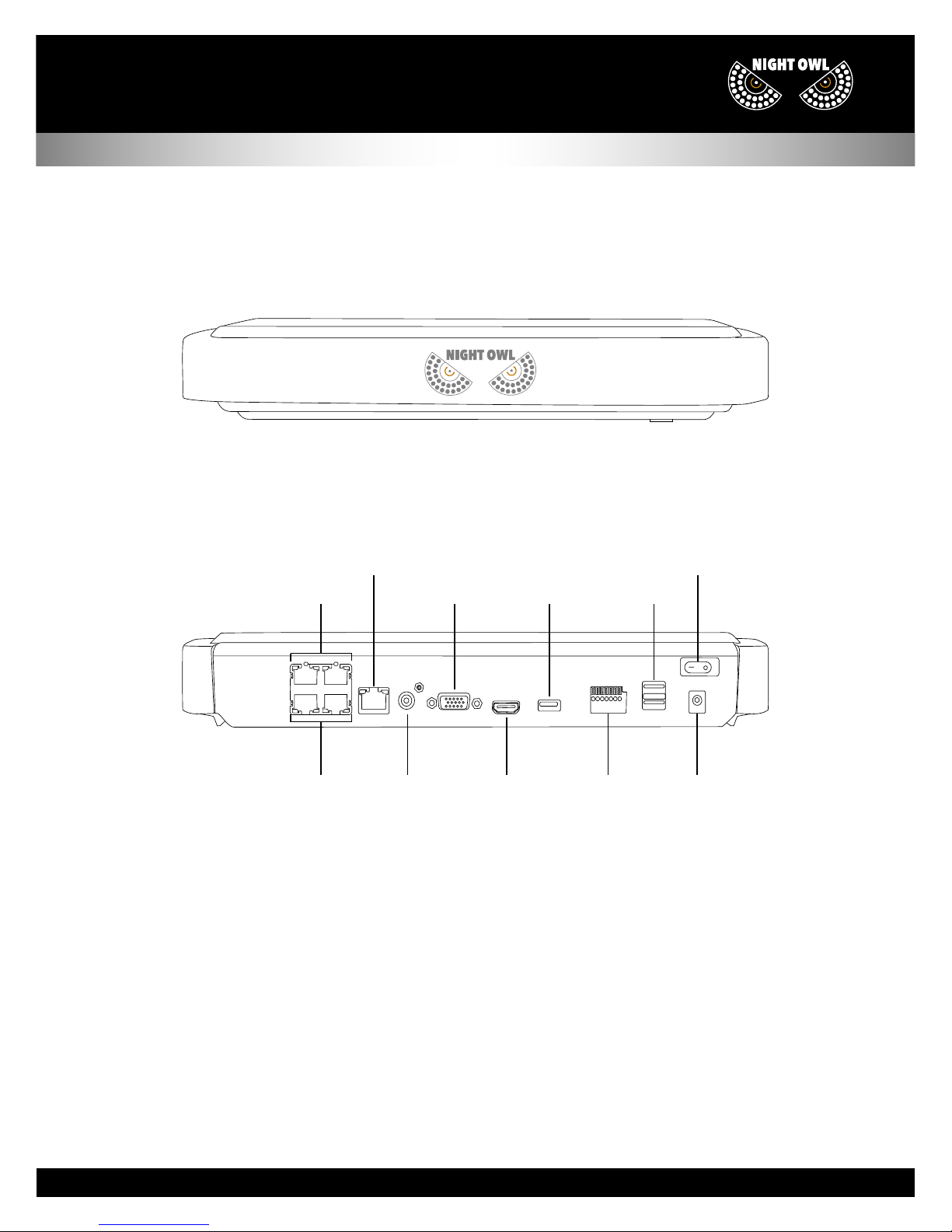

3.2.1. NVR Diagrams
FRONT VIEW
REAR VIEW
Images used are for reference only. Your product may slightly vary.
1080p NVR
HDMI Output Power
VGA Output USB 3.0 Port USB Ports
Audio Output
RJ-45 (Ethernet) Port
RJ-45 Port
Video Inputs
On/Off Switch
Alarm Ports

For more information on this product visit www.NightOwlSP.com 10
CHAPTER 3:
SPECIFICATIONS
3.2.2. Camera Diagram
CAMERA
1080p Resolution
Infrared (IR) LEDs
Wide Angle HD Lens
Base
Video/Power Cables

For more information on this product visit www.NightOwlSP.com 11
CHAPTER 3:
SPECIFICATIONS

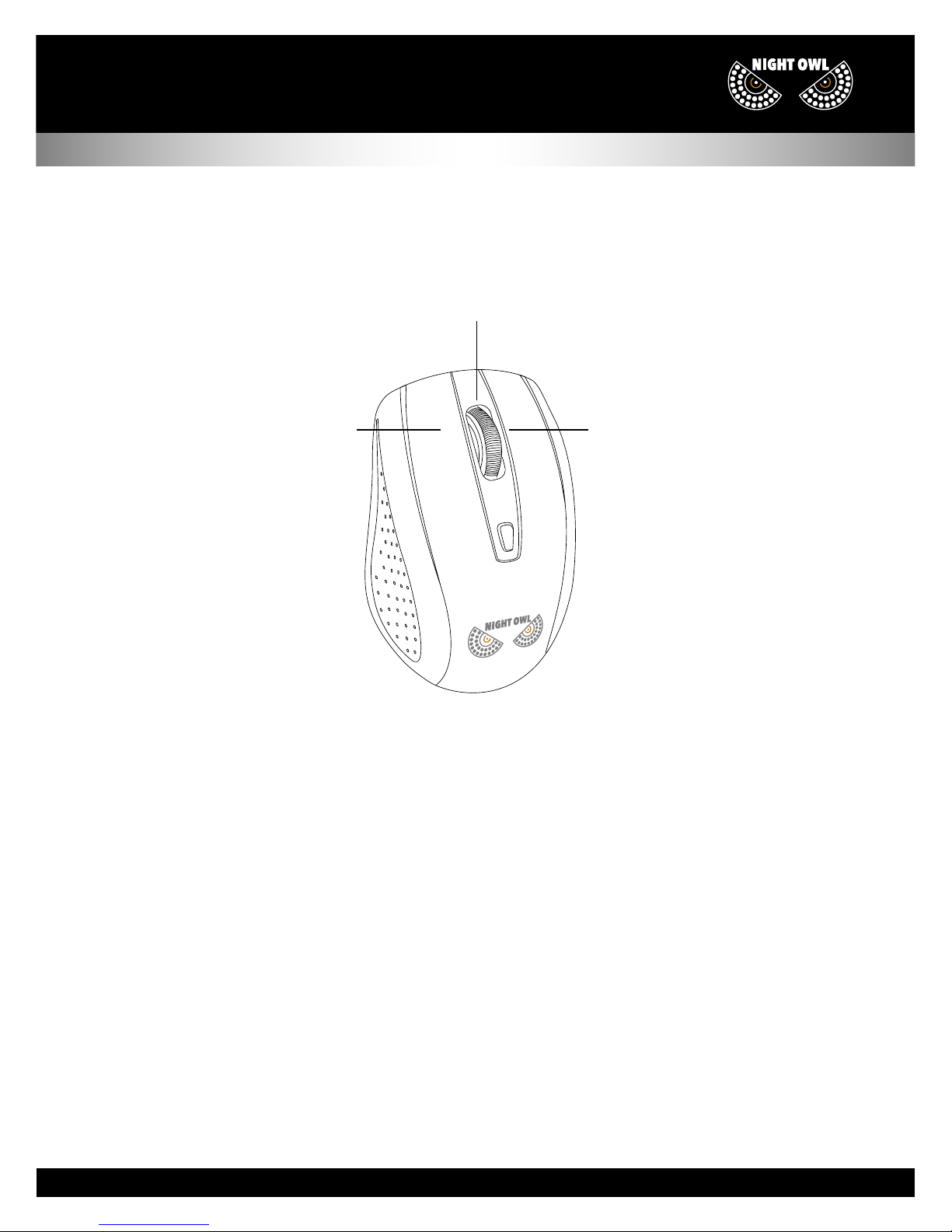

3.2.3. Mouse and Remote Diagram
Left/Select: choose a field or button on screen.
Right/Menu: when in Live View click to display the bottom menu bar.
When in a menu window, right click to exit the menu.
MOUSE
DPI
Left/Select Button Right/Menu Button
Scroll Wheel

For more information on this product visit www.NightOwlSP.com 12
CHAPTER 3:
SPECIFICATIONS
REM-NVR
Battery Compartment
REMOTE
1
4
2 3
56
78
0
ALL
SEARCH
MENU
SEL
9
AUDIO/ MUTE
All Menu
Up
Pause
Down
Mute
Stopped
Quad View
Fast Forward
Select
Rewind
Play
Record

For more information on this product visit www.NightOwlSP.com 13
CHAPTER 4:
CAMERA INSTALLATION

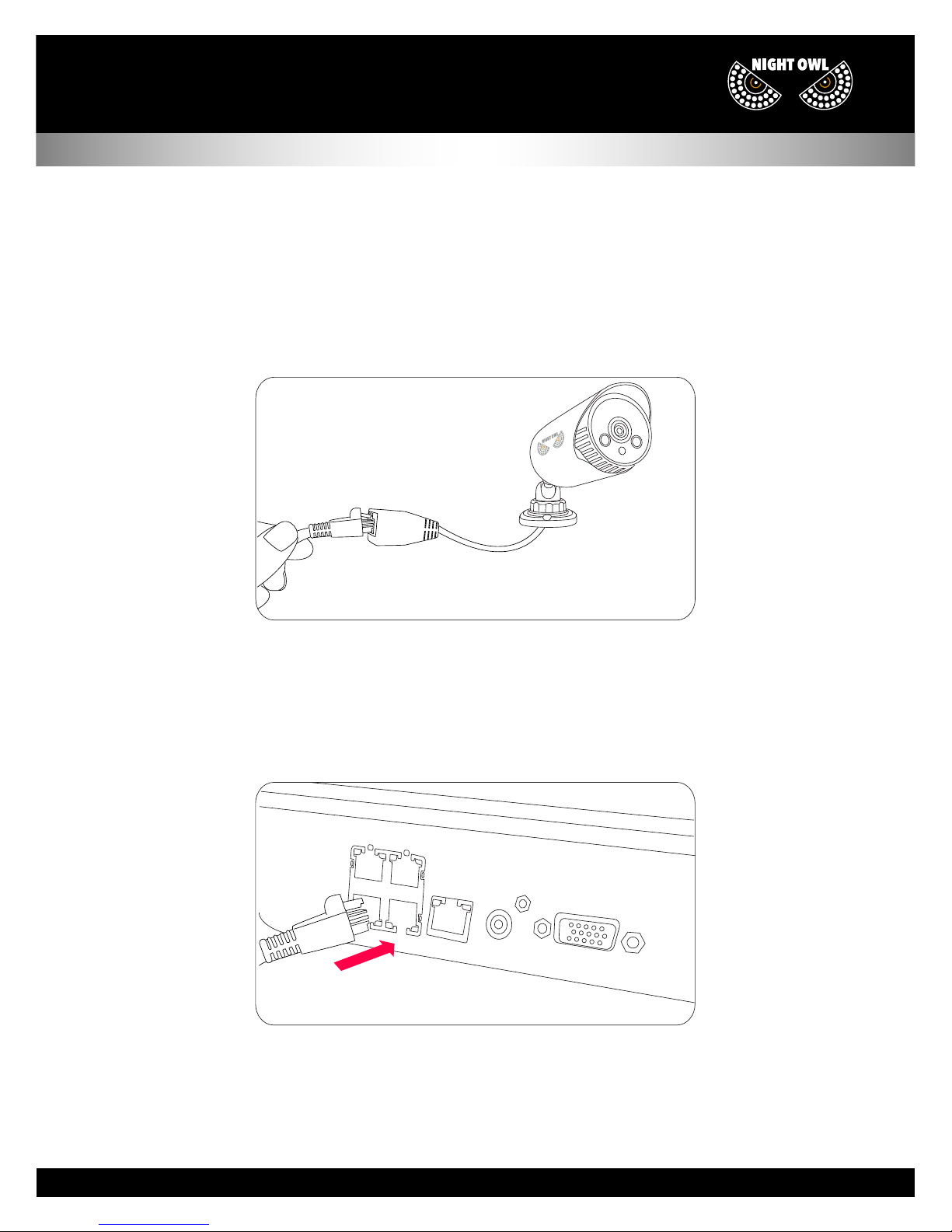

4.1. Video/Power
1. Locate an included 60 foot PoE camera cable.
2. Connect one end of the cable to the connector attached to the
camera.
3. Plug the other end into a Video Input port on the back panel of
the NVR.
4. Repeat for each camera, noting the channel number each camera
is plugged into.
Ethernet IP Camera
NVR

For more information on this product visit www.NightOwlSP.com 14
CHAPTER 4:
CAMERA INSTALLATION
*Cameras, additional cables, power adapters and splitters
only included in certain security kits. Check the product
packaging for detailed kit contents.
Make sure all cameras are working prior to mounting by
connecting them as described in the section above.
Once all cameras are confirmed to be fully operational,
you can run the cables and mount the cameras at their
final locations.
4.2. Mounting the Cameras
1. Locate a camera and choose a location where you would like to
mount the camera.

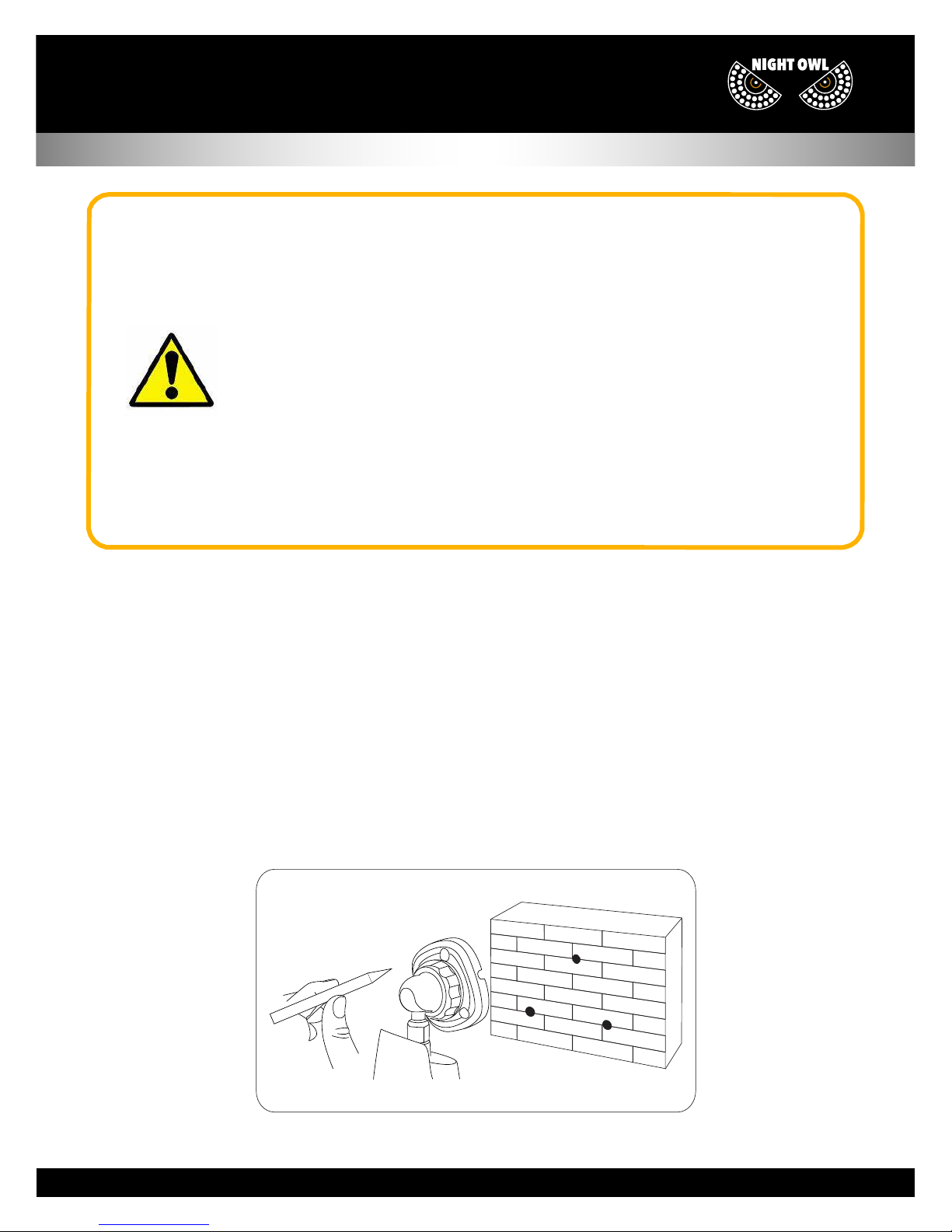

2. Indicate screw positions by marking three holes on the surface
where you plan to mount the camera, using the holes in the camera
base as a guide.

For more information on this product visit www.NightOwlSP.com 15
CHAPTER 4:
CAMERA INSTALLATION
Don’t feel like installing the system yourself?
Let InstallerNet™ do the work for you.
Contact us at 1-800-806-5513 or visit us at
www.NightOwlSP.com.
6. Once the base is screwed in place, make sure that the camera is
securely mounted by placing gentle pressure on the mount.
7. Adjust the camera housing to point in the direction of the area you
would like to monitor.
3. Using a drill bit slightly smaller than the included screw anchors,
drill into the mounting surface using the guide marks you placed in
the previous step.
4. Insert the screw anchors.
5. Line up the camera base holes with the screw anchors. Holding
the base in place, insert screws and tighten until secure.

For more information on this product visit www.NightOwlSP.com 16
CHAPTER 5:
NVR INSTALLATION
5.1. Connecting to a TV (via HDMI)
1. Locate the included HDMI cable.
2. Plug one end of the cable into the HDMI port on the back of the NVR.
3. Connect the other end of the cable to an available HDMI input on
your TV or monitor.
NVR
Monitor

For more information on this product visit www.NightOwlSP.com 17
CHAPTER 5:
NVR INSTALLATION
4. Select the appropriate video input channel on your TV or monitor
to view the NVR.

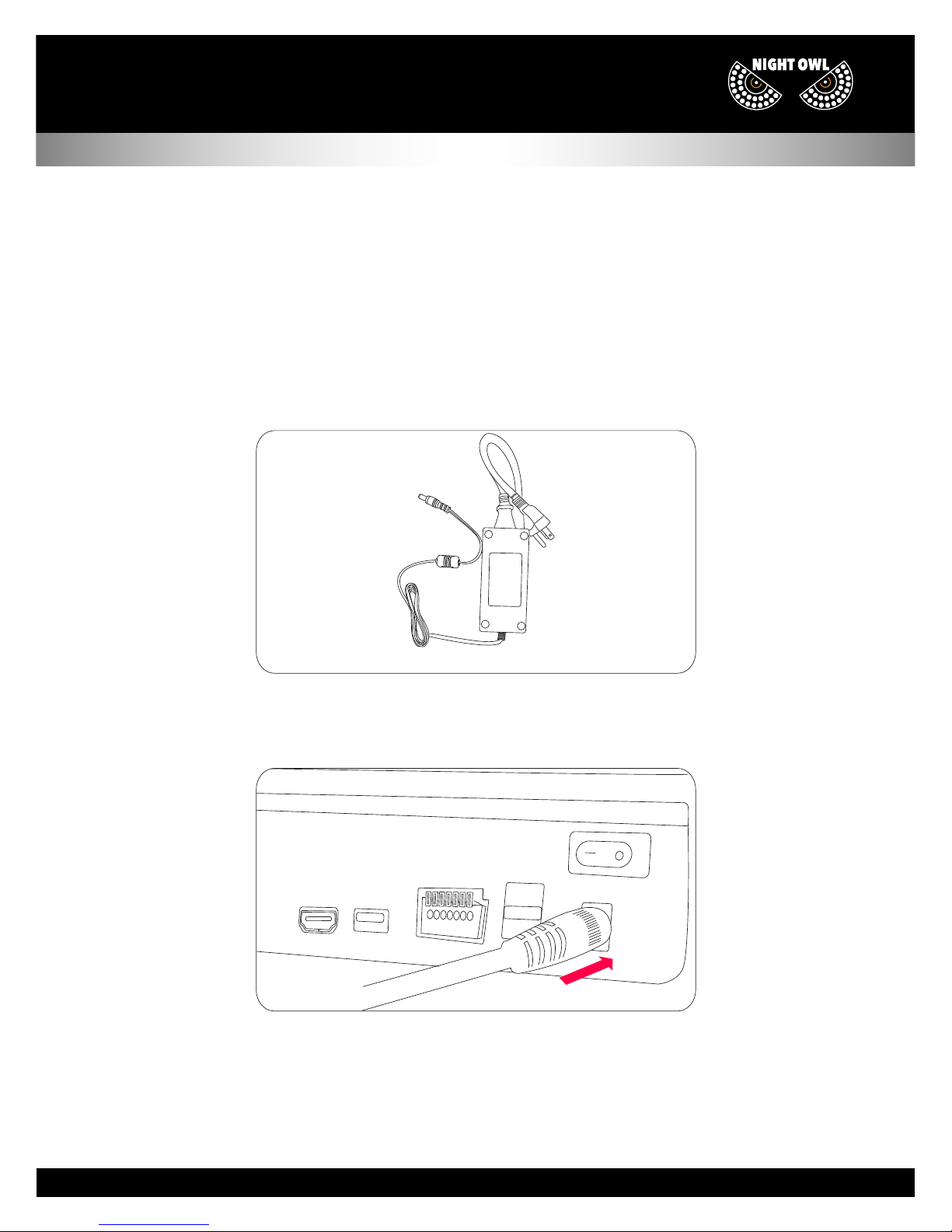

5.2. Power
1. Locate the labeled NVR power adapter; the camera power adapter
and NVR power adapter should never be interchanged.
2. Plug the included power adapter cable into the back of the NVR.
3. Plug the other end of the power adapter cable into an available
wall outlet. If you are using an uninterruptable power supply (UPS),
plug the adapter cable into one of its output sockets.
NVR Power Adapter
NVR

For more information on this product visit www.NightOwlSP.com 18
CHAPTER 5:
NVR INSTALLATION
If your TV does not have an HDMI port, you will need to
purchase a VGA or a BNC-to-RCA video cable.
For a VGA connection, attach one end of the VGA cable
to the DVR VGA port and the other end to your TV VGA
port.
For a BNC-to-RCA connection, attach the yellow RCA
video connector of the cable to a yellow Video Input
port on your TV. The opposite BNC video connector on
the cable should then connect to the Video Out (V-OUT)
port on the back of the DVR.
Plug into outlet

For more information on this product visit www.NightOwlSP.com 19
CHAPTER 6:
GETTING STARTED
6.1. Startup Wizard
When your NVR is powered on it will display the Night Owl logo while
initializing.
After initialization, you will be prompted to use the Startup Wizard. Follow
the on-screen instructions to:
•
•
•
create a system user name and password
connect your NVR to the internet
add your device to the Night Owl mobile app for viewing

For more information on this product visit www.NightOwlSP.com 20
CHAPTER 6:
GETTING STARTED
You can toggle the Startup Wizard from appearing at
each power cycle by checking off the tick box at the
welcome screen.
6.2. Night Owl HD Mobile App
The Night Owl HD mobile app lets you access your NVR remotely with
live viewing from your tablet or smartphone. Download our free app at
the App or Play store!
For more information about the Night Owl HD app please visit us at
www.NightOwlSP.com and download the manual.
6.3.1. Login Screen
6.3. Displays and Icons
The following sections will describe the 3 main screens you will access
for login, playback and recording, and configuration.
