Nikon WP-CP5 User manual

WATERPROOF CASE
User’s Manual
En

i
For Your Safety
To prevent damage to your Nikon product or injury to yourself or to others,
read the following safety precautions in their entirety before using this equip-
ment. Keep these safety instructions where all those who use the product
will read them.
The consequences that could result from failure to observe the precautions
listed in this section are indicated by the following symbol:
This icon marks warnings, information that should be read before using this
Nikon product to prevent possible injury.
WARNINGS
Turn camera off immediately in the event
of malfunction
Should you notice smoke or an unusual
smell coming from the equipment,
remove the battery from the camera
immediately, taking care to avoid burns.
Continued operation could result in
injury. After removing the battery, take
the equipment to a Nikon-authorized
service representative for inspection.
Do not use in the presence of flammable
gas
Do not use electronic equipment in the
presence of flammable gas, as this could
result in explosion or fire.
Observe caution when using the strap
Never place the strap around the neck
of an infant or child.
Keep out of reach of children
Particular care should be taken to pre-
vent infants from putting small parts
into their mouths.
Do not disassemble
Failure to observe this precaution could
result in injury or product malfunction.
Should the product break as the result
of a fall or other accident, take it to a
Nikon-authorized service representative
for inspection, being careful not to in-
jure yourself on the broken parts.
Observe proper precautions when han-
dling camera batteries
If improperly handled, batteries may
emit gases that will collect inside the
waterproof case, where they may cause
explosion or fire. Observe the follow-
ing precautions when handling camera
batteries:
• Use only batteries approved for use in
the camera.
• Batteries are prone to leakage when
fully discharged. Remove the camera
from the case when not in use.
• Should water enter the case, remove
the battery from the camera immedi-
ately.
• Keep the battery terminals dry. Failure
to observe this precaution could result
in injury or product malfunction.
Do not swallow silica gel or O-ring grease
The silica gel desiccant and O-ring
grease used in this product are not
edible.
Keep out of direct sunlight
Do not leave the WP-CP5 in direct
sunlight. The case could focus sunlight,
causing fire.

ii
Do not dive while holding
To prevent injury caused by the case
striking the body, do not jump or dive
into water while holding the WP-CP5.
Do not use below 40m
Do not use at depths below 40m
(130ft). Failure to observe this precau-
tion could result in leakage or other
malfunction.
Keep the case watertight
Do not clean the case with a high-pres-
sure jet. Do not open the case where it
would be exposed to dust or sand, and
be sure to remove any foreign objects
from the O-ring and any parts of the
case that are in contact with the O-
ring before closing the case. Failure to
observe these precautions could result
in leakage.
Do not exposure to high temperatures
Do not expose the product to tem-
peratures over 40°C (104°F). Failure to
observe this precaution could cause the
product to warp, resulting in leakage.
Observe caution when operating the
flash
Using the flash close to your subject’s
eyes could cause temporary visual
impairment. Particular care should
be observed if photographing infants,
when the flash should be no less than
one meter (39in.) from the subject.

iii
Cautions
To ensure continued enjoyment of your Nikon product, observe the following
precautions when storing or using the device.
Preventing Leakage
WATER INSIDE THE CASE COULD NOT ONLY EXPOSE THE CAMERA TO IRREPARABLE DAMAGE BUT ALSO RESULT
IN FIRE, ELECTRIC SHOCK, OR EXPOSURE TO POISONOUS GASES. THE ENTRY OF WATER INTO THE CASE CAN BE
PREVENTED BY OBSERVING THE FOLLOWING PRECAUTIONS:
• Before sealing the case, examine the O-ring, watertight channel, and any parts of
the case that are in contact with the O-ring carefully to ensure that they are free of
dirt, hair, lint, dust, sand, and other foreign objects. Make sure that the O-ring is not
twisted or out of position.
• The O-ring requires periodic replacement. Replace the O-ring immediately if it is dam-
aged, cracked, warped, or has lost elasticity. O-rings should be replaced at least once
a year; do not use a worn O-ring or a type of O-ring or O-ring grease not designated
for use in this product. Do not use NIKONOS O-ring lubricant (grease).
• Be careful not to damage the O-ring when removing it from the case. Do not use
metal objects or objects with sharp points when removing the O-ring.
• Do not use force when removing or positioning the O-ring. Excessive force may per-
manently stretch the ring, causing the case to leak.
• To prevent wear, use only COOLPIX O-ring grease designated for use with this prod-
uct. Do not use NIKONOS O-ring lubricant (grease) or other types of O-ring grease.
• Do not open the waterproof case in areas exposed to spray, high winds, dust, or
sand.
• Do not drop the case, place under heavy objects, or subject to excessive force. Failure
to observe this precaution could cause the case to warp, resulting in leakage.
• In the event of leakage, stop use immediately, dry the camera and the interior of the
case, and take the camera and case to a Nikon-authorized service representative.
Shock and Vibration
The waterproof case is not designed to protect the camera from blows or vibration. Do
not drop the case, strike it against hard objects, throw it into the water, jump into the
water holding the case, or leave the case in an area subject to extreme vibration. Failure
to observe these precautions could result in damage to the camera.
Maximum Depth
The WP-CP5 is waterproof to 40m (130ft). At greater depths, the case could leak,
break, or change shape, resulting in damage to the camera.
Before using the WP-CP5 in or near water, test for leaks as described on pages 6–7
and 12 of this manual.

iv
Temperature
Do not leave the case in areas exposed to high temperatures, such as inside a car, near
a heater, on a beach, or in direct sunlight. Failure to observe this precaution could
weaken or warp the case, resulting in damage to the camera. Sudden changes in
temperature could result in condensation inside the case, which could also damage the
camera. To prevent condensation:
• Before exposing the case to sudden changes in temperature, place it in a sealed plastic
bag. Do not open the bag until the case has reached the same temperature as its
surroundings.
• Place the supplied desiccant (silica gel) in the case with the camera as directed on
page 10 of this manual.
• Do not expose the case to high temperatures by leaving it on the beach or in direct
sunlight before entering the water.
Chemicals
• Do not expose the case to volatile chemicals or their vapors. Failure to observe this
precaution could result in damage to the case.
• Do not use chemical detergents, rust inhibitors, thinner, alcohol, or other volatile
chemicals when cleaning the case. Wash in fresh water only.
• Use only desiccants designated for use with this product (see page 19).
• Use only COOLPIX O-ring grease designated for use with this product (see page 19).
Do not use NIKONOS O-ring lubricant (grease).
• Do not use sealants or anti-fog chemicals.
• Do not handle the case after applying sunscreen. Sunscreen can damage the clear
plastic parts of the case.
• Do not apply stickers to the case, as the adhesive could cause the case to deterio-
rate.
Travelling by Air
If possible, include the case in your carry-on baggage when travelling by air. When
packing the case with checked luggage, leave the case open or remove the O-ring. If
the case is sealed, changes in air pressure may damage the case or prevent the case
from opening.
High Altitudes
When travelling from high to low altitudes, open the case periodically to equalize the
pressure. If the case is kept sealed, changes in air pressure may damage the case or
prevent the case from opening.

v
Table of Contents
For Your Safety ................................................................................................ i
Cautions ........................................................................................................... iii
Notices.............................................................................................................. vi
Introduction 1
Package Contents............................................................................................ 1
Parts of the WP-CP5 ........................................................................................ 2
Overview.......................................................................................................... 4
Check for Leaks 6
Insert the Camera 8
1. Ready the Camera ....................................................................................... 8
2. Insert the Camera........................................................................................ 9
3. Insert Desiccant............................................................................................ 10
4. Perform a Final Check ................................................................................. 10
5. Close the Case.............................................................................................. 11
Check for Leaks Again 12
Take Pictures 13
1. Turn the Camera On.................................................................................... 13
2. Adjust Settings............................................................................................. 13
3. Take Pictures................................................................................................ 14
Clean the Case 15
Maintenance 17
Caring for the O-ring ...................................................................................... 17
Storage............................................................................................................. 19
Technical Notes 19
Specifications................................................................................................... 19
Optional Accessories ....................................................................................... 19

vi
Notices
• No part of the manuals included with
this product may be reproduced, trans-
mitted, transcribed, stored in a retrieval
system, or translated into any language
in any form, by any means, without
Nikon’s prior written permission.
• Nikon reserves the right to change the
specifications of the hardware and soft-
ware described in these manuals at any
time and without prior notice.
• Nikon will not be held liable for any
damages resulting from the use of this
product.
• While every effort has been made to
ensure that the information in these
manuals is accurate and complete, we
would appreciate it were you to bring
any errors or omissions to the attention
of the Nikon representative in your area
(address provided separately).
Life-Long Learning
As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and
education, continually-updated information is available on-line at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support
• For users in Asia, Oceania and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information, tips, answers to
frequently-asked questions (FAQs), and general advice on digital imaging and photog-
raphy. Additional information may be available from the Nikon representative in your
area. For contact information, visit http://nikonimaging.com/
Before using this product, be sure that the camera is functioning normally and that
the case does not leak ( 6–7, 12). Failure to check for leaks before using the
product could result in irreparable damage to the camera, batteries, or memory
card. Nikon will not be held liable for damages or lost profits that may result from
leakage or product malfunction.
Important: Before Using This Product
Nikon COOLPIX cameras are designed to the highest standards and include com-
plex electronic circuitry. Only Nikon brand electronic accessories (including battery
chargers, batteries, and AC adapters) certified by Nikon specifically for use with this
Nikon digital camera are engineered and proven to operate within the operational
and safety requirements of this electronic circuitry.
For more information about Nikon brand accessories, contact a local authorized
Nikon dealer.
Important: Use Only Nikon Brand Electronic Accessories
Use only with cameras that list the WP-CP5 in the “Optional Accessories” section of
the camera manual. Do not place other objects in the WP-CP5. Additional compat-
ibility information may be available from the websites listed below.
Important: Use Only with Compatible Cameras

1
Introduction
Introduction
Thank you for your purchase of a WP-CP5 waterproof case for compatible
Nikon digital cameras. The WP-CP5 is waterproof to a depth of 40 m (130ft),
allowing pictures to be taken underwater or in mist and rain. This manual
has been written to help you enjoy taking pictures using the waterproof case.
Keep this manual where all those who use the product will read it, and be sure
to read both it and the camera manual thoroughly before use.
To make it easier to find the information you need, the following symbols and
conventions are used:
This icon marks cautions, informa-
tion that should be read before use
to prevent damage to the camera.
This icon marks tips, additional in-
formation that may be helpful when
using the camera.
This icon marks notes, information
that should be read before using
the camera.
This icon indicates that more infor-
mation is available elsewhere in this
manual.
WP-CP5 (with O-ring in place;
check that O-ring is undam-
aged before use)
COOLPIX O-ring
grease
Spare O-ring
WP-AN1 strap
En
User's Manual
De
Fr
Es
It
Ck
Ch
Kr
WATERPROOF CASE
User’s Manual (this booklet)
T
a
k
e t
h
e case an
d
accessories out o
f
t
h
e
b
ox an
d
c
h
ec
k
t
h
at t
h
e pac
k
age
contains all the following items:
Package Contents
Warranty
Warranty
Silica gel desiccant
(1 package of 5; reseal
after opening)

Introduction
2

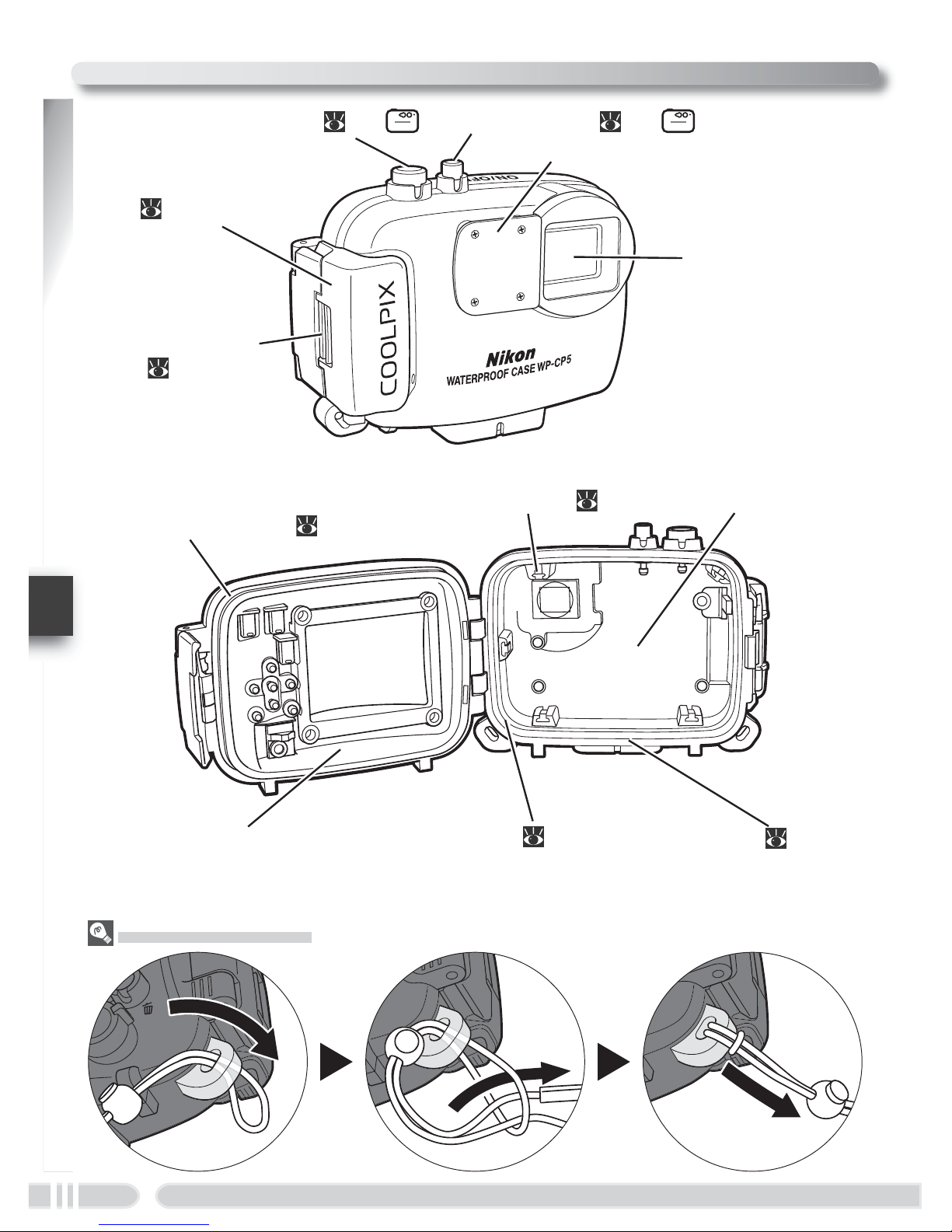

Parts of the WP-CP5
O-ring/O-ring guide ( 17)
Front coverCamera guides ( 9)
Rear cover Watertight channel ( 10, 17)
Shutter-release button
( 14; ) Power switch ( 13; )
Diffusion panel
Buckle
( 6, 9, 11)
Lens window
Attaching the Strap
Latch
(6, 9, 11)
O-ring seal ( 10, 17)

3
Introduction

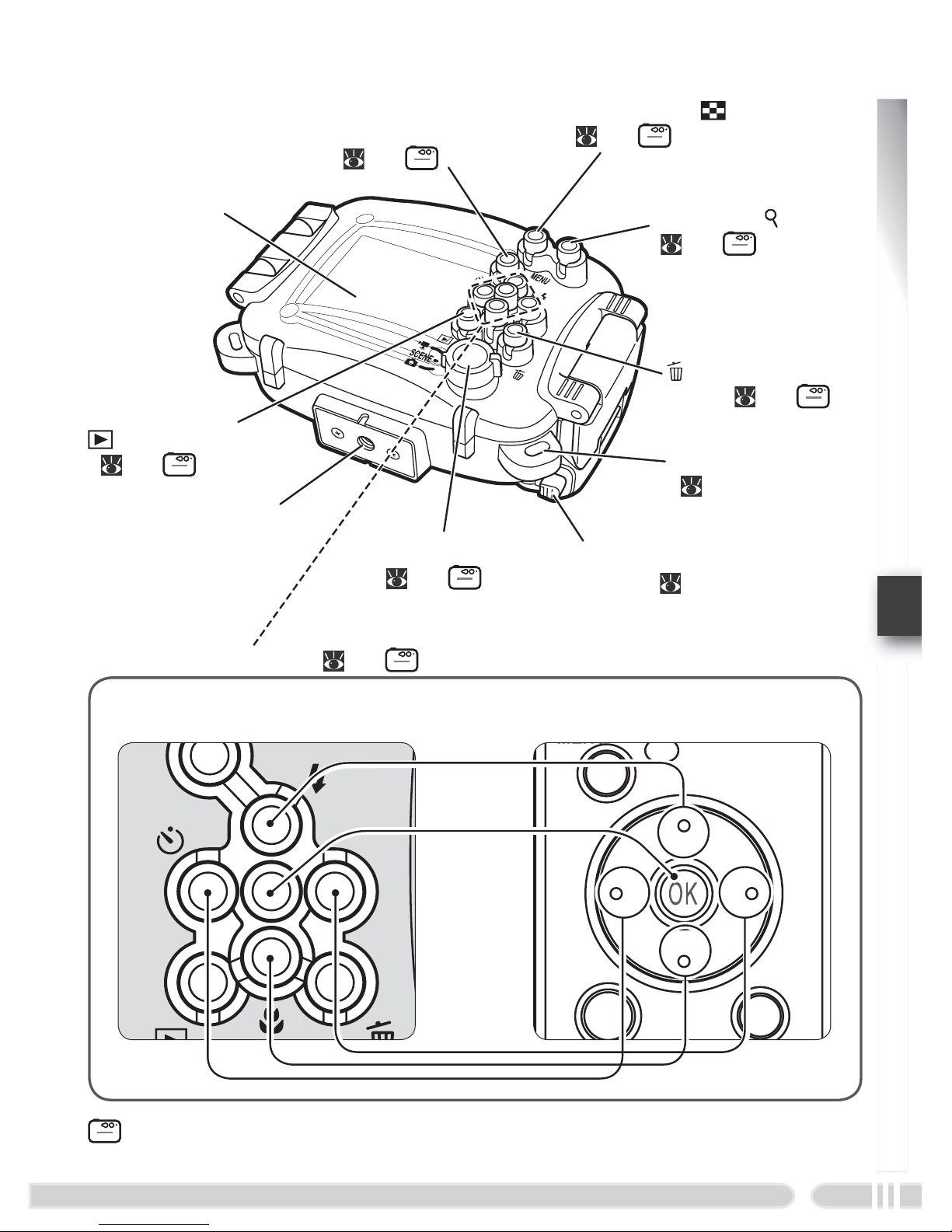

: Performs same function as corresponding camera control. See camera Guide to
Digital Photography for details.
MENU button
(13; )
Mode selector
( 13; )
Zoom out (W/) button
(14; )
Zoom in (T/) button
(14; )
Monitor window
(playback) button
( 14; )
(delete) button
(13; )
Tripod socket
Eyelet for strap
(2)
Buckle release
button ( 9)
Camera multi selectorWaterproof case
Multi selector ( 13; )
