Nikon Coolscan III LS-30 User manual

35 mm Film Scanner
LS-30
User's Guide

ii Nikon LS-30 35 mm Film Scanner User’s Guide
Cautions
• The reproduction of this manual in whole or in part is prohibited
save in cases in which Nikon’s prior permission has been
obtained.
• The information contained in this manual is subject to change
without notice.
• Nikon has made every effort to produce a perfect manual, but
should you find any mistakes, we would be grateful if you would
kindly let us know. The address of Nikon’s representative in
your area is provided separately.
• Nikon is not liable for damages resulting from the use of this
product.
Symbol
The symbols in this manual signify important safety precau-
tions. All passages marked with this indication should be read prior
to installation to prevent injury to yourself or to others. These
indications are also placed in the table of contents to mark passages
that should be read before use.
✔Symbol
The ✔symbols in this manual signify the need for caution when
using the product. These indications are placed in sections that
should be read before operation to prevent damage to the product.
Warning!
The CD-ROMs on which the software and manuals are distributed
should not be played back on audio CD equipment. Playing CD-
ROMs on an audio CD player could cause hearing loss or damage
the equipment.
Trademark Information
Macintosh is a registered trademark of Apple Computer, Inc. Microsoft and
Windows are registered trademarks, and Windows NT a trademark, of Microsoft
corporation. IBM PC/AT is a trademark of International Business Machines
Corporation. i386, i486, Pentium, and Pentium II are trademarks of Intel Corpora-
tion, U.S.A. Adobe and Acrobat are registered trademarks, and Photoshop a
trademark, of Adobe Systems, Inc. The Clean Image function incorporated in the
LS-30 makes use of Digital ICE technology developed by Applied Science Fiction
Inc. Digital ICE and the Digital ICE logo are trademarks of Applied Science
Fiction Inc. All other trade-names mentioned in this manual are the trademarks or
registered trademarks of their respective holders.

iii
Nikon LS-30 35 mm Film Scanner User’s Guide
Federal Communications Commission (FCC) Radio
Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
CAUTIONS
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Nikon Corporation
may void the user’s authority to operate the equipment.
SCSI Cable
Depending on your region, a SCSI cable or ferrite core is provided with
your scanner. The SCSI cable used with your scanner must be that
provided or must have the provided ferrite core attached. Using other
interface cables may exceed the limits of the class B Part 15 of FCC rules.
Notice for customers in Canada
CAUTION
This class B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.
ATTENTION
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Notice for customers in European countries
ACHTUNG
Dieses Gerät entspricht den Bestimmungen der EG-Direktive 87/308/EEC
zur Störungsunterdrückung. Lärmemission kleiner 70 dBA

iv Nikon LS-30 35 mm Film Scanner User’s Guide
Safety Precautions
Observe the following safety precautions when installing and
operating the LS-30:
•Do not allow your fingers, hair, or clothing into the film
insertion slot
Do not insert your fingers, hair, or clothing into the film inser-
tion slot on the front of the scanner when the power is on and a
film adaptor is in place. Doing so could result in injury.
•Do not disassemble
The interior of the scanner contains areas of high voltage.
Removing the scanner’s cover could result in fire or electric
shock. Contact your dealer or Nikon service office for inspec-
tion or repair.
•Do not modify
Do not modify the equipment. Doing so could cause fire or
electric shock.
•Do not place heavy objects on the scanner
•Place on a stable surface
Do not use the equipment on an unstable surface or on a surface
which is not horizontal. This could cause the equipment to fall,
resulting in injury.
•Do not drop
Do not subject the equipment to strong shocks, as this could
cause malfunction or breakage. Note that the scanning unit
contains glass parts; if the scanner is dropped, care should be
taken to avoid contact with broken glass.
•Keep clean
Use a dry cloth to remove any dirt from metal sections of the
scanner and their surroundings. Using the equipment when dirty
could cause fire.

v
Nikon LS-30 35 mm Film Scanner User’s Guide
•Do not place foreign objects inside the scanner
Do not allow foreign objects of any kind into the unit. If
flammable objects, metal, or water come in contact with the
interior of the scanner, malfunction, fire, or electric shock could
result.
• Do not place vases, flowerpots, cups, cosmetics, vessels contain-
ing chemicals or water, or small metal articles on top of the
equipment. Should such articles or their contents fall into the
equipment, fire, electric shock or malfunction could result.
• Exposing the scanner to volatile substances such as alcohol,
benzine, thinner, or pesticides could cause malfunction, fire, or
electric shock.
• If foreign substances or water should find their way into the
equipment, turn off the power immediately, unplug the power
cord and contact your dealer or nearest Nikon service office.
Continued use could result in fire, electric shock or malfunction.
Particular care is advised in households with small children.
•When not using for an extended period
When not using the equipment for an extended period, remove
any film that may be in the adapters and take the adapters out of
the adapter slot. Turn off the equipment and unplug the power
cord. To prevent the accumulation of dust inside the equipment,
close the front cover.
•When performing routine maintenance
Before performing maintenance, turn the equipment off and
unplug the power cord.
•If you notice smoke or an unusual noise or smell from
the scanner, turn off the power immediately and then unplug
the power cord. Continued use could result in fire or electric
shock. After ensuring that the equipment has stopped smoking,
contact your dealer or Nikon service representative for informa-
tion on replacement or repair. DONOT attempt repairs yourself,
as this would be extremely dangerous.

vi Nikon LS-30 35 mm Film Scanner User’s Guide
When transporting the scanner
The LS-30 is for use only in the country of sale. Nikon will not be
held responsible for consequences resulting from use overseas.
The scanning mechanism must be locked in its home position for
transport within the country. To return the scanning mechanism to
its home position, remove any adapters from the adapter slot and
then turn the scanner on. The status LED will blink while the
scanning mechanism returns to the home position. Wait until the
status LED glows steadily, then turn off and unplug the scanner.

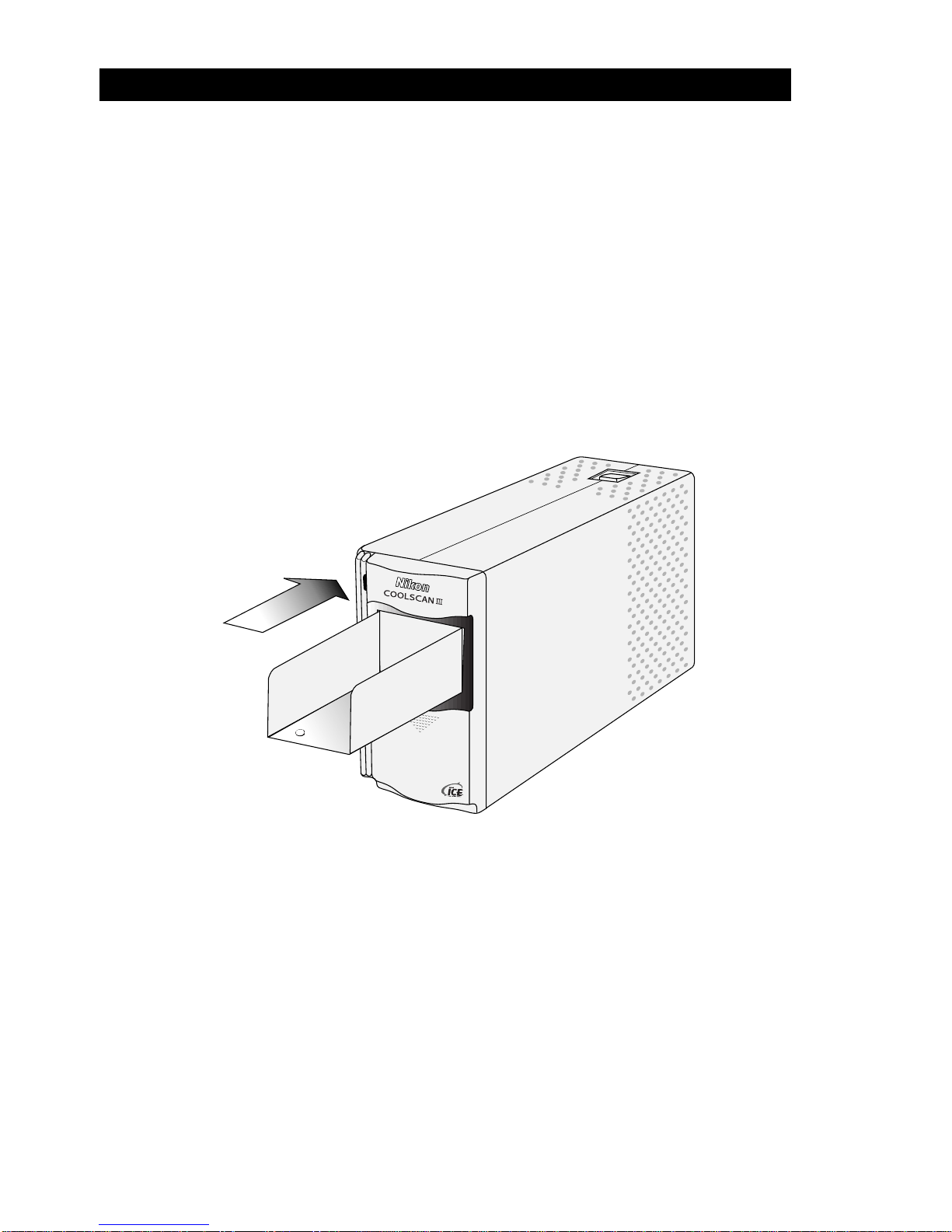

Place the guard in the adapter slot as shown below, sliding it in until
it contacts the back of the slot.
Remove the transport locking screws from the rear panel and screw
them into the holes provided in the side panel and the mouth of the
adapter slot (the hole in the mouth of the slot should align with the
hole in the guard). Close the front cover and pack the scanner and
adapters in the original packing material for transport.
✔Caution: Do not transport the scanner without first locking the
scanning mechanism with the transport lock screws. Moving the
scanner without the lock screws in place could damage the mecha-
nism.

vii
Nikon LS-30 35 mm Film Scanner User’s Guide
Notice concerning prohibition of copying or repro-
duction
Note that simply being in possession of material which has been
copied or reproduced by means of a scanner may be punishable by
law.
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities,
government bonds, or local government bonds, even if such
copies or reproductions are stamped “Sample.”
The copying or reproduction of paper money, coins, or securities
which are circulated in a foreign country is prohibited.
Unless the prior permission of the government has been ob-
tained, the copying or reproduction of unused postage stamps or
post cards issued by the government is prohibited.
The copying or reproduction of stamps issued by the govern-
ment and certified documents stipulated by law is prohibited.
• Cautions on certain copies and reproductions
The government has issued cautions on copies or reproductions
of securities issued by private companies (shares, bills, checks,
gift certificates, etc.), commuter passes, or coupon tickets,
except when a minimum of necessary copies are to be provided
for business use by a company. Also, do not copy or reproduce
passports issued by the government, licenses issued by public
agencies and private groups, ID cards, and tickets, such as
passes and meal coupons.
• Comply with copyright notices
The copying or reproduction of copyrighted creative works such
as books, music, paintings, woodcut prints, maps, drawings,
movies, and photographs is prohibited except when it is done for
personal use at home or for similar restricted and non-commer-
cial use.

viii
Contents
Nikon LS-30 35 mm Film Scanner User’s Guide
Contents
Safety Precautions.................................................................iv
1. Overview ............................................................... 1
2. Parts and Accessories......................................... 3
2.1 What’s in the Box..........................................................3
2.2 Parts of the LS-30.........................................................4
3. Setup ..................................................................... 5
3.1 Setting up the LS-30.....................................................5
3.2 Software Installation ...................................................16
4. Scanning ............................................................. 21
Appendix: Nikon Scan Controls ...................... 31
Menus, Tabs, and Information Displays ...............................31
Buttons..................................................................................32
Control Drawers....................................................................33
Preferences ..........................................................................35

1
1. Overview
Nikon LS-30 35 mm Film Scanner User’s Guide
1. Overview
Thank you for your purchase of a Nikon LS-30 scanner for 35 mm
film. The LS-30 is a high-speed, high-resolution scanner capable of
producing images suited to a wide variety of tasks, including desk-
top publishing, design, and multi-media publishing. Its modular
design allows you to change from scanning 35 mm slides to scan-
ning 35 mm strip film “on the fly.” An adapter for scanning IX240
film is available separately. The LS-30 uses a high-speed SCSI
interface for connection to computers running Mac OS System
Software 7.1 or later, Windows 95 or later, or Windows NT 4.0 or
later.
The scanner driver software provided with your scanner, Nikon Scan
2.1, offers sophisticated pre-scan editing of images, including
precise color correction, contrast, and brightness adjustment. Nikon
Scan can be launched from any TWAIN-compliant application
under Windows or from any application that supports Adobe
Photoshop plug-ins (version 4.0 or higher) on the Macintosh. Nikon
Scan can also be used as a “stand-alone” application, allowing you to
save scanned images to disk without the help of another application.
The user’s manuals for the LS-30 and Nikon Scan are divided into
three parts. This User’s Guide offers a brief introduction to setting
up the scanner and scanning images using Nikon Scan. More
detailed reference manuals for the scanner and for Nikon Scan are
provided on CD-ROM. To read these manuals you will need to
install the Adobe Acrobat Reader software included on the refer-
ence CD. In addition, a one-page Fast Track Guideis provided for
experienced users who want to get started with the minimum of
instruction. Where appropriate, this guide will refer readers to the
reference manuals or Fast Track Guidefor more information.
References to the manuals on CD are indicated by a icon in the
margin, references to the Fast Track Guideby a icon.

2
1. Overview
Nikon LS-30 35 mm Film Scanner User’s Guide
The chapters that follow provide a step-by-step guide to installing
your scanner and using Nikon Scan to scan 35 mm slides or strip
film. The next chapter, Parts and Accessories, lists the things you
should find packaged with your LS-30 and names the parts of the
scanner. This is followed by “Setup,” which guides you through the
process of connecting your scanner to a computer and installing
Nikon Scan. “Scanning” outlines the steps involved in using Nikon
Scan to scan slides and strip film. A separate reference section lists
the controls available in Nikon Scan. We hope that you find this
manual useful.

3
2. Parts and Accessories
Nikon LS-30 35 mm Film Scanner User’s Guide
2. Parts and Accessories
This chapter lists the items you should find packaged with your LS-
30 and names the parts of the scanner.

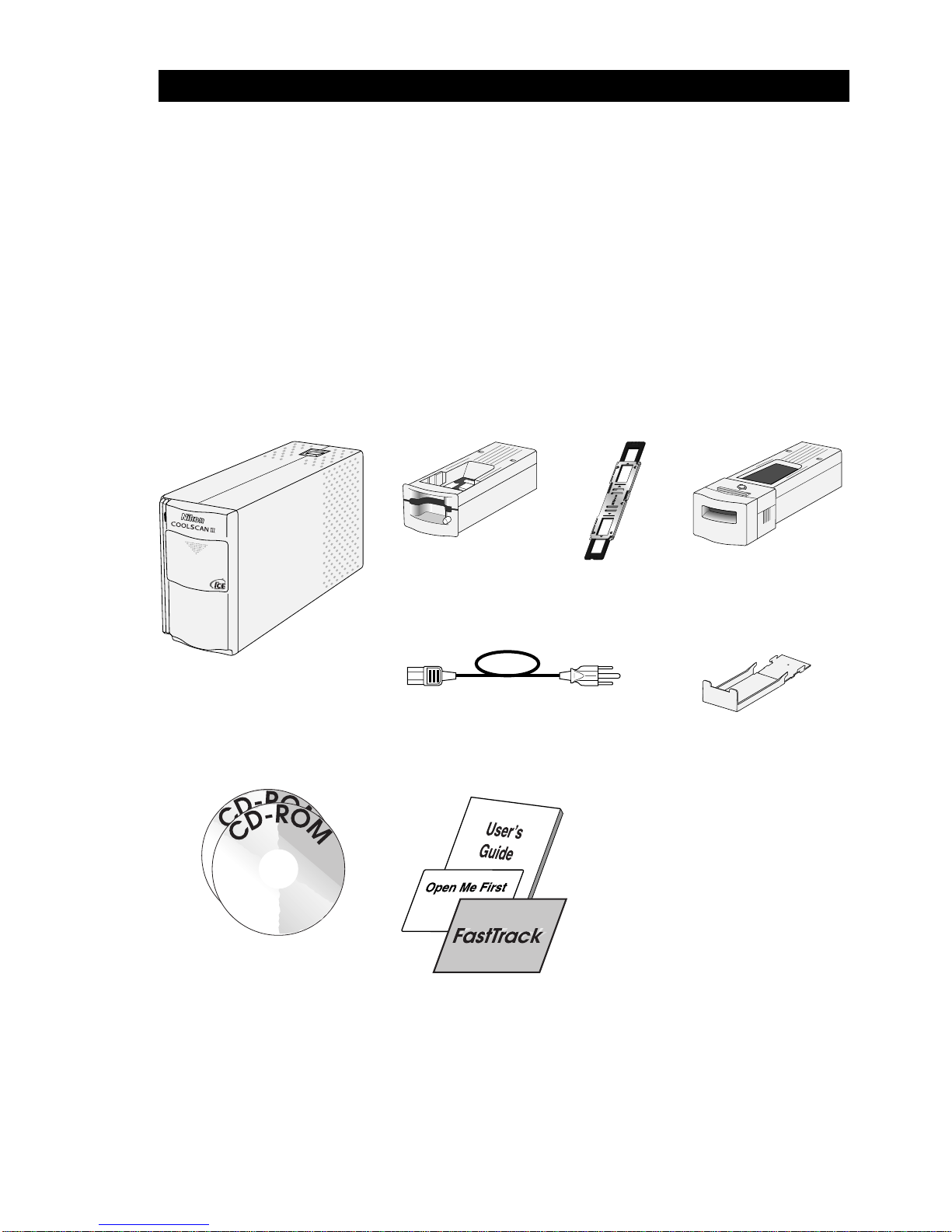

2.1 What’s in the Box
Purchasers of the LS-30 should find that the package contains the
items listed below. Should you find that anything is missing or
damaged, contact your retailer immediately.
Power cable (1)
(shape of cable depends on
country of sale)
MA-20 SLIDE MOUNT
ADAPTER (1)
Note: US customers should also find that the
package contains a SCSI cable. Customers in
other countries should find a ferrite core for
attachment to a SCSI cable. See the reference
manual for details.
Scanner software CD-ROM
for Windows and
Macintosh (1)
Reference CD containing
manuals and Adobe
Acrobat Reader (1)
FH-2 strip-film
holder for MA-20 (1)
SA-20 STRIP FILM
ADAPTER (1)
User’s Guide (1) (this manual)
“Open Me First” envelope (1)
Fast Track guide (1)
LS-30 Scanner main
body (1)
Film tray for SA-20
(1)

4
2. Parts and Accessories
Nikon LS-30 35 mm Film Scanner User’s Guide
2.2 Parts of the LS-30
Status LED
Feet (used
when scan-
ner is on its
side)
Transport
locking screw
Sliding
cover
Adapter
slot
Feet (used when scanner
is on its base)
On/off switch
(on side of
scanner)
MADE IN JAPAN
100098
SCSI SCSI
SCSI NB TERMINATOR
OFF ON
6
5
4
3
2
1
0
7
100–240V~
0.3–0.2A
50/60 Hz
AC connector
Termination
on/off switch
SCSI ID
selection
switch
Holders for
locking screws
Female half-pitch 50-pin
SCSI connectors (2)
Transport
locking screw
Guard

5
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide
3. Setup
This chapter takes you step-by-step through the process of setting
up the LS-30 and installing Nikon Scan.
3.1 Setting up the LS-30
This section outlines the steps involved in connecting the LS-30 to a
computer. Before using your scanner, you will need to complete the
following steps:
• select a suitable location for the scanner
• remove the transport locking screws
• connect the power and SCSI cables
• set the SCSI ID
Step 1—Choose a location for the scanner
Before connecting the LS-30 to your computer, choose a flat, stable
location for it, free from vibration and dust. Do not install your
scanner where:
• it would be exposed to direct or reflected sunlight
• it would be subject to condensation or drastic
changes in temperature
• it would be subject
to radio interference
from other electronic
devices
• the temperature
exceeds 35ºC (95ºF)
or falls below 10ºC
(50ºF)
• other objects would block the scanner’s vents

6
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide
The scanner has feet both on its base and on one side, making it
possible to place the scanner either on its base or on its side. When
installing the scanner, leave enough space free for ease of operation.
There should be at least 5 cm (2″) of space above the unit, and 10
cm (4″) behind. Space requirements are illustrated below.

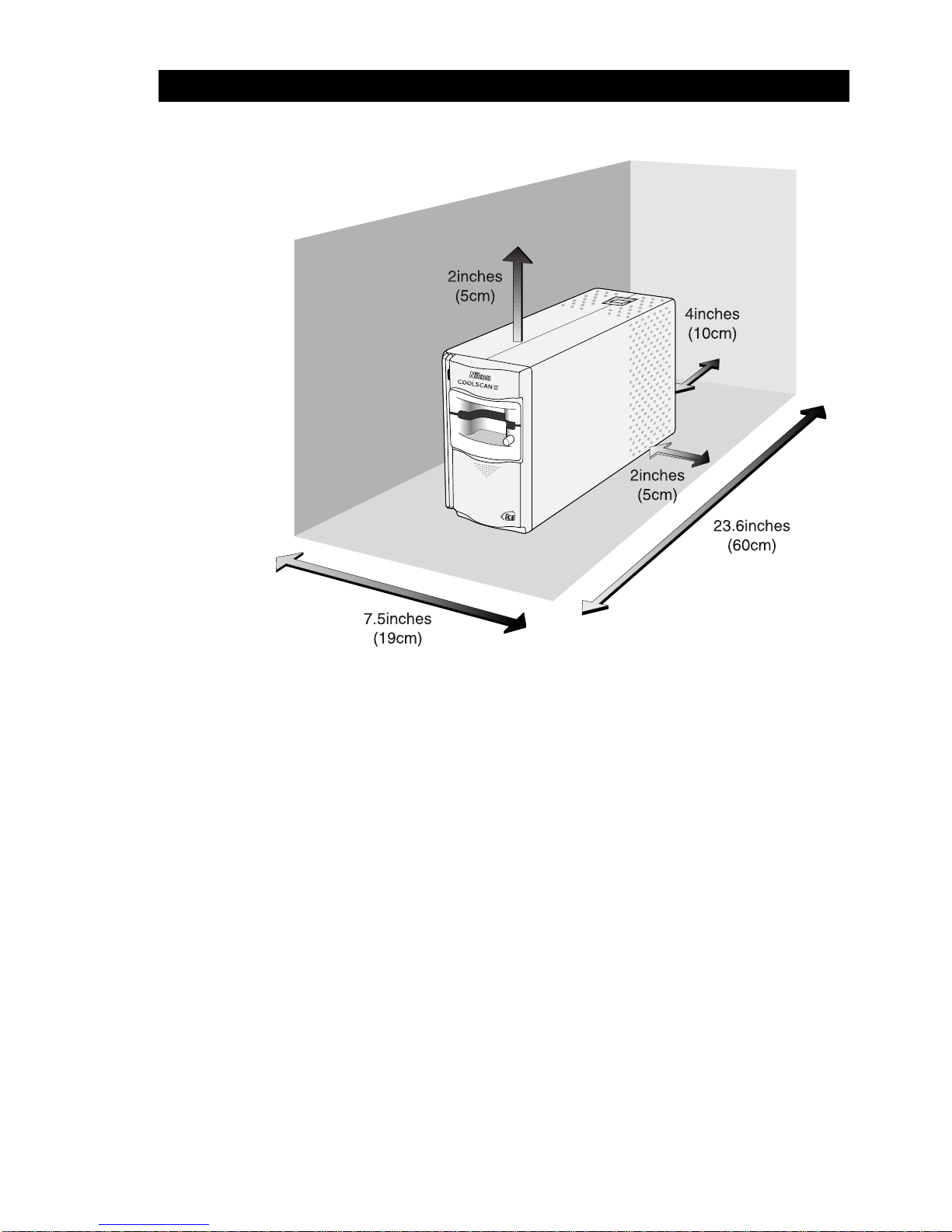

When installing the scanner on its base
✔Caution: The scanner must be installed with the feet down, as
shown in the illustrations on these pages. Do not store or operate
the scanner in any other orientation.

7
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide

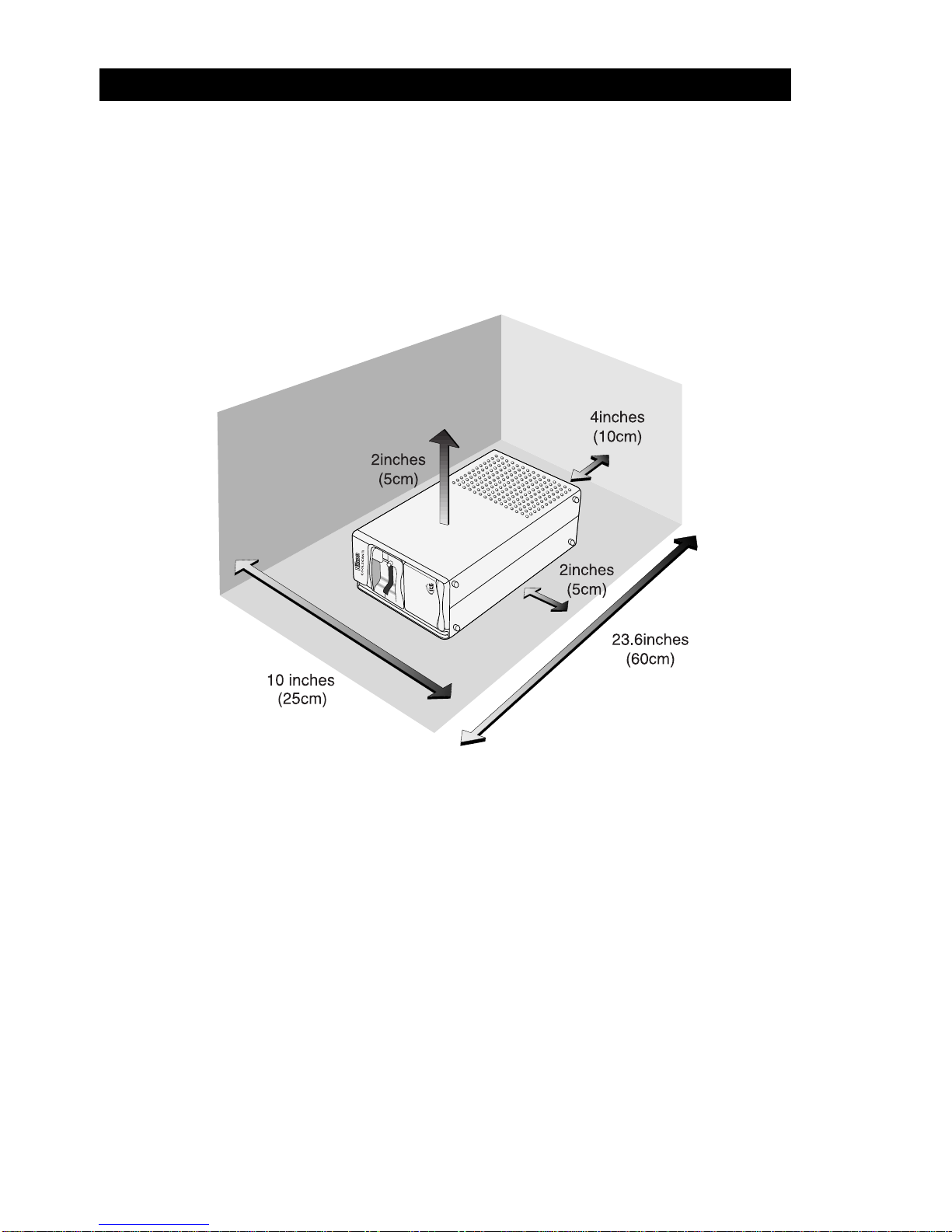

When installing the scanner on its side
Step 2—Remove the transport locking screws
Once the scanner is installed, slide the front cover open. Using a
coin, remove the transport locking screws from the adapter slot and
side panel and screw them into the holes provided on the rear panel.
The adapter slot contains a guard to prevent the transport screw
from falling into the scan mechanism when the transport screw is
removed. After removing the transport screw from the adapter slot
and screwing it into one of the holes on the rear of the scanner,
remove the guard and store it in a safe place.
✔Caution: Never turn the scanner on with the locking screws in
place. Turning the power on in these circumstances could damage
the scanner.
Note: Replace the locking screws and guard when transporting the
scanner (see the “LS-30 Reference Manual”).

8
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide
Step 3—Connect the power cable
Before connecting the power cable, confirm that the scanner is off
and that the transport locking screws have been removed from the
side of the scanner and adapter slot. The scanner is off when the
end of the power switch marked “0” is down.
Attach the female end of the power cable to the AC connector on
the rear of the scanner and insert the male end into a general-
purpose household outlet.
Safety Precautions
• Use an AC power supply of 50/60Hz and a voltage of from
100V–240V. Be sure to use a power cord rated for the appropri-
ate voltage.
At voltages of more than AC 125V:
use a power cord that complies with the safety standards of the
country in which it is used, which has a plug rated for AC 250V,
15A (NEMA 6P-15) and insulation of SVT type or better, and
which is more than AWG18 in thickness.
At voltages of AC 125V or less:
use a power cord that complies with the safety standards of the
country in which it is used, which has a plug rated for AC 125V,
10A and insulation of SVT type or better, and which is more
than AWG18 in thickness.
• Do not damage or modify the power cable. Fire or electric
shock may result if the cable is placed under heavy objects,
exposed to heat or flame, or forcibly tugged or bent.

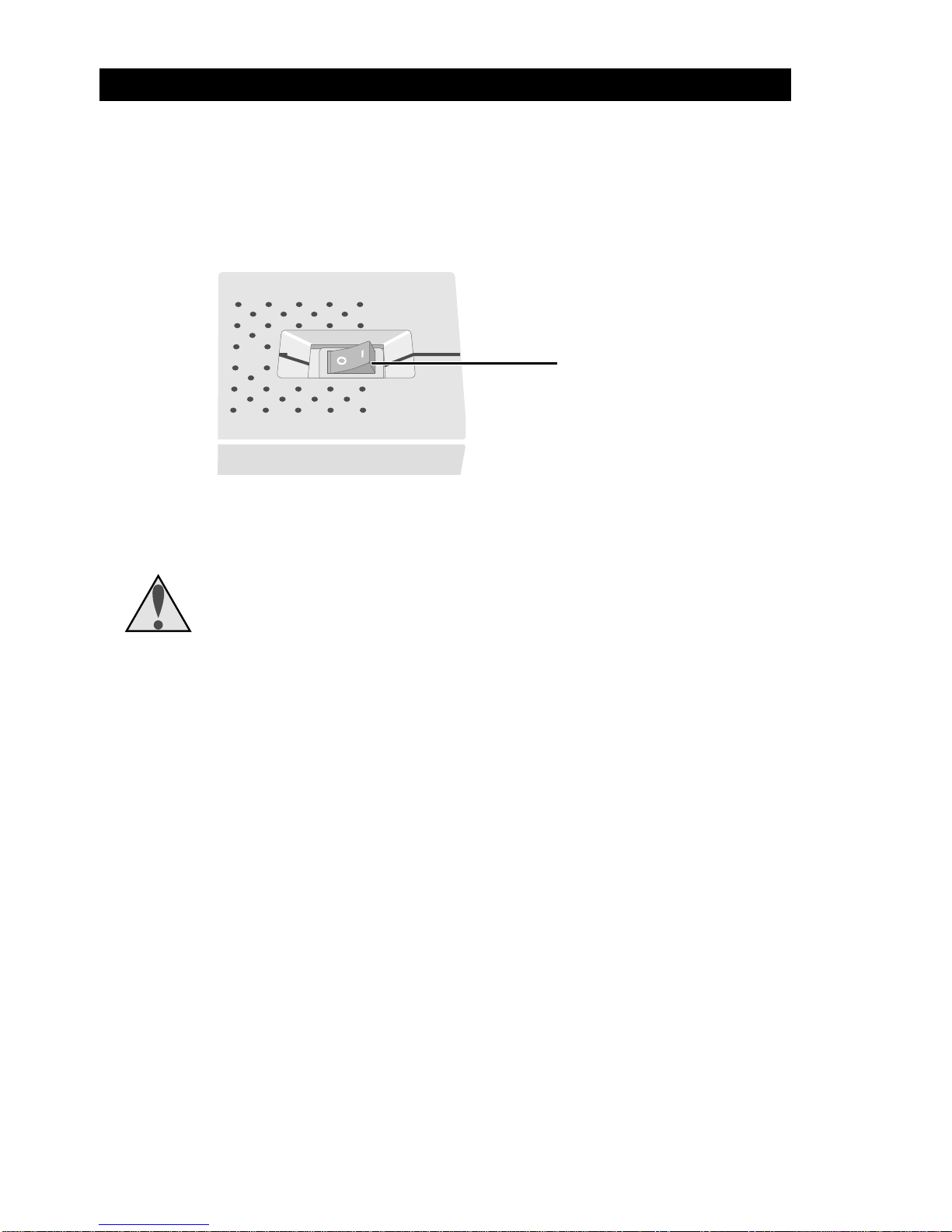

Power switch off

9
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide
• Should the insulation become damaged and the wires become
exposed, contact your retailer or Nikon service office for
replacement. Continued use could cause fire or electric shock.
• Do not handle the cable when your hands are wet. Doing so
could cause electric shock.
• The outlet into which the power cable is plugged must be grounded.
Failure to ground the power supply could result in electric shock.
• The scanner and all devices to which it is connected must be
connected to a common ground. If a common ground is not used,
a ground loop could occur, causing electric shock or static “noise.”
• Do not plug the power cord into
an extension cord or multiple-
outlet extension, as this could
result in fire or malfunction.
• Use an independent outlet whenever possible. If the scanner is
plugged into an outlet to which a household appliance such as a
vacuum cleaner or air-conditioner is connected, the scanner’s
power supply may be subject to noise.
• Unplug the power cable by
pulling on the plug, not on the
cable itself. Pulling directly
on the cord could result in
damage that could cause fire or
electric shock.
The shape of the cable
depends on the country of sale
• Do not connect or disconnect the cable while the power is on.

10
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide
Step 4—Connect the SCSI cable
The LS-30 connects to your computer by a Small Computer Sys-
tems Interface, or SCSI. To use a SCSI connection, you will need
an appropriate SCSI cable and, in the case of IBM PC/AT compat-
ible computers, a SCSI extension board (“SCSI adapter”) or
PCMCIA card (see the Fast Track Guide and the LS-30 Reference
Manual for details). This section describes the procedure to con-
necting the LS-30 to a SCSI “chain” made up of your computer and
SCSI devices connected to it in a series.
SCSI devices cannot be connected while the power is on. Before
connecting the scanner to the SCSI chain, be sure that the computer
and all other devices in the chain, including the scanner, are off.
How the scanner should be connected to the chain depends on
whether it is to be located between other devices or attached at the
end of the chain.

11
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide

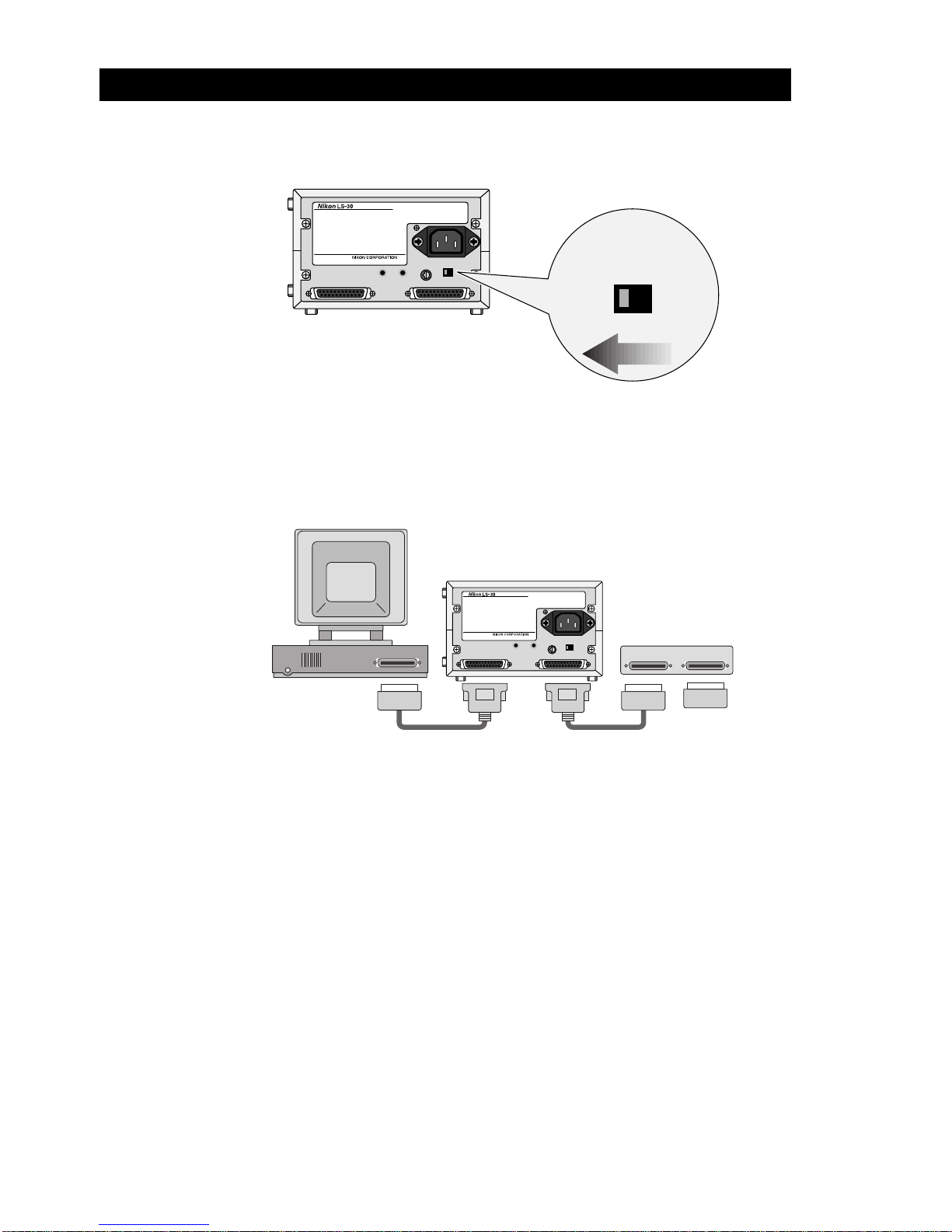

When the scanner is the last device in the chain
1. Set the terminator switch on the rear of the scanner to ON
TERMINATOR
OFF ON
2. Connect the SCSI cable to either of the two SCSI connectors on
the rear of the scanner and connect the other end to the next
device in the chain
MADE IN JAPAN 100098
SCSI SCSI
SCSI NB TERMINATOR
OFF ON
6
5
4
3
2
1
0
7
100–240V~
0.3–0.2A
50/60 Hz
Other SCSI device Other SCSI device
MADE IN JAPAN 100098
SCSI SCSI
SCSI NB TERMINATOR
OFF ON
6
5
4
3
2
1
0
7
100–240V~
0.3–0.2A
50/60 Hz
Scanner only external
device in chain
Scanner last of several
external devices

12
3. Setup
Nikon LS-30 35 mm Film Scanner User’s Guide
When the scanner is between other devices
1. Set the terminator switch on the rear of the scanner to OFF
TERMINATOR
OFF ON
2. Connect the SCSI cable from one of the devices in the chain to
either of the connectors on the rear of the scanner, then connect
a cable to the remaining connector and attach the other end to a
connector on the next device in the chain
Other SCSI device
Terminator
MADE IN JAPAN 100098
SCSI SCSI
SCSI NB TERMINATOR
OFF ON
6
5
4
3
2
1
0
7
100–240V~
0.3–0.2A
50/60 Hz
3. Confirm that the last device in the chain is terminated
Note: If the last device in the chain has an unused SCSI connector,
a separate terminator should be attached to it, even if the device is
connected to the SCSI chain using a through terminator.
