Nikon LS-4500AF User manual

Nikon
Film Scanner
LS-4500AF
User’s Manual

Nikon Corporation
Electronic Imaging Division
4-25, Nishi-Ohi 1-chome,
Shinagawa-ku, Tokyo 140, Japan 6ME 54000
Printed in Japan (95 06)
LS-4500AF

Nikon
Film Scanner
LS-4500AF
User’s Manual

Nikon Corporation
Electronic Imaging Division
4-25, Nishi-Ohi 1-chome,
Shinagawa-ku, Tokyo 140, Japan 6ME 54000
Printed in Japan (95 06)
LS-4500AF

i Nikon Film Scanner LS-4500AF User’s Manual
1. E2 Browser Functions
Film Scanner
LS-4500AF
User’s Manual

ii
Nikon Film Scanner LS-4500AF User’s Manual
Cautions
• The reproduction of all or part of this manual without our permission is
prohibited.
• The information contained in this manual is subject to change without
notice.
• We have made every effort to produce a perfect manual, but should you
find any mistakes, we would be grateful if you would kindly let us
know.
• We cannot assume any responsibility for consequences resulting from
the operation of this product, despite the terms mentioned above.
Trademark Information
Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft is a registered trademark and Windows is a trademark of Microsoft
Corporation.
IBM PC/AT is a trademark of International Business Machines Corporation.
Other brand or product names are the trademarks or registered trademarks of their
respective holders.

iii Nikon Film Scanner LS-4500AF User’s Manual
Indication
The indications in this manual signify important safety precautions.
In order to use this product safely, please read every section where these
indications are placed before beginning operation, this product. These
indications are also placed in the table of contents so users can find them
easily.
Indication
The indications in this manual signify the need for caution when using
the products. These indications are placed in sections that should be read
by users before beginning operation, in order to avoid damage to the
product.

iv
Nikon Film Scanner LS-4500AF User’s Manual
Federal Communications Commission (FCC) Radio
Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Nikon Corporation
may void the user’s authority to operate the equipment.
SCSI Cable
Please use the SCSI cable listed on page 5 in the user’s Manual supplied
with the scanner. Using other interface cables may exceed the limits of the
class B Part 15 of FCC rules.

v Nikon Film Scanner LS-4500AF User’s Manual
Notice for customers in Canada
This class B digital apparatus meets all requirements of the Canadian
interference Causing Equipment Regulations.
ATTENTION
Cet appareil numérique de la class B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Notice for customers in European countries
ACHTUNG
Dieses Gerät entspricht den Bestimmungen der EG-Direktive 87/308/EEC
zur Störungsunterdrückung. Lärmemission kleiner 70 dBA

vi
Nikon Film Scanner LS-4500AF User’s Manual
Safety Precautions
To ensure safe and proper use of the LS-4500AF, and to prevent problems,
please take special note of the following points:
• Be sure to use an AC100V-120V/AC 200V - 240V, 50/60Hz power
supply. The power cord should be changed to suit the power voltage.
When using a power voltage of more than AC 125V:
Use a power cord that meets the safety standards of the country in
which it is used with insulation of at least SVT type and more than
AWG18 in thickness, and a plug with an AC 250V, 15A rating (NEMA
6P-15.
When using a power voltage of AC 125V or less:
Use a power cord that meets the safety standards of the country in
which it is used with insulation of at least SVT type and more than
AWG18 in thickness, and a plug with an AC 125V, 10A rating.
• Make sure that the electrical outlet of the power supply is grounded.
Use the same grounding route used for other equipment connected to
the LS-4500AF. Unless common grounding is used, a ground loop will
occur, which will result in noise static and the danger of an electric
shock.
• Do not ground the equipment to a gas or water pipe.
*The shape of the plug depends
on the country of use.

vii Nikon Film Scanner LS-4500AF User’s Manual

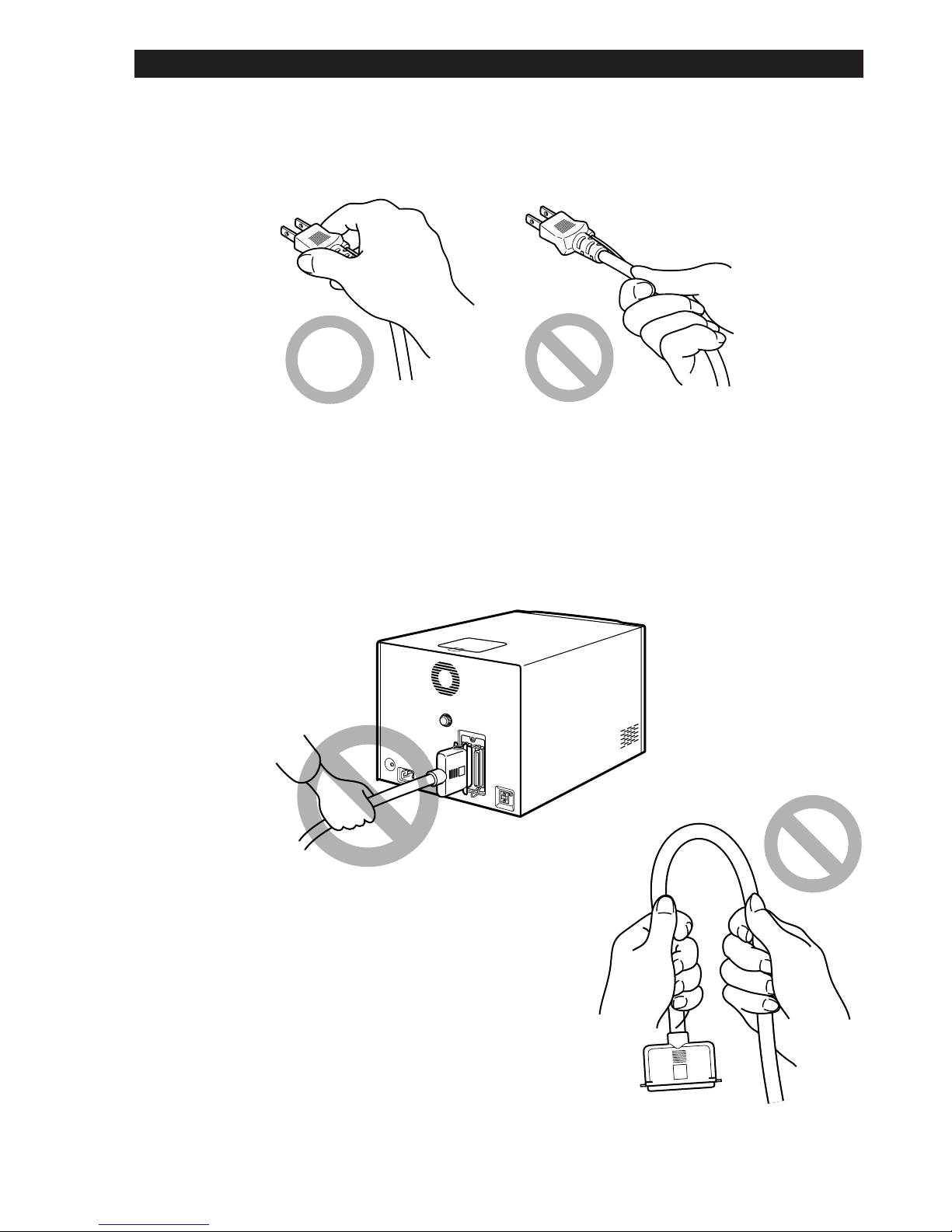

• When plugging in or unplugging the power cord, be sure to touch only
the plug.
• Do not pull or bend the SCSI cable, as this can cause the cable to break.
*The shape of the plug depends
on the country of use.

viii
Nikon Film Scanner LS-4500AF User’s Manual
• Do not connect or remove peripheral equipment while the power is on.
• Do not unplug the power cord while the power is on.
• Do not move the unit while the power is on.
• Once the power has been turned off, wait at least five seconds before
turning on again.
• On no account disassemble the unit. The high voltage parts inside the
unit can cause an electric shock.
• Do not insert any foreign object into the unit. If any flammable object,
metal, or water comes into contact with the internal components of the
unit, failure, fire, and/or an electric shock may result.
• Avoid harsh substances such as alcohol, benzine, thinner, or pesticides,
as failure, fire, and/or an electric shock may result.

ix Nikon Film Scanner LS-4500AF User’s Manual
• Do not subject the unit to any strong shocks. This can cause breakage
and failure.
• Do not place heavy objects (weighing 11lbs (5kg) or more) on the unit.
11 lbs

x
Nikon Film Scanner LS-4500AF User’s Manual
IfYou Notice Anything Abnormal
If you notice any unusual noise, odor or smoke, switch the unit off immedi-
ately and disconnect the power cord and the SCSI cable. Contact your
retailer or Nikon sales representative in your country.
Storage and Operating Locations
Proper storage will ensure the long life of the unit. In order to prevent dust
accumulating internally, it is recommended that an appropriate cover be
used when storing the unit.
Do not store or use where:
• The temperature is above 95°F (35°C) or below 50°F (10°C), the
temperature changes drastically, or condensation occurs.
• The humidity exceeds 80%.

xi Nikon Film Scanner LS-4500AF User’s Manual
• The Unit is exposed to direct sunlight.
• The atmosphere is excessively dusty.

xii
Nikon Film Scanner LS-4500AF User’s Manual
• The Unit may be subjected to excessive vibration or physical shocks.
• The Unit is exposed to noise from other equipment nearby.
Leave sufficient space around the unit to ensure that the ventilation slots
are not blocked. Blocking these slots may cause internal heat build-up.
Place the unit on a level and stable surface for operation. If operated in any
other way, problems will occur.

xiii Nikon Film Scanner LS-4500AF User’s Manual
Precautions When Inserting the Film Holder
Caution
On no account put your fingers inside the door of the film loading slot, as
they may be caught and injured by the internal mechanism.
Achtung
Wegen Einklemm- und Verletzungsgefahr durch die interne Mechanik auf
keinen Fall die Finger in die Tür des Filmladeschlitzes bringen.
Attention
En aucun cas ne placez un doigt dans la trappe de la fente de chargement
du film car le mécanisme interne pourrait vous blesser.

xiv
Nikon Film Scanner LS-4500AF User’s Manual
WhenTaking the Unit Out ofThe Country
The use of this product may violate local laws and restrictions in some
countries. If this is the case, we cannot assume any responsibility for
violations resulting from the use of this product.

xv Nikon Film Scanner LS-4500AF User’s Manual
Notice concerning prohibition of copying or reproduction
Note that simply being in possession of material which has been copied or
reproduced by means of a scanner may be punishable by law.
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government
bonds, or local government bonds, even if such copies or reproductions
are stamped “Sample”.
The copying or reproduction of paper money, coins, or securities which
are circulated in a foreign country is prohibited.
The copying or reproduction of unused postage stamps or post cards
issued by the government without obtaining approval from the govern-
ment is prohibited.
The copying or reproduction of stamps issued by the government and
certified documents stipulated by law is prohibited.
• Cautions on certain copies and reproductions
The government has issued cautions on copies or reproductions of
securities issued by private companies (shares, bills, checks, gift
certificates, etc.), commuter passes, or coupon tickets, except when a
minimum of necessary copies are to be provided for business use by a
company. Also, do not copy or reproduce passports issued by the
government, licenses issued by public agencies and private groups, ID
cards, and tickets, such as passes and meal coupons.
• Comply with copyright notices
The copying or reproduction of works such as books, music, paintings,
woodcut prints, maps, drawings, movies, and photographs which are
copyrighted creative works is prohibited except when it is done for
personal use at home or for similar restricted and non-commercial use.

xvi
Nikon Film Scanner LS-4500AF User’s Manual
Contents
Federal Communications Commission (FCC) Radio
Frequency Interference Statement ............................... iv
Notice for customers in Canada .............................................. v
Notice for customers in European countries............................ v
Safety Precautions ........................................................... vi
If You Notice Anything Abnormal....................................... x
Storage and Operating Locations...................................... x
Precautions When Inserting the Film Holder ...................xiii
When Taking the Unit Out of The Country ............................xiv
Notice concerning prohibition of copying or reproduction...... xv
1. Overview ........................................................................ 1
1.1 Features .................................................................................. 2
1.2 Operating Environment............................................................ 3
2. Before Operation........................................................... 4
2.1 Inspection ................................................................................ 4
2.2 Accessories ............................................................................. 4
2.3 Cleaning the Unit ..................................................................... 7
Contents

xvii Nikon Film Scanner LS-4500AF User’s Manual
3. Parts Identification........................................................ 8
3.1 Main Unit ................................................................................. 8
Front panel .............................................................................. 8
Rear panel ............................................................................. 10
3.2 Film Holder FH-45 ................................................................. 12
3.3 Film Holder FH-351 ............................................................... 13
3.4 Film Holder FH-356 ............................................................... 14
4. Connecting the LS-4500AF ........................................ 15
4.1 Before Connection................................................................. 15
4.2 Connecting the Power Cord .................................................. 16
4.3 Connecting the SCSI Cable................................................... 17
SCSI Chain Connection with Other Devices ......................... 19
4.4 Setting the SCSI ID ............................................................... 21
5. Operation ..................................................................... 22
5.1 Turning on the Power ............................................................ 22
5.2 Inserting and Ejecting the Film Holder................................... 24
Inserting the Film Holder ....................................................... 24
Ejecting the Film Holder ........................................................25
6. Using the Film Holder ................................................. 26
6.1 Usable Film............................................................................ 26
6.2 Using the FH-45 for Sheet Film............................................. 26
6.3 Using the FH-351 for Mounted Film ...................................... 31
6.4 Using the FH-356 for Strip Film ............................................. 34
Contents

xviii
Nikon Film Scanner LS-4500AF User’s Manual
7. Replacing the Lamp .................................................... 37
8. Transportation............................................................. 41
Procedure for Locking before Transportation ........................ 41
9. Technical Tips on the LS-4500AF.............................. 42
12-bit A/D and LUT (Look Up Table) ..................................... 43
Prescanning and absolute light energy ................................. 45
Sharpness ............................................................................. 45
Three scanning modes .......................................................... 47
Three functions of the Eject button........................................ 47
ASCII commands................................................................... 48
10. Troubleshooting.......................................................... 49
Appendix: Specifications .......................................... 51
Index............................................................................. 53
Contents
