INSTRUCTIONMANUAL
CONNECTING TERMINAL BASE
(For single phase/30A)
MODEL 18-00048B
NOISE LABORATORY CO., LTD.
1.07 Edition
AEE00037-00E-0H

NOTICE
The contents of this booklet are subject to change without prior notice.
No part of this booklet may be reproduced or transferred, in any form, for any
purpose, without the permission of Noise Laboratory Co., Ltd.
The contents of this booklet have been thoroughly checked. However, if a
doubtful point, an error in writing or a missing is found, please contact us.
Noise Laboratory Co., Ltd. shall have no liability for any trouble resulting from the
misuse or improper handling of this product regardless of the contents of this booklet
or arising from the repair or remodeling of this product by a third party other than
Noise Laboratory Co., Ltd. or its authorized person.
Noise Laboratory Co., Ltd. shall have no liability for any trouble resulting from the
remodeling or modification of this product.
In no event shall Noise Laboratory Co., Ltd. be liable for any results arising from the
use of this product.

1
1. IMPORTANT SAFETY PRECAUTIONS
Thoroughly understand the following precautions before use, as they are
important matters for handling this unit in safety.
1. As the high voltage and great electric current (15kV 7500A
maximum) are passed through the terminals and sockets of
this unit, peruse the instruction manuals of this unit and the
lightening surge simulator this product is going to work with and
carefully handle them according to instruction on the manuals.
Mishandling or careless operation may result in a fatal wound.
2. This unit cannot be used in an explosive area, fire prohibited
area, etc. Use of this unit in such an area is liable to cause
combustion or ignition.
3. A person who has a pacemaker on should not operate this unit
and also should not enter the area where it is operating.
4. When connecting the EUT cord plug with the high voltage output
cable (standard accessory of LSS-F03) or an optional
multi-receptacle, be sure to turn off the line breaker and the high
voltage circuit of the LSS-15AX beforehand. Otherwise, you may
receive an electric shock.
5. The withstanding surge voltage of the outlet part of this unit is
4.5kV Max.
6. Be sure to connect the switching lines for setting AC100V/200V
to the connecting terminals correctly.

2
MEMO

3
2.APPLICATION FORM FOR INSTRUCTION MANUAL
We place an order for an instruction manual.
Model: 18-00048B
Applicant:
Company name:
Address:
Department:
Person in charge:
Tel No.:
Fax No.
Cut off this page “APPLICATION FORM FOR INSTRUCTION
MANUAL” from this volume and keep it for future use with
care.
When an INSTRUCTION MANUAL is required, fill in the above Application
Form and mail or fax it to the following sales department of our company.
To: Noise Laboratory Co., Ltd.
1-4-4 Chiyoda Sagamihara City,
Kanagawa Pref., 229-0037 Japan
Tel: [phone] Fax: [phone]
Cut
line

4
MEMO

5
3. TABLE OF CONTENTS
1. IMPORTANT SAFETY PRECAUTIONS ......................................................................... 1
2.APPLICATION FORM FOR INSTRUCTION MANUAL.................................................... 3
3. TABLE OF CONTENTS .................................................................................................. 5
4. PREFACE........................................................................................................................ 6
5. HOW TO CONNECT ....................................................................................................... 7
6. SPECIFICATIONS........................................................................................................... 8
7. WARRANTY.................................................................................................................... 9
8. MAINTENANCE ............................................................................................................ 11
9. SUPPORT...................................................................................................................... 12

6
4. PREFACE
We thank you for your purchase of the Connecting Terminal Base (Model:
18-00048B) for the Lightning Surge Simulator LSS series.
This unit provides a socket to put in a plug of the EUT when performing an AC
line test using the LSS-F03. A versatile socket is used so that the plug used in
the various countries can be put in.
This manual contains how to use the 18-00048B and other important
information. In order to obtain the highest performance, thoroughly understand
the contents of this manual and use as ready reference for operation.
This Instruction Manual will help operators handle and utilize the
connecting terminal base (Model: 18-00048B) in safety.
 Keep this Instruction Manual in a place where it is readily available.

7
警告
コンセントの耐サージ電圧
5. HOW TO CONNECT
1. Connection of the 18-00048B with the LSS-F03
Connect the connectors of the high voltage output cables (LSS-F03 standard
accessories) with the LSS-F03, and connect the other sides (the solderless terminal
sides) with ①Input terminal of the 18-00048B.
(Notice) Each input terminal indicates “L”, “N” or “PE”.
Be sure to connect them correctly.
2. Wiring of he 18-00048B
18-00048B provides ③Switching line for setting AC100V and AC200V. These lines
are fixed to ⑤Base by the screws before shipment. According to the driving power
supply of the EUT, remove the lines from the base and connect them with ②
Connecting terminal.
(example) When the plugs for JIS, US and CSA are used, remove ③Switch line
indicating 100V from ⑤Base and connect them with the L, N and PE of
②Connecting terminal.
(Notice)
1) Fix the solderless terminals of the unused switching lines on the
base with the screws.
2) Set up ③Switching line for setting AC100V and AC200V correctly.
3) Do not use this unit with short-circuiting [PE] of switching line for setting
AC100V and that for setting AC200V.

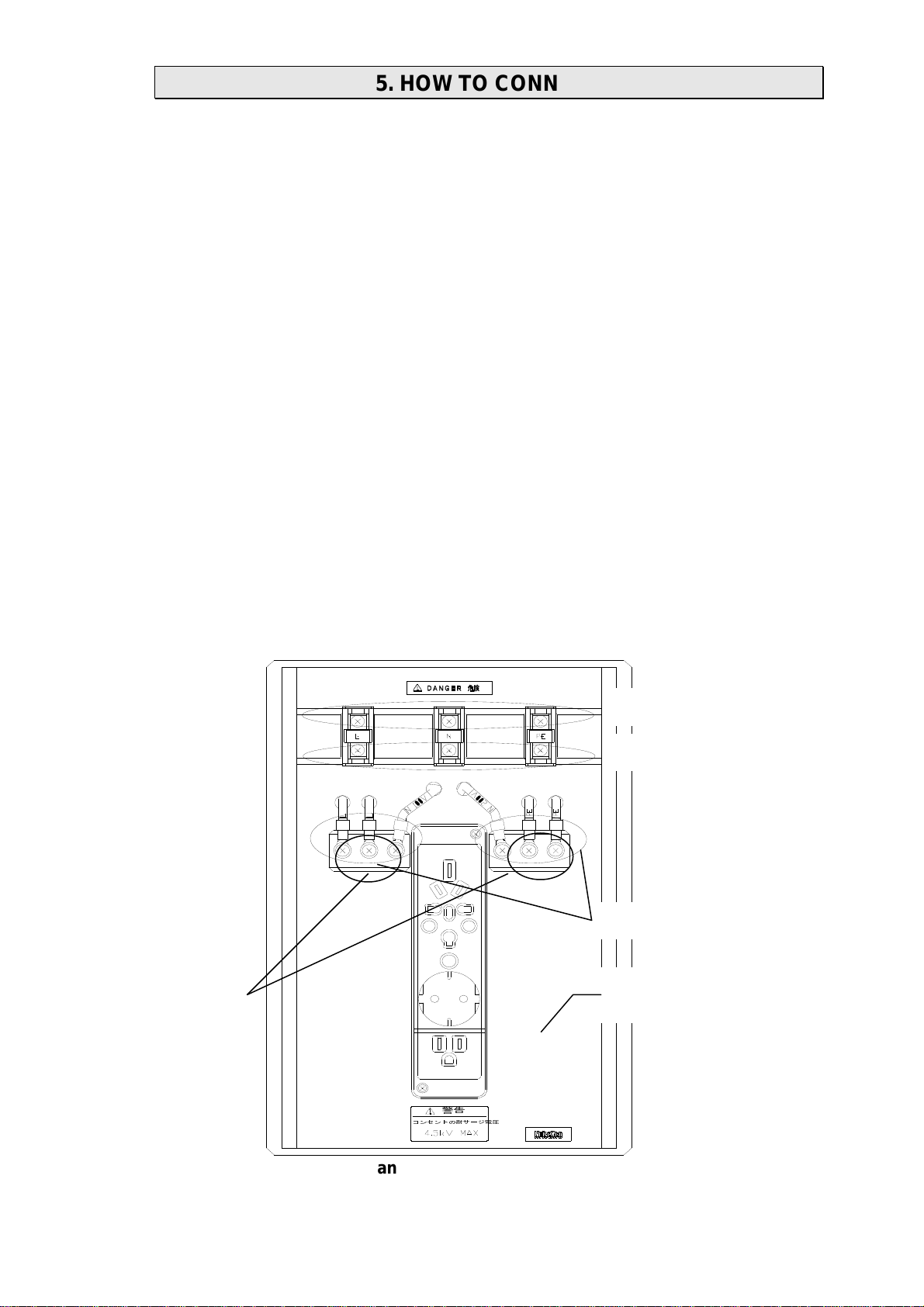

Appearance of 18-00048B
①
Input terminal
②
Connecting terminal
③
Switching line
⑤Base
④Fixing block

8
6. SPECIFICATIONS
Item Specifications Notice
Voltage / Current
operation range
For using terminal base
AC240V/20A Max (50/60Hz)
DC125V/20A Max
For using outlet
Refer to the table 1 as under.
Surge input voltage
For using terminal base
±15kV Max ※1: Combination wave
For using outlet
±4.5kV Max
※1: Combination wave
※2: In open status
Temperature/ Humidity
Operation range: 15~35ºC / 25~75% ※3: Without dewing
Dimensions (W)240x(H)81.5x(D)360mm ※4: Without projection
Area Country Standard
Plug
shape
Rate WCF
5901
Area Country Standard
Plug
shape
Rate WCF
5901
A
Japan
USA
Canada
JIS
UL
CSA
2P
15A 125
○
C Europe
CEE
DIN
2P
2.5A 250
○
Earth 2P
15A 125
○
2P
10/16A 250
○
AS
Australia AS
2P
10A 250
○
Earth 2P
10/16A 250
Side earth
○
2P
7.5A
250
○
Earth 2P
10/16A 250
Double earth
○
Earth 2P
10A 250
○
Earth 2P
10/16A 250
Pin earth
×
Earth 2P
15A 250
○
B
United
Kingdo
m
BS
2P
5A 250
○
C
Switzerland SE
2P
10A 250
○
Earth 2P
5A 250
○
Earth 2P
10A 250
○
Earth 2P
15A 250
○
Italy CEI
Earth 2P
10A 250
○
Earth 2P
13A 250
○
Table 1

9
7. WARRANTY
Servicing terms
The following terms are applicable to servicing by Noise Laboratory Co., Ltd.,
(hereafter referred to as the Company) provided to maintain the intended performance
of its products.
1. Scope
The following terms shall apply only to products made by the Company.
2. Technical servicing fee
In the event of a failure of a product within the warranty period (see warranty
section), the Company will repair a product without charge. After the warranty
expires, repairs will be billed at a nominal cost.
3. Ownership of defective parts
Any defective part exchanged under the Company’s servicing belongs to it.
4. Limited liability
In the event that damages resulting from servicing by the Company are intentional
or caused by negligence, the Company will pay the cost but at the purchase value
of the relevant product maximum. But, notwithstanding the foregoing, the Company
shall not be responsible for any incidental or consequential damages of any nature,
including without limitation thereof loss of would-be profit or compensation
demanded from a third party
5. Refusal to offer servicing
The company may not accept a repair order in the following cases:
More than 5 years have passed since the product discontinued
More than 8 years have passed after delivery
Required component for servicing already discontinued and no alternative is
available.
Product changed, repaired or remodeled without obtaining a prior permission from
the Company.
Product severely damaged to the extent it has lost its original form

10
Limited warranty
Noise Laboratory Co., Ltd. (hereafter referred to as the Company) warrants its products
to be free from defects in materials and workmanship under normal use and service for
a period of one year from date of delivery. In the event of failure of a product covered
by this warranty, the Company will repair the product or may, at its option, replace it in
lieu of repair without charge.
Not withstanding the foregoing, the Company shall not be responsible for any incidental
or consequential damages of any nature, including without limitation thereof loss of
would-be profit or compensation demanded from a third party. This warranty is valid
only in Japan.
1. Scope
This warranty shall only apply to products made by the Company.
2. Period
One year from date of delivery. The warranty may be valid in 6 months after
servicing if the same failure on the same component has repeated.
3. Exclusions
The followings are exclusions from this warranty:
Consumable parts (including HV relay)
Failure caused by misuse, neglect, accident or abnormal conditions of operation
Failure caused by remodeling on the user side without prior permission from the
Company
Failure caused by servicing by unauthorized personnel by the Company
Failure due to force majeure including but not limited to, acts of God, fire, war,
riot, rebellion and others
Failure due to shock or drop in or after transit
Failure due to operation in environment being out of ambient specifications.
A unit shipped to overseas.

11
8. MAINTENANCE
1. When repair, maintenance or internal adjustment of the unit is required, a qualified
service engineer takes charge of such work.
2. Maintenance on the user side is restricted to the outside cleaning and functional
check of the unit.
3. When checking or replacing the fuse, turn off the switch of the unit and disconnect
the plug socket beforehand.
4. When cleaning the unit, turn off the switch of this unit and the connected
equipment and disconnect the plug socket beforehand.
5. Avoid using chemicals for cleaning. Otherwise, the coating of the unit may peel off
or the sight glass may be broken.
6. Do not open the cover of this unit.

12
9. SUPPORT
If a symptom that seems a trouble is found, check the symptom against the
following check sheet and inform the model name and serial Number of the
product together with the symptom to Noise Laboratory or our nearest sales agent
in your area.
When the product is returned to Noise Laboratory, write the state of the trouble,
contents of your request, model name and serial number in a repair order, pack
the product and repair order sheet in the former package or equivalent suitable for
transit, and send them back.

13
MEMO

NOISE LABORATORY CO., LTD.
1-4-4, Chiyoda, Sagamihara City, Kanagawa Pref., 229-0037, Japan
TEL: [phone] FAX: [phone]
URL: http://www.noiseken.co.jp PRINTED IN JAPAN
