Nokia 2228Arte User manual

Service Manual
RM-377 (Nokia 2228Arte; L3&4)
Mobile Terminal
Part No: (Issue 2)
Nokia Customer Care
COMPANY CONFIDENTIAL
Copyright © 2009 Nokia. All rights reserved.

RM-377
Amendment Record Sheet
Amendment Record Sheet
Amendment No Date Inserted By Comments
Version 0.1 2008.06.11 Michelle Wang Initial draft
Version 0.2 2008.10.06 Michelle Wang Update version
Version 0.3 2009.01.19 Michelle Wang Update version
Version 0.4 2009.01.21 Michelle Wang Update version
Version 0.5 2009.02.03 Michelle Wang Update version
Version 0.6 2009.02.17 Michelle Wang Update version
Page ii COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
Copyright
Copyright
Copyright © 2008 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without
the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia
Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental,
consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any
kind, either express or implied, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document.
Nokia reserves the right to revise this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.
Issue 1 COMPANY CONFIDENTIAL Page iii
Copyright © 2008 Nokia. All rights reserved.

RM-377
Warnings and Cautions
Warnings and cautions
Warnings
zIF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH
ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT
CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/
MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.
zTHE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR
EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.
zOPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH
THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE
MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO
BE SUBJECT TO INTERFERENCE.
zBEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.
Cautions
zServicing and alignment must be undertaken by qualified personnel only.
zEnsure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.
zEnsure solder, wire, or foreign matter does not enter the telephone as damage may result.
zUse only approved components as specified in the parts list.
zEnsure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.
zEnsure all cables and wires are repositioned correctly.
zNever test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the
measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb
nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.
zDuring testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM
or WCDMA PA may be damaged.
Page iv COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
For your safety
For your safety
QUALIFIED SERVICE
Only qualified personnel may install or repair phone equipment.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect incompatible products.
CONNECTION TO OTHER DEVICES
When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect
incompatible products.
Issue 1 COMPANY CONFIDENTIAL Page v
Copyright © 2008 Nokia. All rights reserved.

RM-377
Care and Maintenance
Care and maintenance
zThis product is of superior design and craftsmanship and should be treated with care. The suggestions
below will help you to fulfill any warranty obligations and to enjoy this product for many years.
zKeep the phone and all its parts and accessories out of the reach of small children.
zKeep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that
will corrode electronic circuits.
zDo not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.
zDo not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
zDo not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form
inside, which may damage electronic circuit boards.
zDo not drop, knock or shake the phone. Rough handling can break internal circuit boards.
zDo not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.
zDo not paint the phone. Paint can clog the moving parts and prevent proper operation.
zUse only the supplied or an approved replacement antenna. Unauthorized antennas, modifications or
attachments could damage the phone and may violate regulations governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.
Page vi COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
ESD protection
ESD protection
Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the
phone.
Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced
without ESD protection if the product is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity
discharge.
All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside any
ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product components must be done under ESD
protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area.
For more information and local requirements about ESD protection and ESD Protected Area, contact your local
Nokia After Market Services representative.
Issue 1 COMPANY CONFIDENTIAL Page vii
Copyright © 2008 Nokia. All rights reserved.

RM-377
Battery information
Battery information
Note: A new battery's full performance is achieved only after two or three complete charge and
discharge cycles!
The battery can be charged and discharged hundreds of times but it will eventually wear out. When the
operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.
Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers
approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a
charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery
will discharge itself over time.
Temperature extremes can affect the ability of your battery to charge.
For good operation times with Li-Ion batteries, discharge the battery from time to time by leaving the product
switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available
for the product). Do not attempt to discharge the battery by any other means.
Use the battery only for its intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen)
causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when
you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the
capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A
phone with a hot or cold battery may temporarily not work, even when the battery is fully charged.
Batteries' performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire!
Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.
Page viii COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
Company Policy
Company Policy
Our policy is of continuous development; details of all technical modifications will be included with service
bulletins.
While every endeavor has been made to ensure the accuracy of this document, some errors may exist. If any
errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/e-mail.
Please state:
zTitle of the Document + Issue Number/Date of publication
zLatest Amendment Number (if applicable)
zPage(S) and/or Figure(s) in error
Please send to:
NOKIA CORPORATION
Nokia Mobile Phones Business Group
Nokia Customer Care
PO Box 86
FIN-24101 SALO
Finland
E-mail: Servic[email protected]
Issue 1 COMPANY CONFIDENTIAL Page ix
Copyright © 2008 Nokia. All rights reserved.

RM-377
Company Policy
(This page left intentionally blank.)
Page x COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
Nokia 2228Arte Service Manual Structure
Nokia 2228Arte Service Manual Structure
1. General information
2. Service Devices and Service Concepts
3. BB Troubleshooting and Manual Tuning Guide
4. RF Troubleshooting
5. System Module Description
Glossary
Issue 1 COMPANY CONFIDENTIAL Page xi
Copyright © 2008 Nokia. All rights reserved.

RM-377
Nokia 2228Arte Service Manual Structure
(This page left intentionally blank.)
Page xii COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia Customer Care
1 – General information
Issue 1 COMPANY CONFIDENTIAL Page 1-1
Copyright © 2008 Nokia. All rights reserved.

RM-377
General information
(This page left intentionally blank.)
Page 1-2 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
General information
Table of Contents
Product selection…………………………………………………………………………………………………………………………………….…..1-5
Phone features……………………………………………………………………………………………………………………………….……….…..1-5
User interface and software features……………………………………………………………………………………………….……….…..1-6
Accessories……………………………………………………………………………………………….…………………………………………….…..1-6
Technical specifications……………………………….…………………………………………….…………………………………………….…..1-6
General specifications…………………………….…………………………………………….…………………………………………….…..1-6
Battery endurance…………………………………….………………………………………….…………………………………………….…..1-6
List of Figures
Figure 1 RM-377 (Nokia 2228Arte) product picture………………………………………………………………………………….…..1-5
Issue 1 COMPANY CONFIDENTIAL Page 1-3
Copyright © 2008 Nokia. All rights reserved.

RM-377
General information
(This page left intentionally blank.)
Page 1-4 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
General information
Product selection
RM-377 (Nokia 2228) is a CDMA200 single band phone, supporting CDMA2000 1xRTT /Cell/PCS/AWS bands.

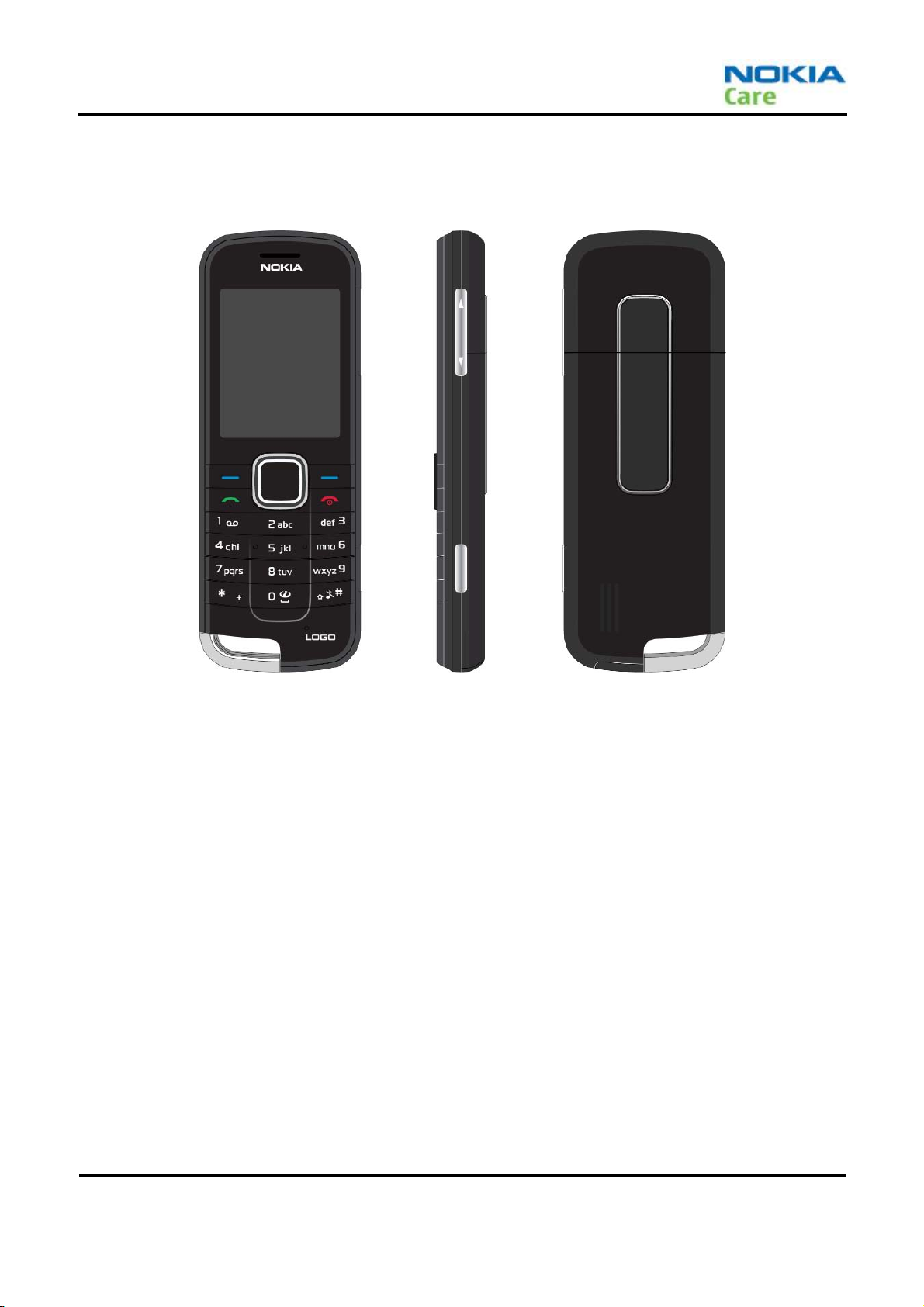

Figure 1 RM-377 (Nokia 2228Arte) product picture
Phone features
Display and keypad features
z1.8” 128x160 pixel, 262k true color internal display
z5-way , navi-key (4 way scroll and center key, call and end keys, dedicated camera key)
Hardware features
zMicro USB port for charging and data transfer (USB 2.0 full speed)
z2.5 phi dedicate headset
zFM radio stereo
zInternal vibrator and antenna
zInternal 512Mb memory
zTorch feature in power on/off
RF features
zCDMA2000 1xRTT: Cell
Issue 1 COMPANY CONFIDENTIAL Page 1-5
Copyright © 2008 Nokia. All rights reserved.

RM-377
General information
User interface and software features
Selection of software applications and services
zBrowser: WAP 2.0 (Openwave version v2.0)
zMessaging: MMS (client version v4.7)
zOMA DRM 1.0
zBREW version: v3.1.5
zRing Tone: MIDI 64 polyphonic
zCamera: 1.3MP
- Resolution: 1280 x 1024
- Image Format: JPEG
zVideo Features:
- Video Player back : 15 fps @ QCIF
- Video Recorder
zVideo Formats: H.263, MPEG4
zAudio Features: Audio Recorder EVRC
zAudio Formats: AAC, AAC+, MP3
zGraphics Formats: GIF, JPEG, PNG
zExtra Feature: FM Radio Stereo
Accessories
Sales package contents
zNokia 2228 phone
zNokia Battery BL-4C
zNokia Charger: AC-6,
zUser Guide
Technical specifications
General specifications
Unit Dimension(mm) Weight(g) Volume(cc)
Transceiver with BL-4C 860mA Li-Ion
battery pack
110x40x12 72 46.4
Battery endurance
Battery NMP Talk time NMP Standby time
BL-4C 860mAh Li-Ion battery Up to 3.5 hours 10 days
Note: The variation in operation times will occur depending on network parameters, phone setting and usage.
Page 1-6 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

RM-377
General information
(This page left intentionally blank.)
Issue 1 COMPANY CONFIDENTIAL Page 1-7
Copyright © 2008 Nokia. All rights reserved.

Nokia Customer Care
2 – Service Devices and
Service Concepts
Issue 0.3 COMPANY CONFIDENTIAL Page 2-1
Copyright © 2008 Nokia. All rights reserved.
