Nokia 3710a-1c User manual

Nokia 3710a-1c User Guide
FCC-Draft
Issue 1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Contents
Safety 4
Get started 5
Keys and parts 5
Insert the SIM card and battery 6
Insert and remove the memory
card 7
Charge the battery 8
GSM antenna 9
Accessories 9
Switch it on 11
About your device 11
Network services 11
Access codes 12
Switch the device on and off 13
Home screen 13
Navigate the menus 15
Lock the keys 16
Functions without a SIM card 16
Flight profile 17
Support and updates 18
Support 18
My Nokia 18
Download content 19
Software updates using your PC 19
Software updates over the air 19
Restore factory settings 20
Make it your device 21
Basic settings 21
Personalise your device 23
Connect 25
Network provider services 28
Stay in touch 30
Make calls 30
Text and messages 34
Mail and Instant Messaging 38
Image and video 41
Capture images 41
Record video clips 41
Camera and video settings 42
Gallery 42
Print images 43
Share images and video clips
online 44
Memory card 44
Entertainment 45
Listen to music 45
Web 50
Games and applications 52
Maps 53
2Contents
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

About Maps 53
Nokia Map Loader 54
About GPS 55
GPS receiver 55
Navigate to your destination 55
Organise 57
Manage contacts 57
Business cards 58
Date and time 58
Alarm clock 59
Calendar 59
To-do list 60
Notes 60
Nokia PC Suite 60
Calculator 60
Countdown timer 60
Stopwatch 61
Green tips 62
Save energy 62
Recycle 62
Learn more 62
Digital rights management 63
Accessories 63
Battery 63
Battery and charger information 63
Nokia battery authentication
guidelines 64
Taking care of your device 65
Recycle 66
Additional safety information 66
Small children 66
Operating environment 66
Medical devices 66
Vehicles 66
Potentially explosive
environments 67
Emergency calls 67
Certification information (SAR) 67
Index 69
Contents 3
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on
when wireless phone use is
prohibited or when it may
cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always
keep your hands free to
operate the vehicle while
driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions.
Switch the device off in
aircraft, near medical
equipment, fuel, chemicals,
or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may
install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved
accessories and batteries. Do
not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-
resistant. Keep it dry.
4Safety
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Get started
Get to know your device, insert the
battery, SIM card, and memory card, and
learn some important information
about your device.

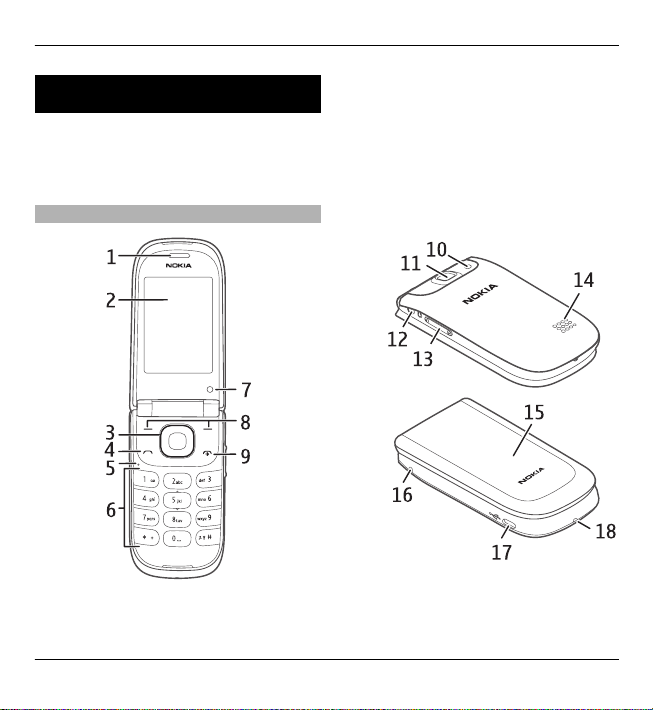

Keys and parts
1Earpiece
2Display
3Navi™ key (scroll key)
4Call key
5Microphone
6Keypad
7Secondary camera
8Left and right selection keys
9End/Power key
10 Camera flash
11 Camera lens
12 Nokia AV Connector (2.5 mm)
Get started 5
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

13 Volume keys
14 Loudspeaker
15 Hidden display
16 Charger connector
17 Micro USB cable connector
18 Wrist strap eyelet
Insert the SIM card and battery
Note: Switch off the power and
disconnect the charger and any other
device before removing the covers.
Avoid touching electronic components
while changing the covers. Always store
and use the device with the covers
attached.
The SIM card and its contacts can be
easily damaged by scratches or
bending, so be careful when handling,
inserting, or removing the card.
1 Open the back cover, and remove it.
2 Remove the battery.
3 Open the SIM card holder. Insert the
SIM card into the holder with the
bevelled corner facing down and
the contact surface area facing
toward the contacts of the device.
The side with the bevelled corner
fits below the rim of the device.
Close the SIM card holder.
6Getstarted
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

4 Line up the battery contacts, and
insert the battery.
5 Place the battery cover on the
device, that the hooks at the upper
part of the cover are aligned with
the corresponding recesses on the
device. Slide the back cover to close
it.
Insert and remove the memory card
Use only compatible microSD cards
approved by Nokia for use with this
device. Nokia uses approved industry
standards for memory cards, but some
brands may not be fully compatible with
this device. Incompatible cards may
damage the card and the device and
corrupt data stored on the card.
Your device supports microSD cards
with a capacity of up to 8 GB. The size of
a single file must not exceed 2 GB.
Insert the memory card
Get started 7
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

1 Switch the device off, and remove
the back cover and battery.
2 Slide the memory card holder
inwards to unlock.
3 Open the card holder, and insert the
memory card into the holder with
the contact surface facing inwards.
4 Close the card holder, and slide it to
lock.
5 Replace the battery and back cover.
Remove the memory card
1 Remove the back cover and the
battery.
2 Open the memory card holder, and
remove the memory card. Close the
memory card holder.
3 Replace the battery and back cover.
Charge the battery
Your battery has been partially charged
at the factory. If the device indicates a
low charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full
charge, disconnect the charger from
the device, then from the wall
outlet.
You can also charge the battery with a
USB cable, using power from a
computer.
1 Connect the USB cable to a USB port
of a computer and to your device.
2 When the battery is fully charged,
disconnect the USB cable.
If the battery is completely discharged,
USB charging may not work. Use the
charger instead.
You do not need to charge the battery
for a specific length of time, and you can
use the device while it is charging. If the
battery is completely discharged, it may
take several minutes before the
8Getstarted
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

charging indicator appears on the
display or before any calls can be made.
Charging the device while listening to
the radio may affect the quality of
reception.
GSM antenna
Your device may have internal and
external antennas. Avoid touching the
antenna area unnecessarily while the
antenna is transmitting or receiving.
Contact with antennas affects the
communication quality and may cause
a higher power level during operation
and may reduce the battery life.
The figure shows the GSM antenna area
marked in grey.
Accessories
Connect a USB cable
Headset
Warning:
When you use the headset, your ability
to hear outside sounds may be affected.
Do not use the headset where it can
endanger your safety.
When connecting any external device or
any headset, other than those approved
by Nokia for use with this device, to the
Nokia AV Connector, pay special
attention to volume levels.
Get started 9
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Do not connect products that create an
output signal as this may cause damage
to the device. Do not connect any
voltage source to the Nokia AV
Connector.
Strap
1 Open the back cover.
2 Thread the strap, and tighten it.
3 Close the back cover.
10 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Switch it on
Learn how to switch on your device, and
how to use the basic functions.
About your device
The wireless device described in this
guide is approved for use on the GSM
850, 900, 1800, 1900 and WCDMA 850,
1900, 2100 MHz networks. Contact your
service provider for more information
about networks.
Your device may have preinstalled
bookmarks and links for third-party
internet sites and may allow you to
access third-party sites. These are not
affiliated with Nokia, and Nokia does
not endorse or assume liability for
them. If you access such sites, take
precautions for security or content.
Warning:
To use any features in this device, other
than the alarm clock, the device must be
switched on. Do not switch the device
on when wireless device use may cause
interference or danger.
When using this device, obey all laws
and respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent some images, music, and other
content from being copied, modified, or
transferred.
Make back-up copies or keep a written
record of all important information
stored in your device.
When connecting to any other device,
read its user guide for detailed safety
instructions. Do not connect
incompatible products.
The images in this guide may differ from
your device display.
Refer to the user guide for other
important information about your
device.
Network services
To use the device you must have service
from a wireless service provider. Some
features are not available on all
networks; other features may require
that you make specific arrangements
with your service provider to use them.
Network services involve transmission
of data. Check with your service provider
for details about fees in your home
Switch it on 11
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

network and when roaming on other
networks. Your service provider can
explain what charges will apply.
Your service provider may have
requested that certain features be
disabled or not activated in your device.
If so, these features will not appear on
your device menu. Your device may also
have customized items such as menu
names, menu order, and icons.
Access codes
To set how your device uses the access
codes and security settings, select
Menu > Settings and Security >
Access codes.
•The security code helps to protect
your device against unauthorised
use. The preset code is 12345. You
can change the code and set the
device to request the code. Some
operations require the security
code regardless of the settings, for
example, if you want to restore the
factory settings. Keep the code
secret and in a safe place separate
from your device. If you forget the
code and your device is locked, your
device will require service and
additional charges may apply. For
more information, contact a Nokia
Care point or your device dealer.
•The PIN (UPIN) code, supplied with
the SIM (USIM) card, helps to protect
the card against unauthorised use.
•The PIN2 (UPIN2) code, supplied
with some SIM (USIM) cards, is
required to access certain services.
•PUK (UPUK) and PUK2 (UPUK2) codes
may be supplied with the SIM (USIM)
card. If you enter the PIN code
incorrectly three times in
succession, you are asked for the
PUK code. If the codes are not
supplied, contact your service
provider.
•The barring password is required
when using the call barring service
to restrict calls to and from your
device (network service).
•To view or change the security
module settings for the browser,
select Menu > Settings and
Security > Security module.
12 Switch it on
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Switch the device on and off
Switch on and off
Press and hold the power key.
Enter the PIN code
If requested , enter the PIN code
(displayed as ****).
Set the time and date
If requested, enter the time and date.
Basic setup
When you switch on your device for the
first time, a setup wizard will guide you
through basic settings.
You may be prompted to get the
configuration settings from your service
provider (network service). For more
information, contact your service
provider.
Home screen
When the device is ready for use, and
you have not entered any characters,
the device is in the home screen.
Switch it on 13
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Display
7
6
10
1Signal strength of the cellular
network
2Battery charge status
3Indicators
4Name of the network or the
operator logo
5Clock
6Date (only if the enhanced home
screen is deactivated)
7Display
8Function of the left selection key
9Function of the scroll key
10 Function of the right selection key
You can change the function of the left
and right selection key. See " Left and
right selection keys ", p. 24.
Enhanced home screen
With the enhanced home screen, you
can display a list of selected information
and features that you can directly
access.
Select Menu > Settings and
Display > Home screen.
Activate the enhanced home screen
Select Home screen mode > On.
Organise and personalise the
enhanced home screen
Select Personalise view.
Select the key used to activate the
enhanced home screen
Select Home screen key.
Navigate in the home screen
Scroll up or down to navigate the list,
and select Select, View, or Edit. The
arrows indicate that further
information is available.
14 Switch it on
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Stop navigating
Select Exit.
Shortcuts
When your device is in the home screen,
you can use shortcuts.
List missed, received, and dialled
calls
Press the call key. To make a call, scroll
to the number or name, and press the
call key.
Open the web browser
Press and hold 0.
Call the voice mailbox
Press and hold 1.
Use other keys as shortcuts
See "Dialling shortcuts", p. 31.
Indicators
You have unread messages.
You have unsent, cancelled, or
failed messages.
The keypad is locked.
The device does not ring for
incoming calls or text
messages.
An alarm is set.
/ The device is registered to the
GPRS or EGPRS network.
/ A GPRS or EGPRS connection is
open.
/ The GPRS or EGPRS connection is
suspended (on hold).
Bluetooth connectivity is
activated.
A GPS signal is available.
No GPS signal available.
If you have two phone lines, the
second line is in use.
All incoming calls are diverted
to another number.
Calls are limited to a closed user
group.
The currently active profile is
timed.
A headset is connected to the
device.
The device is connected to
another device, using a USB
cable.
Navigate the menus
The device offers a range of functions
that are grouped into menus.
Switch it on 15
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

1 To access the menu, select Menu.
2 Scroll through the menu, and select
an option (for example, Settings).
3 If the selected menu contains
further submenus, select one (for
example, Call).
4 Select the setting of your choice.
5 To return to the previous menu
level, select Back.
To exit the menu, select Exit.
Change the menu view
Select Options > Main menu view.
Scroll right, and select from the
available options.
Rearrange the menu
Select Options > Organise. Scroll to the
menu item to be moved, and select
Move. Scroll to where you want to move
the menu item, and select OK. To save
the change, select Done > Yes.
Lock the keys
Lock the keypad to prevent accidental
keypresses.
Lock the keypad
Select Menu, and press *within 3.5
seconds.
Unlock the keypad
Select Unlock, and press *within 1.5
seconds. If requested, enter the lock
code.
Answer a call when the keypad is
locked
Press the call key. When you end or
reject a call, the keypad locks
automatically.
Further features are Automatic
keyguard and Security keyguard. See
"Phone settings", p. 21.
When the device or keypad is locked,
calls may be possible to the official
emergency number programmed into
your device.
Functions without a SIM card
Some functions of your device may be
used without inserting a SIM card, such
as Organiser functions and games.
Some functions appear dimmed in the
menus and cannot be used.
16 Switch it on
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Flight profile
In radio sensitive environments, where
you are asked not to use your device,
you can still access your calendar,
contacts list, and offline games by
activating the flight profile.
indicates that the flight profile is
active.
Activate the flight profile
Select Menu > Settings > Profiles
and Flight > Activate or Personalise.
Deactivate the flight profile
Select any other profile.
Warning:
With the Flight profile you cannot make
or receive any calls, including
emergency calls, or use other features
that require network coverage. To make
calls, you must first activate the phone
function by changing profiles. If the
device has been locked, enter the lock
code.
If you need to make an emergency call
while the device is locked and in the
Flight profile, you may be also able to
enter an official emergency number
programmed in your device in the lock
code field and select 'Call'. The device
will confirm that you are about to exit
Flight profile to start an emergency call.
Switch it on 17
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Support and updates
Nokia helps you in many ways to gain
the most benefit from your device.
Support
When you want to learn more about
how to use your product or you are
unsure how your device should
function, see the user guide or see the
support pages at www.nokia.com/
support or your local Nokia website, or
with a mobile device,
www.nokia.mobi/support.
If this does not resolve your issue, do
one of the following:
•Restart the device: switch off the
device, and remove the battery.
After about a minute, replace the
battery, and switch on the device.
•Restore the original factory settings
as explained in the user guide.
•Update your device software
regularly for optimum performance
and possible new features, as
explained in the user guide.
If your issue remains unsolved, contact
Nokia for repair options. See
www.nokia.com/repair, or in Latin
America, www.nokia-
latinoamerica.com/centrosdeservicio.
Before sending your device for repair,
always back up the data in your device.
My Nokia
Select Menu > Applications >
Extras > Collection > My Nokia.
My Nokia is a free service that regularly
sends you text messages containing
tips, tricks, and support for your Nokia
device. It also allows you to browse the
My Nokia site where you can find details
about Nokia devices and download
tones, graphics, games, and
applications.
To use the My Nokia service, it must be
available in your country and supported
by your service provider. You must sign
up to use the service. Call charges apply
when you send messages to sign up or
unsubscribe. For terms and conditions,
see the documentation supplied with
your device, or www.nokia.com/
mynokia.
18 Support and updates
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Download content
You may be able to download new
content (for example, themes) to your
device (network service).
Important: Use only services that you
trust and that offer adequate security
and protection against harmful
software.
For the availability of different services
and pricing, contact your service
provider.
Software updates using your PC
Software updates may include new
features and enhanced functions that
were not available at the time of
purchase of your device. Updating the
software may also improve the device
performance.
Nokia Software Updater is a PC
application that enables you to update
your device software. To update your
device software, you need a compatible
PC, broadband internet access, and a
compatible USB data cable to connect
your device to the PC.
To get more information, to check the
release notes for the latest software
versions, and to download the Nokia
Software Updater application, see
www.nokia.com/softwareupdate, or in
Latin America, www.nokia-
latinoamerica.com/nsu.
To update the device software, do the
following:
1 Download and install the Nokia
Software Updater application to
your PC.
2 Connect your device to the PC using
a USB data cable, and open the
Nokia Software Updater
application. The Nokia Software
Updater application guides you to
back up your files, update the
software, and restore your files.
Software updates over the air
Your service provider may send device
software updates over the air directly to
your device (network service). This
option may not be available, depending
on your device.
Downloading software updates may
involve the transmission of large
amounts of data (network service).
Support and updates 19
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Make sure that the device battery has
enough power, or connect the charger
before starting the update.
Warning:
If you install a software update, you
cannot use the device, even to make
emergency calls, until the installation is
completed and the device is restarted.
Be sure to back up data before accepting
installation of an update.
Request a software update
1SelectMenu > Settings and
Phone > Phone updates to
request available software updates
from your service provider.
2SelectCurrent sw details to display
the current software version and
check whether an update is needed.
3SelectDownl. phone sw to
download and install a software
update. Follow the instructions.
4 If the installation was cancelled
after the download, select Install
sw update to start the installation.
The software update may take several
minutes. If there are problems with the
installation, contact your service
provider.
Restore factory settings
To restore the device back to the factory
settings, select Menu > Settings >
Rest. fact. sett. and from the following:
Settings only — Reset all preference
settings without deleting any personal
data.
All — Reset all preference settings, and
delete all personal data, such as
contacts, messages, media files, and
activation keys.
20 Support and updates
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
