Nokia 6234 Extended Quick
Start Guide
Further detailed information is given in the full Nokia
6234 user guide (available for download at
www.nokia.com/support). Do not use this quick guide in
place of the complete user guide, which provides
important safety and maintenance information.

FCCDraft
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-145 product is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
A copy of the Declaration of Conformity can be found from
http://www.nokia.com/phones/declaration_of_conformity/.
The crossed-out wheeled bin means that within the European
Union the product must be taken to separate collection at the
product end-of-life. This applies to your device but also to any
enhancements marked with this symbol. Do not dispose of these
products as unsorted municipal waste. For more information, see product
Eco-Declaration or country specific information at www.nokia.com.
Copyright © 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents
in this document in any form without the prior written permission of Nokia
is prohibited.
US Patent No 5818437 and other pending patents. T9 text input software
Copyright (C) 1997-2006. Tegic Communications, Inc. All rights reserved.
Nokia, Visual Radio, Nokia Connecting People, and Pop-Port are
trademarks or registered trademarks of Nokia Corporation. Other product
and company names mentioned herein may be trademarks or tradenames
of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
0434

FCC Draft
Includes RSA BSAFE cryptographic or security protocol software
from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products described
in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or
income or any special, incidental, consequential or indirect damages
howsoever caused.
The contents of this document are provided "as is". Except as required by
applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose, are made in relation to the accuracy,
reliability or contents of this document. Nokia reserves the right to revise
this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check
with the Nokia dealer nearest to you.
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
FCC/INDUSTRY CANADA NOTICE

FCCDraft
Your device may cause TV or radio interference (for example, when using a
telephone in close proximity to receiving equipment). The FCC or Industry
Canada can require you to stop using your telephone if such interference
cannot be eliminated. If you require assistance, contact your local service
facility. This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Any
changes or modifications not expressly approved by Nokia could void the
user's authority to operate this equipment.
9202965/Issue 2

Contents
5
FCC Draft
Contents
For your safety 6
Get started 9
Install the SIM card and the battery 9
Install a memory card 12
Charge the battery 14
Switch the phone on and off 15
Keys and parts 17
Standby mode 19
Make a call 20
Camera & video 22
Radio 23
Text messages (SMS) 25
Multimedia messages 27
Calendar 30
Contacts 31
Configuration settings service 32
Nokia PC Suite 33
Nokia Care web support 34
APPENDIX 37
A message from the CTIA 37
Message from the FDA 45

For your safety
6
FCC Draft
For your safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the phone on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless phones may be susceptible to
interference, which could affect performance.

For your safety
7
FCC Draft
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the phone off
near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can
cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the phone at a refueling point. Do
not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the phone
where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in
the product documentation. Do not touch the
antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.

For your safety
8
FCC Draft
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries.
Do not connect incompatible products.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a
written record of all important information
stored in your phone.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its
user guide for detailed safety instructions. Do
not connect incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service.
Press the end key as many times as needed to
clear the display and return to the start screen.
Enter the emergency number, then press the call
key. Give your location. Do not end the call until
given permission to do so.

Get started
9
FCC Draft
Get started
■Install the SIM card and the battery
1. With the back of the
phone facing you, slide
the back cover (1) to
remove it from the
phone (2).
2. To remove the battery,
lift it as shown (3).

Get started
10
FCC Draft
3. To release the SIM card
holder, gently pull the
locking clip of the
card holder, and open it
(4)
Insert the SIM card into
the SIM card holder (5).
Make sure that the SIM
card is properly inserted and that the gold-
colored contact area on the card is facing
downwards.
Close the SIM card holder (6), and press it until it
snaps into position.

Get started
11
FCC Draft

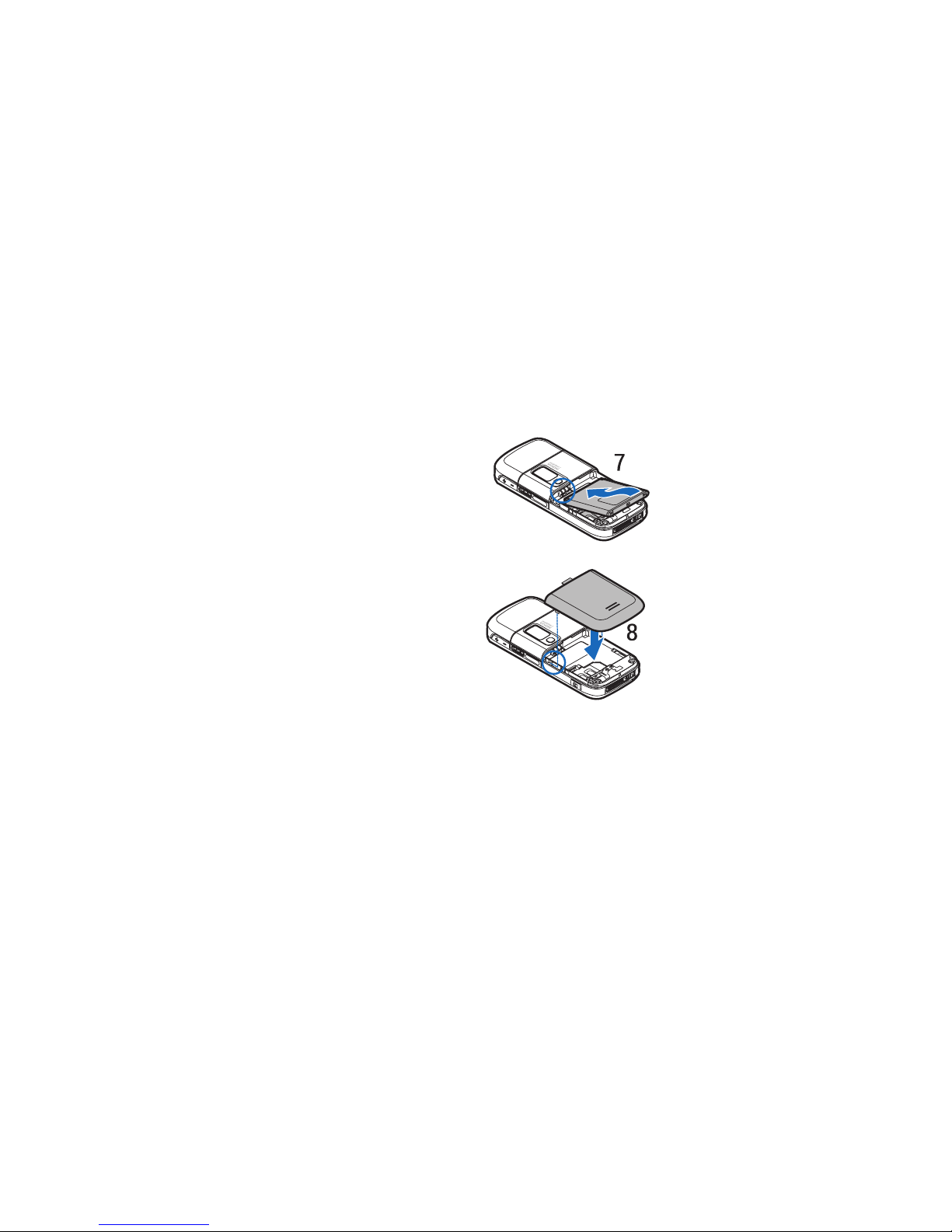

4. Replace the battery (7)
5. Place the back
cover in the
correct position
(8).

Get started
12
FCC Draft

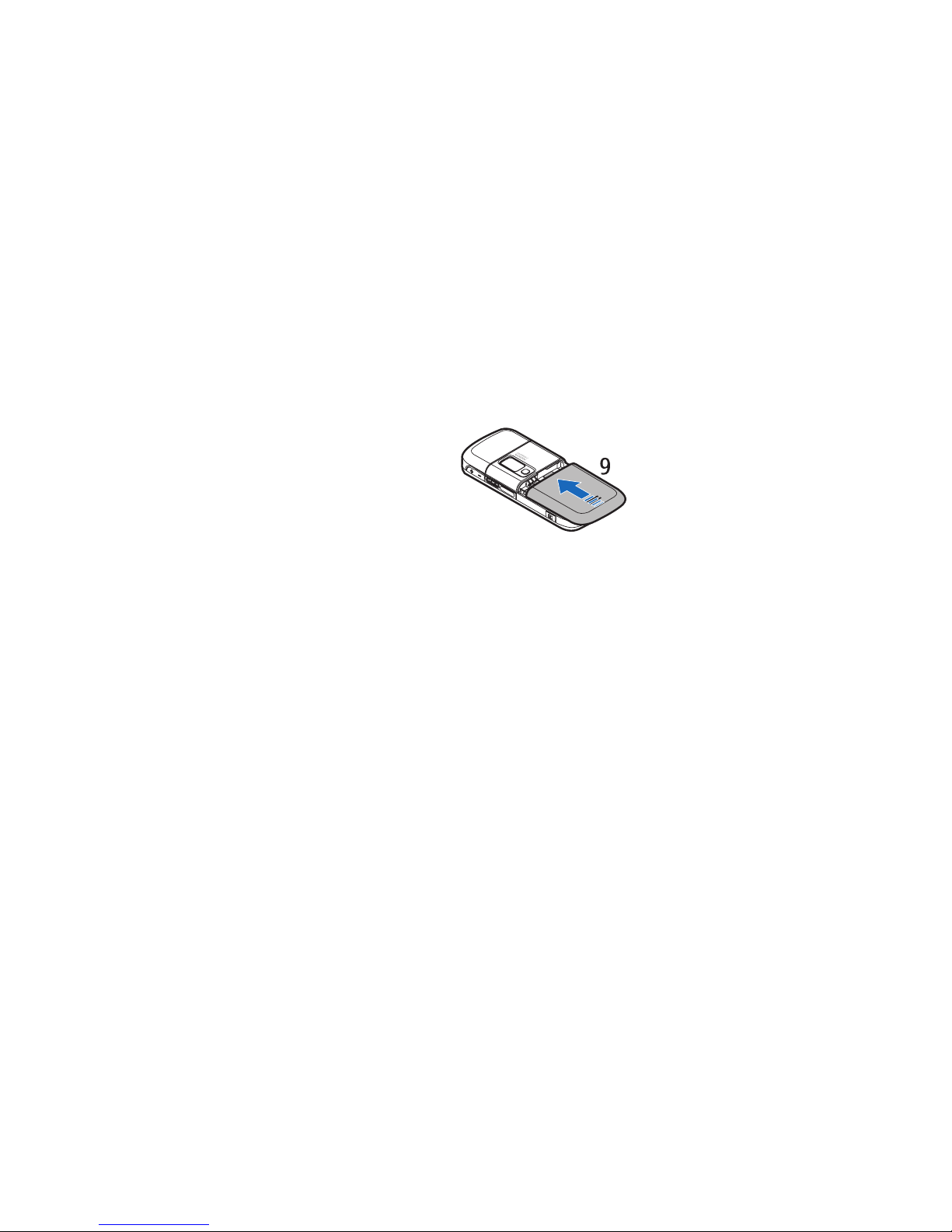

6. Slide the back
cover into place
(9).
■Install a memory card
Use only compatible microSD cards with this device. Other
memory cards, such as Reduced Size MMCs, do not fit in the
memory card slot and are not compatible with this device.
Using an incompatible memory card may damage the
memory card as well as the device, and data stored on the
incompatible card may be corrupted.
You can use a memory card to extend the memory of
My Items.
You can insert or change the memory card without
switching the phone off.

Get started
13
FCC Draft
Important: Do not remove the memory card in the
middle of an operation when the card is being
accessed. Removing the card in the middle of an
operation may damage the memory card as well as
the device, and data stored on the card may be corrupted.
To insert the memory
card, open the memory
card holder as shown (1).
Place the memory card in
the card holder (2). Make
sure that the memory
card is properly inserted—
that it clicks into the
holder—and that the gold-colored contact area on
the card is facing upwards. Close the memory card
holder.

Get started
14
FCC Draft
■Charge the battery
Check the model number of any charger before use with
this device. This device is intended for use when supplied
with power from the AC-4, AC-1, AC-3, or DC-4 charger.
Warning: Use only batteries, chargers, and
enhancements approved by Nokia for use with
this particular model. The use of any other types
may invalidate any approval or warranty, and may be
dangerous.
For availability of approved enhancements, please check
with your dealer. When you disconnect the power cord of
any enhancement, grasp and pull the plug, not the cord.
1. Connect the charger
to a wall outlet.
2. Connect the plug
from the charger
into the CA-44
charging adapter

Get started
15
FCC Draft
(not provided with the phone), and the adapter
plug into the jack on the bottom of your phone.
If the battery is completely discharged, it may
take a few minutes before the charging indicator
appears on the display or before any calls can be
made.
The charging time depends on the charger and the
battery used. For example, charging a BP-6M Li-Ion
battery with the AC-4 charger takes about 1 hour
and 55 minutes while the phone is in the standby
mode.
■Switch the phone on and off
Warning: Do not switch the phone on when
wireless phone use is prohibited or when it may
cause interference or danger.

Get started
16
FCC Draft

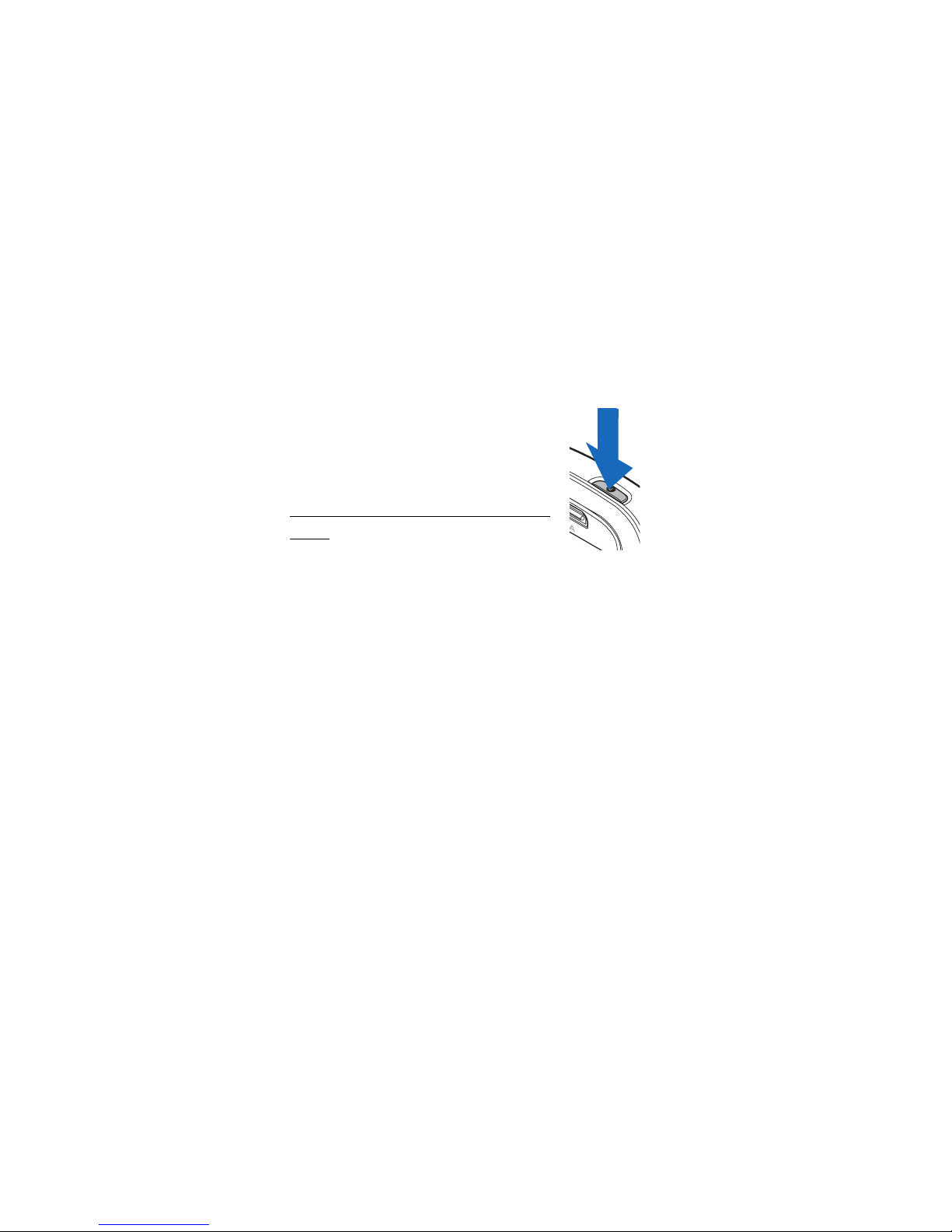

Press and hold the power key as shown.
If the phone asks for a PIN or UPIN code,
enter the code, and select OK.
Set the time, time zone, and
date
Enter the local time, select the time zone
of your location in terms of the time difference with
respect to Greenwich Mean Time (GMT), and enter
the date.

Get started
17
FCC Draft

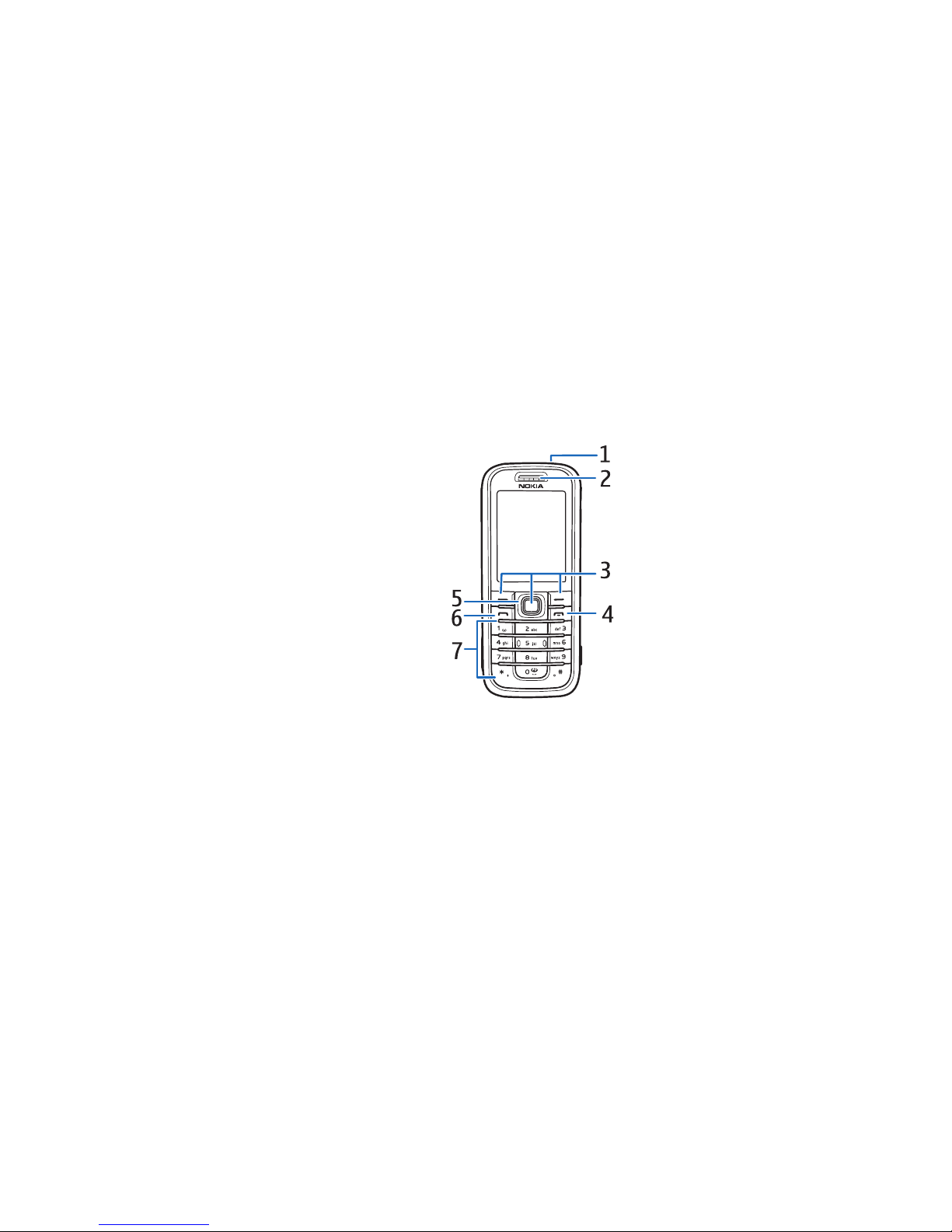

■Keys and parts
1. Power key
2. Earpiece
3. Left, middle,
and right
selection keys
4. End key
5. 4-way
navigation
key
6. Call key
7. Number keys

Get started
18
FCC Draft
8. Push To Talk
key
9. Loudspeaker
10.Memory card
slot
11.Charger
connector
12.Enhancements
connector

Get started
19
FCC Draft

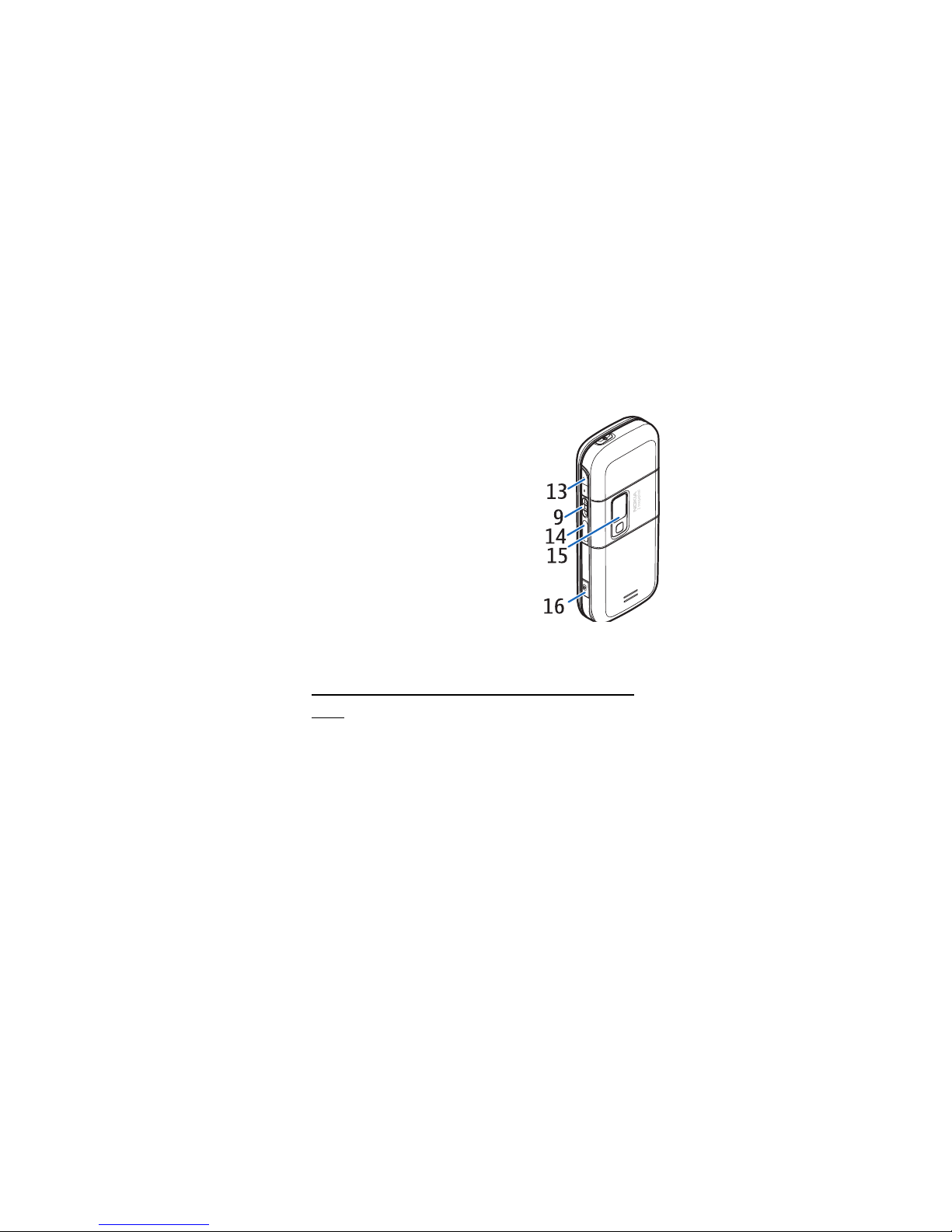

13.Volume keys
14.Infrared (IR) port
15.Camera lens
16.Camera key
■Standby mode
Enable/disable active standby from
idle
To enable the active standby mode, select Menu >
Settings > Display > Standby mode settings > Active
standby > My active standby.

Get started
20
FCC Draft
To disable the active standby mode, select Menu >
Settings > Display > Standby mode settings > Active
standby > Off.
Standby mode shortcuts
• To access the list of dialed numbers, press the call
key once.
• To call your voice mailbox (network service) when
you have saved your voice mailbox number in the
phone, press and hold 1.
• To connect to a browser service, press and hold 0.
■Make a call
1. Enter the phone number, including the area code.
For international calls, press *twice for the
international prefix (the + character replaces the
international access code), enter the country
