Nokia 6720 classic User manual

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
1 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
SERVICE MANUAL
Level 1&2
RM-424 / RM-564
Transceiver characteristics
Band:
RM-424: GSM/EDGE 850/900/1800/1900
RM-424: WCDMA 900/1900/2100
RM-564: GSM/EDGE 850/900/1800/1900
RM-564: WCDMA 850/1900/2100
Display:
2,2” QVGA (320x240), 16M colour TFT
Camera:
Main camera: 5MPix CMOS, Dual Flash, Autofocus
Secondary camera: CIF+ CMOS
Operating System:
Symbian OS 9.3 / S60 3rd Edition Feature Pack 2
Connections:
2 mm charger, 3,5mm AV connector, Bluetooth 2.0
EDR, USB 2.0 (Micro USB), A-GPS
Transceiver with BP-6MT battery pack
Talk time Standby Note
GSM:
Up to 8.5 hours
WCDMA:
Up to 5 hours
GSM:
Up to 500 hours
WCDMA:
Up to 500 hours
Talk times are
dependant on
network
parameters and
phone settings

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
2 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
Table of contents
1. Change history.......................................................................................................................................................................... 3
2. Copyright.................................................................................................................................................................................... 4
3. Warnings and cautions.......................................................................................................................................................... 5
3.1 Warnings .......................................................................................................................................................................... 5
3.2 Cautions............................................................................................................................................................................ 5
4. ESD protection .......................................................................................................................................................................... 6
5. Care and maintenance ........................................................................................................................................................... 7
6. Battery information................................................................................................................................................................ 8
7. Exploded view .......................................................................................................................................................................... 9

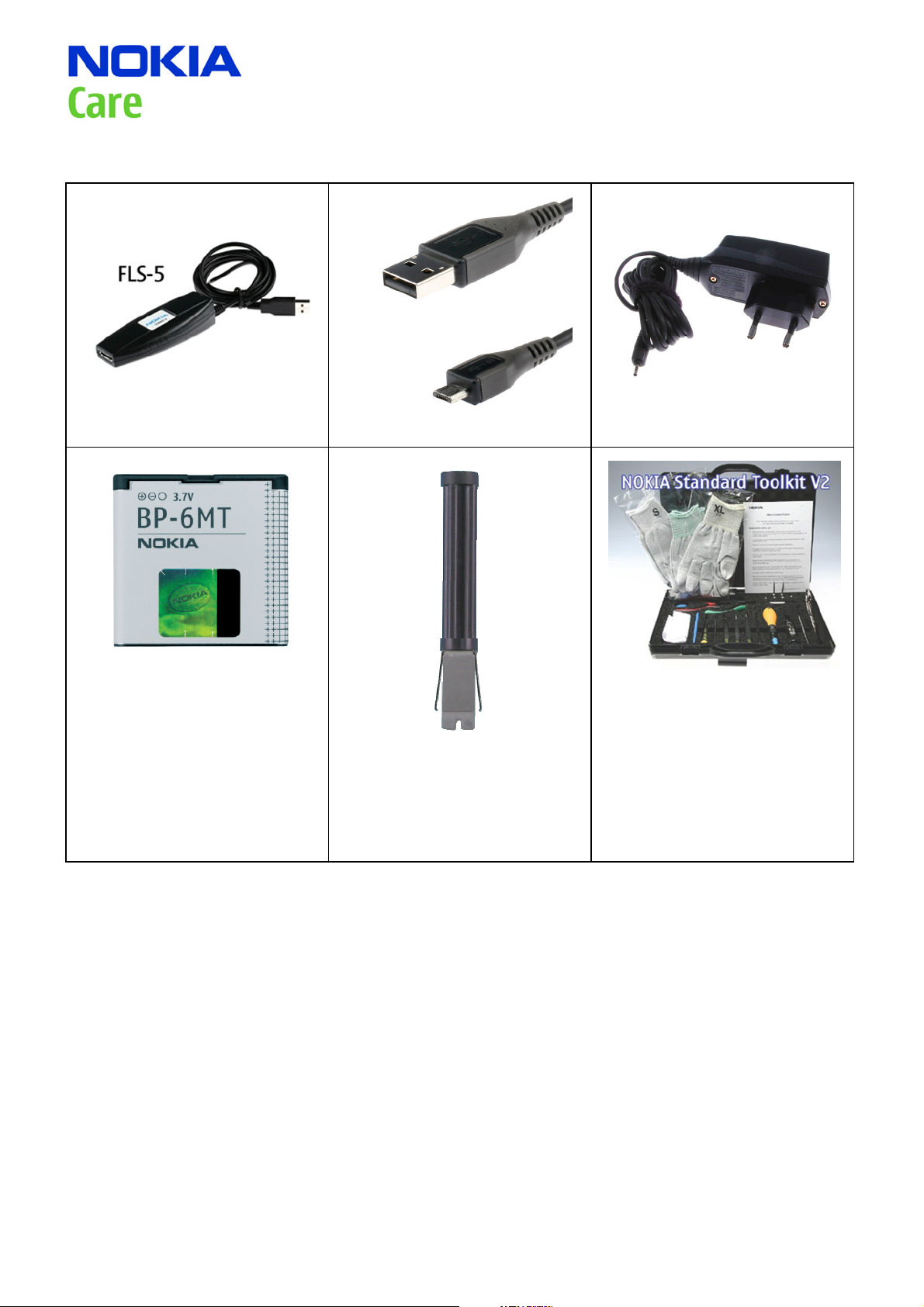

8. Service devices........................................................................................................................................................................10

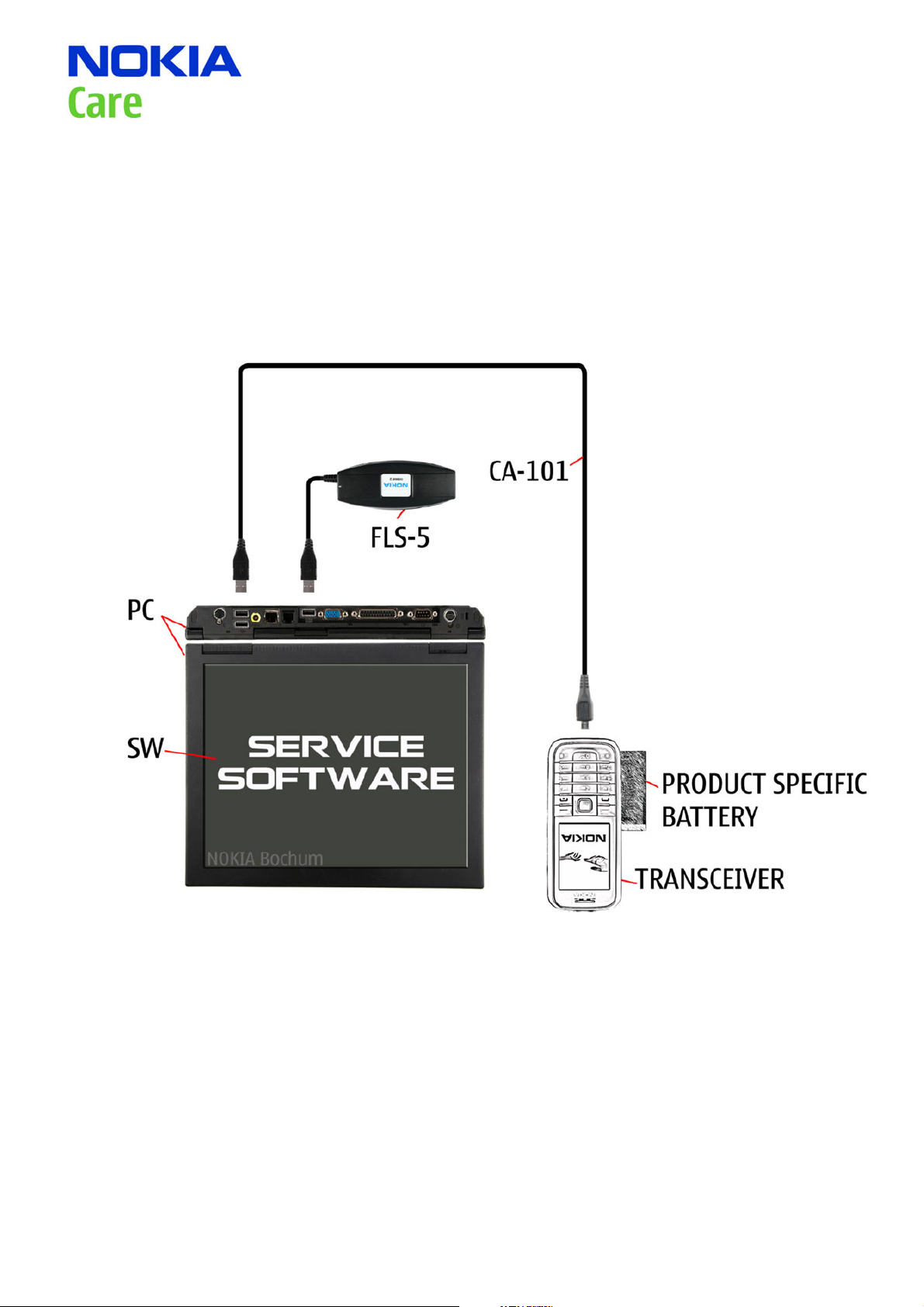

9. SW-update ...............................................................................................................................................................................11

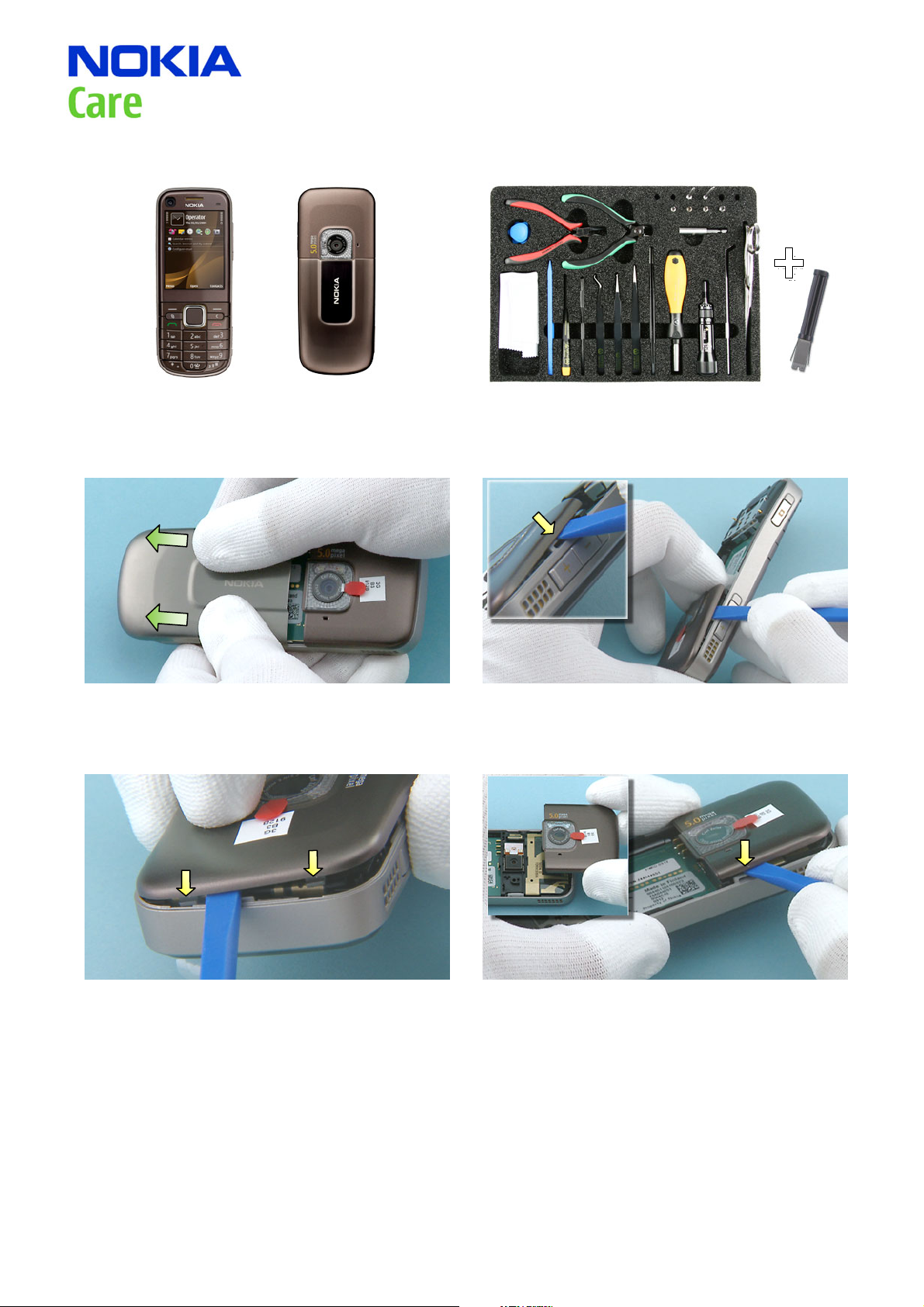

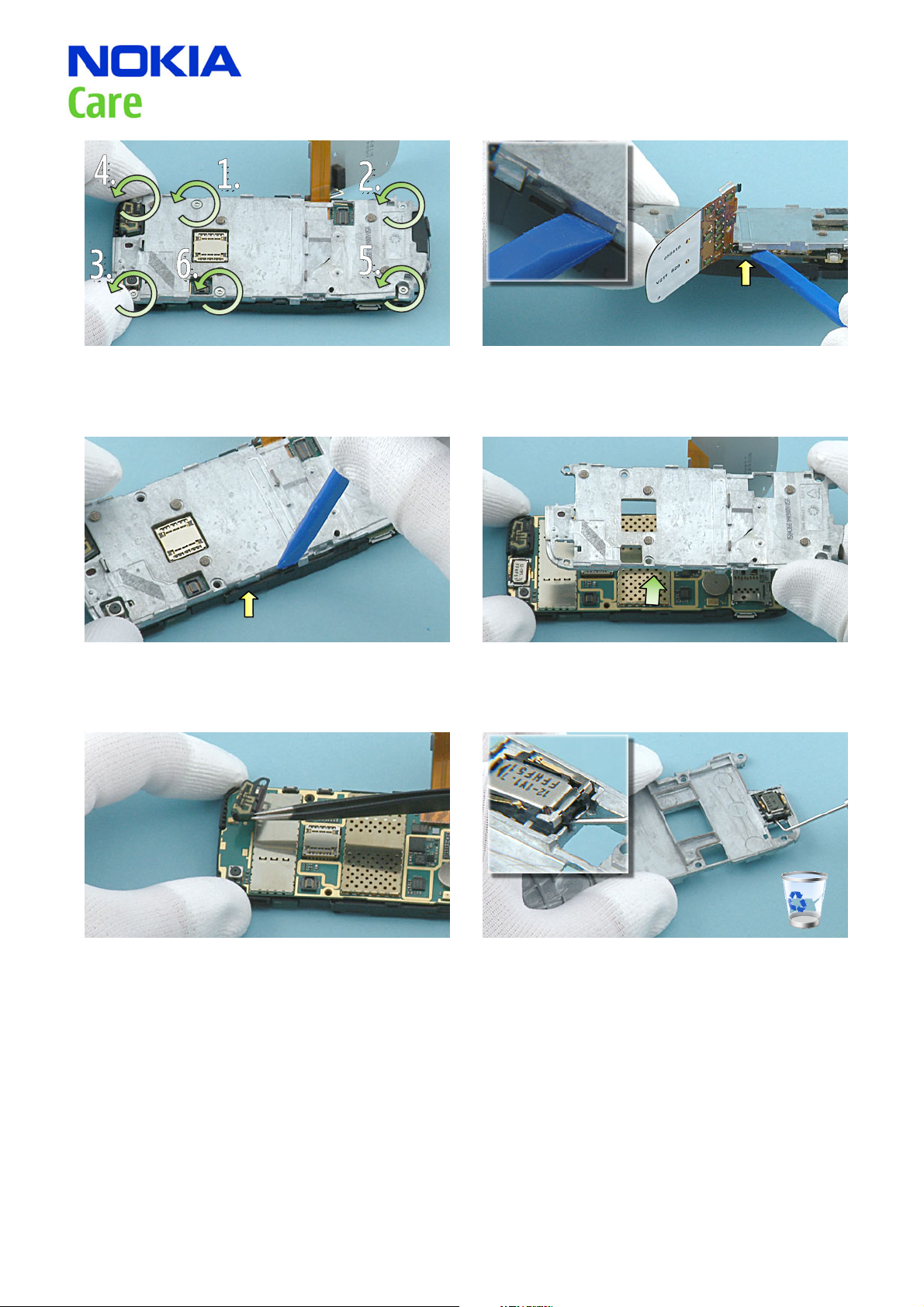

10. Disassembly instruction .................................................................................................................................................12

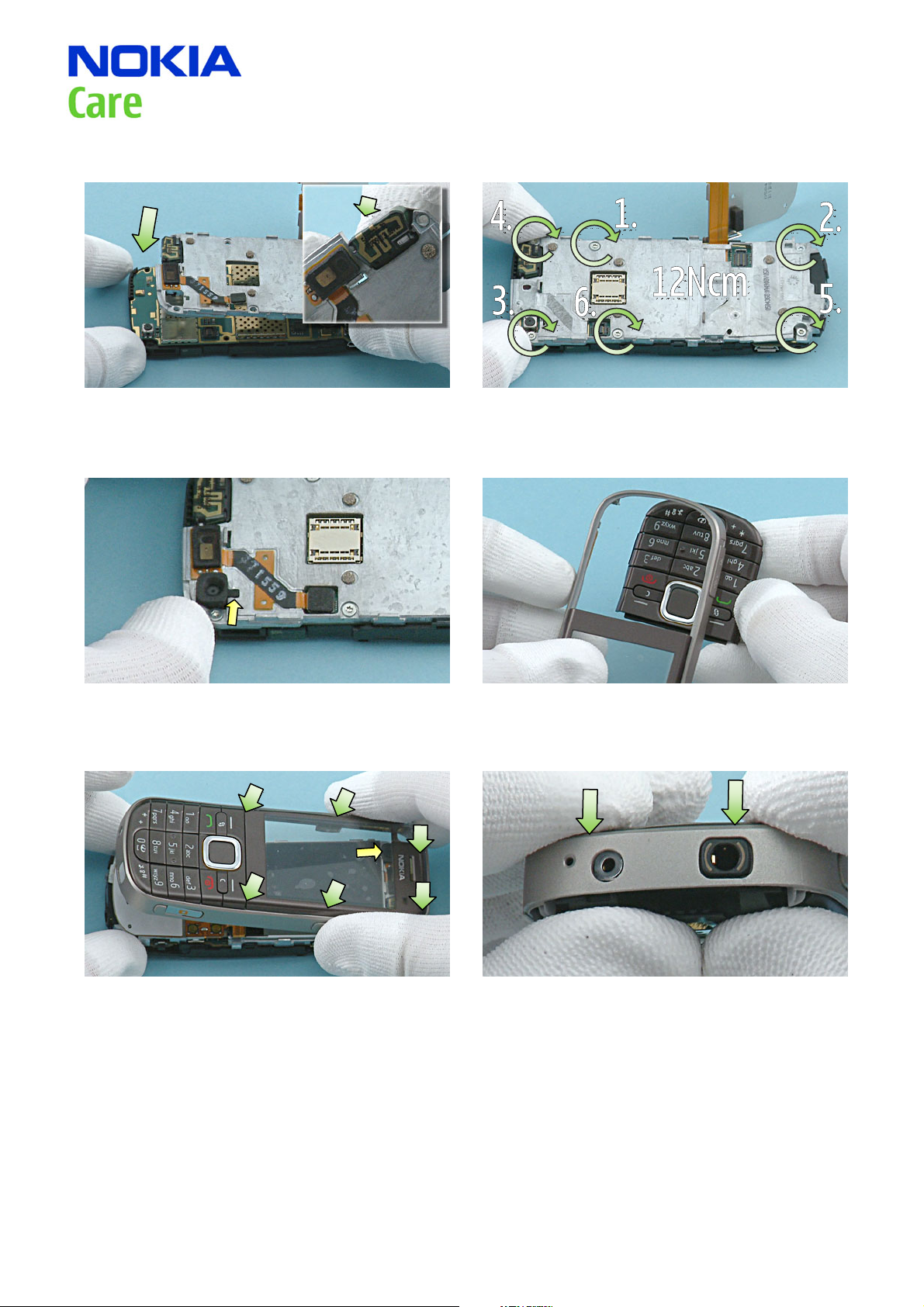

11. Assembly hints...................................................................................................................................................................18

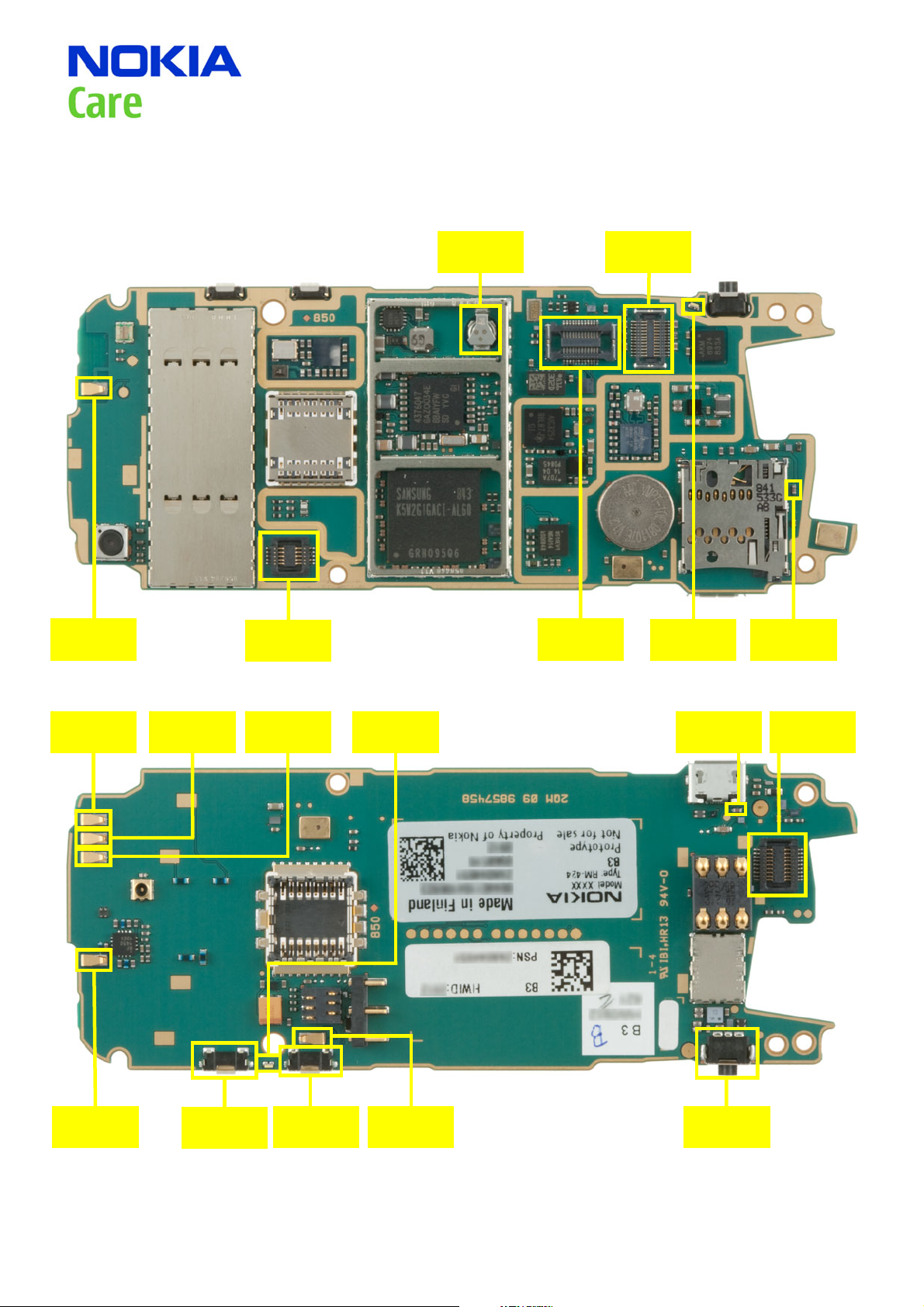

12. Solder components ..........................................................................................................................................................19

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
3 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
1. CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 03.03.2009 Approved
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized
NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides
also other guidance documents (e.g. Service Bulletins) for service suppliers, follow these
regularly and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
CMO Operation & Logistics
Training and Vendor Development
Multimedia Creation & Support
mailto:[email protected]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
4 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
2. COPYRIGHT
Copyright © 2009 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
5 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
6 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1

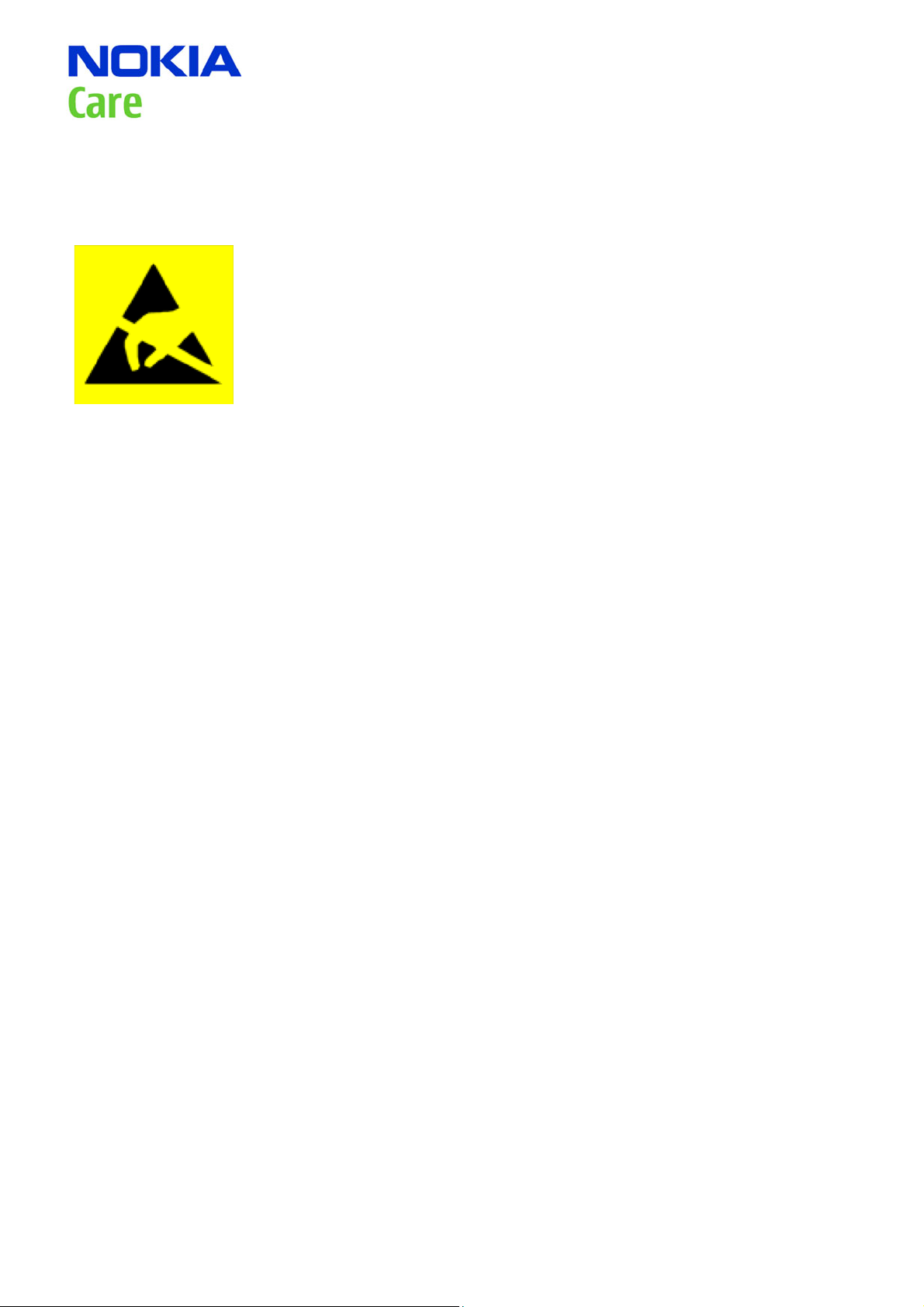

4. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
7 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
•Keep the phone and all its parts and accessories out of the reach of small children.
•Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
•Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
•Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
•Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
•Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
•Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
•Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
•Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
8 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
6. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
9 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
7. EXPLODED VIEW
Only available as
assembly
Ver. 1.0
These parts can not be
reused after removal
A-COVER
I0002
VOLUME KEY
I0003
IHF SPEAKER
I0024
IHF SPEAKER GASKET
I0025
ANTENNA ASSEMBLY
I0029
CAMERA
I0021
B-COVER ASSEMBLY
I0030
GPS ANTENNA ASSEMBLY
I0028
RITSA6 LID
I0016
TYPE LABEL
I0020
FRONT CAMERA GASKET
I0007
LCD AM 240X320 COG
I0009
EANC TOP FLEX ASSY
I0015
DECK
I0012
EARPIECE ADHESIVE
I0013
EARPIECE
I0014
SCREWS
I0010
AV-JACK
I0023
UI-FLEX ASSEMBLY
I0008
KEYMAT
I0006
CAMERA KEY
I0004
MICROX DOOR
I0005
WINDOW
I0001
DC-JACK
I0022
C-COVER
I0027
BATTERY COVER
ASSEMBLY
I0031
FLASH FLEX ASSY
I0026
RAPUYAMA
SHIELD LID
I0017
FM LNA SHIELD LID
I0019
LIGHT SWAP PWB
I0018
WATER INGRESS
LABEL
I9998
A1 = A-COVER ASSEMBLY (I0001-I0005)
A2 = DECK ASSEMBLY(I0011-I0014)
A5 = C-COVER ASSEMBLY (I0011-I0014)
A3 = LIGHT SWAP PACKAGE (I0016-I0020, I9998)
A4 = BOTTOM CONNECTOR ASSY
(I0022-I0023)
DISPLAY ADHESIVE TAPE
I0011

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
10 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
8. SERVICE DEVICES
FLS-5 Flash Device
CA-101 Service Cable
AC-8E Travel Charger
BP-6MT Battery
SS-100 Camera Removal Tool
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
11 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
9. SW-UPDATE
Flash concept- (Point of Sales)
To use the FLS-5 Flash Dongle, you have to follow the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
12 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
10. DISASSEMBLY INSTRUCTION
1) Nokia 6720 classic disassembly 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-100 Camera removal
tool.
3) Remove the BATTERY COVER ASSEMBLY by sliding it
in the direction shown with both thumbs placed on
shown places. Be careful not to bend the cover.
4) Open the B-COVER ASSEMBLY with the SS-93. Begin
to release the cover from the VOLUME KEY SIDE.
5) Continue to release the B-COVER ASSEMBLY from
the top side by releasing the shown two clips.
6) After releasing the last clip the B-COVER can be
removed.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
13 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
7) Begin to release the A-COVER ASSEMBLY with the
SS-93 around the DC-JACK area as shown.
8) Continue to release the A-COVER ASSEMBLY around
the AV-JACK area as shown. Be very careful not to
bend the A-COVER ASSEMBLY!
9) Finally release both sides of the A-COVER
ASSEMBLY with the SS-93 as shown.
10) The A-COVER ASSEMBLY can now be removed.
Remember to protect the LCD with protective film.
11) Separate the KEYMAT from the A-COVER by
pressing the KEYMAT lightly.
12) Use the SRT-6 to open the small clip on the right
side of the UI-FLEX ASSEMBLY.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
14 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
13) The clip located on the left side of the UI-FLEX
ASSEMBLY can be simply released by lifting the UI-
FLEX ASSEMBLY carefully up.
14) Use the SS-93 to open the LCD connector. Be
careful not to damage the connector!
15) Release the LCD by pushing the SS-93 carefully in
to shown place. If the LCD starts to bend, help from
the middle of the LCD as shown in the small picture.
16) Remove the LCD. If there are some adhesive
stains on the back of the LCD remove them with the
SS-93.
17) Use the tweezers to remove the FRONT CAMERA
GASKET and the DISPLAY ADHESIVE TAPE. The DISPLAY
ADHESIVE TAPE cannot be used again. Discard it.
18) Open the EANC TOP FLEX ASSY connector with the
SS-93. The EANC TOP FLEX ASSY is only removed when
it is broken. In that case do not use it again. Discard
it. Replace the new EANC TOP FLEX ASSY immediately.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
15 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
19) Unscrew the six Torx+ 5 screws in the order
shown.
20) Release the clip holding the DECK ASSEMBLY with
the SS-93…
21) … and do the same on the other side. 22) Then separate the DECK ASSEMBLY by lifting it
directly up.
23) Use the tweezers to remove the GPS ANTENNA
ASSEMBLY.
24) Remove the EARPIECE with the dental tool. Do
not use it again. Discard it.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
16 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
25) Remove the EARPIECE ADHESIVE with the
tweezers. Do not use it again. Discard it. If there are
some adhesive stains on the DECK remove them.
26) Open carefully the UI-FLEX ASSEMBLY connector
with the SS-93. Be careful not to damage the
connector or nearby components when opening the
connector.
27) Lift up the LIGHT SWAP PWB. 28) Use the SS-93 to open the two clips holding the
ANTENNA ASSEMBLY.
29) The ANTENNA ASSEMBLY can now be separated
from the C-COVER.
30) Use the dental tool to remove the IHF SPEAKERS.
Do not use them again. Discard Them.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
17 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
31) Also remove the IHF SPEAKER GASKETS. If there
are some gasket remains on the C-COVER remove
them. Do not use them again. Discard Them.
32) Release the CAMERA with the SS-100 by pressing
the removal tool down until the holding clips are
released. Pull the SS-100 up and remove the CAMERA.
33) Open the connector of the BOTTOM CONNECTOR
ASSY with the SS-93. Then pull the assembly to the
direction shown. Be careful not to damage the
connector or nearby components while opening the
connector.
34) Nokia 6720 Classic disassembly is now complete.
- END OF DISASSEMBLING -

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
18 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
11. ASSEMBLY HINTS
1) Make sure the GPS ANTENNA ASSEMBLY is placed
correctly in it’s slot before placing the DECK.
2) Tighten the Torx+ 5 screws to the torque of 12
Ncm in the order shown.
3) Make sure that the FRONT CAMERA GASKET is in
place and the appendix is in gap and pointing to the
bottom before placing the LCD.
4) When assembling the A-COVER make sure that the
KEYMAT is placed underneath the A-COVER as shown.
5) While assembling the A-COVER to the module
make sure that the FRONT CAMERA GASKET is
properly in place. Then press the A-COVER so that 6
clips will get locked.
6) Finally press the bottom end of the A-COVER so
that the AV-JACK and the DC-JACK are properly in
place and two remaining clips will get locked.

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
19 Confidential •Copyright © 2009 NOKIA •All rights reserved Version 1.0 ISSUE 1
12. SOLDER COMPONENTS
Solder components only for Level 2
X2130
X6401
V4401
X4400 F2000V4407
X7555
X7551
S4402
X7550 X7552
S4403 X6400 S4401
X2003F3300
G2200 X2450
