Nokia iSkoot 6600 User manual

nokia
CONNECTING PEOPLE PAGE 1 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
nokia
6600
NHL-10
Transceiver Features
• Integrated digital camera with zoom
• Video recorder with audio support
• Streaming video and audio
• Wireless connectivity with Bluetooth and infrared
• 6 MB internal memory
• Memory card slot for additional user memory and
applications.
• Supports Java™ MIDP 2.0 applications
• Data synchronization with PC via PC Suite
• Tri-band operation in GSM E900/1800/1900
networks
Transceiver with BL-5C 850mAh Li-ion battery pack
Talk time Standby Note
Up to 2-4 hours 150-240 hours
Depends
on network
parameters
SERVICE MANUAL
Service Level 1&2
Copyright © Nokia Corporation. This material, including documentation and any related computer
programs, is protected by copyright controlled by Nokia Mobile Phones. All rights are reserved.
Copying, including reproducing, storing, adapting or translating, any or all of this material requires
the prior written consent of Nokia Mobile Phones. This material also contains confidential
information, which may not be disclosed to others without the prior written consent of Nokia
Mobile Phones.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 2 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
TABLE OF CONTENT
Page
1. INTRODUCTION ...................................................................................................................................... 3
2. GENERAL REPAIR INFORMATION ................................................................................................... 4
3. PATHFINDER FOR WORKSHOP STAFF............................................................................................ 5
4. EXPLODED VIEW AND COMPONENT DISPOSAL.......................................................................... 6
5. SPARE PARTS LIST................................................................................................................................. 7
6. SERVICE TOOLS.................................................................................................................................... 10
7. SW-UPDATE ............................................................................................................................................ 12
8. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT) ............ 13
9. LEGEND FOR QUICK TROUBLE SHOOTER .................................................................................. 18
10. QUICK TROUBLE SHOOTER PART1 ........................................................................................... 19
11. QUICK TROUBLE SHOOTER PART 2 .......................................................................................... 20
12. QUICK TROUBLE SHOOTER PART 3 .......................................................................................... 21
13. CAMERA GONOGO TEST................................................................................................................ 22
14. BLUETOOTH AND INFRARED GONOGO TEST ........................................................................ 23
15. GONOGO TEST (GSM ONLY) ......................................................................................................... 24
16. BATTERY TEST.................................................................................................................................. 24
17. SERVICE NOTES................................................................................................................................ 25
18. FORWARDING OF REPAIRS TO SERVICE LEVEL 3 OR 4 SUPPLIERS............................... 26
19. ESD PROTECTION REQUIREMENTS........................................................................................... 27
CHANGE HISTORY
Status Version No. Date Comments
Draft 0.1 27.08.2003 Initial draft
Approved 1.0 08.10.2003 approval
Approved 2.0 30.10.2003 Content of Service Tools corrected
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 3 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
1. INTRODUCTION
The purpose of this document is to help Nokia service levels 1 and 2 workshop technicians to carry out
service to Nokia 6600. This Service Manual is to be used only by authorized Nokia service partners, and the
content of it is confidential. Please note that Nokia provides also other guidance documents (e.g. Service
Bulletins) for service partners, follow these regularly and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may exist.
If you find any errors or if you have further suggestions, please notify Nokia using the address below:
mailto:[email protected]
Please keep in mind also that this documentation is continuously being updated and modified, so watch
always out for the newest version.
Warnings and Cautions
Please refer to the phone’s user guide for instructions relating to operation, care and maintenance
including important safety information. Note also the following:
Warnings:
1.
2.
3.
CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.
THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.
OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A
PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER
ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
Cautions:
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is
worn.
3. Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.
4. Use only approved components as specified in the parts list.
5. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and
alignment. Ensure all cables and wires are repositioned correctly.
6. All PC’s used with NMP Service Software for this produce must be bios and operating system
”Year 2000 Compliant”.
Electrostatic discharge can easily damage the sensitive components of electronic
products. Therefore every Service Supplier has to take care of all precautions, which are
mentioned in the service level related “Service Partner Requirements”, available on
Nokia Partner Web Site. Also see ESD Protection Requirements in this Service Manual.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 4 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
2. GENERAL REPAIR INFORMATION
IN THIS SECTION THE TECHNICIAN WILL GET SOME GENERAL HINTS HOW TO CARRY OUT REPAIRS:
o To familiarize oneself with Nokia 6600 read the tutorials or user guide on www.nokia.com -->Support--
> Phones, by selecting the Phone Model.
o Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area
and connecting your wristband.
o Use gloves to avoid corrosion and fingerprints.
o Protect windows and displays with a film to avoid dust and scratches.
o When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use
a glass fiber pencil because it scratches the surface and will lead later on to corrosion.
o Mechanical parts (except shielding lids), which didn’t repair the failure, can be reused, if they are not
soldered.
o When removing the shielding lids make sure to replace them with new ones, otherwise the high-
frequency leakage can have an influence on the device.
o Use always original Nokia spare parts.
o Check the soldering joints of the parts which are concerned regarding the indicated error
(e.g. soldered connectors or switches) and resolder them if necessary (Level 2 only).
o Remove redundant soldering flux after repair.
o Meet the torque requirements when assembling the unit (see also the document “torques for
transceiver assembly” on Nokia Partner Web Site).
o Always use your own equipment for testing where you are sure that it works. E.g. if the customer
complains about charger function, please test the phone with your own charger to be sure if phone or
charger causes the malfunction.
o When doing the Faultlogger entries, always note the Item code, which caused the malfunction. Also, fill
in the appropriate part code from the assembly, if needed.
o Please be aware that some malfunctions could be software related and solved by an update.
These mention Service Bulletins have to be followed:
General
SB-027: Original Nokia Accessories
SB-089: Don’t try to repair prototypes (indicated on Type Label).
SB-107: Be sure that you have minimum hardware requirements in place.
SB-115: Handling of liquid damages.
SB-121: Return the defective part, if one of your service tools causes malfunction.
SB-124 Service Policy for packaging serviced products
SB-131: Check these guidelines when refurbishing products.
SB-148: Improvements to Faultlog Reporting Tool
SB-156: Packing Material
SB-161: New structure of General Bulletins
SB-163: Service handling of PWBs and PCBs during repair process
SB-164: New barcode for future products
SB-165: NMP Global Symptom Codes
SB-167: NMP Global Fault Codes (Level 1&2)
Service Tools
SB-011: NMP Standard Toolkit
Spare Parts
SB-004: New swap phone cartons
Please check Nokia Partner Web Site and CarePoint for latest news and files on a regular basis.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 5 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
3. PATHFINDER FOR WORKSHOP STAFF
In addition to the information in this Service Manual, there are several instructions and information, which
have to be followed.

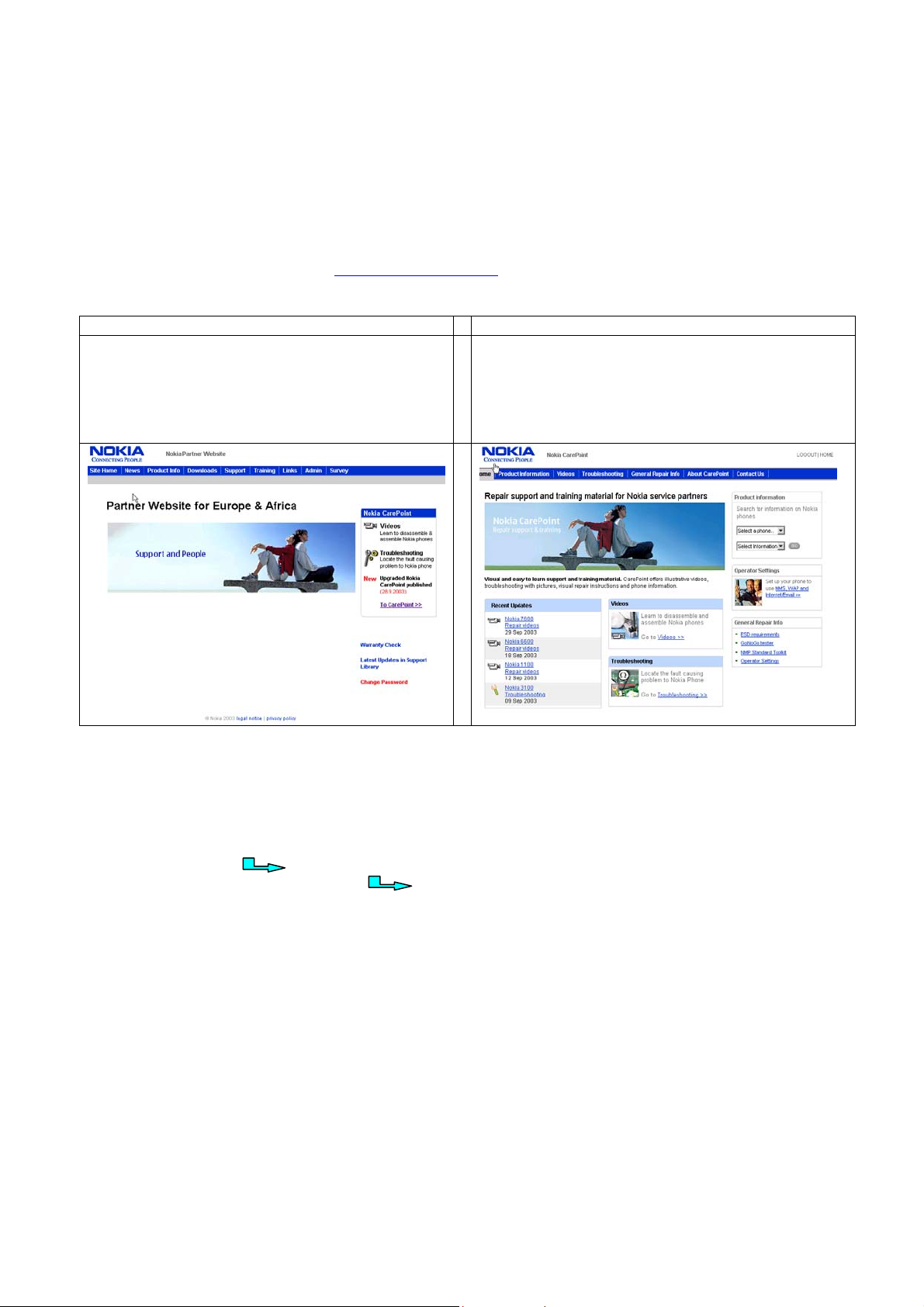

Main documentation database is Nokia Partner Website, which refers also to Nokia Care Point with the
purpose of serving different multimedia content, like video clips or interactive tutorials.
Nokia Partner Web Site Nokia Care Point
Nokia Partner Web Site for EMEA region is the most important
document database for all service suppliers (level 1-4). All
service relevant information like e.g. Service Manuals, Service
Bulletins or general instructions are available. Content is
restricted according you access level. To be kept up-to-date
also concerning newest software updates, a daily check of
“latest updates in support library” is needed.
Nokia Care Point is repair support and training channel for Nokia
service suppliers (mainly for service levels 1 and 2). By providing
visual and easy to learn support and training material, such as
illustrative repair videos, troubleshooting with pictures, product
information and general repair information, Nokia Care Point
offers user-friendly channel for service partners to learn technical
issues.
It is mandatory to watch for newest technical and organizational information on a daily basis to be
updated as required (see “Latest Updates in support Library”). Every new information has to be processed
and implemented as soon as possible.
When logged into PWS you can also find needed information to different headlines respectively tools
like:
Downloads
Support Library
Accessories
Battery Tester
Common Software
Flashing Tools
General --> Instructions
GoNoGo Tester
Service Tools
Tester Support
Wintesla
Products (Service Manuals, Service Bulletins)
To spare server bandwidth it is recommended to download newest version of huge files like videos,
Phoenix packages or Service Manuals only once and distribute it internally for further use.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 6 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003

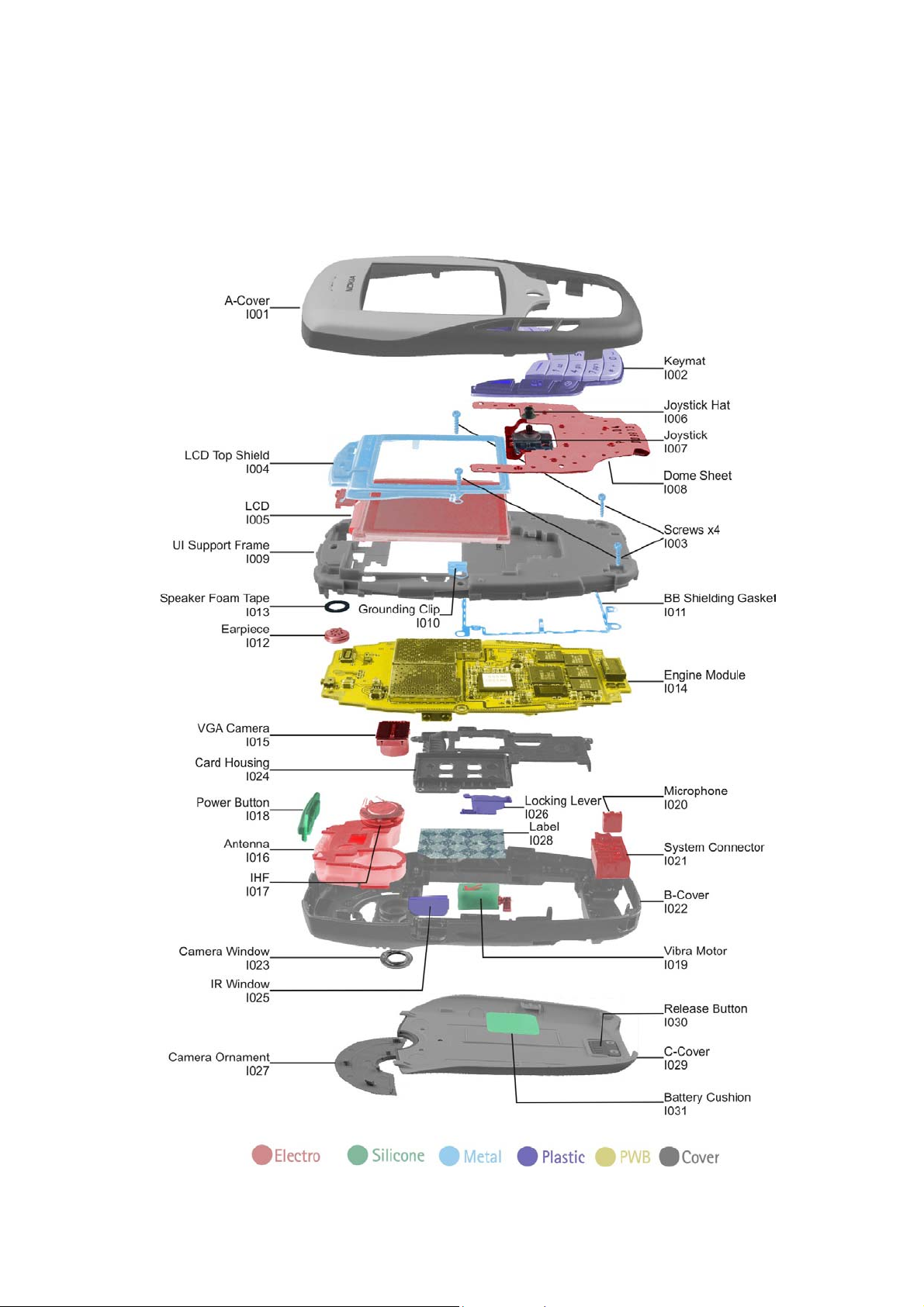

4. EXPLODED VIEW AND COMPONENT DISPOSAL
Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories.
Description: See corresponding ITEM/CIRCUIT REF of the SPL (Spare Parts List)
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 7 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
5. SPARE PARTS LIST
ITEM/
CIRCUIT REF. QTY PART NO PART NAME
I001 1 XXXXXXX A-COVER
I002 1 XXXXXXX KEYMAT
I003 4 6290109 SCREWS 1.8X9 T6 PLUS
I004 1 9511102 LCD TOP SHIELD
I005 1 4850343 LCD
- 1 0201957 UI SUPPORT FRAME ASSY
I006 1 9452804 JOYSTICK HAT
I007 1 - JOYSTICK
I008 1 - DOME SHEET
I009 1 - UI SUPPORT FRAME
I010 1 9517293 GROUNDING CLIP
I011 1 9511104 BB SHIELDING GASKET
I012 1 5140251 EARPIECE
I013 1 9470283 SPEAKER FOAM TAPE
I014 1 - ENGINE MODULE
I015 1 4858009 VGA CAMERA
- 1 0660296 ANTENNA ASSY
I016 1 - ANTENNA
I017 1 - IHF SPEAKER
I018 1 9790812 POWER BUTTON
I019 1 6800063 VIBRA MOTOR
- 1 5460113 SYSTEM CONNECTOR ASSY
I020 1 - MICROPHONE
I021 1 - SYSTEM CONNECTOR
- 1 - B-COVER ASSY
I022 1 - B-COVER
I023 1 - CAMERA WINDOW
I024 1 - CARD HOUSING
I025 1 9452798 IR WINDOW
I026 1 9460517 LOCKING LEVER
I027 1 XXXXXXX CAMERA ORNAMENT
I028 1 - LABEL
- 1 XXXXXXX C-COVER ASSY
I029 1 - C-COVER
I030 1 - RELEASE BUTTON
I031 1 9470618 BATTERY CUSHION
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 8 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
SOLDERING COMPONENTS ONLY FOR LEVEL 2
ITEM/
CIRCUIT REF. QTY PART NO PART NAME
F380 5119019 SM FUSE F 1.5A 32V 0603
G190 4700801 BATTERY LI-ION 0.14MAH 3V RB414
S130 5209001 SM SW TACT SPST 12V 50MA SIDE KEY
X600 9510434 SPRING CLIP M3E14601 NSJ-3 HD925
VARIANT PARTS
ITEM/
CIRCUIT REF. QTY PART NO PART NAME
I001 1 9459090 A-COVER (LIGHT GREY)
I001 1 9459091 A-COVER (ROSE)
I002 1 9791020 KEYMAT LATIN (LIGHT GREY)
I002 1 9791037 KEYMAT LATIN (ROSE)
I002 1 9791021 KEYMAT RUSSIAN (LIGHT GREY)
I002 1 9791088 KEYMAT RUSSIAN (ROSE)
I002 1 9791022 KEYMAT GREEK (LIGHT GREY)
I002 1 9791089 KEYMAT GREEK (ROSE)
I002 1 9791025 KEYMAT ARABIC (LIGHT GREY)
I002 1 9791090 KEYMAT ARABIC (ROSE)
I002 1 9791026 KEYMAT HEBREW (LIGHT GREY)
I002 1 9791091 KEYMAT HEBREW (ROSE)
I027 1 9459107 CAMERA ORNAMENT (LIGHT GREY)
I027 1 9459108 CAMERA ORNAMENT (ROSE)
- 1 9459260 C-COVER ASSY (LIGHT GREY)
- 1 9459261 C-COVER ASSY (ROSE)
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 9 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
SWAP UNITS
QTY PART NO PART NAME
0050486 NHL-10 N6600 SWAP UNIT EUROPE&AFRICA (LIGHT GREY)
0050487 NHL-10 N6600 SWAP UNIT EUROPE (ROSE)
0050488 NHL-10 N6600 SWAP UNIT FRANCE (LIGHT GREY)
0050489 NHL-10 N6600 SWAP UNIT FRANCE (ROSE)
0050491 NHL-10 N6600 SWAP UNIT SOUTH AFRICA (LIGHT GREY)
0050490 NHL-10 N6600 SWAP UNIT SOUTH AFRICA (ROSE)
0050493 NHL-10 N6600 SWAP UNIT POLAND (LIGHT GREY)
0050492 NHL-10 N6600 SWAP UNIT POLAND (ROSE)
0050494 NHL-10 N6600 SWAP UNIT TURKEY (LIGHT GREY)
0050495 NHL-10 N6600 SWAP UNIT TURKEY (ROSE)
0050501 NHL-10 N6600 SWAP UNIT CZECH/SLOVAK. (LIGHT GREY)
0050502 NHL-10 N6600 SWAP UNIT CZECH/SLOVAKIA (ROSE)
0050497 NHL-10 N6600 SWAP UNIT RUSSIA (LIGHT GREY)
0050496 NHL-10 N6600 SWAP UNIT RUSSIA (ROSE)
0050499 NHL-10 N6600 SWAP UNIT UKRAINA (LIGHT GREY)
0050498 NHL-10 N6600 SWAP UNIT UKRAINA (ROSE)
SERVICE TOOLS
TYPE QTY PART NO PART NAME
0080541 FLS-4S SALES PACK E&A (INCLUSIVE 0680032)
0680032 UNIV. POWERSUPPLY ACF-8
ACCESSORY 0273558 BL-5C BATTERY PACK LI-IO 850MAH
ACCESSORY 0272169 AC TRAVEL CHARGER ACP-8E (EURO)
ACCESSORY 0272172 AC TRAVEL CHARGER ACP-8X (UK)
ACCESSORY 0271467 HDC-5 HEADSET
0770506 SF-2 POS FLASH ADAPTER
0730218 XCS-1 SERVICE CABLE
0770722 SS-12 DISASSAMBLY JIG
LEVEL 2 ONLY 0770502 RJ-2 SOLDERING JIG
0770527 SRT-9 CAMERA REMOVAL TOOL
0772040 STANDARD TOOLKIT
0770450 SF-2 TESTPINS (10 PCS)
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 10 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
6. SERVICE TOOLS
ACF-8
Universal Power Supply is used to power FLS-4S.
FLS-4S incl. Driver and User Guide
is a dongle and flash device incorporated into one package,
developed specifically for POS use.
XCS-1
Service Cable is used to connect FLS-4S to SF-2.
Internal Battery BL-5C
Inserted under the back cover, this Li-ion 850 mAh battery
provides power in a lightweight package.
Travel Charger ACP-8E/ACP-8X
Lightweight multi-voltage charger for charging your phone
battery.
Headset HS-5
An easy and convenient handsfree solution with remote
control.
SS-12
Disassembly Jig for Nokia 6600
SF-2
POS Flash Adapter is used in POS (Point of Sales)
environment for software updating. It provides controlled
supply voltage and necessary connections between the
phone and the Flash Device. It substitutes for the phone’s
standard battery during the software update.
RJ-2
Soldering Jig (for level 2 or higher service Level supplier)
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 11 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003

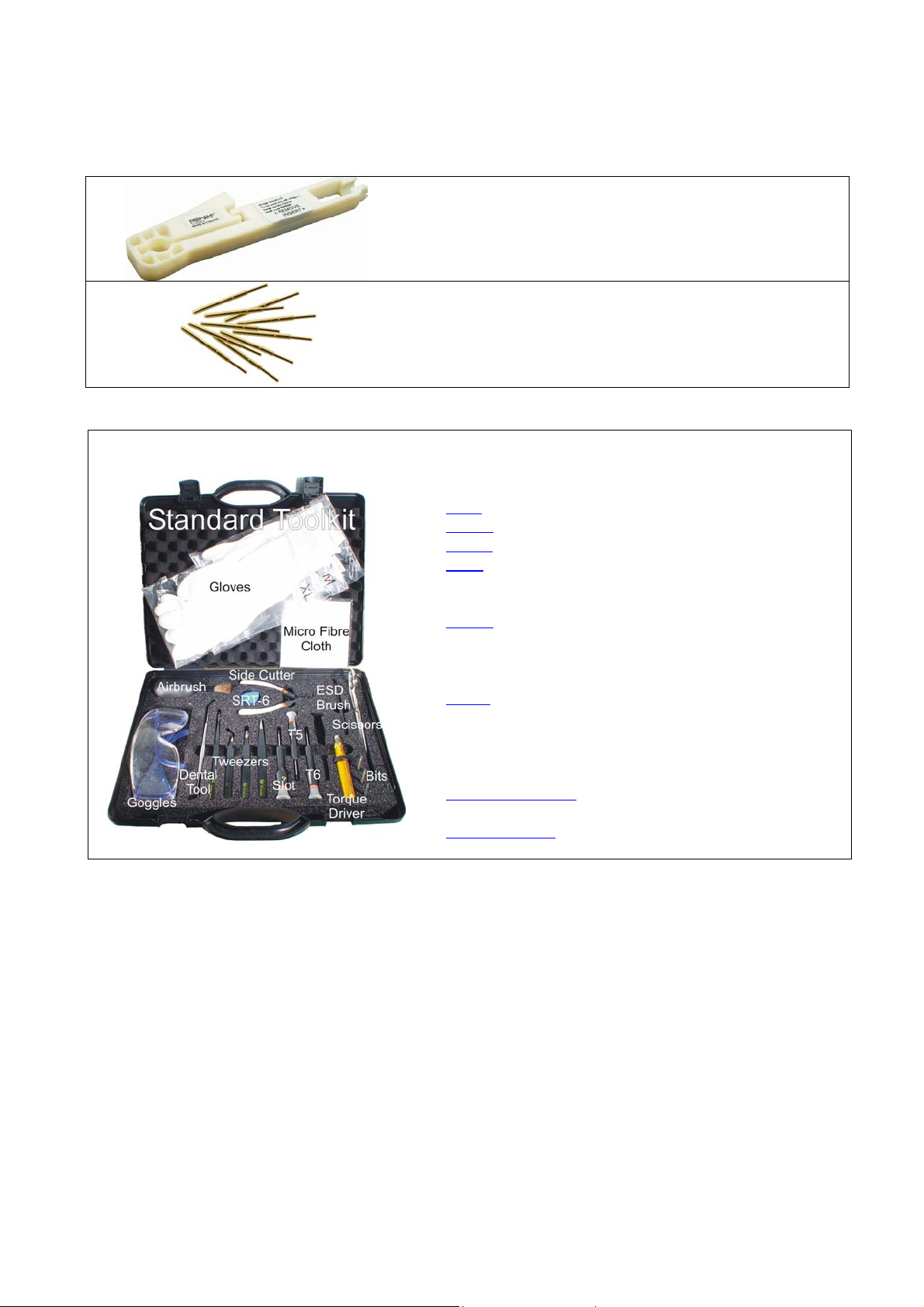

SRT-9
Camera removal tool for VGA Cameras
New Test Pins
for Flash Adapter SF-2
NMP code 0772040 Content
 Nokia opening tool SRT-6 Nokia No. 0770431
 Tonichi torque driver Nokia No. 6901525
 Hoya micro fibre cloth MX304
 Dastex gloves S, M, XL
 Artilux goggles AH166
 Wera bit T5 867/4TX 5x50
 Wera bit T6 867/4TX 6x50
 Wera bit T6 PLUS®867/4TX 6IP
 Facom side cutter 416E
 Facom T5 driver SP.14032
 Facom T6 driver SP.14033
 Facom slot screwdriver AEF. 2x35.E
 Wetec tweezers 7abb SA-ESD
 Wetec tweezers 22 SA-ESD
 Wetec tweezers 13 SA-SMD ESD
 Wetec tweezers PSF SA-ESD
 Wetec ESD brush E1211
 Kaiser Fototechnik airbrush 6315
 Wetec dental tool DEM83266/0
 RS Components Scissors 323-5732
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 12 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
7. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always
the latest version of flash software, which is available on Nokia Partner Web Site.
Flash Concept – (Point of Sales)
It is very important to follow this insertion and removal procedure, otherwise the contact pins of
Flash Adapter will be damaged.
Open the Locking Lever.
Insert the Flash Adapter SF-2 like a battery, start at the
Battery Connector side.
Now, push down the bottom side of the Flash Adapter,
do not use too much force.
When removing the Flash Adapter, always start from
the bottom side of the unit.
Take away the unit now.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 13 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
8. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT)
If not already done protect window with a film to
avoid dust and scratches.
Press the Release Button before removing the C-Cover.
Remove the Camera Ornament with SRT-6 only, use a
second one to twist the Camera Ornament easier.
Now, the Camera Ornament can be taken away.
Place the unit into the Disassembly Jig SS-12. Note that
guiding pins are positioned correctly into the gaps.
Place the SRT-6 on the Jig and shift it carefully along
the edge of the Jig. Start at green mark to release the
A-Cover, use it like a blade with moderate force only, to
prevent damages at the covers. Shift the SRT-6 to the
next mark and carefully press in the tip. (watch videos)
Shift the SRT-6 to the next mark and press in the tip
again.
The same procedure on the other side.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 14 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
Lift the A-Cover on its bottom side carefully. Place the
SRT-6 in the groove and shift it to the next mark. Then
press in the tip as in the step above.
The same procedure on the other side.
Now, the A-Cover can be pulled up. Always protect the
inner side of the window and LCD with a film.
Remove Keypad…
…and Joystick Hat. Unscrew the four Torx Plus®size 6 screws using the
order shown. For assembly, the reverse order and a
Torx Plus®driver with a torque of 19Ncm have to
be used.
Take the phone from the jig.
The UI Support Frame is attached with four snaps in B-
Cover.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 15 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
Use the SRT-6 as a lever to release the snap. Do not
twist SRT-6, because this would damage the cover.
Now release the next snap. Use the same procedure on
the other side.
Remove the modules from B-Cover. Place the SRT-6 between Engine Module and the UI
Support Frame. To open the connector, twist it
carefully as shown in the picture.
Now, the Engine Module can be removed. A slotted screwdriver can be used to open the clip of
the LCD Top Shield.
Release the next snap by using the SRT-6. Now, take away the LCD Top Shield.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 16 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
Remove LCD after protecting it with a film. SRT-6 can be used to remove the Grounding Clip.
A slotted screwdriver can be used to release the three
snaps of the Shielding Gasket.
Please note the guiding pin of the Earpiece while
assembling.
Use a Torx screwdriver to pull down the Earpiece.
To prevent damages of spring contacts use always the
disassembly jig when removing VGA Camera.
The SRT-9 has to be placed onto the VGA Camera to
release its snaps. Some additional force might be
needed to press down the SRT-9. Then squeeze it as
shown in the picture.
Now, the VGA Camera can be removed by pulling up
the removal tool. Please note the right position of the
guiding snaps for re-assembling.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 17 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
Use SRT-6 to lift up the Antenna. The Power Button can be removed easily.
Use tweezers when removing the Vibra Motor. Remove the IR Window.
Use tweezers to lift the System Connector. Push out the Microphone with Torx driver.
To remove Locking Lever place it in the shown position
first, than push it from the other side with moderate
force.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 18 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
9. LEGEND FOR QUICK TROUBLE SHOOTER
This legend is valid for all parts of the Quick Trouble Shooter
Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.
Only underlined components ( e.g. I002) can be changed.
The start point of repair activities regarding the appeared fault symptoms.
Follow the arrows step by step
Pads or contacts: Check optical and mechanical condition particularly
regarding to corrosion. Clean if necessary.
Measure component for electrical functionality and change, if needed.
(Level 2 only)
Pads or contacts: Check optical and mechanical condition particularly
regarding to corrosion. Clean with ESD brush only, if necessary.
No more actions possible send product to the appropriate service partner
with higher service level.
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 19 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
10. QUICK TROUBLE SHOOTER PART 1
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation

nokia
CONNECTING PEOPLE PAGE 20 (27) Approval 2.0
Nokia Mobile Phones Customer Care EMEA DJk
Technical Services, Repair Concepts Confidential 30.10.2003
11. QUICK TROUBLE SHOOTER PART 2
Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation
