6260 Slide RM-368
Service Manual Level 1&2
1 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
SERVICE MANUAL
Level 1&2
RM-368
Transceiver characteristics
Band:
GSM/EDGE 850/900/1800/1900
WCDMA 2100 (band I)/1900 (band II)/900 (Band VIII)
Display:
2,4" HVGA (320x480), 16M colours, Active area 33,6
mm x 50,4 mm
Keypad:
Multidimensional Navi Key
Camera:
Main camera: 5 Mpix, double LED Flash, Auto-focus,
Carl Zeiss optics
Secondary camera; VGA
Operating System:
S40 PR8.1
Connections:
2 mm charger, 2,5 mm AV connector, Bluetooth 2.0
EDR, USB 2.0 (Micro USB), GPS, WLAN 802.11g, Micro SD
Transceiver with BL-5F battery pack
Talk time Standby Note
GSM:
Up to 4 hours
WCDMA:
Up to 3 hours
GSM:
Up to 300 hours
WCDMA:
Up to 300 hours
Talk times are
dependant on
network
parameters and
phone settings

6260 Slide RM-368
Service Manual Level 1&2
2 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
Table of contents
1.Change history.......................................................................................................................................................................... 3
2.Copyright.................................................................................................................................................................................... 4
3.Warnings and cautions.......................................................................................................................................................... 5
3.1Warnings .......................................................................................................................................................................... 5
3.2Cautions............................................................................................................................................................................ 5
4.ESD protection .......................................................................................................................................................................... 6
5.Care and maintenance ........................................................................................................................................................... 7
6.Battery information................................................................................................................................................................ 8
7.Exploded view .......................................................................................................................................................................... 9
8.Service devices........................................................................................................................................................................10
9.SW-update ...............................................................................................................................................................................11
10.Disassembly instruction .................................................................................................................................................12
11.Assembly hints...................................................................................................................................................................18
12.Solder components ..........................................................................................................................................................20


6260 Slide RM-368
Service Manual Level 1&2
3 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
1. CHANGE HISTORY
Status Version No. Date Comments
Approved version 1.0 14.1.2009
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
CMO Operation & Logistics
Training and Vendor Development
Multimedia Creation & Support
mailto:[email protected]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

6260 Slide RM-368
Service Manual Level 1&2
4 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
2. COPYRIGHT
Copyright © 2009 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

6260 Slide RM-368
Service Manual Level 1&2
5 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

6260 Slide RM-368
Service Manual Level 1&2
6 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
4. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD protection.
The SIM card can be replaced without ESD protection if the product is otherwise
ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during shipping
and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

6260 Slide RM-368
Service Manual Level 1&2
7 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
•Keep the phone and all its parts and accessories out of the reach of small children.
•Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
•Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
•Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
•Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
•Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
•Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
•Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
•Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

6260 Slide RM-368
Service Manual Level 1&2
8 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
6. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

6260 Slide RM-368
Service Manual Level 1&2
9 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
7. EXPLODED VIEW

6260 Slide RM-368
Service Manual Level 1&2
10 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
8. SERVICE DEVICES
FLS-5 Flash Device CA-101 Service Cable AC-4 Travel Charger
BL-5F Battery
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.

6260 Slide RM-368
Service Manual Level 1&2
11 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1

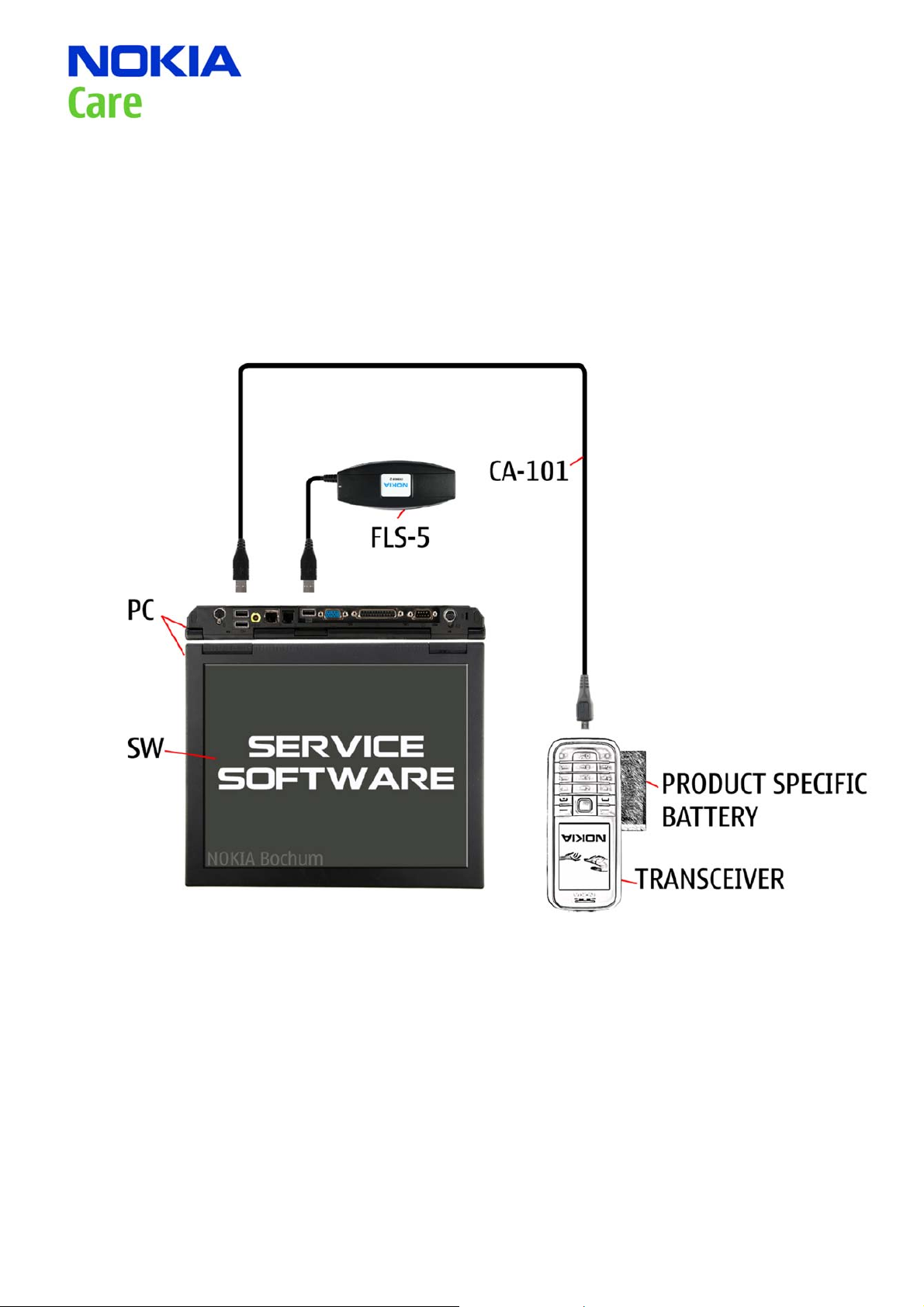

9. SW-UPDATE
Flash concept- (Point of Sales)
To use the FLS-5 Flash Dongle, you have to followw the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.

6260 Slide RM-368
Service Manual Level 1&2
12 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1

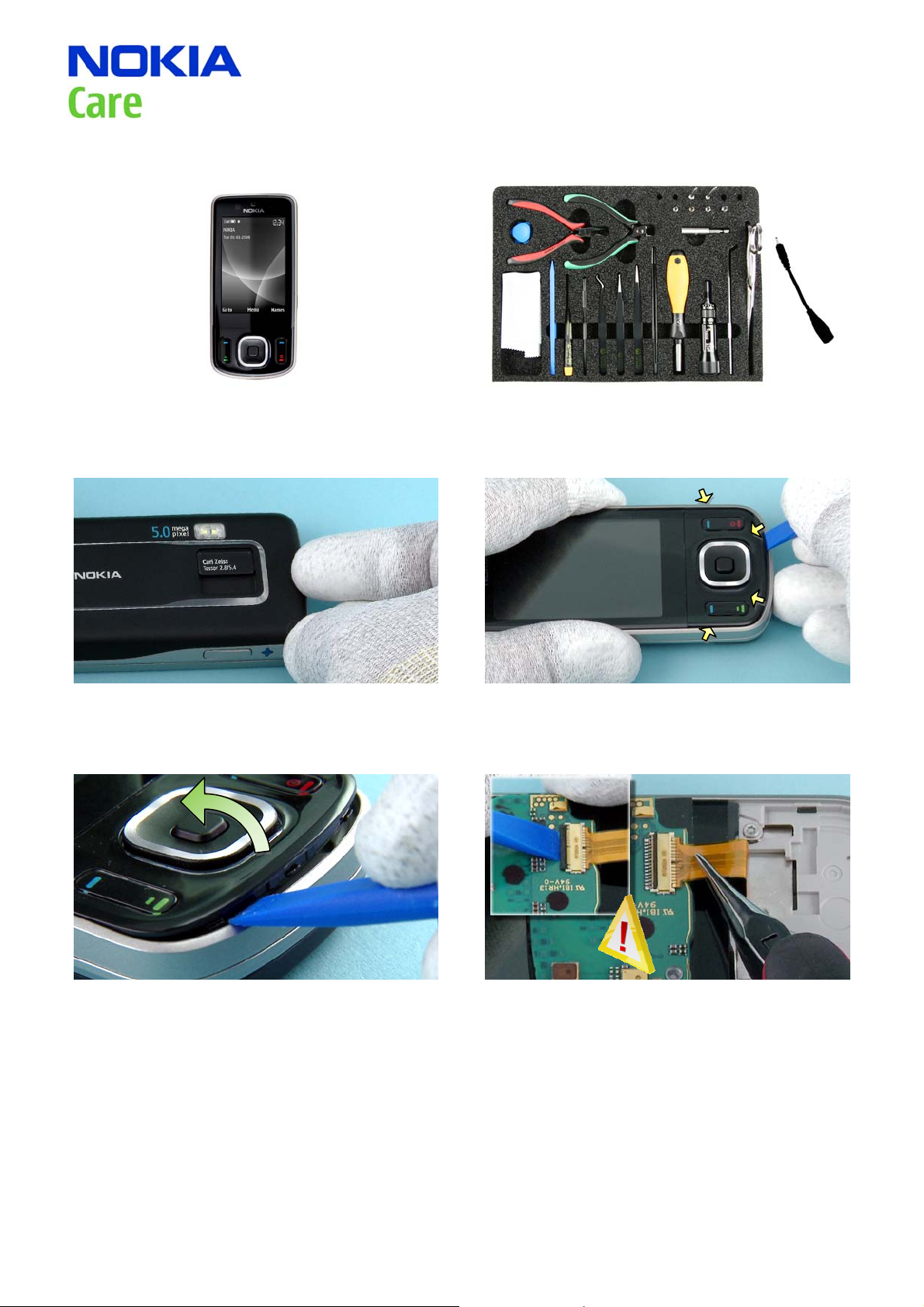

10. DISASSEMBLY INSTRUCTION
1) Nokia 6260 SLIDE disassembly. 2) You must use the Nokia Standard Toolkit version 2.
You will also need a DC plug.
3) To remove the BATTERY COVER, push the button on
the bottom side and then lift up the BATTERY COVER.

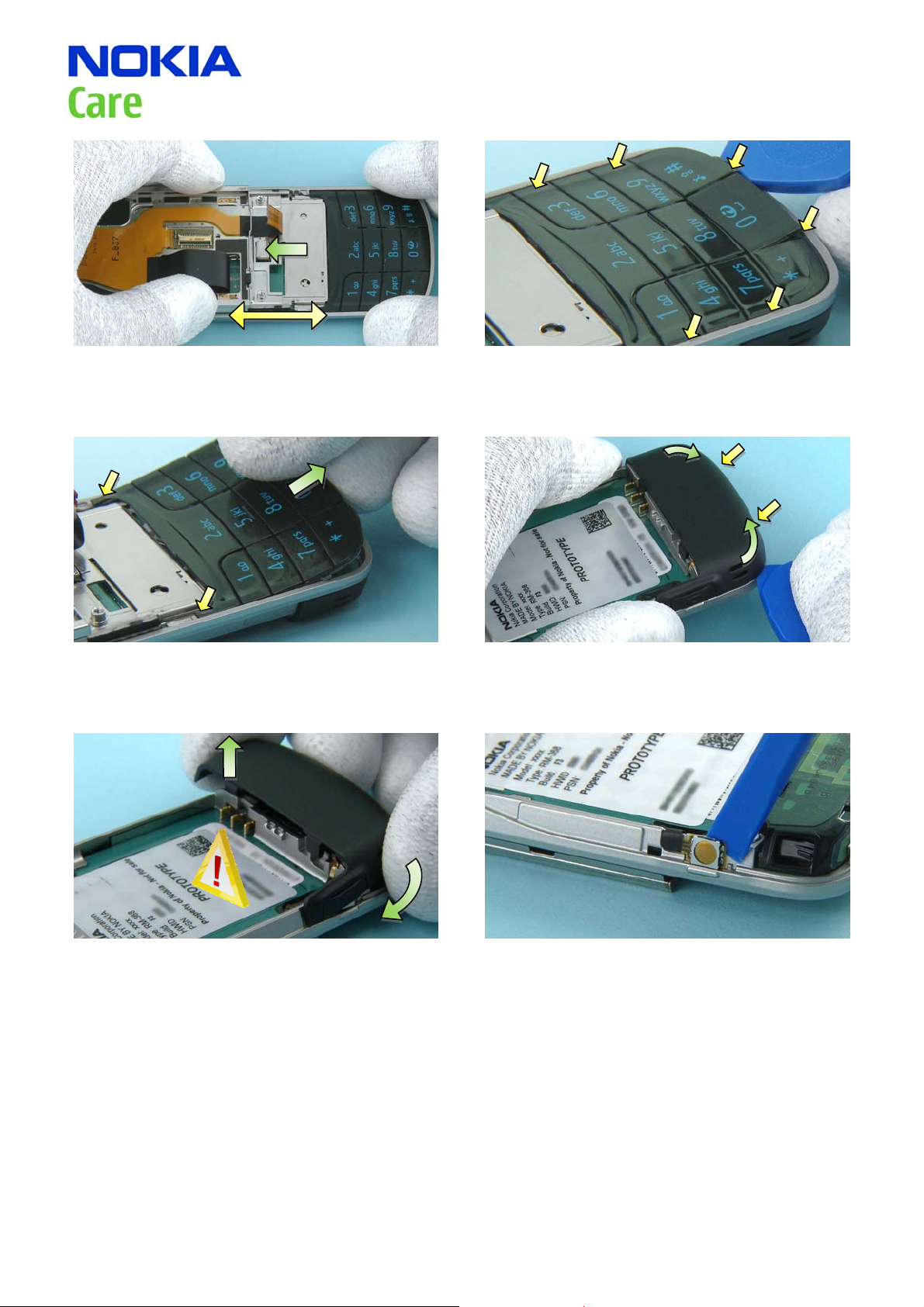

4) Release the four clips holding the UI BOARD ASSY
with the SS-93. Make sure that the assembly is
completely detached.
5) Carefully lift up the UI BOARD ASSY with the SS-93 in
the direction shown.
6) Unlock the locking mechanism of the LCD connector
with the SS-93 and open the connector with the
pliers. Be careful not to damage the connector. The UI
BOARD ASSY can now be removed.

6260 Slide RM-368
Service Manual Level 1&2
13 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
7) Unscrew the two Torx+ 4 screws in the order
shown.
8) Turn the phone over and slide it open. Then
unscrew these two Torx+ 4 screws in the order
shown.
9) Use the SRT-6 to open the two clips of the A-COVER
ASSY. Slide the SRT-6 along the cover edge. Do the
same on the opposite side.
10) The A-COVER ASSY can now be removed.
Remember to protect the LCD with protective film.
11) Lift up the LCD with the SS-93. 12) To disconnect the LCD flex, first open the locking
mechanism of the connector with the SS-93. Then pull
on the flex with the pliers. Be careful not to damage
the connector.

6260 Slide RM-368
Service Manual Level 1&2
14 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
13) Slide the phone open to detach the MAIN KEYMAT. 14) Release the six clips on the MAIN KEYMAT with the
SRT-6.
15) To release the two remaining clips, remove the
KEYMAT in the direction shown.
16) To detach the ANTENNA COVER ASSEMBLY, detach
the two clips by sliding the SRT-6 along the bottom
edge of the cover.
17) Remove the ANTENNA COVER ASSEMBLY in the
direction shown. Pay attention to not to damage the
appendix of the assembly.
18) Use the SS-93 to detach the camera button.

6260 Slide RM-368
Service Manual Level 1&2
15 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
19) Unscrew the four Torx+ 4 screws in the order
shown.
20) Carefully release the slide module with the SS-93.
21) Carefully disconnect the MAIN FLEX from the
engine board with the SS-93. The SLIDE MODULE can
now be removed.
22) Detach the three clips of the B-COVER ASSEMBLY
with the SS-93 and then remove the engine board.
23) Carefully pull out the USB PLUG. 24) Release the AV JACK and the DC JACK with the DC
plug and remove them with the tweezers.

6260 Slide RM-368
Service Manual Level 1&2
16 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
25) Detach the MAIN ANTENNA ASSEMBLY by pressing
it lightly.
26) When opening the CAMERA ASSEMBLY connector,
be careful not to damage the nearby components.
Disconnect the CAMERA ASSEMBLY connector with the
SS-93 and then remove the CAMERA ASSEMBLY with
the tweezers.
27) Detach the DOMESHEET ASSEMBLY with the dental
tool.
28) Release the two clips holding the MICRO SD PWB
ASSEMBLY. Lift up the assembly to get access to the
connector.
29) Open MICRO SD PWB ASSEMBLY connector and
remove the assembly.
30) Carefully loosen up the adhesive on the MAIN FLEX
with the SS-93 as shown.

6260 Slide RM-368
Service Manual Level 1&2
17 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
31) Then pull the flex connectors carefully through
the gaps.
32) Continue loosening the adhesive until the main
flex can be completely removed.
- END OF DISASSEMBLING -
33) The Nokia 6260 SLIDE disassembly is now
complete.

6260 Slide RM-368
Service Manual Level 1&2
18 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
11. ASSEMBLY HINTS
1) After attaching the MAIN FLEX, slide the connectors
carefully through the gaps.
2) After connecting the MICRO SD PWB ASSEMBLY
connector, first attach the two clips.
3) Rotate the MICRO SD PWB ASSEMBLY into position
and attach the two remaining clips with the SS-93.
4) When placing the engine board, make sure that the
camera key is not damaged.
5) Tighten the screws to the torque of 11Ncm in the
order shown.
6) When placing the ANTENNA COVER ASSEMBLY, first
attach the appendix. Then press the assembly down to
attach the remaining clips.

6260 Slide RM-368
Service Manual Level 1&2
19 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
7) Slide the MAIN KEYMAT into place by first attaching
the two clips in the corners of the MAIN KEYMAT.
Then press the MAIN KEYMAT edges to attach the rest
of the clips.
8) Tighten the two screws to the torque of 14Ncm in
the order shown.
9) Tighten the remaining screws to the torque of
14Ncm in the order shown.

6260 Slide RM-368
Service Manual Level 1&2
20 Confidental
Copyright © 2009 NOKIA. All rihts reserved
ISSUE 1
12. SOLDER COMPONENTS
Solder components only for Level 2
V2400
V2401 G2200 X1400
X1550
F2000
X1700
X7403
X6399
S2419 S2415
X7402 X7401
