Nokia Lumia 1520 User manual

User Guide
Nokia Lumia 1520
Issue 2.0 EN-US

Psst...
This guide isn't all there is...
There's a user guide in your phone – it's always with you, available when needed. On the start screen,
swipe left, and tap Nokia Care.
The instructions in this user guide are based on the latest available software version. If your device
has not been updated to the latest available software, there may be differences in the availability
and functionality of some features.
Check out the videos at www.youtube.com/NokiaSupportVideos.
For info on Microsoft Mobile Service terms and Privacy policy, go to www.nokia.com/privacy.
© 2014 Microsoft Mobile. All rights reserved. 2

Contents
For your safety 5
Get started 6
Keys and parts 6
Insert the SIM card 7
Remove the SIM card 8
Insert the memory card 8
Switch the phone on 9
Charge your phone 10
Lock the keys and screen 12
Connect the headset 13
Antenna locations 13
Basics 15
Get to know your phone 15
Accounts 25
Personalize your phone 28
Cortana 32
Take a screenshot 33
Extend battery life 34
Save on data roaming costs 35
Write text 36
Scan codes or text 40
Clock and calendar 41
Browse your SIM apps 43
Store 44
People & messaging 47
Calls 47
Contacts 52
Social networks 55
Messages 56
Mail 60
Camera 65
Get to know Nokia Camera 65
Change the default camera 65
Camera basics 65
Advanced photography 68
Photos and videos 72
Maps & navigation 76
Switch location services on 76
Positioning methods 76
Internet 77
Define internet connections 77
Connect your computer to the web 77
Use your data plan efficiently 78
Web browser 78
Search the web 81
Close internet connections 81
Entertainment 82
Watch and listen 82
FM radio 85
MixRadio 86
Sync music and videos between your
phone and computer 86
Games 87
Office 89
Microsoft Office Mobile 89
Write a note 91
Continue with a document on another
device 92
Use the calculator 92
Use your work phone 92
Tips for business users 93
User Guide
Nokia Lumia 1520
© 2014 Microsoft Mobile. All rights reserved. 3

Phone management & connectivity 95
Update your phone software 95
Wi-Fi 96
NFC 97
Bluetooth 99
Memory and storage 100
Copy content between your phone and
computer 102
Security 104
Wallet 105
Access codes 106
Troubleshooting and support 108
Find your model number and serial
number (IMEI) 110
Product and safety info 110
© 2014 Microsoft Mobile. All rights reserved. 4

For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference
or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Microsoft Mobile for use with
this device. Third-party chargers that comply with the IEC/EN 62684 standard, and that can
connect to your device micro USB connector, may be compatible. Do not connect incompatible
products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is dropped on a hard
surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of
the device or attempt to remove the broken glass from the device. Stop using the device until the
glass is replaced by qualified service personnel.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the speakerphone is in use.
© 2014 Microsoft Mobile. All rights reserved. 5

Get started
Get to grips with the basics, and have your phone up and running in no time.
Keys and parts
Explore the keys and parts of your new phone.

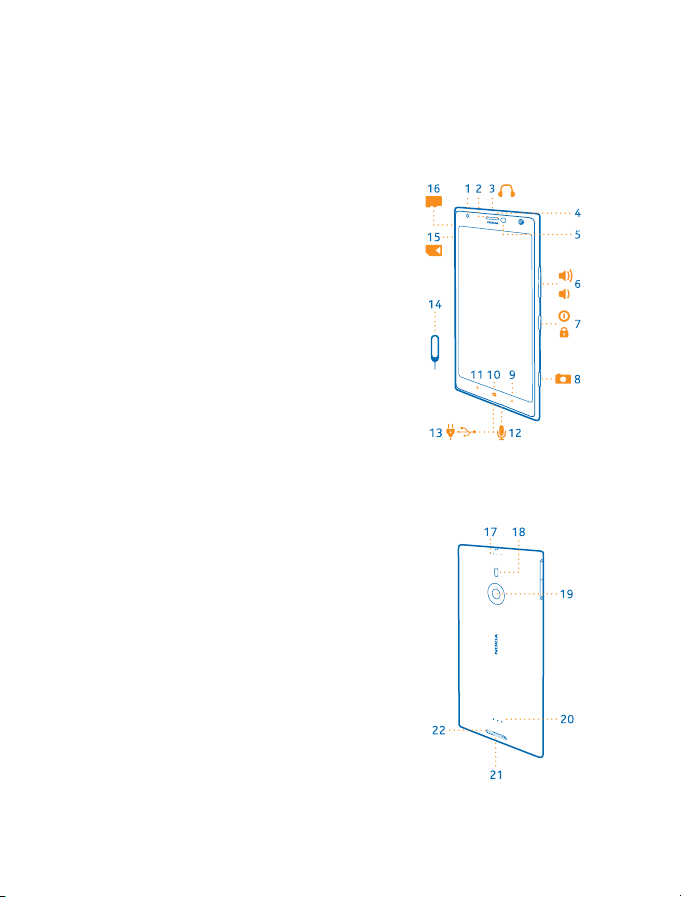

1 Front camera
2 Earpiece
3 Connector for headphones and
speakerphones (3.5 mm)
4 2nd microphone
5 Proximity sensor/Light sensor
6 Volume keys
7 Power/Lock key
8 Camera key
9 Search key
10 Start key
11 Back key
12 Microphone
13 Micro-USB connector
14 SIM and memory card holder tool, available
in the sales box.
15 Nano-SIM holder
16 Memory card holder
17 3rd microphone
18 Camera flash
19 Back camera
20 Wireless charging connectors
21 Speakerphone
22 4th microphone
Some of the accessories mentioned in this user
guide, such as charger, headset, or data cable,
may be sold separately.
© 2014 Microsoft Mobile. All rights reserved. 6

Insert the SIM card
Read on to learn how to insert a SIM card into your phone.
Important: Your device uses a nano-SIM card, also known as a nano-UICC card. Use of
incompatible SIM cards, or use of SIM card adapters, may damage the card or the device, and
may corrupt data stored on the card.
Tip: Use the SIM card holder tool to unlock the SIM holder. If you lose the tool, you can use a
thin paperclip.
Make sure your phone is switched off.
1. Hold your phone face down, and push the tool into the hole until the holder is released.
2. Pull out the holder and remove the key from the holder.
3. Put the card in the holder with the contact area face up, and push the holder back into your phone.
© 2014 Microsoft Mobile. All rights reserved. 7

Remove the SIM card
Got a new SIM card? Learn how to remove the previous card from your phone.
Make sure your phone is switched off.
1. Hold your phone face down, and push the tool into the hole until the holder is released.
2. Pull the holder out, and remove the card.
Insert the memory card
Read on to learn how to insert the memory card into your phone.
Use only compatible memory cards approved for use with this device. Incompatible cards may
damage the card and the device and corrupt data stored on the card.
© 2014 Microsoft Mobile. All rights reserved. 8

Tip: Use the memory card holder tool to unlock the memory card holder. If you lose the tool,
you can use a thin paperclip.
The phone must be switched off before inserting the memory card. Your phone supports memory
cards with a capacity of up to 64 GB. For best performance, use a card with a capacity of 4–32 GB.
1. Hold the phone face up and push the tool into the hole until the memory card holder is released,
and pull the holder open.
2. Put the card in the holder with the contact area face down, and push the holder back into the phone.
Switch the phone on
Are you ready? Switch your phone on, and start exploring it.
Press the power key until the phone vibrates.
© 2014 Microsoft Mobile. All rights reserved. 9

Switch the phone off
Press and hold the power key, and drag the lock screen down.
Charge your phone
Learn how to charge your phone.
Charge your phone with a USB charger
Your battery has been partially charged at the factory, but you may need to recharge it before you
can switch the phone on for the first time.
Make sure you use a compatible USB charger to charge your phone. The charger may be available
separately.
© 2014 Microsoft Mobile. All rights reserved. 10

1. First connect the USB cable to the charger, and plug the charger into a wall outlet, then connect
the micro-USB end of the cable to your phone.
2. When the battery is full, disconnect the charger from the phone, then from the wall outlet.
You don't need to charge the battery for a specific length of time, and you can use the phone while
it's charging.
When you start charging a completely empty battery, the start key flashes until the screen wakes
up and the charging progress is shown.
If the battery is completely discharged, it may need to charge for up to 20 minutes before you can
use your device. The charging indicator may not be displayed in this time.
Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while
charging the device. The efficiency of USB charging power varies significantly, and it may take
a long time for charging to start and the device to start functioning.
Make sure your computer is switched on.
First connect the USB cable to the computer, then to your phone. When the battery is full, first
disconnect the USB cable from your phone, then from the computer.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When
the talk and standby times are noticeably shorter than normal, to replace the battery, take the device
to the nearest authorized service facility.
Battery
Take good care of your battery, it's the life force of your phone.
Your phone has an internal, non-removable, rechargeable battery. Use only Microsoft Mobile
approved chargers designated for this phone. You can also use a compatible USB cable to charge
your phone.
© 2014 Microsoft Mobile. All rights reserved. 11

Do not attempt to open the back cover or remove the battery from the device. To replace the battery,
take the device to your nearest authorized service facility.
Authorized retail points may also offer a battery replacement service.
Important: Only qualified personnel or an authorized service facility should replace the battery.
Unauthorized battery replacement may invalidate your warranty.
Lock the keys and screen
Want to avoid accidentally making a call when your phone is in your pocket or bag?
Press the power key.
Unlock the keys and screen

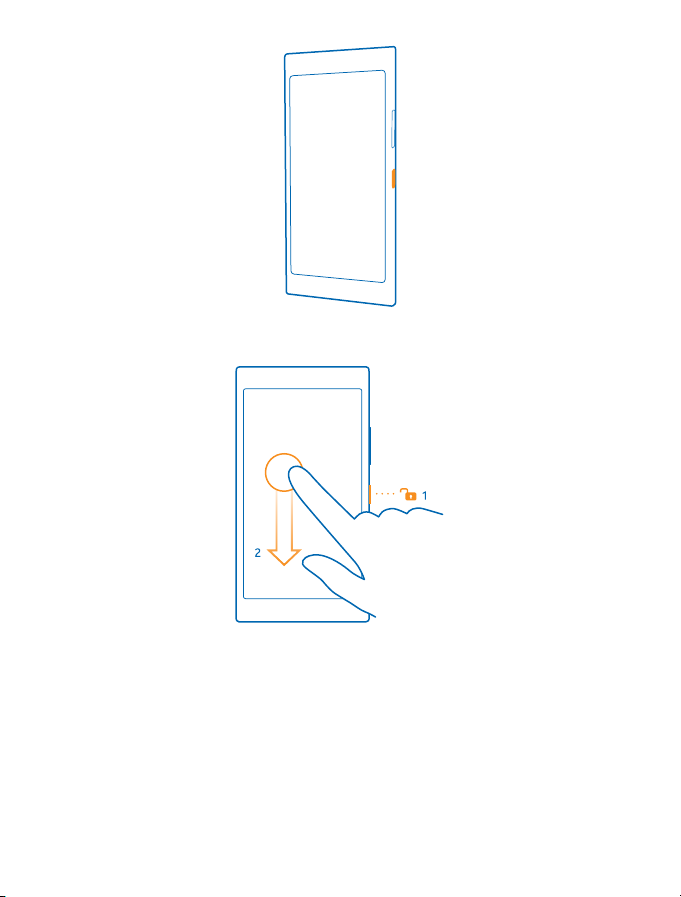

Press the power key, and drag the lock screen up.
© 2014 Microsoft Mobile. All rights reserved. 12

Tip: Instead of pressing the power key, you can also double-tap the screen if double-tap is
switched on. To switch on double-tap, on the start screen, swipe down from the top of the
screen, tap ALL SETTINGS > touch, and switch Wake up to On .
Set the keys and screen to lock automatically
On the start screen, swipe down from the top of the screen, tap ALL SETTINGS > lock screen > Screen
times out after, and select the length of time after which the keys and screen are locked
automatically.
Connect the headset
Enjoy your favorite music, or free your hands for other things when in a call.
The headset may be sold separately.

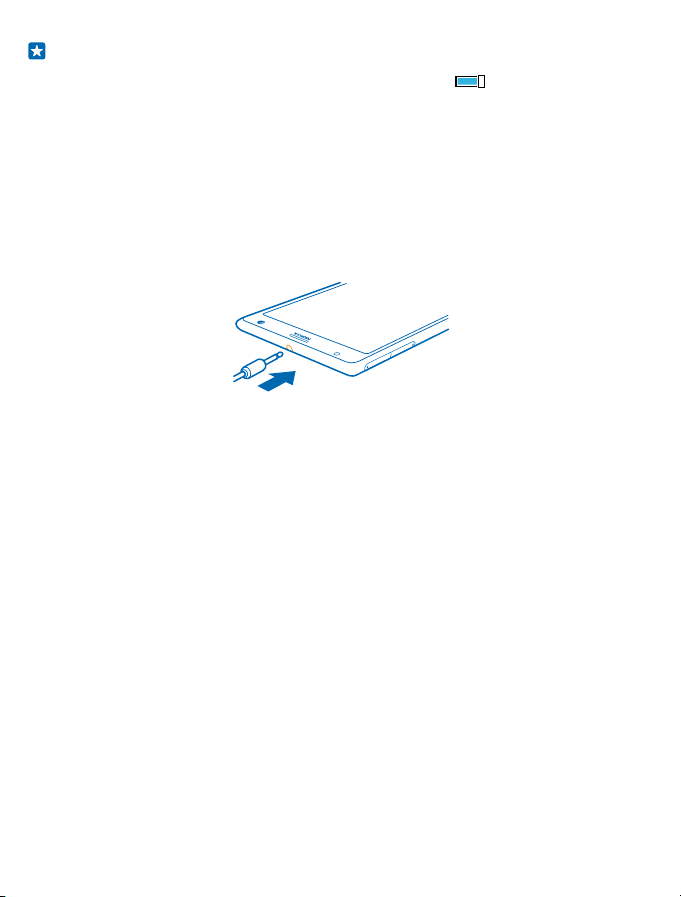

Connect the headset to your phone.
Do not connect products that create an output signal, as this may damage the device. Do not connect
any voltage source to the audio connector. If you connect an external device or headset, other than
those approved for use with this device, to the audio connector, pay special attention to volume
levels.
Antenna locations
Learn where the antennas are located on your phone to get the best possible performance.
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power level during operation.

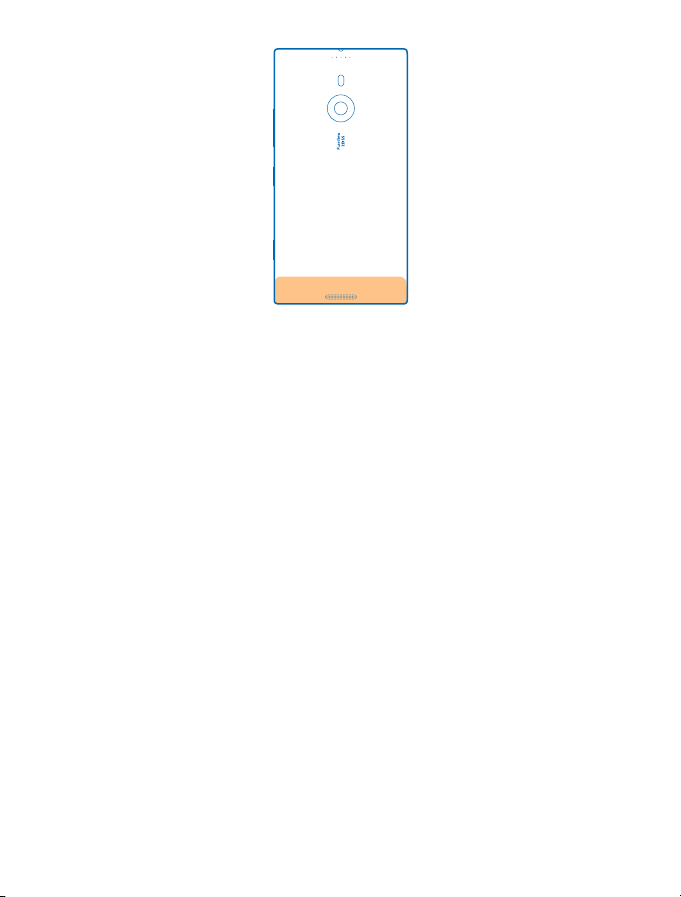

The antenna areas are highlighted.
© 2014 Microsoft Mobile. All rights reserved. 13

© 2014 Microsoft Mobile. All rights reserved. 14

Basics
Learn how to get the most out of your new phone.
Get to know your phone
Your phone has two views, start screen and apps menu. To switch between the views, simply swipe
left or right.

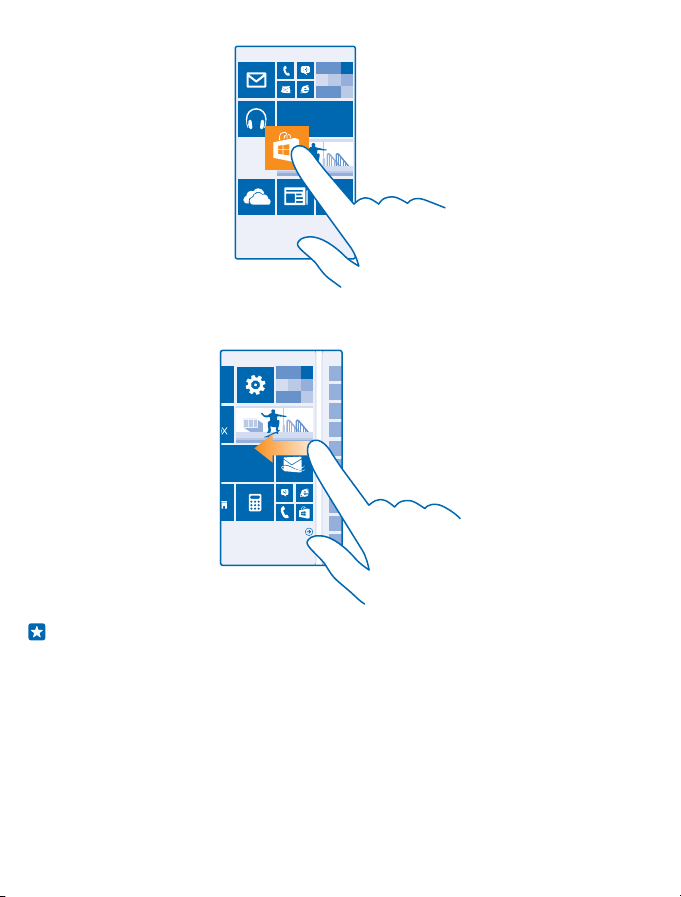

Start screen: The animated live tiles show your missed calls and received messages, the latest news
and weather forecasts, and more. Updates of your pinned contacts are shown on the tile, and you
can view your contacts' details directly from the start screen.
Apps menu: All your apps are listed here, all neatly ordered. If you have a lot of apps, to look one up,
tap .
To access the Windows Phone software license terms, select Settings > about. Please read the
terms. Note that by using the software, you accept the terms. If you do not accept the terms, do not
use the device or software. Instead contact Microsoft Mobile or the party from which you purchased
the device to determine its return policy.
Back, start, and search key
The back, start, and search keys help you navigate your phone.
• To see which apps you have open, press and hold . You can then switch to another app or close
the ones you don’t need.
• To go back to the previous screen you were in, press . Your phone remembers all the apps and
websites you've visited since the last time your screen was locked.
• To go to the start screen, press . The app you were in stays open in the background.
• To search the web or for items on your phone, press .
• To control your phone with your voice, press and hold , and say a voice command.
© 2014 Microsoft Mobile. All rights reserved. 15

This feature is not available in all languages. For info on the supported languages, go to
www.windowsphone.com.
Use the touch screen
Explore your phone with a tap, swipe, or drag.
1. To use your phone, simply tap or tap and hold the touch screen.
2. To open further options, place your finger on an item until the menu opens.
Example: To open an app or other item, tap the app or item. To edit or delete a calendar
appointment, tap and hold the appointment, and select the appropriate option.
Tip: You can even use your phone while wearing gloves. On the start screen, swipe down
from the top of the screen, tap ALL SETTINGS > touch, and switch Touch sensitivity to
high.
Tap and hold to drag an item
Place your finger on the item for a couple of seconds, and slide your finger across the screen.
© 2014 Microsoft Mobile. All rights reserved. 16

Swipe
Place your finger on the screen, and slide your finger in the direction you want.
Example: Swipe left or right between the start screen and the apps menu, or between different
views in the hubs. To quickly scroll through a long list or menu, slide your finger quickly in a
flicking motion up or down the screen, and lift your finger. To stop the scrolling, tap the screen.
© 2014 Microsoft Mobile. All rights reserved. 17

Zoom in or out
Place 2 fingers on an item, such as a map, photo, or web page, and slide your fingers apart or together.
Important: Avoid scratching the touch screen.
Tip: The screen rotates automatically when you turn the phone 90 degrees. To lock the screen
in its current orientation, on the start screen, swipe down from the top of the screen, and tap
ALL SETTINGS > screen rotation. Switch Rotation lock to On . Screen rotation may not
work in all apps or views.
© 2014 Microsoft Mobile. All rights reserved. 18

Switch between views and apps
Don't have all the apps you need on your start screen? Swipe to the apps menu to find them. Or check
what’s already running on your phone and switch between the apps.
To see all apps on your phone, on the start screen, simply swipe left. To return to the start screen,
swipe right.
Tip: To find an app quickly, tap any letter in the apps menu, and in the following menu, tap the
first letter or character for the app you want.
View, switch between, and close open apps
To view the open apps, press and hold . To switch the app, swipe to the app you want, and tap the
app. To close the apps you no longer need, tap .
© 2014 Microsoft Mobile. All rights reserved. 19

Check notifications on your phone
Want to check your latest mails or messages quickly? Or to connect to a Wi-Fi network easily? You
can quickly check notifications, change some settings, and more in the action center that opens from
the top of the screen.
1. Swipe down from the top of the screen.
In this screen, you can:
• See your missed calls and recent unread mails and messages
• Check any notifications, such as available app updates in Store
• Open apps
• Check for Wi-Fi networks, and connect to them
• Quickly jump to settings
2. To close the menu, press the back key.
Personalize the action center
On the start screen, swipe down from the top of the screen, and tap ALL SETTINGS > notifications
+actions. To change a shortcut, tap the shortcut and the app you want. You can also select which
notifications you want to receive and how.
Change the volume
Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the
volume to your liking.
Use the volume keys.
© 2014 Microsoft Mobile. All rights reserved. 20
