Quick Start Guide
for Nokia N 0
7
Copyright © 2006 Nokia. All rights reserved.

©2006 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and
company names mentioned herein may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written
permission of Nokia is prohibited.
legal-informationQS.fm Page 2 Wednesday, January 3, 2007 9:43 AM
Copyright © 2006 Nokia. All rights reserved.

3
Model number: Nokia N70-1. Hereinafter referred to as Nokia N70.
Insert the (U)SIM card and battery
Glossary: The USIM card is an enhanced version of the SIM card and is supported by UMTS
mobile phones.
Keep all SIM cards out of the reach of small children.
Always switch the device off, and disconnect the charger before removing the battery.
1With the back of the device facing you, press the release
button (1), and slide the cover in the direction of the
arrow (2).
2Lift the cover (3).
3To release the (U)SIM card holder, lift the holder up (4).
4Insert the (U)SIM card (5). Make sure that the contact area
on the card is facing the connectors on the device and the
bevelled corner on the card is facing the base of the device.
5Close the holder, and lock it into place.
9240625_N70-1_en_apac.book Page 3 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

4

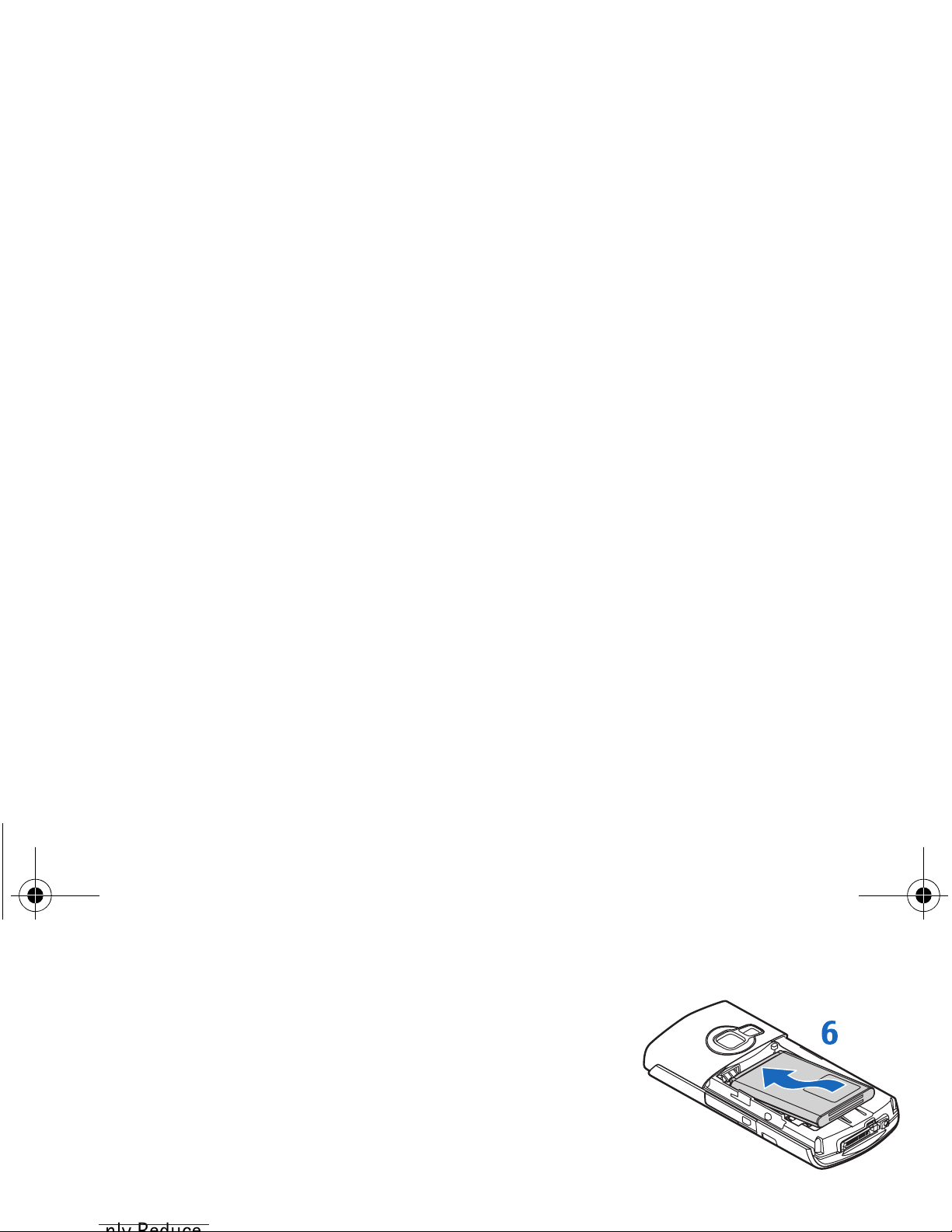

6Insert the battery (6).
7Replace the back cover.
Insert the memory card
Use only Reduced Size MultiMediaCards (RS-MMC) approved by Nokia for use with this device.
Nokia utilizes the approved industry standards for memory cards but not all other brands may
function correctly or be fully compatible with this device.
Use only compatible Reduced Size MultiMediaCards (RS-MMC) with this device. Other memory
cards, such as Secure Digital (SD) cards, do not fit in the memory card slot and are not
compatible with this device. Using an incompatible memory card may damage the memory card
as well as the device, and data stored on the incompatible card may be corrupted.
Use a compatible memory card to save the memory on your device. You can also back up
information from your device to a compatible memory card, for example:
• Reduced Size MultiMediaCard (RS-MMC) memory card
• MultiMediaCard (MMC) adapter
You do not need the adapter when you use the RS-MMC in your Nokia N70. The adapter
allows you to use the RS-MMC in another compatible device that has a full-size MMC slot.
A compatible memory card may already be inserted in your device.
9240625_N70-1_en_apac.book Page 4 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

5

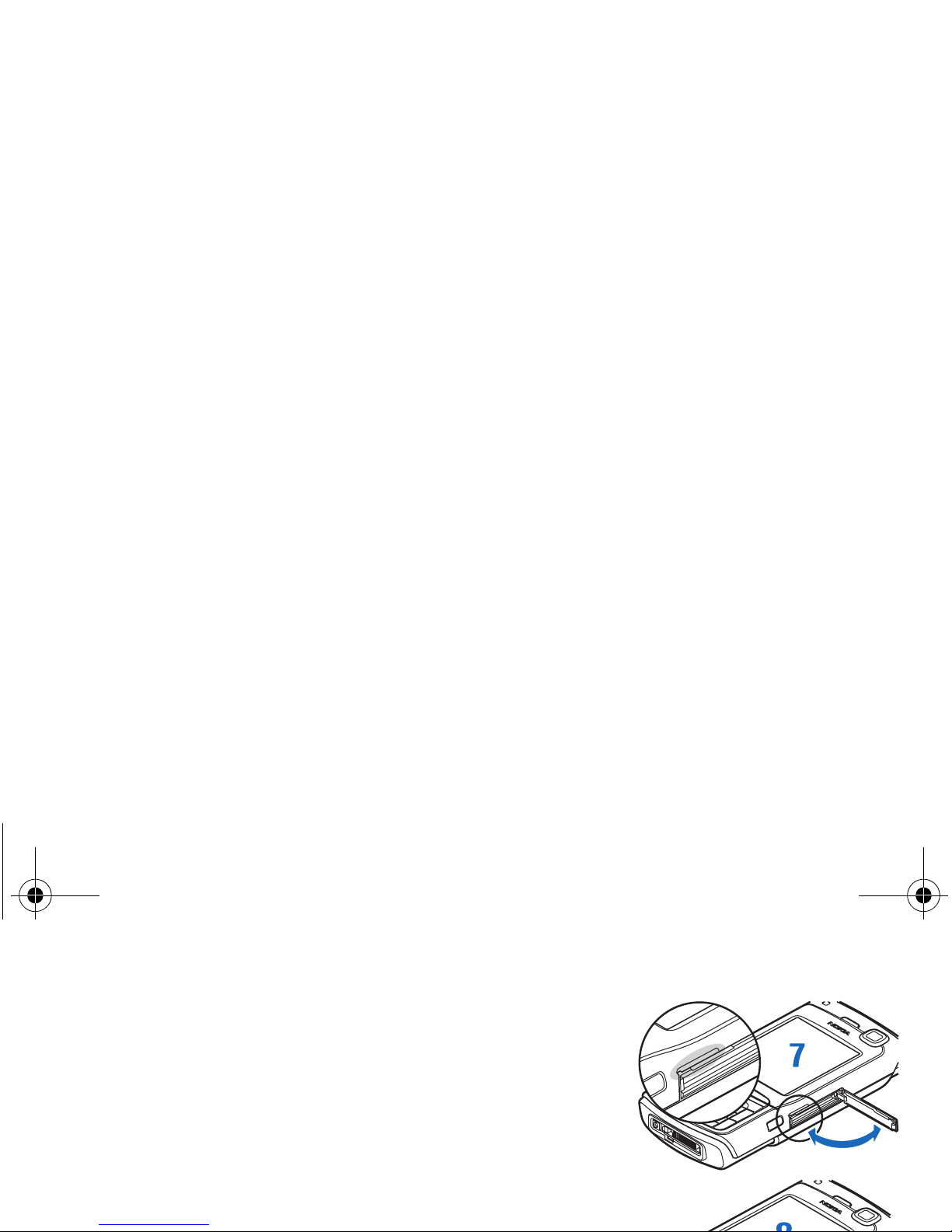

1To insert a memory card, open the door of the memory card
slot (7). Place your finger in the recess on top of the door,
and lift out the door.
2Insert a compatible memory card in the slot (8). Make sure
that the contact area on the card is facing up and the
bevelled corner is facing the base of the device.
3Push the card in (9). You can hear a click when the card
locks into place.
4Close the door. You cannot use the memory card if the door is open.
Eject the memory card
1Open the door of the memory card slot.
2Press the memory card to release it from the slot.
3Remove the memory card. If the device is switched on, select OK.
9240625_N70-1_en_apac.book Page 5 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

6
Important: Do not remove the memory card in the middle of an operation when the card
is being accessed. Removing the card in the middle of an operation may damage the
memory card as well as the device, and data stored on the card may be corrupted.
Charge the battery
1Connect a compatible charger to a wall outlet.
2Connect the power cord to the device. The battery indicator
bar starts scrolling. The device can be used while charging.
If the battery is completely discharged, it may take a few
minutes before the charging indicator is shown.
3When the battery is fully charged, the bar stops scrolling.
Disconnect the charger, first from the device, then from the
wall outlet.
Headset
Connect a compatible headset to the Pop-PortTM connector of
your device.
Warning: When you use a headset, your ability to hear outside sounds may be affected.
Do not use a headset where it can endanger your safety.
9240625_N70-1_en_apac.book Page 6 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

7

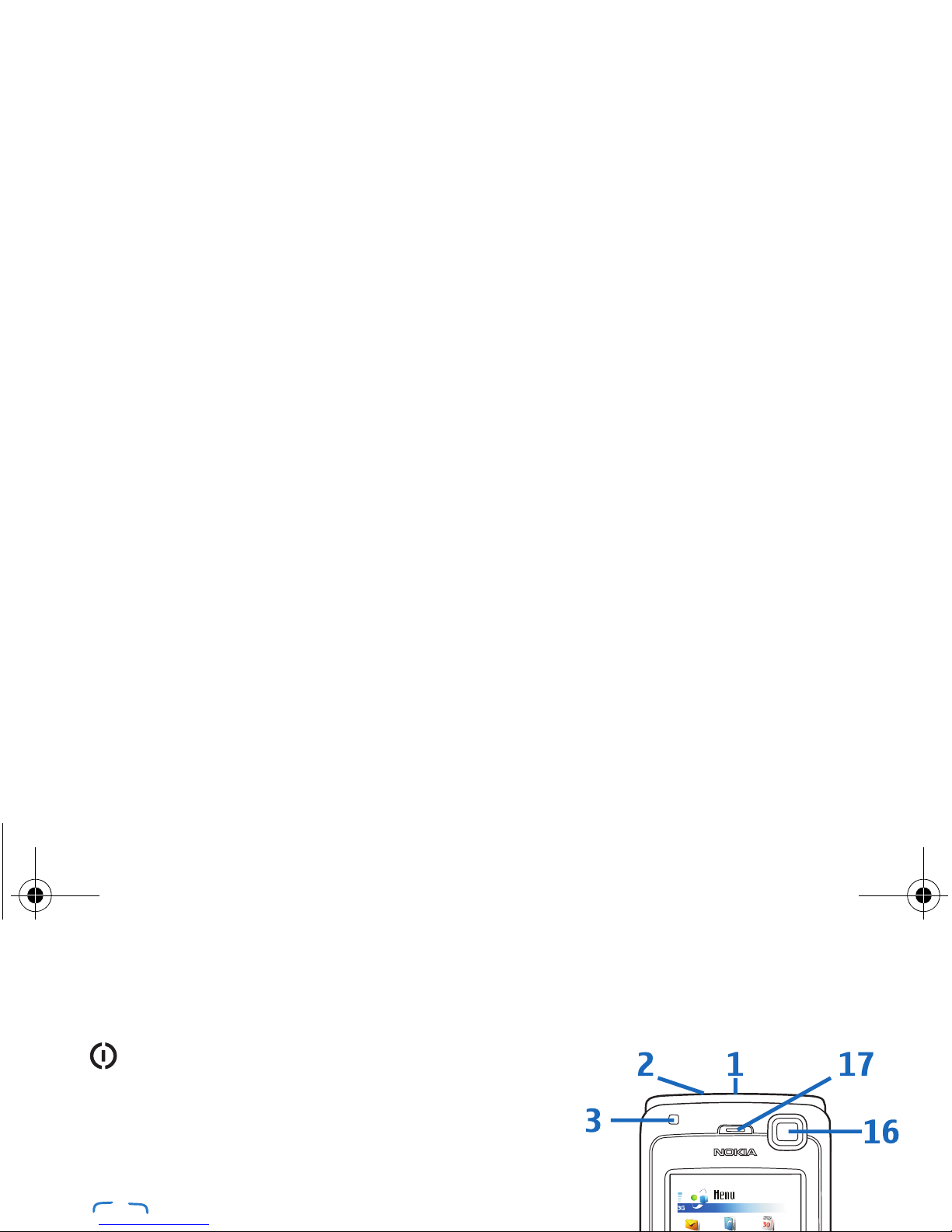

Keys and parts
• Power key (1)
• Loudspeaker outlet (2)
• Light sensor (3) constantly observes the lighting
conditions. May cause the display and keypad to flash
in low light.
• Selection keys (4) to select commands and
items
• Call key (5)
• 5-way scroll key (6) to move around the menus.
Press the scroll key in the middle ( ) to select,
accept, or activate.
• Menu key (7) opens the main menu.
• Edit key (8) opens a list of commands when you
edit text.
• Microphone (9)
• Press and hold (10) as a shortcut to a Web
connection.
• Clear key (11) deletes text and items.
• Multimedia key (12) is a shortcut to applications.
• Endkey(13)
• Camera shutter key (14) for still image capture with the back camera
• Memory card slot (15)
9240625_N70-1_en_apac.book Page 7 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

8
• Front camera (16) for video calling (lower resolution than the back camera).
Available on Nokia N70-1.
• Earpiece (17)
• Open the camera lens cover (18) to activate the
back camera.
• Back camera (19) for high resolution image
capture or video recording
•LEDflash(20)
• Charger connector (21)
• Pop-Port connector (22) for a compatible USB
data cable, headset, and other enhancements
9240625_N70-1_en_apac.book Page 8 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

9

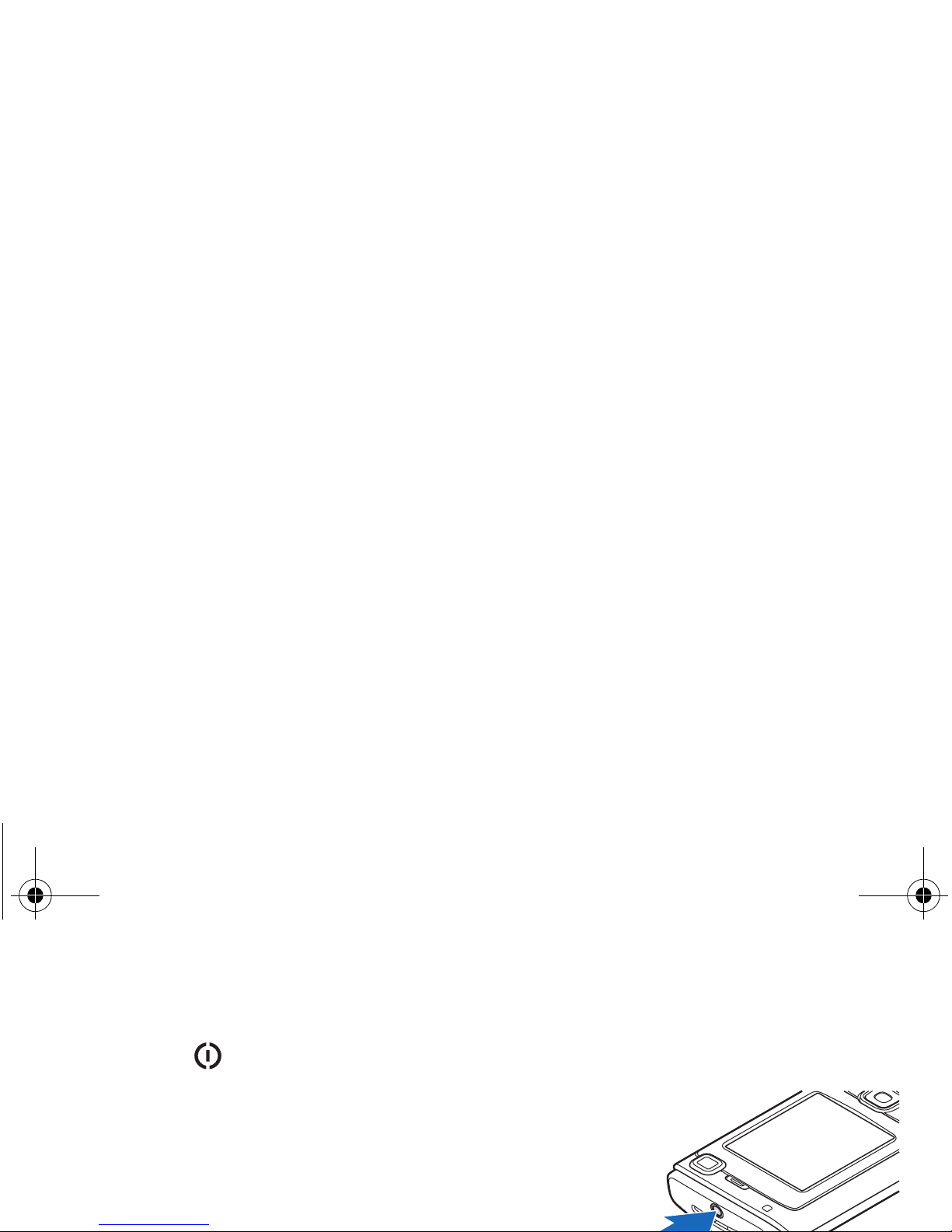

Switch the device on
Press and hold .
If the device asks for a PIN code, UPIN code, or lock code, enter
the code (displayed as ****), and select OK. The (U)PIN code is
usually supplied with the (U)SIM card. The factory setting for
the lock code is 12345. For more information on the access
codes, see the user guide for your device.
Your device has an internal antenna.
Note: As with any other radio transmitting device, do not touch the antenna
unnecessarily when the device is switched on. Contact with the antenna affects call
quality and may cause the device to operate at a higher power level than otherwise
needed. Avoiding contact with the antenna area when operating the device optimizes
the antenna performance and the battery life.
When you switch on the device for the first time, it may ask you to set the following
information: Select current city:, Time:, and Date:. Use the scroll key ( ) and the number
keys. To find the city, enter the first letters of the city name. The city you select also defines the
time zone for the clock in your device.
Press to open the main menu.
9240625_N70-1_en_apac.book Page 9 Wednesday, December 27, 2006 9:42 AM
Copyright © 2006 Nokia. All rights reserved.

10
Your service provider may have requested that certain features be disabled or not activated in
your device. If so, they will not appear on your device menu. Your device may also have been
specially configured. This configuration may include changes in menu names, menu order,
and icons. Contact your service provider for more information.
About the display
Remove the protective plastic films covering the display and front camera.
A small number of missing, discoloured, or bright dots may appear on the screen. This is a
characteristic of this type of display. Some displays may contain pixels or dots that remain on
or off. This is normal, not a fault.
MMS and mobile Internet settings
Your Nokia N70 normally has MMS, GPRS, streaming, and mobile Internet settings
automatically configured in the device, based upon your service provider or network
operator information.
