Nokia NSB-7 Series User manual

Programmes After Market Services
Technical Documentation
Issue 1 06/00
Copyrightã 2000 Nokia Mobile Phones. All Rights Reserved
[NMP Part No.0275454]
NSB-7 Cellular Phones

Programmes After Market Services
Technical Documentation
Issue 1 06/00
Copyrightã 2000 Nokia Mobile Phones. All Rights Reserved
Amendment Record Sheet
Amendment No Date Inserted By Comments

Programmes After Market Services
Technical Documentation
Issue 1 06/00
Copyrightã 2000 Nokia Mobile Phones. All Rights Reserved
NSB-7 Overall Manual Contents
Contents:
Section 1: Foreword
Section 2: General Information
Section 3: System Module
Section 4: UI Module
Section 5: Product Variants
Section 6: Service Software Instructions
Section 7: Service Tools
Section 8: Disassembly/Troubleshooting Instructions
Section 9: Non-serviceable Accessories
Section 10: Schematic Diagrams

Programmes After Market Services
Technical Documentation
Issue 1 06/00
Copyrightã 2000 Nokia Mobile Phones. All Rights Reserved
IMPORTANT
This document is intended for use by qualified service personnel only.
Company Policy
Our policy is of continuous development; details of all technical modifications will be
included with service bulletins.
While every endeavour has been made to ensure the accuracy of this document, some
errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Ltd.
should be notified in writing.
Please state:
Title of the Document + Issue Number/Date of publication
Latest Amendment Number (if applicable)
Page(s) and/or Figure(s) in error
Please send to: Nokia Mobile Phones Ltd.
PAMS Technical Documentation
PO Box 86
FIN-24101 SALO
Finland

Programmes After Market Services
Technical Documentation
Issue 1 06/00
Copyrightã 2000 Nokia Mobile Phones. All Rights Reserved
Warnings and Cautions
Please refer to the phone's user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
Warnings:
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELEC-
TRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYS-
TEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN
AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/
MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC
SYSTEMS TO RF ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY
TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES EG PETROL STATIONS
(SERVICE STATIONS), BLASTING AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLU-
LAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADE-
QUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE
MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
Cautions:
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti-static workstation and that an anti-
static wrist strap is worn.
3. Ensure solder, wire, or foreign matter does not enter the telephone as dam-
age may result.
4. Use only approved components as specified in the parts list.
5. Ensure all components, modules screws and insulators are correctly re-fit-
ted after servicing and alignment. Ensure all cables and wires are reposi-
tioned correctly.

Programmes After Market Services
Technical Documentation
Issue 1 06/00
Copyrightã 2000 Nokia Mobile Phones. All Rights Reserved
This Page Intentionally Blank

Programmes After Market Services
NSB-7 Series Transceivers
Issue 1 06/00 ãNokia Mobile Phones Ltd.
General Information

NSB-7
General Information PAMS Technical Documentation
Page 2 ãNokia Mobile Phones Ltd. Issue 1 06/00
Table of Contents
Page No
General Information ................................................................................................................1
Product Selection..................................................................................................................................... 4
Hand portables ...................................................................................................................................... 4
Desktop Option ...................................................................................................................................... 5
Express Car Kit (CARK-124) Option for Americas .......................................................................6
Product and Module List ....................................................................................................................... 7
Technical Specifications ........................................................................................................................ 8
General Specifications of Transceiver NSB-7 ............................................................................... 8

PAMS Technical Documentation General Information
NSB-7
Issue 1 06/00 ãNokia Mobile Phones Ltd. Page 3
List of Figures
Page No
Fig 1 Hand portables..................................................................................................................................... 4
Fig 2 Desktop option ..................................................................................................................................... 5
Fig 3 Express Car Kit (CARK-124).............................................................................................................. 6

NSB-7
General Information PAMS Technical Documentation
Page 4 ãNokia Mobile Phones Ltd. Issue 1 06/00
Product Selection
Hand portables
The NSB-7 is a single band hand portable mobile telephone for the GSM1900 networks
Figure 1: Hand portables
Item Name: Type Code: Material Code:
1. Transceiver See Product Variants
2. Standard Battery (Li-ion 650 mAh) BLB-2 0670246
Standard Battery (Li-ion 650 mAh) for Americas BLB-2 0670322
3. AC Travel Charger (Euro plug) 207-253 Vac ACP-7E 0675144
4. AC Travel Charger (US plug) 108-132 Vac ACP-7U 0675143
AC Travel Charger (US plug) 198-242 Vac ACP-7C 0675158
5. AC Travel Charger (UK plug) 207-253 Vac ACP-7X 0675145
AC Travel Charger (UK plug) 180-220 Vac ACP-7H 0675146
6. AC Travel Charger (Australia plug) 216-264 Vac ACP-7A 0675148
7. Performance Travel Charger Euro plug 90-264 Vac ACP-8E 0675195
Performance Travel Charger Korea plug 90-264 Vac ACP-8K 0675199
8. Performance Travel Charger UK plug 90-264 Vac ACP-8X 0675197
9. Performance Travel Charger US plug 90-264 Vac ACP-8U 0675196
Performance Travel Charger China plug 90-264 Vac ACP-8C 0675211
10. Performance Travel Charger Australia plug 90-264 Vac ACP-8A 0675214
2.
3.
4.
ACP-7E
ACP-7C
ACP-7U
ACP-7H
ACP-7X
ACP-7A
ACP-8E
ACP-8K
ACP-8X
ACP-8U
ACP-8C
ACP-8A
1.
3.
4.
5.
6.
7.
8.
9.
10.
2.

PAMS Technical Documentation General Information
NSB-7
Issue 1 06/00 ãNokia Mobile Phones Ltd. Page 5

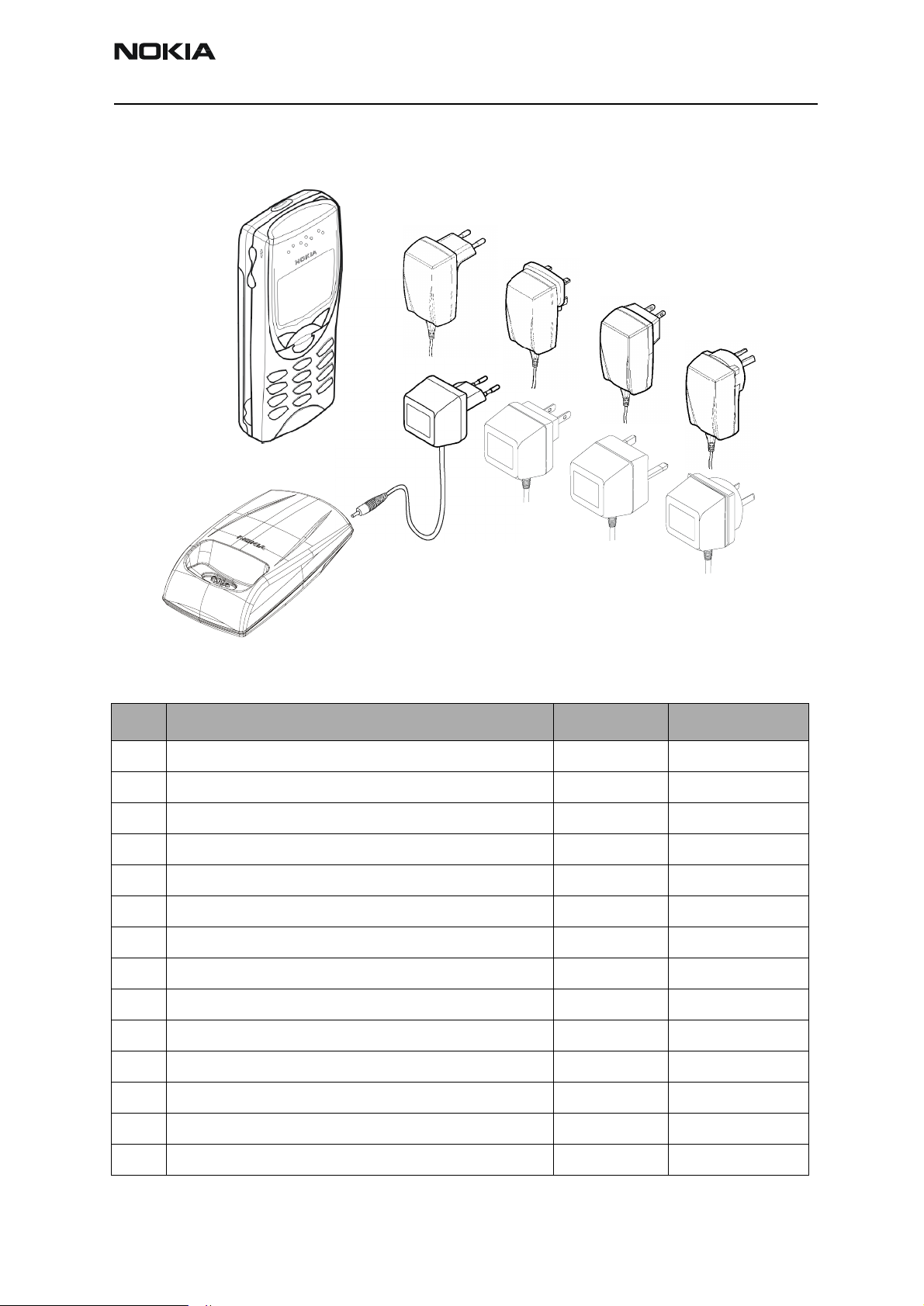

Desktop Option
The desktop option allows the user to charge the phone from the mains.
Figure 2: Desktop option
Item Name: Type Code: Material Code:
1. Transceiver See Product Variants
2 Desk stand DCV-1B 0675220
3. AC Travel Charger (Euro plug) 207-253 Vac ACP-7E 0675144
4. AC Travel Charger (US plug) 108-132 Vac ACP-7U 0675143
AC Travel Charger (US plug) 198-242 Vac ACP-7C 0675158
5. AC Travel Charger (UK plug) 207-253 Vac ACP-7X 0675145
AC Travel Charger (UK plug) 180-220 Vac ACP-7H 0675146
6. AC Travel Charger (Australia plug) 216-264 Vac ACP-7A 0675148
7. Performance Travel Charger Euro plug 90-264 Vac ACP-8E 0675195
Performance Travel Charger Korea plug 90-264 Vac ACP-8K 0675199
8. Performance Travel Charger UK plug 90-264 Vac ACP-8X 0675197
9. Performance Travel Charger US plug 90-264 Vac ACP-8U 0675196
Performance Travel Charger China plug 90-264 Vac ACP-8C 0675211
10. Performance Travel Charger Australia plug 90-264 Vac ACP-8A 0675214
ACP-7C
ACP-7U
ACP-7H
ACP-7X
ACP-7A
ACP-8E
ACP-8K
ACP-8X
ACP-8U
ACP-8C
ACP-8A
1.
3.
4.
5.
6.
7.
8.
9.
10.
2.
ACP-7E

NSB-7
General Information PAMS Technical Documentation
Page 6 ãNokia Mobile Phones Ltd. Issue 1 06/00
Express Car Kit (CARK-124) Option for Americas
Figure 3: Express Car Kit (CARK-124)
Item Name: Type Code: Material Code:
Express Car Kit for Americas (Retail Pack) CARK-124 0080372
1. Transceiver (Not included, see Product Variants)
2. Pocket Clip SKB-2 0720218
3. Swivel Mount HHS-12 0620054
4. Hands Free Microphone HFM-8 0690016
5. Hands Free Cigarette Lighter Charger PPH-1 0675182
1. 2.
3.
4.
5.

PAMS Technical Documentation General Information
NSB-7
Issue 1 06/00 ãNokia Mobile Phones Ltd. Page 7
Product and Module List
Unit/Type: Product Code:
Transceiver NSB-7 See Product Variants
Standard Battery BLB-2 (Li-ion 650 mAh) 0670246
Standard Battery BLB-2 (Li-ion 650 mAh) for Americas 0670322
AC Travel Charger ACP-7E (EURO) 207-253 Vac 0675144
AC Travel Charger ACP-7U (US) 108-132 Vac 0675143
AC Travel Charger ACP-7C (US) 198-242 Vac 0675158
AC Travel Charger ACP-7X (UK) 207-253 Vac 0675145
AC Travel Charger ACP-7H (UK) 180-220 Vac 0675146
AC Travel Charger ACP-7A (AUS) 216-264 Vac 0675148
Performance Travel Charger ACP-8E (EURO) 90-264 Vac 0675195
Performance Travel Charger ACP-8K (KOREA) 90-264 Vac 0675199
Performance Travel Charger ACP-8X (UK) 90-264 Vac 0675197
Performance Travel Charger ACP-8U (US) 90-264 Vac 0675196
Performance Travel Charger ACP-8C (CHINA) 90-264 Vac 0675211
Performance Travel Charger ACP-8A (AUS) 90-264 Vac 0675214
Headset HDC-5 0694059
Loopset LPS-3 0630244
Pocket Clip SKB-2 0720218
Desk Stand DCV-1B 0675220
Swivel Mount HHS-12 0620054
HF Microphone HFM-8 0690016
Plug & Play HF Cigarette Lighter Charger PPH-1 0675182
Cigarette Lighter Charger LCH-8 0675231
Cigarette Lighter Charger LCH-9 0675120
Carrying Case CBK-3V 0272237
Carrying Case CBK-3H 0272236

NSB-7
General Information PAMS Technical Documentation
Page 8 ãNokia Mobile Phones Ltd. Issue 1 06/00
Technical Specifications
General Specifications of Transceiver NSB-7
Parameter Unit
Cellular System GSM1900
RX frequency band 1930 ...1990 MHz
TX frequency band 1850 ...1910 MHz
Output power +0 ...+29 dBm / 1.0 mW ...1 W
Duplex spacing 80 MHz
Number of RF channels 299
Channel spacing 200 kHz
Number of TX power levels 16
Sensitivity, static channel -102 dBm
Frequency error, static channel < 0.1 ppm
RMS phase error < 5.0 ο
Peak phase error < 20.0 ο

Programmes After Market Services
NSB-7 Series Transceivers
Issue 1 06/00 ãNokia Mobile Phones Ltd.
System Module

NSB-7
System Module PAMS Technical Documentation
Page 2 ãNokia Mobile Phones Ltd. Issue 1 06/00
Table of Contents
Page No
System Module ........................................................................................................................1
Transceiver NSB-7................................................................................................................................... 6
Introduction ........................................................................................................................................... 6
Operational Modes ............................................................................................................................ 6
Interconnection Diagram ................................................................................................................... 7
System Module......................................................................................................................................... 8
Baseband Module .................................................................................................................................8
Block Diagram..................................................................................................................................... 8
Technical Summary ........................................................................................................................... 9
Technical Specifications ...................................................................................................................10
Absolute Maximum Ratings ........................................................................................................ 10
DC Characteristics .......................................................................................................................... 10
External and Internal Signals and Connections..................................................................... 10
DC (charger) connector ...............................................................................................................10
Service Connector .........................................................................................................................11
Battery connector .........................................................................................................................11
SIM card connector ......................................................................................................................12
RTC backup battery ......................................................................................................................12
Functional Description ......................................................................................................................13
Power Distribution.......................................................................................................................... 13
Battery Interface............................................................................................................................. 13
Battery charging ...........................................................................................................................14
Startup Charging ..........................................................................................................................14
Battery Overvoltage Protection ................................................................................................15
Battery Removal During Charging ...........................................................................................16
PWM .................................................................................................................................................16
Battery Identification ..................................................................................................................16
Battery Temperature ....................................................................................................................18
Supply Voltage Regulators .........................................................................................................19
Switched Mode Supply VSIM ....................................................................................................21
Power Up and Power Down ......................................................................................................... 22
Power up with charger ................................................................................................................22
Power Up with the Power Switch (PWRONX) ......................................................................23
Power Up by RTC ...........................................................................................................................24
Power Up by IBI .............................................................................................................................24
Power Down ...................................................................................................................................24
Modes of Operation ....................................................................................................................... 25
Acting Dead ....................................................................................................................................25
Active Mode ...................................................................................................................................25
Sleep Mode .....................................................................................................................................25
Charging ..........................................................................................................................................26
Watchdog .......................................................................................................................................26
Audio Control................................................................................................................................... 27
PCM serial interface ....................................................................................................................27
Digital Control ................................................................................................................................. 28
MAD2 WD1 .....................................................................................................................................28
Memories........................................................................................................................................... 37

PAMS Technical Documentation System Module
NSB-7
Issue 1 06/00 ãNokia Mobile Phones Ltd. Page 3
MAD memory configuration ......................................................................................................37
Memory ...........................................................................................................................................37
Program and Data Memory .......................................................................................................37
Work Memory ................................................................................................................................37
MCU Memory Requirements .....................................................................................................37
MCU Memory Map .......................................................................................................................37
Flash Programming ......................................................................................................................38
COBBA GJP .....................................................................................................................................39
Real time clock ..............................................................................................................................40
RTC backup battery charging ....................................................................................................40
Security ............................................................................................................................................40
Baseband EMC Strategy .............................................................................................................40
Baseband Testing ..........................................................................................................................41
Alignments .....................................................................................................................................41
Baseband Startup for Testing ....................................................................................................42
RF Module............................................................................................................................................... 43
Shielding............................................................................................................................................ 43
Environmental Specifications .........................................................................................................43
Normal and Extreme voltages ...................................................................................................43
Temperature Conditions .............................................................................................................43
Humidity ..........................................................................................................................................43
Vibration ..........................................................................................................................................44
ESD Strength ..................................................................................................................................44
Main Technical Specifications ........................................................................................................44
Maximum Ratings .......................................................................................................................... 44
RF Frequency Plan ..............................................................................................................................45
DC Characteristics ..............................................................................................................................45
Regulators......................................................................................................................................... 45
Control Signals ................................................................................................................................ 46
Power Distribution Diagram ............................................................................................................47
RF Characteristics ...............................................................................................................................48
GSM1900 (PCS1900) ..................................................................................................................... 48
Transmitter Characteristics.......................................................................................................... 48
Output Power Requirements ....................................................................................................... 48
Output RF Spectrum due to modulation.................................................................................. 49
Spectrum due to switching transients...................................................................................... 49
Spurious Emissions (when allocated a channel).................................................................... 49
Spurious Emissions (idle mode) .................................................................................................. 50
Frequency Error and Phase Accuracy ........................................................................................ 50
Receiver Characteristics ...................................................................................................................50
Blocking Requirements ................................................................................................................. 51
AM Suppression Requirements................................................................................................... 51
Sensitivity, Inter modulation, Spurious Rejection and Emissions..................................... 52
Reference Interference level........................................................................................................ 52
RF Block Diagram ...............................................................................................................................53
Frequency synthesizer .......................................................................................................................54
Receiver .................................................................................................................................................55
Transmitter ...........................................................................................................................................56

NSB-7
System Module PAMS Technical Documentation
Page 4 ãNokia Mobile Phones Ltd. Issue 1 06/00
AGC strategy ........................................................................................................................................57
AFC function ........................................................................................................................................57
DC Compensation ...............................................................................................................................58
Parts List of RB9 (EDMS Issue 5.3) (Code: 0201512)................................................................ 59
Schematic Diagrams: RB9 (at the back of the binder)
Circuit Diagram of Power Supply (Version 05.21 Edit 64) for layout 5 ............................... A-1
Circuit Diagram of CPU Block (Version 05.21 Edit 45) for layout 5 ..................................... A-2
Connection between RF and Baseband modules (Version 05.21 Edit 37) for layout 5... A-3
Baseband Block Interconnections (Version 05.21 Edit 40) for layout 5 .............................. A-4
Circuit Diagram of MAD Block (Version 05.21 Edit 27) for layout 5.................................... A-5
Circuit Diagram of RF Block (Version 05.21 Edit 132) for layout 5 ...................................... A-6
Circuit Diagram of UIF (Version 05.21 Edit 36) for layout 5................................................... A-7
Circuit Diagram of Audio and RFI (Version 05.21 Edit 72) for layout 5 .............................. A-8
Circuit Diagram of IR Module (Version 05.21 Edit 23) for layout 5 ..................................... A-9
Layout Diagram of RB9 -Top (Version 05.21)............................................................................A-10
Layout Diagram of RB9 - Bottom (Version 05.21)...................................................................A-10
Testpoints of RB9 - Top (Version 05.21) .....................................................................................A-11
Testpoints of RB9 - Bottom (Version 05.21)..............................................................................A-12
RF Testpoints for RB9 - Circuit Diagram (Version 05.21 Edit132 ).....................................A-13
RF Testpoints of RB9 - Layout (Version 05.21) .........................................................................A-14

PAMS Technical Documentation System Module
NSB-7
Issue 1 06/00 ãNokia Mobile Phones Ltd. Page 5
List of Figures
Page No
Fig 1 Block Diagram ...................................................................................................................................... 8
Fig 2 Block Diagram of Power Distribution ............................................................................................ 13
Fig 3 Charging Block Diagram.................................................................................................................... 14
Fig 4 Output Overvoltage Protection (in principle; not in time scale) ........................................... 15
Fig 5 Output Overvoltage Protection When Battery Removed (in principle)................................ 16
Fig 6 BSI connections for all battery types ............................................................................................ 17
Fig 7 SIMCardDetX Detection Levels........................................................................................................ 18
Fig 8 Standard Battery BTEMP connection ............................................................................................ 19
Fig 9 Principle of the SMR Power Functions.......................................................................................... 22
Fig 10 Power Up With Charger .................................................................................................................. 23
Fig 11 Power Up With Switch .................................................................................................................... 24
Fig 12 Flash Programming Sequence ....................................................................................................... 39
Fig 13 RF Frequency Plan............................................................................................................................. 45
Fig 14 Power Distribution Diagram .......................................................................................................... 47
Fig 15 RF Block Diagram.............................................................................................................................. 53
Fig 16 Phase Locked Loop............................................................................................................................ 55
Fig 17 Power Control Loop Diagram......................................................................................................... 57

NSB-7
System Module PAMS Technical Documentation
Page 6 ãNokia Mobile Phones Ltd. Issue 1 06/00
Transceiver NSB-7
Introduction
The NSB-7 is a single band transceiver unit designed for the GSM1900 networks. It is
GSM1900 power class 1 (1W) transceiver.
The transceiver consists of System/RF module (RB9), Display module (UX7) and assembly
parts.
The transceiver has a full graphic display and the user interface is based on a jack style
UI with two soft keys.
A back mounted antenna is used, there is no connection to an external antenna.
The transceiver has a low leakage tolerant earpiece and an omnidirectional microphone,
providing excellent audio quality. The transceiver supports full rate, an enhanced full rate
and a half rate speech decoding.
An integrated IR link provides a connection between two NSB-7 transceivers or a trans-
ceiver and a PC (internal data), or a transceiver and a printer.
The small SIM (Subscriber Identity Module) card is located under the back cover of the
phone.
Operational Modes
There are five different operational modes:
• power off mode
•idlemode
• active mode
• charge mode
• local mode
In the power off mode only the circuits needed for power up are supplied.
In the idle mode circuits are powered down and only the sleep clock is running.
In the active mode all the circuits are supplied with power although some parts might be
in idle state part of the time.
The charge mode is effective in parallel with all previous modes. The charge mode itself
consists of two different states, i.e. the fast charge and the maintenance mode.
