Nokia 7070 User Guide

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this
RH-116 product is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2008 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or registered
trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be
trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in
this document in any form without the prior written permission of Nokia is
prohibited.
US Patent No 5818437 and other pending patents. T9 text input software
Copyright © 1997-2007. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from
RSA Security.
Java and all Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for
personal and noncommercial use in connection with information which has
been encoded in compliance with the MPEG-4 Visual Standard by a consumer
engaged in a personal and noncommercial activity and (ii) for use in
connection with MPEG-4 video provided by a licensed video provider. No
license is granted or shall be implied for any other use. Additional information,
including that related to promotional, internal, and commercial uses, may be
obtained from MPEG LA, LLC. See http://www.mpegla.com.
.
Nokia operates a policy of ongoing development. Nokia reserves the right to
make changes and improvements to any of the products described in this
document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO
CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY
LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED
BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT.
NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY
TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications and services for these
products may vary by region. Please check with your Nokia dealer for details,
and availability of language options.

This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
The third-party applications provided with your device may have been created
and may be owned by persons or entities not affiliated with or relatedto Nokia.
Nokia does not own the copyrights or intellectual property rights to the third-
party applications. As such, Nokia does not take any responsibility for end-user
support, functionality of the applications, or the information in the
applications or these materials. Nokia does not provide any warranty for the
third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE
PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE
THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES
OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT
THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS,
TRADEMARKS, OR OTHER RIGHTS.
Export controls

Contents
For your safety
..................................9
1. General
information............11
About your device...........11
Network services.............11
Enhancements.................12
Access codes....................12
Nokia support..................13
2. Get started..........15

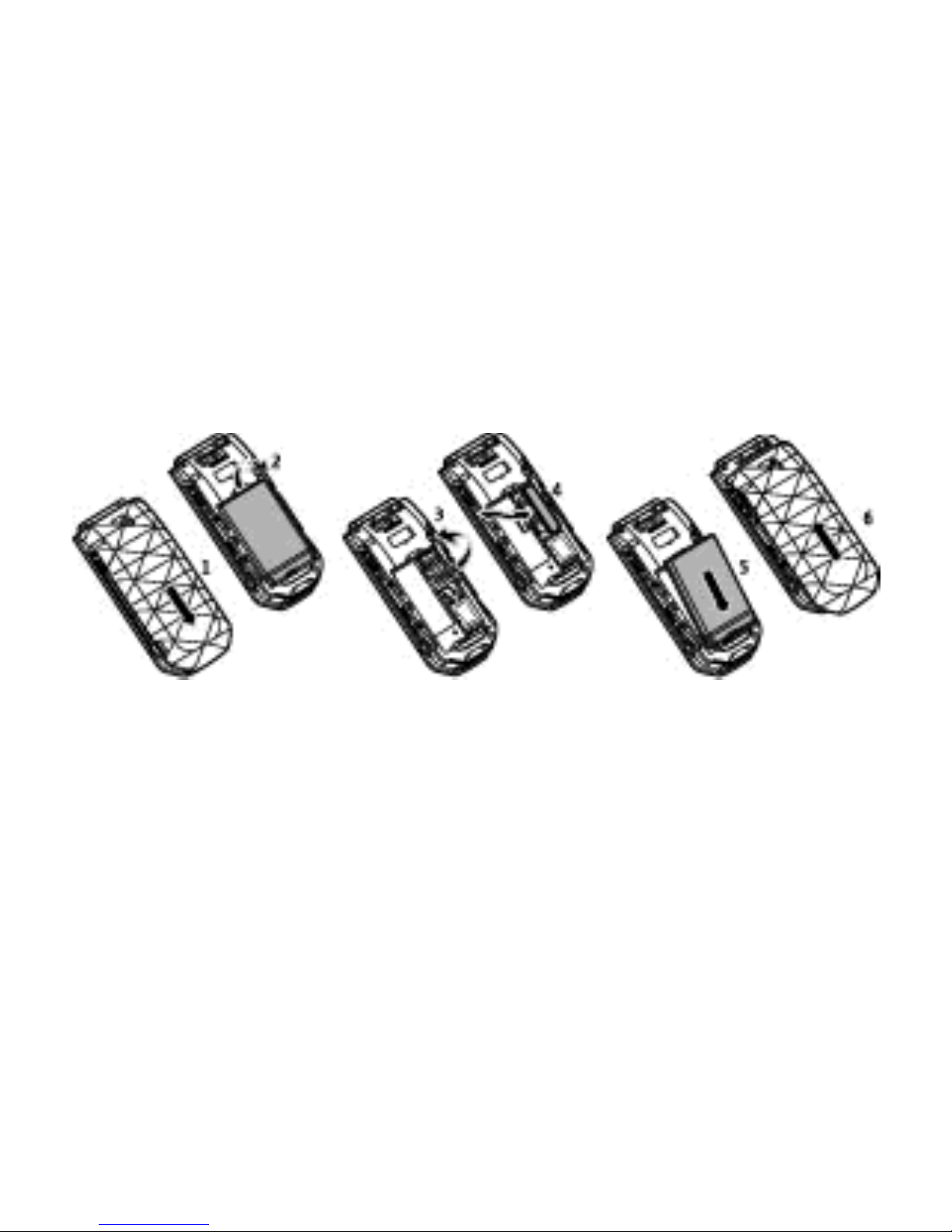

Install SIM card and
battery.............................15
Charge the battery..........15
Antenna...........................16
Keys and parts.................17
Switch the phone on and
off.....................................18
Standby mode ................18
Keypad lock (keyguard)
..........................................19
Functions without a SIM
card...................................19
3. Calls.....................20
Make and answer a call
..........................................20
Loudspeaker....................20
Dialing shortcuts.............20
4. Write text...........22
Text modes......................22
Traditional text input
..........................................22
Predictive text input
..........................................23
5. Navigate the
menus.....................24
6. Messaging...........25
Text and multimedia
messages.........................25
Text messages..............25
Multimedia messages
and multimedia plus
messages......................26

Create a text or
multimedia message
.......................................27
E-mail...............................27
E-mail setup wizard
.......................................28
Write and send an e-
mail................................28
Download e-mail..........28
Flash messages...............29
Nokia Xpress audio
messages.........................29
Instant messaging..........29
Voice messages...............30
Message settings.............30
7. Contacts..............32
8. Call log ...............34
9. Settings...............35
Profiles.............................35
Tones................................35
Display..............................35
Date and time..................36
Shortcuts..........................36
Connectivity.....................37
Packet data...................37
Data transfer.................37
Calls and phone...............38
Enhancements.................39
Configuration..................39
Restore factory settings
..........................................40
10. Operator menu
................................41
11. Gallery..............42
12. Media................43
Voice recorder.................43
13. Applications
................................44
14. Organizer..........45
Alarm clock......................45
Calendar and to-do list
..........................................45
15. Web ..................47
Connect to a service
..........................................47
Contents

Appearance settings
..........................................48
Cache memory.................49
Service inbox...................49
Browser security.............50
16. SIM services
................................51
17. Genuine
enhancements........52
Enhancements.................52
Battery.............................53
Nokia Stereo Headset
HS-16................................53
Nokia Battery charging
stand DT-14.....................53
Nokia charger via USB
CA-100..............................54
18. Battery
information............55
Charging and
discharging......................55
Nokia battery
authentication
guidelines........................57
Authenticate hologram
.......................................57
What if your battery is
not authentic?..............58
Care and
maintenance..........59
Additional safety
information............61
Small children..................61
Operating environment
..........................................61
Medical devices...............62
Implanted medical
devices..........................62
Hearing aids..................63
Vehicles............................63
Potentially explosive
environments..................64
Emergency calls...............65
CERTIFICATION
INFORMATION (SAR)
..........................................66
MANUFACTURER’S
LIMITED WARRANTY.........67
Warranty period...........68
Contents

How to get warranty
service...........................69
What is not covered?
.......................................70
Other important
notices...........................72
Limitation of Nokia's
liability..........................73
Statutory obligations
.......................................74
Index......................76
Contents

For your safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off
near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can
cause interference in aircraft.
© 2008 Nokia. All rights reserved. 9

SWITCH OFF WHEN REFUELING
Do not use the device at a refueling point. Do not
use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the device
where blasting is in progress.
QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries.
Do not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
For your safety
© 2008 Nokia. All rights reserved.10

1. General information
About your device
The wireless device described in this guide is approved for
use on the GSM 900 and 1800 networks. Contact your
service provider for more information about networks.
When using the features in this device, obey all laws and
respect local customs, privacy and legitimate rights of
others, including copyrights.
Copyright protection may prevent some images, music,
and other content from being copied, modified, or
transferred.
Warning: To use any features in this device, other
than the alarm clock, the device must be switched on. Do
not switch the device on when wireless device use may
cause interference or danger.
Network services
To use the phone you must have service from a wireless
service provider. Many of the features require special
network features. These features are not available on all
networks; other networks may require that you make
specific arrangements with your service provider before
you can use the network services. Your service provider can
give you instructions and explain what charges will apply.
© 2008 Nokia. All rights reserved. 11

Some networks may have limitations that affect how you
can use network services. For instance, some networks
may not support all language-dependent characters and
services.
Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have a special configuration such as
changes in menu names, menu order, and icons. Contact
your service provider for more information.
Enhancements
Practical rules about accessories and enhancements
●Keep all accessories and enhancements out of the reach
of small children.
●When you disconnect the power cord of any accessory
or enhancement, grasp and pull the plug, not the cord.
●Check regularly that enhancements installed in a vehicle
are mounted and are operating properly.
●Installation of any complex car enhancements must be
made by qualified personnel only.
Access codes
The security code helps to protect your phone against
unauthorised use. You can create and change the code, and
General information
© 2008 Nokia. All rights reserved.12

set the phone to request the code. Keep the code secret
and in a safe place separate from your phone. If you forget
the code and your phone is locked, your phone will require
service and additional charges may apply. For more
information, contact a Nokia Care point or your phone
dealer.
The PIN code supplied with the SIM card protects the card
against unauthorized use. The PIN2 code supplied with
some SIM cards is required to access certain services. If you
enter the PIN or PIN2 code incorrectly three times in
succession, you are asked for the PUK or PUK2 code. If you
do not have them, contact your service provider.
The module PIN is required to access the information in the
security module of your SIM card. The signing PIN may be
required for the digital signature. The barring password is
required when using the call barring service.
To set how your phone uses the access codes and security
settings, select Menu > Settings > Security.
Nokia support
Check www.nokia-asia.com/support or your local Nokia
website for the latest version of this guide, additional
information, downloads, and services related to your
Nokia product.
General information
© 2008 Nokia. All rights reserved. 13

Configuration settings service
Download free configuration settings such as MMS, GPRS,
e-mail, and other services for your phone model at
www.nokia-asia.com/setup.
Customer service
If you need to contact customer service,
check the list of local Nokia Care contact
centres at www.nokia-asia.com/
contactus.
Maintenance
For maintenance services, check your nearest Nokia service
centre at www.nokia-asia.com/repair.
General information
© 2008 Nokia. All rights reserved.14

2. Get started
Install SIM card and battery
Always switch the device off and disconnect the charger
before removing the battery.
The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
1. To remove the cover, press and slide the back cover
toward the bottom of the phone (1).
2. Remove the battery (2).
3. Insert the SIM card (3) and (4).
4. Insert the battery (5), and replace the back cover (6).
Charge the battery
Check the model number of any charger before use with
this device. This device is intended for use when supplied
with power from the AC-3 charger.
© 2008 Nokia. All rights reserved. 15

Warning: Use only batteries, chargers, and
enhancements approved by Nokia for use with this
particular model. The use of any other types may invalidate
any approval or warranty, and may be dangerous.
For availability of approved enhancements, please check
with your dealer. When you disconnect the power cord of
any enhancement, grasp and pull the plug, not the cord.
1. Connect the charger to a wall socket.
2. Connect the lead from the charger to the
charger connector of your phone.
If the battery is completely discharged, it may
take a few minutes before the charging
indicator appears on the display or before any
calls can be made.
Antenna
Note: Your device may have internal
and external antennas. As with any radio
transmitting device, avoid touching the
antenna unnecessarily when the antenna is
in use. Contact with such an antenna affects the
communication quality, may cause the device to operate
at a higher power level than otherwise needed and may
reduce the battery life.
Get started
© 2008 Nokia. All rights reserved.16

The picture shows the antenna area marked in grey.
Keys and parts
1Earpiece
2Display
3Microphone
4Selection keys
5Navi™ key: hereafter
referred to as scroll key
6Call key
7End key and power key
8Headset connector
9Charger connector
10 Loudspeaker
Get started
© 2008 Nokia. All rights reserved. 17

Note: Avoid touching this
connector as it is intended for use by
authorized personnel only.
Switch the phone on and off
To switch the phone on or off, press and hold the power
key.
Standby mode
When the phone is ready for use, and you have not entered
any characters, the phone is in the standby mode.
1Network signal strength
2Battery charge level
3Network name or operator logo
4Functions of selection keys
The left selection key is Go to for you to view the functions
in your personal shortcut list. When viewing the list, select
Options > Select options to view the available functions,
or select Options > Organise to arrange the functions in
your shortcut list.
Get started
© 2008 Nokia. All rights reserved.18

Keypad lock (keyguard)
To prevent accidental keypresses, select Menu, and press
*within 3.5 seconds to lock the keypad.
To unlock the keypad, select Unlock, and press *within 1.5
seconds. If Security keyguard is on, enter the security
code when requested.
To set the keypad to lock automatically after a preset time
delay when the phone is in the standby mode, select
Menu > Settings > Phone > Automatic keyguard >
On.
To answer a call when the keypad is locked, press the call
key. When you end or reject the call, the keypad
automatically locks.
When the device or keypad is locked, calls may be possible
to the official emergency number programmed into your
device.
Functions without a SIM card
Some functions of your phone may be used without
inserting a SIM card, such as Organiser functions and
games. Some functions appear dimmed in the menus and
cannot be used.
Get started
© 2008 Nokia. All rights reserved. 19

3. Calls
Make and answer a call
To make a call, enter the phone number, including the
country code and area code if necessary. Press the call key
to call the number. Scroll right to increase or left to
decrease the volume of the earpiece or headset during the
phone call.
To answer an incoming call, press the call key. To reject the
call without answering, press the end key.
Loudspeaker
If available, you may select Loudsp. or Normal to use the
loudspeaker or the earpiece of the phone during a call.
Warning: Do not hold the device near your ear
when the loudspeaker is in use, because the volume may
be extremely loud.
Dialing shortcuts
To assign a phone number to one of the number keys, 2 to
9, select Menu > Contacts > Speed dials, scroll to a
desired number, and select Assign. Enter the desired
phone number, or select Search and a saved contact.
© 2008 Nokia. All rights reserved.20
