Nokia X3-02 User manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
1 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
SERVICE MANUAL
Level 1&2
RM-639
Transceiver characteristics
Band
WCDMA: 850/900/1900/2100
GSM bands: 850/900/1800/1900
Display:
QVGA 262k colors, 2.4” touch
Camera:
5 Mpix full focus
Operating System:
Series 40 6th edition / Touch
Connections:
Micro USB A/B charger plug
2.0 mm DC charging plug
3.5 mm AV connector
Bluetooth version 2.1+EDR
MicroSD memory card
Transceiver with BL-4S battery pack
Talk time
Standby
GSM:
Up to 5.3 hours
WCDMA:
Up to 3.5 hours
GSM:
Up to 430 hours
WCDMA:
Up to 390 hours
Note:
Talk times are dependent on network
parameters and phone settings

Nokia X3-
02
RM-639
Service Manual Level 1&2
2 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
Table of contents
1. COPYRIGHT.......................................................................................................................................................................... 4
2. WARNINGS AND CAUTIONS............................................................................................................................................. 5
2.1 WARNINGS.................................................................................................................................................................5
2.2 CAUTIONS................................................................................................................................................................... 5
3. ESD PROTECTION ............................................................................................................................................................... 6
4. CARE AND MAINTENANCE ................................................................................................................................................ 7
5. BATTERY INFORMATION................................................................................................................................................... 8
6. EXPLODED VIEW................................................................................................................................................................. 9
7. SERVICE DEVICES ................................................................................................................................................................ 10
8. SOFTWARE UPDATE........................................................................................................................................................... 11

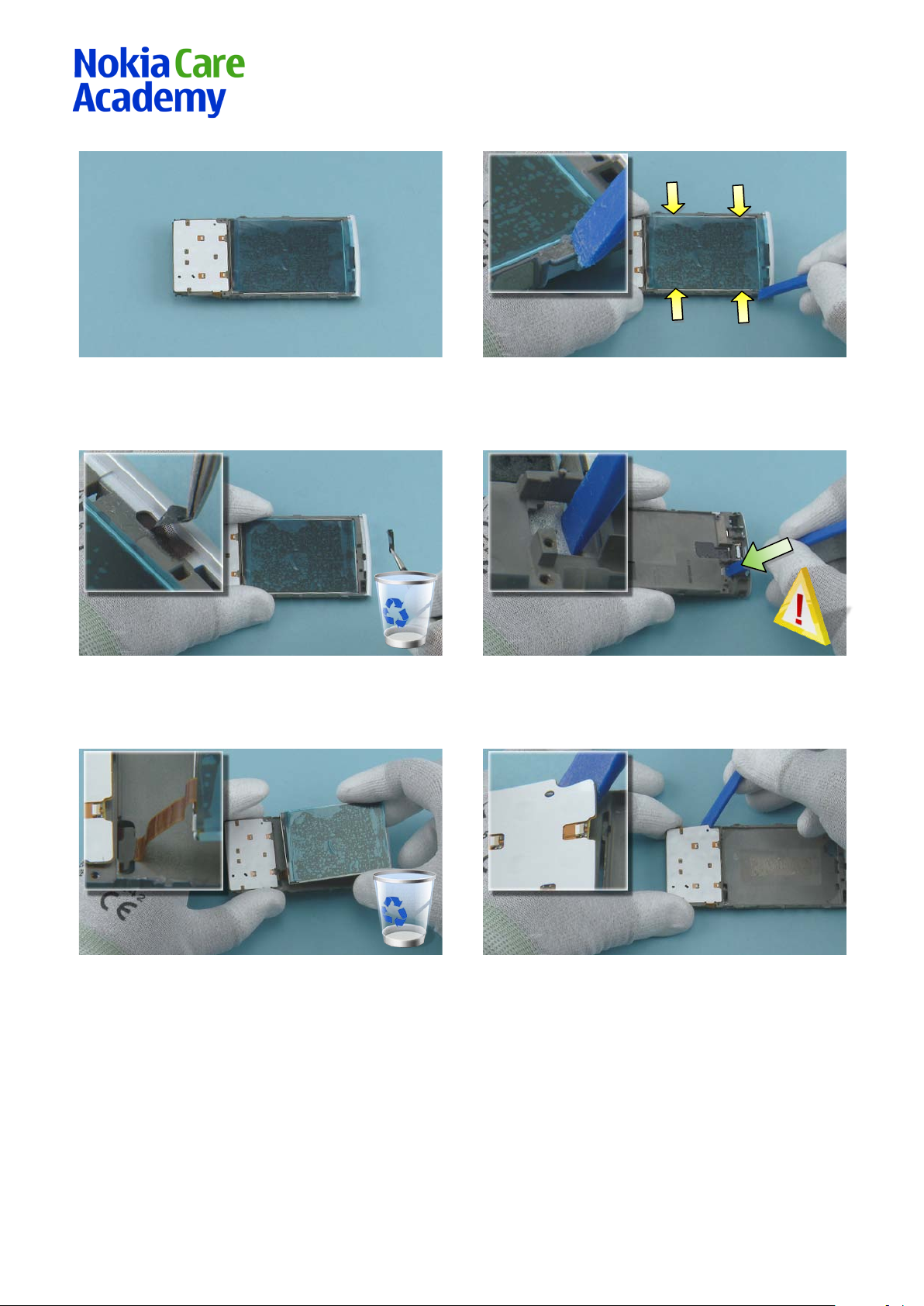

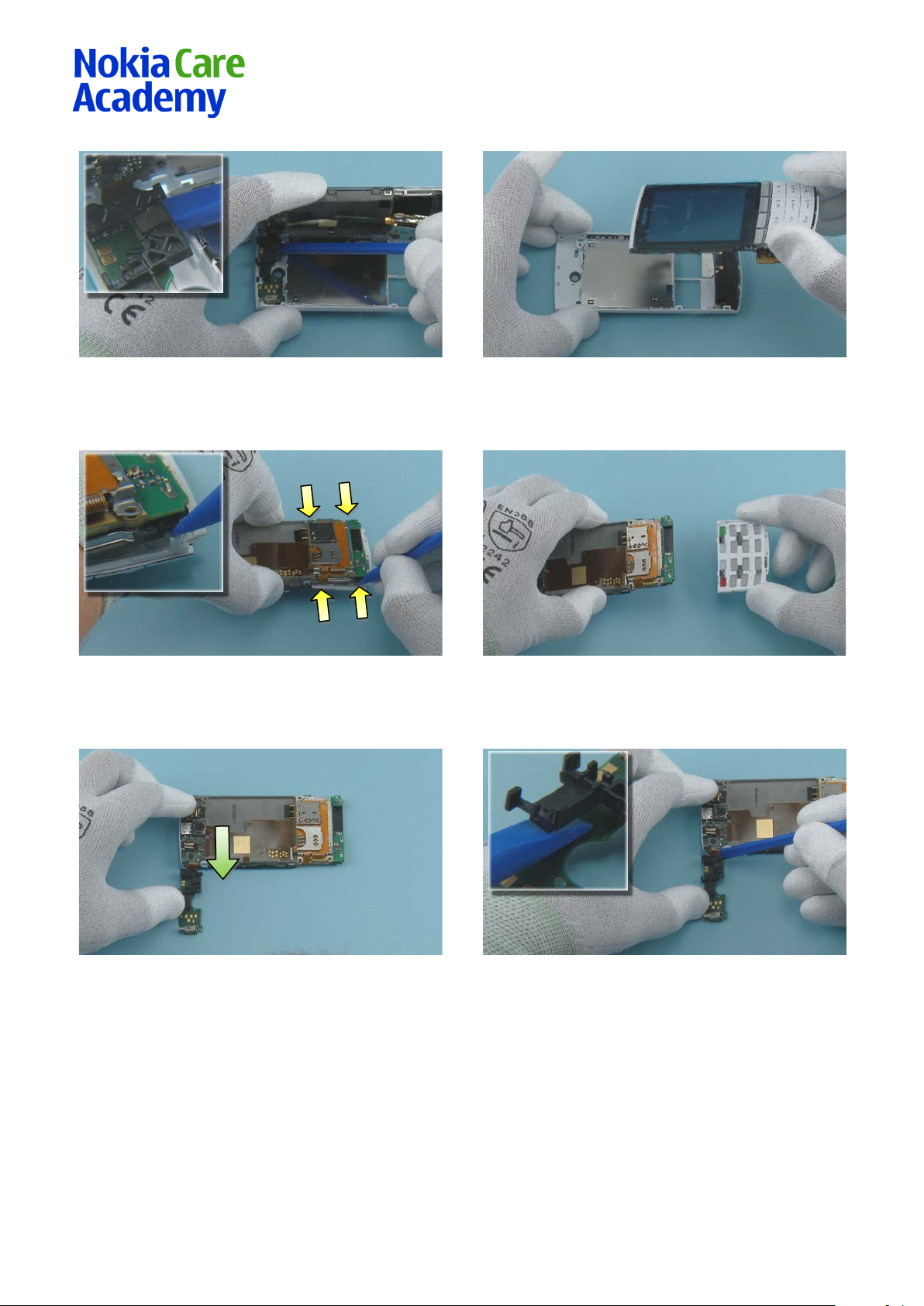

9. DISASSEMBLY INSTRUCTIONS ......................................................................................................................................... 12
10. ASSEMBLY INSTRUCTIONS ............................................................................................................................................... 20
11. SOLDER COMPONENTS...................................................................................................................................................... 27

Nokia X3-
02
RM-639
Service Manual Level 1&2
3 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
CHANGE HISTORY
Status
Version No.
Date
Comments
Approved 1.0 30.07.2010 First approved version
Approved 2.0 18.08.2010 First published version. Added assembly picture story.
Aligned disassy picture story and video.
Approved 3.0 14.1.2011 Aligned the disassembly picture story with the video.
Corrected the assembly picture story. Updated torque
values.
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
Nokia Care Academy
[email protected]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia X3-
02
RM-639
Service Manual Level 1&2
4 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
1. COPYRIGHT
Copyright © 2010 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

Nokia X3-
02
RM-639
Service Manual Level 1&2
5 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
2. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
2.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
2.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia X3-
02
RM-639
Service Manual Level 1&2
6 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
3. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against
static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia X3-
02
RM-639
Service Manual Level 1&2
7 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
4. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
•Keep the phone and all its parts and accessories out of the reach of small
children.
•Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits.
•Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
•Do not store the phone in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain plastics.
•Do not store the phone in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic circuit
boards.
•Do not drop, knock or shake the phone. Rough handling can break internal
circuit boards.
•Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the phone.
•Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
•Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications or attachments could damage the phone and may
violate regulations governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia X3-
02
RM-639
Service Manual Level 1&2
8 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
5. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia X3-
02
RM-639
Service Manual Level 1&2
9 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1 A-COVER ASSEMBLY
(I0006 - I0009)
A2 LIGHT SWAP PACKAGE
(I0012 - I0016)
A3 ANTENNA MODULE
(I0019, I0020)
LCD
I0004
EARPIECE MESH
I0006
MOUNTING ASSY
I0011
LIGHT SWAP PWB
I0012
B-COVER
I0017
SCREW TORX+ 4 M1.4x2.2
I0022 BATTERY COVER
I0023
AV JACK
I0009
KEYMAT
I0003
UI-FLEX ASSY
I0005
ANTENNA
I0019
TYPE LABEL
I0016
AUDIO SHIELDING LID
I0013 LINKO SHIELDING LID
I0014
BB-SHIELDING LID
I0015
SCREW TORX+ 4 M1.4x3.8
I0021
A-COVER
I0007
A-COVER BRIDGE ASSY
I0002
B-COVER DECO
I0018
IHF SPEAKER
I0020
TOUCH MODULE
I0001
DC JACK
I0010
EARPIECE
I0008

Nokia X3-
02
RM-639
Service Manual Level 1&2
10 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

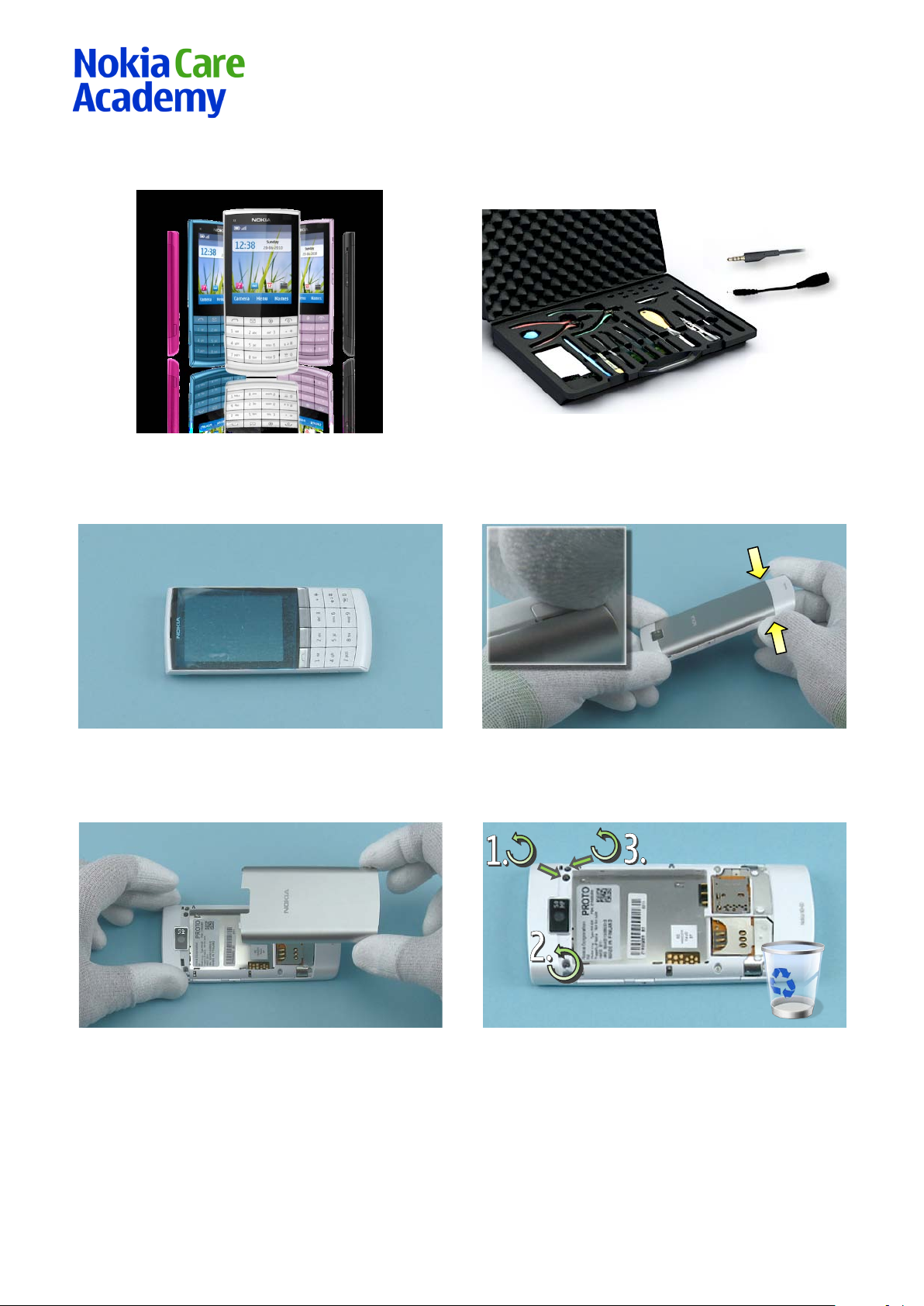

7. SERVICE DEVICES
FLS-5 Flash Device
CA-101D Service Cable
AC-15 Travel Charger
BL-4S Battery
Nokia Standard Toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on Nokia
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on Nokia
Online.

Nokia X3-
02
RM-639
Service Manual Level 1&2
11 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
8. SOFTWARE UPDATE
Flash concept (Point of Sale)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check
always for the latest version of flash software, which is available on Nokia Online.

Nokia X3-
02
RM-639
Service Manual Level 1&2
12 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
9. DISASSEMBLY INSTRUCTIONS
1) Nokia X3-02 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the AV plug and the DC plug.
3) Protect the TOUCH MODULE with a protective film.
4) Push the BATTERY COVER release buttons on both
sides.
5) Lift up the BATTERY COVER. If there is a battery
inserted remove it also.
6) Unscrew the three TORX+ size 4 screws in the
order shown. Do not use them again!

Nokia X3-
02
RM-639
Service Manual Level 1&2
13 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
7) Unscrew the four TORX+ size 4 screws in the order
shown. Do not use them again!
8) Use the SS-93 to release the B-COVER DECO clips on
both sides.
9) Remove the B-COVER DECO. Be careful not to
damage the hooks holding the B-COVER. Do not use it
again. Discard it.
10) Use the SS-93 to release the ENGINE BOARD from
the B-COVER.
11) Release the top part of the A-COVER with the SRT-
6.
12) Carefully lift up the shown side of the phone.

Nokia X3-
02
RM-639
Service Manual Level 1&2
14 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
13) Carefully detach the top part of the ENGINE
BOARD with the SS-93.
14) Separate the B-COVER.
15) Release the four KEYMAT clips shown on both
sides, with the sharp end of the SS-93.
16) Remove the KEYMAT.
17) Turn over the shown part of the ENGINE BOARD. 18) Use the SS-93 to release the MOUNTING ASSY.

Nokia X3-
02
RM-639
Service Manual Level 1&2
15 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
19) Remove the MOUNTING ASSY with the tweezers.
20) Use the SS-93 to release the TOUCH MODULE
connector. Be careful not to damage the connector
or any nearby components.
21) Use the DC plug to release the DC JACK. 22) Remove the DC JACK with the tweezers.
23) Push the SS-93 under the ENGINE BOARD and
move the SS-93 to direction shown to release the
ENGINE BOARD. Be very careful not to damage the
flex!
24) To release the side keys, carefully push the SS-93
to the direction shown.

Nokia X3-
02
RM-639
Service Manual Level 1&2
16 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
25) Use the SS-93 to release the clip holding the UI-
FLEX ASSY.
26) Turn over the UI-FLEX ASSY with the SS-93.
27) Open the SIM card reader connector with the SS-
93. Be careful not to damage the connector or any
nearby components.
28) Use the SS-93 to release LCD connector. Be careful
not to damage the connector or any nearby
components.
29) Remove the ENGINE BOARD. Be careful not to
damage the LCD connector or any nearby
components.
30) Lever out the AV JACK with an AV plug.

Nokia X3-
02
RM-639
Service Manual Level 1&2
17 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
31) Remove the AV JACK with the tweezers.
32) Use the SS-93 to open the two shown A-COVER
BRIDGE ASSY clips.
33) Slide the SS-93 to the directions shown to release
the sides of the TOUCH MODULE.
34) Pull the TOUCH MODULE connector through the
opening and remove the TOUCH MODULE.
35) Detach the A-COVER BRIDGE ASSY by sliding the
SS-93 as shown.
36) Separate the A-COVER BRIDGE ASSY with the
tweezers. Do not use it again. Discard it. The TOUCH
MODULE can not be used again. Discard it.

Nokia X3-
02
RM-639
Service Manual Level 1&2
18 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
37) Protect the LCD with a protective film.
38) Remove the TOUCH MODULE adhesive remains
with the SS-93.
39) Remove the EARPIECE MESH with the tweezers.
Do not use it again. Discard it.
40) Push carefully the SS-93 through the opening to
release the LCD.
41) Pull the LCD connector through the opening and
remove the LCD. Do not use it again. Discard it.
42) Use the SS-93 to release the UI-FLEX ASSY.

Nokia X3-
02
RM-639
Service Manual Level 1&2
19 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
43) Remove the UI-FLEX ASSY. Do not use it again.
Discard it.
44) Use the dental tool to release the EARPIECE and
remove it with the tweezers. Do not use it again.
Remove also the EARPIECE adhesive residues. Be
careful not to injure yourself with the sharp end of
the dental tool!
45) Use the SS-93 to release the ANTENNA MODULE. 46) Pull the ANTENNA MODULE from the shown places
with the tweezers to remove it.
47) Remove the ANTENNA MODULE with the
tweezers. Do not use it again. Discard it.
48) Nokia X3-02 disassembly is now complete.
-END OF DISASSEMBLY-

Nokia X3-
02
RM-639
Service Manual Level 1&2
20 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0
10. ASSEMBLY INSTRUCTIONS
1) Nokia X3-02 assembly. 2) You must use the Nokia Standard Toolkit version
2.
3) Remove the A-COVER adhesive protective film with
the tweezers.
4) Push the LCD connector through the opening and
lower down the LCD.
5) Press the sides of the LCD to activate the adhesive.
Be careful not to damage the LCD.
6) Remove the UI-FLEX ASSY adhesive protective film.
