Nokia MEDIAMASTER 9761 C User manual

Bedienungsanleitung
Mode d’emploi
Istruzioni per l’uso
Owner’s Manual
MEDIAMASTER
9761 C

Hiermit erklärt Nokia, daß dieser digitale Receiver,
Mediamaster 9761 C, den geltenden Anforderungen
sowie anderen geltenden Bestimmungen der
Richtlinie 1999/5/EC entspricht.
Dieses Endgerät ist für den Anschluß an das analoge
öffentliche Fernsprechnetz vorgesehen, bei dem die
Netzwerkadressierung, sofern erforderlich, über
Mehrfrequenzsignale erfolgt.
Par la présente, Nokia déclare que ce récepteur
numérique, le Mediamaster 9761 C, satisfait aux
conditions requises essentielles et est conforme aux
autres dispositions applicables de la Directive 1999/5/EC.
Ce terminal est destiné à être connecté aux réseaux
téléphoniques publics commutés analogiques (RTPC),
dans lesquels l’adressage réseau se fait, le cas
échéant, via un signal multifréquence.
Nokia dichiara che questo ricevitore digitale,
Mediamaster 9761 C, è conforme ai requisisti
fondamentali e alle disposizioni della Direttiva 1999/5/EC.
Questo Terminale Multimediale è stato progettato per
il collegamento alla rete telefonica analogica pubblica
commutata (PSTN), in cui l’indirizzamento di rete, se
fornito, avviene tramite segnalazione DTMF (Dual Tone
Multiple Frequency).
Hereby, Nokia declares that this digital receiver,
Mediamaster 9761 C, is in conformity with essential
requirements and other relevant provisions of
Directive 1999/5/EC. This Terminal Equipment is
intended for connection to the analogue Public
Switched Telephone Networks (PSTNs), in which
network addressing, if provided, is by means of Dual
Tone Multiple Frequency (DTMF) signalling.
DECLARATION OF CONFORMITY

GB 3
MEDIAMASTER 9761 C
Nokia and Nokia Connecting People are registered trademarks of Nokia
Corporation. Other product and company names mentioned herein are
trademarks or trade names of their owners.
Nokia operates a policy of continuous development. Therefore we reserve the
right to make changes and improvements to any of the products described in
this manual without any prior notice.
Copyright © 2001. Nokia Corporation.
All rights reserved.
Contents
General operation 4
For your safety 4
Remote control 5
Front and rear panel 6
Smartcard and CA module 7
General 7
How to insert the smartcard 7
About the CA module 7
Installation of the Mediamaster 8
Preparing the Remote Control 8
Connecting the Mediamaster 8
Connecting the Mediamaster to the TV 9
Connecting a TV and VCR with SCART
connectors 9
Connecting a Satellite Receiver and VCR 10
Connecting to the built in phone modem 10
Connecting a HiFi System 10
Connecting to the mains supply 11
Switching on for the first time with
SCART connections 11
Tuning Procedure when RF Connections
are used 12
First time installation 13
General Information 13
The Welcome Menu 13
Language 13
Initialization 14
Finishing the first time installation 15
If the automatic search procedure failed 15
Viewing mode 16
General Information 16
Programme Information 16
The “i” (Information) Button 17
GUIDE 17
List of TV or Radio Channels 18
Options (Green Button) 18
TV Release (0) 19
Video Recording 19
The TEXT Button (Teletext) 19
EXIT TV 19
Main menu 20
General Information 20
TV and Radio Channels 20
Edit Channels 20
Guide 24
System Configuration 24
Channel Search 24
TV Settings 25
Time Adjustment 25
Modem configuration 26
Automatically Receiver Upgrade 26
Manually Receiver Upgrade 27
Reinstall 27
User Preferences 27
Language Preferences 28
Parental Control 28
Appearance Preferences 29
System Information 30
Conditional Access 31
Reminder List 32
Glossary 33
Problem solving 34
Front panel display 35
Technical specifications 36

GB 4
GENERAL OPERATION OF THE MEDIAMASTER
Throughout this manual you will notice that the everyday opera-
tion of your Mediamaster is based on a series of user friendly on-
screen displays and menus. These menus will help you get the
most from your Mediamaster, guiding you through installation,
channel selection, viewing and many other functions.
All functions can be carried out using the buttons on the remote
control, and some of the functions can also be carried out using
the buttons on the front panel.
Please be aware that new software may change the functional-
ity of the Mediamaster.
Should you experience any difficulties with the operation of your
Mediamaster, please consult the relevant section of this manual,
including the Problem Solving, or alternatively call your dealer or
a customer service adviser.
• Allow clear space around the Media-master for
sufficient ventilation.
• Do not cover the Mediamaster or place it on a
unit that emits heat.
• Use a soft cloth and a mild solution of washing-
up liquid to clean the casing.
• Never allow liquids, spray or other materials to
come into contact with the inside of the
Mediamaster.
• Do not connect or modify cables when the
Mediamaster is plugged in.
FOR YOUR SAFETY
• Do not remove the cover.
• Do not allow the unit to be exposed to hot, cold
or humid conditions.
• Service should be carried out only at a Nokia
Authorised Service Centre.
• Please note that the only way to isolate the
Mediamaster completely from the mains supply
is to unplug the mains lead!

GB 5
To switch the Mediamaster in and out of standby mode.
EXIT TV To return to the viewing mode from a menu without stor-
ing settings (in menu mode).
To switch between TV or Radio (in viewing mode).
To turn the sound off/on (mute).
- + To adjust the volume. The Mediamaster’s maximum level is
controlled by the TV’s present volume setting.
0 - 9 To change channel and to select individual menu options.
Note: If 0 is entered as the first digit, the TV Release func-
tionality is activated (see below).
0 TV Release. To switch between digital TV/Radio, analogue
TV and analogue satellite TV and VCR, when your systems
are connected by SCART leads.
Info. To display short and extended information (if transmit-
ted) about current and next programmes.
BACK To go back one level in the menus without storing settings.
TEXT To select teletext information.
Press to enter teletext (if available).
MENU To display or exit from the ”Main Menu” screen.
GUIDE To obtain a list of present and following programmes for the
available channels. This information is only shown if your
Service Provider transmits programme information (EPG in-
formation).
P+ P- To change channels up and down by one unit.
To change page in a menu/list/text if more than one page is
available. To browse through teletext history.
▲ ▼ To move up/down in the menus and to change channels.
To change settings in menus.
OK To confirm choices and selection of a highlighted item.
To display the TV/Radio channel list (in viewing mode).
(Red) To download an Open TV application.
OPTION (Green) To select service options in viewing mode.
OPTION + code: to open a locked channel.
FREEZE (Yellow) To select the freeze function in viewing mode.
Press once to freeze the screen picture. Press the button
once again to unfreeze the picture.
(Blue) To toggle between present and previous TV/Radio
channels in viewing mode.
This section describes how to operate the Mediamaster using the buttons on the remote control.
Some of the functions can also be carried out using the buttons on the front panel.
REMOTE CONTROL

GB 6
to put the Mediamaster
in and out of standby
mode
to move up/down in
the menus and to
change channels.
Display
shows channel number, error messages, remote con-
trol commands and time in standby mode
Front Panel
Slot
for a smartcard for
future services
Slot
for the smartcard from the
Service Provider
Slot
for a CA module
with a smartcard
Button
to release the
CA module
Rear Panel
AUX SCART
for connection to a VCR
or a satellite receiver
Mains lead
230 V AC
±15%
50-60 Hz
TV AERIAL
for the connec-
tion to the cable
network socket
DIGITAL AUDIO
phono connector
S/PDIF output for
connection to
a HiFi system
TV SCART
for the connec-
tion to the TV
SERIAL
to read and load
data information
TV / VCR
for an RF-lead to
the aerial input of
the TV or a VCR
AUDIO L/R
Connection of a
HiFi system
FRONT AND REAR PANEL
TELEPHONE
for connection to the
telephone network

GB 7
ABOUT THE SMARTCARD AND CA MODULE
PIN Code
The smartcard is loaded with a 4-digit code, also called a PIN code
(Personal Identification Number).
You will be asked to enter this code in order to get access to some
of the functions in the Mediamaster.
General
The Mediamaster box has access to scrambled TV/Radio chan-
nels based on the embedded Nagravision system. To be able to
receive these scrambled digital channels you will need a special
smartcard distributed by your Service Provider.
The Service Provider is the programme distributor of the cable
channels.
It is also possible to connect a separate CA (Conditional Access)
module*to the box. The CA module makes it possible to receive
other scrambled channels (if transmitted on the cable net.)
This module is equipped with its own smartcard and may create
special menus not described in this manual. If so, please follow
the instructions within these menus or from the Service Provider.
After inserting the smartcard, leave it in the slot permanently. Do
not remove it again, unless your Service Provider asks you to do
so. This is important, because if your Service Provider wants to
download new information, the card has to be in the slot.
*Only use a DVB Standard Common Interface CA module.
How to insert the smartcard
•Insert your smartcard fully into the left-hand lower slot be-
hind the lid of the front panel of the Mediamaster. The gold
chip should face downwards and inwards.
•The upper slot is intended for future services such as bank
services and others.
About the CA module
•Follow the instructions delivered together with the CA mod-
ule.
•Insert the module fully into the right-hand slot behind the lid
of the front panel.
•Press the grey button on the front panel to remove the CA
module.
smartcard
CA module
Smartcard for the CA module

GB 8
The box for your Mediamaster should contain the
following items:
•the Mediamaster
•a remote control with 2 AAA batteries
•a SCART lead (fully featured 1,0 metre)
•an Owner’s Manual
•a software license agreement
INSTALLATION OF THE MEDIAMASTER
About the SCART sockets
The rear panel of the Mediamaster is equipped with 2 SCART
sockets (see diagram). When you connect other products to
any of these sockets, always use fully featured SCART leads
(as supplied). There are “less well specified”SCART leads on the
market and picture quality could be reduced if you use them. SCART socket
SCART lead
Owner’s manual License
agrement
Preparing the Remote Control
•Remove the cover on the battery compartment at the bottom
of the remote control.
•Insert the 2 AAA (1,5 V) batteries, as shown in the diagram,
taking care to observe the +and -markings indicated inside.
•Replace the cover.
Connecting the Mediamaster
There are many different types of TV/VCR and other equipment
that you can connect to the Mediamaster.
In this manual you will see some of the most common ways to
connect your equipment.
If you use RF leads you will have to tune your TV and VCR to the
Mediamaster output channel (see page 12).
Remote control

GB 9
Connecting the Mediamaster to the TV
As most local cable network are distributing TV programmes from
both digital and analogue sources, the signal from the wall net-
work socket will be of the two different kinds:
1Digital signal information to be handled by the Mediamaster.
These signals are sent to the TV through the SCART leads.
2Analogue signals which bypass the Mediamaster through RF
leads.
Due to that you must connect the Mediamaster and the VCR
to the TV as discribed below.
•Connect the SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
•Connect an RF lead between the TV/VCR output on the Media-
master and the TV aerial input on your TV.
•Connect an RF lead between the TV AERIAL input socket on
the Mediamaster and the network socket.
SCART
RF
Network
socket
Connecting a TV and VCR with SCART connectors
Refer to your VCR’s manual for full instructions.
If your TV has a SCART socket, but your VCR does not
RF
RF
SCART
SCART
Network
socket
SCART
RF
•Connect a SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
•Connect a SCART lead between the VCR
and the AUX SCART socket on the
Mediamaster.
•Connect an RF lead from the TV/VCR output on
the Mediamaster to the TV aerial input on the VCR.
•Connect an RF lead from the RF output on the
VCR to the TV AERIAL input socket on the TV.
•Connect an RF lead between the TV AERIAL input socket
on the Mediamaster and the network socket.
•Follow the connections from above, but without the Media-
master/VCR SCART lead.
Your VCR then will have to be tuned to your
Mediamaster as described on page 12.
VCR
Mediamaster
Mediamaster
VCR
Network
socket
INSTALLATION OF THE MEDIAMASTER

GB 10

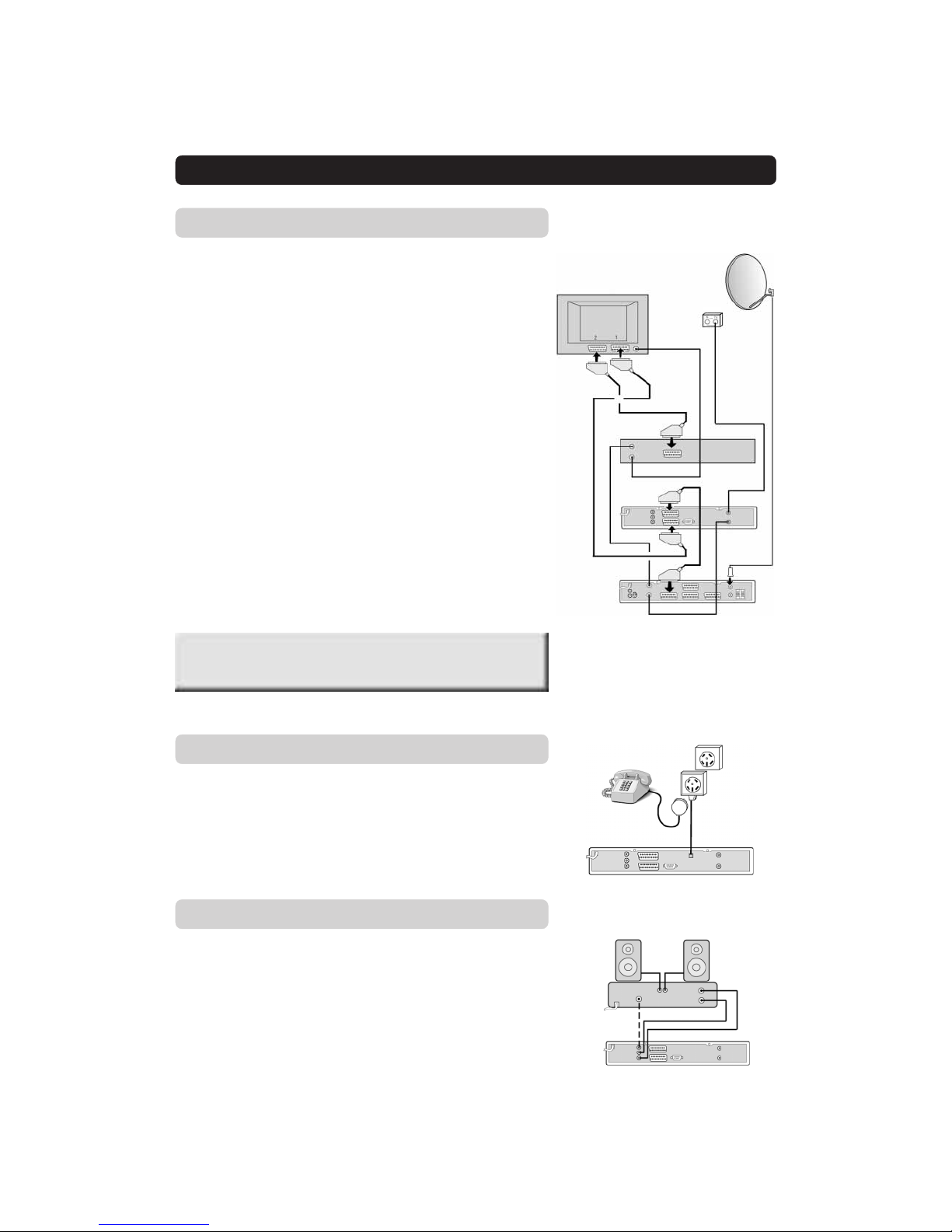

Connecting a HiFi System
•Connect an RCA/Cinch stereo cable from the AUDIO L R sock-
ets on the Mediamaster to the LINE, AUX, SPARE or EXTRA
input sockets on your HiFi system.
•If available you can connect an RCA/Cinch single cable from
the DIGITAL AUDIO socket on the Mediamaster to your HiFi
or Dolby Pro Logic system.
Note: To avoid interference you must use a screened video
cable.
Connecting a Satellite Receiver and VCR
1 Connect a SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
2 Connect a SCART lead between the TV SCART socket
on the satellite receiver and the AUX SCART socket
on the Mediamaster.
3 If your TV is equipped with two SCART connectors
and the VCR also has a SCART; always use the second
SCART to connect the VCR to the TV.
4 Connect an RF lead from the RF output on the VCR to the TV
aerial input on the TV.
5 Connect an RF lead from the RF output on the satellite re-
ceiver to the RF input socket on the VCR.
6 Connect an RF lead from the TV/VCR output on the Media-
master to the RF input socket on the satellite receiver.
7 Connect an RF lead between the TV AERIAL input socket on
the Mediamaster and the network socket.
8 Connect the coaxial cable between the LNB and the LNB
socket on the satellite receiver.
Both the VCR and the satellite receiver must be tuned to dif-
ferent UHF channels than the Mediamaster when using RF-
connectors.
Satellite
dish
Network
socket
RF
SCART
RF
Media-
master
VCR
RF
Satellite receiver
The satellite receiver must be switched OFF (in standby
mode) when you want to watch digital cable channels
from the Mediamaster.
INSTALLATION OF THE MEDIAMASTER
Connecting to the built in phone modem
The built in phone modem makes it possible for you to use inter-
active services.
•Connect a telephone cable (option) between the socket
marked TELEPHONE on the rear of the Mediamaster and the
ordinary telephone socket in the wall.
