GB 3
MEDIAMASTER 9802 S
Contents
General information 4
For your safety 4
Remote control 5
Front and rear panel 6
Viaccess smartcard 7
CA module with its smartcard 7
Preparing the remote control 8
Connecting the Mediamaster to the dish 8
Connecting the Mediamaster 9
Connecting to the TV 9
Connecting a TV and VCR 9
Connecting an analogue satellite receiver
and VCR 10
Nokia smart switch 10
Connecting a HiFi system 10
Switching on for the first time with
SCART connections 11
Tuning procedure when RF connections
are used 11
First time installation 12
General information 12
The Welcome menu 12
Language 12
RF modulator type 13
Antenna/Satellite selection menu 13
Antenna/Satellite selection 14-19
Antenna motor installation 20-23
Channel search progress 23
Time adjustment 23
Viewing mode 24
General information 24
Programme information 24
The “i” (information) button 25
Guide 25
List of TV and radio channels 26
Options (green button) 26
TV release (0) 27
Video recording 27
The TEXT button (Teletext) 27
EXIT TV 27
Main menu 28
General information 28
TV and radio channels 28
Edit channels 28-31
Update channels 32
Guide 33
System configuration 33
Channel search 33-34
Edit satellites 35-36
Antenna/Satellite configuration 37
TV settings 37
Time adjustment 38
Modem configuration 38
Receiver upgrade 39
Reinstall 39
User preferences 39
Language preferences 39
Parental control 40
Appearance preferences 41
System information 42
Timer 43-44
Glossary 45
Problem solving 46
Front panel display 47
Technical specifications 48
Nokia and Nokia Connecting People are registered trademarks of Nokia
Corporation. Other product and company names mentioned herein are be
trademarks or trade names of their owners.
Nokia operates a policy of continuous development. Therefore we reserve the
right to make changes and improvements to any of the products described in
this manual without any prior notice.
Copyright © 2002. Nokia Corporation. All rights reserved.

GB 4
GENERAL INFORMATION ABOUT THE MEDIAMASTER
FOR YOUR SAFETY
Throughout this manual you will notice that the everyday operation
of your Mediamaster is based on a series of user friendly on-screen
displays and menus. These menus will help you get the most from
your Mediamaster, guiding you through installation, channel selec-
tion, viewing and many other functions.
All functions can be carried out using the buttons on the remote
control, and some of the functions can also be carried out using the
buttons on the front panel.
Please be aware that new software may change the functionality of
the Mediamaster.
Should you experience any difficulties with the operation of your
Mediamaster, please consult the relevant section of this manual, in-
cluding the Problem Solving, or alternatively call your dealer or a cus-
tomer service adviser.
•Allow 10 cm space around the Mediamaster for
sufficient ventilation.
•Do not cover the Mediamaster’s ventilation
openings with items such as newspapers, table-
cloths, curtains etc.
•Do not place the Mediamaster on top of a unit
that emits heat.
•Do not place naked flame sources, such as
lighted candles, on the Mediamaster.
•Use a soft cloth and a mild solution of washing-
up liquid to clean the casing.
•Do not expose the Mediamaster to dripping or
splashing liquids.
•Do not place any objects filled with liquids, such
as vases, on the Mediamaster.
•To give your Mediamaster an extra protection, e.g.
at a thunderstorm, we recommend that you con-
nect it via an external surge protection device.
•Do not connect or modify cables when the Media-
master is plugged in.
•Do not remove the cover.
•Do not allow the unit to be exposed to hot, cold
or humid conditions.
•Service should be carried out only at a Nokia Au-
thorised Service Centre.
•Please note that the only way to isolate the Media-
master completely from the mains supply is to un-
plug the mains cable!

GB 5

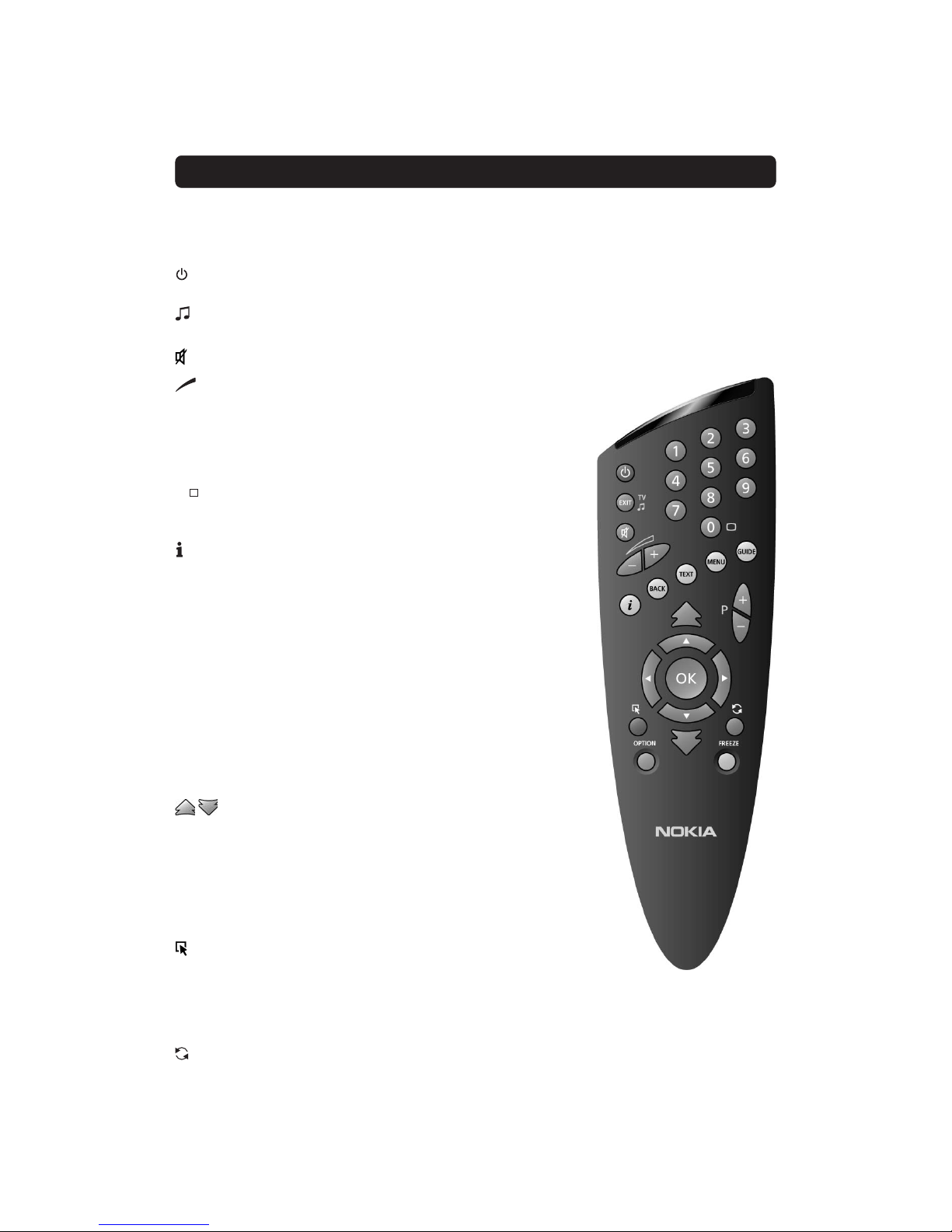

Switch the Mediamaster in and out of standby mode.
EXIT TV Return to the viewing mode from a menu without storing
any settings (in menu mode).
Switch between TV or Radio mode (in viewing mode).
Turn the sound off/on (mute).
- + Adjust the volume of digital programmes.
The Mediamaster’s maximum level is controlled by the TV’s
present volume setting.
0 - 9 Change channel and to select individual menu options.
Note: If 0 is entered as the first digit, the TV Release func-
tionality is activated (see below).
0 TV Release. To switch between digital TV/Radio, analogue
TV and analogue satellite TV and VCR, when your systems
are connected by SCART cables.
Info. To display short and extended information (if transmit-
ted) about current and next programmes.
BACK Go back one level at the time within menus without storing
any settings.
TEXT Select teletext information.
Press to enter teletext (if available).
MENU To show and to exit from the Main Menu.
GUIDE Obtain a list of present and following programmes for the
available channels. This information is only shown if your
Service Provider transmits programme information (EPG in-
formation).
P+ P- Change channels up and down, one at the time.
Return to TV mode from an “Open TV” application.
Change page in a menu/list/text if more than one page is
available. To browse through teletext history.
 Move up/down in the menus and to change channels.
  Change settings in menus.
OK Confirm choices and selection of a highlighted item.
Show the TV/Radio channel list.
(Red) Download an “Open TV” application.
OPTION (Green) Select service options in viewing mode.
OPTION + code will open locked channels.
FREEZE (Yellow) Press once to freeze the screen picture.
Press any other key to return to normal mode again.
(Blue) To toggle between present and previous
TV/Radio channel.
This section describes how to operate the Mediamaster using the buttons on the remote control.
Some of the functions can also be carried out using the buttons on the front panel.
REMOTE CONTROL

GB 6
AUDIO L R
phono connectors
Stereo outputs for
connection to a HiFi
system
TV SCART
for connection
to the TV
AUX SCART
for connection to a VCR,
or an analogue satellite
receiver
*LNB cable also feeds the LNB with a supply voltage of 13/18 V (V/H polari-
sation) and a 0/22 kHz signal (bandswitch). Max LNB current is 500 mA.
DIGITAL AUDIO
phono connector
S/PDIF output for
connection to
a HiFi system
95-250 V AC
50-60 Hz
For connection of
the enclosed
mains cable
ANTENNA *
Satellite dish
input (F-connec-
tor)
Rear panel
SERIAL PORT
to read and load
data information
TV AERIAL
for a terrestrial (con-
ventional) TV aerial
TV/VCR
for an RF-cable to the
aerial input of the TV or
VCR
Slot
for a CA module
with a Smartcard
to put the Mediamaster
in and out of standby
mode

to move up/down in
the menus and to
change channels.
Display
shows channel number, error messages,
remote control commands and time in
standby mode
Front panel
Slot
for a Viaccess
Smartcard
Button
Push the button to
release an inserted
CA module
FRONT AND REAR PANEL
TELEPHONE
for connection
of the cable to
the phone jack

GB 7
Viaccess smartcard
Only for services coded with the Viaccess CA system.
•Insert your smartcard fully into the left slot behind the lid of
the front panel of the Mediamaster. The gold chip should face
downwards and inwards.
PIN Code
The Smartcard is loaded with a 4-digit code, also called a PIN code
(Personal Identification Number).
The code is essential in order to access future services offered
by the Service Provider.
ABOUT THE SMARTCARD AND CA MODULE
To be able to receive scrambled digital satellite channels you will
need a Smartcard and/or a Common Interface CA (Conditional
Access) module*from a Service Provider of your choice.
There are a few different CA modules on the European market.
Each one of the CA modules support a certain kind of encryption
system. The Mediamaster supports CA modules which are made
to work according to the DVB standard. Depending on which
country you use the Mediamaster in, your local dealer will pro-
vide you with the right type of CA module.
Please note that a smart card may only be valid for a single Serv-
ice Provider and due to this, a specific range of channels.
The smart card and the CA module may cause special menus, not
described in this manual, to appear. Follow the instructions from
the Service Provider.
Note: CA modules and smart cards are only distributed by Serv-
ice Providers and special distributors, not by Nokia.
After inserting a card, leave it in the slot permanently. Do not re-
move it again, unless you will be asked to do so. This is impor-
tant because, for example, if your Service Provider wants to
download new information to the smart card, the card has to be
in the slot.
CA module with its smartcard
•Follow the instructions from your Service Provider how to in-
sert the CA module and the belonging smartcard
•Insert the CA module fully into the slot behind the lid of the
front panel of the Mediamaster.
•Press the grey button on the front panel if you need to remove
the CA module.
*Only use a DVB Standard Common Interface CA Module

GB 8
The box for your Mediamaster should contain the
following items:
•the Mediamaster
•remote control with 2 AAA batteries
•SCART cable (fully connected 1,0 metre)
•aerial/RF cable (double screened 1,5 metres)
•owner’s manual and software license agreement
•mains cable
INSTALLATION OF THE MEDIAMASTER
SCART socket
SCART cable
Owner’s manual
License agreement
RF cable
Preparing the remote control
•Remove the cover on the battery compartment at the bottom
of the remote control.
•Insert the 2 AAA (1,5 V) batteries, as shown in the diagram,
taking care to observe the +and -markings indicated inside.
•Replace the cover.
Installing the satellite dish
•See the ”Fitting instructions for satellite dish” on how to in-
stall the dish.
•Connect the coaxial cable, with F-connectors fitted, from the
LNB on the satellite dish to the socket marked ”ANTENNA”on
the rear panel of the Mediamaster.
Connecting the Mediamaster to the dish
If you need to fit the F-connectors onto the cable
•Prepare each end of the cable as shown in the diagram. You
will need to fold back the outer braid (as shown).
•Slide the F-connector onto the cable, then turn it clockwise
until it grips the braid.
•Ensure that 3 mm of the core is protruding from the end of the
connector.
8 mm
15 mm
3 mm
F-connector
Remote
control
mains
cable
About the SCART sockets
The rear panel of the Mediamaster is equipped with 2 SCART
sockets (see diagram). When you connect other devices to any
of these sockets, always use fully connected SCART cables (as
the one supplied.) There are SCART cables available which do not
have all the pins connected. The picture quality could be reduced
if you use them.

GB 9
Connecting to the TV
•Connect the SCART cable between the main SCART socket
on the TV and the TV SCART socket on the Mediamaster.
•Connect an RF cable from the TV/VCR output on the Media-
master to the RF input socket on the TV.
•Connect the TV aerial to the TV AERIAL input socket on the
Mediamaster.
General
There are many different types of TV/VCR and other equipment
that you can connect to the Mediamaster.
In this manual you will see some of the most common ways to
connect your equipment.
If you use RF cables you will have to tune your TV and VCR to the
Mediamaster output channel (see page 11).
If you have problems with your connections and need help, con-
tact your dealer or Service Provider.
RF
SCART
Connecting a TV and VCR
Refer to your VCR’s manual for full instructions.
•Connect one SCART cable between the main SCART socket
on the TV and the TV SCART socket on the Mediamaster.
•Connect another SCART cable between the VCR and the AUX
SCART socket on the Mediamaster.
•Connect the RF cable from the RF output on the VCR to the
TV aerial input on the TV.
•Connect the TV aerial to the RF input socket on the VCR.
VCR
Media-
master
SCART
SCART
RF
If your TV has a SCART socket, but your VCR does not
•Connect a SCART cable between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
•Connect an RF cable from the RF output on the VCR to the TV
aerial input on the TV.
•Connect an RF cable from the TV/VCR output on the Media-
master to the RF input socket on the VCR.
•Connect the TV aerial to the TV AERIAL input socket on the
Mediamaster.
VCR
SCART
RF
RF
INSTALLATION OF THE MEDIAMASTER
Media-
master

GB 10
Nokia smart switch
Connecting a HiFi system
•Connect an RCA/Cinch stereo cable from the AUDIO L R sock-
ets on the Mediamaster to the LINE, AUX, SPARE or EXTRA
input sockets on your HiFi system.
•If available you can connect an RCA/Cinch single cable from
the DIGITAL AUDIO socket on the Mediamaster to your HiFi
or Dolby Pro Logic system.
Note: To avoid interference you must use a screened audio
cable.
VCR
With Nokia smart
switch
Satellite receiver
Media-
master
SCART
RF
INSTALLATION OF THE MEDIAMASTER
Nokia smart switch
•Connect a coaxial cable between output A on the smart switch
(accessory) to the LNB socket on the satellite receiver.
•Connect a coaxial cable between output B on the smart switch
to the ANTENNA socket on the Mediamaster.
The satellite receiver must be switched OFF (in standby
mode) when you want to watch digital satellite channels
from the Mediamaster.
Connecting a satellite receiver and a VCR
•Connect a SCART cable between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
•Connect a SCART cable between the VCR and the AUX SCART
socket on the Mediamaster.
•Connect an RF cable from the RF output on the VCR to the TV
aerial input on the TV.
•Connect an RF cable from the RF output on the satellite re-
ceiver to the RF input socket on the VCR.
•Connect the TV aerial to the RF input socket on the satellite
receiver.
In order to switch the signal from the dish between the satel-
lite and digital receivers, you need a Nokia smart switch (at A
B in the diagram) or a Universal Twin LNB.
Connecting to the built in phone modem
The built in phone modem makes it possible for you to use inter-
active services. Refer to page 38.
•Connect the attached telephone cable between the socket
marked TELEPHONE on the rear of the Mediamaster and the
ordinary telephone socket in the wall.

GB 11
This procedure is necessary if your Mediamaster is con-
nected to the TV with an RF cable, and not via SCART.
To tune your TV to the RF signal you might also need your TV
manual in addition to this manual. The steps below explain what
to do if you have been unable to use SCART cables in your con-
nection.
•Plug in your Mediamaster.
Tuning your TV to the Mediamaster
•Select a channel number on the TV that is not currently used
for other TV channels.
•Follow the instructions in your TV manual to tune the TV chan-
nel selector to UHF channel 43 (this is the Mediamaster’s fac-
tory preset UHF channel). If you are already using this chan-
nel, select another non occupied UHF channel between 21to
69 on the TV.
•For example, if you select UHF channel 45 on your TV, you
must change your Mediamaster to the same channel.
Use the or buttons on the front panel of the Mediamaster,
or on the remote, to change to the corresponding channel. You
will see the UHF channel number displayed on the front panel
of the Mediamaster.
•When you have correctly changed the UHF channel number
you will see the ”
Welcome ” menu on the TV screen.
If there is interference from other channels you will have to
change the chosen UHF channel.
•Follow the instructions in your TV manual to store this UHF chan-
nel as the channel used by your Mediamaster. You will have to
select it when you want to watch digital TV/Radio channels.
•Once the welcome message is visible, press the OK button
on the Mediamasters remote control to start the “First time
installation” procedure, see next page.
If for some reason you have to change the RF channel later,
you can do this by using TV settings menu further on in this
manual.
If you have a VCR connected it must be tuned to a different
UHF channel (between 21 to 69) than the Mediamaster.
Tuning procedure when RF connections are used
Switching on for the first time with SCART
connections
•Plug in your Mediamaster
•Now you will see the ”Welcome” menu on the screen.
•Press OK on the Mediamaster remote control to start the In-
stallation procedure.
You may now proceed to “First time installation”, see next page.
INSTALLATION OF THE MEDIAMASTER

GB 12

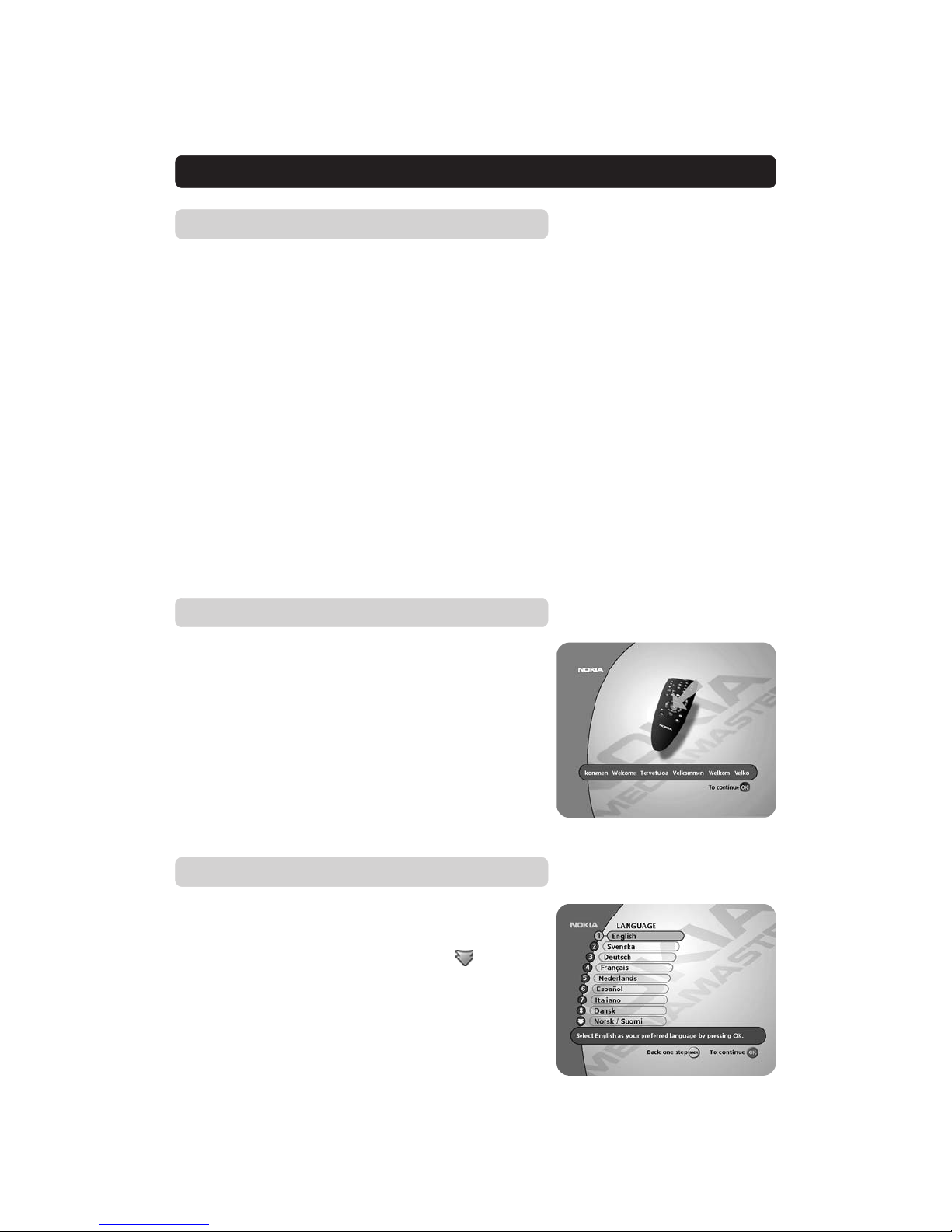

Language
Select the desired menu language.
This will also be the main language for audio and subtitling.
To select the Norwegian, Finnish and Greek language alternative
you first have to press the double arrow button .
General information
Once you have correctly connected the Mediamaster, you also
have to perform a “First Time Installation.”
During this procedure, helpful information is displayed at the bot-
tom of the menus.
Please note!
The OK button always confirms a selection within these menus,
and pressing it will take you to the next step in the installation
process. However, and this is important, often more than one
value has to be entered in a menu. First, perform all necessary
settings on the different lines. Then, confirm them all simultane-
ously by pressing OK.
You can always go back to the previous menu by pressing the
BACK button.
Use the   buttons to move upwards and downwards from
one line to another. Use  to change settings.
You can also use the numeric buttons on the remote control to
select a line in a menu and to enter numeric values.
FIRST TIME INSTALLATION
The “Welcome” menu
This picture indicates that you have started the installation pro-
cedure.
Press the OK button to proceed.

GB 13

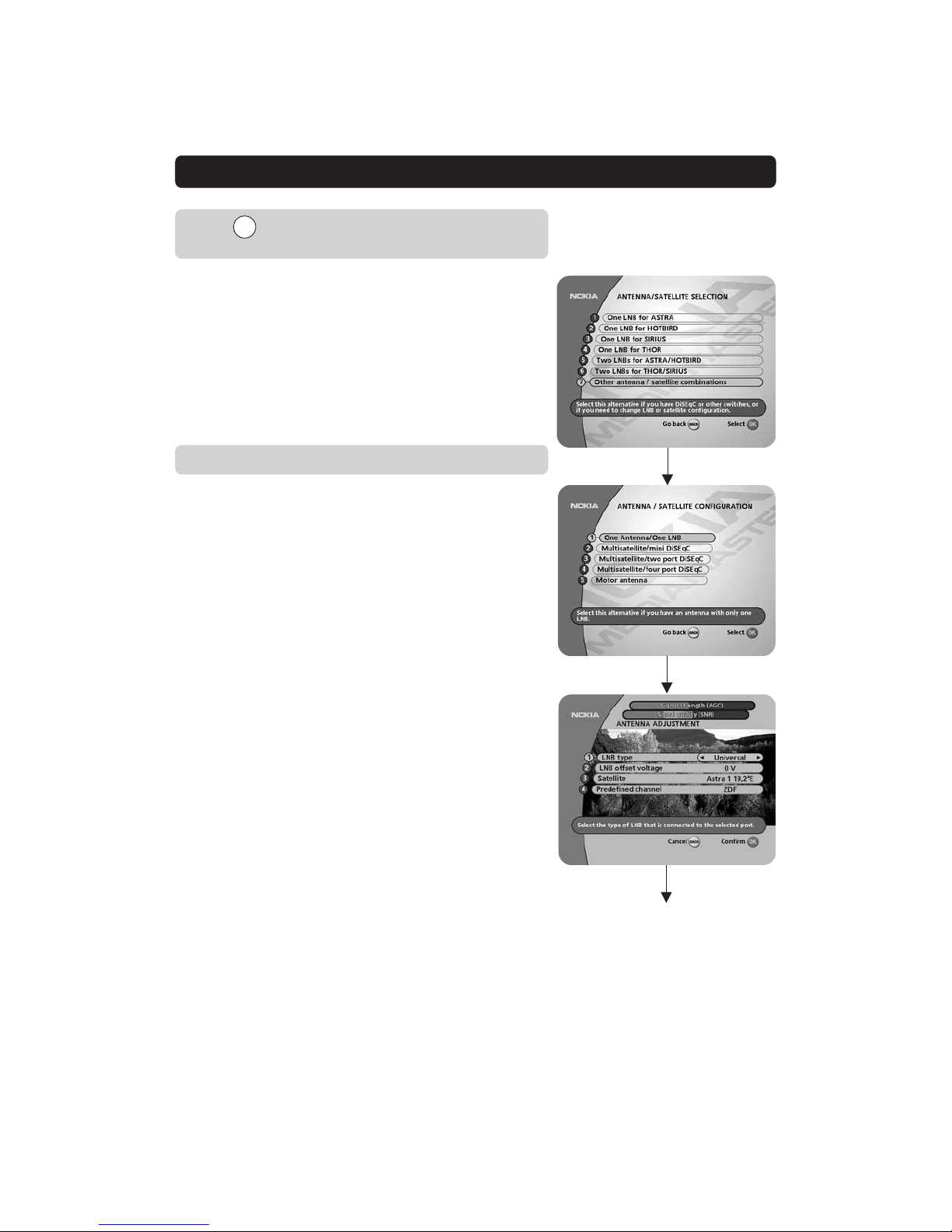

Antenna/satellite selection
Select one of the alternatives from line 1 to 4 if you have a sin-
gle antenna equipped with one LNB for receiving signals from
either ASTRA, HOTBIRD, THOR or SIRIUS.
Select one of the alternatives from line 5 or 6 if you have one
antenna with two LNBs or two antennas with one LNB on each
for receiving signals from the combination ASTRA/HOTBIRD or
THOR/SIRIUS. In these cases you also need a 2-way DiSEqC
switch.
Select alternative 7 for any other antenna/satellite combination,
e.g. antenna motor.
Alternatives 1-6 requires the use of a Universal LNB(s.)
RF modulator type
If the Mediamaster is connected to the TV with a RF cable, you
must select the right RF modulator alternative, which is depend-
ent on the country where the Mediamaster is being used.
Select “Normal (PAL B/G)” for all countries except the UK.
Select “UK (PAL I)” when the box is used in the UK.
If you get picture but no sound, the RF modulator selection might
be wrong.
FIRST TIME INSTALLATION

GB 14
FIRST TIME INSTALLATION
Select one of the alternatives ASTRA, HOTBIRD, SIRIUS or THOR
when you have a single LNB directed towards any of these sat-
ellites.
Pressing OK from the selected alternative will display the “An-
tenna adjustment” menu (shown to the right) on the screen.
For each satellite, (e.g. ASTRA, HOTBIRD, SIRIUS, THOR), up to
4 different channels are preprogrammed and shown in the menu.
When you adjust the antenna, your Mediamaster will use the
selected channel to find signals from a satellite. (You can select
a channel with the  buttons.)
Antenna adjustment and signal check
•Adjust the antenna towards the desired satellite until you have
a high value on the Signal strength (AGC) *) indicator (the red
bar at the top of the menu) and on the Signal quality (SNR) *)
indicator (the red, yellow and green bar at the top of the menu).
If you do not get a picture, you may have tuned in an analogue
signal source. Another reason could also be that the antenna is
positioned towards wrong satellite.
The reason could also be that the marked channel is not trans-
mitting at the moment. If so, try one of the other preprogrammed
channels with the  buttons.
When you have picture from a TV channel, press OK. The Media-
master automatically starts searching for and downloads chan-
nels from the satellite. Please refer to page 23.
(If you have a good indication in the signal quality menu, but no
picture from any of the channel alternatives, try proceeding with
the channel search anyway by pressing OK.)
Line through on the antenna satel-
lite selection menu
1 4
OK
OK
*)About Signal strength (AGC)
and Signal quality (SNR)
The different signal indicators at the top of the menu provide in-
formation about two things:
AGC:The AGC, shown with a red bar, will indicate the aver-
age strength of any incoming signal, digital as well as
analogue.
SNR:The SNR, shown with a red, yellow and green bar, will
indicate the signal quality for the selected prepro-
grammed channel.

GB 15
FIRST TIME INSTALLATION

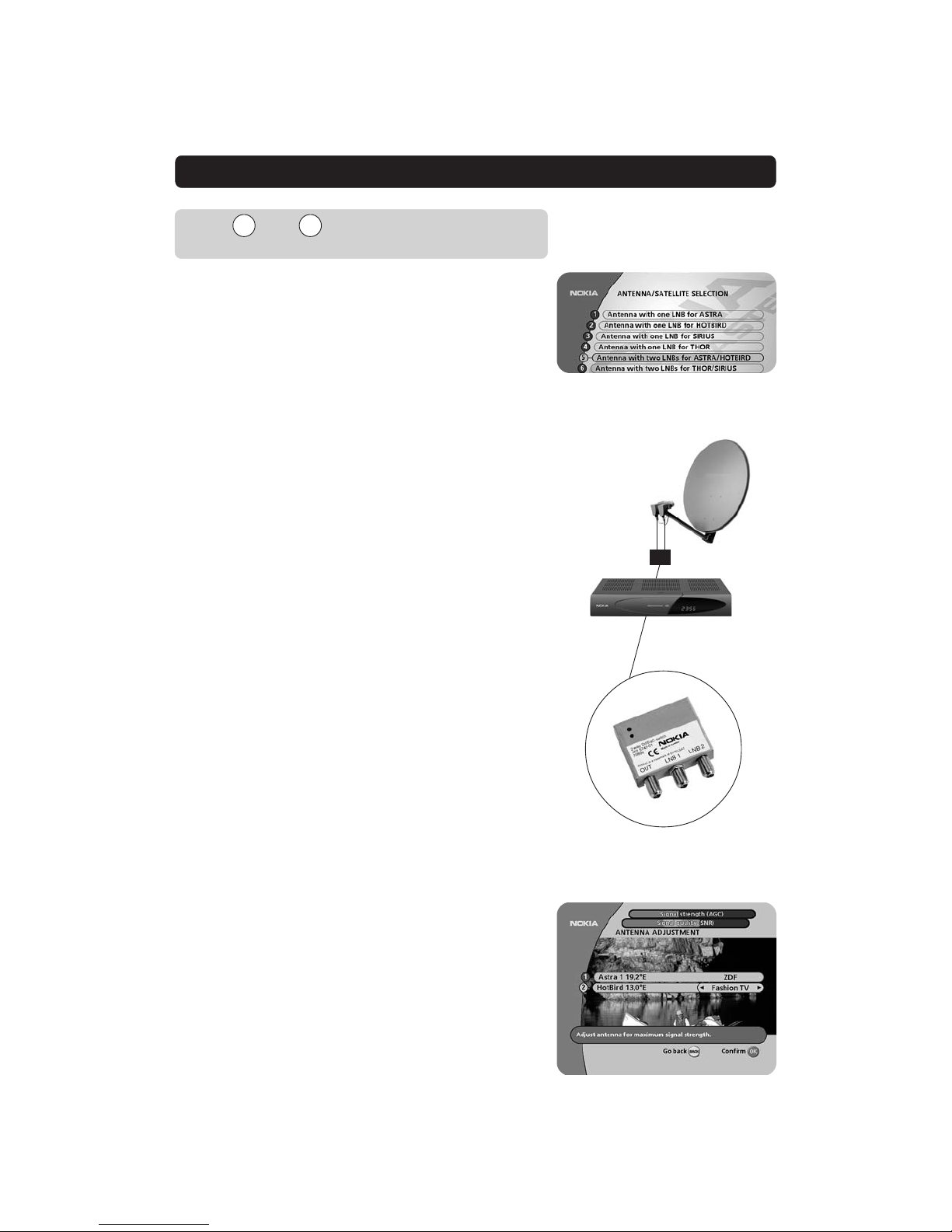

Select one of these alternatives when you have a single antenna
equipped with 2 LNBs, or two antennas with one LNB on each,
and want to watch channels from ASTRA/HOTBIRD or THOR/
SIRIUS.
In this case you must first connect the LNBs to an external switch
since there is only one antenna input on the Mediamaster. Once
installed the switch automatically selects the correct LNB for the
selected channel.
This external switch is better known as a DiSEqC ™ switch. Since
the switch can be located close to the LNBs, you only need one
cable down to the Mediamaster.
•First check, as described in paragraph Antenna adjustment
and signal check on page 14, that you get picture and sound
from ASTRA (THOR).
•When you have picture and sound continue to the next row
and check HOTBIRD (SIRIUS) for picture and sound.
•When the HOTBIRD(SIRIUS) check is ready, press OK to start
the channel search procedure. The box now starts searching
and downloading channels from both satellites. See “Channel
search” on page 18.
Line and on the antenna satellite
selection menu
5 6
DiSEqC switch with 2 inputs
Connection of a DiSEqC switch:
•Connect the cable from the LNB intended for channels from
ASTRA (or THOR) to the connector marked LNB 1 or A on the
switch.
•Connect the cable from HOTBIRD (or SIRIUS) to the connec-
tor marked LNB 2 or B.
•Then, connect the antenna cable to the connector marked OUT
on the switch.
•Connect the other end of this cable to the ANTENNA input in
the rear of the Mediamaster.
On the most common type of DiSEqC switches the connec-
tions are usually marked 1and 2.
On the mini DiSEqC switches the connections are usually
marked Aand B.
As a principle they perform the same work, but demands differ-
ent electric commands from the receiver in order to start work-
ing.

GB 16
Line 7 on the antenna satellite selection
Menu
This selection is necessary only when your satellite choice dif-
fers from the preprogrammed satellite alternatives in the follow-
ing ways;
•if you do not use an universal LNB
•when you have more than two LNB’s.
•You also must select this alternative when your antenna is con-
trolled by motor (ref. to page 20.)
One antenna/one LNB configuration
Select this alternative if you have one (1) LNB mounted on the
antenna and you want to select another preprogrammed satel-
lite (than those from line 1-4.)
You also must select this alternative when you not use an Uni-
versal LNB.
LNB type
Select the local oscillator (L. O.) frequency valid for the present
LNB. The most common values, including Universal LNB, are
selectable with the  buttons.
You can also enter a value with the numeric buttons when the
symbol for the remote control is visible on the line.
Predefined channel
Select one of the preprogrammed channels and adjust your an-
tenna according to the “Antenna adjustment and signal
check” section on page 14.
LNB offset voltage
If the cable down from any of the LNB’s is very long, it might be
necessary to increase the voltage to these LNB’s by 0,5 V.
In most cases nothing has to be altered here. Leave the default
value “0 V” as it is. If the switch does not change between hori-
zontal and vertical polarization, the voltage to a LNB can be in-
creased later.
Increase the voltage:
a.only if a LNB does not change polarization
b.only to the specific LNB mentioned in a. above
Please follow the procedure de-
scribed on page 14.
FIRST TIME INSTALLATION
OK
OK
OK
☛
Satellite
Select one of the preprogrammed satellites.

GB 17
Multisatellite/”mini DiSEqC” and “two port DiSEqC”
Select one of these alternatives when your antenna system has
two LNBs and when you not use any of the alternatives on the
lines 5 - 6 from the menu “Antenna/satellite selection” on
page 13.
FIRST TIME INSTALLATION
For each LNB you connect to the DiSEqC switch, the fol-
lowing configuration has to be performed.
As an example the following part will describe how the LNB in-
tended for Hispasat will be configured to the DiSEqC input 1 (A)
on the switch and the LNB intended for Eutelsat W2 to DiSEqC
input 2 (B).
Switch type and port
Here you select the input for each LNB that will be connected.
LNB type
Select “Universal” or the local oscillator (L. O.) frequency valid
for the connected LNB.
LNB Offset voltage
See page 16.
Satellite
In this example, select Hispasat because its LNB is connected
to the DiSEqC 1 (A) input on the switch.
Predefined channel
Select one of the predefined channels and adjust the antenna as
described on page 14, “Antenna adjustment and signal check”.
Before you can continue, a TV picture from the predefined chan-
nel must be visible in the background.
When you do have a picture; press OK to continue with DiSEqC
2 (B). The same procedure as for Hispasat has to be repeted. But
this time select Eutelsat W2 as the satellite.
When the configuration of DiSEqC 2 (B) is ready, press OK to pro-
ceed with the channel search.
☛
☛
☛
☛
☛
☛

GB 18
FIRST TIME INSTALLATION
Multisatellite/four port DiSEqC
Select this alternative if your antenna system has four LNBs and
when you are not using any of the alternatives on the lines
5 - 6 from the menu “Antenna/satellite selection” on page 13.
The selection of the different LNBs must be controlled by an
external DiSEqC switch. Refer to page 15.
The procedure is the same as for mini DiSEqC and two port
DiSEqC, but you have to configure four LNBs the same way as
described on page 17.
Connection of a four port DiSEqC switch:
The following is an example of how you can connect 4 LNBs
when you want to watch channels from ASTRA, HOTBIRD,
SIRIUS and THOR.
Connect the LNBs to the switch the following way:
•the LNB intended for ASTRA to input 1
•HOTBIRD to input 2
•SIRIUS to input 3
•THOR to input 4
When the configuration of all four inputs are ready, press OK to
proceed with the channel search.
DiSEqC switch with 4 inputs
☛
Channel search
The Channel search procedure can be performed in different
ways.
•If there are predefined channels, you can make an Automatic,
Manual or Advanced search.
•If no predefined channel is available you can make a Manual
or Advanced search only.
Automatic search
Check that there is a programme picture in the background from
each channel.
Start an Automatic search by pressing OK.

GB 19
FIRST TIME INSTALLATION
Manual search
When you perform a Manual search you first need to enter some
parameters for the channel search to work.
The information you need to enter in this menu is available in
magazines covering satellite TV reception, on the Internet or from
your Service Provider.
Transponder frequency: Specify the frequency in GHz. If you
enter the wrong figure(s), erase with the button.
Polarization: Select Horizontal, Vertical, Circular left or Circular
right.
Symbol rate (MSym/s): Enter with the numeric buttons. If you
enter the wrong figure(s), erase with the button.
FEC: Select “Auto” or any of the preprogrammed values.
Network search: Select “Yes” if you want to search on all trans-
ponders connected to a specific network.
Adjust motor: Adjust (if necessary) the motor for the current
satellite.
Press OK to start searching for channels.
Advanced search
The information to enter in this menu is available in magazines
covering satellite TV reception, or from your Service Provider.
You can use this menu if you are looking for some “special” chan-
nels (i.e. non-DVB standard channels) which can only be found
when you have entered the necessary settings here.
Transponder frequency: Specify the frequency in GHz.
Polarization: Select Horizontal, Vertical, Circular left or right.
Symbol rate (MSym/s): Enter with the numeric buttons.
FEC: Enter the appropriate Forward Error Correction (FEC) or
select AUTO
PID Video: Enter the PID (Packet Identifier) for the video signal.
PID Audio: Enter the PID for the audio signal.
PID PCR: Enter the PID for the PCR (Programme Clock Refer-
ence).
Adjust motor: Adjust (if necessary) the motor for the current sat-
ellite.
Press OK to start searching for channels.

GB 20
LNB type
•Select Universal, one of the fixed frequencies or enter the LNB
frequency with the numeric buttons on the remote control.
Type of motor
•Select SATSCAN if it is a Nokia SatScan motor.
•Select DiSEqC in case the motor you use is controlled by
DiSEqC commands.
Motor antenna
In case you have an antenna motor to control your satellite an-
tenna you have to make the following settings. If the antenna is
prevented from reaching its predefined east/west limit positions,
you have to set new limits. See page 37 for instructions.
•From the “Antenna/Satellite selection” menu select line 7 (re-
fer to page 13) and press OK.
•Select line 5, “Motor antenna configuration” and press OK.
LNB offset voltage
If the cable down from the antenna is very long, the voltage at
the LNB could be too low to change the polarization. You can in-
crease the voltage to the LNB by 0,5 Volt.
FIRST TIME INSTALLATION
Satellite
Select Astra if you have a SatScan motor and Hotbird if you have
a DiSEqC motor.
