Thank you for choosing and purchasing our Nokta 107TB technical and ballistic detector.
Manufacturing high-tech metal detectors since 2001, Nokta Engineering has played a key role in the
development of this sector. Nokta Engineering is particularly known for its technological know-how and
professional sta.
Seeking to create dierent kind of technology, Nokta Engineering oers both high-quality products
and services to its consumers all around the world. Nokta Engineering has been operating under the principle
that environmental and community responsibility, customer satisfaction and insistence on high-quality are of
the utmost importance.
Nokta Engineering aims to remain a leading pioneer in its sector, winning the trust of its consumers and
always being the preferred choice for metal detecting.
NOKTA ENGINEERING1
INTRODUCTION
ENGINEERING
Nokta

2
CONTENTS
WARNINGS
ASSEMBLY
CORRECT WAY OF HOLDING
CORRECT WAY OF SWEEPING
DEVICE INTRODUCTION
PRINCIPLES OF SEARCHING
SEARCHING and METAL DETECTING
TECHNICAL SPECIFICATIONS
...................................................................................................................................................3-4
.....................................................................................................................................................5-6
...............................................................................................7
...........................................................................................8
.............................................................................................................9
...........................................................................................10
....................................................11-12
........................................................................................13

NOKTA ENGINEERING3
WARNINGS
WARNINGS!
LEGAL WARNINGS
► When using the device, comply with all applicable laws and regulations. Do not use the device in private premises,
historic sites and military zones. Notify the authorities of any historical or cultural ndings.
WARNINGS ABOUT THE DEVICE
► Do not assemble or use the device before reading the Technical Manual.
► Do not expose the device or the search coil to very hot or cold conditions for extended periods of time.
(Storage Temperature: 0°C (32°F) - 40°C (104°F))
► Do not immerse the device (except the search coil) in water; do not expose them to extreme humid conditions.
► Protect the device from external impact, especially during transportation.
► The device can only be opened and repaired by authorized service technicians. The warranty will be voided if the
device is opened by you or an unauthorized person.

4
WARNINGS
For Consumers within the European Union: Do not dispose of
this equipment in general household waste. The crossed
wheeled bin symbol on this equipment indicates this unit
should not be disposed of in general household waste, but
recycled in compliance with local government regulations
and environmental requirements.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANTIMPORTANT
Do not use the device indoors. The device will constantly give target
signals inside places like homes where there are many metals present.
Use the device outdoors, in open elds.
Do not let another detector or an electromagnetic device come in close
proximity (10m (33ft.)) to the device.
Do not carry any metal objects while using the device. Keep the device
away from your shoes while walking. The device may detect the metals
on you or inside your shoes as targets.

NOKTA ENGINEERING5
ASSEMBLY
Parts and accessories
Then, tighten it using the wingnut. To connect the system box shaft, rst loosen the twist
lock on the extension shaft.
After inserting the shaft, x it by re-tightening the twist
lock.
Place the washers into the openings on both sides at
the end of the extension shaft.
After placing the shaft on the coil as seen in the picture,
insert the fastening screw through the hole.
1 2
345

6
ASSEMBLY
Remove the battery compartment cover at the back of
the system box.
Insert the batteries paying attention to the plus (+) and
minus (-) poles.
After adjusting the height of the device using the twist
lock on the extension shaft, wrap the cable around the
shaft.
Plug the connector at the end of the cable into the coil
input socket at the bottom of the system box.
6
98
7

NOKTA ENGINEERING7
CORRECT WAY OF HOLDING
Shaft height is wrong.
It is very important to adjust the shaft to your height correctly to
be able to search without discomfort and fatigue.
Shaft height is correct.
Adjust the height of the shaft so that you are standing in an
upright position, your arm is relaxed and the search coil is
approximately 5cm (~2'') above the ground.

8
Wrong search coil angle.
Incorrect way of sweeping.
Wrong search coil angle. Correct search coil angle.
It is important to keep the search coil parallel to
the ground in order to get accurate results.
Correct way of sweeping.
The search coil must be parallel to the ground at all
times.
CORRECT WAY OF SWEEPING

NOKTA ENGINEERING9
DEVICE INTRODUCTION

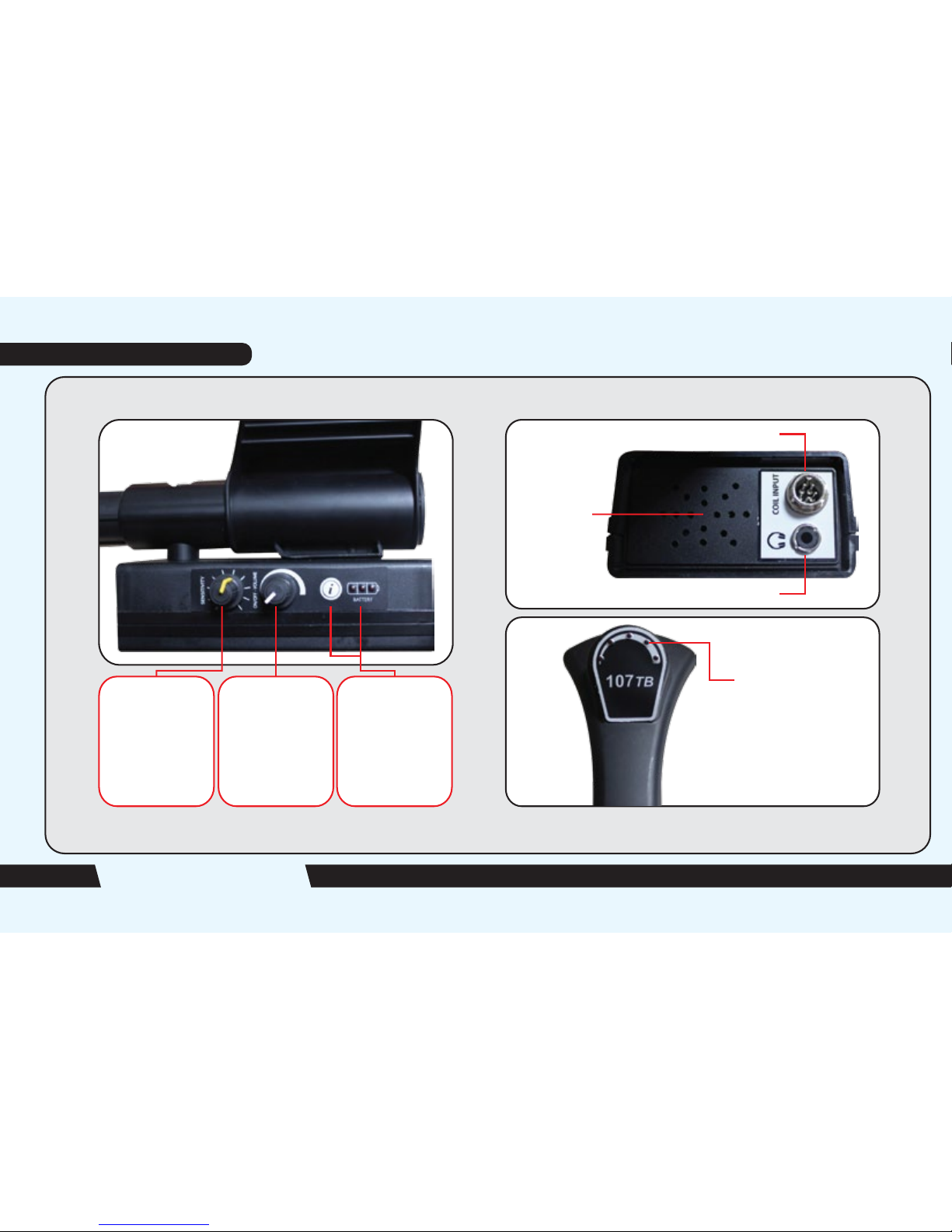

Sensitivity Setting ON / OFF - VOLUME Battery Life Check
Button / Battery Life
Indicator
Search Coil Input Socket
Headphone Input
Metal Indicator
Speaker

10
PRINCIPLES OF SEARCHING
It is important to pay attention to the following points before and during search in terms of device performance and
getting accurate results:
1- The device operates on the principle of motion. This means that you must move the search coil over the target or the
target over the search coil, in order for the device to see it. In other words, metal detection is not possible without
moving the search coil.
2- Based on the same principle, do not hold your search coil still over a detected target. If the coil is held still over the
target, the device cancels out the process and does not see the target anymore. When you start moving the coil again,
the device will resume detection.
3- 3- For correct metal detection, the way you hold the shaft and sweep the search coil and keeping the coil parallel to
the ground are very important factors. Before starting to search, please refer to the related sections in the manual.
(pages 7-8)

NOKTA ENGINEERING11
SEARCHING AND METAL DETECTING
Turning On The Device
Raise the search coil 30-40cm (~12''-15'') above the ground and turn on the device using the ON / OFF - VOLUME
button. This button is also used to increase / decrease the volume.
The Metal Indicator will blink a couple of times. Once you hear the system ready tone, you may start searching by
lowering the search coil to 5cm (~2'') above the ground.
Metal Detection
When a metal is detected, the device will produce an audio warning and the LEDs on the Metal Indicator will light up
simultaneously. LEDs will start lighting up as the search coil starts going over the target and they will go o as you
move the coil o the target. The number of LEDs lit is in proportion to the strength of the signal received from the
metal. In other words, the stronger the signal is, the more LEDs will light up. The signal strength is determined by the
size and depth of the metal underground. For example, a weak signal lighting a single LED may belong to a shallow,
small metal or a deeper, bigger one.
Pinpointing
For pinpointing the exact location of the target, move the search coil over the target with short and fast sweeps.
Determine the spot where the maximum number of LEDs light up on the Metal Indicator.

12
Ground Noise, Interference and Sensitivity Setting
While searching, the device may produce false signals caused by electrical interference from the surrounding
environment or ground noise. These signals are not stable and they dier from target signals. To determine whether
the signal is a noise or a target signal, sweep the coil over the spot where the signal is received a few times in
dierent directions and check whether you receive a signal each time. If you are not getting a signal each time and
the signal is not constant, most probably it is a noise signal.
In this case, lower the Sensitivity by turning the button a little to the left. Sensitivity is also the depth setting for the
device. Therefore, it is recommended that you do not lower it too much but to determine the level where you are not
getting any noise or interference and continue searching.
Battery Life Indicator
The batteries supplied with your device will provide approximately 3-4 hours of use. To see the battery life status,
press the i button and check the battery life indicator. When the batteries are full, 3 LEDs will light up. When only a
single LED is lit, it means that the batteries are almost empty. When a single LED is lit, the device may continue to
work but it may start producing unusual LED and audio warnings . Therefore, it is recommended that you change
your batteries when they are low.
SEARCHING AND METAL DETECTING

NOKTA ENGINEERING13
TECHNICAL SPECS
Operating Principle:
Operating Frequency:
Search Mode:
Target Identication:
Sensitivity Setting:
Ground Balance:
Search Coil:
Batteries:
Headphone Output:
Length:
Weight:
Warranty:
Induction Balance
12 KHz
All metal
LED and audio warning
Manuel
Automatic
24x32cm (12.5'') Double-D waterproof
6x1.5V AA Alkaline
1/4'' mono
97 - 130cm (38'' - 51'') extendable
1.9kg (4lb) (including the search coil and the batteries)
2 years

Emek Mah. Sivatyolu Cad. Sakiz Sok. No:4 Kat:1-2
34785 Sancaktepe - Istanbul / TURKEY
Phone:[phone] Fax: [phone]
E-mail: [e-mail]
