Norcool cave 55 User manual

52
Contents
1. Handling of waste ............................................................................................................................................................... 53
2. Safety rules and warnings ......................................................................................................................................... 53
3. Product information .............................................................................................................................................................. 54
4. Important information ...................................................................................................................................................... 55
5. Dimensions and technical specications .................................................................................................. 55
6. Pre-installation ........................................................................................................................................................................... 56
7. Installation ...................................................................................................................................................................................... 56
7.1. Removing front/drawer ........................................................................................................................... 58
7.2. Fitting front/drawer ........................................................................................................................................ 58
7.3. Side adjustment ................................................................................................................................................ 59
7.4. Height adjustment ............................................................................................................................................ 66
7.5. Tilt adjustment ..................................................................................................................................................... 66
7.6. Fitting/removing internal shelves .................................................................................................. 66
8. Cleaning and maintenance ...................................................................................................................................... 66
8.1. Setting temperature ....................................................................................................................................... 61
8.2. Cleaning ................................................................................................................................................................ 61
9. Delivery Terms and Conditions ............................................................................................................................. 61
9.1. Consumer purchases ................................................................................................................................. 61
9.2. Business purchase ........................................................................................................................................... 62

53
1. Handling of waste
Waste management of the packaging:
The packaging protects the product against damage during transport. All packaging may be recycled and is labelled for recy-
cling. Make sure that all packaging are discarded in a safe manner and are stored out of reach of children since irresponsible
use may be dangerous.
Ask the dealer or local authorities about where the packaging may be delivered for recycling.
Waste management of the product:
This product falls under EU Directive 2002/96/EC concerning waste from electrical and electronic equipment
(WEEE). This symbol species that the product must not be treated as household waste. Valuable raw materials may
be recovered by recycling used products. By ensuring that the product is recycled correctly, you can contribute to
preventing potential negative consequences to the environment and human health.
When the product is to be discarded:
1. Pull out the mains plug.
2. Cut off the power cable.
3. Check that the cooling circuit is not damaged prior to waste management. Information in the coolant is specied
on the type plate.
4. Products that are no longer in use must be handled in a professional and correct manner in accordance with lo-
cal statutes and regulations.
2. Safety rules and warnings
1. Read the use and installation instructions carefully before you start using the product.
2. This product is intended for private use.
The manufacturer cannot be held responsible for damage in consequence of erroneous or unintended use of the
product.
3. Persons, who due to their mental or physical conditions, or due to their inexperience or lack of knowledge, are not in
a condition to operate the cabinet in a safe manner, must not use this cabinet without supervision or guidance from a
responsible person.
4. The product is not a toy! Due to the risk of injury, you must not let children play with or in the vicinity of the product
or play with the buttons. Nor should children be allowed to climb on the product or swing on the door. Have small
children under supervision while you are using the product. Older children may only use the product if it has been
explained to them how they can use it safely and are familiar with the dangers of erroneous use.
5. Check that the product does not have any visible damage. Do not install or use a damaged product. Contact the
supplier immediately for further advice before you install/connect up the power cord.
6. The product contains the coolant Isobutane (R600a), a natural gas that is environmentally friendly. (R600a), that no
parts of the cooling system have been damaged during transport or installation. Leaking coolant can injure the eyes.
If the product has been damaged:
a. Avoid open ames and everything that can create sparks.
b. Disconnect the power cord.
c. Air out the room where the product is located, for several minutes.
d. Contact the supplier for further advice.
The more coolant a product contains, the larger the room it should be placed in. Leaking coolant can form a ammable
gas-air mixture in a room that is too small.
According to the EN378 standard, the room must have at least 1 m3 for each 8 g of coolant. The quantity of coolant
in the device is specied on the type plate on the inside of the product.
7. Before you connect up the power cord, you must check that the information on the type plate (voltage and connected
load) accord with the power grid. This information must match up in order to avoid risks of damage to the product.
Contact a qualied electrician if you have doubts.
THE MANUFACTURER OF THE PRODUCT CANNOT BE HELD RESPONSIBLE FOR DAMAGE THAT IS
DUE TO THESE SAFETY RULES AND WARNINGS NOT BEING FOLLOWED.
R600a

54
8. Guarantees for the product’s electrical safety may only be given when there is an uninterrupted connection between the
product and an effective grounding system that complies with the applicable local and national regulations. It is extremely
important that this fundamental safety requirement be fullled and checked regularly. In the event of any doubts, the wiring
network in the house must be checked by a qualied electrician. The manufacturer cannot be held responsible for product
damage or personal injuries that are due to a decient or insufcient grounding system, such as electrical shocks for example.
9. If the wiring is damaged or other repairs are necessary, then the work may only be performed by an approved service
technical such that the user is not exposed to any dangers.
10. A guarantee is made only for the product being safe to use if it has been installed and connected up in accordance with
these use and installation instructions.
11. Installation, maintenance and repairs must only be performed by an authorised repairman in accordance with national and
local safety regulations. Repairs and other work by unqualied personnel may be dangerous and the manufacturer will not
be held responsible. The power cord must not be connected to the power grid before maintenance or repairs have been
performed.
12. The product is only completely disconnected from the power supply when:
a. the mains plug. has been pulled out
b. The fuse in the house installation is completely disconnected
c. The screw fuse has been removed (in countries where this is relevant)
13. Do not connect the product to the power grid with an extension cord. Extension cords do not provide satisfactory safety for
the product (involve for example a danger of overheating).
14. Do not store explosive substances or products that contain propellants (for example aerosols) in the product. Thermostats
that are activated can emit sparks and pose a re hazard. Flammable substances may explode.
15. Do not use electrical equipment in this product. Danger of sparks and explosion.
16. No not use oil or grease on the door seal, because oil and grease can damage the seal and gradually make it porous.
17. Do not block the valve openings, because it will make the product less effective, increase its power consumption and the product
may be damaged.
18. The product is intended for use within denite climate classes (ambient temperature) and ought not to be used outside such
limits. The climate class is specied on the type plate on the inside of the product and in chapter 6.
19. Do not use a steam cleaner to clean the product. Steam can penetrate between the electronic components and cause short-
circits.
2. Safety rules and warnings
3. Product information
Cave 55 is a wine serving drawer, with two external and three internal drawers. The module has a capacity of approx.
55 bottles and is usually sold for private use.
The drawer has a smoked glass front and LED lighting. This protects the wine against harmful UV rays which can reduce
its shelf life. Whether the lights come on when a drawer is opened or are on permanently is selectable. The light switch
is inside on the right.
The module has variable temperature adjustment between 8 and 12 ºC on the bottom shelf. White wine is stored in the
upper drawer, and red wine in the lowest.
The shelves are designed to be able to place bottles longitudinally or latitudinally. You can choose whichever is best for
your collection to make use of the drawer volume in the best possible way.
There are two extractable shelves in the bottom drawer which can be removed to create extra space for magnum bottles
or cartons.
The drawer is integrated between two kitchen modules, and requires a space of 800 mm. This product is not designed
for commercial use.
Cave 55 won the Award for Design Excellence 2008, from the Norwegian Design Council.

55
To ensure correct installation and use and thus maximise product lifetime, please read these instructions carefully before
starting installation. The manufacturer cannot be held liable for damage caused through failure to follow the instructions.
The product will require maintenance even in normal use and replacement of parts which are worn out can be necessary.
These are not covered during the warranty period, but are covered by the guarantee in accordance with the Sale
of Goods Act.
Data plate with serial number is located inside on the lower left hand side. Please quote this number when
contacting service contractor or manufacturer.
Scandinavian Appliances AS disclaims all liability for typographical errors in these instructions and reserves the right to
alter the product specications.
4. Important information
5. Dimensions and technical specications
A 795mm
B 700mm
C 565mm
D Min 820 - Max 870mm
E Min 120mm - Max 170mm
F 595mm
Climate Range:
According to climate specications, this product should be operated at
TEMPERATE (N) climate class, meaning between +16 to 32°C ambient
temperature range.
Climate class Ambient/room temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C
SN – ST +10 °C to +38 °C
SN – T +10 °C to +43 °C
Exterior dimensions B 795 x H 820-870 x D 565 mm
Niche dimensions B 800x H 820 (min) x D 565
Usable volume 170 litres
Kjølesone To avskilte temperatursoner
Temperature range 8–12 degrees down and 15–18 degrees up
Volt/Hz 220 – 240 V AC 50 Hz
Climate class ST
Energy class B
Energy consumption 186 kWh/år
Noise level 43,7 db
Light LED lys, hvit farget
Defrosting Automatic
Insulation Polyuretanskum CFC - fri
Coolant R134A
Weight 83 kg
Max. load shelves Ca 20 kg
Drawers 2 store med 3 innvendige skuffer
Dørglass Sotet med UV beskyttelse
Cable length 2,4 m
Compressor Compressor cooling
Light:
When the door is opened, the light is switched
on automatically. The light will be switched off
automatically when the door is closed.
Defrosting:
Defrosting occurs automatically.

56
Check for transport damage after unpacking. Do not use a damaged cabinet. In the event of damage, please contact the
shipping company and make sure that the damage is noted on the consignment note. Check that you have all the parts on
the parts list at the back of this guide. Contact your vendor in the event of damage or missing parts.
The appliance must be connected to a 220V - 240V 50 Hz earthed electrical power supply with at least a 10A fuse. We
recommend placing the socket next to the product, for example in an adjoining unit.
This product is designed to be installed under a worktop, which must be fastened to the kitchen ttings and/or wall to ensure
that it does not tip forward when drawers are pulled out. This product cannot be used as a free-standing unit.
6. Pre-installation
7. Installation

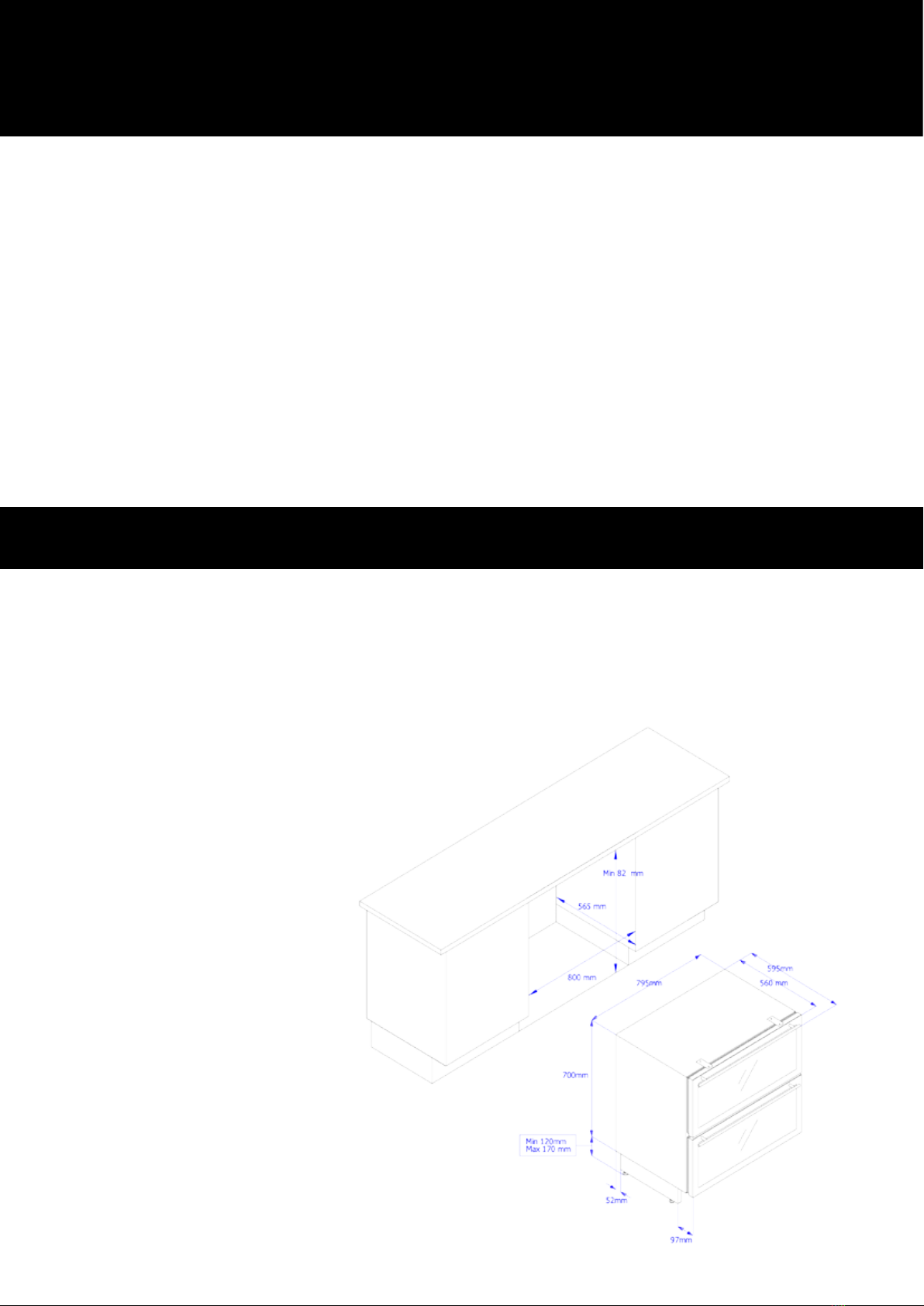

The drawer fridge requires a space of 800mm. See g. 2.
Adjust the back levelling legs so that the back edge of the drawer fridge just clears the underside of the worktop. Extract
retaining brackets See g. 3.
Carefully slide the product into position and adjust the front legs so that the front edge squeezes rmly against the underside
of the worktop. Fasten the appliance to the worktop using two screws.
Space measurement Fig. 2
0

57
7. Installation

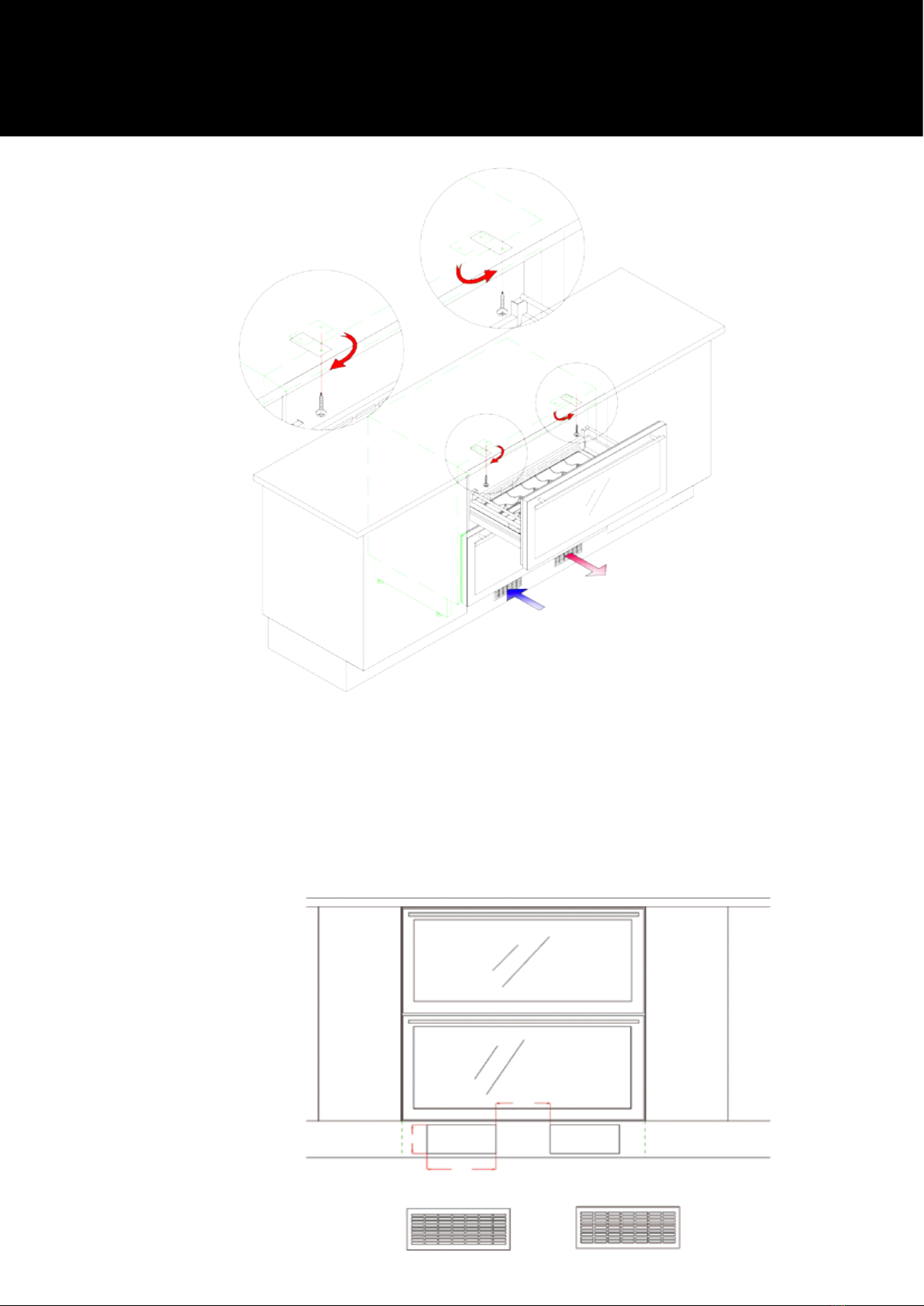

Securing product to worktop.
Fig. 3
The liquid inside the appliance must have time to settle after transportation and a minimum stabilisation period of three
hours is recommended prior to switching on the appliance.
The two enclosed ventilation grids are to be installed in the base in accordance with g. 4. To ensure the correct function-
ing of the appliance, these grilles must not be covered. NOTE: Remember to use the black plastic sleeves
between handle and front! Apply moderate torque when screwing in these screws.
NOTE: Front/decorative base not included
Fig. 4
178
226
95

58
7. Installation

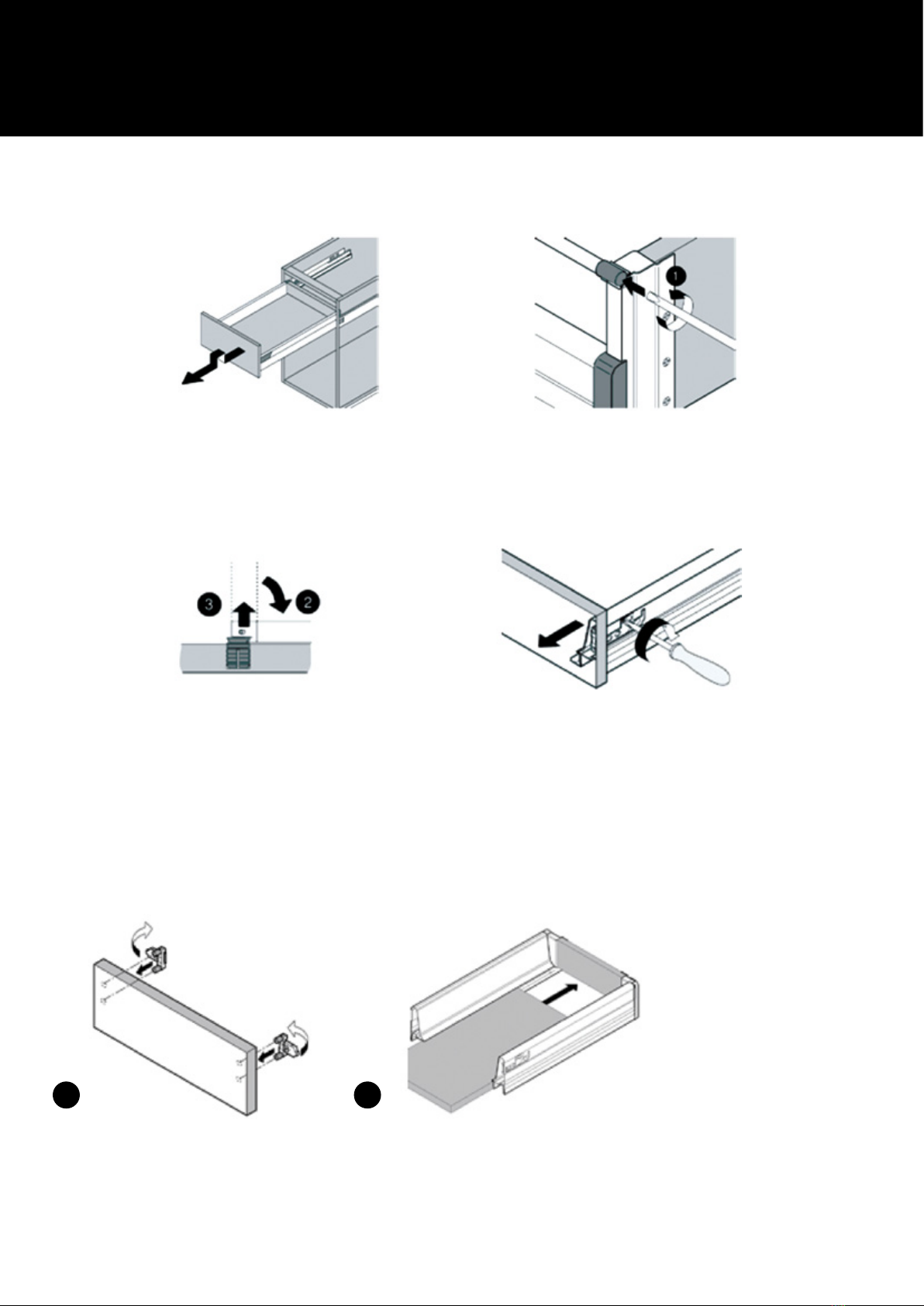

6. Fitting/removing drawers
Lift the front edge – push gently down – pull the
drawer out.
Turn the screwdriver left to remove the rod as
shown on the drawing.
7.1. Removing front/drawer
7.2. Fitting front/drawer
Pull back the cover and bend the rod as shown
on the drawing. Pull out the front fastening.
Remove the front by turning the releasing
mechanism to the right using a Phillips
screwdriver. The shelf in the drawer can now
be pulled out.
1. 2.

59
7. Installation
5.
3. 4.

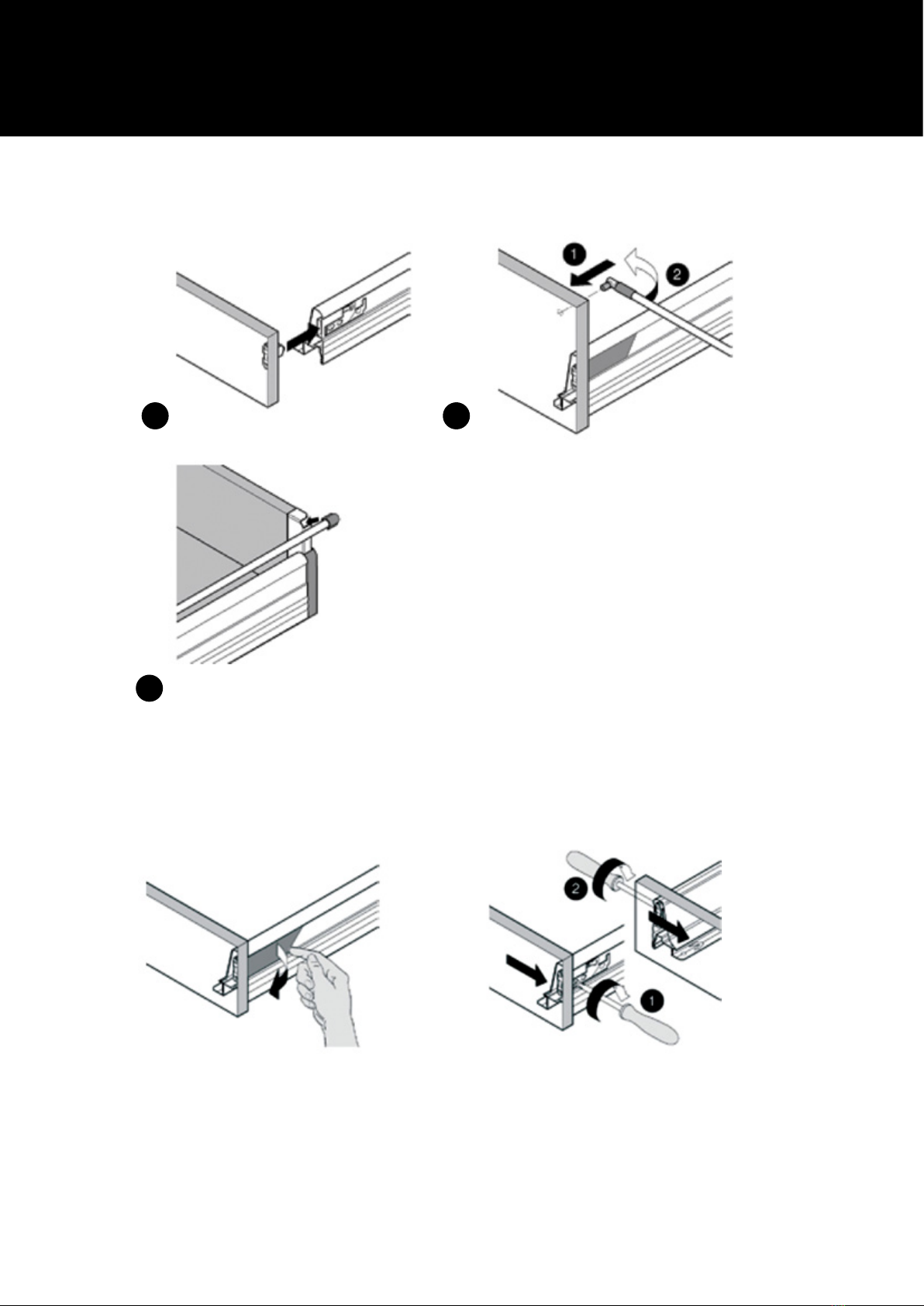

When inserting drawers: Place back edge of drawer on rails mounted in cabinet. Hold drawer horizontal and push
inwards until it locks into place. Carefully pull drawer out to check it is locked. Repeat if necessary.
7.3. Side adjustment
Remove the covering on
the side of the drawer.
The front of the drawer is adjusted laterally
right/left. A turn to the left will move the drawer
1 mm to the left. Adjust both sides of drawer if
necessary.

60
7. Installation
The internal shelves are attached by Velcro on their rails. To remove, pull shelf out completely, pull front up and towards you.
When replacing, pull both rails out as far as they will go. Check that the tabs at the back of each rail are engaged with the
runners on the shelf. Push rails all the way before placing shelf on front edge. This is to ensure shelf is straight.

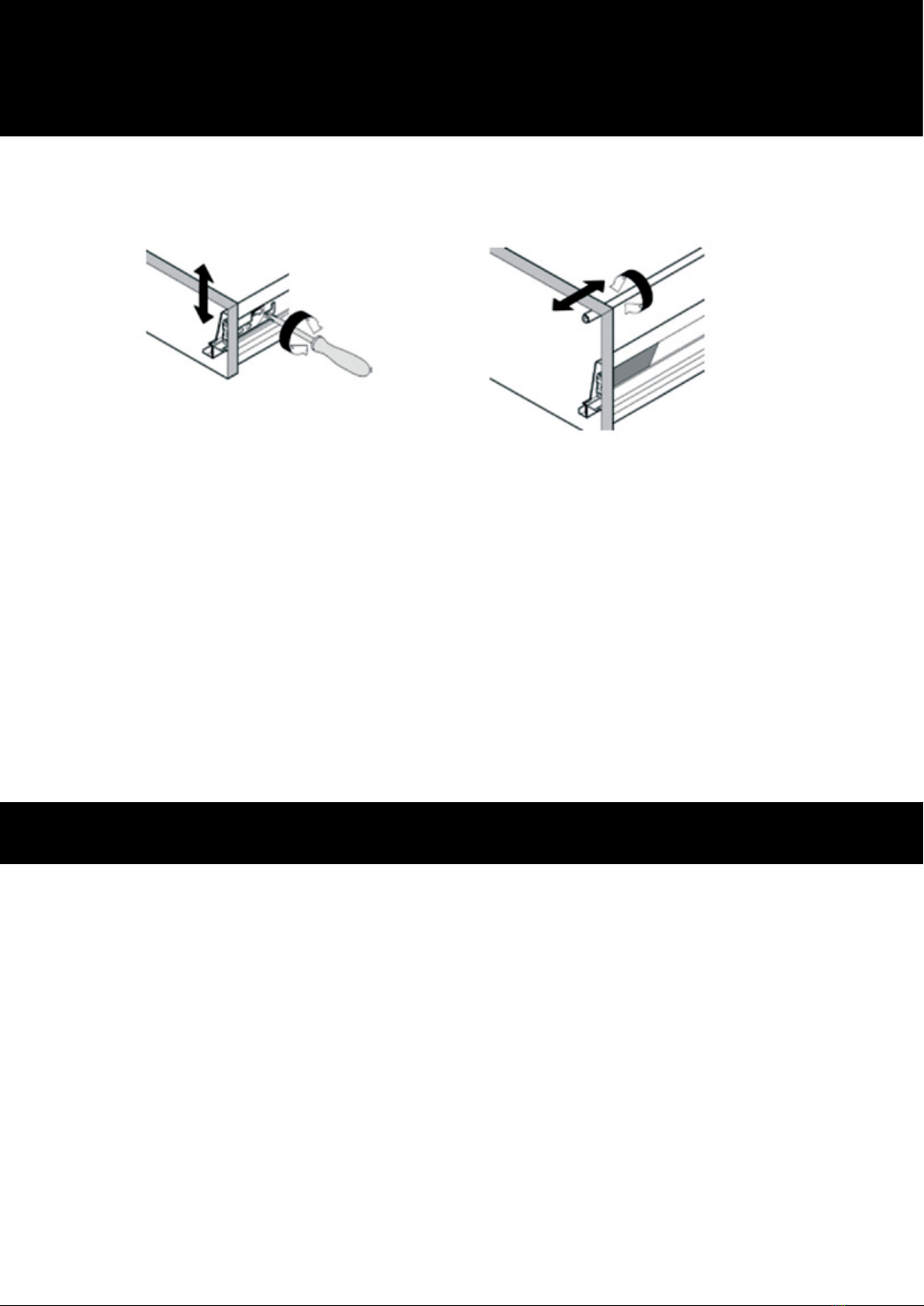

7.4. Height adjustment
7.6. Fitting/removing internal shelves
7.5. Tilt adjustment
Høyden kan justeres +/- 2 mm. Ved vertikal justering, påse at magnetlist
tetter tilfredsstillende.
8. Cleaning and maintenance
The Cave 55 operates immediately when the power is connected. The cabinet is designed with a differentiated temperature;
i.e. there is a continuous temperature gradient between the top and bottom (coldest) shelves.
If necessary, the temperature can be adjusted using the thermostat at the bottom right corner of the unit. The lower display shows
the temperature on the bottom shelf. The upper display shows the temperature on the top shelf. The temperature setting refers to
the bottom shelf. The temperature on the top shelf will be about 5 degrees higher.
Every drawer is equipped with shock absorption for easy-glide and cushioned closure. The selfclosing mechanism ensures that
the drawer is closed at all times, removing the problem of open drawers.
NOTE: The closing mechanism is activated 30 mm from closed position, and does not work
when the drawer is pulled further out.

61
8. Cleaning and maintenance
8.1. Setting temperature
1. Press in and hold the Set button until the display begins to blink.
2. Press the up or down arrows to adjust the temperature up or down.
3. Press the Set button to store the setting. The display will show the
current temperature, not the stored temperature.
Use a damp cloth and soap to clean the cabinet. Do not use abrasive
and/or corrosive detergents.
NOTE: The drawer runners must not be cleaned/lubricated/oiled. Wipe with a damp cloth in case of
spills.
If extensive cleaning is necessary, the drawers can be removed/replaced.
8.2. Cleaning
St UP
DOWN
9. Delivery Terms and Conditions
Delivery terms and conditions for Norway. For other countries, contact your dealer.
9.1. Consumer purchases
These terms and conditions govern customer rights with respect to the supplier (Norcool) when purchasing new Norcool products
that will be used in a normal manner in private housekeeping. Such as is determined in the following points, the supplier is
obligated to remedy defects/omissions that arise.
1. Supplier’s warranty
The supplier warrants that the product as it is delivered has the characteristics and the quality that has been prescribed in the
supplier’s brochures or other written sales material. Minor deviations may occur in consequence of product changes. The war-
ranty period runs for 2 years commencing on the day the product was delivered to the customer. Due to these devices having
a complicated technical design, it is important that the customers follow the instructions for use carefully. The products will even
with normal use be subjected to wear that may necessitate preventive maintenance, and thereby also replacement of wearing
components (fans, starting equipment, compressor component with a variable lifespan depending upon their use and mainte-
nance).
2. Purchaser’s rights
The deadline for making claims with consumer purchases is 2 years. When the equipment or parts of it is intended to last
signicantly longer in normal use, the deadline for claims is 5 years. For such claims, it is a precondition for the liability for the
deciency to be valid that the deciency was present at the point in time of delivery. Customers will in all instances lose their
right to pursue claims if they do not make a claim within a reasonable period of time after they have detected, or ought to have
detected, the deciency. In the event of deciencies related to purchasing law, the supplier has the right to repair the product with
the deadlines that follow from the Sale of Goods Act. After the warranty period has expired, the terms and conditions for the
scope of the supplier’s liability for deciencies in the equipment will be governed by the Sale of Goods Act.

62
9. Delivery Terms and Conditions
3. Supplier’s remediation (Transport of products).
The supplier and/or dealer in the supplier’s products may decide whether defects/omissions may be repaired at the customer
site, at its own site, or at a designated workshop in accordance with the following guidelines.
a) The customer is obligated to place the product at the disposition of the repair technician. The supplier will defray the
expenses of the repairs. this applies for products that are located within the natural sales territory of the supplier or distribu-
tor! What is meant by natural sales territory is a distance between the supplier/dealer and customer by road of max. 20
km. If the distance is more than 20 km, and the dealer is the entity located closest to the customer, then the supplier will pay
the travel costs regardless. If this would bring about unreasonable costs or drawbacks, then the obligation to undertake the
remediation as mentioned above at no cost to the customer does not apply! Normally, this instance would be if the customer
is unable to be reached by normal means of communication, and/or if the customer does not live where there is a connection
to the mainland.
b) Repairs/Remediation at the workshop. If customers can bring in and fetch the product without signicant drawbacks, then
they must bring it in to the designated workshop for repairs, or ship the product, in such case at their own expense and risk.
If customers are unable to bring the product in to a specied workshop without unreasonable drawbacks and/or costs, then
such in the lack of any other agreement occur in the most reasonable manner, and be sent at the supplier’s expense and risk
to the specied workshop.
NOTE: THE PRODUCT MUST BE PROPERLY PACKAGED!
4. Supplier’s liability to pay compensation
Customers may under more detailed terms and conditions demand compensation for nancial losses pursuant to the rules of
the Sale of Goods Act. The Supplier is however in no instance liable for indirect losses (as mentioned in the Sale unable
Goods Act, section 67(2)). If damage is inicted on objects that have a direct or close interrelationship with the product’s
stipulated function or use, then the supplier is only liable to the extent such are consequences of rules of law that cannot be
deviated from. The same applies for liability for personal injuries. Damages and injuries of this nature shall in every
instance be handled between the supplier and customer.
5. What the supplier’s liability does not encompass
Customers have no ability to pursue claims against the supplier or dealer if defects/omissions, or any possible damages/
injuries, are a consequence of:
a) Installation that has not been performed in accordance with the electric utility’s provisions or is in violation of our installa-
tion instructions that are to be deemed to be requirements. The cold room bust in terms of its technical construction satisfy the
applicable requirements, including requirements for insulation, choice of materials and ventilation.
b) Actions in violation of the instructions for use, or other indefensible actions. (Lack of maintenance!)
c) Repairs or interventions performed by unauthorised persons, or use of nonoriginal parts.
d) Accidents or other circumstances after delivery to the customer that lie outside the control of the supplier/dealer, including
voltage uctuations beyond +/- 10 % of the rated voltage, lightning strikes, and electrical power outages.
e) Corrosion/deposits due to the surroundings.
f) Normal wear. (See point 1)
6. Disputes
Disputes that concern the application of these terms and conditions may, via the consumer council’s complaints mechanism,
be brought in for resolution by the industry’s complaints tribunal.
9.2. Business purchase
What is to be understood by business purchase is everything that is not a consumer purchase and which is used for exam-
ple in cafes, restaurants, snack bars, hotels, motels, companies, or other business-related activity. As well as use in schools,
institutions, rented rooms, preschools, athletics facilities, shared households, and housing cooperatives, plus instances where
the customer in full or in part receives payment for use of the device, or where it is included in a shared house, possibly a
leasing relationship. Or where the device is used to maintain a good that the customer sells. All these things are business pur-
chases. The period for ling claims and the warranty period is then 6 months. This applies for any losses that the deciency
might cause, for example such as operating losses, lost earnings and other consequential nancial losses. This limitation to
the supplier’s liability does not apply if it is guilty of acting with gross negligence.
