Norcool CAVE 110 DZ Product guide

CAVE 110 DZ | CAVE 160 DZ
OPERATING &
INSTALLATION
INSTRUCTIONS
English

2
Please visit www.norcool.no for operating &
installation instructions in other languages.

3
Energy labels

4Contents
1. Safety Instructions & warnings ................................................................. 5
2. Components and parts ................................................................................ 6
3. Installation......................................................................................................... 7
Before using your appliance ...................................................................... 7
Free standing or built-in installation....................................................... 7
Electrical connection .................................................................................... 8
4. Wine storage and appliance features..................................................... 9
5. Operating your appliance ......................................................................... 10
6. Care and maintenance ................................................................................ 12
Automatic defrost......................................................................................... 12
Cleaning............................................................................................................ 12
Vacations.......................................................................................................... 12
Moving your appliance................................................................................ 13
Energy saving tips ....................................................................................... 13
7. Troubleshooting guide ............................................................................... 14
Appliances features and wine
storage
-10
11-12
13
13
13
13
14
14
15

5
1. Safety instructions and warnings
To reduce the risk of fire, electrical shock, or injury when using your
appliance, follow these basic precautions:
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Read all instructions before using the wine or beverage cooler.
To avoid the possibility of child entrapment, please take the following precautions
before throwing out the appliance:
• Remove all doors from the unit.
• Leave the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Refrigerants: All refrigeration products contain refrigerants, which under the
guidelines of federal law must be removed before disposal of product. It is the
consumer’s responsibility to comply with federal and local regulations when
disposing of this product.
Risk of child entrapment.
Accidents can occur as a result of the product overturning. To
prevent this product from tipping over, it must be fixed to the wall
with the accompanying mounting brackets. See photo of brack-
ets under Installation.
Wall fasteners are not included, as dierent wall materials require
dierent types of fasteners. Use fasteners that fit the walls of your
home. For advice on suitable attachment systems, contact your
local specialist dealer.
WARNING:
WARNING:
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or an
explosion.

62. Components and parts
Parts
1. Temperature control and display
2. Circulation fan
3. Interior light
4. Cabinet
5. Wooden shelves
Upper zone controller/display
Lower zone controller/display
1
2
3
4
5
UPPER ZONE
LOWER ZONE
Warmer
Warmer
Colder
Colder
Light
Light
C˚/F˚
ON/OFF

7
3. Installation
Before using your appliance
• Remove the exterior and interior packaging.
• Before connecting the appliance to the power source, let it stand upright for
approximately 4 hours. This will reduce the possibility of a malfunction in the
cooling system from improper handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
Free-standing installation
• Locate the appliance away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may aect the acrylic coating and heat
sources may increase electrical consumption. Ambient temperature below 68°F
(20°C) or above 90°F (32°C) will hinder the performance of this appliance.
This unit is not designed for use in a garage or any other outside installation.
• Avoid locating the appliance in moist areas.
• Plug the appliance into dedicated, properly installed-grounded wall outlet. Do
not under any circumstances cut or remove the third (ground) prong from
the power cord. Any questions concerning power and/or grounding should be
directed toward a certified electrician or an authorized service center. This unit
is not designed to be installed in an RV or used with an inverter.
• After plugging the appliance into a wall outlet, allow the unit to cool down for
3 ~ 4 hours before placing wine bottles or beverage cans in the appliance.
The brackets below must be used to prevent the product from tipping over.

8
Electrical connection
This appliance should be properly grounded for your safety. The power cord of
this appliance is equipped with a three-prong plug which mates with standard
three prong wall outlets to minimize the possibility of electrical shock.
Do not, under any circumstances, cut or remove the third ground prong from the
power cord supplied.
This appliance requires a standard 220-240 Volt A.C. /50Hz electrical outlet.
This appliance is not designed to be used with an inverter.
The cord should be secured behind the appliance and not left exposed or
dangling to prevent accidental injury.
Never unplug the appliance by pulling the power cord. Always grip the plug firmly
and pull straight out from the outlet.
Do not use an extension cord with this appliance. If the power cord is too
short, have a qualified electrician or service technician install an outlet near the
appliance. Use of an extension cord can negatively aect the performance of the
unit.

9
4. Wine storage and appliance features
Two temperature zones
• There are two zones in this appliance (upper zone and lower zone)
• Each zone has its independent temperature control and display.
• Each of the two zones can be used to store wine bottles or beverages.
Interior light
Each zone has its own interior light, which can be switched on or o by press-
ing the pad (light) on the control panel. Long-life and high eciency LEDs are
installed for durability and energy saving.
Engaged wine shelves
• All the shelves have tabs to engage the cabinet on both sides.
• Any of the shelves can be removed to accommodate larger bottles.
To remove a shelf:
• Remove all bottles from the shelves.
• To remove the shelf, unlock the clip on the gliding rail, both sides. Push the right
side clip down and the left side clip up at the same time.
NOTE: Ensure that the clips are firmly engaged in place before storing any bottles.

10

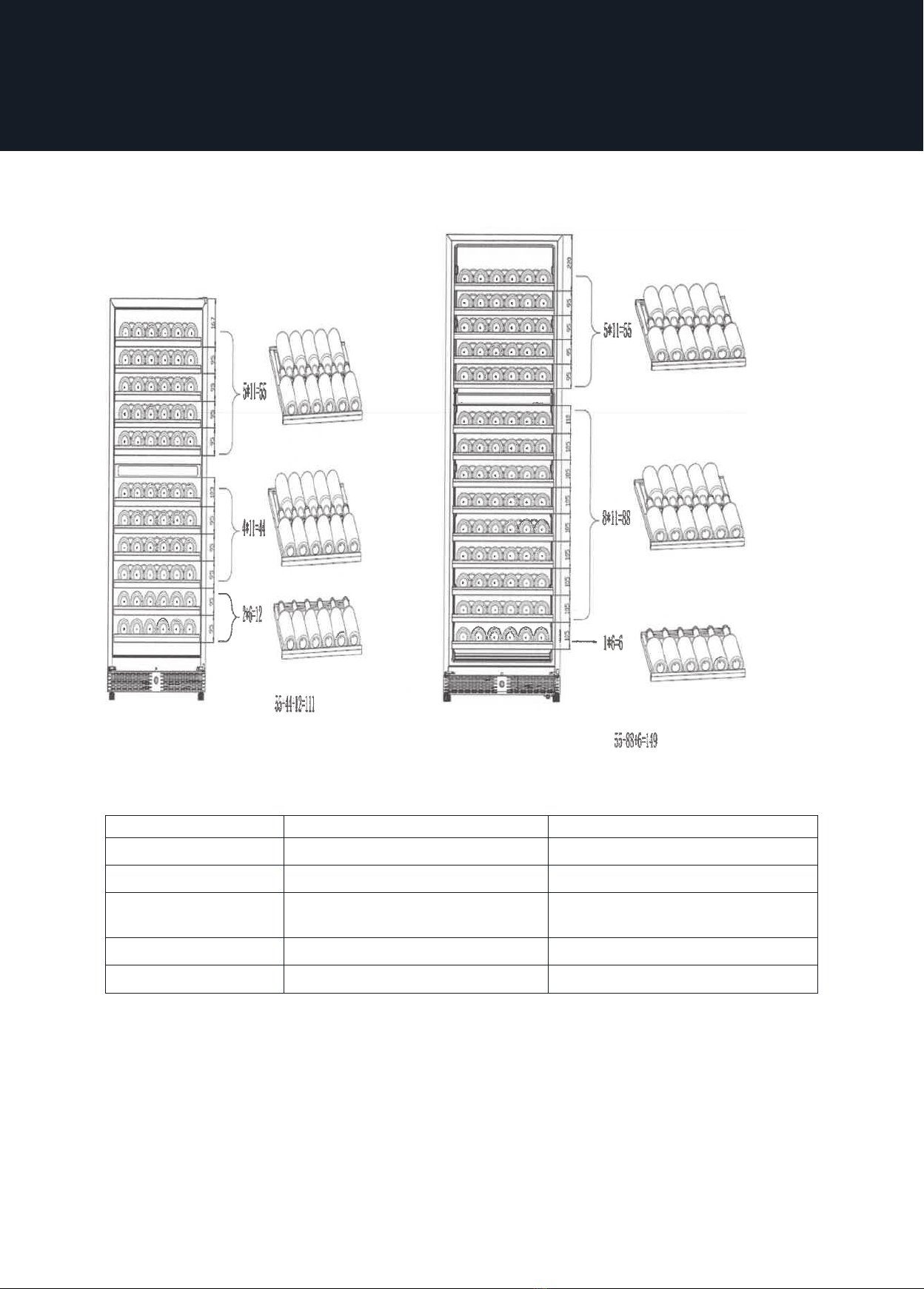

CAVE 110 DZ CAVE 160 DZ
Capacity CAVE 110 DZ CAVE 160 DZ
750 ml bottle 111 149
Upper zone 55 (pull out wooden shelves x5) 55 (pull out wooden shelves x5)
Lower zone 44 (pull out wooden shelves x11) + 12
(half pull out shelves x2)
88 (pull out wooden shelves x11) + 6
(half pull out shelves x1)
Storage volume (Lt) 300 400
Pull-out shelf dimension 468mm x 535mm 468mm x 535mm

11
5. Operating your appliance
Upper zone controller/display
Lower zone controller/display
K8
K4
K7
K3
K6
K2
K5
K1
Temperatures for wine storage
Champagne 5˚C ~ 8˚C
White wine 9˚C ~ 14˚C
Red wine 15˚C ~ 18˚C
Temperature control and display
1. When the unit is plugged both indicators will light for 3 seconds (display888),
and an audible beep will be heard.
2. The temperatures in the upper zone and lower zone can be independently con-
trolled and displayed.
3. The temperature in either zone can be controlled between 39°F to 68°F (4°C
to 20°C). (The zone temperature may have a tolerance of +/-5°F (+/-3°C) from
setting depending on dierent loading and ambient conditions.)
Memory device
When restarting the appliance after a power failure, the memory device will keep
the last saved settings.
K1 key (ON/OFF)
Power switch: press and hold the key to turn on/o the appliances.
K2 key (down interior light)
Interior light control switch of the down zone: To turn on or turn o the interior
light, by pressing K2 key once for each time. The interior light will keep lighting if
UPPER ZONE
LOWER ZONE
Warmer
Warmer
Colder
Colder
Light
Light
C˚/F˚
ON/OFF
5

12
it is not turn o.
K3/K4 key (colder /warmer)
Temperature setting switch of down zone: Under normal conditions the tempera-
ture display will flash and indicates the current temperature of the down zone.
Pressing the K3/K4 key when setting the temperature, the temperature displayed
will decrease or increase in an increment of one degree. If the K3 (colder) or K4
(warmer) key is pressed and held for one second, the temperature displayed will
decrease or increase in a speed of one degree per one second.
The temperature display will flash 5 seconds after the temperature been set, and
indicates the current temperature.
K5 key (C°/F°)
The temperature display can be changed between Celsius and Fahrenheit by
pressing K5 key.
K6 key (up interior light)
Interior light control switch of the up zone： To turn on or turn o the interior light,
by pressing K6 key once for each time. The interior light will keep lighting if it is
not turn o.
K7/K8 key (colder /warmer)
Temperature setting switch of up zone： Under normal conditions the temper-
ature display will flash and indicates the current temperature of the up zone.
Pressing the K7/K8 key when setting the temperature, the temperature displayed
will decrease or increase in an increment of one degree. If the K7 (colder) or K8
(warmer) key is pressed and held for one second, the temperature displayed will
decrease or increase in a speed of one degree per one second. The temperature
display will flash 5 seconds after the temperature been set, and indicates the cur-
rent temperature.

13
6. Care and maintenance
Defrost
• The ice build-up on the inner back wall during compressor operation will be
automatically defrosted in a compressor o cycle.
• When defrosting is in process, only the circulation fans for both zones run.
• Defrost water will drain into the drip tray (on the compressor) and the Water
will be evaporate by compressor.
Cleaning Your Appliance
• Upon installation of your new appliance, cleaning it thoroughly is
recommended.
• Unplug the unit from the wall outlet.
• Remove all contents.
• Wash the inside with a damp warm cloth soaked in lukewarm water and bak-
ing soda solution. The solution should be about 2 tablespoons of baking soda
to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running
eciently.
• The outside of the appliance should be cleaned with mild detergent and warm
water.
• Dry the interior and exterior with a soft cloth.
• Dust or anything else blocking the vent may hinder the cooling eciency of
the appliance. Vacuum the vent if necessary.
Vacation Time
• Unplug the unit from the wall outlet.
• Remove all the contents.
• Clean the appliance.
• Leave the door open slightly to avoid possible formation of condensation,
mold, or odors.
• Short vacations: Leave the appliance operating during vacations of less than
three weeks.
• Long vacations: If the appliance will not be used for several months, remove
all content and unplug the power cord. Clean and dry the interior thoroughly.
To prevent odor and mold growth, leave the door open slightly, blocking it
open if necessary.

14
Moving Your Appliance
• Unplug the unit from the wall outlet.
• Remove all the contents.
• Securely tape down all loose items inside your appliance.
• Tape the doors shut.
Energy Saving Tips
• The appliance should be located in the coolest area of the room, away from
heat producing appliances or heating ducts, and out of the direct sunlight.
• Ensure that door is closed when the appliance is plugged in.

15
7. Troubleshooting guide
Problem Possible cause
Display flash and indicate “HH”, flash speed one
time per second
The temperature sensor of zone > 37°
Display flash and indicate “LL”, flash speed one
time per second
The temperature sensor of zone < 0°
Display flash and indicate “E0”, flash speed one
time per second
Connection failure, wire or component is not
connected
Display flash and indicate “E1”, flash speed one
time per second
Temperature sensor is failure in corresponding
zone
Display flash and indicate “E2”, flash speed one
time per second
Error defrost sensor in corresponding zone
Appliance does not operate. Not plugged in.
The circuit breaker has tripped or there is a blown
fuse.
Temperature inside the appliance is too warm. Temperature control is set too warm. Turn the con-
trol to a cooler setting and allow several hours for
the temperature to stabilize.
Door is kept open too long or is opened too fre-
quently. Warm air enters the appliance every time
the door is opvened. Open the door less often.
The door is not closed completely.
The door gasket does not seal properly.
The appliance has recently been disconnected
for a period of time. 4 hours are required for the
appliance to cool down completely.
Temperature inside the appliance is too cold. Temperature control is set too cold. Turn the con-
trol to a warmer setting and allow several hours for
the temperature to stabilize.
Vibrations Check to assure that the appliance is on a level
surface.
The appliance is touching the wall. Re-level the
appliance and move it from the wall.
If continued vibration occurs, turn o the applian-
ce and unplug the power plug. Contact Customer
Service Dept. for further assistance.
Moisture forms on inside appliance walls. Door is slightly open.
Door is kept open too long, or is opened too fre-
quently. Open the door less often.
The door is not sealed properly
Moisture forms on outside of appliance. Door is slightly open, causing cold air from inside
the appliance to meet warm moist air from outside
The door will not close properly. The appliance is not on a level surface.
The gasket is dirty.
For service, see our website at www.norcool.com
By checking the above before ordering service, you will help the service engineer know
what parts they may need to bring and what measures to take.

Version 1.0 - des 2019
Scandinavian Appliances AS
Postboks 61
1740 Borgenhaugen
Norway
T: [phone]
[e-mail]
Please visit out website for operating & installation
instructions in other languages.
www.norcool.no
