Nordic id Ev15 Instruction sheet

Conﬁguration Manual

for

EV15 scanner

Contents
The linear imager:  1
Basic conﬁguration codes  2
1   Enabling codes  2
2   Reader optimization  3
Advanced conﬁguration  4
Codabar  4
1   Symbology identiﬁer  4
2   CLSI library system  5
3   Check digit (AIM recommendation)  5
4   Barcode length  5
5   Concatenation  6
5.1   Concatenation mode  6
Codablock  6
1   Codablock A  6
1.1   Symbology identiﬁer  7
Code 11  8
1   Symbology identiﬁer  8
2   Check digit  8
3   Barcode length  8
Code 39  9
1   Symbology identiﬁer  9
2   Format  9

3   Start / Stop  11
3.1   Accepted characters  11
4   Check digit  11
4.1   Modulo 43  11
4.2   French CIP  12
4.3   Italian CIP / Code 32  12
5   Barcode length  12
6   Reading range  12
7   Reading tolerance  12
Code 93 / Code 93i  13
1   Symbology identiﬁer  13
2   Barcode length  13
Code 128 / EAN 128  14
1   Symbology identiﬁer  14
2   EAN 128 identiﬁer  14
3   CIP 128 French farmaneutical codes  15
4   FNC1 separator character (EAN 128 norms)  15
5   Barcode length  15
6   Reading range  15
7   Reading tolerance  16
8   ISBT 128  16
8.1   Transmit  16
8.2   Concatenate  17
9   GTIN processing for EAN 128  18
10   Irregular EAN 128  18
EAN.UCC composite  18

1   CC-A/B  18
2   CC-C  19
3   UCC / EAN-128 Emulation  19
4   UPC / EAN composite message decoding  19
5   Symbology identiﬁer  19
6   Linear transmission only  20
Interleaved 2 of 5  20
1   Symbology identiﬁer  20
2   Check digit  20
2.1   Mod 10  21
2.2   French CIP HR  21
3   Barcode length  21
4   Reading range  21
Matrix 2 of 5  22
1   Symbology identiﬁer  22
2   Start / stop character  22
3   Barcode length  22
MicroPDF 417  23
1   Symbology identiﬁer  23
2   Code 128 emulation  23
MSI code  24
1   Symbology identiﬁer  24
2   Check digit  24
2.1   Mod 10  24
2.2   Double mod 10  24

3   Barcode length  24
PDF 417  25
1   Symbology identiﬁer  25
2   Macro PDF  25
2.1   Control header  25
2.3   Optional ﬁelds  25
 Plessey code  27
1   Symbology identiﬁer  27
1.2 Check digit  27
1.3 Barcode length  27
 RSS  28
1   RSS 14  28
1.1   Symbology identiﬁer  28
2   Limited  28
2.1   Symbology identiﬁer  28
3   Expanded  29
3.1   Symbology identiﬁer  29
 Standard 2 of 5  29
1   Symbology identiﬁer  29
2   Format  30
3   Check digit mod 10  30
4   Barcode length  30
 Telepen  31
1   Symbology identiﬁer  31
2   Format  31

3   Barcode length  31
 TLC 39  32
1   Symbology identiﬁer  32
2   Linear transmission only  32
3  ECI security  32
UPC / EAN  33
1  UPC-E1  33
2  Add-on digits  34
2.1  Add-on 2  34
2.2  Add-on 5  34
2.3  Security level  35
3  Check digit  35
4  UPC number system  36
4.1  UPC-A  36
4.2  UPC-C  36
5  Re-encoding UPC-A, UPC-E, EAN-8  36
6  ISBN  37
7  ISMN  37
8  ISSN  38
9  GTIN processing  38
10  Reading range  38

Conﬁguration manual for EV15 scanner July 2006

This guide offers the barcodes needed for conﬁguring the RF6X1 with a EV15 linear imager.

1 The linear imager:

The Linear imager can be easily recognised by comparing it to the picture below.

Imager lens

Beam reﬂector Beam reﬂector

Also the linear imager scanner beam is a bit more blurred than the laser.

Conﬁguration manual for EV15 scanner July 2006

2 Basic conﬁguration codes

2.1 Enabling codes

• Resets all conﬁguration parameters to their default

values

reset factory defaults

\60\08\55\24

disable all symbologies

\60\08\55\23

• Deactivates all the symbologies activated

• Use the “not active” options to deactivate individual

symbologies

• Does not reset individual parameter settings for each

symbology (when you reactivate a symbology, you

recover the parameter settings stored in memory for

that symbology when it was disabled - use reset factory

defaults to reset all the symbology parameters to their

factory default settings)

Codabar - active

\60\01\4B\20\00\02\40

Code 39 - active (*)

\60\01\50\40\00\02\40

Code 128 / EAN 128 - Code 128 active (*)

\60\01\53\20\00\02\40

UPC / EAN - EAN-8 active (*)

\60\02\08\42\00\02\40

UPC / EAN - EAN-13 active (*)

\60\02\08\43\00\02\40

Code 128 / EAN 128 - EAN 128 active (*)

\60\01\53\22\00\02\40

Interleaved 2 of 5 - active

\60\01\56\00\00\02\40

PDF417 - active (*)

\60\02\0B\20\00\02\40

Conﬁguration manual for EV15 scanner July 2006

Standard 2 of 5 - active

\60\02\00\40\00\02\40

UPC / EAN - UPC-A active (*)

\60\02\08\40\00\02\40

UPC / EAN - UPC-E active (*)

\60\02\08\41\00\02\40

read optimization - sensor optimization -

automatic (*)

\60\03\26\02\00\00\00

read optimization - sensor optimization -

1-dimensional codes

\60\03\26\02\00\02\40

read optimization - sensor optimization -

stacked codes

\60\03\26\02\00\05\20

2.2 Reader optimization

Conﬁguration manual for EV15 scanner July 2006

disable all symbologies

\60\08\55\23

• Deactivates all the symbologies activated

• Use the “not active” options to deactivate individual

symbologies

• Does not reset individual parameter settings for each

symbology (when you reactivate a symbology, you

recover the parameter settings stored in memory for

that symbology when it was disabled - use reset factory

defaults to reset all the symbology parameters to their

factory default settings)

disable all extended reading ranges

\60\08\55\25

Codabar - not active (*)

\60\01\4B\20\00\00\00

Codabar - active

\60\01\4B\20\00\02\40

Codabar - symbology identiﬁer - UDSI - default “B7” (*)

\60\01\4C\40\00\00\02\01\50\37

Codabar - symbology identiﬁer - code mark -

default “ D “ (*)

\60\01\4B\28\01\55\20

Codabar - start/stop - not transmitted (*)

\60\01\4B\38\00\00\00

Codabar - start/stop - a, b, c, d

\60\01\4B\38\00\02\40

Codabar - start/stop - A, B, C, D

\60\01\4B\38\00\05\20

Codabar - start/stop - a, b, c, d / t, n, *, e

\60\01\4B\38\00\08\00

4 Codabar

4.1 Symbology identiﬁer

• Deactivates the extended reading range for all symbologies

with this option

• If you do not use extended reading range, we recommend

deactivation to increase decode rate

3 Advanced conﬁguration

Conﬁguration manual for EV15 scanner July 2006

Codabar - start/stop - DC1, DC2, DC3, DC4

\60\01\4B\38\00\0A\40

Codabar - CLSI library system -

not active (*)

\60\01\4B\39\00\00\00

Codabar - CLSI library system - active (insert spaces)

\60\01\4B\39\00\02\40

Codabar - check digit (AIM recommendation) -

not used (*)

\60\01\4B\2C\00\00\40\02\20\00

Codabar - check digit (AIM recommendation) - checked

and transmitted

\60\01\4B\2C\00\03\20\02\20\01

Codabar - check digit (AIM recommendation) - checked

but not transmitted

\60\01\4B\2C\00\03\20\02\20\00

4.2 CLSI library system

• Spaces inserted after characters 1, 5, 10 in the 14-

character label (used in the USA by libraries using the

CLSI system)

Example: “39990000192148” is transmitted as “3 9990

00019 2148”

• Start/stop can be transmitted or not transmitted as

required

• AIM has a recommended check character for Codabar

• Each Codabar data character (including Start/Stop) has

a value assigned to it:

0 = 0 1 = 1 2 = 2 3 = 3 4 = 4 5 = 5 6 = 6

7 = 7 8 = 8 9 = 9 - = 10 $ = 11 : = 12 / = 13 ,

= 14 + = 15 A = 16 B = 17 C = 18 D = 19

• The values are added and the check is calculated:

check = [(next multiple of 16) - (sum of assigned AIM

values)]

Example

data characters: A 0 1 2 3 4 B

AIM values = 16 + 0 + 1 + 2 + 3 + 4 + 17: 43

next multiple of 16: 48

check = 48 - 43: 5

ﬁnal message: A 0 1 2 3 4 5 B

4.3 Check digit (AIM recommendation)

4.4 Barcode length

Codabar - barcode length - any length

\60\01\4B\30\00\00\40\02\1D\20

Codabar - barcode length - minimum length = 6 (*)

\60\01\4B\30\00\10\40\02\1D\20

Conﬁguration manual for EV15 scanner July 2006

Codabar - concatenation - not active (*)

\60\01\4B\3A\00\00\00

Codabar - concatenation - transmit all codes (single,

concatenated)

\60\01\4B\3A\00\05\20

4.5 Concatenation

• 2 adjacent Codabar codes scanned in a single sweep

can be transmitted as a single message

1. Choose one of the transmission options to activate

concatenation

2. Choose a concatenation mode option to indicate

when you want adjacent codes to be concatenated

• Intermediate start/stop characters are not transmitted

(only ﬁrst start and last stop are transmitted)

Codabar - concatenation - transmit concatenated codes

only

\60\01\4B\3A\00\02\40

4.5.1 Concatenation mode

Codabar - concatenation - concatenation mode - no start/

stop restrictions (*)

\60\01\4B\3B\00\00\00

Codabar - concatenation - concatenation mode - stop 1

= start 2

\60\01\4B\3B\00\02\40

Codabar - concatenation - concatenation mode - ABC

(American Blood Commission)

\60\01\4B\3B\00\05\20

5 Codablock

Codablock - Codablock A - not active (*)

\60\02\0E\00\00\00\00

Codablock - Codablock A - active

\60\02\0E\00\00\02\40

5.1 Codablock A

Conﬁguration manual for EV15 scanner July 2006

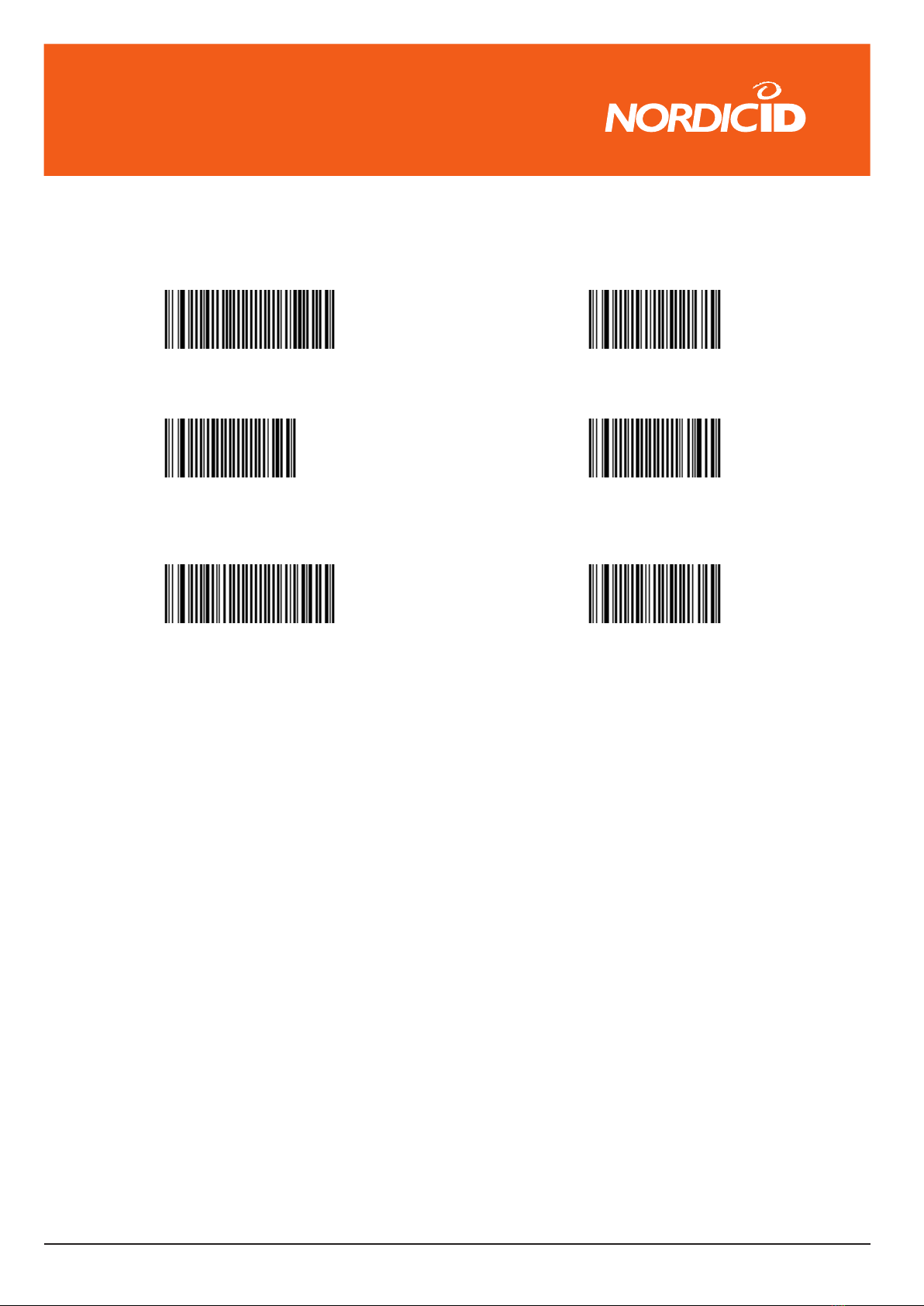

Codablock - Codablock A - symbology identiﬁer - UDSI

- default “K0” (*)

\60\02\0F\20\00\00\02\02\08\30

5.1.1 Symbology identiﬁer

Codablock - Codablock A - symbology identiﬁer - code

mark - default “ * “ (*)

\60\02\0E\08\01\10\00

Codablock - Codablock F - not active (*)

\60\02\0E\01\00\00\00

Codablock - Codablock F - active

\60\02\0E\01\00\02\40

Codablock - Codablock F - symbology identiﬁer - UDSI

- default “K1” (*)

\60\02\0F\21\00\00\02\02\08\31

Codablock - Codablock F - symbology identiﬁer - code

mark - default “ * “ (*)

\60\02\0E\09\01\10\00

Conﬁguration manual for EV15 scanner July 2006

Code 11 - not active (*)

\60\02\06\00\00\00\00

6 Code 11

Code 11 - active

\60\02\06\00\00\02\40

Code 11 - symbology identiﬁer - UDSI - default “C1” (*)

\60\02\07\20\00\00\02\01\53\11

6.1 Symbology identiﬁer

Code 11 - symbology identiﬁer - code mark - default “ * “

(*)

\60\02\06\08\01\10\00

Code 11 - check digits - 1 digit (*)

\60\02\06\0C\00\02\40

Code 11 - check digits - 2 digits

\60\02\06\0C\00\05\20

Code 11 - check digits - checked and transmitted (*)

\60\02\06\14\00\02\40

6.2 Check digit

Code 11 - check digits - checked but not transmitted

\60\02\06\14\00\00\00

Code 11 - barcode length - any length (*)

\60\02\06\10\00\00\4A\02\1D\20

6.3 Barcode length

Conﬁguration manual for EV15 scanner July 2006

Code 39 - active (*)

\60\01\50\40\00\02\40

7 Code 39

• Alphanumeric symbology

• Letter case not deﬁned - transmitted in upper case

• Format: standard 43 characters (default) or full ASCII

Code 39 - not active

\60\01\50\40\00\00\00

Code 39 - symbology identiﬁer - UDSI - default “B1” (*)

\60\01\52\00\00\00\02\01\50\31

7.1 Symbology identiﬁer

Code 39 - symbology identiﬁer - code mark -

default “ * “ (*)

\60\01\50\48\01\10\00

Code 39 - format - standard 43 characters (*)

\60\01\50\5A\00\00\00

7.2 Format

Code39 ASCII Hex Dec

0 0 30 48

1 1 31 49

2 2 32 50

3 3 33 51

4 4 34 52

5 5 35 53

6 6 36 54

7 7 37 55

8 8 38 56

9 9 39 57

A A 41 65

B B 42 66

C C 43 67

D D 44 68

E E 45 69

F F 46 70

G G 47 71

H H 48 72

I I 49 73

J J 4A 74

K K 4B 75

L L 4C 76

Code30 ASCII Hex Dec

M M 4D 77

N N 4E 78

O O 4F 79

P P 50 80

Q Q 51 81

R R 52 82

S S 45 83

T T 54 84

U U 55 85

V V 56 86

W W 57 87

X X 58 88

Y Y 59 89

Z Z 5A 90

Space SP 20 32

$ $ 24 36

% % 25 37

* * 2A 42

+ + 2B 43

- - 2D 45

. . 2E 46

/ / 2F 47

Conﬁguration manual for EV15 scanner July 2006

Code 39 - format - full ASCII (extended)

\60\01\50\5A\00\02\40

• Extra characters encoded using 1 of 4 control characters

($, %, /, +) combined with a letter:

Code 39 ASCII Hex Dec

%U NUL 00 0

$A SOH 01 1

$B STX 02 2

$C ETX 03 3

$D EOT 04 4

$E ENQ 05 5

$F ACK 06 6

$G BEL 07 7

$H BS 08 8

$I HT 09 9

$J LF 0A 10

$K VT 0B 11

$L FF 0C 12

$M CR 0D 13

$N SO 0E 14

$O SI 0F 15

$P DLE 10 16

$Q DC1 11 17

$R DC2 12 18

$S DC3 13 19

$T DC4 14 20

$U NAK 15 21

$V SYN 16 22

$W ETB 17 23

$X CAN 18 24

$Y EM 19 25

$Z SUB 1A 26

%A ESC 1B 27

%B FS 1C 28

%C GS 1D 29

%D RS 1E 30

%E US 1F 31

Space SP 20 32

/A ! 21 33

/B “ 22 34

/C # 23 35

$ $ 24 36

% % 25 37

/F & 26 38

/G ‘ 27 39

/H ( 28 40

/I ) 29 41

/J * 2A 42

+ + 2B 43

/L , 2C 44

/M - 2D 45

/N . 2E 46

/ / 2F 47

0 0 30 48

1 1 31 49

2 2 32 50

3 3 33 51

4 4 34 52

5 5 35 53

6 6 36 54

7 7 37 55

8 8 38 56

9 9 39 57

/Z : 3A 58

%F ; 3B 59

%G < 3C 60

%H = 3D 61

%I > 3E 62

%J ? 3F 63

%V @ 40 64

A A 41 65

B B 42 66

C C 43 67

D D 44 68

E E 45 69

F F 46 70

G G 47 71

H H 48 72

I I 49 73

J J 4A 74

K K 4B 75

L L 4C 76

M M 4D 77

N N 4E 78

O O 4F 79

P P 50 80

Q Q 51 81

R R 52 82

S S 45 83

T T 54 84

U U 55 85

V V 56 86

W W 57 87

X X 58 88

Y Y 59 89

Z Z 5A 90

%K [ 5B 91

%L \ 5C 92

%M ] 5D 93

%N ^ 5E 94

%O _ 5F 95

%W ` 60 96

+A a 61 97

+B b 62 98

+C c 63 99

+D d 64 100

+E e 65 101

+F f 66 102

+G g 67 103

+H h 68 104

+I i 69 105

+J j 6A 106

+K k 6B 107

+L l 6C 108

+M m 6D 109

+N n 6E 110

+O o 6F 111

+P p 70 112

+Q q 71 113

+R r 72 114

+S s 73 115

+T t 74 116

+U u 75 117

+V v 76 118

+W w 77 119

+X x 78 120

+Y y 79 121

+Z z 7A 122

%P { 7B 123

%Q | 7C 124

%R } 7D 125

%S ~ 7E 126

%T DEL 7F 127

Conﬁguration manual for EV15 scanner July 2006

Code 39 - start/stop - not transmitted (*)

\60\01\50\58\00\00\00

7.3 Start / Stop

Code 39 - start/stop - transmitted

\60\01\50\58\00\02\40

7.3.1 Accepted characters

Code 39 - start/stop - accepted characters -

* only (standard Code 39) (*)

\60\01\50\59\00\05\20

Code 39 - start/stop - accepted characters -

$ only (Trioptic Code 39)

\60\01\50\59\00\02\40

Code 39 - start/stop - accepted characters -

$ and * (standard and Trioptic Code 39)

\60\01\50\59\00\08\00

7.4 Check digit

Code 39 - check digit - not used (*)

\60\01\50\4C\00\00\42\02\20\00

7.4.1 Modulo 43

• Provides extra validation of data

• Activation deactivates all other check digits

Code 39 - check digit - modulo 43 - checked and

transmitted

\60\01\50\4C\00\03\22\02\20\01

Code 39 - check digit - modulo 43 -

checked but not transmitted

\60\01\50\4C\00\03\22\02\20\00

Conﬁguration manual for EV15 scanner July 2006

Code 39 - check digit - French CIP -

checked and transmitted

\60\01\50\4C\00\06\02\02\20\01

• Provides extra validation of data

• Activation deactivates all other check digits

7.4.2 French CIP

Code 39 - check digit - French CIP -

checked but not transmitted

\60\01\50\4C\00\06\02\02\20\00

• Italian pharmaceutical industry, also known as Code 32

• Transmitted as standard Code 39 if checksum not

validated

• Activation deactivates all other check digits

7.4.3 Italian CIP / Code 32

Code 39 - check digit - Italian CPI / Code 32 -

checked and transmitted

\60\01\50\4C\00\08\42\02\20\01

Code 39 - check digit - Italian CPI / Code 32 -

checked but not transmitted

\60\01\50\4C\00\08\42\02\20\00

7.5 Barcode length

Code 39 - barcode length - any length (*)

\60\01\50\50\00\00\42\02\1D\20

Code 39 - barcode length - minimum length = 6

\60\01\50\50\00\10\42\02\1D\20

Code 39 - reading range - extended (*)

\60\01\50\47\00\02\40

7.6 Reading range

7.7 Reading tolerance

• Sets the tolerance level for reading hard to read bar

codes

• Quiet zone veriﬁcation (space before and after bar code

to ensure correct decoding)

Code 39 - reading range - normal

\60\01\50\47\00\00\00

• Most permissive (reads codes of variable quality)

Code 39 - reading tolerance - high (*)

\60\01\50\4F\00\00\00

Conﬁguration manual for EV15 scanner July 2006

Code 39 - reading tolerance - medium

\60\01\50\4F\00\02\40

Code 39 - reading tolerance - low

\60\01\50\4F\00\05\20

• Least permissive (only reads high quality codes that meet

ofﬁcial Code 39 standards)

Code 93 / Code 93i - not active (*)

\60\01\4E\00\00\00\00

8 Code 93 / Code 93i

• Code 93 alphanumeric full ASCII symbology - letter

case deﬁned

• Code 93i (encompasses and extends Code 93)

alphanumeric, full and extended ASCII, all Unicode

characters, etc.

Code 93 / Code 93i - active

\60\01\4E\00\00\02\40

Code 93 / Code 93i - symbology identiﬁer - UDSI -

default “B6” (*)

\60\01\4F\20\00\00\02\01\50\36

Code 93 / Code 93i - symbology identiﬁer -

code mark - default “ D “ (*)

\60\01\4E\08\01\55\20

8.1 Symbology identiﬁer

8.2 Barcode length

Code 93 / Code 93i - barcode length -

any length (*)

\60\01\4E\10\00\03\21\02\1D\20

Code 93 / Code 93i - barcode length -

minimum length = 6

\60\01\4E\10\00\10\41\02\1D\20

Table of contents

Nordic ID EV15 Instruction sheet

Popular Barcode Reader manuals by other brands
