NORDIC PLAY Lamborghini Urus User manual

Manual | Brugsanvisning | Instruktionsbok | Ohjeet
Electric car Lamborghini Urus
El-bil Range Lamborghini Urus
El bil Range Lamborghini Urus
Sähköauto Lamborghini Urus
Art. no. 805-777
EAN 5705858711713
Size 105 x 65 x 52 cm Imported by / Importeret af
NSH NORDIC A/S
Virkefeltet 4
DK-8740 Braedstrup
Made in China / produceret i Kina

GB
Installation and Operating
Instructions
Suitable age: 37 - 96 months Battery: 12V 4.5AH (6-FM-4.5
(AH) *1
Load Capacity: 28 kg Size of car: 105 x 65 x 52 cm
Speed: 2 - 4 km/h Carton size: 110 x 56 x 33 cm
Material: PP (polypropylene)
and iron
Optimum
temperature: 60° degrees
Input: 110V - 240V Charging time: 8 - 12 hours
Charger: Output: DC 12V 500 MA/ Fuse: Motor 3A
Operating life: 2 - 300 charges
Our products are suitable for
ASTM F963; GB6675,GB19865; EN71 and EN62115 standard.

GB
Components list
NO QTY PICTURE NO QTY PICTURE
1 1
A (Steering wheel)
2 1
B (Instruction book)
3 1 set
C (Rear view mirror)
4 2
D (Quincunx gear)
5 1
E (Remote control)
6 1
F (Wind deector)
7 4
G (Wheel)
8 4
H (Wheel cover)
9 1
I (Seat)
10 1
Q (Motor R)
11 1
Y (Motor L)
12 2
X (Self-tapping screw)
13 2
L (M8 spanner)
14 1
T (Charger)

GB
Installations steps

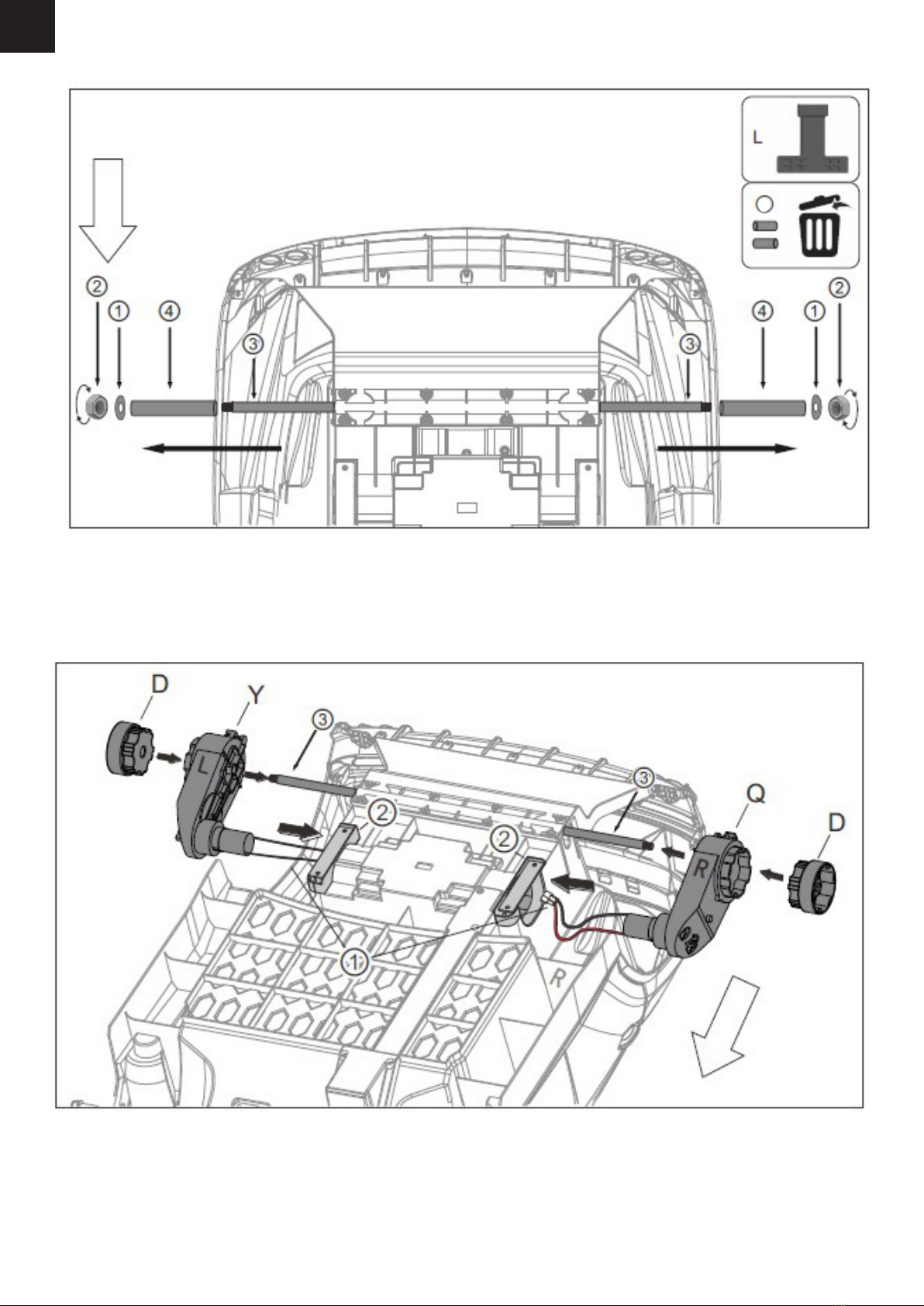

Step 1: Loosen the screw, gasket from axle
Use the L (M8 spanner) to loosen the 2(M8 screw) 1(M8 gasket) and 4 (Circular paper tube) from
the 3(axle) in a counterclockwise direction. (kindly reminder: please throw the 4in a recyclable
trash can).
Front
Step 2: Install the motor
Insert the 1(motor terminal) into 2, then install the Q (motor R) and Y(motor L) to 3(axle), also
should insert the motor part into 2, finally install the D (quincunx gear) to motor as per shows (pay
attention, align the R/L motor with the car R/L correctly).
Front
4

GB
Installations steps
Step 3: Loosen the screw, gasket from front axle
Use the L (M8 spanner) to loosen the 2(M8 screw) 1 (M8 gasket) from the 3(front axle) in a
counterclockwise direction.
Front

GB

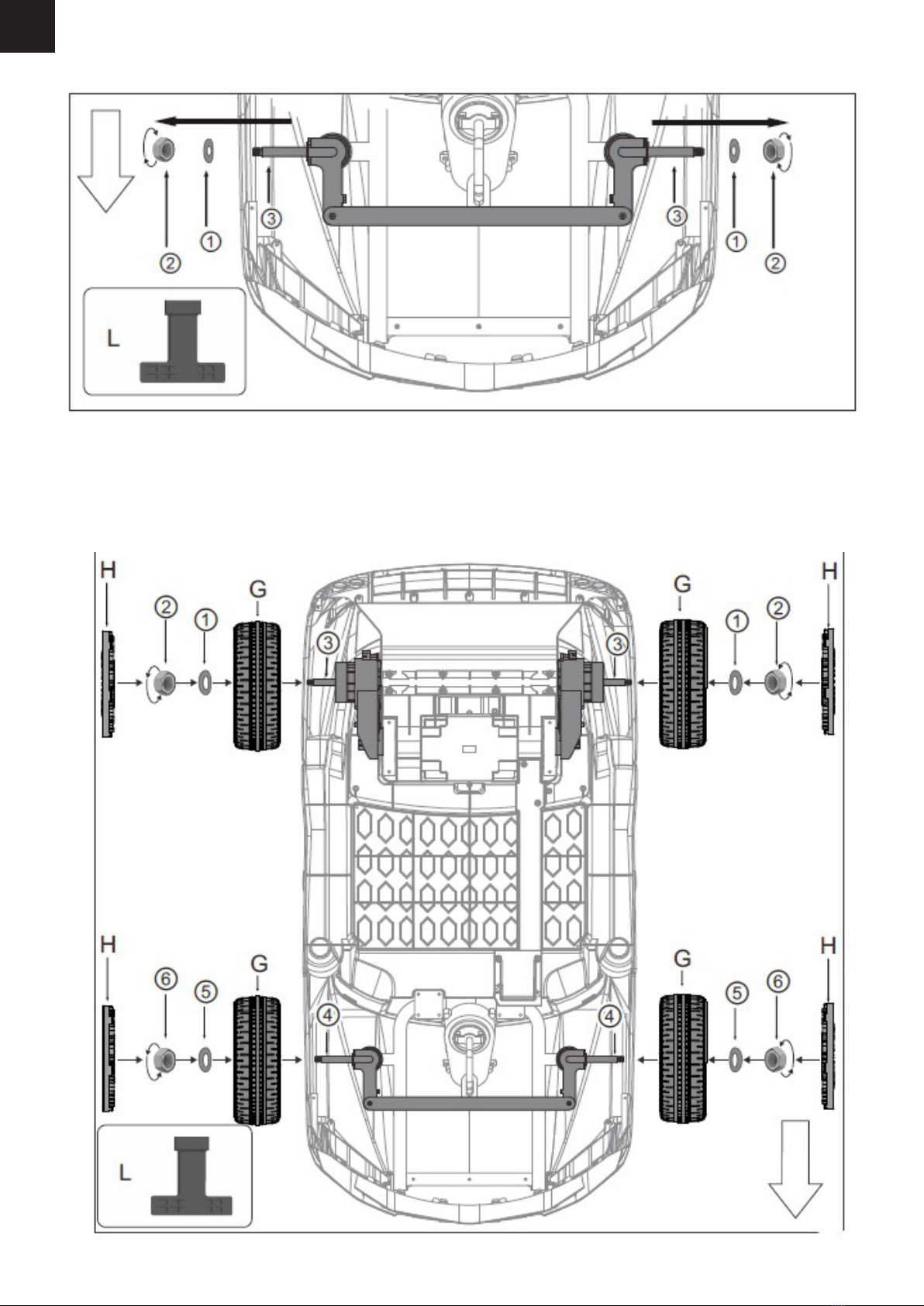

Step 4: Install the wheel
1. Install the G (wheel) onto the 3 (axle), put the 1(M8 gasket), then use the L (M8 spanner) to
tighten the 2(M8 screw) in clockwise direction. Finally install the H (wheel cover) on correct
position (align and press the buckle of the wheel cap with the grooves of the wheel to fix it)
2. The front wheel is also installed in this way.
Installations steps
Step 5: Install the steering wheel
Connect S, M terminal firstly, then align the correct position and press A (steering wheel) on 1
(steering yoke) as shown in figure. P.S if need to take off the steering wheel, please tighten 3, then
pull out the steering wheel, and disconnect the terminal S,M.
Step 6: Install the wind deector
Place F (wind deector) onto the
corresponding 3 clasp at car body as
shown in figure.

GB
Installations steps
Step 7: Connect the power
First connect the terminal 1and 2, then
connect the power port 3and 4.
Step 8: Install the seat
Put the I (seat) onto the right place, fix the
two hooks (at the back of the seat) into
the corresponding groove on car body.
then fix the I (seat) with 2 pcs X
(self- tapping screw) as shown in figure.
Step 9: Install the rear mirror
Install the C1 (rear view mirror L), C1
(rear view mirror R) to the car in correct
placement as show in figure.

GB
1. The installation and replacement of the batteries.
Turn left
Turn right
Stop
Forward
Reverse LED Indicator
Direction for use
2. Matching the frequency of car and remote control.
Speed
The remote control operation always prior to the toot pedals operation. (The foot pedal won´t work
while operating remote control)
1. Turn off the Power Switch on the car.
2. Remove the battery cover on the Remote Control and put in 2 AAA battery, the three LED
indicators will ash.
3. Turn on the Power Switch on the car, when the LED indicators stop ashing and 2 of them are
on, matching successes.
4. Once the matching is made, there is no need to match code again only if the battery is
replaced.
5. The Remote Control will enter a sleep mode if not used for a long time and the LED indicators
will be off. Press any buttons to wake up the Remote Control, and it can be used normally.

GB
1. Power switch: Turn on or turn off the power.
2. Light switch: I is turn on, O is turn off.
3. Music button: press the button to play music. long press the music button can increase the volume.
4. Horn button: press the button to play the horn. long press the horn button can reduce the volume.
5. Forward/backward switch: press the button for controlling the Vehicle to move forward, backward.
6. Mp3 multifunctional player
4. Operation guide for Manual control (forward, backward ):
After the driver is seated, press the power switch, the car will send out a starting sound
(2-5seconds). Put the Forward/Backward switch into the position of “forward” (Press forward), step
on the foot switch the car will move forward , loosen the pedal and the car will stop. Put the Forward/
Backward switch into the position of “Backward”, step on the foot switch and the car will move
backward, loosen the pedal and the car will stop.
Direction for use
3. Instruction of each switch and function button.

GB
Direction for use
5. Instruction for MP3 multifunction player.
A. Voltage display screen: The value on the display be used to determine whether the battery
needs to be charged.
B. USB connector: Insert USB will play the music inside. Only MP3 mode is supported.
C. Last channel/volume down: short press to play the last channel, long press to lower the volume.
D. Long press this botton will search radio station. Short press this botton is pause.
E. Next channel / volume up: short press to play the next channel, long press to increase the volume.
F. Mode switch button: Music mode and radio mode.
G. AUX connector: Connect with other removable device to play audio file valid in MP3 mode.
I. FM function: Press the MODE key to enter the FM mode, long press on ►ꞁꞁ to search the
channel (it needs arround 1 minute), after that it will automatically lock the radio channel, and it
has the memory function, the channel info will not loose even when you turn of the power.
( Please repeat this operating steps if you want to reseach the channel). Short press on ►ꞁꞁ is
pause, ►►ꞁ /V+ will play next channel, ꞁ◄◄ /V- will play last channel, and the music key on
steering wheel can also switching the radio channel.

GB
6. The illustration of high/low speed.
The hi/lo speed swith into the position of ”low speed”, step on the foot switch the car will move
forward slowly, loosen the pedal the car will stop. Put the hi/lo speed switch into the position of
”high speed”, step on the foot switch and the car will move forward fast, loosen the pedal the car
will stop.
7. Instructions of the recoverable fuse.
Resettable fuse: when the current
exceeds a certain ratting, the recoverable
fuse will automatically cut off the power
supply for 5-10 seconds, the the current
will be resupplied.
Door switch
High/low
speed switch
Charging Jack

GB
8. Charging instructions
WARNING
Please plug wall charger directly into a wall outlet. Do not use anextension cord.
When the battery power is low, please charge immediately. The charging port is under the seat.
(Note: Toys can not be operated in the charging state. Toys should be chargered by adult).
