About the IP Audio Conference Phone 2033
13
About the IP Audio Conference
Phone 2033
The IP Audio Conference Phone 2033 brings voice and data to the
tabletop audio conference environment by connecting directly to a Local
Area Network (LAN) through an Ethernet connection.
Basic features
The IP Audio Conference Phone 2033 has the following features:
• three soft keys (self-labeled) that, when required, map to four soft
keys (the >> soft key is used to navigate between the first two and
last two soft keys)
Note: In this guide, soft key labels appear directly above the soft key.
• multi-field LCD screen
• up to two extension microphones to provide microphone coverage in
larger rooms
• volume control buttons for adjusting ringer and speaker volume
• two specialized fixed keys:
— Services
— Messages
• three call processing fixed keys:
—Line
—Hold
—Release
• automatic network configuration

About the IP Audio Conference Phone 2033
14

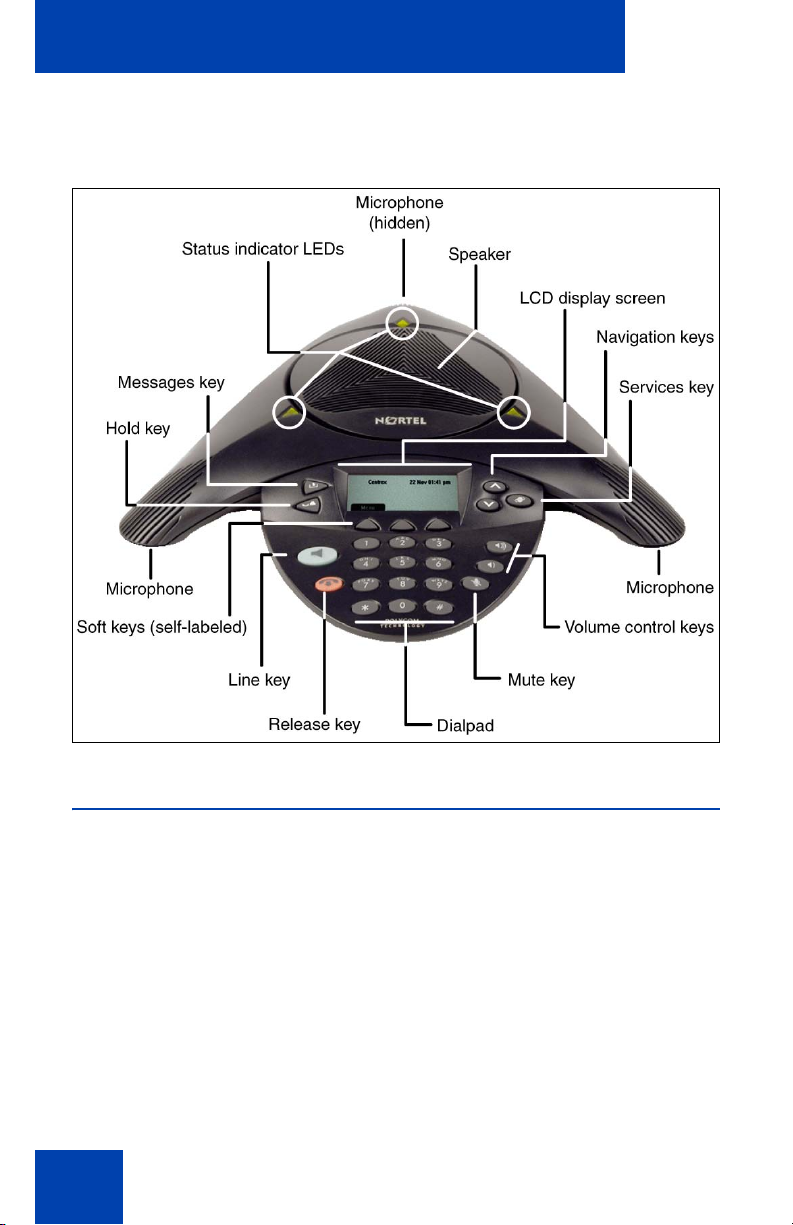

Figure 1 shows the IP Audio Conference Phone 2033.
Figure 1: IP Audio Conference Phone 2033
Extension microphones
The IP Audio Conference Phone 2033 supports up to two extension
microphones that extend the microphone range in large rooms. Each
extension microphone has a Mute button and an LED indicator to indicate
the current mute state.

About the IP Audio Conference Phone 2033
15
Figure 2 shows an extension microphone.
Figure 2: Extension microphone
Telephone controls
Use the Volume control buttons to adjust
the volume of the ringer and speaker.
Press the Mute button on the main unit or
any extension speaker to mute the ringer
and speaker.
Note: Pressing the Mute key on the
extension microphone toggles the mute
state of the entire telephone, not just that
microphone.
Press the Line (DN) key to access the single
line and activate on-hook dialing. No status
icon or LED is provided.
Press the Release key to terminate an
active call.
Press the Hold key to put an active call
on hold. Press the Line (DN) key to return to
the caller on hold.

About the IP Audio Conference Phone 2033
16
Telephone display
The IP Audio Conference Phone 2033 has two areas on the LCD screen:
• The upper display area contains single-line information for items such
as the caller number, caller name, feature prompt strings, digits
entered by the user, date and time information, and set information.
• The lower display area provides soft key label information.
Press the Messages key to access the
callers list. See “Use the Inbox” on page 77.
Use the Navigation keys to scroll through
menus and lists appearing on the LCD
screen.
A small arrow appears on the right side of
the display when there is additional text or
prompts to be displayed.
Use the Services key to access in-call
services, as described for the particular
service.
Soft keys are located below the LCD screen
display.
Press the >> soft key to toggle between the
first and second row of soft keys.
Press the Menu soft key to access the main
menu.

About the IP Audio Conference Phone 2033
17
Figure 3 shows the idle LCD screen display.
Figure 3: IP Audio Conference Phone 2033 LCD screen display
Telephone status indicators
The IP Audio Conference Phone 2033 uses three bi-color LED lights,
located around the speaker, to indicate the telephone status.
Table 3 lists the telephone state corresponding to the status indicator.
The idle telephone display also indicates if there is a message waiting,
missed call, a call on hold, each with appropriate text.
Each extension microphone has an LED indicator, indicating the mute
status of the telephone.
Table 3: Status indicators
LEDs Status
Solid green Active call
Solid red Message waiting
Flashing red Incoming call
Blinking red Mute

About the IP Audio Conference Phone 2033
18
Call features and Feature Access Codes
System administration is required for call features and Feature Access
Codes (FAC). Contact your system administrator to configure these
features and codes on your telephone.
Call features and FACs must be assigned to your telephone and
supported by system software.

Connect the IP Audio Conference Phone 2033 components
19
Connect the IP Audio Conference
Phone 2033 components
Before you begin
Steps
1. Connect one end of the CAT5 Ethernet cable to the network interface
located on the back of the Power Interface Module (PIM) (see
Figure 4 on page 20). Plug the other end of the CAT5 Ethernet cable
into your IP network interface.
CAUTION
Damage to equipment
Do not plug the IP Audio Conference
Phone 2033 into a regular telephone jack.
Doing so results in severe damage to the
IP Audio Conference Phone. Consult your
system administrator to ensure that you
plug your set into a 10/100BaseT network
interface.

Connect the IP Audio Conference Phone 2033 components
20
Figure 4: Power Interface Module (PIM)
2. Connect one end of the AC power adapter cord to the power supply
port located on the back of the PIM. Thread the cord through the
channel on the bottom of the PIM and plug the other end into the AC
power source.
3. The middle port of the PIM (see Figure 4) has an attached CAT5
Ethernet cable. Thread the cord through the channel on the bottom of
the telephone, and plug it into the Power Interface Module port on the
telephone. See Figure 5 on page 21.
