NORTHROP GRUMMAN NORMARC 7710 NAV User manual

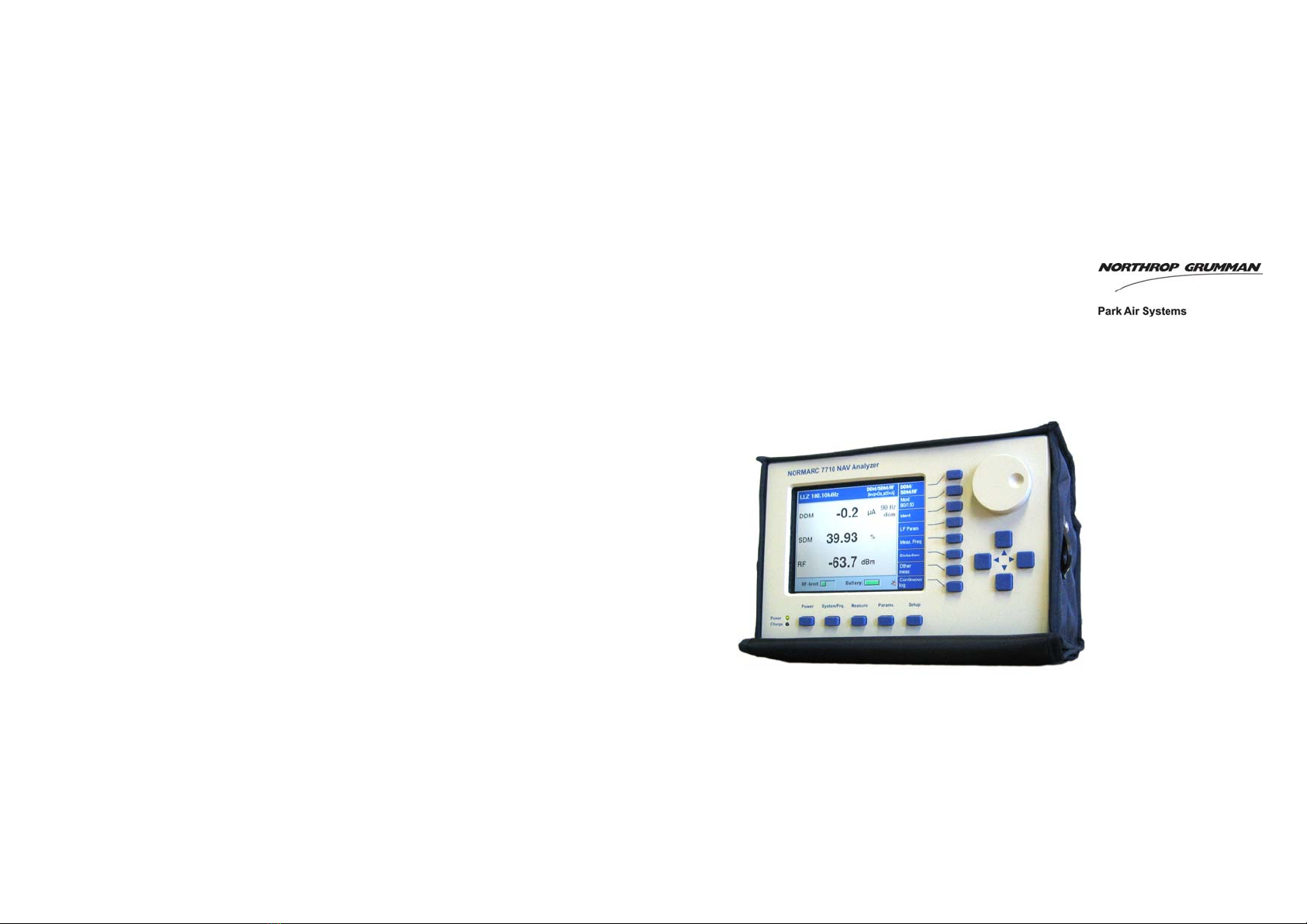

NORMARC 7710 NAV ANALYZER
User Manual
23327/Rev.1.6

ii
Contact information:
Northrop Grumman Park Air Systems AS
P.O. Box 150 Oppsal Fax: [phone]
NO - 0619 Oslo E-mail: [email protected]
Norway Website: www.parkairsystems.com
Reservation: Northrop Grumman Park Air Systems AS reserves the right to make design
changes, additions or improvements in its products without obligation to install
such in products previously manufactured.
Limitations of use: The use of this manual is limited to the operation and maintenance of the system
stated in the Title Page. It shall not be used for purposes of product manufacture.
© Copyright 2009 Northrop Grumman Park Air Systems AS
The information contained herein is the property of Northrop Grumman Park Air Systems AS and may not be copied, used or
disclosed in whole or in part except with the prior written permission of Northrop Grumman Park Air Systems AS, or if it has
been furnished under a contract as expressly authorised under that contract. The copyright and the foregoing restrictions on
copyright use and disclosure extend to all media in which this information may be preserved including magnetic storage,
punched card, paper tape, computer printout, visual display, etc.

iii
STATUS
Issue PR/CO Date/Year Author Based on document
Rev. 1.0 - 13-Dec-04 JDA/SKR/BGR New
Rev. 1.1 - 03-Jan-05 JDA/SKR/BGR Rev. 1.0
Rev. 1.2 - 10-Mar-05 SKR/JEH/BGR Rev. 1.1
Rev. 1.3 - 01-Sep-05 TBR/BGR Rev. 1.2
Rev. 1.4 4287_6 21-Feb-06 TBR/BGR Rev. 1.3
Rev. 1.5 4520/4439 21-Feb-08 JDA Rev. 1.4
Rev. 1.6 4498 10-Jul-09 BGR Rev. 1.5
Changes Incorporated
Issue Paragraph Paragraph Heading/Description of Change
Rev.1.1 General
Corrections
Drawings and text corrected.
Rev. 1.2 4.2, 5.6 and
7.1
New text and diagrams added and general corrections.
Rev. 1.3 7.2 Added Calibration text. (E<CR 2127)
Rev. 1.4 7.1.2 Added Charging, maximum temperature text. (PR 2209)
3.2 Added description

iv
Changes Incorporated (Continue)
Issue Paragraph Paragraph Heading/Description of Change
Rev. 1.5 General, Added new functionality, updated pictures
5.3.3 New (DDM LP description)
Rev. 1.6 All New company name

v
TABLE OF CONTENTS
1SPECIFICATIONS........................................................................................... 1
2INTRODUCTION TO THE NORMARC 7710 NAV ANALYZER ............................. 8
3SETTING UP THE NAV ANALYZER FOR THE FIRST TIME..................................... 9
3.1Package contents................................................................................................................9
3.2Charging the batteries.........................................................................................................9
3.3Connecting to RF signal....................................................................................................10
3.3.1Using the supplied antenna...............................................................................................10
3.3.2Using another RF source ..................................................................................................10
3.4Turning the instrument on .................................................................................................10
3.5Turning the instrument off .................................................................................................10
3.6Screen saver .....................................................................................................................11
3.7Backlight............................................................................................................................12
3.8Connecting a computer to the NAV Analyzer....................................................................12
4HOW TO OPERATE THE INSTRUMENT ............................................................ 13
4.1Using the pushbuttons and the wheel...............................................................................15

vi
4.2Indicators...........................................................................................................................17
5OPERATING INSTRUCTIONS..........................................................................19
5.1How to select NAV system type........................................................................................19
5.1.1Manual selection................................................................................................................19
5.1.2Automatic selection ...........................................................................................................19
5.1.3Select using shortcuts .......................................................................................................20
5.1.4Adding shortcuts in the instrument....................................................................................20
5.2How to do measurements .................................................................................................21
5.2.1Standard measurements...................................................................................................21
5.2.2Audible ident......................................................................................................................21
5.2.3Audio/Baseband signal......................................................................................................21
5.2.4IF signal.............................................................................................................................22
5.3Various settings.................................................................................................................22
5.3.1How to select μA/% for DDM.............................................................................................22
5.3.2How to define 90Hz/150Hz dominance for DDM ..............................................................22
5.3.3How to set up lowpass filter for DDM................................................................................23
5.3.4How to set up averaging when doing measurements.......................................................23
5.3.5How to set the correct attenuation.....................................................................................24
5.4How to do procedure measurements................................................................................24
5.4.1To define a procedure .......................................................................................................25
5.4.2To run a procedure............................................................................................................27

vii
5.4.3File format of procedures ..................................................................................................27
5.5How to log data to a file.....................................................................................................28
5.6How to connect to a computer through the network interface...........................................29
5.6.1Connecting to a computer (Win XP) with NORMARC 7710 as DHCP-server..................29
5.6.2Connecting directly to a computer (Win XP).....................................................................30
5.6.3Connecting via network with DHCP server.......................................................................33
5.7File management...............................................................................................................34
5.8How to upgrade the NAV Analyzer software.....................................................................34
6MENU REFERENCE...................................................................................... 35
6.1Power menu ......................................................................................................................35
6.2System selection and frequency setup .............................................................................36
6.3Measurements...................................................................................................................37
6.3.1When measuring LLZ........................................................................................................37
6.3.2When measuring GP.........................................................................................................40
6.3.3When measuring MKR......................................................................................................42
6.3.4When measuring VOR ......................................................................................................43
6.4Parameter setup................................................................................................................45
6.5System...............................................................................................................................46
7MAINTENANCE,CALIBRATION AND SOFTWARE UPDATES ................................. 47

viii
7.1Maintenance......................................................................................................................47
7.1.1Batteries ............................................................................................................................47
7.1.2Charging, maximum temperature......................................................................................47
7.1.3Charging problems............................................................................................................47
7.1.4Use of alkaline batteries....................................................................................................50
7.1.5Corrective maintenance ....................................................................................................50
7.2Calibration .........................................................................................................................50
7.3Software Updates..............................................................................................................51

1
1 Specifications
PARAMETERS Localizer Glide Path VOR Marker
Beacon
Frequency range 108.1-111.95 MHz 329.15-335.0 MHz 108.0-118 MHz 75 MHz
Channel spacing 50 kHz 150 kHz 50 kHz
Frequency tolerance 0.0004% 0.0004% 0.0004% 0.0004%
RF level dynamic range 0 dBm to -80 dBm 10 dBm to -70 dBm 0 dBm to -80 dBm 0 dBm to –70
dBm
DDM range 0-40% 0-80% - -
DDM/Bearing error Centring: 0.07% DDM
Deviation: 0.07% DDM
±1.25% of DDM-reading
Centring: 0.15% DDM
Deviation: 0.15% DDM
±1.25% of DDM-reading
0.3°-
SDM/Mod. depth range 0-95% 0-95% 10-50% 80-100%
SDM/Mod depth error
Subcarrier 0.5% SDM 1% SDM 0.5% Mod depth 1.0% Mod depth 0.5% Mod
depth

2
PARAMETERS Localizer Glide Path VOR Marker
Beacon
Subcarrier 30 Hz FMI - - 0.1 -
Ident/Voice freq. range 300-3000 Hz 300-3000 Hz -
Ident/Voice depth of
modulation range 1-55% 1-55% 1-55% -
Ident depth of modulatio
n
error 1% mod. depth 1% mod. depth
Ident decoding Morse code decoded to
letters Morse code decoded to letters
Low Frequency error
,
navigation tones 0.1 Hz 0.1 Hz 0.06 Hz (30 Hz)
20 Hz (9960 Hz) 1 Hz
Low Frequency error, Iden
t
tones 5 Hz - 5 Hz -
LF phase 90 Hz vs. 150 Hz 0.1°0.1°- -
Harmonic distortion 90 Hz an
d
150 Hz 2., 3. and total distortion 2., 3. and total distortion

3
PARAMETERS Localizer Glide Path VOR Marker
Beacon
Harmonic distortion error 0.5% 0.5% - -
RF-level error 2 dB
1 dB
for a signal with
RF-level –50 dBm to
-20 dBm
and temp. range 10 to
30°C
2 dB 2 db 2 dB
Resolution modulation 0.01%
(0.1 % for Ident) 0.01% 0.1% 0.1%
Resolution LF phase 0.1°0.1°-
Resolution LF frequency 0.1 Hz 0.1 Hz 0.1 Hz 0.1 Hz
Resolution RF frequency 0.1 kHz 0.1 kHz 0.1 kHz 0.1 kHz
Resolution 30 Hz and
subcarrier frequency - - 0.01 Hz 1 Hz -

4
PARAMETERS Localizer Glide Path VOR Marker
Beacon
Resolution VOR Bearing
and FMI - -
0.1°
0.1 -
Resolution RF level 0.1 dBm 0.1 dBm 0.1 dBm 0.1 dBm
Range user defined averaging 1 to 10 seconds in 1 second step
Sensitivity, 20 dB SINAD in
3 kHz BW -80 dBm -70 dBm -80 dBm -80 dBm
Selectivity < 3 dB @ 12 kHz
> 60 dB @ 50 kHz < 3 dB @ 25 kHz > 70 dB @ 150 kHz < 3 dB @ 24 kHz > 60 dB @ 75 kHz < 3 dB @ 12
kHz
> 60 dB @ 50
kHz
Receiver image rejection > 80 dB > 100 dB > 80 dB > 80 dB
Audio output noise level < 180 mV rms - < 180 mV rms < 180 mV rms
Low pass filter Acc. to ICAO Doc 8071
vol 1 para 4.2.9 - - -
Measurement rate 10 samples per second

5
PARAMETERS Localizer Glide Path VOR Marker
Beacon
Data storage capacity One hour of continuous measurements
Tuning Automatic
Input impedance SWR ref
50 ohm <1.5
Inputs and Outputs RF-input (BNC socket)
LAN interface (RJ45 100Base T) with DHCP server
RS-232 serial data (9-pins Sub-D-socket)
Event button input
LF or IF output (selectable)
Ident / Voice audio-jack
GPS interface Used for LLZ center line run and crossover run
Protocol according to NMEA-standard
RS232-connection: CTS used for GPS Rx and RTS used for GPS Tx
Tachometer interface Used for LLZ center line run
RS232-connection: CTS used for tachometer pulses
RS232-levels and TTL-levels (Vol < 0.6V, Voh >2.4V)

6
PARAMETERS Localizer Glide Path VOR Marker
Beacon
User Interface Graphical colour 5.5” LCD Keys for selecting function and parameter
Power supplies NiMH rechargeable battery, (min. 6 hours use)
External charger, 110-240V,/ 47-63 Hz AC
Power input 10.8VDC to 30VDC
Battery charging time 4 hours
Power indicators Low battery voltage, Battery or charging, Sleep Mode by Power button
Night use Backlight on LCD
Dimensions (WxHxD) 240 x 160 x 140 mm
Weight 4.5 kg
Antenna type Dipole, telescopic
Antenna return loss vs. 5
0
ohm > 10 dB > 6 dB - -
Antenna mast height 2.9 m (1.6 m retracted)

7
PARAMETERS Localizer Glide Path VOR Marker
Beacon
Antenna alignment indicator Level
Antenna cable Coaxial; 4 m
Temperature range, operating
and storage -10°C to +50°C / -30°C to +80°C
Protecting case Nylon bag with carrying strap
Weatherproofness IP54
Data logging Software (optional) to be installed on a PC

8
2 Introduction to the NORMARC 7710 NAV Analyzer
The NORMARC 7710 NAV Analyzer is used to adjust, verify and record parameters of ILS (Localizer, Glide Path,
Marker Beacon) and VOR ground systems. The NAV Analyser’s functionality substitutes instruments like ILS/VOR
receivers, modulation meters and frequency counters. It incorporates all ILS and VOR channels selectable
without any tuning or equipment changes. It facilitates measurement of
•ILS: Modulation Depth (DDM and SDM), RF level and Ident modulation level, Carrier and Audio
frequencies, 90Hz to 150Hz phase and harmonic distortion, Ident decoding
•Marker: Depth of modulation, Modulation frequency, RF level, Carrier frequency
•VOR: Bearing, Depth of modulation 30Hz, Depth of modulation 9960Hz, Ident modulation, RF level,
Frequency modulation index, Carrier frequency, subcarrier frequency, Ident decoding
The NAV Analyzer is a portable, battery-operated weatherproof unit to be used outdoors, in a vehicle or inside
the equipment shelter. It is supplied with a dipole antenna with a unipod support and coaxial cable. The analyzer
has a rough outdoor design and is protected against damage during transport.
The NAV Analyzer uses a digital radio with demodulation based on digital signal processing and with storage
functions. Full control from a remote system (typically a PC) by use of network technology is possible.
The user interface is a graphical display (GUI) with a corresponding keyboard on the front panel of the
instrument. Night condition is supported. Audio jack for Identity / Voice monitoring is incorporated.
It has a GPS and tachometer interface for ILS Localizer runway measurements.

3 Setting up the NAV Analyzer for the first time
3.1 Package contents
The package contents include the following items:
•NORMARC 7710 NAV Analyzer
•Battery charger w/std. European plug
•Handheld antenna mast with selectable dipoles
•Coax cable for the antenna
•Crossed network cable
•Soft bag for instrument and soft bag for accessories
3.2 Charging the batteries
The first thing to do is to charge the internal battery. Connect the battery charger to an electrical outlet, and
plug the other end into the rear of the NAV Analyzer.
Observe that the Power led after flashing quickly for a few minutes (trickle charge) changes to continues ON
status (charging battery).
If the led starts to blink the Morse code letter "S" - the voltage of
the battery cells is too low to start full charging. In this case, restart the charge cycle once every five minutes by
turning off and on again the external power until full charging starts.
Leave the instrument on full charge for at least 10 hours.
9

10
3.3 Connecting to RF signal
3.3.1 Using the supplied antenna
Connect one end of the coaxial cable to the antenna and the other end to the rear of the NAV Analyzer. Select
the correct dipole according to what you are measuring.
3.3.2 Using another RF source
Connect the source to the RF input at the rear side of the NAV Analyzer through an appropriate cable. Use the
supplied coax cable if suitable.
NOTE! Be sure not to overload the input. The specification for the input is max 0.1W (20dBm).
3.4 Turning the instrument on
a. Make sure that the battery is charged, or that the charger is connected
b. Turn on the power switch at the rear of the NAV Analyzer
c. Press and hold (1 sec) the [ Power ] – button on the front panel
3.5 Turning the instrument off
The instrument can be turned off into two different modes.
1. Totally off (Power LED is off)
a. Use the power switch at the rear of the instrument or
b. Press the [Power]-button and select the [Off]-button from the sub-menu

11
In this mode the instrument does not use any power.
This is the preferred mode if the instrument is not going to be used for several hours.
2. Sleep mode (Power LED flashes slowly)
a. Press and hold (2 sec) the [Power]-button until the screen turns off or
b. Press the [Power]-button and select the [Sleep]-button from the sub-menu
In this mode the instrument uses power to keep the main functions active. This allows for a much quicker restart
and for reactivating the menu that was active when the instrument was put into Sleep mode. A fully charged
battery will last for >18 hours in this mode.
This is the preferred mode during a measuring sequence when the instruments have to be turned off for moving
to a new measuring Location.
To turn the instrument back on again, press and hold (2 sec) the [Power]-button until the screen turns on.
3.6 Screen saver
To save power and thereby increasing the time the instrument can be used on battery, a screen saver is built-in.
To activate it;
a. Press the [Setup]-button and then select the [Screen...]-button from the sub-menu
b. Use the wheel (or up/down navigation buttons) to select how long to wait before it activates (1-120
minutes)
c. Set it to 0 minutes to disable it
When the screen saver activates, the screen will be blank but the Power LED will be on.
Any button or use of the wheel will bring the screen back on. Storing of data continues as normal when the
screen saver is activated.

12
3.7 Backlight
The intensity of the screen backlight can be set to suit the light of the surroundings.
a. When no input field is active, use the wheel on the front or
b. Press the [Power]-button and select the [Backlight inc] / [Backlight dec] / [Backlight off] buttons from
the sub-menu (Backlight off is the same as activate screen saver)
3.8 Connecting a computer to the NAV Analyzer
A computer (PC) may be connected to the NAV Analyzer for textual and graphical display of measurements,
storage of log files and maintenance of the instrument.
The connection can be made using the standard network connector, Located at the rear of the instrument.
To connect directly to a PC, use the included standard crossed network cable.
If using a network switch or router between the computer and the instrument, you may use a ordinary network
cable, since most switches/routers have auto-sensing for the network connection.
For setting up the instrument refer to 5.6
