Nostalgia KRS2100 SERIES User manual

All products are trademarks of Nostalgia Products LLC.
Worldwide design & utility patented or patents pending.
© 2017 Nostalgia Products LLC.
www.nostalgiaproducts.com
(rev. 01/04/17 HI)

KRS2100 SERIES
Kegorator™
Instruction Manual
Manuel d’instructions
Manual de instrucciones

ENGLISH
2
CONTENTS
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ADDITIONAL IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLING THE CASTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TAP TOWER INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ASSEMBLY OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ATTACHING REGULATOR TO CO2TANK . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ATTACHING COUPLER TO REGULATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ATTACHING COUPLER TO TAP TOWER . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
INSTALLING THE GUARDRAIL / DRIP TRAY . . . . . . . . . . . . . . . . . . . . . . . . 10
COMPLETED CO2TANK INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 11

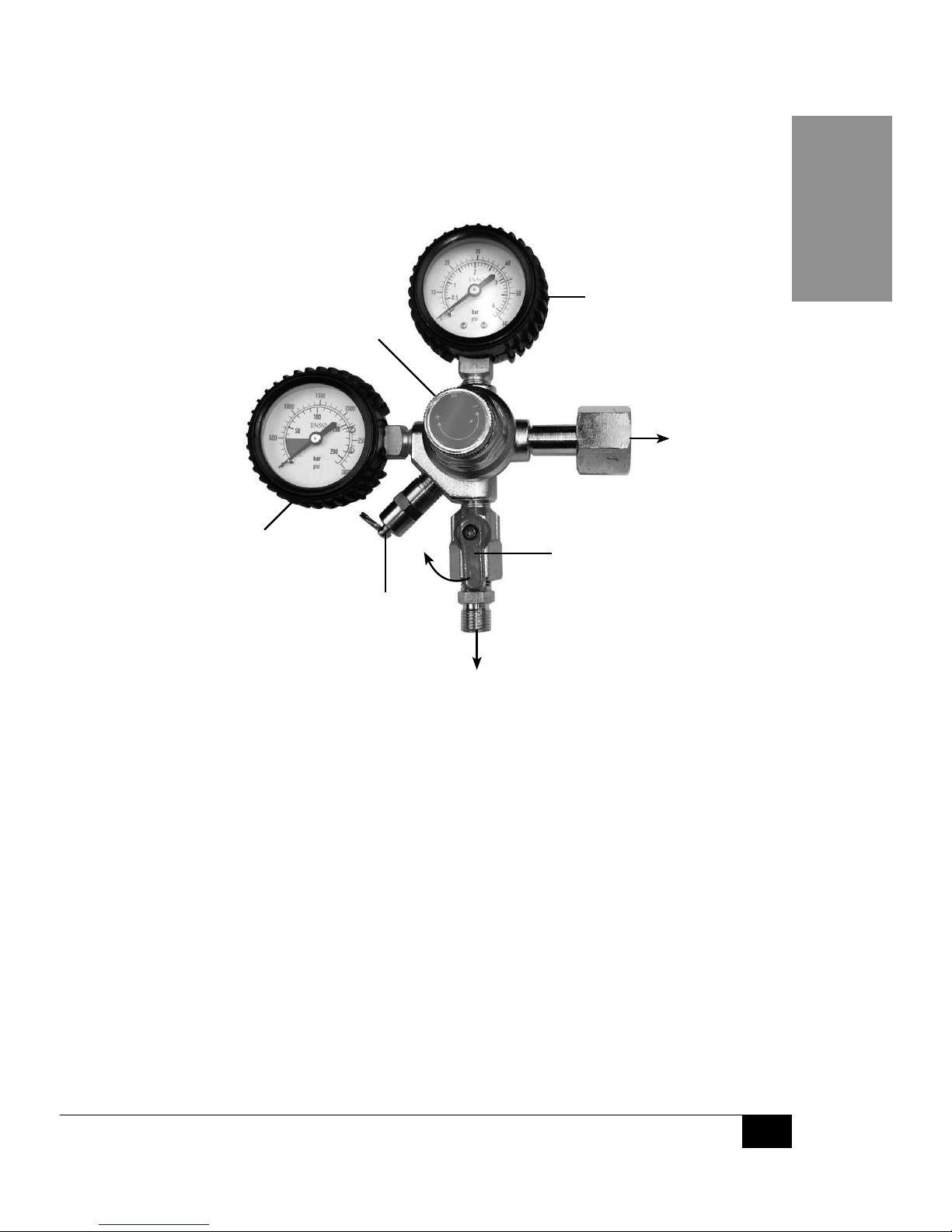

SETTING THE DOUBLE REGULATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TAPPING THE BEER KEG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HOW TO OPERATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HELPFUL TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CLEANING & MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
RETURNS & WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SAFETY
Appliance Specications:
110 W, 115 V, 60 Hz, 1.2A (max amps = 6A)
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
cause serious injury to you and others.
All safety messages will follow the safety alert symbol.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.

ENGLISH
3
IMPORTANT SAFEGUARDS
A person who has not read and understood all operating and safety instructions
is not qualied to operate this appliance. All users of this appliance must read and
understand this Instruction Manual before operating or cleaning this appliance.
When using electrical appliances, basic safety precautions
should always be followed, including:
1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Keep out of reach of children.
5. Unsupervised young children and cognitively challenged
individuals should never operate this appliance.
6. Close supervision is necessary when any appliance is used by or near children.
7. To protect against electrical shock do not immerse cord, plug
or any part of this unit in water or other liquids.
8. Do not operate this appliance when parts are missing or broken.
9. Unplug from outlet when not in use, before removing parts and before cleaning.
Allow to cool before putting on or taking o any parts, and before cleaning.
10. DO NOT operate any appliance with a damaged cord or plug, or after the appliance
malfunctions, or if the appliance has been damaged in any manner. Return the
appliance to the nearest repair shop for examination, repair or adjustment.
11. The manufacturer does not recommend the use of accessory attachments other than
what is provided by the manufacturer. Use of attachments may cause injuries.
12. DO NOT use the appliance for other than its intended use.
13. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
14. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
15. DO NOT put any parts of this appliance in dishwasher.
16. DO NOT let cord hang over edge of table or counter, or touch not surfaces.
17. NEVER leave unit unattended while in use or when plugged into an outlet.
18. Extreme caution must be used when moving an appliance containing hot food.
19. Always attach plug to appliance rst, then plug cord in the wall outlet. To
disconnect, turn any control to "o," then remove plug from wall outlet.
ADDITIONAL IMPORTANT SAFEGUARDS
Operating Safety Precautions
1. Before discarding your old appliance, remove the door from its
hinges so that children may not easily become trapped inside.
2. DO NOT roll the KEGORATOR™ with loaded beer kegs onto carpet oor.
3. The appliance door must be closed during operation. DO
NOT leave the door open when children are near.
4. This appliance should not be recessed or built into an enclosed
cabinet. It is designed for freestanding assembly only.

ENGLISH
4
5. Do not operate your appliance in the presence of explosive fumes.
6. Do not tamper with the controls.
Instructions for the Electrical Cord and Plug
1. ELECTRICAL SHOCK HAZARD: Failure to follow these instructions
can result in death, re, or electrical shock.
• Plug into a grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
• DO NOT use an extension cord.
2. This unit MUST be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.
This unit is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
3. WARNING: Improper use of the grounding plug can result in a risk of electric
shock. If the plug does not t fully into the outlet, contact a qualied
electrician. Do not attempt to modify the plug in any way.
4. A short power supply cord is provided to reduce the risk resulting
from becoming entangled or tripping over a long cord.
5. The manufacturer does not recommend using this machine in countries that do not
support 120V AC even if a voltage adapter, transformer, or converter is in use.
CO2(Carbon Dioxide) Gas
1. CO2gas can be dangerous! CO2cylinders contain high-pressure compressed
gas, which can be hazardous if not handled properly. Make sure you read and
understand all the procedures for the CO2cylinders before installation.
2. Always connect the CO2cylinder to a regulator! Failure to do so may cause an
explosion resulting in possible death or injury when the cylinder valve is opened,
3. Never connect the CO2cylinder directly to the beer keg.
4. Always follow the correct procedures when changing the CO2 cylinder.
5. Never drop or throw a CO2cylinder.
6. Always keep CO2cylinders away from heat. Store extra cylinders in a cool place
(preferably 70° F). Secure fasten with a chain in an upright position when storing.
7. ALWAYS ventilate and leave the area immediately if CO2leakage has occurred.
8. There are two safety devices in the pressure system in the form of a valve. One
safety feature is on the CO2bottle. The second is on the regulator.
9. Never attempt to rell CO2cylinder yourself.
10. IMPORTANT! If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 8 hours before plugging in the unit.
SAVE THESE INSTRUCTIONS!

ENGLISH
5
INTRODUCTION
Great for serving even the thirstiest crowd, the Kegorator Draft Beer
Dispenser keeps the beer owing and the good times rolling. With the
Kegorator Draft Beer Dispenser, add a unique element to backyard barbecues,
garage hangouts, recreation rooms, or simply relaxing at home.
Proper Location
To ensure that your KEGORATOR™ works to the maximum eciency for which it was
designed, keep it in a location where there is proper air circulation and electrical outlets.
Choose a location where the KEGORATOR™ will be away from
heat and will not be exposed to direct sunlight.
• Indoor use only. It should not be used outdoors.
• Designed to be freestanding and should not be placed in a built-in or recessed area.
• Unit includes a 2.5 lb. CO2bottle, which should be able
to dispense four 15 gallon kegs of beer.
• Capacity: 5.1 cu. ft.
• Unit dimensions: L 20.25" x W 25.75" x H 49"
• The following dimensions are recommended for clearances around the KEGORATOR™:
Sides …………………… ¾”(19 mm)
Back ……………………. 1”(25 mm)
• Unit weight: 73.6 lbs
Compatible Keg Types
The KEGORATOR™ can hold one Full Size Keg, or one Pony Keg, or
two 5-Gallon Kegs. DOES NOT t non-standard keg sizes.
NOTE: Keg Coupler only ts D-Sankey Keg Valves. Attaching
the Keg Coupler will add height to the Keg.
Kegs / Barrel ¼ Barrel Short ¼ Barrel Slim ½ Barrel
Gallons 5.23 7.75 7.75 15.50
Keg Capacity 1 1 1 1
12 oz. Beers 55 82 82 165
Weight (Full
in lbs.)
58 87 87 161
½ Barrel
(Full Size)
Slim Quarter Barrel
(Tall Keg)
Sixth Barrel Quarter Barrel
(Pony Keg)
9 1/4" 16 1/8" 11 1/8" 16 1/8"
23 3/8" 23 3/8" 23 3/8"13 7/8"

ENGLISH
6
PARTS
Read all instructions carefully before assembling the KEGORATORTM.
IMPORTANT! Stand the KEGERATORTM in an upright position for 8-10
hours before plugging into an electrical outlet. This will allow the coolant
in the regfrigeration unit to stabilize before turning on the power.
If still unsure whether your KEGORATOR™ has been properly assembled,
it is recommended that you contact customer service, or a qualied
installer, such as a brewery or wherever kegs are sold.

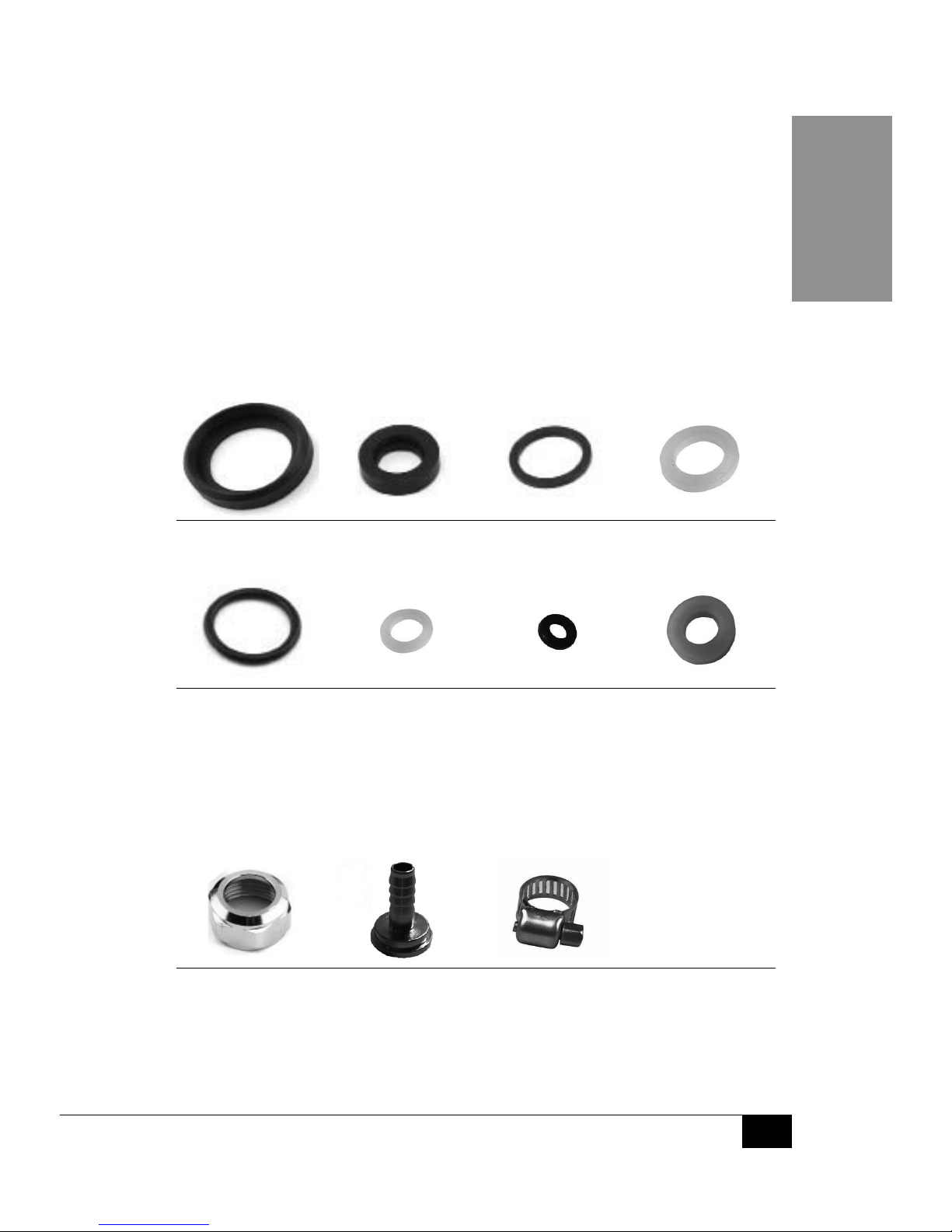

Washers / Beer Line Adapter Parts
NOTE: Most washers are already attached to the KEGORATORTM. Extra parts
are included in a plastic bag. Refer to the parts diagram and corresponding
numbers to see where the washers/beer line adapter parts belong.
Beer Line Adapter Parts
If you wish to use a CO2 Line other than the one provided, the following parts
are included to connect your CO2 Line from the Keg Coupler to CO2 Tank.
Additional parts not included may be necessary to complete your setup.
(1) Tap Tower
Washer (24 mm)
(1) Tap Tower Spigot
Handle Washer (15 mm)
(1) Tap Tower Spigot
Washer (13 mm)
(9) Regulator High
Pressure Washer
(18 mm)
(6) Body Seal Coupler
Washer (38 mm)
(6) Probe Seal Coupler
Washer (22 mm)
(6) Inner Probe
Seal Coupler
Washer (23 mm)
(6) Top Coupler
Washer (20 mm)
(6) CO2Line
Adapter Hex Nut (6) CO2Line Adapter Nipple (6) Hose Clamps

ENGLISH
7
Parts
1
2
3
45
6
8
9
10
19
20
21
22
23
11
13
15
16
14
17
18
(1) Tap Tower
Qty. 1
(2) Spigot Handle
Qty. 1
(3) Tap Tower Spigot
Qty. 1
(4) Tap Tower Washer
Qty. 1
(5) Tap Tower Plug
Qty. 1
(6) Keg Coupler
(US Sankey D-System)
Qty. 1
(7) CO2 Directional
Washer
Qty. 1
(8) Backow Stopper
Qty. 1
(9) CO2 Line
Qty. 1
(10) Double Regulator
Qty. 1
(11) Allen Wrench
(1.5 mm)
Qty. 1
(12) CO2 Tank
Qty. 1
(13)
CO2 Tank Band
Qty. 1
(23) Leveling Feet
Qty. 1 pair
(16)
CO2 Line Washers
(attached to Wrench)
Qty. 2
(14) Tap Tower Wrench
Qty. 1
(15) Regulator Wrench
Qty. 1
(17) Front Casters
(Locking)
Qty. 2
(18) Rear Casters
Qty. 2
(19) Metal Washers
Qty. 4
(20) Guard Rail
Qty. 1
(21) Drip Tray
Qty. 1
(22) Keg Base Board
Qty. 1
7
12

ENGLISH
8
INSTALLING THE CASTERS
NOTE: Each of the Front Casters include a locking mechanism to ensure the unit
does not roll on hard oors. The Front Casters should be fastened at the front
end of the unit, with the unlocked Rear Casters fastened on the rear end.
1. Empty the inside of the cabinet and lay the
unit down on it’s side. To prevent dents or
scratches, we recommend placing a piece of
cardboard or cloth underneath the cabinet.
2. Place washers over Caster bolts, then
insert the Casters into the holes on the
bottom corners of the cabinet. Tighten
each Caster by turning the nut clockwise
with a wrench (not provided in the kit).
3. Once all four Casters have been tightened,
stand the cabinet in its upright position.
TAP TOWER INSTALLATION
1. Remove the packing tape on the Tap Tower.
2. Guide the (5) Tap Tower Washer up the tap tower hose and
over the notches located on the bottom of the Tap Tower.
Then feed the tap tower hose through the hole in the top of
the cabinet.
3. Align the notches at the bottom of the tower with the
hole in the top of the cabinet, then insert and twist the
tower clockwise to lock it into place (about a ¼ turn).
Notches
Beer Tower
Washer
Tap Tower
Adapter

ENGLISH
9
ASSEMBLY OVERVIEW
ATTACHING REGULATOR TO CO2 TANK
IMPORTANT! When you purchase your first keg of beer, you must also have
your CO2 Tank filled by a local supplier. CO2 Tanks can be filled at locations such
as welding supply shops, party stores, and wherever kegs are purchased.
ATTACHING COUPLER TO REGULATOR
Make sure the white nylon High Pressure
Washer (already installed) is attached
to the CO
2
Double Regulator.
Use the Regulator Wrench to attach the
Double Regulator to the CO
2
Tank.
1. 2.
Remove the attached Hex Nut,
Adapter Nipple and CO2 Directional
Washer, then place the CO2 Directional
Washer back into the Keg Coupler.
1.
Connect the green end of the CO2
Line to the Double Regulator, and
the silver end to the Keg Coupler.
2.
Tap Tower
Keg Coupler
Double Regulator
CO2 Tank
CO2 Line

ENGLISH
10

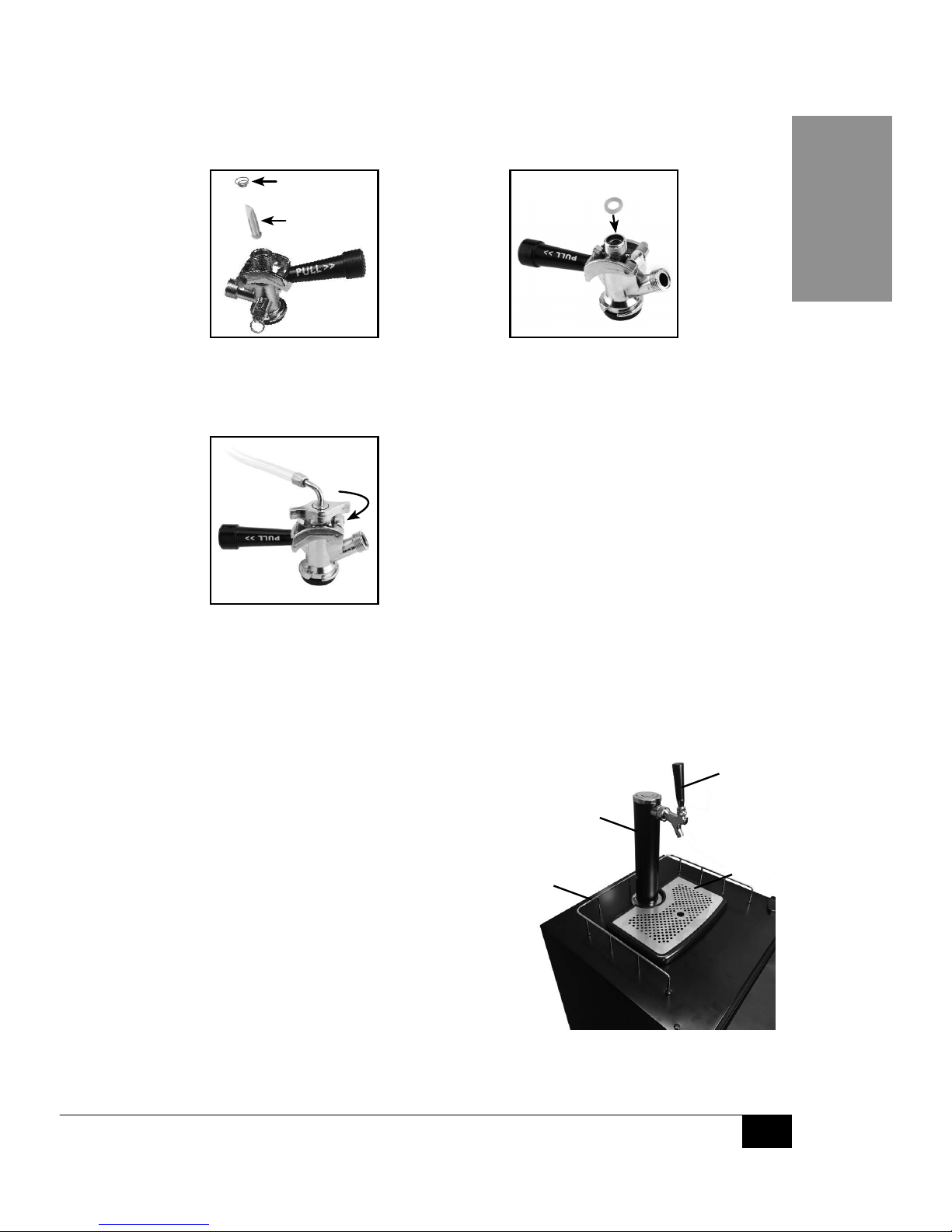

ATTACHING COUPLER TO TAP TOWER
INSTALLING THE GUARDRAIL / DRIP TRAY
1. Place the Guardrail on top of the unit
and align all pegs of the Guardrail
with the holes on top of the unit.
2. Secure the Guardrail to the unit by pushing
the pegs inside the corresponding holes.
3. Place the Drip Tray at the base of the Tap Tower.
After the Tap Tower has been placed
on top the cabinet and the hose line
feeds through the bottom, attach
the wing nut to the Keg Coupler.
3.
Remove the packing spring and Backflow
Stopper from inside the Keg Coupler,
then reinsert the Backflow Stopper into
the Keg Coupler (rounded side down).
Place the Top Coupler Washer ush and
centered on the top of the Keg Coupler.
1. 2.
Remove & discard
Insert (rounded
side down)
Tap Tower
Handle
Tap Tower
Assembly
Guardrail
Drip Tray
CO2 Tank

ENGLISH
11
COMPLETED CO2TANK INSTALLATION
Location of Temperature Gauge
The temperature gauge is located in the rear of the KEGORATOR™ in the lower left-
hand corner. NOTE: Before purchasing a beer keg, allow the unit to cool for 48 hours.
MAX = Increases Coolness
MIN = Decreases Coolness
OFF = Turns O
CO2 Line
(connects
Regulator to side
of Keg Coupler)
CO2Tank
CO2Tank Band
Double
Regulator
Keg Coupler
Handle
Tap Tower Hose
(connects Beer Tap
to Keg Coupler)
Connects to Keg
Large Buttery Nut
(secures Tap
Tower Hose to Keg
Coupler)
DANGER! CO2can be dangerous! CO2cylinders contain
high-pressured gas, which can be hazardous if handled
improperly. They must be handled with care.

ENGLISH
12
SETTING THE DOUBLE REGULATOR
The Double Regulator connects the CO2 Tank to the CO2 Line, while measuring
PSI (pounds per square inch) and the volume of CO2 in the tank. Set the
Output Pressure Gauge between 8-12 PSI for a nice, frothy head.
1. Close the Shut O Valve on the Double Regulator, and open the CO2 Tank valve completely.
2. Unlock the Pressure Dial set screw using the included Allen Wrench. Turn the dial
all the way to the negative, then pull the Pressure Relief Valve (PRV) to ensure an
accurate reading. Then very slowly turn the Pressure Dial clockwise until the desired
pressure is shown on the Output Pressure Gauge (8-12 PSI is recommended).
• Turning clockwise will increase the output pressure (higher PSI)
• Turning counter-clockwise will decrease the output pressure (lower PSI).
3. Once desired pressure is reached, tighten the Pressure Dial set screw
using the included Allen Wrench. Once again, pull the PRV to assure
the correct setting. If necessary, readjust your settings.
4. Next, open the CO2 Shut O Valve on the Double Regulator to allow gas to
ow from the Double Regulator to the Keg Coupler. You will hear the keg
pressurizing. The output needle will drop momentarily until the pressure
has equalized. Then the needle will return to the point you set it at.
5. Re-check the output pressure on the Double Regulator, and if necessary
re-adjust starting at step #1 until the desired pressure is shown.
CO2Tank Band
Output Pressure Gauge:
Measures PSI of CO2
outow from CO2 Tank
to Keg (0-60 PSI)
Pressure Dial: Adjusts
the output pressure
(loosen set screw with
included Allen Wrench)
Tank Pressure Gauge:
Measures PSI of
CO2 in CO2 Tank
CO2 Shut O Valve:
(shown in open position)
Connects to
CO2 Tank
Connects to
CO2 Line
Pressure Relief Valve
(PRV): Allows gas to
ow through Regulator
to obtain an accurate
pressure reading.

ENGLISH
13
TAPPING THE BEER KEG
(SINGLE VALVE-TYPE KEG)
g. 4 g. 5
g. 1 g. 2 g. 3
Black pull handle
Connect to the
Beer Line Tube
Connect to
CO2 Gas
Line Tube
Keg Coupler
T
U
R
N
C
L
O
C
K
W
I
S
E
Beer Keg Neck
Keg Support
Beer Keg
Lift Upright
Black pull handle
Connect to the
Beer Line Tube
Connect to
CO2 Gas
Line Tube
Keg Coupler
T
U
R
N
C
L
O
C
K
W
I
S
E
Beer Keg Neck
Keg Support
Beer Keg
Lift Upright
Connect to
CO2 Line
Keg Base Board
Connect to Tap
Tower Line
Follow these steps below to tap the Beer Keg.
1. Make sure the black pull handle of the Keg Coupler is in the open (up)
position before installing it on the keg (Fig. 1). Insert the Keg Coupler into
the locking neck of the Beer Keg and turn clockwise until it locks into
position (Fig. 2). This means that it is secured to the Beer Keg.
2. Make sure the Tap Tower is in the closed (handle pointing straight back) position before
connecting the Keg Coupler to the Beer Keg (Fig. 3). To secure the tank connection,
pull the Keg Coupler handle out and push down until it locks into position. Listen
for the“click”of the pull handle when it shifts into the nal downward position
(Fig. 4). This will open the beer and CO2gas valves. The Keg is now tapped.
3. Carefully tilt the Keg and rest the edge on the Keg Base Board on the
bottom of the Interior Cabinet. Slide the Beer Keg slowly, ensuring
that it is properly located (Fig. 5) and carefully close the door.
HOW TO OPERATE
Follow the steps below to dispense beer.
1. Make sure that the KEGORATOR ™ is plugged in properly to
a 120V, 60Hz, 15 Amps grounded AC outlet.
2. Place the Drip Tray under the beer faucet to avoid messes from excess beer.
3. Pour beer by pulling the Tap Handle towards you to dispense beer. Refer to
the section on Tapping the Beer Keg if the beer does not dispense.
4. Increase the pressure if the beer runs too slowly (see Setting the
Double Regulator section). 8-10 PSI is recommended.
5. Hold the glass steady at a 45° angle. When it is ²/ 3 full, straighten the
glass. Proper foam should be a tight creamy head and the collar
on an average glass should be ¾”to 1” high, ideally.

ENGLISH
14
HELPFUL TIPS
• IMPORTANT! If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 8 hours before plugging the unit in.
• It is recommended that you ush the hoses with water prior to
rst use to remove any dust and debris from shipping.
• Open the CO2 Tank with a ¼ turn to start, then use the regulator to
adjust to desired pour. If it is not enough, continue to open the CO2 Tank
by a ¼ turn and use regulator until desired setting is reached.
• It is normal to see condensation form on the faucet. It is caused by
the dierence in temperature between the cold beer and the inside
of the faucet when beer is owing through the line.
• If your CO2 Tank Band breaks during assembly, it is recommended
to use a bungee cord to secure your CO2 Tank.
• Humidity can cause ice to build up inside the unit, so you will need to periodically
defrost it. A hole in the back of the unit will allow water to drain out of the KEGORATOR™.
NOTE: Do not use sharp objects to remove ice build up as this may damage the unit.
Foamy Beer
Follow these steps to prevent foamy beer:
1. Conrm the packing spring in the Keg Coupler is removed and discarded. It
is not to be placed inside the Keg Coupler when unit is assembled.
2. Make sure there is only (1) Backow Stopper inserted and it falls out easily if the Keg
Coupler is ipped over. If you have to force it out with a screwdriver, it is getting
lodged in the Keg Coupler. Try exchanging it with the included replacement.
3. Conrm the beer lines are not kinked and are clean.
4. You may need to adjust down your pressure, even if it is below the recommended 8-12 PSI:
• Before lowering the pressure, close the CO
2
Shut O Valve (turn to 9 o’clock position)
and use the provided 1.5mm Allen Wrench to loosen the Allen Set Screw on the
red +/- adjustment dial. This will restrict excess CO
2
from entering the keg.
• Adjust the pressure down to 8 PSI or below. Lock the red +/- dial
back in place by tightening with the Allen Wrench.
• Pull the Release Valve on the Regulator to get an accurate reading of CO
2
pressure.
• With the Shut O Valve still closed, move down to your Coupler.
• Pull the release valve on the Coupler to remove any excess CO
2
that may have been pushed into the keg at another point.
• Once most or all has released, open the Shut O Valve (6
o’clock position) and attempt to pour a beer.
5. Keep in mind that jostling a keg can create foamy beer.
6. Temperature also may aect the beer, so be sure it is not too warm
or too cold. 37 degrees F is an ideal temperature.
7. A faulty valve on the keg itself may cause the Keg Coupler to not seal well. Make sure all
connections are secure and well tightened. Ensure all Washers are intact and correctly placed.
Conrm the Directional Washer has a hole in it when pinched between the ngers.

ENGLISH
15
CLEANING & MAINTENANCE
To prevent the buildup of yeast, mold and bacteria, it's recommended that you clean your
KEGORATOR™ every time you switch a keg or every ve weeks, whichever is shorter.
NEVER use an abrasive sponge, cloth or scouring pad on this appliance.
Clean Beer Lines
For best results, we recommend purchasing a beer line cleaning kit. There
are several dierent methods for cleaning beer lines, including hand pump
cleaning kits, pressurized cleaning kits, and recirculating cleaning pumps.
Follow the directions included in each kit to clean your KEGORATOR™.
Clean Tap Tower Spigot
As beer residue left behind on the Tap Tower Spigot evaporates, it leaves behind sticky
sugars that can make the handle hard to pull. To avoid this, remove clean the Tap Tower
Spigot after every use.
IMPORTANT! Be sure to untap your keg before removing the Tap Tower Spigot.
1. Remove the Spigot Handle, then use the Tap Tower Wrench to
remove the Tap Tower Spigot. Be sure to not lose the interior
spring when removing the Tap Tower Spigot.
NOTE: The Tap Tower Spigot has a reverse thread and can be
removed by turning clockwise.
2. Wash the Spigot Handle, Tap Tower Spigot
and interior spring in hot, soapy water. Allow
parts to dry before reassembling.
When Unit Is Not In Use
Adjust the temperature gauge to MIN, especially when in colder environments as this unit
does not self-defrost and ice may build up inside the unit.
NOTE: To avoid permanent damage to the unit, never use
sharp objects to remove built up ice inside the unit.
Tap Tower
Spigot
Spigot Handle
Spring

ENGLISH
16
RETURNS & WARRANTY
SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF
THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.
KEGORATOR™ / KRS2100 SERIES
Should you have any questions, please contact us via email or at the customer service number listed
below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.
Distributed by:
Nostalgia Products LLC
1471 Partnership Dr.
Green Bay, WI 54304-5685
Customer Service
Phone: [phone]
Web: www.nostalgiaproducts.com
Customer Service Inquiry
To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and ll
out the Customer Service Inquiry form and click the Submit button.
A representative will contact you as soon as possible.
Product Warranty Terms
Nostalgia Products LLC (the“Company”) hereby warrants that for a period of one (1) year from the
date of original purchase, this product will be free of defects in material and workmanship under
normal home use, provided that the product is operated and maintained in accordance with the
operating instructions. As the sole and exclusive remedy under this warranty, the Company will
at its discretion either repair or replace the product found to be defective, or issue a refund on the
product during the warranty period. This warranty is only available to the original retail purchaser of
the product from the date of initial retail purchase, and is only valid with the original sales receipt, as
proof of purchase date is required to obtain warranty benets. All warranty claims must be brought
to the attention of the Company within the warranty period and no later than 30 days of the failure
to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling,
misuse, accident, alteration, improper replacement parts, or other than ordinary household use.
You may be required to return the product (with shipping prepaid by you) for inspection and
evaluation. Return shipping costs are not refundable. The Company is not responsible for returns
damaged or lost in transit. Unless otherwise specically permitted by the operating instructions, this
warranty applies to indoor household use only. In order to obtain service under this warranty, please
contact the Company at the telephone number listed above or by lling out the Customer Service
Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.
This warranty is in lieu of all other warranties, expressed or implied, including warranties of
merchantability and tness for a particular purpose, which are hereby excluded to the extent
permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential,
or special damages arising out of or in connection with this product or the use thereof. Some
states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or
consequential damages, so the foregoing exclusion or limitation may not apply to you.
This warranty does not apply to re-manufactured merchandise.
Please read the operating instructions carefully. Failure to comply
with the operating instructions will void this warranty.
For more information, visit us online at www.nostalgiaproducts.com.
Like us on Facebook at www.facebook.com/NostalgiaElectrics.
Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.
Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

17
FRANÇAIS
17
TABLE DES MATIÈRES
SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CONSIGNES IMPORTANTES DE SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . .18
CONSIGNES IMPORTANTES SUPPLEMENTAIRES . . . . . . . . . . . . . . . . . . . . . .18
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PIÈCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
POSE DES ROULETTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
INSTALLATION DE LA TOUR À FÛT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
APERÇU DE L'ASSEMBLAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ATTACHER LE RÉGULATEUR AU RÉSERVOIR DE CO2 . . . . . . . . . . . . . . . . . . .24
ATTACHER LE COUPLEUR AU RÉGULATEUR. . . . . . . . . . . . . . . . . . . . . . . . .24
ATTACHER LE COUPLEUR À LA TOUR À FÛT . . . . . . . . . . . . . . . . . . . . . . . .25
INSTALLATION DE LA BARRE DE RETENUE / RAMASSE-GOUTTES . . . . . . . . . . .25
INSTALLATION DU RÉSERVOIR À CO2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
RÉGLAGE DU DOUBLE RÉGULATEUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PRÉLÈVEMENT DU BARIL DE BIÈRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
COMMENT FAIRE FONCTIONNER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
CONSEILS UTILES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
NETTOYAGE ET ENTRETIEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
RETOURS ET GARANTIE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
SÉCURITÉ
Spécications de l'appareil :
110 W, 115 V, 60 Hz, 1,2A (ampères max. = 6A)
Votre sécurité est très importante, ainsi que celle des autres.
Nous avons fourni de nombreux messages de sécurité importants dans ce manuel
et sur votre appareil. Toujours lire et respecter les consignes de sécurité.
Ceci est le symbole d'alerte de sécurité.
Ce symbole vous signale les dangers potentiels qui peuvent
causer des blessures graves pour vous et les autres.
Tous les messages de sécurité suivront le symbole d'alerte de sécurité.
Tous les messages de sécurité vous diront quel est le danger potentiel
et vous diront comment réduire le risque de blessure et vous diront
ce qui peut arriver si les instructions ne sont pas suivies.

18
FRANÇAIS
18
CONSIGNES IMPORTANTES DE SÉCURITÉ
Une personne qui n'a pas lu et compris toutes les instructions de
fonctionnement et de sécurité n'est pas qualiée pour faire fonctionner cet
appareil. Tous les utilisateurs de cet appareil doivent lire et comprendre
ce mode d'emploi avant d'utiliser ou de nettoyer cet appareil.
Lorsque l'on utilise un appareil électrique, il faut toujours
respecter les précautions de base, y comprises celles-ci :
1. Lisez toutes les instructions avant d'utiliser cet appareil.
2. NE TOUCHEZ PAS aux surfaces chaudes. Utiliser les poignées ou les cadrans.
3. Cet appareil n'est PAS UN JOUET.
4. Ne pas laisser à la portée des enfants.
5. Les jeunes enfants non supervisés ainsi que les personnes intellectuellement
atteintes ne doivent jamais faire fonctionner cet appareil.
6. Une surveillance étroite est nécessaire lorsque tout appareil
est utilisé par ou à proximité des enfants.
7. Pour protéger contre les chocs électriques ne pas submerger le cordon, la
che ou une partie de cette unité dans l'eau ou d'autres liquides.
8. Ne pas utiliser cet appareil lorsque les pièces sont manquantes ou brisées.
9. Toujours débrancher la prise lorsque l'appareil n'est pas en fonctionnement,
avant de retirer les pièces et faire le nettoyage. Laisser refroidir avant de
remettre ou de retirer les pièces et avant de faire le nettoyage.
10. NE PAS utiliser l'appareil ayant un cordon ou une che électrique endommagée, ni
suivant un mauvais fonctionnement ou une détériorartion quelconque. Retournez-
le à l’atelier de réparation le plus proche pour examen, réparation ou réglage.
11. Le fabricant ne recommande pas l’utilisation d’accessoires autres que ceux
fournis par le fabricant. L'utilisation d’accessoires peut causer des blessures.
12. N'employez PAS l'appareil à d'autres ns que son usage prévu.
13. NE PAS utiliser l'appareil à l'extérieur. UNIQUEMENT POUR USAGE DOMESTIQUE.
14. NA PAS placer sur ou près d'un brûleur à gaz ou électrique ou dans un four chaué.
15. NE PAS mettre aucunes des pièces de cet appareil au lave-vaisselle.
16. NE JAMAIS laisser le cordon dépasser sur le côté d'une table ou
d'un comptoir ou toucher des surfaces chaudes.
17. NE JAMAIS laisser l'appareil sans surveillance tout en cours
d’utilisation ou lorsqu’il est branché sur une prise.
18. Soyez extrêmement prudent pour déplacer un appareil contenant des liquides chauds.
19. Toujours brancher la prise de l’appareil tout d’abord, puis branchez dans
la prise murale. Pour débrancher l’appareil, remettre tous les boutons en
mode « arrêt » (o), puis débranchez la che de la prise murale.
CONSIGNESIMPORTANTESSUPPLEMENTAIRES
Instructions et précautions de sécurité
1. Avant de jeter votre ancien appareil, enlevez la porte des pentures an
que les enfants ne puissent pas facilement s'y piéger à l’intérieur.
2. NE PAS faire rouler les KEGORATORMC chargés de barils de bière en fût pleins sur les tapis.
