NovaFlex Nova Flex Design Series Operator's manual

1. PRE-LIGHT PRODUCT
Pre-light ribbon to ensure the color is correct.
2. TURN POWER OFF AT CIRCUIT BREAKER
SHOCK HAZARD! May result in serious injury or death.
Turn power OFF at circuit breaker prior to installation.
3. DETERMINE LOCATION TO INSTALL
Dry-t the lights to the desired location BEFORE
removing the adhesive backing. Refer to your
conguration diagram for a list of products and zone
locations when applicable.
Also dry-t channel to the location if you are using.
4. INSTALL CHANNEL (OPTIONAL)
OPTION 1:
Install channel clips to the wall with screws. (Clips
should be mounted at the beginning and end of each
section of channel and at 1/3 and 2/3 the length of each
channel section.
Example: 78” section of channel
clips mounted to wall at start, 26”, 52” and the
end at 78”.
OPTION 2:
Install channel directly to the wall with screws. Place
screws at the begining and end of each section of
channel and at 1/3 and 2/3 the length of each channel
section.
5. PREPARE SURFACE FOR LEDs
Wipe down surface to remove any dust particles to
ensure a proper installation. For slippery surfaces, pre-
sand the area before installing the lights or use Primer
94 from 3M to prime the surface.
6. REMOVE ADHESIVE BACKING
Once t is conrmed, remove 3M adhesive backing
and install to your desired location. Adhesive MUST BE
REMOVED for proper heat dissipation.
7. INSTALL RIBBON
Install ribbon to your desired location and use the
wiring diagram, on the back, as a guide to connect. Do
NOT mount with components or board touching any
flammable surfaces. Do NOT press on LEDs or connect
max runs.
8. TURN POWER ON AT CIRCUIT BREAKER
Once your ribbon is connect using the diagrams on the
back, turn the power on at the circuit breaker.
ON
OFF
ON
OFF
STEP-BY-STEP INSTALLATION
novaexled.com | 800.595.6302
Configuration Guide
Group Name # of runs Item Code Description Qty. U/M
Run # 1---24’ 2 NF-DS-O-128-24V-3000K
Nova Flex Design Series IP65 128 24 Volt
3000K
120in HW Lead + 143in LED
24 ft.
Run # 1---24’ NF-PS-96W-24V-0/10V 96 Watt 24 Volt 0/10V Dimming UL Listed
Power Supply with JBox - 120-277V 1 each
Run # 1---24’ NF-CH-1612-2M Surface 1612 Track - 2 Meter Section 4 each
Run # 1---24’ NF-CH-1612-C/SOFT-2M Soft Cover for Surface 1612 Track- 2 Meter
Section 4 each
Run # 2---24’ 2 NF-DS-O-128-24V-3000K
Nova Flex Design Series IP65 128 24 Volt
3000K
120in HW Lead + 143in LED
24 ft.
Run # 2---24’ NF-PS-96W-24V-0/10V 96 Watt 24 Volt 0/10V Dimming UL Listed
Power Supply with JBox - 120-277V 1 each
Run # 2---24’ NF-CH-1612-2M Surface 1612 Track - 2 Meter Section 4 each
Run # 2---24’ NF-CH-1612-C/SOFT-2M Soft Cover for Surface 1612 Track- 2 Meter
Section 4 each
Run # 3---17’ with one
90 degree bend NF-PS-96W-24V-0/10V 96 Watt 24 Volt 0/10V Dimming UL Listed Power Supply with JBox - 120-277V 1 each
Run # 4---15’ 1 NF-DS-O-128-24V-3000K
Nova Flex Design Series IP65 128 24 Volt
3000K
120in HW Lead + 180in LED
15 ft.
Run # 4---15’ NF-PS-96W-24V-0/10V 96 Watt 24 Volt 0/10V Dimming UL Listed
Power Supply with JBox - 120-277V 1 each
Run # 4---15’ NF-CH-1612-2M Surface 1612 Track - 2 Meter Section 3 each
Run # 4---15’ NF-CH-1612-C/SOFT-2M Soft Cover for Surface 1612 Track- 2 Meter
Section 3 each
Run # 4---15’ NF-CATALOG (1 pc) Nova Flex Catalog (1 pc) 1
This order was customized by Nova Flex to save you an estimated install time of : 0hr and 45minutes
Installation guides can be found at www.novaflexled.com/resources/
We appreciate your business!
Do not attempt to make sharp bends. Excessive or
exaggerated bending and twisting should be avoided. This
stress can split the PU coating and damage the circuit.
NOTE: IP65 is water resistant & IP68 is protected against
water; power supply is NOT.

E-Series Hardwire
OUTPUT
INPUT
AC POWER
N (White)
L (Black) V+ (Red to Red)
V- (Blue to Black)
L
N
Ground
Ground
OUTPUTINPUT
DIMMABLE WITH STANDARD MAGNETIC
LOW VOLTAGE (MLV) / INCANDESCENT TRIAC DIMMERS.
Electronic Hardwire
AC POWER
120 VAC Switch (Non-Dimming)
*Only NF-PS-CLG150W12V-HW and NF-PS-CLG100W2V-HW will have a ground wire.
Ground
LBrown
Blue CN (Blue)
ACL (Brown)
V+ (Red)
V- (Black)
INPUT
OUTPUT
*Ground
N
Plug & Play
AC POWER
IN-LINE DIMMER/
CONTROLLER
NF-C-Y
NF-C-MF-xFT
0 - 10 VOLT
AC POWER
Ground
LED Driver
Red (+)
White (N)
Black (L) Black (-)
Gray
Violet
0-10V
Dimmer
S3i Wireless Receiver
NF-S3i-WR-1009
NF-PS-CLG100W-24V-HW
Red (V+)
Black (V-)
NF-PS-CLG100W-24V-HW
Run #1
Run #2
120V AC (Line)
NF-A-UNV
120V AC (Line)
y
y
y
INPUT
OUTPUT
Black Wire = V- | Red Wire = V+

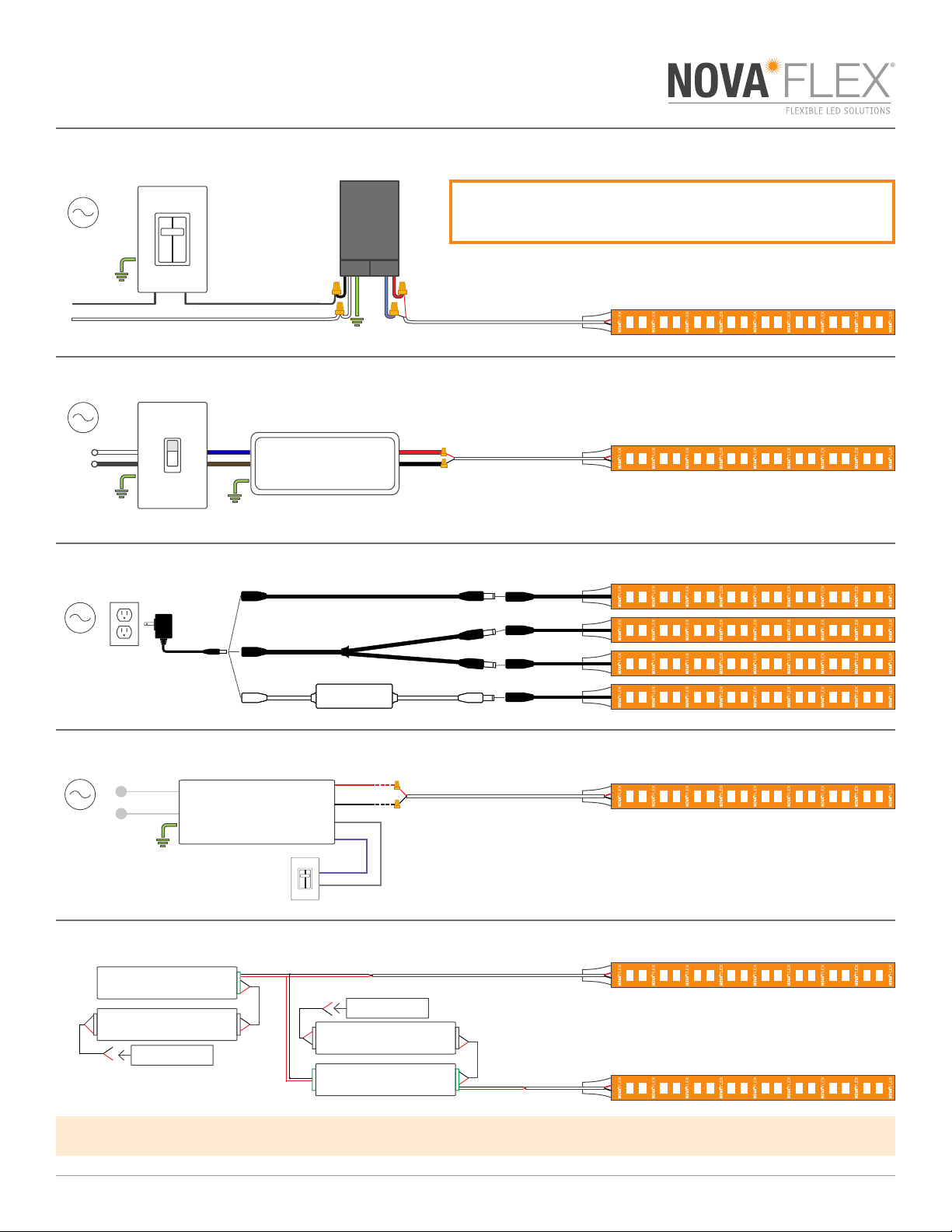

STATIC COLOR WIRING DIAGRAMS
novaexled.com | 800.595.6302

ADJUSTABLE WHITE WIRING DIAGRAM
S3i Wireless Receiver
NF-S3i-WR-1009
NF-PS-CLG100W-24V-HW
NF-PS-CLG100W-24V-HW
120V AC (Line)
NF-A-UNV
120V AC (Line)
y
y
y
INPUT
OUTPUT
Run #1
Run #2
Black Wire = V+ | Yellow Wire = V- | White Wire (Orange) = V-
RGBW WIRING DIAGRAM
S3i Wireless Receiver
NF-S3i-WR-1009
NF-PS-CLG100W-24V-HW
NF-PS-CLG100W-24V-HW
120V AC (Line)
NF-A-UNV
120V AC (Line)
y
y
y
INPUT
OUTPUT
Run #1
Run #2
Red Wire = 1 | Green Wire = 2 | Blue Wire = 3 | White Wire (Orange) = 4 | Black Wire = V+
RGB WIRING DIAGRAM
S3i Wireless Receiver
NF-S3i-WR-1009
NF-PS-CLG100W-24V-HW
NF-PS-CLG100W-24V-HW
120V AC (Line)
NF-A-UNV
120V AC (Line)
y
y
y
INPUT
OUTPUT
Run #1
Run #2
Red Wire = 1 | Green Wire = 2 | Blue Wire = 3 | Black Wire = V+
ADDITIONAL RESOURCES
For additional resources, visit our website at www.novaflexled.com/resources/
DYNAMIC WIRING DIAGRAMS
novaexled.com | 800.595.6302

novaexled.com | 800.595.6302
INSTALLATION GUIDE - LED RIBBON SERIES
PLEASE READ BEFORE INSTALLING
• Pre-light the product to make sure the selected color
is correct for your application.
• Dry-t the lights to the desired location BEFORE
removing the adhesive backing.
• Once t is conrmed, adhesive backing MUST BE
REMOVED for proper heat dissipation.
• Do not mount with components or board touching
any ammable surfaces.
• For slippery surfaces, pre-sand the area before installing
the lights or use Primer 94 from 3M to prime the surface.
• Do not press on the LEDs when installing.
• Do not connect max runs (see spec sheet).
• Wet location strips are protected against water;
power supply is NOT water resistant.
• 14 - 20 gauge wire is recommended.
• Do not attempt to make sharp bends. Excessive or
exaggerated bending and twisting should be avoided. This
stress can split the PU coating and damage the circuit.
LIGHTS ARE FLICKERING OR WILL NOT LIGHT?
l
Conrm polarity of wiring (make sure + and - are connected properly).
l
Check all connections to make sure they are secure and tight.
l
Ensure you are using a compatible dimmer and correct power supply.
Call 1-800-595-6302 for technical support.
l
Any installation of this product should be completed by a professional licensed electrician pursuant to all applicable
governing laws, ordinances, regulations, national and local electrical and building codes.
l
This is an electronic product which is susceptible to damage if handled incorrectly. Improper soldering or modication may
result in a voided warranty. Warranty cases will be made at Nova Flex’s discretion based on multiple factors.
l
Do not allow product to be punctured or penetrated by foreign objects; this can result in a short circuit.
l
Do not connect product directly to a 120 volt AC power source.
l
For best performance, do not load the DC power source more than 80% of its labeled rating.
l
Any use of this product is entirely at your own risk. Failure to utilize and install this product in its proper manner could result
in severe injury and/or property damage.
l
Keep out of reach of children.
This product is provided by the manufacturer “as is” “with all faults” without any warranties or representations, express or
implied, including, but not limited to the warranties of merchantability or tness for a particular purpose. In no event shall
manufacturer be liable for any special, incidental, punitive indirect or consequential damages of any kind. Manufacturer
offers this product and the user accepts it subject to the foregoing conditions, which may only be modied in a writing signed
by the manufacturer.
