01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
2
Product Description
Product name
LA-SO is the abbreviation for "Label Applicator Swing-On". The abbreviation ‘SO’
(swing on) distinguishes this applicator from other application techniques such as
‘blow on’ or ‘tamp on’.
Intended Use
The advantage of the LA-SO is that it can be used to apply labels to the fronts [1C]
of products, which is not possible using classic tamp-on applicators (e.g., LA-TO).
Furthermore, the LA-SO can also apply labels to the sides or tops of products moving
at speeds faster than 20 m/min.
Configurations
The LA-SO is available in both right-handed and left-handed versions. LA-SO and
ALX 92x must be of the same handedness, that is both must be RH or LH versions.
System requirements
Compressed air • Compressed air connection must be available
• Mounting surface for pressure controller: See Installing the pressure reducer 
on page 15
ALX 92x • ALX 92x with standard dispensing edge and firmware version 5.33 or higher.
• Installed applicator interface (optional) with firmware version 1.23 or higher. If the
applicator interface was retrofittet, pay attention that the D-Sub 15 connector for
Avery applicators (top side of the front hood) is available.
 Displaying printer firmware version: SERVICE DATA > MODULE FW VERS. >
System Version
 Displaying firmware version of applicator interface: SERVICE DATA > MODULE
FW VERS. > Applicator Int.

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
3
Functionality
The LA-SO is a supplementary module for mounting at an ALX 92x. It takes over la-
bels from the dispensing edge of the ALX 92x and moves them in a curved move-
ment to the product, where it presses the labels on (frontside) or rolles it on (side, top
side).
The advantage of the LA-SO is that it can apply labels to the front side of a product,
which is not possible with classic tamp-on applicators (e.g. LA-TO).
Furthermore, the LA-SO can label products that are moving with more than 20 m/min
on the side or top side.
[1] Designations for the sides of the product. Possible label positions for side labelling (left figure) and
top labelling (right figure).
ASide
BTop
CFront
Initially, the LA-SO is in idle mode and the swivel arm is folded inwards.
As soon as a start signal is received from the product sensor, the ALX 92x prints and
dispenses a label [2B]. The stream of compressed air emitted from the support air
nozzle [2A] presses the label against the pressure plate of the LA-SO [2C]. The label
is held in place there by a vacuum created by the fan on the swivel arm.
[2] Dispensing labels onto the pressure plate.
Once a label has been dispensed, a compressed air valve switches and causes the
swivel arm to move. The swivel movement ends once the time limit set in the ALS 92x
menu elapses. This time limit must be set so that the swivel arm reaches the product
before the reverse movement begins.
ABC
AC
B

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
4
Front labelling When applying labels to the front of a product, the entire surface of the label is
pressed against the pressure plate [3].
[3] Side labelling with LA-SO (RH) (B) on product front (A).
Side labelling When labelling the side of a product, the end of the label is first pressed against the
pressure roller. As the product moves forwards, it pulls the label away from the pres-
sure plate and the pressure roller presses the label against the product [4].
[4] Side labelling with LA-SO (RH) on product side.
A B

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
5
Technical Data
Label material
Label rate
Example:
With the application shown afterwards (Tab. 1) [5], a rate of 18 labels/min is possible.
 If one of the settings is changed, all other settings must be fit, what may also
change the label rate.

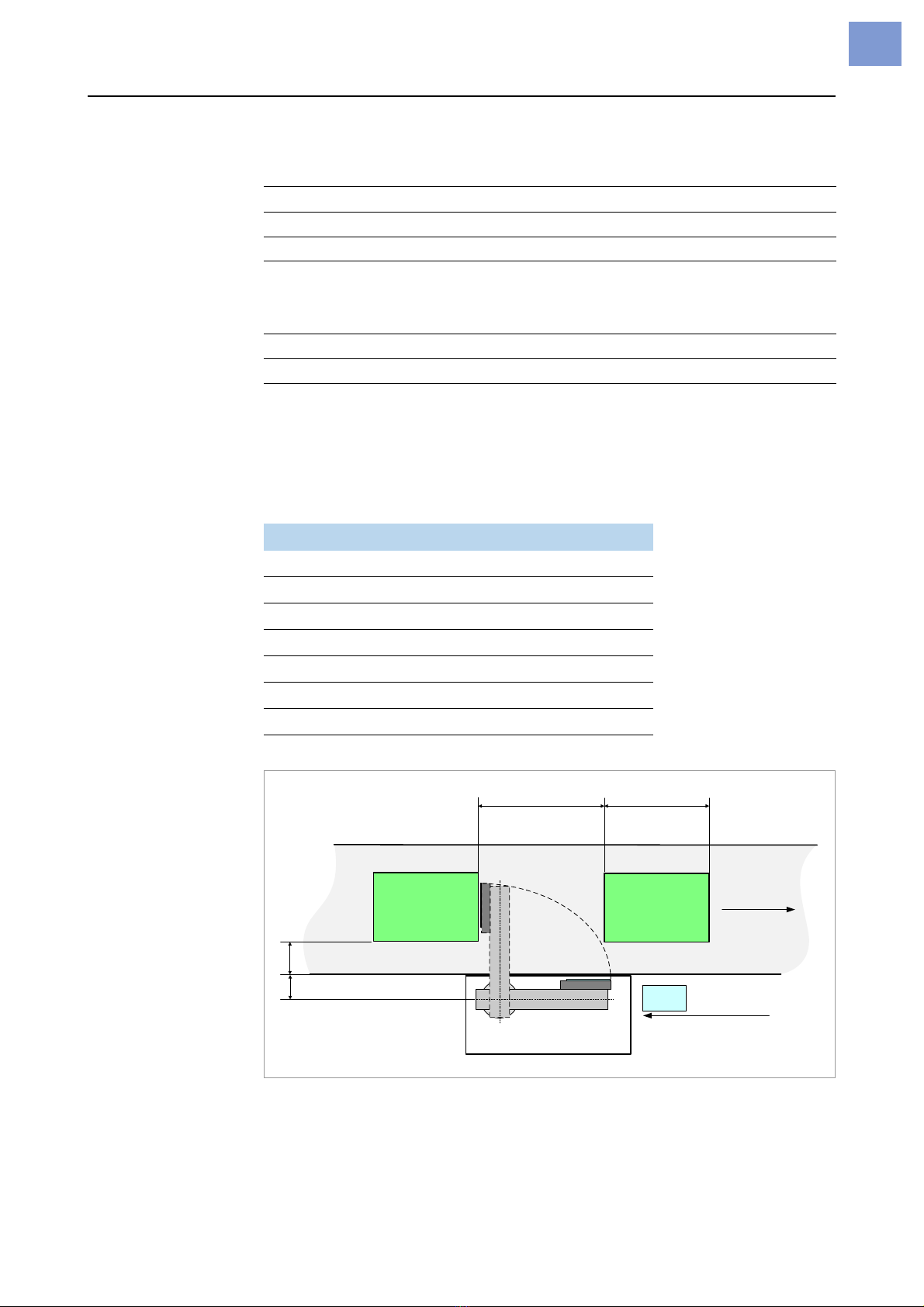

[5] LA-SO example application (schematic).
Type Self-adhesive (paper, plastic materials)
a)
a) As a result of static charge and friction effects, plastic materials may tend to crease during the dispen-
sation step. Therefore, plastic materials must be tested under application conditions before being
used in production.
Material width 80-150 mm
Material length 80-210 mm
Label on front max. 20 labels/min
a)
a) Depends on: pressure speed, pressure rate, product distance, product speed, label size and label ma-
terial.
Label on top/side max. 30 labels/min
a)
Setting Value
Distance LA-SO centre - Product 145 mm
Label length 152.4 mm
Apply time t
Appl
500 ms
Product length 400 mm
Product distance min. 230 mm
Print speed 200 mm/s
Product speed 15 m/min
[Tab. 1] Settings for example application.
100 mm
45 mm
Product length
Label Size
Printspeed
t
Dwell
Product
speed
Product distance

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
6
Application Process
[6] Application distance. Left: label on side. Right: label on front.
Dimensions
Connections
Ambient conditions
Application distance
a)
a) Distance between pressure dispensing system and label.
Label on front [6B]: approx. 10 cm
b)
Label on top/front [6A]: approx. 20 cm
b) When labels are used that are smaller than the pressure plate, the exposed area of the pads can be
added to the application distance.
Application direction
Side labelling: label on front or side,
see chapter Side labelling on page 4.
Top labelling: label on front or top,
see chapter Front labelling on page 4.
Tolerance of label position ±2mm
Product speed during
application
Label on front: max. 15 m/min
Label on side/top: max. 30 m/min
Air stream Blowers
A
B
W x H x D 240 x 355 x 500 mm
Weight 6.5 kg
Power supply Via applicator interface
Power consumption 15 VA
Supply air pressure 4-6 bar
Air consumption approx. 0.3 l/stroke
Operating temperature 5-40°C
Storage temperature 0-70°C
Air humidity 45-75% non-condensing
Noise emissions < 70 dB(A)
Protection rating IP 21

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
7
Component overview
Front of LA-SO
[7] LA-SO (RH), front.
No. Name
1 Fan (creates vacuum along pressure plate)
2 Limit stop with damper
3 Support air nozzle
4 Pressure roller
5 Pressure plate
[Tab. 2] Components on front of unit.
1
2
3 4
5

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO Product Description
8
Rear of LA-SO
[8] LA-SO (RH), rear.
No. Name
1 ALX 92x connector
2 Support air valve
3 Valve for swivel module
4 Choker valve for forwards movement
5 Choker valve for reverse movement
6 Swivel module
7 Compressed air connection
8 Connection and setting valve for support air nozzle
9 On-off valve
[Tab. 3] Components on rear of unit.
1
2
3
4
5
6
7
8
9

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO For your safety
9
For your safety
General safety notes
• Operating air pressure: 4-6 bar.
• The applicator must not be operated outdoors or in EX-areas.
• The applicator may only be installed and started up by authorized technicians.
• Lay cables and compressed air hoses in a way that nobody can stumble over it.
• Fix pneumatic hoses against lashing.
• Immediately replace defective pneumatic hoses.
• Only authorized technicians who are familiar with the associated hazards are
permitted to repair the applicator.
• Check the applicator regularly for faulty components. Immediately replace any
defective components with OEM parts! This reduces any safety hazards resulting
from the use of low quality parts.
• The on-off valve of the applicator must be set correctly. After switching on the
supply air, the swivel arm of the applicator must move slowly to the home posi-
tion. If the swivel arm moves abruptly, the on-off valve must be checked regard-
ing a defect or a misalignment of the valve, see Setting the on-off valve on
page 19.
• Never modify the design of the applicator (e.g., by installing a higher capacity
pneumatic cylinder). If the applicator is altered without authorization or used in
an unintended manner, all liabilities for damage and any other guarantees from
the manufacturer shall be rendered null and void.

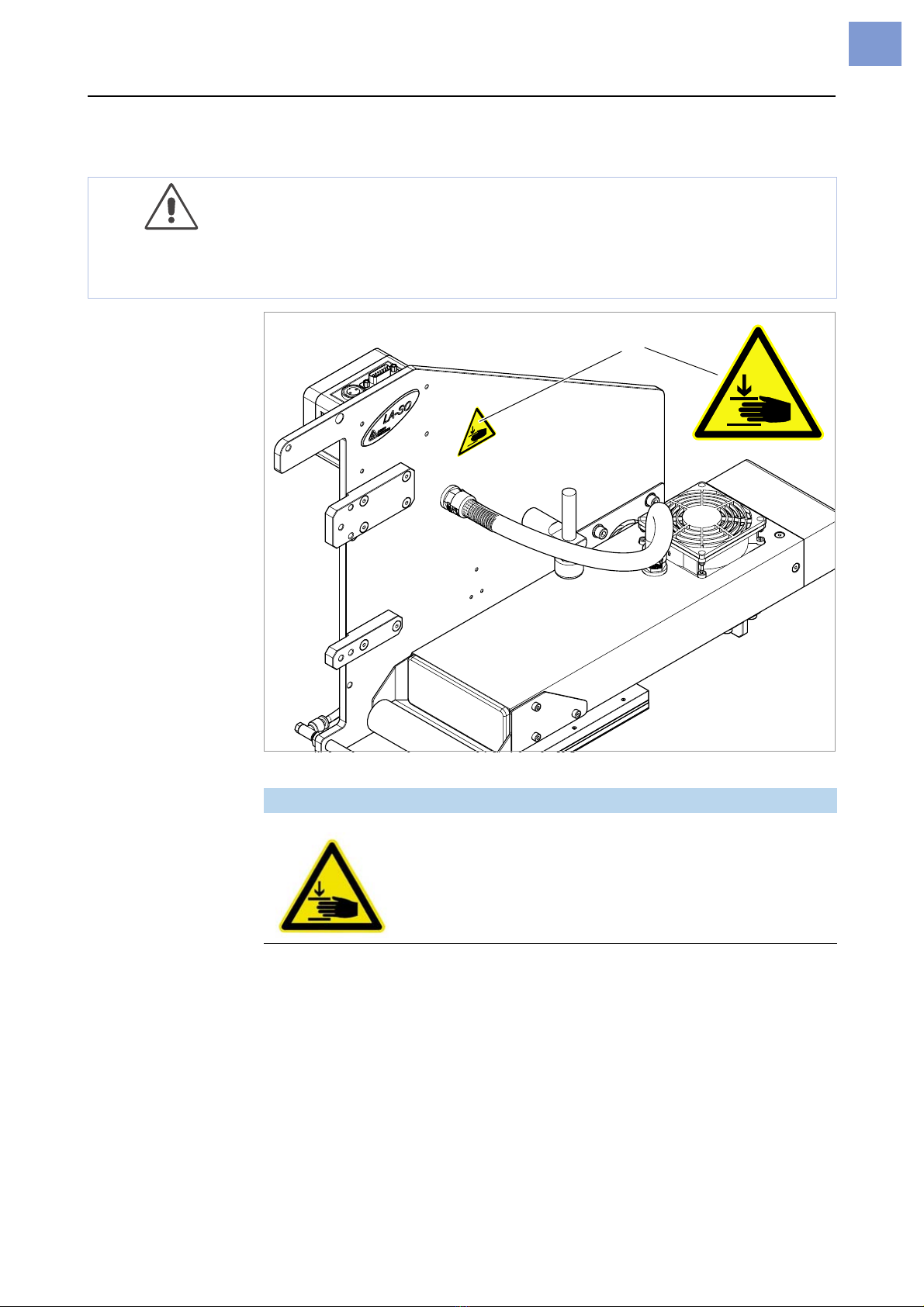

WARNING!
Danger of cuts and crush injuries especially at the following points:
• Between the swivel arm of the applicator and the dispensing edge.
• Between the swivel arm and a conveyor belt, if present.
Never operate the applicator without the protective equipment. See chapter
Connecting an interlocking guard on page 10.
Never remove or disable the safety equipment.
Never touch the applicator while it is moving.
When adjusting the system, make sure that the applicator is not actuated unin-
tentionally.

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO For your safety
10
Connecting an interlocking guard
According to the EC machinery directive, the LA-SO is a partly completed machine.
In order that the completed machine matches the health and safety requirements of
the machinery directive, LA-SO must be safeguarded against access by an appropri-
ate safeguarding device
1
(see [11]).

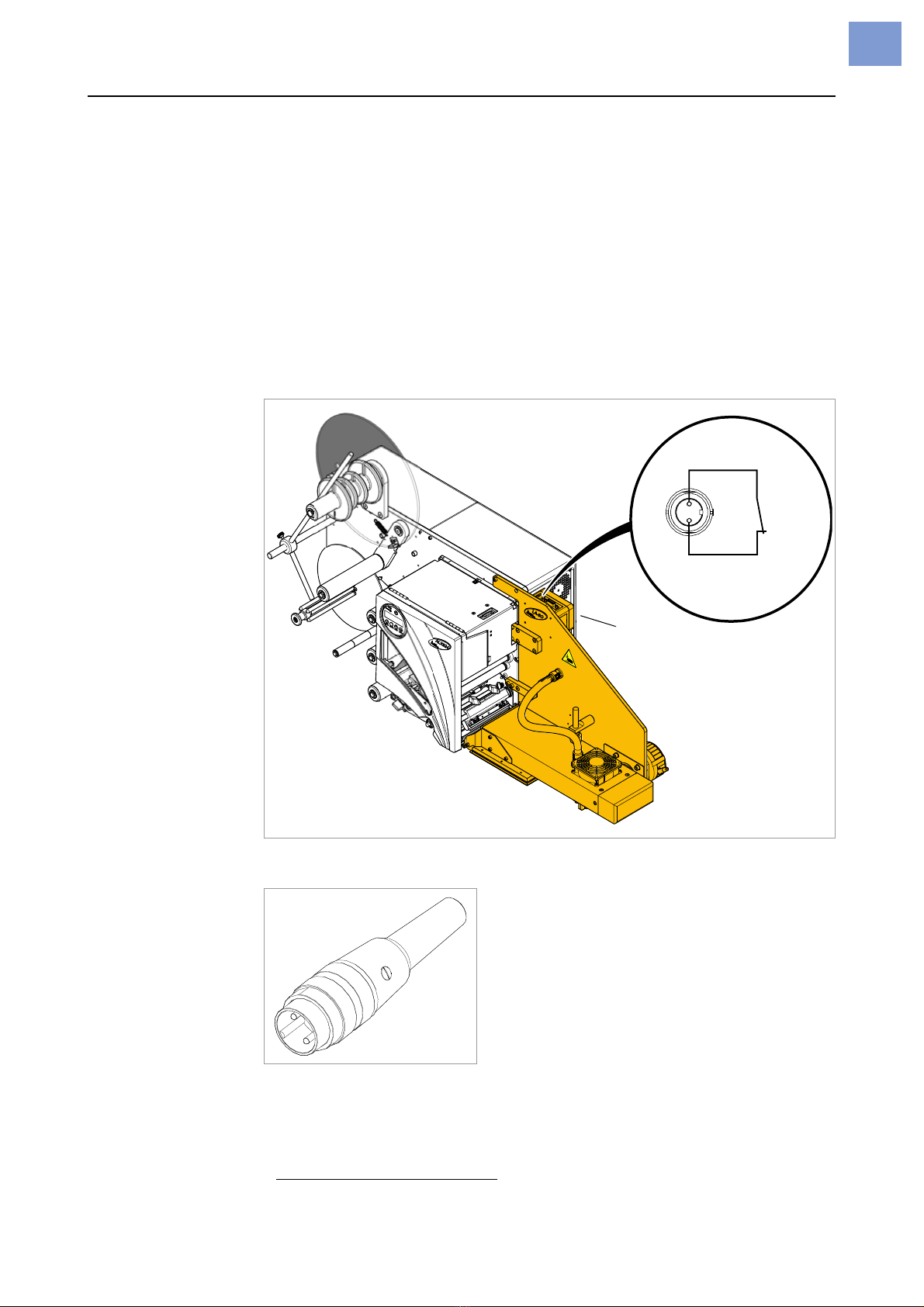

Connect the interlock switch [11D] of the safeguarding device to the connector
[9A] delivered with the applicator (see [10E]).
Plug the connector to the switch box [9B].
 Operation of the LA-SO without the described safeguarding device shall be re-
garded as abnormal use. Avery Dennison assumes no liability for damage due to ab-
normal use of the printer.
[9] Connecting the interlock switch (A) of the safeguarding device (or an emergency-stop switch) to a
LA-SO.
[10] Plug that comes with the LA-SO for
connecting an interlock switch to the
LA-SO (article number: A102076).
1) Movable interlocking guard according to EN ISO 12100-1, 3.25.4
A
B
7

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO For your safety
11
[11] Diagram of a movable interlocking guard:
AProtective guard closed. Interlock switch connected (C). Applicator is working.
BProtective guard open. Interlock switch not connected (D). Applicator stopped.
A
B
C
D
E

01/12 Rev. 5.07-01 SERVICE MANUAL Mounting / Setup / Service
LA-SO For your safety
12
Warning notes on the device
[12] Warning note on the LA-SO.
CAUTION!
Warning notes on the machine provide important information for the operating per-
sonnel.
Do not remove warning notes.
Replace missing or illegible warning notes.
Warning note Meaning Article no.
The warning note „pinch point“ warns you of
the danger posed by movements of the
machine; they can cause crush injuries.
A103530
[Tab. 4] Meaning of the warning notes.
A

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Assembly
13
Assembly
Preparing the connection cable for
the interlock circuit
The LA-TO comes with a plug [13] that is intended for
connecting an interlocking guard.
Tool
Small screwdriver (0.6x3.5 mm)
Assembly
Connect the plug [13] to the interlock switch, which
is part of the interlock circuit.
See chapter Connecting an interlocking guard on
page 10.
WARNING
Risk of tripping!
Lay cables and compressed air hoses in
a way that nobody can stumble over it.
WARNING!
Risk of injuries caused by lashing
pneumatic hoses.
Fix pneumatic hoses against lashing.
Immediately replace defective
pneumatic hoses.
[13] Plug for connecting the interlock circuit (comes with the
applicator).

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Assembly
14
Mounting on ALX 92x
Tools
Hex screwdriver 4 mm
Assembly
1. Switch-off the ALX 92x.
2. Screw the LA-SO with 6 screws to the ALX 92x [14].
3. Connect the cable to LA-SO and ALX 92x [15A]
(article no. A3744).
4. Connect the interlock circuit of the protective guard
to the LA-SO [15B].
See chapter Connecting an interlocking guard on
page 10.
Connecting an interlock circuit is mandatory.
The LA-SO must not and cannot be operated with-
out.
5. Install the pressure regulator.
See chapter Installing the pressure reducer on
page 15.
6. Connect the compressed air supply.
See chapter Connecting the compressed air hose
(Ø 10 mm) on page 16.
7. Switch-on the ALX 92x.
8. Make setting in the parameter menu.
See chapter Settings in parameter menu on
page 17.
9. Adjust the LA-SO.
See chapter Settings on page 17.

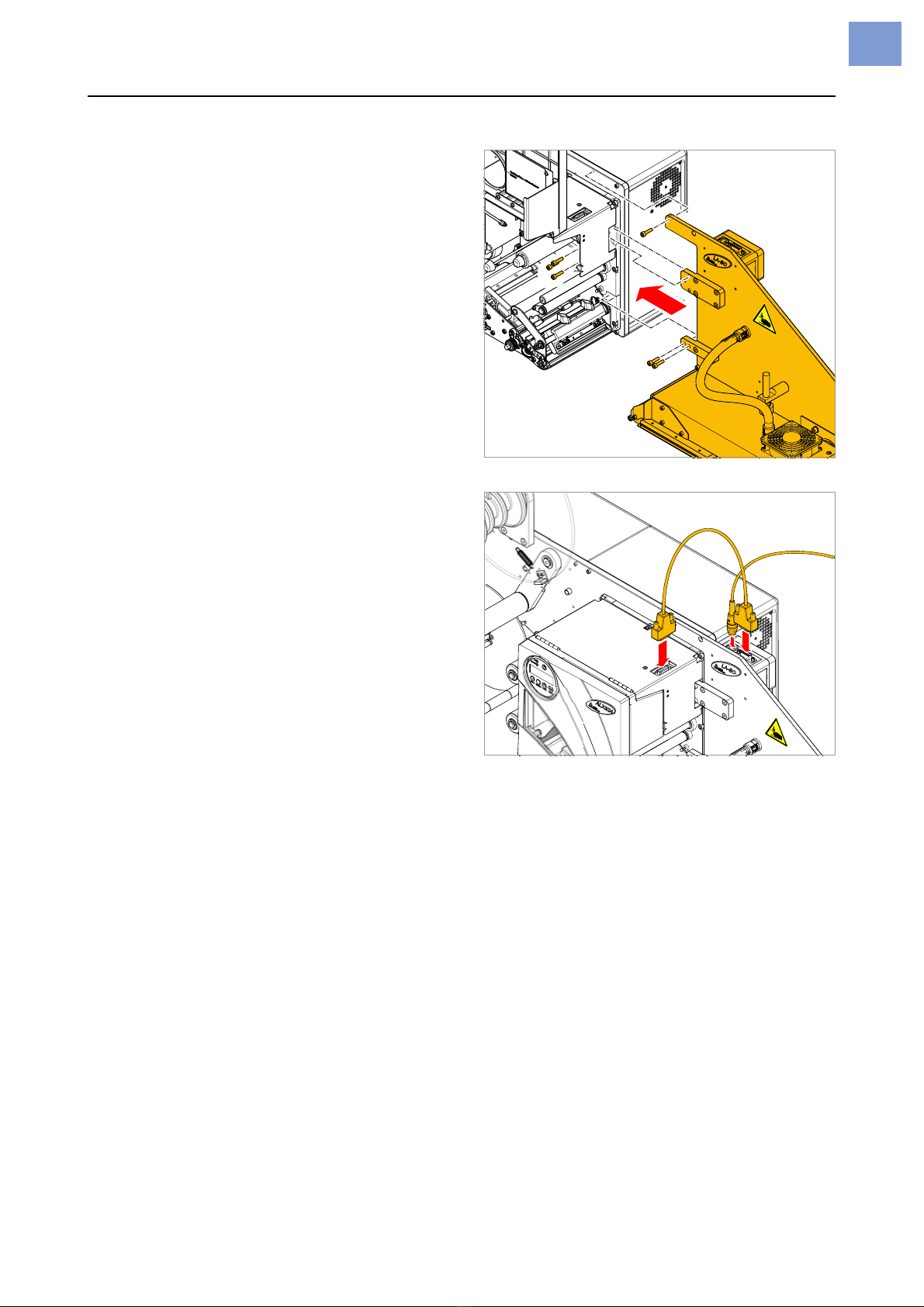

[14] Mounting the LA-SO on an ALX 92x.
[15] Connecting to an ALX 92x.
B
A

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Assembly
15
Installing the pressure reducer
Tools:
•Screwdriver
•5 mm hex screwdriver
The pressure reducer can be fastened directly onto the
enclosure [16C] or using a mounting bracket [16A].
Fasten the pressure tubes so that the air flows
through the pressure reducer in the direction of the ar-
row [17B].
 The connector marked with an arrow is the com-
pressed air outlet. This must be connected to the
LA-SO.
 The compressed air outlet can be optionally set to
the right or left on the pressure reducer.
Installing the compressed air outlet for the opposite
side:
1. Remove the bolt plug [17A].
2. Remove the manometer [17C].
3. Install the bolt plugs and manometer to their oppo-
site sides.
Fastening Bolts Hole separation
With bracket M6x16 28 mm
Without bracket M4x45 35 mm
[16] Mounting the pressure reducer
[17] Rear view of the pressure reducer. Arrow = flow direction.
A
C
A
B
C

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Assembly
16
Connecting the compressed air
Connect the compressed air hose as pictured
opposite [18].
• Hose diameter: 10 mm
• Max. admissible compressed air pressure at the
pressure reducer: 10 bar
• The flow direction through the pressure reducer
can be reversed, if this is necessary for the installa-
tion (see previous chapter).
[18] Connecting the compressed air hose (Ø 10 mm)

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Settings
17
Settings
Settings in parameter menu
The following parameters determine how the ALX 92x
and LA-SO operate. You must set these parameters
before using the unit for the first time:
Dwell time
The required dwell time depends on the following fac-
tors:
• Product face to receive label (front or side)
– Front: Swivel arm must reach the product within
dwell time. Since the angle to be traversed is al-
ways 90°, the required time depends on the
speed of the swivel arm. The speed is set using
the choker valve on the swivel module.
– Side: The dwell time must be long enough to al-
low the swivel arm to reach the product where
the label is rolled on the side. Thus, the re-
quired time depends on the distance to be tra-
versed and the product speed.
• Product speed: The product speed affects the re-
quired dwell time (see above). With slowly moving
products, the swivel arm can move slower. There-
fore, the dwell time is longer than with quickly mov-
ing products.
• Product clearance: For products with a smaller
clearance, the swivel arm must move more quickly
back to the idle position than for products with a
larger clearance.
WARNING!
Pinch and shear hazard, especially at the
following locations:
• Between swivel arm and dispensing
edge.
• Between swivel arm and conveyor
belt, if any.
For this reason pay attention to the follo-
wing when triggering the applicator for test
or setup purposes...
keep a sufficient distance.
don´t touch the applicator.
Parameter Setting
APPLICATOR PARA > Applicator type LA-SO
APPLICATOR PARA > Application mode “After print”
APPLICATOR PARA > Dwell time Depends on application, see next section.
[Tab. 5] Parameter settings for operating LA-SO.

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Settings
18
Recommended starting value for front application:
400 ms (for 5 bar air pressure with choker valve for for-
wards movement turned in by 2.0 mm).
Setting the choker valve
The swivel unit is equipped with two choker valves: one
for forwards and one for reverse movement. The valves
limit the air flow whereby the following applies: the high-
er the flow rate, the faster the swivel arm will move. The
required speed depends on the product speed and the
product separation.
Tools
Small screwdriver (0.6x4 mm)
Setting
Increase flow rate (speed):
Turn the setting screw out.
Reduce the flow rate (speed):
Turn the setting screw in.
Factory setting:
Setting the dwell time
Set the dwell time using APPLICATOR PARA > Dwell time.
Recommended initial setting: 500 ms
Front labelling:
Change the dwell time in steps until the swivel arm
just barely reaches the product.
Side labelling:
Set the dwell time until the pressure roller of the
swivel arm is able to press against the product for a pe-
riod sufficiently long to apply the entire label.
Choker valve for … Setting depth
a)
a) Depth of setting screw as measured with callipers.
Forwards movement [19A] 2.0 mm
Reverse movement [19B] 1.4 mm
[19] Swivel module of LA-SO (RH).
AChoker valve for forwards movement
BChoker valve for reverse movement
AB

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Settings
19
Setting the on-off valve
The on-off valve [20A] is a safety relevant part of the
applicator. It prevents an abrupt backward movement
of the swivel arm, when the compressed air is switched
on.
The on-off valve is factory-set. The setting is fixed with
locking varnish.
If the swivel arm of the LA-SO moves back to the
home position very abruptly, as soon as the com-
pressed air is switched on, the on-off valve is not set
correctly or it is defective.
A faulty setting has to be corrected as described be-
low.
Exchange a defective valve. Set the new valve as
described below (only required, if the valve was not or-
dered at Avery Dennison).
Tools:
• Screwdriver, small (0.6x4 mm)
• Screw locking varnish
Setting:
1. Turn set screw [20B] up to the limit in direction
„slow“.
2. Plug in the supply air hose [20C]. Pull off the out-
hoses [20D].
The arrow at the valve shows the flow direction.
3. Set the supply air pressure to 6 bar.
4. Slowly turn out the set screw, until the supply air
starts streaming through the valve.
5. Turn out set screw ½ turn further.
6. Switch off the supply air. Pull off the supply hose.
7. Lock set screw with locking varnish.
WARNING
High risk of getting fingers or hands crushed
due to abruptly backwards moving swivel
arm.
Set the on-off valve as described below.
Be cautious when switching on the com-
pressed air.
[20] On-off valve at the LA-SO (RH).
A
B
C
D

01/12 Rev. 5.08-00 SERVICE MANUAL Spezielle Anwendungen
LA-SO Repair
20
Repair
Replacing the vacuum plate
Tool
Phillips screwdriver, size Ph 2
Replacing
1. Remove the 6 screws [21A].
2. Remove the vacuum plate.
3. Fasten the new vacuum plate.
The protruding edge [21B] of the rubber plate
points towards the pressure roller.
WARNING!
Injury hazard from unintentional starting
of applicator.
Before beginning with repair work,
unplug the compressed air line.
[21] Disassembling the vacuum plate
BA
