u s e r ’s m a n u a l
NVC-402C
NVDN-402C

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
2
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with the requirements of the following directives and national
regulations implementing the directives:
 Electromagnetic compatibility EMC 2004/108/EC.
 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and as well as 75VDC and
1500VDC.
WEEE Directive 2002/96/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical and
Electronic Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of
correctly, you will help to prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. It shall be handed over to the applicable collection point for used
up electrical and electronic equipment for recycling purpose. For more information about recycling of this
product, please contact your local authorities, your household waste disposal service or the shop where
you purchased the product.
RoHS Directive 2002/95/EC
Out of concern for human health protection and friendly environment, we assure that our products
falling under RoHS Directive regulations, regarding the restriction of the use of hazardous substances
in electrical and electronic equipment, have been designed and manufactured in compliance with the above
mentioned regulations. Simultaneously, we claim that our products have been tested and do not contain
hazardous substances whose exceeding limits could have negative impact on human health or natural
environment.
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self
installation in households by individuals without technical knowledge.
The manufacturer is not responsible for defects and damages that result from improper or inconsistent with
user’s manual installation of the device in the system.
INFORMATION

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
3
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A
PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE
YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER
DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO
USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE
PERSONNEL MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF
EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN
ACTION.
IMPORTANT SAFEGUARDS AND WARNINGS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a
direct influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer
is forbidden;
7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers
etc.) is not recommended since it may lead to heat build-up and damaging the device itself
as a consequence;
8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual;
SAFETY REQUIREMENTS

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
4
SAFETY REQUIREMENTS
9. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply
the camera from a power sources with unknown parameters, unstable or not meeting producer’s
requirements;
10. Signal cables (conducting TV or / and telemetric signal) should be placed in a way excluding the
possibility of damaging them by accident. Special attention must be paid to cables getting from the
camera and connecting the power supply;
11. To avoid equipment damage, whole TV circuit should be equipped with properly made
discharge-, overload- and lightning protection devices. Usage of separating transformers is
advised;
12. Electric installation supplying the device should be designed to meet the specifications given
by the producer in such a way that overloading is impossible;
13. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should
be conducted only by qualified service personnel;
14. Unplug the camera from the power source immediately and contact the proper maintenance
department when the following occurs:
 Damages to the power cord or to the plug itself;
 Liquids getting inside the device or exposure to strong mechanical shock;
 Device behaves in a way not described in the manual and all adjustments approved by the
manufacturer and possible to apply by user himself, seem not to have any effect;
 Camera is damaged;
 Atypical behaviour of the camera components may be seen (heard).
16. In necessity of repairs attention to using only original replacement parts (with their parameters
in accordance with those specified by the producer) should be paid. Non-licensed service and
non-genuine replacement parts may cause fire or electrocution;
17. After maintenance activities tests should be run to ensure proper operation of all the functional
components of the device.
Attention!
Technical changes reserved without prior notice and printing errors possible.

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
5
1. PACKAGE CONTENTS
 Video camera with plug in the lens mounting place
 Mount adapter for C type lens mount
 L wrench
 4 pin Mini-DIN connector (for video or DC-type auto-iris lens)
 Power connector
 User’s manual
If any of the listed equipment has been damaged during transport or if the package is incomplete,
the contents of package should be packed back in to the original box. Please contact your local
NOVUS distributor for further assistance.
2. MAIN CHARACTERISTICS
 Electronic day/night function (NVC-402C)
Mechanical IR cut filter (NVDN-402C)
 Horizontal resolution: 650 TVL (NVC-402C)
Horizontal resolution: up to 700 TVL (NVDN-402C)
 Min. illumination: 0.05 lx/F=1.2 (NVC-402C)
Min. illumination: from 0.005 lx/F=1.2 (NVDN-402C)
 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions
 Digital Noise Reduction (DNR)
 High Light Compensation (HLC)
 Privacy zones: 4
 Other functions: various picture effects, motion detection
 OSD menu, available:
Locally - from the buttons at the rear of the camera
Remote - by coaxial cable using remote controller NC-RCUTC (optional)
 Enclosure color: White
 Power supply: 12 VDC
FOREWORD INFORMATION

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
6
3. SPECIFICATION
FEATURES AND SPECIFICATION
Model NVC-402C NVDN-402C
Pick-up element CCD imager, 1/3” SONY Super HAD II
Number of Effective Pixels 976 (H) × 582 (V)
Horizontal resolution 650 TVL –color mode,
700 TVL –B/W mode
650 TVL –color mode,
650 TVL –B/W mode
Min. illumination 0.05 lx/F=1.2 –color mode (1/50 s),
0.05 lx/F=1.2 –B/W mode (1/50 s)
0.05 lx/F=1.2 –color mode (1/50 s),
0.005 lx/F=1.2 –B/W mode (1/50 s)
S/N Ratio ≥52 dB
Electronic Shutter Auto: 1/50 s ~ 1/100 000 s
Mount C/CS
Iris Mode D
Type Electronic D/N function Mechanical IR cut filter
Switching Mode Auto / Manual
Switching Level Adjustment Yes
Switching Delay 0 ~ 255 s
OSD English, Russian and others
Back Light Compensation
(BLC) Yes
High Light Compensation
(HLC) Yes
Wide Dynamic Range
(WDR) Yes
Digital Noise Reduction
(DNR) Yes
Privacy Zones 4
Motion Detection Yes
Image Processing Mirror effect, sharpening
Video Output BNC, 1.0 Vp-p, 75 Ohm
Dimensions (mm) 58(W) x 62 (H) x 128 (L)
Weight 370 g
Enclosure Aluminium, white
Power Supply 12 VDC
Power Consumption 0.9 W
Operating Temperature -30°C ~ 45°C

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
7
3.1 Dimensions
3.2. View of the camera, layout of the camera items
Rear view
1,2,4,5 - direction buttons LEFT, UP, RIGHT, DOWN
3- SET button
6 - POWER supply diode
7- BNC connector
8- Auto Iris Lens Connector

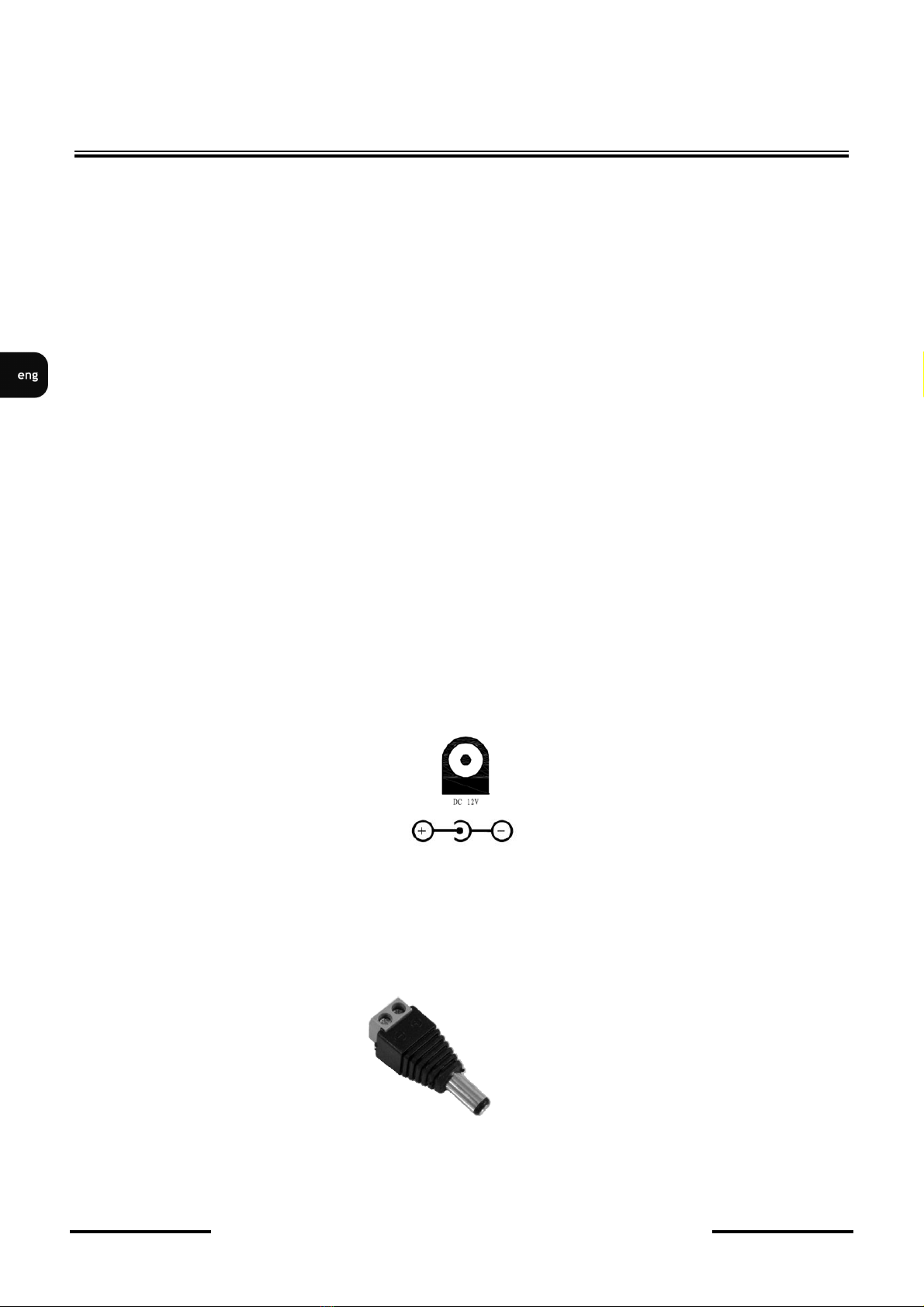

9 - Power supply connector 12V DC
FEATURES AND SPECIFICATION
8
6
9
2
4
3
5
1
7

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
8
Focus Adjusting Fixing
Screw
Focus Adjusting
4. INSTALLATION

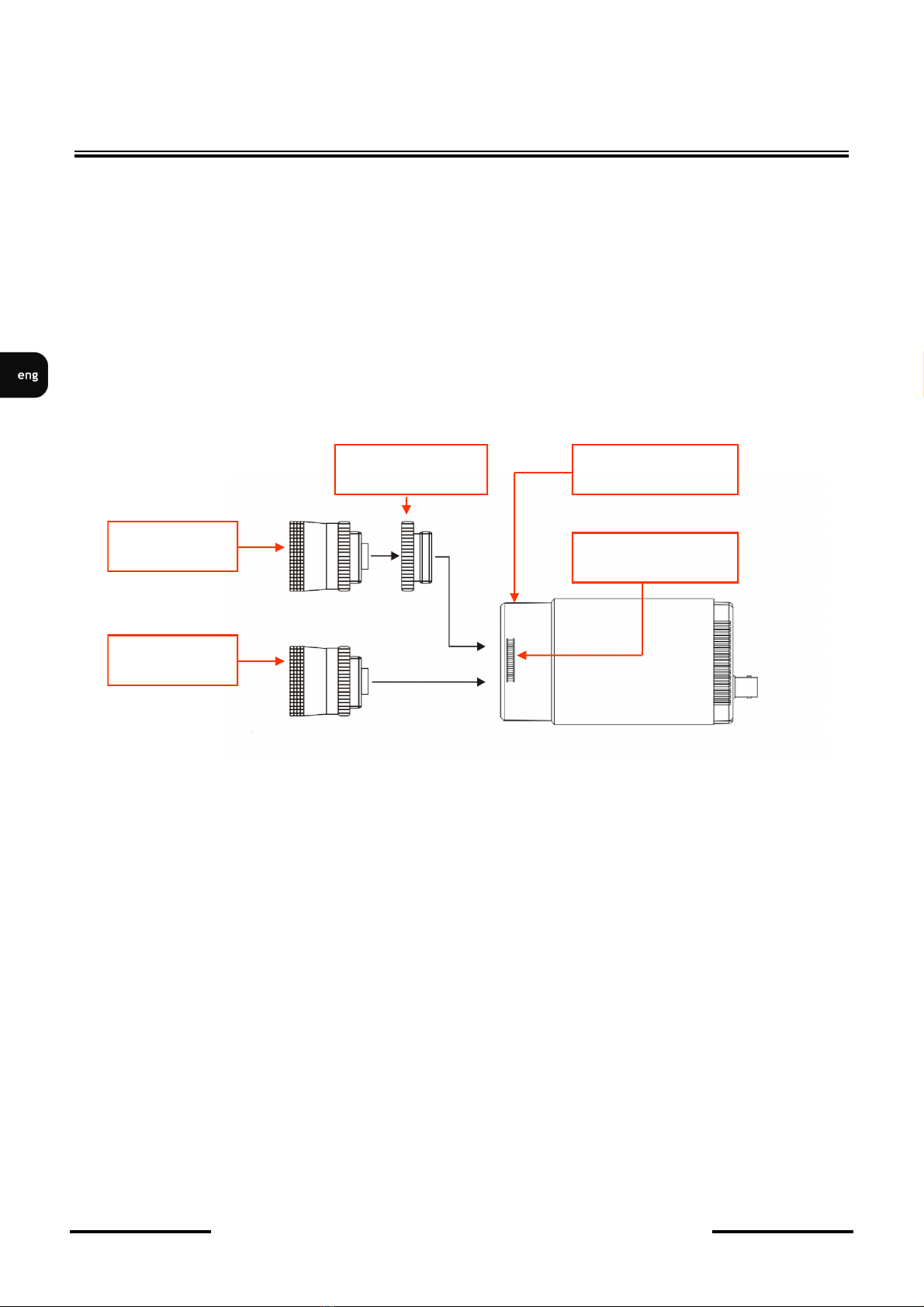

4.1 Lens installation
The NVC-402C and NVDN-402C cameras support manual and auto iris D type lenses. It is
recommended to use IR series lenses for day/night camera and for cooperation with IR illuminators.
In case of operation with IR illuminators it is necessary to use IR series lenses.
Thanks to ring, application usage of C-mount lenses is possible .
Note: In case of using CS-mount lenses additional ring is not needed.
4.1.1 Fixed iris lens installation
In order to install manual iris lens one should:
 Carefully remove the plug protecting the CCD pick-up element
 Carefully screw the lens to the end of the thread till slight resistance can be felt
 Supply power to the camera, adjust focal length and focus. In the MAIN SETUP menu set lens
control as MANUAL and set appropriate mode of electronic shutter
Note: For best results, perform focus adjustments at night (with iris fully opened) or while
using a #6 or #8 welder's glass in front of the lens to avoid overexposure.
INSTALLATION
C-mount lens
CS-mount lens
Ring
Side view

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
9
4.1.2 Auto iris lens installation (type D)
In order to install auto iris lens one should:
 Carefully remove the plug protected the CCD pick-up element
 Carefully screw the lens till slight resistance can be felt
 Plug the connector into the auto iris jack of the camera
 Set the DC/VIDEO driver switch on the DC position
Note: If lens cable does not end with a connector use the connector supplied with the camera.
According to the lens manual and advices below, one should solder the
cables to the connector and protect them against short circuit by the heat shrink
sleeves.
 In the camera menu set lens control as DC
 Supply power to the camera, adjust focal length and focus
Note: For best results, perform focus adjustments at night (with iris fully opened) or while
using a #6 or #8 welder's glass in front of the lens to avoid overexposure.
Note: The cameras are equipped with the circuit for iris control with the voltage level ad-
justment in the menu. Default settings are selected for the optimum quality of video
signal. It is not recommended to make any changes if it is not necessary. In case of
changes it is recommended to use #6 or #8 welder's glass in front of the lens and see
the signal on the oscilloscope. During adjustment AGC feature should be switched
off.
INSTALLATION
Pin 3 Pin 4
Pin 1 Pin 2 Heat shrink
sleeves
Top part
of the connector Lens cable
Bottom part of
the connector
Pin Function
1 Dumping coil -
2 Dumping coil +
3 Drive coil +
4 Drive coil -

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
10
Power connector
4.1.3 Manual iris lens installation
In order to install manual iris lens one should:
 Carefully remove the plug protecting the CCD pick-up element
 Carefully screw the lens till slight resistance can be felt
 Supply power to the camera, adjust focal length and focus. In the MAIN SETUP menu set lens
control as MANUAL and appropriate mode of electronic shutter.
Note: For best results, perform focus adjustments at night (iris is full open) or while using a #6 or
#8 welder's glass in front of the lens to avoid overexposure.
Note: The level of iris opening should be adjusted with camera pointed to a scene with highest
possible illumination (at its installation place). Please focus on obtaining a picture with
highest illumination, but without overexposing the picture.
4.2 Power supply connection
Warning: Device should be supplied only from a power sources whose parameters are in accordance
with those specified by the producer in the camera technical datasheet. Therefore, it is
forbidden to supply the camera from power sources with their parameters unknown,
unstable or not meeting the producer’s requirements.
 NVC-402C and NVDN-402C are 12VDC ± 10% supplied. Please make sure proper polarity is
maintained.
 It is possible to use additional power connector, but please make sure proper polarity is
maintained (in accordance with power connector signs).
INSTALLATION
Power supply connector 12V DC

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
11
5. SETTINGS
NVC-402C and NVDN-402C cameras feature the OSD menu. During camera standard operation
status information may be displayed on the screen.
As it has been mentioned before, 5 buttons on the rear panel are dedicated to navigation and making
changes:
In order to enter the menu press the joystick down, which results in executing ENTER
command. For choosing the submenus please move the joystick into UP, DOWN positions. If
a symbol is present, enter particular sub-menu by pressing the joystick, which is associated with
executing the ENTER. command. To change the parameters use the LEFT and RIGHT joystick
positions. In order to leave the menu select EXIT and press ENTER. To exit submenu please select
RETURN position, and press ENTER. Selecting (via left/right joystick movement) END in the
ENTER position closes the menu and leaves to main camera view.
5.1. Remote navigation by coaxial cable using optional remote controller NC-RCUTC.
The camera can be navigated remotely by optional controller NV-RCUTC connected by the coaxial
cable. It allows to control from few hundred meters from the camera (e.g. it could be connected next
to recorder). Menu navigation via remote controller is the same as for buttons described above.
SETTINGS
ENTER
LEFT
DOWN
UP
SET
RIGHT
LEFT
DOWN
UP
ENTER
RIGHT

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
12
SETTINGS
5.1. Main menu
In order to enter the menu press the SET button. The following main menu is displayed on the
screen:
Menu - First page Menu - Second page
Choosing NEXT/BACK option result displaying other page of the menu.
All changes take effect immediately. However, to save settings permanently choose SAVE ALL
and press SET button. Otherwise changes that have been made are temporary and will be cancelled
once the camera restarts.
Attention: To restore factory default, choose CAMERA RESET option, on the second page of the
menu and press SET button.
5.1.1. LANGUAGE submenu
This menu is used to select the language of the OSD menus. Select to set the language between
chinese, english, japanese, german, french, russian, portuguese, spanish.
5.1.2. LENS submenu
This submenu allows for setting the lens parameters. Because of used lens, settings in this
submenu don’t affect on displaying screen. Please let it in default option - MANUAL.
SETUP MENU
LANGUAGE ENGLISH
LENS AUTO 
SHUTTER/AGC AUTO 
WHITE BAL ATW 
PICT ADJUST 
NR 
DAY/NIGHT AUTO 
NEXT 
EXIT SAVE ALL
SETUP MENU
BACKLIGHT OFF
ATR ON 
 PRIVACY ON 
MOTION DET ON 
CAMERA ID OFF
SYNC INT
CAMERA RESET
BACK 
EXIT SAVE ALL

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
13
SETTINGS
5.1.3. SHUTTER/AGC submenu
This menu offers how to control/select SHUTTER and AGC to get the best image for the high
luminance and the low luminance according to the scene.
In AUTO mode:
HIGH LUMINANCE Settings on the medium - and high-brightness side.
MODE (SHUT)Specifies AE control - Shutter. This camera don’t have AUTO IRIS
mechanism, therefore that setting don’t affect on displaying screen.
BRIGHTNESS (0-255) Sets brightness level.
LOW LUMINANCE Settings on the low-brightness side.
MODE (OFF/AGC) Allows to switch Auto Gain Control to compensate the video
level when the scene is dim.
BRIGHTNESS Sets the brightness level which starts AGC from (x0.25/0.5/0.75/1.0) of full
video level. If set to x0.50, the camera will start AGC when the video level
goes down below the 50% level.
In MANUAL mode:
MODE (SHUT+AGC) Defines available parameters for Manual Exposure mode,
SHUTTER (1/10000s - 1/50s) Sets the manual shutter. Manual shutter is only useful when
luminance is unchanged.
AGC (6.00-44.80) Sets AGC gain in dB. Higher gain make a scene brighter, but noise
increases.
5.1.4. WHITE BAL submenu
This submenu allows to choose appropriate settings depending on various colour temperature
conditions. White balance can be set to 7 modes listed below.
ATW (Auto Tracking White balance) is continuously monitoring/analyzing the colour
temperature of the incoming light and correcting the white balance. ATW limits the
colour temperature range at about 2,500˚K~8,500˚K to reduce the excessive
compensation for the big object which has a single colour.
SPEED Sets the AWB compensating speed. Lower value makes AWB faster. Too fast
an AWB may force colour oscillation.
DELAY CNT Adjusts the period between updates of AWB. The smaller value will
update AWB more frequently (faster).
ATW FRAME Determines the ATW range with respect to the fundamental range. A
higher value than x1.00 extends the ATW range at lower and higher colour
temperature.

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
14
SETTINGS
ENVIRONMENT Selects INDOOR or OUTDOOR. Their ATW is optimized for the limited
application.
INDOOR Optimized for indoor installation and compensates ATW for low colour
temperature such as incandescent lights.
OUTDOOR Optimized for outdoor sunlit applications and compensates ATW for
high colour temperature such as daylight.
PUSH Allows the camera automatically adjust the white balance under all conditions. Has no
limits between about 1,800˚K~10,500˚K but it may over-compensate the white balance
for the big object which has a single colour. In cases where it goes under 2,500˚K such
as halogen light, ATW may stop. If so, PUSH mode is recommended.
USER1 Fluorescent light fixed gain (3200K) white balance. May be adjusted by R-GAIN and B
-GAIN and useful only for the steady light.
USER2 Outdoor fixed gain (6300K) fixed white balance, May be adjusted by R-GAIN and B-
GAIN and useful only for the steady light.
ANTI CR (Anti Colour Rolling) can reduce colour rolling under the fluorescent light when the
camera operates in shutter control without an auto iris lens.
MANUAL Allows to set B and R gain value manually.
PUSH LOCK Used to find the optimal setting for the current luminance environment. Point the
camera towards a sheet of white paper and press the SET button. Whenever the
condition changes, readjust it.
If the camera is working in an area where energy saving lamps are the only source of light the
scene might be reddish in ATW mode. In these cases PUSH mode is recommended.
5.1.5. PICT ADJUST submenu
Submenu allows to set parameters of displaying scene.
MIRROR (ON/OFF) Picture will be flipped horizontally if it is turned ON.
BRIGHTNESS (0-255) Increases or decreases the brightness of the picture.
CONTRAST (0-255) Increases or decreases the contrast of the picture.
SHARPNESS (0-255) Increases or decreases the sharpness of the picture.
HUE (0-255) Increases or decreases the hue of the picture.
GAIN (0-255) Increases or decreases the color gain of the picture.
5.1.6. NR (Noise Reduction) submenu
This submenu allows for changing digital noise reduction settings. After selecting ON press the
SET please, to display submenu allowing for adjustment of the digital noise reduction level, as
depicted below.

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
15
SETTINGS
NR MODE Select to set the 2D NR filter mode (Y, C, Y/C).
Y LEVEL (0-15) Indicates the noise reduction strength for the luminance signal. Higher value
performs stronger noise reduction and makes the image less sharp. Due to the
limitation of 2D NR, noise reduction may not be effective enough.
C LEVEL (0-15) Indicates the noise reduction strength for the chrominance signal. Higher
value performs stronger noise reduction and makes the image less sharp. Due to the
limitation of 2D NR, noise reduction may not be effective enough.
5.1.7. DAY/NIGHT submenu
Menu allows to set operating mode of the electronic D/N function. There are 5 modes which can
be chosen.
COLOR The Day/Night function is set to OFF.
B/W The NIGHT mode is established forcibly, and chroma is set to OFF. When B/W<┘is
selected, click ENTER to bring up the B/W sub-menu for further settings.
BURST (ON/OFF) Sets whether to output the burst signal when the Night status has
been identified.
IR OPTIMIZER (ON/OFF) Automatically balances the infrared light required in a
scene
MODE (AUTO/CENTER) Features to center of image or automatic area.
LEVEL (0-31) Defines level of the optimization
AUTO Day or Night is automatically identified and controlled accordingly. After pressing SET
button in this mode submenu depicted below appears.
BURST (ON/OFF) Sets whether to output the burst signal when the Night status has
been identified.
DELAY CNT (0-255) Is the time in seconds before Day↔Night switches. DELAY can
avoid the unwanted/frivolous switching of short term lights such as light from a passing
car.
DAY→NIGHT (0-255) Select to set the threshold for identifying the Night status from
the Day status. Lower (Higher) value makes the camera switched from Day to Night at
lower (higher) illumination. If the camera stays in Color at night time, increase
DAY→NIGHT threshold value until it just switches to Night.
NIGHT→DAY (0-255) Select to set the threshold for identifying the Day status from
the Night status. Lower (Higher) value makes the camera switched from Night to Day
at lower (higher) illumination. If the camera stays in B/W mode during day time,
decrease NIGHT→DAY threshold value until it switches to Day.
EXT1 In this mode way of D&N change is controlled by external synchronization
(photovaristor). EXT1 mean D&N will exchange at high level voltage,
EXT2 In this mode way of D&N change is controlled by external synchronization
(photovaristor). EXT2 mean D&N will exchange at low level voltage,

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
16
SETTINGS
5.1.8. BACKLIGHT submenu
These compensation functions allow for enhancing visibility of the objects located in the
foreground, surrounded by strongly illuminated background (BLC) or for enhancing visibility of the
objects located near the strong light source (HLC). If a strong, point light source appears on the
screen, function will mask it allowing for effective observation of the scene itself (for example this
function is used to, observe licence-plates of the cars).
5.1.9. ATR (Adaptive Tone Reproduction) submenu (WDR)
The ATR feature improves the dynamic range and the visibility of the image by providing the
optimal gradation compensation of the image in one field. This is achieved by two steps image
processing: luminance compression and contrast enhancement, so that the tone can be enhanced at
highlighted and dark areas.
LUMINANCE (LOW, MID, HIGH) Compresses the highlighted area and enhances the dark area so
that the entire image can converge toward the medium level. LOW will compensate
minimally and HIGH will average out the image. With setting HIGH, the image
may look less contrastive and noise may increase in the dark area.
CONTRAST (LOW, MIDLOW, MID, MIDHIGH, HIGH). Adjusts the strength of the image
contrast. If set to too high, the dark area may lose detail and the high luminance area
may saturate.
5.1.10. PRIVACY submenu
This menu allows for enabling four privacy zones. If this option is turned on, desired part of the
screen is masked using rectangular zones. Pressing SET displays submenu which allows for adjusting
privacy settings.
AREA SEL (1,2,3,4/4) Sets the mask frame to be adjusted.
TOP/BOTTOM/LEFT/RIGHT Sets the mask frame selected by the AREA SEL parameter (differs for
NTSC and PAL).
COLOR (1-8) Sets the colors of the masking frames.: red, green, blue, yellow, cyan, magneta,
white, black;
TRANSP. Transparency rate for the mask can be adjusted. 0.00 - Mask is fully transparent and not
visible. 0.50 - Mask is 50% transparent. 0.75 - Mask is 25% transparent. 1.00 - Mask is
not transparent.
MOSAIC (ON/OFF) Enables or disables the mosaic effect for the selected mask window at
AREA SEL
5.1.11. MOTION DET (Motion Detection) submenu
This menu allows for turning a built-in motion detection feature on or off. Motion detection may
simultaneously be conducted in four independent zones (with their size and location selected by user).
Detection results blinking frame of the area on the screen. When ON is selected, click SET to bring
up the MOTION DET sub-menu for further settings.

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
17
SETTINGS
DETECT SENSE (0-127) Adjusts the sensitivity for detecting motion. A higher value is more
sensitive.
BLOCK DISP (ON/ENABLE/OFF) Enables or disables displaying luminance highlighted
blocks for the area where the motion is detected.
MONITOR AREA (ON/OFF) Displays four windows as programmed in sizes and positions. If the
motion is detected window is blinking;
AREA SEL (1,2,3,4/4) defines the monitoring frame to be set.
TOP/BOTTOM/LEFT/RIGHT sets the monitoring frame of selected area.
5.1.12. CAMERA ID submenu
This menu is used to set camera ID which can be displayed on the screen. When the ON<┘ is
selected, click SET to bring up the CAMERA ID sub-menu for further settings.
Title may consist of up to 52 characters (2 rows with 26 char.) Please select desired characters from
the virtual keyboard, which becomes available after pressing SET.
←, →, ↑ , ↓ Moving the cursor in the direction of the arrow.
CLR Select to clear one letter of the input.
POS 8Adjust the position of the camera ID.
RETURN Exit from edit mode.
5.1.13. CAMERA RESET option
Click to restore all the settings to the default values.
CAMERA
ABCDEFGHIJKLMNOPRSTUV
WXYZ 0123456789-!”#$%&’
()_’,;<=>?@\^*.x+/
CHR1 CHR2
←→↑↓ CLR POS
RETURN

NVC-402C, NVDN-402C 1.0 version - User’s manual
All rights reserved © AAT Holding sp. z o.o.
18
2014-04-02 ver. 1.0 JM, MK
AAT Holding sp. z o.o., 431 Pulawska St., 02-801 Warsaw, Poland
tel.: [phone], fax: [phone]
www.novuscctv.com

NVC-402C
NVDN-402C
i n st r u k c j a o b s ł u g i

NVC-402C, NVDN-402C Instrukcja obsługi wer. 1.0
Wszelkie prawa zastrzeżone © AAT Holding sp. z o.o.
2
INFORMACJE
UWAGI I OSTRZEŻENIA
Dyrektywy EMC (2004/108/EC) i LVD (2006/95/EC)
Oznakowanie CE
Nasze produkty spełniają wymagania zawarte w dyrektywach oraz przepisach krajowych
wprowadzających dyrektywy: Kompatybilność elektromagnetyczna EMC 2004/108/EC.
Niskonapięciowa LVD 2006/95/EC. Dyrektywa ma zastosowanie do sprzętu elektrycznego
przeznaczonego do użytkowania przy napięciu nominalnym od 50VAC do 1000VAC oraz od 75VDC
do 1500VDC.
Dyrektywa WEEE 2002/96/EC
Informacja dla użytkowników o pozbywaniu się urządzeń elektrycznych i
elektronicznych
Niniejszy produkt został oznakowany zgodnie z Dyrektywą WEEE (2002/96/EC) oraz późniejszymi
zmianami, dotyczącą zużytego sprzętu elektrycznego i elektronicznego. Zapewniając prawidłowe
złomowanie przyczyniają się Państwo do ograniczenia ryzyka wystąpienia negatywnego wpływu
produktu na środowisko i zdrowie ludzi, które mogłoby zaistnieć w przypadku niewłaściwej utylizacji
urządzenia.
Symbol umieszczony na produkcie lub dołączonych do niego dokumentach oznacza, że nasz produkt
nie jest klasyfikowany jako odpad z gospodarstwa domowego. Urządzenie należy oddać do
odpowiedniego punktu utylizacji odpadów w celu recyklingu. Aby uzyskać dodatkowe informacje
dotyczące recyklingu niniejszego produktu należy skontaktować się z przedstawicielem władz
lokalnych, dostawcą usług utylizacji odpadów lub sklepem, gdzie nabyto produkt.
Dyrektywa RoHS 2002/95/EC
Informacja dla użytkowników dotycząca ograniczenia użycia substancji
niebezpiecznych w sprzęcie elektrycznym i elektronicznym.
W trosce o ochronę zdrowia ludzi oraz przyjazne środowisko zapewniamy, że nasze produkty
podlegające przepisom dyrektywy RoHS, dotyczącej użycia substancji niebezpiecznych w sprzęcie
elektrycznym i elektronicznym, zostały zaprojektowane i wyprodukowane zgodnie z wymaganiami tej
dyrektywy. Jednocześnie zapewniamy, że nasze produkty zostały przetestowane i nie zawierają
substancji niebezpiecznych w ilościach mogących niekorzystnie wpływać na zdrowie człowieka lub
środowisko naturalne.
Informacja
Urządzenie, jako element profesjonalnego systemu telewizji dozorowej służącego do nadzoru i
kontroli, nie jest przeznaczone do samodzielnego montażu w gospodarstwach domowych przez osoby
nie posiadające specjalistycznej wiedzy. Producent urządzenia nie ponosi odpowiedzialności za wady i
uszkodzenia wynikające z niewłaściwej lub niezgodnej z instrukcją obsługi instalacji urządzenia w
systemie.
