NSFOCUS ADS User manual

Version: V4.5R90F01 (2018-07-31)
NSFOCUSADS
Installation Guide
© 2018 NSFOCUS

■ Copyright © 2018 NSFOCUS Technologies, Inc. All rights reserved.
Unless otherwise stated, NSFOCUS Technologies, Inc. holds the copyright for the content of this document,
including but not limited to the layout, figures, photos, methods, and procedures, which are protected under the
intellectual property and copyright laws. No part of this publication may be reproduced or quoted, in any form
or by any means, without prior written permission of NSFOCUS Technologies, Inc.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
i
V4.5R90F01 (2018-07-31)
Contents
Preface ................................................................................................................................................1
Scope......................................................................................................................................................................1
Audience ................................................................................................................................................................1
Organization...........................................................................................................................................................1
Conventions ...........................................................................................................................................................2
Customer Support...................................................................................................................................................2
1 Overview.........................................................................................................................................3
1.1 Appearance.......................................................................................................................................................3
1.1.1 ADS NX3-2000 Series and NX5-4000/6000 Series................................................................................3
1.1.2 ADS NX5-8000 Series............................................................................................................................4
1.1.3 ADS NX3-200E/600E/800E ...................................................................................................................5
1.1.4 ADS NX5-10000 Series..........................................................................................................................6
1.2 Power Supply.................................................................................................................................................10
1.3 LEDs ..............................................................................................................................................................12
1.4 System Information........................................................................................................................................14
2 Preparations..................................................................................................................................18
3 Installation Procedure ................................................................................................................20
3.1 Installation Flowchart.....................................................................................................................................20
3.2 Connecting the Power Cable..........................................................................................................................21
3.2.1 AC Power Supply..................................................................................................................................21
3.2.2 DC Power Supply .................................................................................................................................21
3.3 Network Connection ......................................................................................................................................22
3.4 Device Shutdown ...........................................................................................................................................22
3.5 System Deployment .......................................................................................................................................23
3.5.1 In-Path Deployment..............................................................................................................................23
3.5.2 Out-of-Path Deployment.......................................................................................................................23
4 Initial Configuration ..................................................................................................................25
4.1 Login to the Console......................................................................................................................................25
4.2 Network Configuration on the Console..........................................................................................................26
4.3 Login to the Web-Based Manager..................................................................................................................26
4.4 Importing a License........................................................................................................................................29
4.5 Network Configuration on the Web-based Manager......................................................................................29

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
ii
V4.5R90F01 (2018-07-31)
5 System Maintenance...................................................................................................................30
5.1 System Update ...............................................................................................................................................30
5.2 Common Troubleshooting..............................................................................................................................31
5.2.1 Web Login Failure.................................................................................................................................31
5.2.2 ADS Access Failure ..............................................................................................................................31
5.2.3 License Import Failure..........................................................................................................................31
5.2.4 MAC Address Learning Failure............................................................................................................32
5.2.5 Ping Failure or Excessive Packets Drop ...............................................................................................32
A Default Parameters ....................................................................................................................33
A.1 Default Management Interface Settings ........................................................................................................33
A.2 Default Web Administrator Account .............................................................................................................33
A.3 Default Console Administrator Account........................................................................................................33
A.4 Default CLI Administrator Account ..............................................................................................................33
A.5 Console Specification....................................................................................................................................33

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
iii
V4.5R90F01 (2018-07-31)
Figures
Figure 1-1 Front panel of ADS NX5-4020.............................................................................................................4
Figure 1-2 Rear panel of ADS NX5-4020..............................................................................................................4
Figure 1-3 Front panel of ADS NX5-8000.............................................................................................................5
Figure 1-4 Rear panel of ADS NX5-8000..............................................................................................................5
Figure 1-5 Front panel of ADS NX3-200E/600E/800E .........................................................................................6
Figure 1-6 Rear panel of ADS NX3-200E/600E/800E ..........................................................................................6

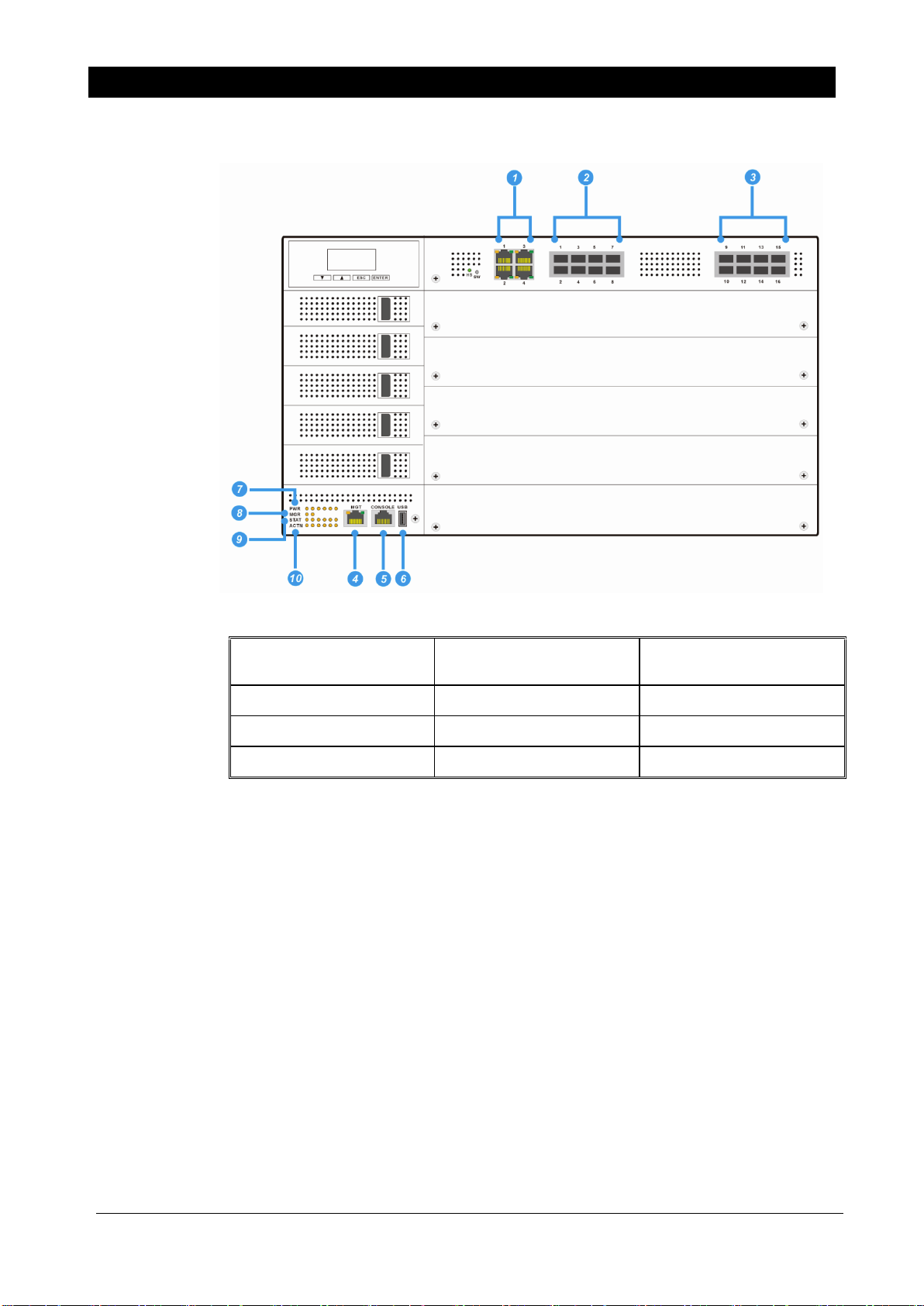

Figure 1-7 Front panel of ADS NX5-10000 with the HTCA-SFPP16TX4 interface.............................................7

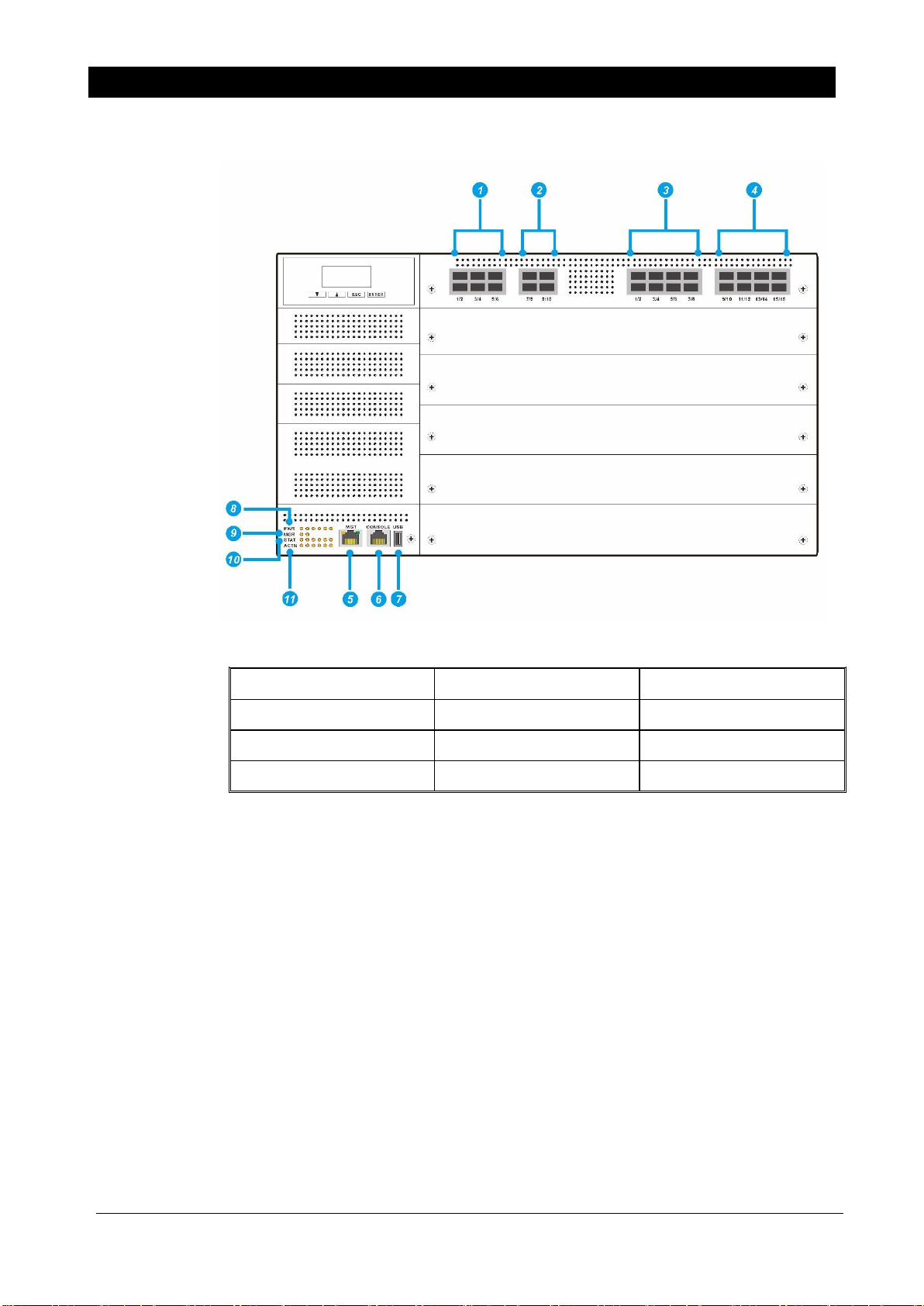

Figure 1-8 Front panel of ADS NX5-10000 with the HTCA-CXP2SFPP20 interface ..........................................8

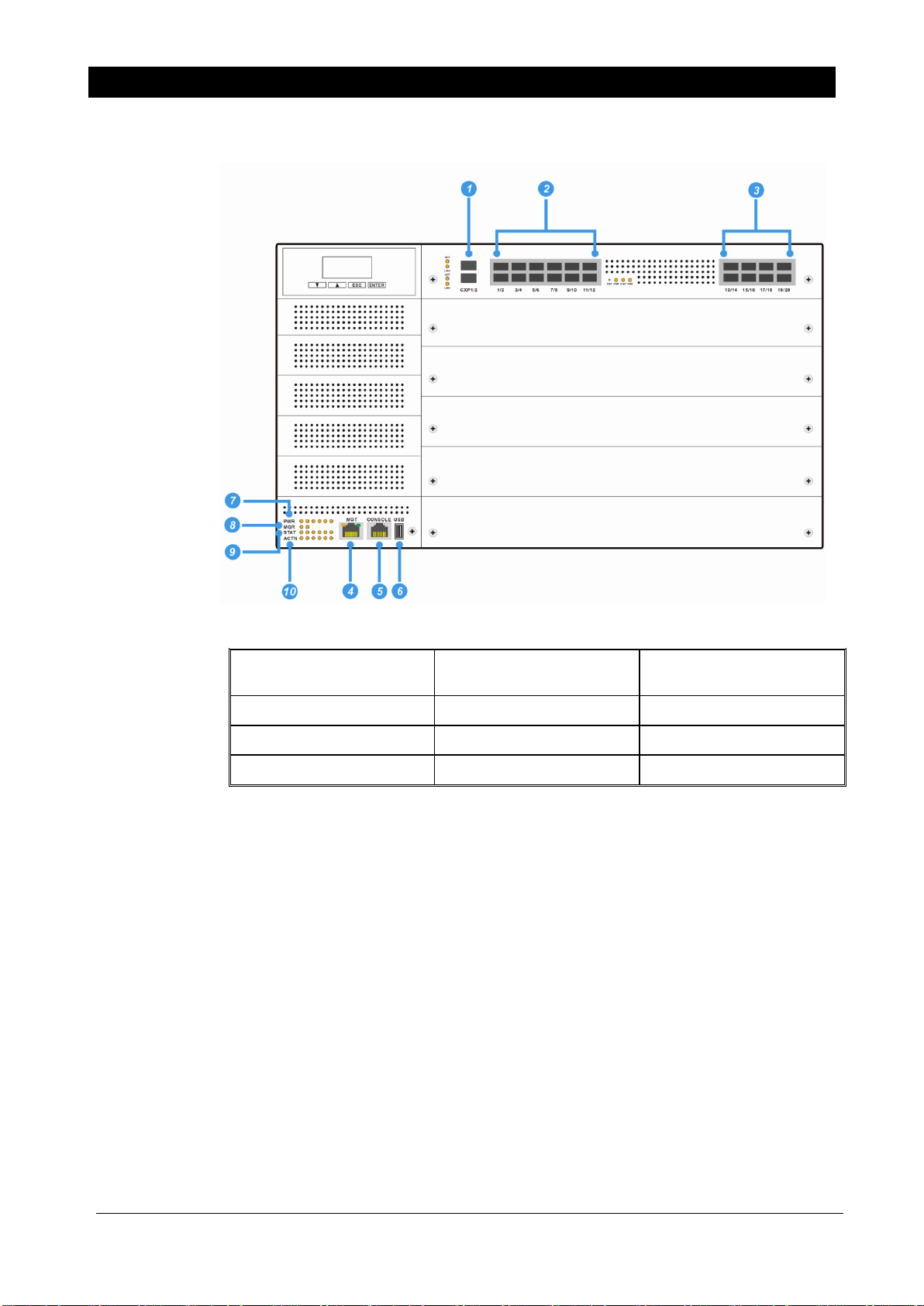

Figure 1-1 Front panel of ADS NX5-10000 with the HTCA-QSFP28x6QSFP4SFPP16 interface.......................9
Figure 1-2 Rear panel of ADS NX5-10000..........................................................................................................10
Figure 3-1 Installation flowchart..........................................................................................................................20
Figure 3-2 In-path deployment of an ADS device................................................................................................23
Figure 3-3 Out-of-path deployment of an ADS device ........................................................................................24
Figure 4-1 Security alert page..............................................................................................................................27
Figure 4-2 Login page..........................................................................................................................................27
Figure 4-3 Setting the time zone and system time ...............................................................................................28
Figure 4-4 Changing the initial password ............................................................................................................28
Figure 4-5 License Info page before the import of a license................................................................................29
Figure 4-6 Importing the license successfully......................................................................................................29
Figure 5-1 System upgrade ..................................................................................................................................30

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
iv
V4.5R90F01 (2018-07-31)
Tables
Table 1-1 Recommended power supply configuration......................................................................................... 11
Table 1-2 Meanings of AC power LEDs in different states.................................................................................. 11
Table 1-3 Meanings of DC power LEDs in different states .................................................................................12
Table 1-4 Meanings of the power LED in different states....................................................................................13
Table 1-5 Meanings of the STA LED in different states.......................................................................................13
Table 1-6 Meanings of STAT LEDs in different states.........................................................................................13
Table 1-7 Meanings of MGR LEDs in different states.........................................................................................13
Table 1-8 Meanings of ACTN LEDs in different states .......................................................................................14
Table 1-9 Meanings of the system LED in different states ..................................................................................14
Table 1-10 Meanings of interface LEDs in different states..................................................................................14
Table 1-11 Hardware specifications of ADS NX3-2000 series and NX5-4000/6000 series ................................15
Table 1-12 Hardware specifications of ADS NX5-8000......................................................................................16
Table 1-13 Hardware specifications of ADS NX3-200E/600E/800E...................................................................17
Table 1-14 Hardware specifications of ADS NX5-10000....................................................................................17

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
1
V4.5R90F01 (2018-07-31)
Preface
Scope
This document describes the basic information and detailed installation procedure about
NSFOCUSADS NX3 2000 series (NX3-2020/2020E/2010), NX3-200E/600E/800E, NX5
4000 series (NX5-4020/4020E), NX5 6000 series (NX5-6025/6025E), NX5 8000 series
(NX5-8000), and NX5-10000 series (NX5-10000), which are collectively referred to as ADS.
This document provides guidance for you in use of the products. Descriptions in this guide
may slightly differ from actual products due to version upgrade or other reasons.
Unless otherwise indicated, figures and texts in this manual use ADS NX5-4020 as an
example.
Audience
This document is intended for the following users:
System administrator
Network administrator
Users who wish to know main techniques and installation procedure of this product
This document assumes that you have a basic knowledge in the following areas:
Network security
Linux and Windows operating systems
TCP/IP protocols
Organization
Chapter
Description
1 Overview
Describes hardware configuration and system architecture of ADS devices.
2 Preparations
Describes preparations before installing ADS devices.
3 Installation Procedure
Describes methods for installing ADS devices.
4 Initial Configuration
Describes methods for configuring the network after installation.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
2
V4.5R90F01 (2018-07-31)
Chapter
Description
5 System Maintenance
Describes methods for maintaining ADS devices and common
troubleshooting.
A Default Parameters
Describes default parameters about ADS devices.
Conventions
Convention
Description
Bold font
Keywords, names of screen elements like buttons, drop-down lists or fields, and
user-entered text appear in bold font.
Italic font
Document titles, new or emphasized terms, and arguments for which you supply
values are in italic font.
Reminds users to take note.
Indicates a tip to make your operations easier.
Indicates a situation in which you might perform an action that could result in
equipment damage or loss of data.
Indicates a situation in which you might perform an action that could result in
bodily injury.
A > B
Indicates selection of menu options.
Customer Support
Email: [e-mail]
Portal: https://nsfocus.desk.com/
Contacts:
USA: [phone] or +1-844-NSFOCUS
UK: [phone] or [phone]NSF
Australia: [phone] or [phone]NSF
Netherlands: [phone] or [phone]NSF
Brazil: [phone] or [phone]NSF
Japan: [phone] or [phone]NSF
Singapore: [phone]
Hong Kong [phone] or [phone]NSF
Middle East: [phone]

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
3
V4.5R90F01 (2018-07-31)
1 Overview
The ADS system is an integrated hardware device. This chapter gives a brief account ofADS
devices.
1.1 Appearance
This section details the appearance, including front and rear panels, ofADS devices.
The interface model or quantity of actual products may slightly vary with the batch or
model.
1.1.1 ADS NX3-2000 Series and NX5-4000/6000 Series
ADS NX3-2000 series, NX5-4000 series, and NX5-6000 series use the same hardware
platform, and therefore have the same appearance and hardware specifications. This guide
uses ADS NX5-4020 as an example to describe their appearance.
Figure 1-1 and Figure 1-2 show the front and rear panels of ADS NX5-4020 respectively.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
4
V4.5R90F01 (2018-07-31)
Front Panel
Figure 1-1 Front panel ofADS NX5-4020
①Management interface
②Hot standby port
③RJ45 console port
④USB port
⑤RST: reset button
⑥PWR: power LED
⑦STA: status LED
⑧SYS: system LED
⑨Working interfaces
Rear Panel
Figure 1-2 Rear panel ofADS NX5-4020
①Ground connector
②Power switch
③Power LED
④Power port
1.1.2 ADS NX5-8000 Series
Figure 1-3 and Figure 1-4 show the front and rear panels of ADS NX5-8000 respectively.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
5
V4.5R90F01 (2018-07-31)
Figure 1-3 Front panel ofADS NX5-8000
①Power button
②RST: reset button
③PWR: power LED
④STA: status LED
⑤SYS: system LED
⑥IPMI
⑦M: management interface
⑧H1: management interface
⑨S: console port (RJ45)
⑩USB port
⑪Working interface: 10G
interface
⑫Working interface: 10G
interface
⑬Expansion interface
⑭Expansion interface
Figure 1-4 Rear panel ofADS NX5-8000
①Power supply 1
②Power supply 2
③Switch of power supply 2
④Switch of power supply 1
⑤Ventilation holes
⑥Ground connector
1.1.3 ADS NX3-200E/600E/800E
Figure 1-5 and Figure 1-6 show the front and rear panels of ADS NX3-200E/600E/800E
respectively.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
6
V4.5R90F01 (2018-07-31)
Figure 1-5 Front panel ofADS NX3-200E/600E/800E
①RST: reset button
②STA: status LED
③PWR: power LED
④SYS: system LED
⑤RS-232 serial port (RJ45)
⑥Management port (crossover
cable)
⑦USB port
⑧Scan ports: GE electrical ports for scanning (RJ45, 100/1000M
adaptive, straight-through network cable)
Figure 1-6 Rear panel ofADS NX3-200E/600E/800E
①Ground connector
②Power switch
③Power port
1.1.4 ADS NX5-10000 Series
1.1.4.1 Front Panel
The front panel of ADS NX5-10000 varies with the type of the following interfaces used:
HTCA-SFPP16TX4, HTCA-CXP2SFPP20, and HTCA-QSFP28x6QSFP4SFPP16.
HTCA-SFPP16TX4 Interface
The HTCA-SFPP16TX4 interface supports only1000M and 10G switch boards. Figure 1-7
shows the 10G switch board as the front panel ofADS NX5-10000.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
7
V4.5R90F01 (2018-07-31)
Figure 1-7 Front panelofADS NX5-10000 with the HTCA-SFPP16TX4 interface
①Working interface:
electrical
②Working interface: 10G
③Working interface: 10G
④MGT: IPMI
⑤CONSOLE: RJ45
⑥USB port
⑦PWR: power LED
⑧MGR: status LED
⑨STAT: status LED
⑩ACTN: IPMI status LED
-
-
HTCA-CXP2SFPP20 Interface
Figure 1-8 shows the front panel ofADS NX5-10000 with the HTCA-CXP2SFPP20
interface.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
8
V4.5R90F01 (2018-07-31)
Figure 1-8 Front panelofADS NX5-10000 with the HTCA-CXP2SFPP20 interface
①Working interface: 100G
CXP
②Working interface: 10G
③Working interface: 10G
④MGT: IPMI
⑤CONSOLE: RJ45
⑥USB port
⑦PWR: power LED
⑧MGR: status LED
⑨STAT: status LED
⑩ACTN: status LED
-
-
HTCA-QSFP28x6QSFP4SFPP16 Interface
Figure 1-1 shows the front panel ofADS NX5-10000 with the HTCA-
QSFP28x6QSFP4SFPP16 interface.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
9
V4.5R90F01 (2018-07-31)
Figure 1-1 Front panelofADS NX5-10000 with the HTCA-QSFP28x6QSFP4SFPP16 interface
①Working interface: 100G
②Working interface: 40G
③Working interface: 10G
④Working interface: 10G
⑤MGT: IPMI
⑥CONSOLE: RJ45
⑦USB port
⑧PWR: power LED
⑨MGR: status LED
⑩STAT: status LED
⑪ACTN: status LED
-
1.1.4.2 Rear Panel
Figure 1-2 shows the rear panel ofADS NX5-10000.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
10
V4.5R90F01 (2018-07-31)
Figure 1-2 Rear panel ofADS NX5-10000
①Management interface
②USB port
③Heat dissipation holes
④Power switch
⑤Power LED
⑥Power Supply
⑦Ground connector
1.2 Power Supply
ADS devices support both AC and DC inputs. Before delivery, ADS devices are
configured with power modules. You can choose to use theAC or DC power module based on
the equipment room environment. If necessary, connect theADS device to two independent
power supplies to implement 1+1 power redundancy. In this case, even if one of the power
modules fails, theADS device still operates properly. The power switch and socket reside at
the rear of the chassis, as shown in Figure 1-4.
Specifications of the AC Power Supply
ForADS NX3-2020/2020E/2010, ADS NX5-4020/4020E, ADS NX5-6025/6025E, andADS
NX5-8000 series, theAC power supply specifications are as follows:
Rated voltage range: 100–240 V AC at 50–60 Hz
Maximum output power: 450 W
ForADS NX5-10000, theAC power supply specifications are as follows:
Rated voltage range: 85–264 VAC at 50 to 60 Hz
Maximum output power:

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
11
V4.5R90F01 (2018-07-31)
−866 W in case one service board is configured
−1569 W in case two service boards are configured
−4381 W in case six (maximum allowed) service boards are configured
ForADS NX5-10000, the recommended power supply configuration varies with the number
of service boards, as shown in Table 1-1.
Table 1-1 Recommended power supply configuration
Number of Service Boards
Recommended Number of Power Supply Modules
1
2 (1 active + 1 standby)
2
3 (2 active + 1 standby)
3
4 (3 active + 1 standby)
4
4 (3 active + 1 standby)
5
5 (4 active + 1 standby)
6
5 (4 active + 1 standby)
Table 1-2 describesAC power LEDs in different states.
Table 1-2 Meanings ofAC power LEDs in different states
LED Status
Meaning
AC On (yellow)
The AC LED being on after the power supply is connected indicates that the
power input is normal.
AC Off
The AC LED being off although the power supply is connected indicates that
the power is off, overloaded, or fails.
OK On (yellow)
The OK LED being on after the device is started indicates that the power output
is normal.
OK Off
The OK LED being off although the device is started indicates that the power
is overloaded or fails.
The OK indicator is available for the AC power supply on ADS NX3-
2020/2020E/2010, NX5-4020/4020E, and NX5-6025/6025E, but unavailable for the
AC power supply on ADS NX3-200E/600E/800E,NX5-8000, and NX-10000.
ADS NX3-200E/600E/800E supports single AC power only, with the
following withstand voltage requirements:
AC 1500 V 1 minute (FG-LG and SG-LG)
AC 500 V 1 minute (FG-SG)

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
12
V4.5R90F01 (2018-07-31)
Specifications of the DC Power Supply
ForADS NX3-2020/2020E/2010, ADS NX5-4020/4020E, and ADS NX5-6025/6025E,
the DC power supply specifications are as follows:
Rated voltage range: –40 to –60 V DC
Maximum output power: 450 W
ForADS NX5-8000, the DC power supply specifications are as follows:
Rated voltage range: –36 to –72 V DC
Maximum output power: 500 W
ADS NX5-10000 supports up to five power supply modules. Specifications of a single DC
power supply module are as follows:
Rated voltage range: –39 to –76 V DC
Maximum output power: 1000 W
Table 1-3 describes DC power LEDs in different states.
Table 1-3 Meanings of DC power LEDs in differentstates
LED Status
Meaning
DC On (yellow)
The DC LED being on after the power supply is connected indicates that the power
input is normal.
DC Off
The DC LED being off although the power supply is connected indicates that the
power is off, overloaded, or fails.
OK On (yellow)
The OK LED being on after the device is started indicates that the power output is
normal.
OK Off
The OK LED being off although the device is started indicates that the power is
overloaded or fails.
The OK indicator is available for the DC power supply on ADS NX3-
2020/2020E/2010, NX5-4020/4020E, and NX5-6025/6025E, but unavailable for
the DC power supply on ADS NX5-8000 and NX5-10000.
1.3 LEDs
There are four types of LEDs on the front panel of the chassis: power LED, status LED,
system LED, and interface LED.
Power LED
Table 1-4 describes the power LED in different states.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
13
V4.5R90F01 (2018-07-31)
Table 1-4 Meanings of the power LED in different states
LED Status
Meaning
On
Indicates that the power is normal.
Off
Indicates that the power is off or abnormal.
Status LED (STA)
Table 1-5 describes the STA LED in different states.
Table 1-5 Meanings of the STALED in different states
LED Status
Meaning
Green
Indicates that the system works properly.
Red
Indicates that the engine works improperly.
Status LED (STAT)
Table 1-6 describes STAT LEDs in different states. These LEDs are available only onADS
NX5-10000. There are six STAT LEDs, each of which indicates the engine status of one
service card.
Table 1-6 Meanings of STAT LEDs in different states
LED Status
Meaning
Green
Indicates that the system works properly.
Orange
Indicates that the engine works improperly.
Status LED (MGR)
Table 1-7 describes MGR LEDs in different states. These LEDs are available only on ADS
NX5-10000. The second LED from the left indicates the engine status of all service cards and
it turns red even when the engine of only one service card fails.
Table 1-7 Meanings of MGR LEDs in different states
LED Status
Meaning
Green (first from left)
Indicates that the switch board works properly.
Red (first from left)
Indicates that the switch board works improperly.
Green (second from left)
Indicates that the system works properly.
Red (second from left)
Indicates that the system works improperly.

NSFOCUS ADS Installation Guide
Copyright © NSFOCUS
14
V4.5R90F01 (2018-07-31)
Status LED (ACTN)
Table 1-8 describesACTN LEDs in different states. These LEDs are available only on ADS
NX5-10000. There are sixACTN LEDs, each of which indicates the IPMI connection status
of one service card.
Table 1-8 Meanings ofACTN LEDs in different states
LED Status
Meaning
On (Orange)
Indicates that the IPMI connection of the related board is normal.
Off
Indicates that the related board has not set up the IPMI connection.
System LED
Table 1-9 describes the system LED in different states.
Table 1-9 Meanings of the system LED in different states
LED Status
Meaning
Green
Indicates that the system works properly.
Red
Indicates that the system works improperly.
Link/Act LED
Table 1-10 describes the Link/Act LED on the chassis in different states.
Table 1-10 Meanings of interface LEDs in different states
LED
Description
Link On (yellow)
Indicates a link has been established.
Link Off
Indicates the link is not established.
Act On (yellow)
Indicates the ADS device is transmitting or receiving data.
Act Off
Indicates no data is transmitted or received.
1.4 System Information
Table 1-11 lists hardware specifications of ADS NX3-2020/2020E/2010,ADS NX5-
4020/4020E, andADS NX5-6025/6025E.
