ntt TOPPAS User guide

GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
Valid
08/10
1
-Universal Attachment
Guidance for installation and application
Contents
Page
EC Manufacturer’s declaration/EC Declaration of conformity/Guarantee provisions 2
1. Operating instructions 3
1.1 Device identification 3
1.2 General information 3
1.3 Intended use of TOPPAS universal attachment 3
1.4 Installation examples 4
1.5 Fixing the TOPPAS universal attachment 5
2. Installing and dismantling TOPPAS with the positioning cable 6
2.1 Installing the positioning cable in the TOPPAS universal attachment 6
Device maintenance log
To be filled in
by the retailer
_________________________________
Name, Company
_________________________________
Adress:
_________________________________
Telephon
_________________________________
Fax
_________________________________
Email:

2
- Universal Attachment
Guidance for installation and application
GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
EC Manufacturer's declaration/EC Declaration of conformity/
ntt Neuhaus Trans Tech GmbH, St.-Korbinian-Str. 8, 83626 Valley declares that
TOPPAS Universal attachment Art-No.: 50140
delivered by ntt Neuhaus Trans Tech GmbH complies with the following prevailing safety regulations, sign affixed:
The TOPPAS- Universal attachment can be used as a climbing system/anchorage device only in combination with other
components. It may not be commissioned until it is ensured that the entire system complies with the stipulations of EC
directives/standards.
The TOPPAS- Universal attachment has been tested in accordance with the prevailing EN standards. ntt shall not bear any
liability for deliveries in countries which do not accept this standard or which use standards or legal grounds deviating from
this standard. ntt has covered the normal operations of the device through an industrial third party insurance. Within the
scope of this insurance, ntt is liable to the buyer. Other claims, especially claims for damages arising from subsequent
damage, are ruled out irrespective of the legal grounds. If the device is re-sold or rented out, the seller is under obligation
to notify it to ntt, to document the condition of the TOPPAS- Universal attachment and to provide the video of current
instructions to users and operating companies.
Guarantee provisions
1. ntt assumes guarantee for manufacturing and material defects for the duration of
24 months after the date of delivery. This shall not affect the inspection and maintenance intervals to be followed
2. This guarantee does not include any other liability and includes replacement and repairing of parts detected as defective
by ntt.
3. For checking the complaints and repairs, please send the TOPPAS- Universal attachment to the address of ntt. ntt shall
not bear any costs for transportation or consequential damage, costs for dismantling, installation, packaging or
downtime.
4. The guarantee does not include
-parts that wear out prematurely due to intensive usage (e.g. safety cable)
-Parts of other manufacturers and the parts that have not been installed by ntt
-Parts that have been modified or repaired without the manufacturer's consent
-Parts that are damaged due to improper usage and application.
5. The TOPPAS- Universal attachment and accessories must ensure the safety of persons; they must therefore be installed,
operated, handled and repaired as per the manufacturer's specifications.
Depending on the load and condition, ntt must repair the TOPPAS and accessories at regular intervals, however, at
least after every 12 months, and check them for their flawless condition. The prevailing statutory regulations applicable
at the installation site must be observed.
6. Guarantee claims can be asserted, only if these legally-binding guarantee provisions are signed by the customer or the
operation company and sent back to ntt. With their signatures, the customer and/or the operating company agrees to
these guarantee provisions.
7. In case of a guarantee claim, always send a copy of the signed guarantee provisions.
To be filled in by the operating company:
Invoice address: Delivery address:
________________________ ________________________
Name, Company Name, Company
________________________ ________________________
Address Address
________________________ ________________________
Telephone Telephone
________________________ ________________________
Fax Fax
________________________ ________________________
Email Email
, date _________________
_____________________________, date _____________
________________________________________________
- Operating company / Customer / Retailer -

GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
3
-Universal Attachment
Guidance for installation and application
1. Operating instructions for TOPPAS universal attachment
1.1 Device identification
Manufacturer:
ntt GmbH
St-Korbinian-Str. 8
D-83626 Valley
1.2 General information
Operating instructions for TOPPAS and TOPPAS universal attachment as well as the video are regularly
updated and can be downloaded from our Homepage.
The customer/reseller of TOPPAS must ensure that the latest version of these instructions to users and
operating companies and the video are provided to the end customer, the in-charge and users of TOPPAS
and TOPPAS universal attachment, and that they have understood and will follow these instructions. If
required, these instructions and the video can be provided in the language of a particular country. The
name of the end customer must always be notified to us.
The end customers must be able to handle TOPPAS universal attachment properly. Please contact ntt for
information and training courses.
The regular attachment of the TOPPAS universal attachment, the correct selection of the attachment place
and proof of the load-carrying capacity of the materials (wall, ceiling, etc.). the means of mounting as well
as the selection, attachment and protection of the positioning rope is incumbent on the buyer, operator or
authorization.
1.3 Intended use of TOPPAS universal attachment
The TOPPAS universal attachment must be used for the intended purpose only in the technically flawless
condition. In case of faults or damage, the operation of the TOPPAS universal attachment must be
stopped immediately and ntt must check it.
The operating company must ensure that the usage instructions are understood and followed.
The supplier/manufacturer shall not be responsible for damage caused due to improper usage or
modification.
The universal attachment must be installed horizontally or vertically.
Deviating installation positions, modifications or additions to the device unit must be checked and approved
by ntt in writing.
When planning, always ensure that the proper drawing function of TOPPAS is assured and implemented.
The TOPPAS universal attachment must be planned and installed properly. The substructure and structural
devices such as wall and roof materials must withstand the induced total force of 8 kN or 7 kN per fixing
point (dowel, screw) and must have at least twice load-bearing capacity.
Fixing aids, screws, nuts and dowels and their materials must be adapted for the application case and the
installation situation and must have an approval certificate.
Cable inlet and outlet of TOPPAS must always be linear and take place in-line or centrally.
The TOPPAS universal attachment must be installed at such a distance from the climbing wall that cable is
not deflected
Climbing grips must be positioned and selected such that only minor cable deflection is possible in all
directions, especially upwards. This should avoid impacts and oscillations especially in the upper section of
the wall.
When installing and dismantling TOPPAS, always secure using the positioning cable until the ball lock pin is
inserted.
Insert the ball lock pin into the hole of the axis from top and secure additionally using the securing screw.
ntt or an expert must check the brackets and especially the bearing points, screw joints, safety connectors,
etc. for functional capability at least during the annual check.

4
- Universal Attachment
Guidance for installation and application
GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
1.4 Installation examples
TOPPAS universal attachment for roof and wall
installation
with built-in assembly aid
±10°±10°
27
109 72
498
30
mit Hülle
32
304
181
21
25
1170
Optimum cable inlet and outlet
Main axis
cable guide
Highest grip
15°
main axis
Smallest and most
difficult top grips
15°
30°
30°
Delimitation sector
1170 mm
auxiliary rope for the TOPPAS cable in rest period
TOPPAS universal attachment
TOPPAS
Brake
blue protecting tube
black grip sleeve
Carabiner
as ceiling attachment as wall attachment
200 mm
Rubber ring / Safety Ring
pemissible useful length 18/28 m
Defective cable inlet and outlet

GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
5
-Universal Attachment
Guidance for installation and application
1.5 Fixing the TOPPAS universal attachment
max. 322
min .114
93120 213
13
322
120
200
Securing screw
Pushbutton
Assembly aid
Bush
For securing the ball lock pin against
unauthorised pull-out,
hand-tight the securing screw
Nominal traction force per fixing and screwing point is 7 kN
Transverse force 4 kN
Standard hole image
Special hole image
(E.g. carrier fixing) as
per specifications
Press the pushbutton of the ball lock pin and insert the connector into the hole of the axis from top. Ensure that the
pushbutton snaps open after inserting the ball lock pin and then lock the balls. Secure the connector using the
securing screw and the size-4 Allen key such that it is hand-tight.
It can be dismantled in the reverse order.
The installation position of TOPPAS with respect to the wall attachment must be vertical. The ball lock pin must be
loaded during operation, e.g. diagonal pull.
Fixing types for wall attachment
1. Concrete 2. Clamps on wooden walls, tile/brickwork
3 x bonding anchors
E.g. Hilti HVA M12
Tightening torque 40 Nm
Optional
3 x bonding anchors
E.g. Hilti HVZ M12
Tightening torque 70 Nm
With counter bracket, product
no. 50009
3 x threaded rods M12 - 8.8
and stop nuts
Tightening torque 70 Nm
Fixing types for roof attachment
1. Concrete 2. Clamps on wooden walls, tile/brickwork
3 x bonding anchors
E.g. Hilti HVA M12
Tightening torque 40 Nm
Optional
3 x bonding anchors
E.g. Hilti HVZ M12
Tightening torque 70 Nm
With counter bracket, product
no. 50009
3 x threaded rods M12 - 8.8
and stop nuts
Tightening torque 70 Nm

6
- Universal Attachment
Guidance for installation and application
GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
2. Installing and dismantling TOPPAS with the positioning cable
In the normal case, TOPPAS should be installed or dismantled from the secured work position using work or lifting
platform. If this is not possible, use a positioning cable to lift TOPPAS comfortably up to the TOPPAS universal
attachment, position and lock it properly. The same is applicable for dismantling as well.
Prerequisites:
The positioning cable length must be at least 3 times the installation height of TOPPAS. We recommend a slip-
proof mountaineering rope > 9 mm
Another person to lift TOPPAS
Securing against the run-out of the cable using floor-side abutments (e. g. Ascension cable clamp or Basic by
Petzl)
Secured access to the universal attachment for another person
2.1 Installing the positioning cable in the TOPPAS universal attachment
2.1.1 Secured end stops of the positioning cable on the rear clamp (e.g. rope-up node)
2.1.2 Guide the cable through the grip of TOPPAS and upwards through the front clamp and again downwards
Front clamp
Rear clamp
Guiding bush
Securing screw
Ball lock pin
Fixing points
Safety cable clamp

GmbH • St-Korbinian-Str. 8 • D-83626 Valley • Telefon [phone] • Fax 4 99 44 • www.ntt-valley.de • [e-mail]
7
-Universal Attachment
Guidance for installation and application

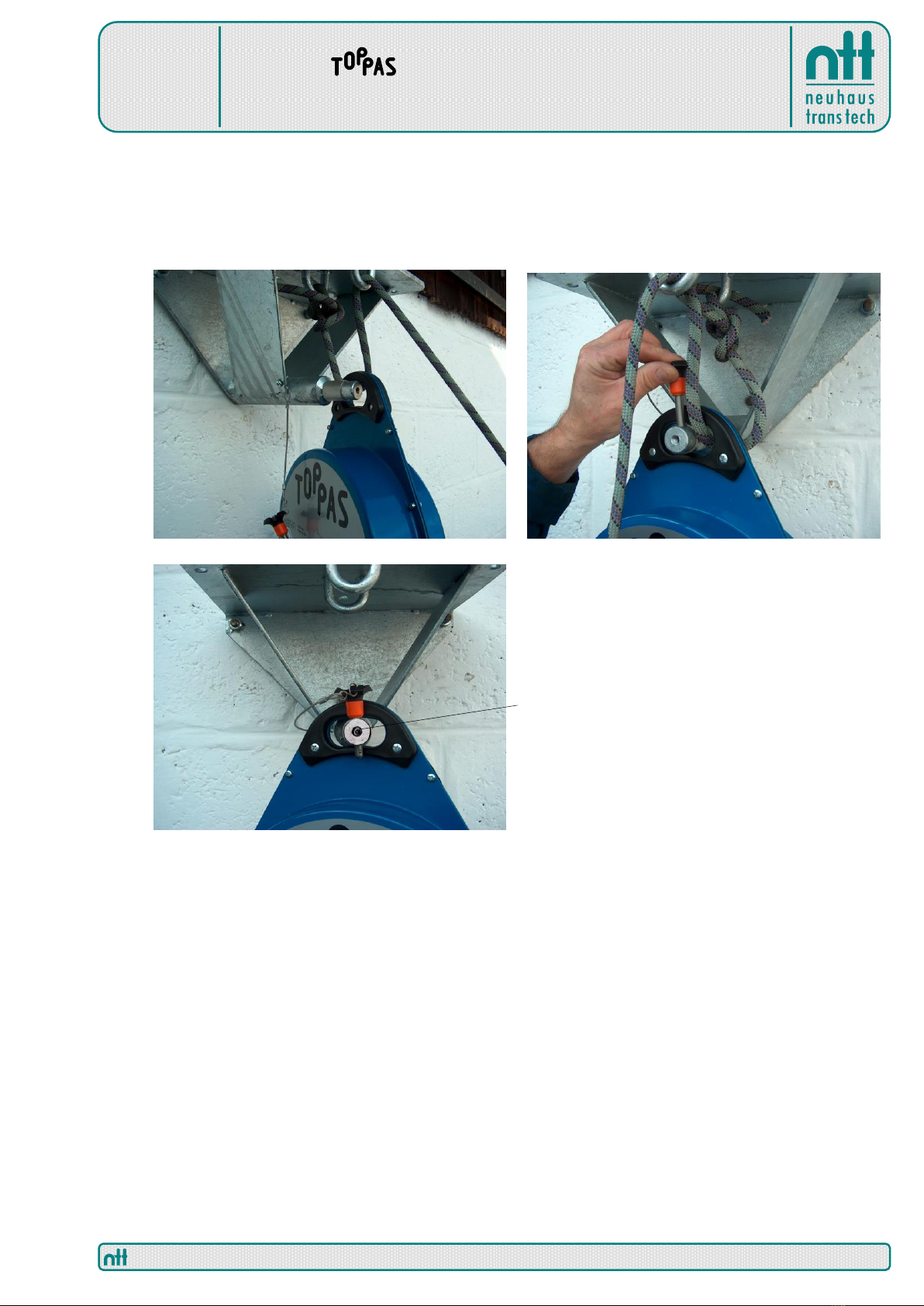

2.1.3 Lift TOPPAS up to the height of the installation position
Secure the positioning cable against slackening using the cable clamp.
Then slide TOPPAS over the locking pins (note –do not forget bushes, brake shows forward) and lock using the ball
lock pin. Then secure the ball lock pin using the securing screw.
Only then remove the positioning cable
2.1.4 The dismantling procedure is similar
Securing screw
