Nußbaum Hebetechnik 4.40H Operator's manual

Instructions and Documentation
Serialno:...................................
4.40 H
date: April 1998
Version: 4.35H

Table of contents
Forword....................................................................................................................3
Record of Installation...............................................................................................5
Record of Handing Over..........................................................................................6
1. Introduction.............................................................................................................7
2. Master Document of the automotive Lift..............................................................8
CE-Zertificate...........................................................................................................9
page for notice.........................................................................................................11
3. Technical information............................................................................................12
Data sheet 4.35 H....................................................................................................13
Data sheet 4.35 H with whell free lift.....................................................................14
Fundationplan..........................................................................................................15
Electrical diagram drawing.....................................................................................17
Electrical parts list...................................................................................................18
Electrical diagram drawing with wheel free lift......................................................19
Electrical parts list with wheel free lift...................................................................20
Hydraulic diagram drawing.....................................................................................21
Hydraulic parts list..................................................................................................21
Hydraulic-diagram drawing with wheel free lift.....................................................22
Hydraulic parts list with whell free lift...................................................................22
4. Safety regulations...................................................................................................23
5. Operating instructions...........................................................................................23
6. Troubleshooting......................................................................................................26
Emergency lowering in case of power failure and defective valves.......................26
Emergency lowering of the whell free lift...............................................................28
7. Maintenance........................................................................................................... 28
8. Security check........................................................................................................ 29
9. Installation and initiation......................................................................................30
Installation of the lift...............................................................................................30
Erection and doweling of the lift............................................................................ 30
Initiation..................................................................................................................33
Position of the column............................................................................................34
Connect the operating unit.......................................................................................35
Appendix
Document ”First security check before Installation”
Document ”Regular security check”
Document ”Extraordinary security check”
2
Instruction and Documentation
4.40 H

Forword
Nußbaum-Lifts are a result of long-standing experiences.
The high quality and the superior concept guaratee them reliability, a long lift time and the eco-
nomic buisness.
To avoid unnecessary damages and dangers, read the operating instruction attentive and observe
the contents.
Another or the described purpose going out use is not valid when not as agreed.
This is valid particularly for climb and go.
Company Nußbaum is not liable for damges arising from this. The user carries the risk
alonely.
For the use belonged:
- to observe all the notice in the operating instruction and
- the following of the inspection and maintenance work and the prescribed tests.
-The instruction for use have to be observed by all persons working with the lift. Especially
the chapter “Safetey/accident Prevention“ has to be observed.
-In addition to the safety remarks of the instructions for use the regulations and instructions
being valid at the place of operation have to be considered.
Obligations of the operator:
The operator is obliged to alllow only those persons complying to the following requirement to
work at the unit
- being well acquainted with the basic regulations concerning labour safety and accident
prevention and being trained to operate the unit.
- having read and understood the chapter concerning safety and warning instructions and
confirmed that by their signature.
Dangers when operating with the lift:
The Nußbaum-Lifts are designed and built according to technical standard and the approved
regulations for technical security. Yet, danger for body and life of the operator may turn up when
using the lift inexpertly.
The lift must only be operated :
- for its appropriate use
- in unobjectionable condition concerning technical security.
Instruction and Documentation
4.40 H
3

Organising requirements
- The instructions for use are constantly to be kept at the place of operation being at hand at
any time.
- In addition to the instructions for use rules pertaining to other regulations i.e. accident
prevention and environmental rules are to be observed and directed.
- Safety- and dangeralert operation of personal is occasionally and by observing the
instructions for use to be controlled.
-As far as required and ordered by regulations personal protective equipment is to be used
-All safety- and danger-hints at the lift are to be observed!
-Spare parts must comply with technical requirements laid down by the manufacturer.
This is only warranted with original parts.
-Consider time intervals given or fixed in instructions for use for repeated tests/inspections.
Maintenanceworks, remedy of faults and disposal
- Fixed Adjusting-, maintenance- and inspectionworks and time intervals including details
for exchange of parts/part components as mentioned in the instructions for use are to be
adhered.
These works must only be carried out by expert personal.
- After maintenance- and repair works loose screw connections must always be firmly
tightend!
Instruction and Documentation
4.40 H
4

Record of installation
The automotive lift 4.40 H with the
serial number.: ................................... was installed on .........................................................
at the firm........................................... at............................................................................
the saftey mechanism and operation were checked.
The installation was done by the operater / competent person (please delete as applicable)
The safety of the automotive lift was checked by the person before the initial operation
The operater attests, the correct installation of the automotive lift. The competent person attests the
correct initial operation.
.............................. ................................................ .............................................................
date name of the operater signature of the operater
.............................. ................................................ .............................................................
date name of the competent person signature of the competent person
Otto Nußbaum GmbH & Co.KG
Korker Straße 24
77694 Kehl-Bodersweier
Germany
Send this record, filled out and signed to Nußbaum after
the installation !
5
Instruction and Documentation
4.40 H

Record of handing over
The automotive lift 4.40 H with the
serial number.: ................................... was installed on .........................................................
at the firm........................................... at............................................................................
the saftey mechanism and operation were checked.
The persons below were instructed after the installation of the automotive lift. The instruction was
carried out by a technician of the lift-manufacturer or by a competent person. The persons below
are fully familiar with the contents of this manual.
.............................. ........................................................... .................................................
date name signature
.............................. ........................................................... .................................................
date name signature
.............................. ........................................................... .................................................
date name signature
.............................. ........................................................... .................................................
date name signature
.............................. ........................................................... .................................................
date name signature
.............................. ........................................................... .................................................
date name of the competent person signature of the competent
person
6
Instruction and Documentation
4.40 H

1. Introduction
The document ”Operating Instructions and Documentation” contains important
infomation about installation, operation and maintenance of the 4.40 H .
To furnish proof of installation of the automotive lift the form ”Record of Installation”
must be signedand returned to the manufacturer.
To furnish proof of the singular, felt this documentation contains forms. The forms should
be used to document the checks. They should not beremoved from this documentation.
Every Changes to the construction and displacement of the automotive lift must be
registered in the ”Master document” of the lift.
Installation and check of the automotive lift
Only specialist staff is allowed to do work concerning safety and to do the safety checks
of the lift. They are called experts and competent person in this document.
Experts are persons (for example self-employed engineers, experts) which have
received instruction and have experience to check and to test automotive lifts.
They know the relevant labour and accidents prevention regulations.
Competent person are persons who have acquired adequate knowledge and
experience with automotive lifts. They took part in training from the lift-
manufacturer (servicing technicians of the manufacturer or dealer, are
Competents)
Information of Warning
To show danger and to show important information the three symbols below are used.
Pay attention to those passages, which are marked with these symbols
Danger!
This sign indicates danger to life. Inexpert handling of the descriped
operationmay be dangerous to life.
Caution!
This sign cautions against possible damage to the automotive lift or other
material defects in case of inexpert handling .
Attention!
This sign indicates for an important function or other important notes.
7
Instruction and Documentation
4.40 H

2. Master document of the automotive lift
Lift designation 4.40 H
Manufacturer Otto Nußbaum GmbH & Co.KG
Korker Straße 24
77694 Kehl-Bodersweier
Germany
Application
The automotive lift 4.40 H is a lifting mechanism for lifting motor vehicles with a laden
weight of up to 4000 kg. The max. load distributation is 2:1 in or against drive-on
direction. The automotive lift is only designed for servicing vehicles.
The automotive lift is only designed for servicing vehicles.
It’s not allowed to install the standard-automotive lift in a hazardous location or washing
bays.
8
Instruction and Documentation
4.40 H
Changes to construction, repairs and transposement of lift must be registered
in this master document
Changes to the construction, expert checking, resumption of opertion (date, kind of
change, signature of the expert)
.................
.................
.........
.............................................................................................................................................
name, address of the expert
............................................................ .................................................................
place, date signature of the expert
Displacement of automotive-lift-place, expert checking, resumption of opertion (date,
address and signature of the competent)
.............................................................................................................................................
name, address of the competent
............................................................ .................................................................
place, date signature of the competent

9
Instruction and Documentation
4.40 H
CE-certificate/attestation of conformity
The automotive lift 4.40 H with the serial number............................................
is in accordance with the tested lift (CE-certificate-number 04 206-576/00)
......................................................... .............................................................
place, date company stamp, signature

3. Technical information
Technical datas:
Lifting capacity: 4000 kg
Load distribution: max. 2:1 in or against
drive-on direction
Lifting time automotive lift: app. 30 sec
Lowering time automotive lift: app. 25 sec
height of lifting (automotive lift): 1955 mm
Line voltage: 400 V three phase current
driving voltage: 24 Volt
Power rating: 3,0 KW
Motor speed: 2800 revolution/minute
Output oil pump: 3 ccm/revolution
Hydraulic pressure: 240 - 250bar
Responsing pressure of the
pressure relief valve: 275 bar
Hold-up oil-tank: app. 10 litre
sound level (measured at operating panel) ≤75 dBA
Safety devices
1. ratchets
safety device of the load against unintentional lowering in case of leck hydraulic
sastem
2. safety switch
If the rope tears the lift switched off.
3. pressure relief valve
Overpring-safety of the hydraulic system
4. CE-STOP
The automotive lift stops automatically 200 mm before the lowest position.
5. Roll-off safety at the runways
Safety device of the vehicle against falling down
10
Instruction and Documentation
4.40 H

11
Instruction and Documentation
4.40 H

12
Instruction and Documentation
4.40 H

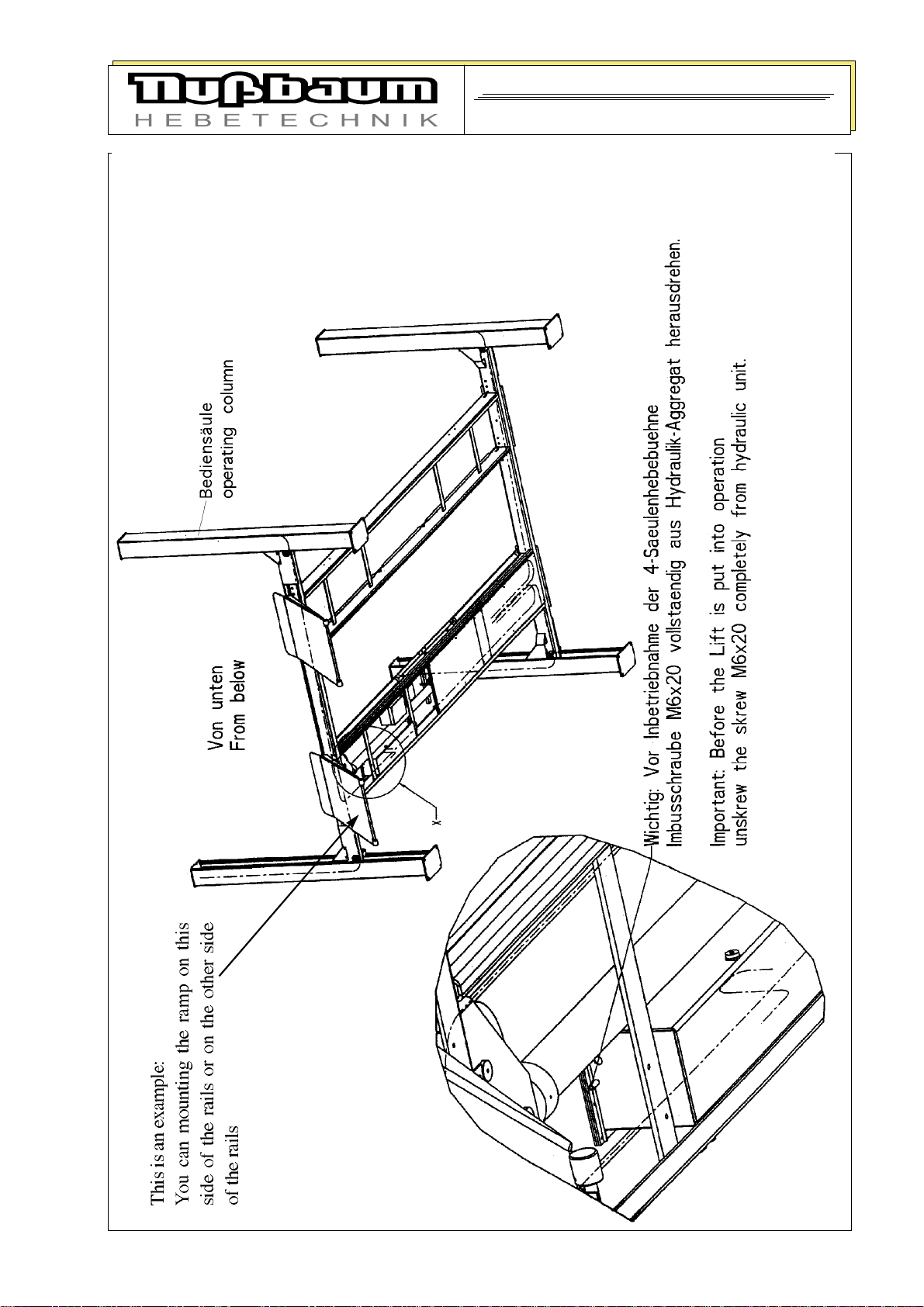

Foundationplan
4646 / * 5046
B25
These measure is for the rail 4400 mm
*These measure is for the rail 4800 mm
quality concrete

13
Instructions and documentation
4.40 H

Electrical-diagram drawing
14
Instruction and Documentation
4.40 H

electrical part list
A1: main switch 3-pole (mounting by customer)
M1: motor 3~, 400 V, 3,0 kW
KM1: up contactor
T0: key switch "lifting“
T0: key switch “lowering“
T1: button “soft lowering in the ratchets“(main lift)
S1: “top limit switch“ (main lift)
S2: limit switch “the rope is torn“
S4: limit switch ”the main lift is 200 mm over the floor”
S5: override switch
K1-K3: relais
P*: loudspeaker
MG1: electromagnetic (ratchet)
MG2: electromagnetic (ratchet)
MG3: electromagnetic (ratchet)
MG4: electromagnetic (ratchet)
Tr: Transformer 230V/24V
GL: rectifier
F1: fuse 0,5 A
F2: control fuse 5 A
F3: fuse 10 A
Y1: override valve for the soft lowering
Y2: valve(main lift)
KZ1: timerelais 1sec.
H1-H4: lighting
LS: light switch
15
Instruction and Documentation
4.40 H

16
Instruction and Documentation
4.40 H
Hydraulic diagram drawing
hydraulic parts list
0.1 : oil tank
0.2 : motor
0.3 : gear pump
0.4 : oil-fillter
0.5 : oil level gauge
0.6 : hydraulic block complet
0.8 : holding valve
0.9 : emergency lowering screw
0.10: pressure control valve
0.11: magnetic valve
0.12: screen (soft lowering)
0.13: magnetic valve
1.0: hydraulic cylinder

4. Safety regulations
Using automotive lifts for working the Regulations of Accident Prevention (VBG1:
General Regulations in Germany, VBG14: Automotive lifts) must be observed.
Especially the following regulations are very important
•The laden weight of the lifted vehicle mustn’t be more than 3500 kg, the maximum
load sharing is 2:1, in drive-on direction or against drive-on direction
•While the automotive lift is working the operating instructions must be followed
•Only trained personnel over the age of 18 years od are to operate this lift
• While the vehicle is lifted or lowered it must be observed from the operator.
• Do not transport passengers on the lift or in the vehicle
• Do not climb onto the lift during lifting or lowering or onto a lifted vehicle
• The Automotive Lift must be checked from an expert after changes in construction
do not start with operations at the lift before the main switch is switched off
•Do not install the standard-automotive lift in hazardous location or in washing halls
•Keep key to a safe place during normal operation of the lift. The key must not be
in the lock.
5. Operating instructions
The Safety Regulations must be observed during working with the automotive
lift. Read the safety regulations in capter 4 carefully before working with the
lift!
The operating elements are shown in picture 1.
Lifting the vehicle with the automotive lift
•Drive vehicle on the lift, longitudinal directon and transverse direction in centre
Each wheel must stand completely on the rail otherwise the vehicle might
fall down
• Safe the vehicle against rolling away, switch into gear
•Control the dangerous places of the lift and be sure that there are no objects or
people in the immediate area of the lift or on the lift
• Turn the key switch on position “ “
• Lift the vehicle on the working height. Observe the complete process
Lowering the vehicle with the automotive lift
•Control the dangerous places of the lift and be sure that there are no objects or
people in the immediate area of the lift or on the lift.
17
Instruction and Documentation
4.40 H

• Turn the key switch on position “ “.
• The lift raised a little bit before the lowering starts
• Lower the lift on the working height . Observe the complete process.
Comment!
If the main lift is in a height of 200 mm over the floor the electric switched off
automatically. In this case turn the key in position “0“ and after in position “ “
again. You hear an accoustic warn signal until the lift is in the lowest position.
•Drive the vehicle from the lift if its in the lowest position.
Lowering into the ratchet strip
•Activate button „lowering in ratchet“ (see pic.1).
•Push button as long as all four ratchets are engaged and the lift does not move any
more.
Lifting out of the ratchet strip
•Turn the key on position “ “ until the ratchets are free.
Driving on an obstacle
If the lift is running onto an obstacle during the lowering, it stops automatically. In this
case push bypass switch on the operating column and turn the key on position “ “
simultaneous until the obstacle can be removed.
6. Troubleshooting
If the lift does not work properly, the reason for this might be quite simple. Please
check the lift for the potential reasons mentioned on the following pages. If the cause
of trouble cannot be found, please call the technical service.
18
Instruction and Documentation
4.40 H
pic. 1: operating unit
lifting
lowering
key switch
button “lowering in the ratchet“

Repairs at the lift’s security devices as well as repairs and examinations of the
electrical fittings may only be performed by specialists.
Problem: Motor does not start!
Potential causes • The main switch is not switched on
of trouble: • Fuse is defective: replace fuse
• Feed line is cut
• power failure
• the rope is torn and the limit switch is pressed
(call the technical service)
Problem: The Lift does not lowered, but lifting !
Potential causes • The coil of the magnetic valve is defective
of trouble: • The ratchets are engaged, move up the lift before lowering
Problem: The Lift does not lifting, but lowering !
Potential causes • the top limit switch is pressed
of trouble • the direction of the motor is wrong
Emergency lowering in case of power failure or defective valves
In case of power failure or defective valves the hydraulic valve for lowering of the lift,
there is the possibility to lower the lift by opening the hydraulic valve manually, so the car
can be driven off.
In case of power failure emergency lowering can only be performed when the
ratchets are not engaged (when the ratchets can be pulled back manually). In
case of defective valve the lift can be lifted a little bit by turning key to lifting
position (to right side) So there is the possibility of pulling back the ratchets
manually.
The emergency lowering must only be performed by persons instructed to use
the lift. Please refer to the regulation ”Lowering”.
• Pull back the ratchet manually and lay a suitable support (wedge, cloth) between the
ratchet-strip and the ratchet or fix the pulled-back ratchet with the help of a wire. So
the ratchet tooth of the ratchet can not engage in ratchet-strip any more. This step
should be taken at all of the four columns.
• Loosen emergency lowering screw (set screw) for one turn to start the lowering
(the emengency lowering screw is on the side of the rail);
19
Instruction and Documentation
4.40 H

with a hexagon socket screw key . (see pic.)
•Fasten emergency lowering screw and safe it with the red coloured security nut
when the lift is at lowest position.
After finishing the emergency lowering, the emergency lowering screw
and the security nut (coloured red) must be brought into the position they
have had before. Otherwise a malfunction of the lift can occur.
• Remove support or wire of the ratchets.
To guarantee the safe running of the lift the supports must be removed
from the ratchet to bring the ratchet in its normal function.
• Drive the vehicle from the lift.
7. Maintenance
Aregular service has to be performed every three months by the lift’ s operator accor-
ding to the following schedule. If the lift is in continuous operation or dirty environ-
ment, the maintenance rate has to be increased.
During daily operation the lift has to be watched carefully for its correct function. In
case of any malfunction or leakage the technical service has to be informed..
Maintenance schedule for the lift
• Clean piston rods of hydraulic cylinder from sand and dirt
• Clean and lubricate running pieces of the lift (hinge bolts, sliding pieces, sliding
surfaces) (multipurpose lipid)
• Grease all the lubricating nipples (multipurpose lipid)
• Check ratchets if they engage smoothly and grease striking surfaces.
20
Instruction and Documentation
4.40 H

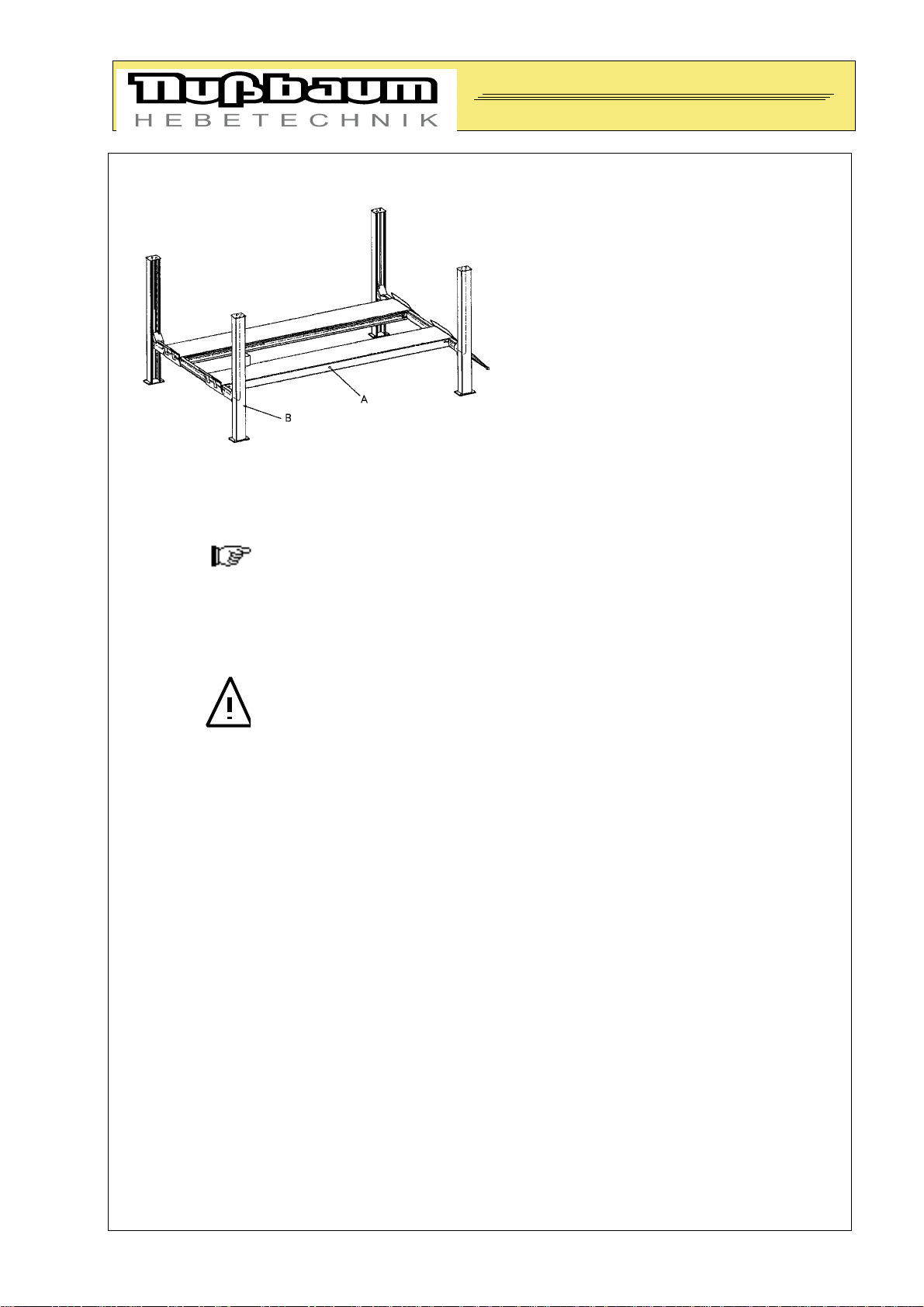

pic 2:
the emergency lowering screw on the rail
A.the screw for the emergency
lowering
B. operating column
