NU-ICE AGE Commando 55 User manual

COMMANDO 55 Dry Ice Blaster
Owners Manual
Nu-Ice Age, Inc. • Jackson, MI USA
Customer Service: 517-990-0665 • www.nuiceage.com
IMPORTANT SAFETY INSTRUCTIONS. READ BEFORE OPERATION.
COMMANDO 55 Dry Ice Blaster
Owners Manual
2
2

Operation Manual
2
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
1.0 INTRODUCTION.............................................................................................. 3
1.1 Warranty..................................................................................................... 3
1.2 Important Safety Instructions ..................................................................... 4
1.3 Dry Ice Safety Precautions...................................................................... 5-6
1.4 Moving and Dry Ice Storage Information.................................................... 6
1.5 Safety During Operation.......................................................................... 6-7
2.0 ASSEMBLY ...................................................................................................... 8
2.1 Delivery Inspection..................................................................................... 8
2.2 Assembly Instructions ............................................................................. 8-9
3.0 DRY ICE PELLET SIZE & QUALITY............................................................. 10
4.0 OPERATION ...................................................................................................11
4.1 Pressurization .......................................................................................... 12
4.2 Dry Ice Feeding........................................................................................ 12
4.3 Start/Stop Procedures.............................................................................. 13
4.4 Ice Blasting Procedures ........................................................................... 13
5.0 MAINTENANCE............................................................................................. 14
6.0 CLEANING INSTRUCTIONS......................................................................... 14
7.0 STORAGE...................................................................................................... 15
8.0 TROUBLESHOOTING.............................................................................. 15-16
9.0 TECHNICAL DATA ........................................................................................ 17
10.0 ELECTRICAL............................................................................................... 17
10.1 Electrical Wiring Schematic.................................................................... 18
10.2 Electrical Box Schematic........................................................................ 19
11.0 TRAINING CHECKLIST.......................................................................... 20-21
12.0 NOZZLES & ACCESSORIES ...................................................................... 22
TABLE OF CONTENTS

Operation Manual
3Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
Thank you for choosing Nu-Ice Age™ Dry Ice Blasting equipment. This guide is designed
to assist the user whose primary responsibility is to maintain and operate the Nu-Ice Age™
Commando 55 Dry Ice Blasting Machine. This manual provides specic information on
assembly, operation, safety, and maintenance procedures. Please read, understand and
follow all procedures stated in this manual.
1.0 INTRODUCTION
Nu-Ice Age shall warrant the Commando 55 Dry Ice Blasting Machine to be free of defects
in material and / or workmanship for Two (2) Years from the date of shipment to the buyer.
The warranty shall cover 100% of all parts and labor with the exception of misuse, abuse,
or neglect. The warranty also does not cover the following items which are deemed to be
consumables.
• Blast Hose Assembly including Power Cable
• Air Lock Feed Wheel
Nu-Ice Age will at it’s option repair, replace or issue credit for the value of any defective
Commando 55. Failure to follow proper operation and maintenance procedures described
in the Owners Manual may limit or void this warranty.
Buyer accepts all responsibility for compliance with any / all Local, State and Federal Laws
or Regulations including Regulations of Foreign Governments.
No equipment shall be returned to Nu-Ice Age without a Return Authorization Number from
our customer service department. Upon evaluation and determination of warranty, replace-
ments or repairs will be sent to the buyer. If a replacement is needed immediately, a Purchase
Order is required to cover the cost of the product until the warranty is determined.
The warranty is limited to replacing any goods that are proved to be defective and Nu-Ice
Age in no event shall have any liability for paying incidental or consequential damages
including and without limitation, damages resulting in personal or bodily injury or death, or
damages to, or loss of use of any property. Notwithstanding any of these terms and condi-
tions, the warranty set forth shall apply in connection with any sales of goods, services or
design by Nu-Ice Age and are in lieu of all warranties, express or implied, including warran-
ties of merchantability and tness for a particular purpose.
1.1 WARRANTY
Manufacture Date
Serial #

Operation Manual
4
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
1.2 IMPORTANT SAFETY INSTRUCTIONS
1. Read all the instructions before using this machine.
2. To reduce the risk of injury, do not operate this machine near children.
3. Always wear the proper eye, ear and skin protection specied in this
manual when operating the machine.
4. Know how to stop the machine and bleed pressures quickly. Be
thoroughly familiar with the controls.
5. Stay alert – watch what you are doing.
6. Do not operate this machine when fatigued or under the inuence of
alcohol or drugs.
7. Keep operating area clear of all unauthorized personnel.
8. Do not overreach or stand on unstable support. Keep good footing and
balance at all times.
9. Follow the maintenance instructions specied in this manual.
10. This machine must be grounded. Follow the grounding instructions
specied below.
GROUNDING INSTRUCTIONS
This machine must be grounded. If it should malfunction or break down, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This product
is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
WARNING – When operating this machine, basic precautions should
always be followed, including the following:
SAVE THESE INSTRUCTIONS
DANGER – Improper connection of the equipment-grounding conductor
can result in a risk of electrocution. Check with a qualied electrician or
service personnel if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the product - if it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not
use any type of adapter with this machine.
WARNING – Risk of injection or injury. Do not discharge blasting stream at
persons.

Operation Manual
5Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
1.3 DRY ICE SAFETY PRECAUTIONS
Dry Ice (Solid CO2) Safety Data
• At a temperature of -110°F (-79°C), insulated gloves should be worn at all times
when handling dry ice to prevent frostbite.
• Proper eye, ear and skin protection should be worn at all times when operating or
in the vicinity of dry ice blasting equipment.
• Even though CO2gas is non-poisonous, it does displace oxygen in the atmosphere
so working spaces should be properly ventilated. Because CO2is 40% heavier
than air, when blasting in an enclosed area, placement of exhaust vents at or
near ground level is recommended. In an open environment, existing ventilation is
sufcient to prevent undue CO2buildup. It is recommended that a breathing appa-
ratus is used in enclosed work areas where CO2gas may accumulate to hazard-
ous levels.
• Store dry ice only in containers approved and labeled for dry ice storage. Storing
dry ice in a container without proper ventilation may result in an explosion hazard
due to the pressure that builds up when dry ice sublimates into gas form.
• Ensure your dry ice supplier provides a current MSDS sheet for any additional
safety information
First Aid Measures
Contact with Skin: Immediately ush effected area with warm water. Do not attempt to pop
any blisters that may appear as a result of frostbite. Seek medical assistance as soon as
possible.
Contact with Eyes: Immediately ush eyes thoroughly with water for at least 15 minutes. In
case of frostbite, spray with lukewarm water for at least 15 minutes. Apply a sterile dressing.
Seek medical assistance as soon as possible.
Excess Inhalation: In high concentrations (5000 ppm or higher), CO2can cause asphyxia-
tion by displacing the oxygen required for breathing. Symptoms may include loss of mobility
or consciousness. The victim may not be aware of asphyxiation. In case of asphyxiation,
immediately move victim to an uncontaminated area. Apply articial respiration if breathing
has stopped. Keep victim warm and rested. Seek medical assistance as soon as possible.
Refer to the MSDS sheet provided by your dry ice supplier for additional rst aid
information.
Safety Training
Asphyxiation and other potential safety hazards must be stressed during operator training.
Always review safety procedures with operators before allowing them to operate any dry ice
blasting equipment. Before using this product in any new process, a material compatibility
and safety study should be performed.
Always ensure that all Local, State and Federal Laws and Regulations are observed, includ-
ing Regulations of Foreign Governments.

Operation Manual
6
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
Prior to blasting, carry out a risk assessment in order to have the proper safety precautions
in place. Ensure that those operating the equipment have been properly trained and under-
stand the risks associated with dry ice. Always secure the area that is to be blasted with
dry ice — no unauthorized or untrained personnel should be allowed to operate the
machine or enter the working area.
Conrm the nature of the coating or substance that is to be cleaned before beginning
the blasting process. If hazardous materials are present, appropriate safety precautions
must be taken to avoid exposure, such as local exhaust ventilation or personal protective
equipment.
Always inspect air supply and blasting hoses for any potential damage and ensure all
connections are secure prior to operation.
This machine may be used indoors and outdoors. Operating the machine in heavy
rain is not recommended, water will freeze up the dry ice pellets and clog the hopper.
Follow All Safety Precautions During Setup and Operation shown on Page 7
When transporting the machine, always secure with straps or other appropriate method to
avoid the risk of damaging equipment.
Do not transport dry ice in any vehicle where the storage area is not separate from the driv-
er’s compartment (such as a car or station wagon). Driver must be aware of the potential
hazards of CO2and know what to do in the event of an accident or emergency. Ensure dry
ice containers are secured and that adequate ventilation is provided before transporting.
Unused dry ice may still remain in the ice blaster after blast cleaning work. As a safety
precaution, purge the remaining dry ice from the machine until the hopper is empty. This also
prevents ice clumps from building up in the machine.
Only properly labeled equipment that is approved for use with dry ice should be used
to store dry ice pellets. Always keep containers in a well-ventilated area.
1.3 DRY ICE SAFETY PRECAUTIONS (continued)
Additional safety information can be found at the following websites:
http://www.osha-slc.gov/
http://www.ansi.org
http://www.nfpa.org
1.5 SAFETY DURING OPERATION
1.4 MOVING AND DRY ICE STORAGE INFORMATION

Operation Manual
7Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
H
C
F
D
FACE PROTECTION OR GOGGLES
Always wear safety goggles or face protection when operating dry ice blast-
ing equipment, especially to ensure protection from any blowback of the
contaminant being removed.
EAR PROTECTION
Always wear proper hearing protection. Harmful noise levels can be experi-
enced that can result in permanent hearing loss. Nearby workers must also
have hearing protection when standing within 100 ft (30.5 m) of the work
area. Double ear protection (ear plugs & ear muffs) is recommended to all
workers in the blasting area. Pregnant women should not operate machine
or be in the noise area.
PROTECTIVE GLOVES
Always use suitably insulated protective gloves when handling dry ice or
cold parts of the machinery. Contact with dry ice may cause cold burns or
frostbite, use gloves and the supplied Ice Scoop to avoid this.
BREATHING APPARATUS
Wherever suitable ventilation cannot be provided, a breathing apparatus
with a supply of breathing air should be present. Dry ice blasting can cause
airborn particulates and correct respiratory protection should be matched
with the contaminant(s) being removed (i.e. mold, lead paint, etc.).
ASPHYXIATION HAZARD
In small enclosed rooms and areas with little or no ventilation, CO2
may accumulate to dangerous levels. A CO2detector should be used
to conrm safe conditions. Where necessary, a breathing mask with a
fresh air supply should be worn.
CAUTION!
Never touch the pellet stream or nozzle during operation.
Never blast or aim blasting gun at people or animals.
Do not ingest dry ice or handle without proper protection.
LOW TEMPERATURE
The temperature of dry ice is -110°F (-79°C). Do not touch or allow direct
contact with dry ice. Always use protective clothing and gloves when
handling dry ice and equipment that contains dry ice.
ELECTRIC SHOCK HAZARD
Objects to be cleaned must be grounded in order to avoid a potential
static electrical discharge caused by the velocity of the pellets in the air
stream. Do not operate the blaster if you wear a pacemaker.
1.5 SAFETY DURING OPERATION (continued)

Operation Manual
8
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
2.0 ASSEMBLY
Each Commando 55 Dry Ice Blaster ships complete with the following items:
• Dry ice blasting unit & protective cover
• 24 ft (7.3 m) blasting hose and 40 ft (12.2 m) air supply hose
• Blasting gun plus 1 round nozzle, 1 fan nozzle, 1 nozzle extension and 1
twist grip handle
• Control cable connecting gun to the blaster (running inside the hose cover)
• Ice Scoop
Inspect your new dry ice blasting machine upon arrival for any damage that may have
occurred during shipping. Please notify the transportation company as well as Nu-Ice Age
within 24 hours if any damage is present. Verify that all parts described on your packing list
have been delivered.

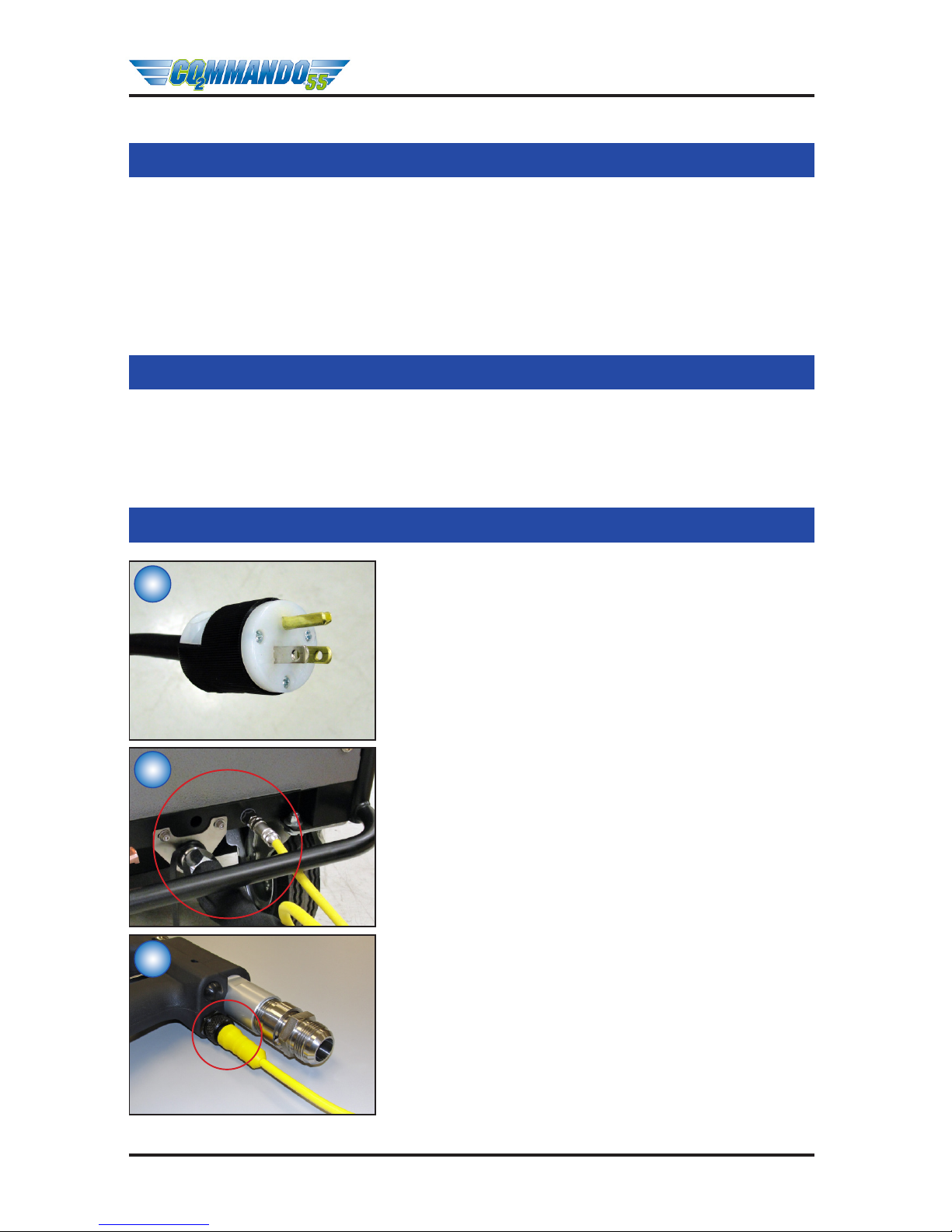

1. Connect the Power:
Check to make sure the power switch on the front panel
is in the “OFF” position. Connect the power supply cable
to an appropriate power supply. The Commando 55 Ice
Blasting Machine requires a 120 V AC power source.
The power supply must be grounded (see ground-
ing instructions on page 4). Always turn off the Power
Switch when making any changes (nozzle, extensions,
ttings etc.) at the blast gun.
2. Control Cable and Hose:
Connect the male socket of the control cable to the
socket on the front of the ice blaster. When the plug is
lined up, tighten to secure.
Connect the blasting hose to the hose connection at
the lower front of the blaster. Attach the JIC connection
securely using a 1 3/8” wrench.
3. Blasting Gun and Nozzles:
Connect the gun to the control cable and the hose. Use
a 1 3/8” wrench to secure the JIC connection to the gun.
If needed, connect the extension pipe(s) to the gun by
screwing the pieces together (rmly hand-tighten) using
the connector piece. Continued on page 9...
2.1 INSPECTION UPON DELIVERY
2.2 ASSEMBLY INSTRUCTIONS
1
2
3Hose
Connection
Point

Operation Manual
9Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
2.2 ASSEMBLY INSTRUCTIONS (continued)
Nozzle Extension
Gun assembly
with fan nozzle,
without extension
Use the connection piece to connect the nozzle to the
gun or extension pipe (if tted). Attach the twist-grip
handle by hand tightening onto the extension.
A selection of nozzles are available for a variety of differ-
ent cleaning applications. It is recommended that a test
area be blasted rst to establish which nozzle will func-
tion the best for each cleaning application. Always turn
off the power when changing blasting nozzles.
4. Compressor Connection:
An air hose with a female JIC #16 tting will be required
for operation. Ensure the yellow lever on the air bleed-
off valve is in the closed position (90° to valve). Attach
the safety lanyard to the hose by pulling the spring
back until the loop ts over the air hose. Connect the
compressed air hose from the air source (such as a
portable compressor or xed compressed air system)
to the compressed air inlet on the back of the blast-
er as shown. Use a 1 3/8” wrench to secure the JIC
tting. Ensure that all hoses are connected properly
and inspect for any damage. Replace damaged hoses
as needed.
Always use clean, dry air free from oil, particles and
humidity. An aftercooler/air dryer is often recommended
(portable units available from Nu-Ice Age). When using
shop air, ensure that consideration has been given to
the volume of air required for operation.
Never disconnect hoses while the machine is in opera-
tion. At the end of a cleaning job, rst shut down the
compressed air source, then press the yellow lever
on the bleed off valve in the open position (parallel to
valve) to depressurize.
5. Static Ground Wire:
To minimize the risk of shock due to static electricity,
always attach the static ground wire to the object you
are blasting. Ensure that the location of the clip is not
in an area where it is at risk of being blasted off or slip-
ping off.
4
5
Air Bleed-Off Valve

Operation Manual
10
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
3.0 DRY ICE PELLET SIZE & QUALITY
Dry ice pellets contaminated with moisture can
result in freezing of the air chamber rotor and hose.
Pellets typically become mushy or clumped together
when they contain too much moisture. For best
performance, the use of fresh dry ice pellets without
signs of moisture contamination is recommended.
To the left is an example of dry ice pellets that are
compatible with the Commando 55 Dry Ice Blaster.
The correct size of dry ice pellets for the Commando 55 is approx. 1/8” (3 mm) dia. and is
commonly referred to as “blasting rice.”
Any foreign objects other than dry ice pellets that fall into the hopper can result in serious
damage to the air/CO2chamber.
Always keep the top lid closed during operation to avoid dirt and debris from falling into the
hopper.
Do not leave dry ice in the hopper for an extended period of time (10 minutes or more). It
may solidify and cause a blockage.

Operation Manual
11 Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com

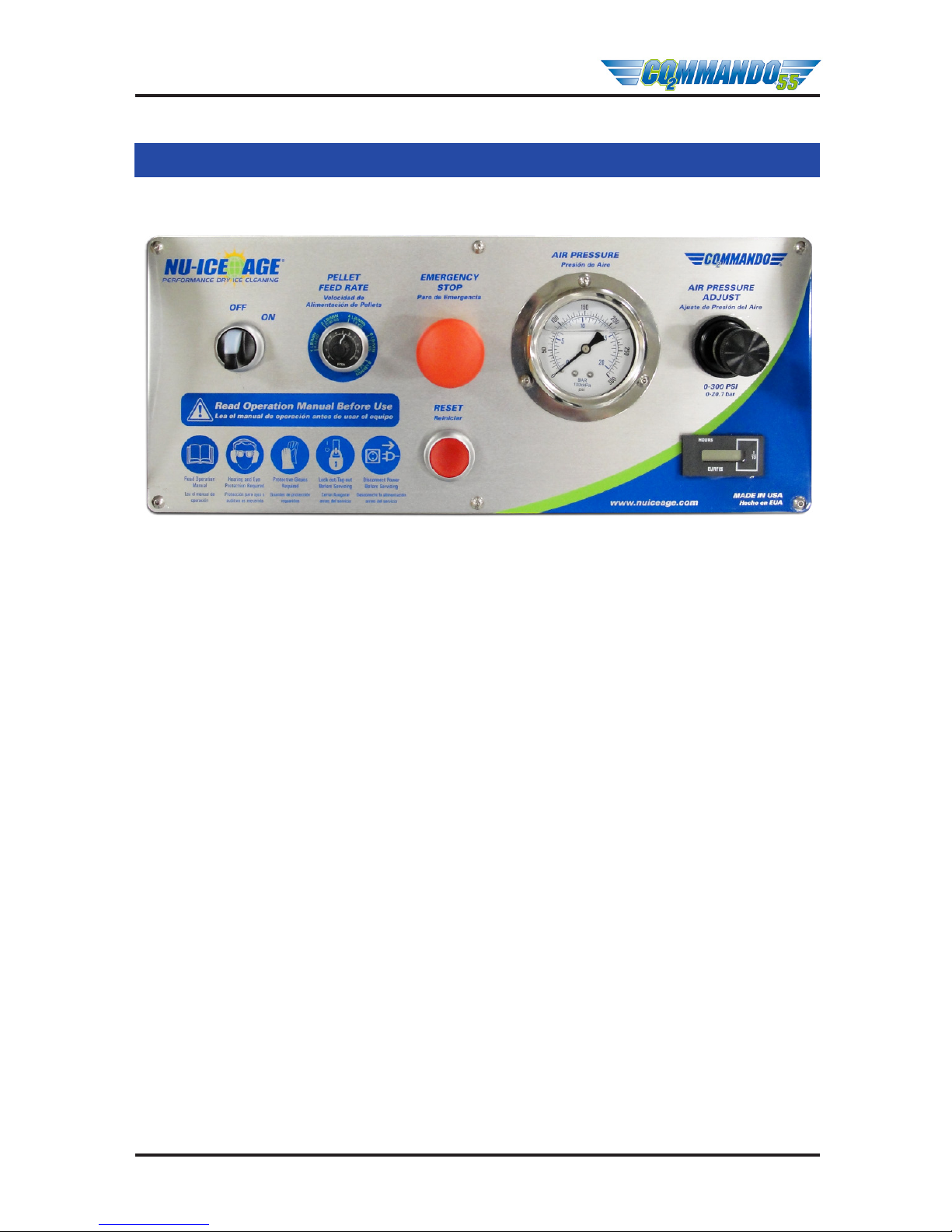

4.0 OPERATION
1. On/Off Button
Once the power and all cables/hoses are properly connected turn the button to the ON posi-
tion. The button should light up and the blaster is now ready for operation.
2. Pellet Feed Rate
To adjust the consumption of pellets, the speed of the feed wheel can be adjusted by turn-
ing this knob on the front panel. For higher pellet consumption, turn the knob clockwise; for
lower consumption, turn it counterclockwise.
Note: This control provides approximate proportional control of the pellet quantity. The regu-
lation of pellet consumption will not interfere with the air pressure or air stream.
3. Emergency Stop
Push down for emergency stop of the blaster. Ensure that the operator knows how to isolate
and shut down the compressed air source in an emergency. By turning clockwise, the stop
button is deactivated and normal operation will resume.
4. Reset Button
The Error button will light up to indicate an overload at the motor or a problem with the
power supply to the inverter. Press the Reset button to reset the machine if this occurs.
5. Air Pressure Adjustment
The working pressure can be read at the top of the front panel. To adjust the pressure, use
the dial next to the air pressure gauge. Turn the dial clockwise to increase the pressure and
counter-clockwise to decrease. Pressure can be adjusted before and during work.
6. Hour Meter
The hour meter on the bottom right shows the number of hours on the machine.
Top Control Panel

Operation Manual
12
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
Safety
Trigger (also activates light)
Ice ON/OFF Switch
Open the valve slowly at the air supply to the blaster in order to avoid pressure shock to the
hose and the machine. This will prevent damage to pneumatic components.
Adjust the working pressure to what is required for each job. It is highly recommended that
a test clean is performed at low pressure and gradually increased until the point where it
removes the unwanted substrate or coating.
Prior to lling dry ice into the hopper ALWAYS activate the blast function for about 30
seconds by pulling the trigger on the gun to empty the hose and machine of humidity
and moisture.
Pour dry ice into the hopper. Fresh dry ice is always recommended to avoid clogging. Close
the lid to minimize evaporation of dry ice and the ingress of humidity and dirt. Do not overll
to the point where the lid cannot be closed. Use only dry ice — use of other materials in this
machine will void the warranty. Upon initial use, start by pouring about a gallon of dry ice in
the hopper and blast it out. This will allow the parts to chill and then you can ll the hopper
with ice as needed.
Do not blast without any dry ice in the hopper (after initial system purging). Without dry ice
the feed wheel inside the machine will run extremely hot and may be damaged.
Start of Dry Ice Blasting
When the blaster is connected properly, correct air pressure is adjusted and dry ice is in the
hopper, you are ready to begin dry ice blasting.
Before beginning, have a rm grip of the gun and do not point at yourself or in the direction of
other people. Stand in a safe working position.
To start ice blasting, rst ensure the power switch is in the ON position. To engage, push down
the safety lever on the gun, then pull the trigger on the pistol grip (once started it is only neces-
sary to keep the trigger pressed). If only air is spraying from the gun, press the ice on/off switch
to turn on the ice.
When starting, keep the gun
some distance from the object
to be cleaned until you are able
to conrm the back-pressure of
the gun. Blasting pressure and
amount of dry ice can be adjust-
ed during operation.
4.1 PRESSURIZING
4.2 FEEDING DRY ICE
4.3 START/STOP PROCEDURES

Operation Manual
13 Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
Stop of Dry Ice Blasting
To stop blasting, release the trigger on the gun. Once the trigger is released, the vibrator
will stop, however air will continue to ow for approx. 1/2 second to purge any dry ice left
in the hose.
If stopping for more than 30 minutes, ensure the hopper is empty and blast air through the
system for a short period to clear out any dry ice that may be left in the system. This avoids
dry ice clumping in the hopper and air chamber chute.
Important! When the system is empty, stop blasting to avoid unnecessary wear on
the feed wheel.
If dry ice pellets are not returned to storage immediately, care should be taken to ensure
their safe disposal. Avoid leaving pellets exposed where untrained personnel or children
may be able to touch them, or in an enclosed area where sublimation could cause a hazard-
ous atmosphere.
WARNING
Do not attempt to modify any controls or other components on this machine.
Tampering with the safety trigger, pressure control, pressure relief valve or
any other components can lead to serious risk of injury.
4.3 START/STOP PROCEDURES (continued)
• Small objects should be xed or mounted properly before blasting.
• Do not leave loose parts in the blasting area.
• Some dry contaminants tend to pulverize while cleaning. If a maximum total dust
concentration of 6 mg/m3 (ne dust) is exceeded, a breathing mask must be worn.
Protective measures should be taken such as Local exhaust ventilation and/or
other personal protective equipment. A suitable mask or other control measures
may be required to protect against specic hazardous contaminants. In poorly
ventilated enclosed spaces, forced ventilation or breathing apparatus may be
required to avoid asphyxiation by sublimated carbon dioxide.
• The nozzle gun discharges gases and CO2pellets at very high velocities (up to
300 m/sec or 1000 ft/sec). Never aim the gun at human beings or animals as seri-
ous/fatal injuries may be caused.
• When activating blasting, back-thrust will occur in the opposite direction of the
airow. In order to anticipate the reactive thrust, always take a wide stance (with
feet approx. 2 ft or 60 cm apart) and your upper body leaning into the direction
where the nozzle is pointing.
4.4 ICE BLASTING PROCEDURES

Operation Manual
14
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
Active maintenance is necessary only if the performance of the dry ice blasting machine is
no longer satisfactory. However, inspection and cleaning of the unit/hoses at regular intervals
is recommended. Servicing this machine beyond the basic maintenance procedures
listed on this page should only be performed by an authorized service representative.
Inspection of Blasting and Air Supply Hoses
Prior to blasting, always inspect the blasting hose and air supply hose for damage (such as
cuts, holes or excessive wear). A damaged hose can be a serious safety hazard. If hoses
are damaged replace immediately. Do not operate the machine with a damaged hose.
Replace only with Nu-Ice Age OEM hoses, use of other air hoses may void warranty.
Accessing Internal Parts
Panels on each side of the machine are easily removable to provide access to the air cham-
ber and other internal parts (see photos below). Simply turn the two locking screws on each
side to open the panels.
5.0 MAINTENANCE
Left Side: Air Valves/Control Cables Right Side: Motor/Air Chamber & Vibration Unit
6.0 CLEANING INSTRUCTIONS
Automatic Moisture Filter
On the back of the machine is an automatic lter/drain for removal
of moisture in the air line. This lter will automatically drain when full.
Frequency of drainage will vary based on the amount of moisture in the
air supply line, and if a dryer is installed in the air supply system the lter
will likely drain less frequently.
Clean your dry ice blasting machine with low pressure compressed air.
If the equipment has become dirty, it should be cleaned by means of a
wiper moistened with a cleaning material (degreaser). Do not pressure
wash.

Operation Manual
15 Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
The machine can be stored at temperatures of 23°F to 104°F (-5°C to 40°C). Please note
that temperature changes overnight of 68°F (20°C) might cause condensation inside the
electronics, which can cause damage to the equipment. If condensation is suspected then
place the equipment in a warm room (59°F to 72°F or 15°C to 22°C) for 1 hour prior to
use.
7.0 STORAGE
8.0 TROUBLESHOOTING
Problem Possible Cause Solution
Blaster does not start No Power Verify On/Off switch is in the
“ON” position and Emergency
Stop is not pressed.
Check electrical connections
and verify there are no loose
cables.
Blaster Stops
(Motor not running)
Emergency Stop button is
pressed
Turn Emergency Stop button
clockwise to deactivate
Control button on the gun is
not pressed to start the ma-
chine
Squeeze trigger all the way
down to ensure the button is
pressed.
Dirt or debris is in the air
chamber
Clean/check air chamber for
damage.
Motor Overload (Red light
is illuminated on the Reset
button)
Press the Reset button and
the inverter/motor is reset
automatically. Check inverter
control for any error messag-
es. A manual explaining the
inverter operation and error
messages is located inside
the electrical control panel.
Note that excessive voltage
drops (caused by power surg-
es/power use from equipment
using the same power supply)
can cause the inverter to stop
functioning. If this occurs, nd
an alternate power source.
Check air chamber for debris.
If you have a problem with your machine that cannot be resolved, please contact our custom-
er service department to receive technical assistance. Improper maintenance or attempt-
ed repair that results in damage to the machine is not covered in the manufacturer’s
warranty (see section 1.1).

Operation Manual
16
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
Problem Possible Cause Solution
Blaster Stops
(Motor not running)
Feed wheel not turning. Check for debris lodged in the
feed wheel.
Call customer service for feed
rotor clearance specs.
Damaged/Loose Control
Cable
Check for proper connec-
tion and damage. Replace if
damaged.
Little or No Dry Ice Delivery No pellets in the hopper Fill hopper with pellets
Dry ice delivery is turned off at
the blasting gun (air only)
Push button on the back of
the gun to turn on dry ice
Twisted feed hose Check hose and uncoil if
necessary
Dry ice is clogged due to too
much moisture
Use a water separator & after
cooler on the air compressor.
Check to see whether old dry
ice has breached above the
feed chute at the bottom of
the hopper.
Frozen hopper Remove ice clump from hop-
per outlet. To avoid this prob-
lem, ensure the hopper lid is
kept closed between llings.
Hose, gun, pipe or nozzle is
blocked by ice
Check for pellet blockage
inside the feed hose.
If blockage is found, discon-
nect the hose and gun and
allow the dry ice to sublimate.
Sublimation can be increased
by applying heat.
If an ice crusher is being
used, ensure that a large
aperture nozzle is being used.
You may also try using higher
pressure, older, softer dry ice
or a larger size grating.
Problem with air supply to the
blasting machine
Check air pressure at the air
supply. Examine air supply
hoses for kinks or damage.
Low Air Pressure at the
Nozzle When Blasting
Damaged feed wheel Check the feed wheel for
damage causing excessive air
leakage.
Blasting nozzle is too big Use smaller nozzle.
Insufcient Air Supply See air supply requirements
on page 17.
8.0 TROUBLESHOOTING (continued)
Power Requirements 110-140 V AC (50/60 Hz) 4.8 amps, single phase
Motor Horsepower 1/2 HP
Dimensions 39” H x 23.2” W x 33.25” L (1 m x 589 mm x 845 mm)
Weight 234 LB (106 KG)
Hopper Size 55 LB (25 KG)
Pellet Feed Rate 0 - 7.5 lbs/min (0 - 3.4 KG/min)
Blasting Pressure 50 - 250 PSI (3.4 - 17.2 bar)
Blasting Hose
Requirements
Standard Hose Range: 50-150 PSI (3.4-10.3 bar)
High Pressure Hose Range: 50-250 PSI (3.4-17.2 bar)
Air Supply
Requirements
Minimum: 50 PSI @ 180 scfm (5.1 m³/min)
Recommended: 100 PSI @ 200 scfm (5.5 m³/min)
Air source requirements will depend on application
Air Supply Hose
Requirements
1” (25.4 mm) I.D. for most applications
For working radius of 200 ft or more, a 1.5” ID hose is required

Operation Manual
17 Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
9.0 TECHNICAL DATA
Power Requirements 110-140 V AC (50/60 Hz) 4.8 amps, single phase
Motor Horsepower 1/2 HP
Dimensions 39” H x 23.2” W x 33.25” L (1 m x 589 mm x 845 mm)
Weight 234 LB (106 KG)
Hopper Size 55 LB (25 KG)
Pellet Feed Rate 0 - 7.5 lbs/min (0 - 3.4 KG/min)
Blasting Pressure 50 - 250 PSI (3.4 - 17.2 bar)
Blasting Hose
Requirements
Standard Hose Range: 50-150 PSI (3.4-10.3 bar)
High Pressure Hose Range: 50-250 PSI (3.4-17.2 bar)
Air Supply
Requirements
Minimum: 50 PSI @ 180 scfm (5.1 m³/min)
Recommended: 100 PSI @ 200 scfm (5.5 m³/min)
Air source requirements will depend on application
Air Supply Hose
Requirements
1” (25.4 mm) I.D. for most applications
For working radius of 200 ft or more, a 1.5” ID hose is required
10.0 ELECTRICAL
Modular Electrical Box
The Commando 55 features a modular electrical box that can easily be removed in case
an electrical problem occurs that requires repair. The electrical box is located behind the
panel on the front of the machine. To remove the box, ensure the machine is unplugged
then remove the four screws on the white cover and detach the two cable connections on
the left and right side.
Electrical Box (cover removed)
Lift latches to
detach cables
Hopper vibration
is set to run at
even intervals.
Flip this
switch on for
continuous
vibration.

Operation Manual
18
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com

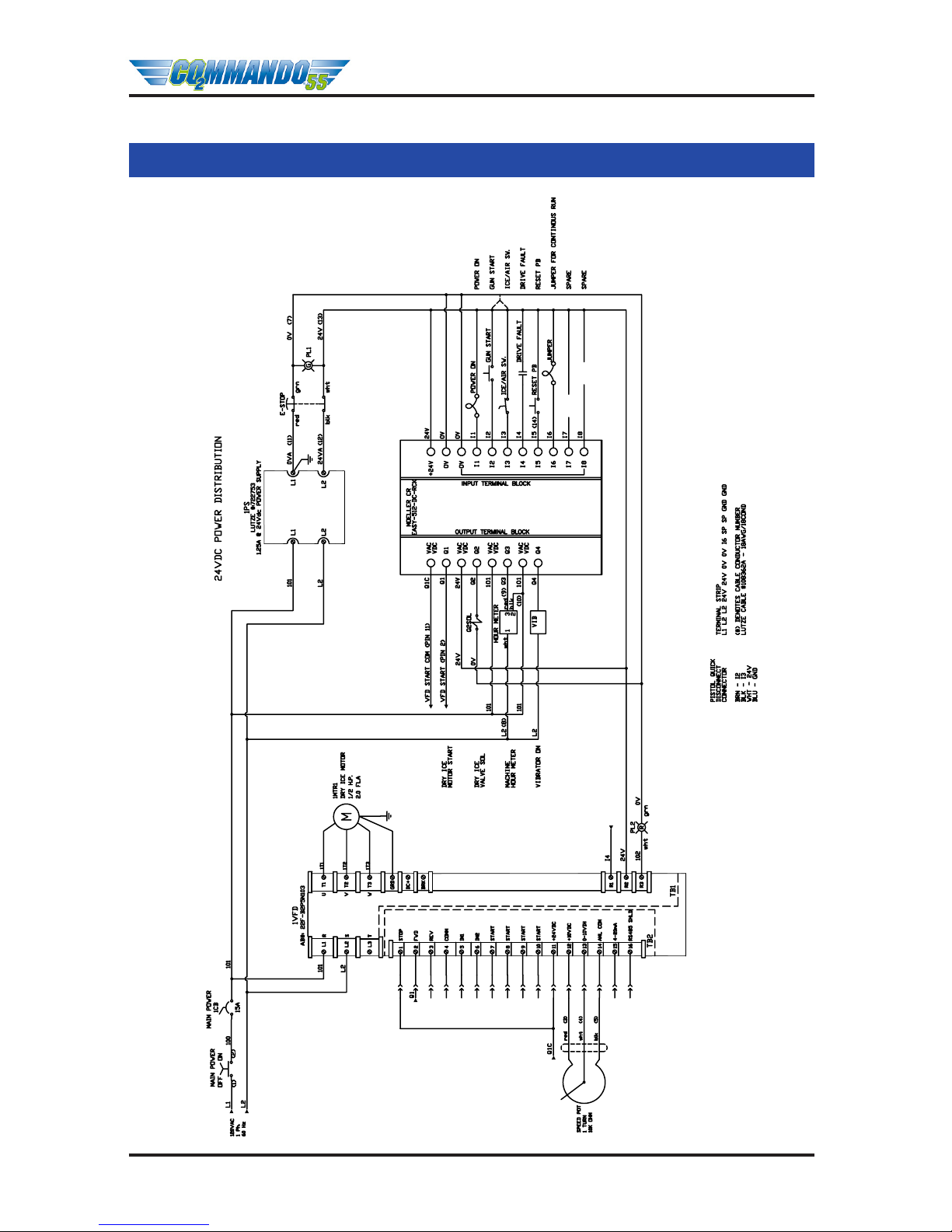

10.1 ELECTRICAL WIRING SCHEMATIC

Operation Manual
19 Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com

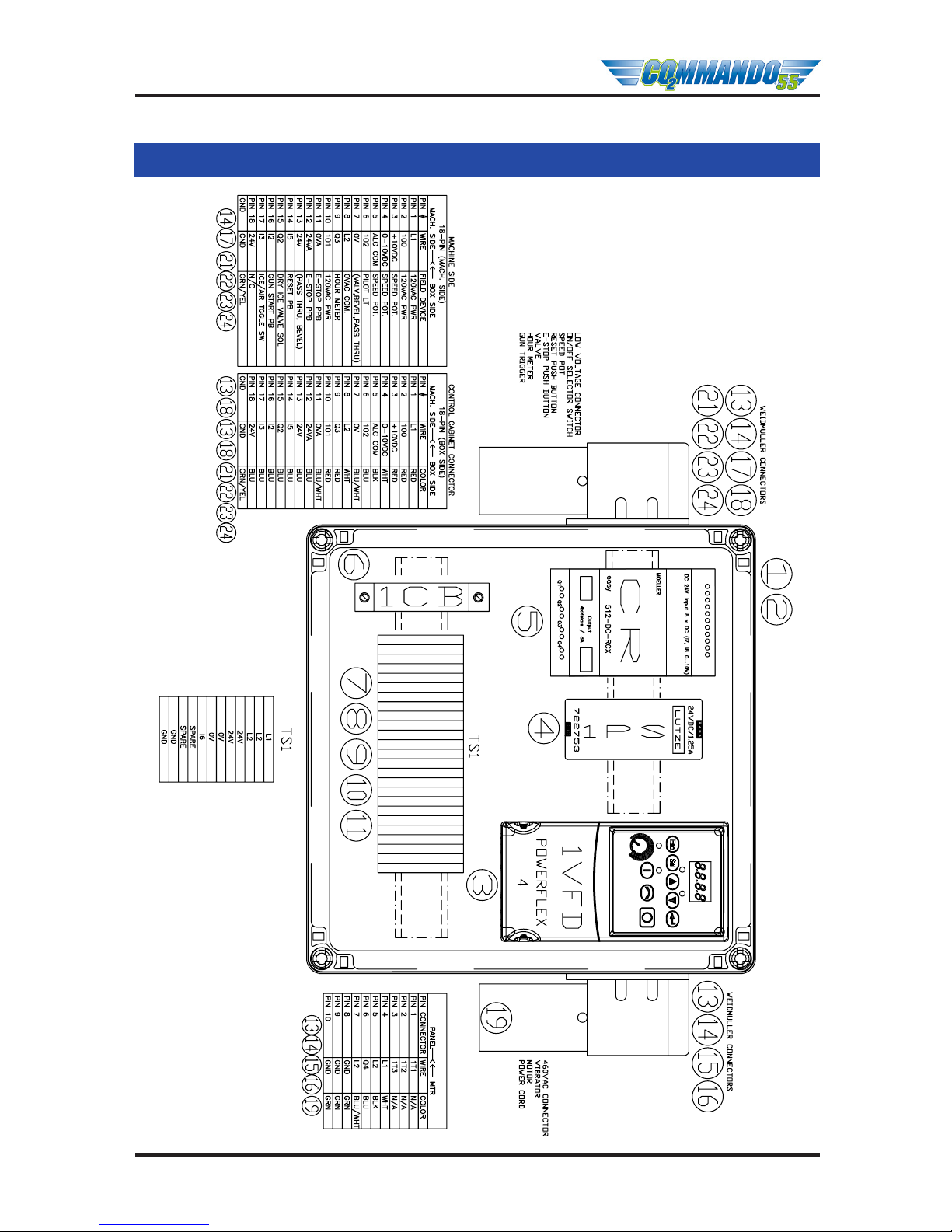

10.2 ELECTRICAL BOX SCHEMATIC

Operation Manual
20
Rev. 1/14
Nu-Ice Age, Inc. • Jackson, MI USA • Customer Service: 517-990-0665 • www.nuiceage.com
11.0 TRAINING CHECKLIST
The following is a list of operational procedures that should be included in dry ice blasting
training sessions:
1. Equipment Identication and purpose of use
___ Review ID tag on machine
___ Properties of dry ice blasting (gas ushing, non-abrasive)
___ Only properly trained individuals should operate the machine.
___ Pregnant women should not operate the equipment or be in the noise area.
2. Discuss Hazards
___ Dry ice (asphyxiation, burn hazard, lifting blocks, transferring pellets)
___ Blast hazard (aim the gun safely, plastic barrier curtains)
___ Pinch Points
___ Static and proper grounding, do not use if you wear a pacemaker
___ Electrical connection
___ Stored compressed air, placement of air hose, use of whip checks
___ Conned space work (refer to OSHA requirements)
3. Attire
___ Long sleeve shirts, long pants, Tivek suits
___ Gloves
___ Safety shoes
___ Eye protection (safety glasses, side shields, goggles, face shields)
___ Ear protection (both plugs and muffs are recommended)
4. Air Supply
___ Pressure and SCFM, minimum and maximum
___ Separators, dryers, aftercoolers (need for clean/dry air)
5. Guns & Nozzles
___ Review all Components
___ Install / remove nozzles, inserts, extensions
___ Explain function of different nozzles
6. Operation
___ Air and blast hose connections, blow down inlet air
___ Explain control panel, start up and shut down procedures
___ Explain machine components (hopper, vibrator, motor, airlock system)
7. Maintenance
___ Review Owners Manual
___ Cleaning (exterior, guns, nozzles, hoses, hopper)
___ Hoses and ttings (inspect for wearing or cracking)
